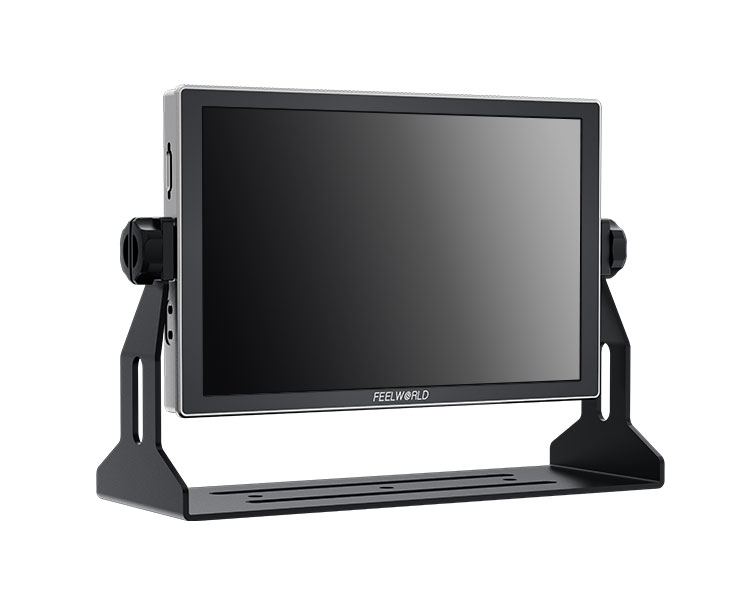

Multi-Camera Horizontal & Vertical Broadcast Monitor
FEELWORLD M101S is a 10.1-inch Full HD high-brightness multi-view monitor. It is equipped with dual 3G-SDI and dual HDMI 2.0 ports, supporting signal transmission up to 4K60p.
The M101S built for short drama production, multi-camera workflows,and outdoor shooting, the monitor accepts up to 4 video input channels and offers a variety of multi-view monitoring layouts, including landscape and portrait modes.
A full set of professional assist tools such as waveform, 3D LUT, HDR, and audio monitoring is integrated to support efficient on-site production.

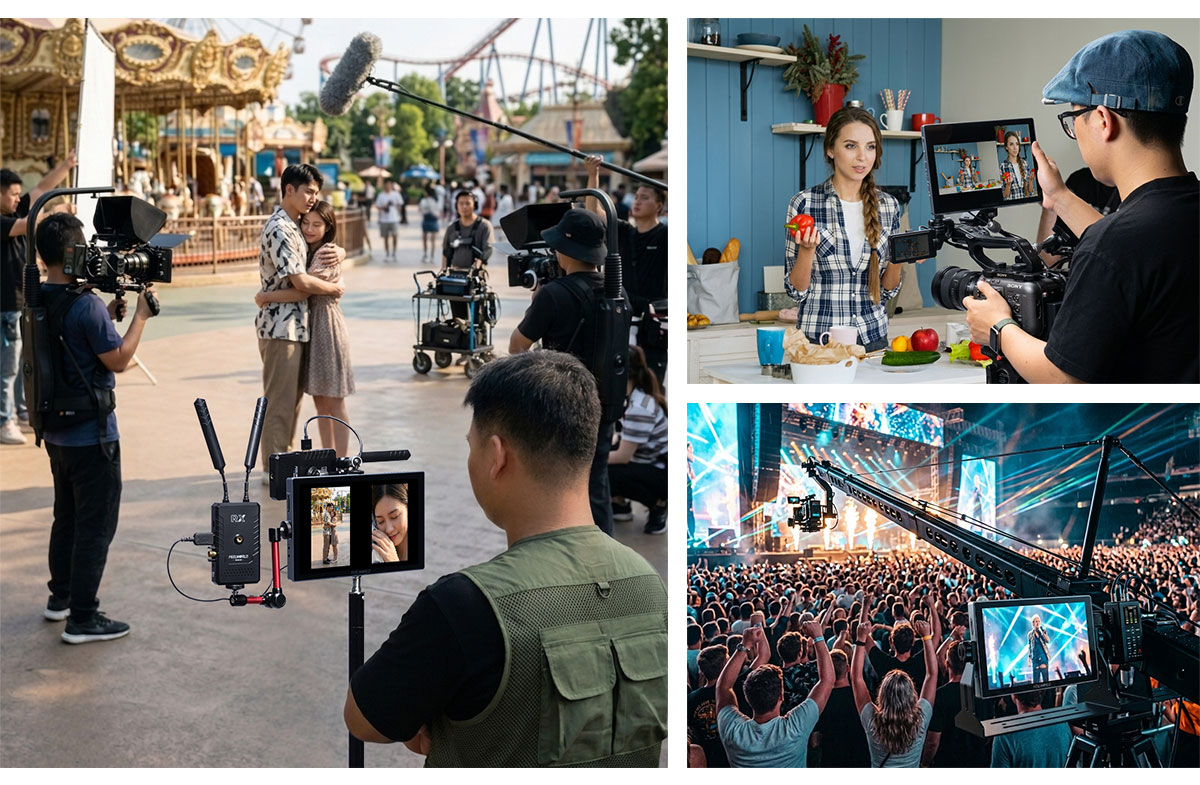

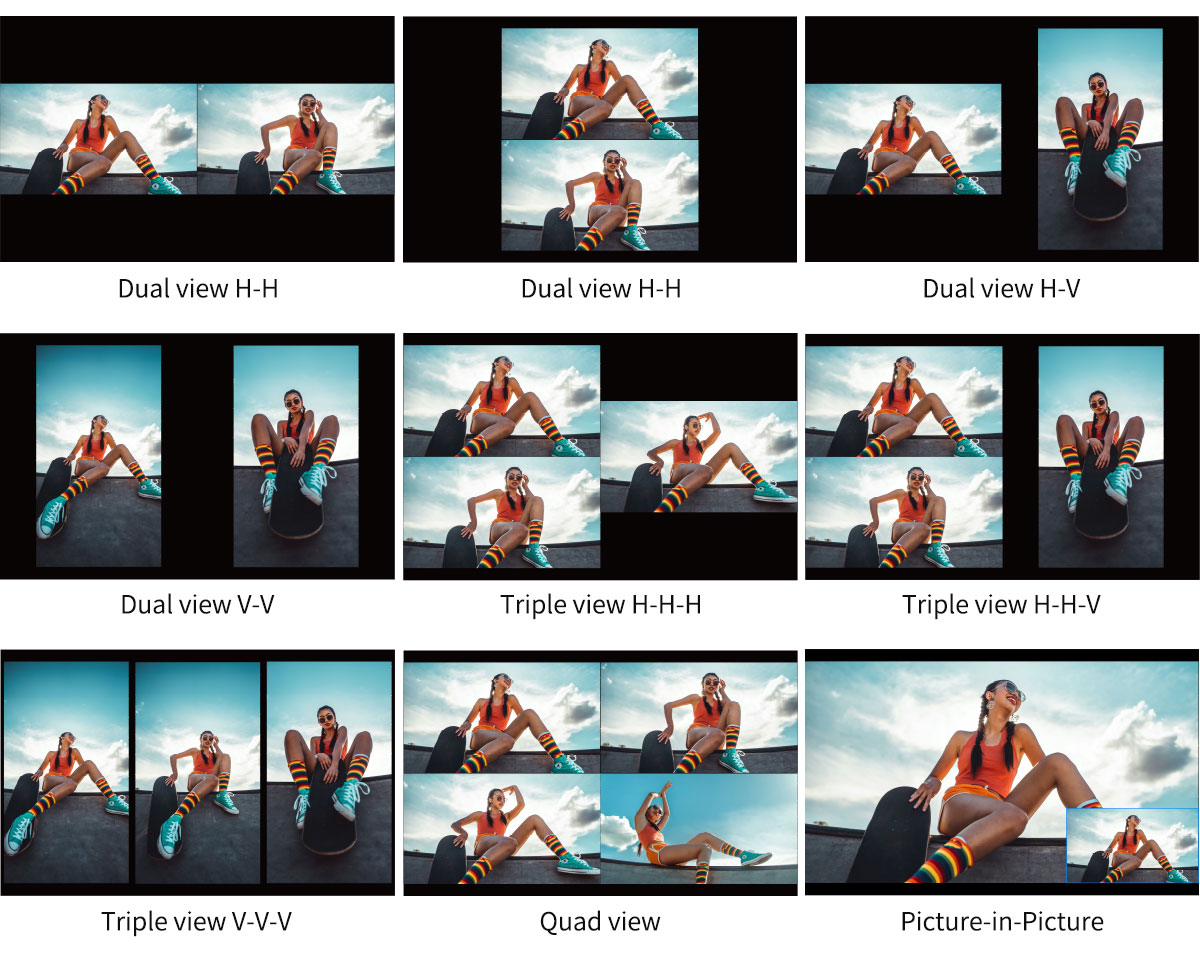

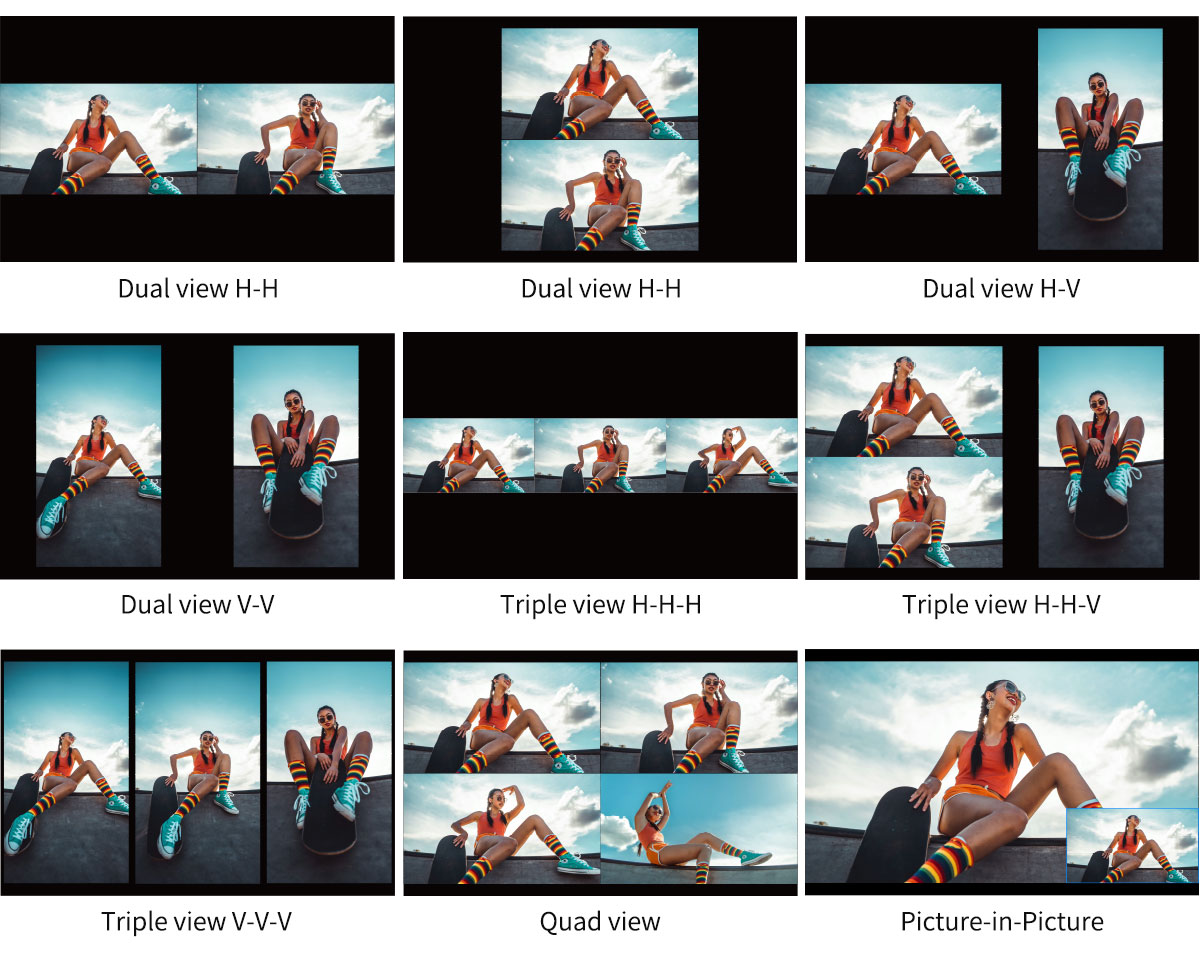

Multi-view Monitoring Mode
The screen can be set to dual, triple,and quad view through menu settings, supporting picture-in-picture mode, it perfectly fits diverse complex monitoring needs and delivers flexible, efficient use.

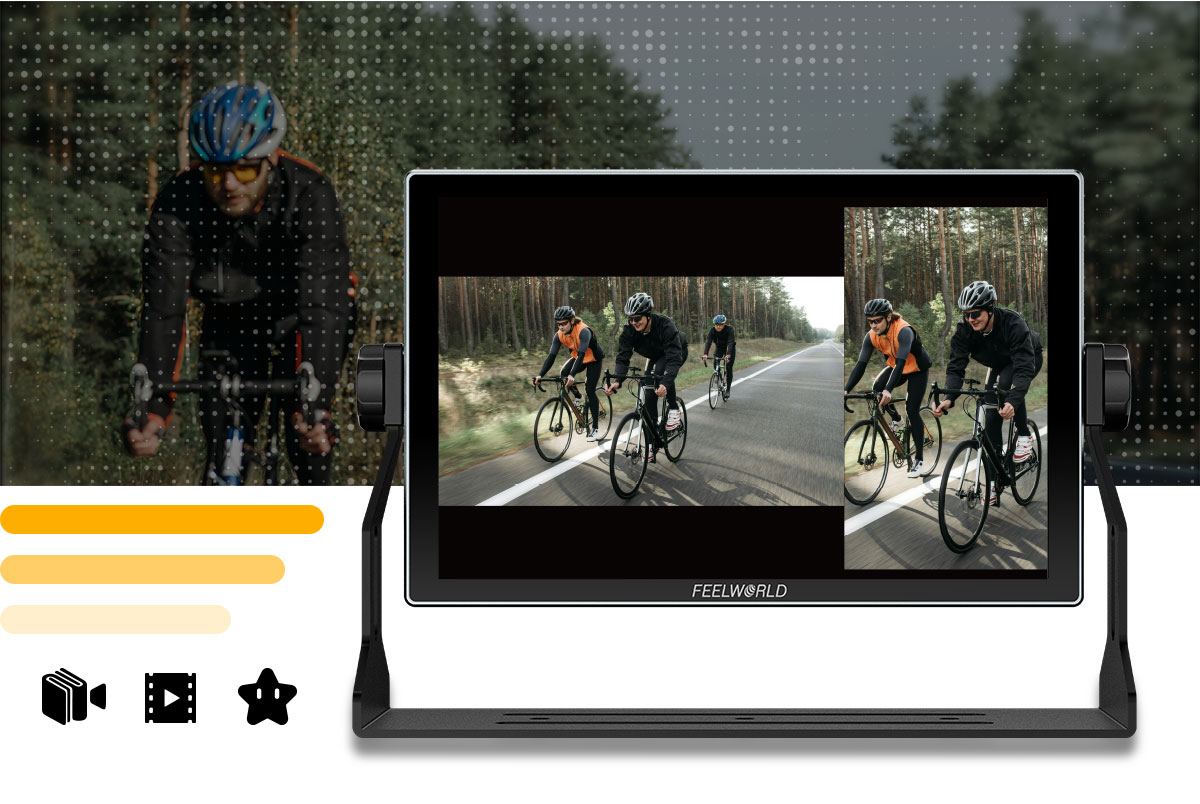

Horizontal Shooting & Vertical Cropping
The M101S comes with cropping function. It enables seamless connection from horizontal shooting and vertical output, perfectly suited for short drama filming and mobile content creation.

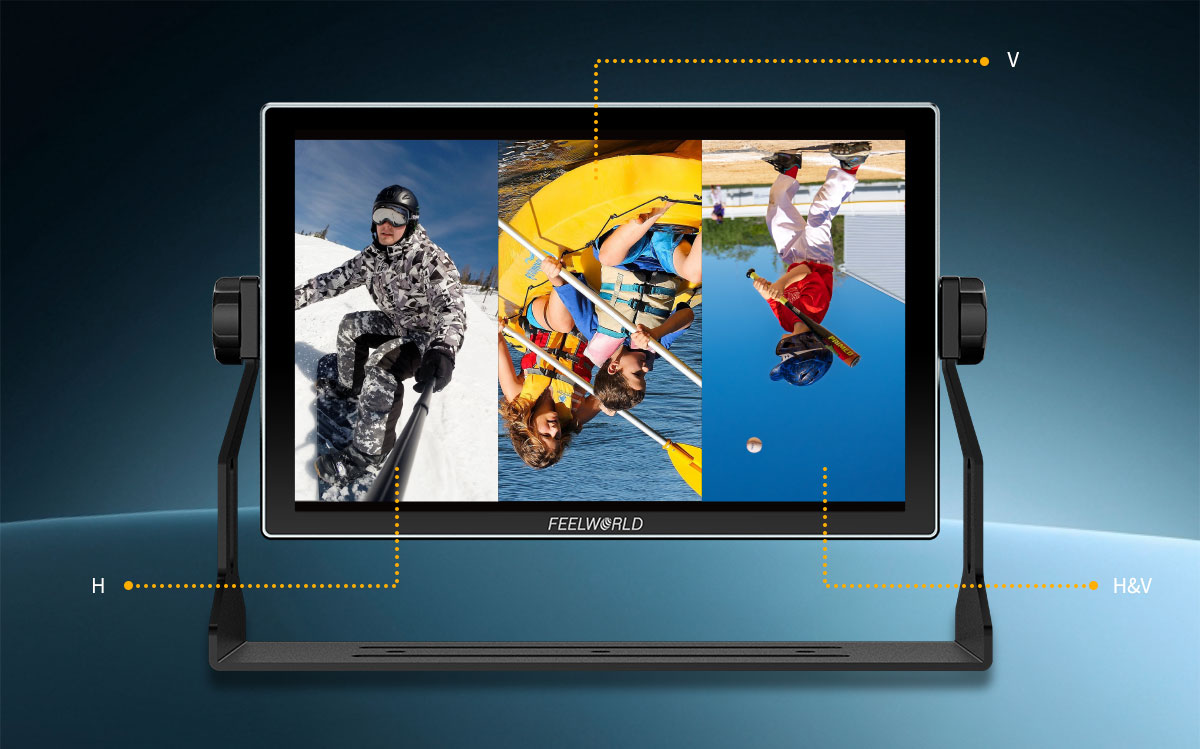

Independent Mirror Flip for Each Window, Easier Monitoring
In multi-screen mode, the independent image flip function for a single window is supported. Without adjusting the camera angle or wiring installation, any single screen can be freely mirror flipped, making camera installation more flexible and efficient, and improving monitoring efficiency.

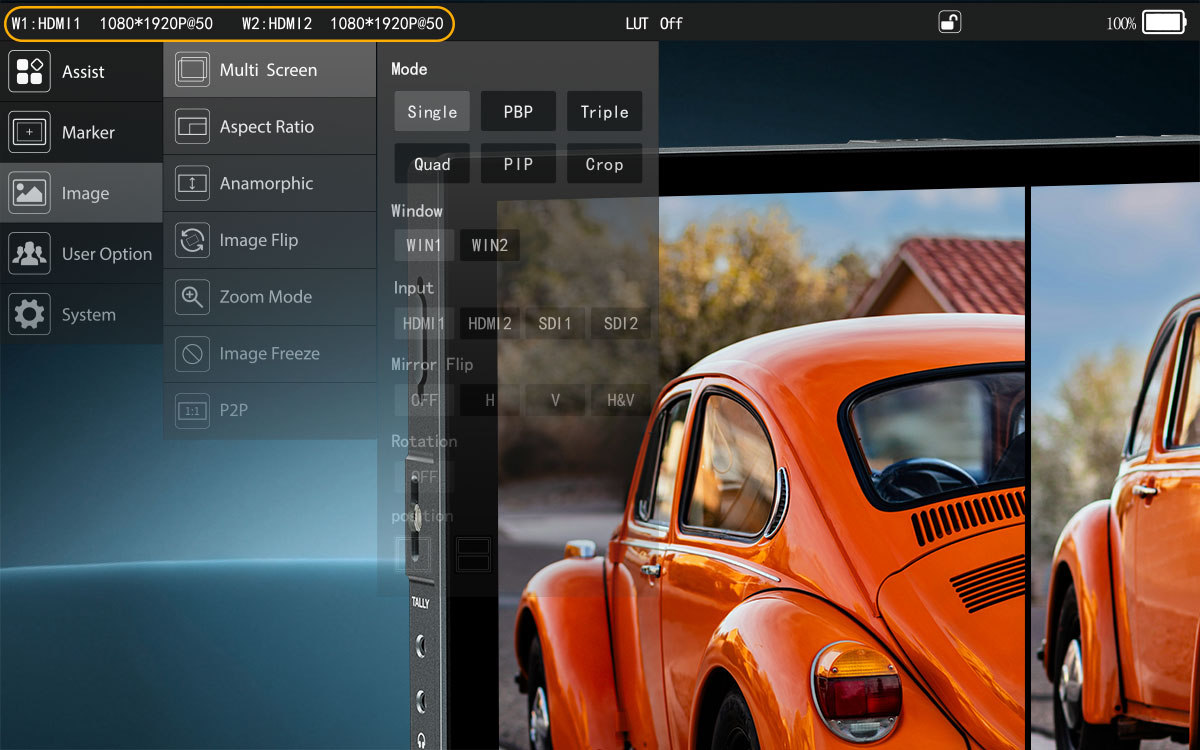

Camera Status Display
The top of the monitor screen can display the signal input status of each camera in real time, facilitating the crew's overall management of shooting and effectively improving shooting efficiency.

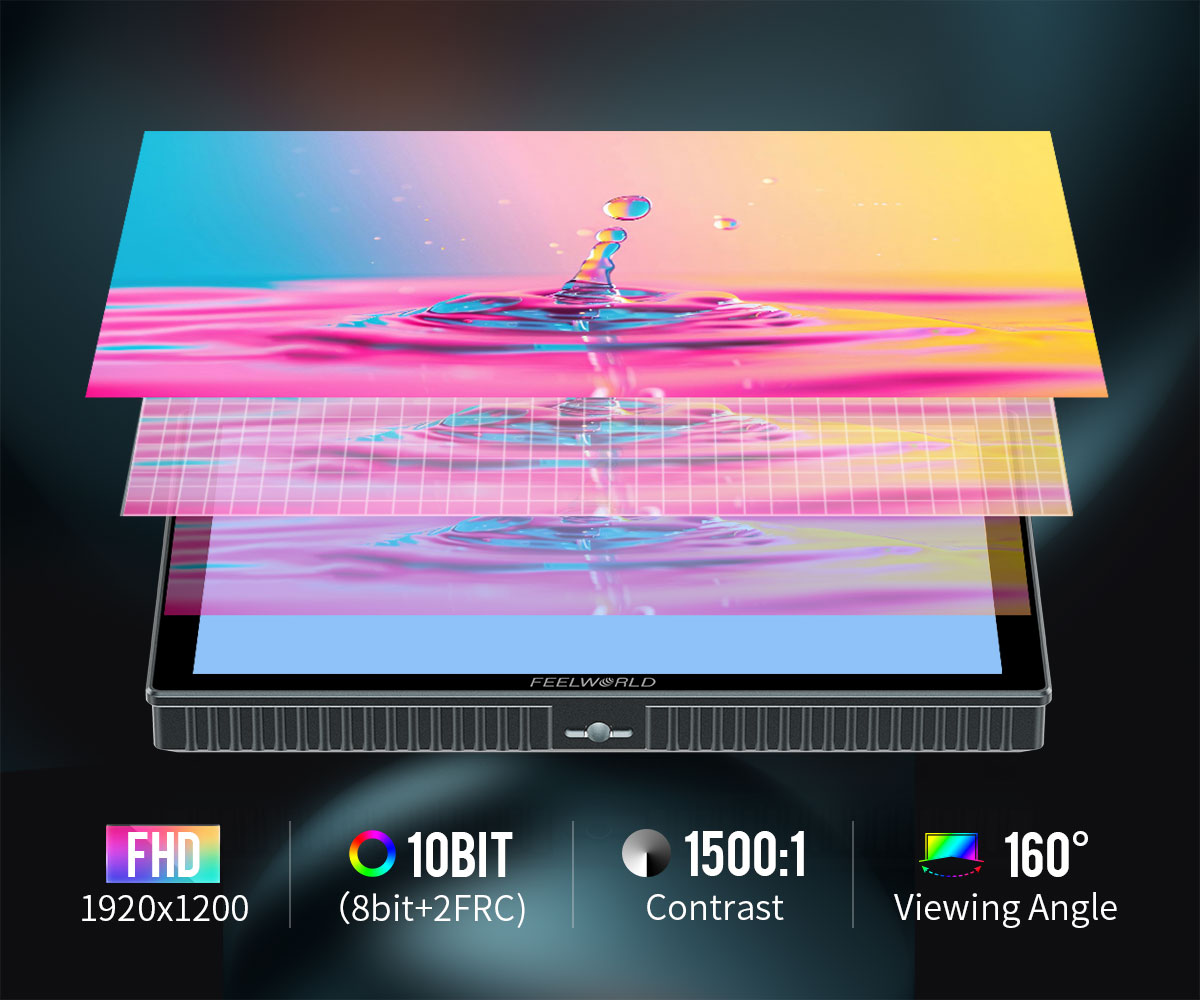

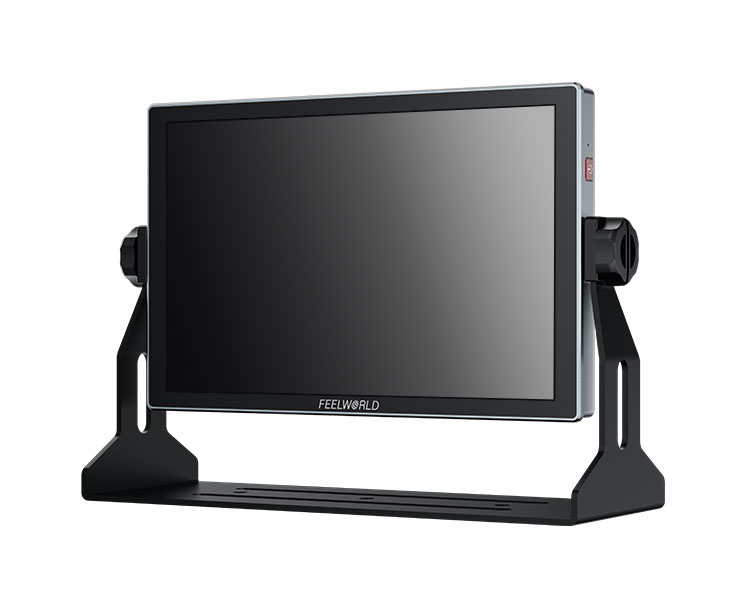

10.1" Full HD IPS
Clearly checking and capture every nuance
With extremely high resolution 10.1-inch 10bit（8bit+2FRC) IPS panel provides rich colors,a wider field of view and clearly present more detailed image. 160 ° wide viewing angle, support multiple members to monitor the image from all angles, facilitate team collaboration for filmmaking.

Professional CalMAN Software Calibration
Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction, and the delta E value ≤1.5.

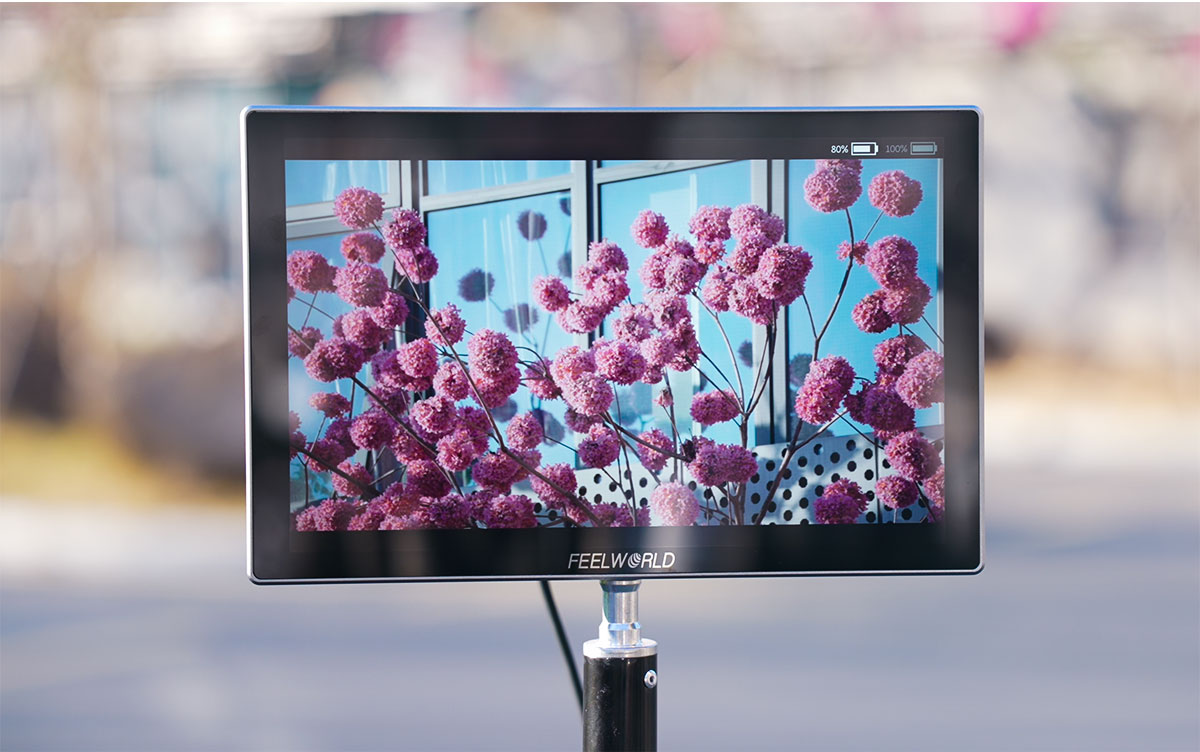

1200nits, Visible in Sunlight
High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

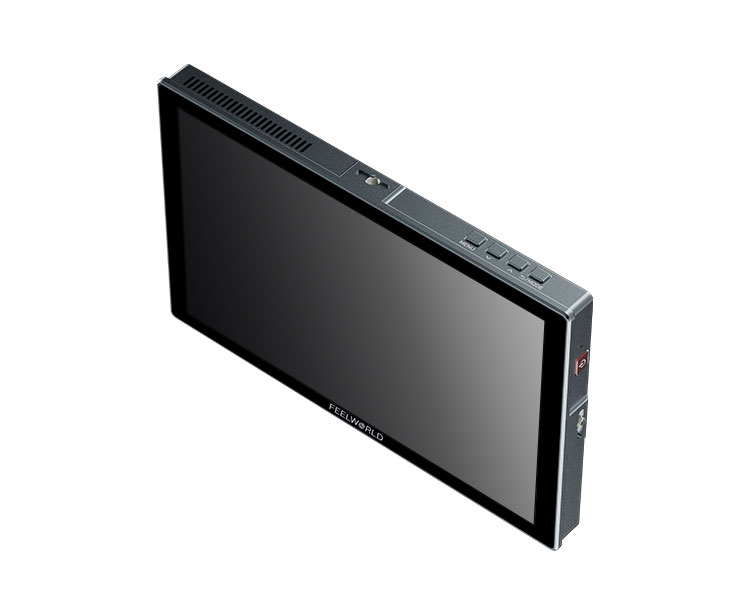

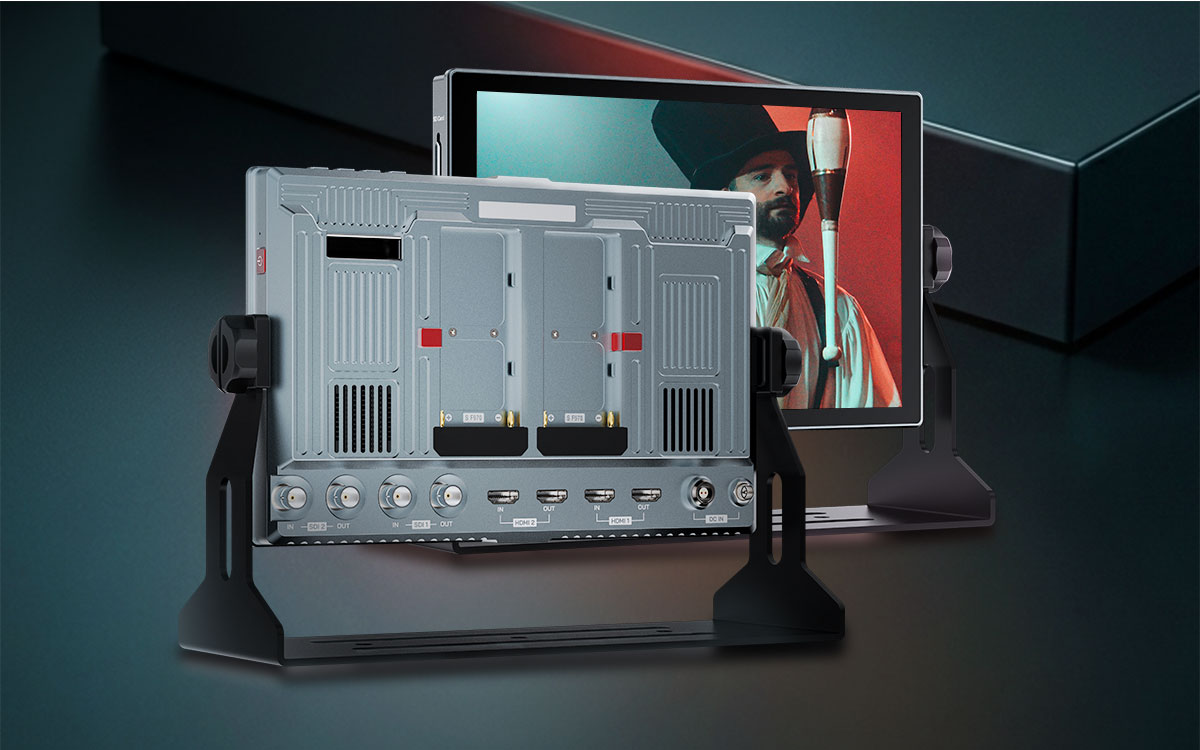

Rugged Aluminum Housing
Adopts CNC aluminum alloy housing, durable and portable, suitable for various shooting environment.

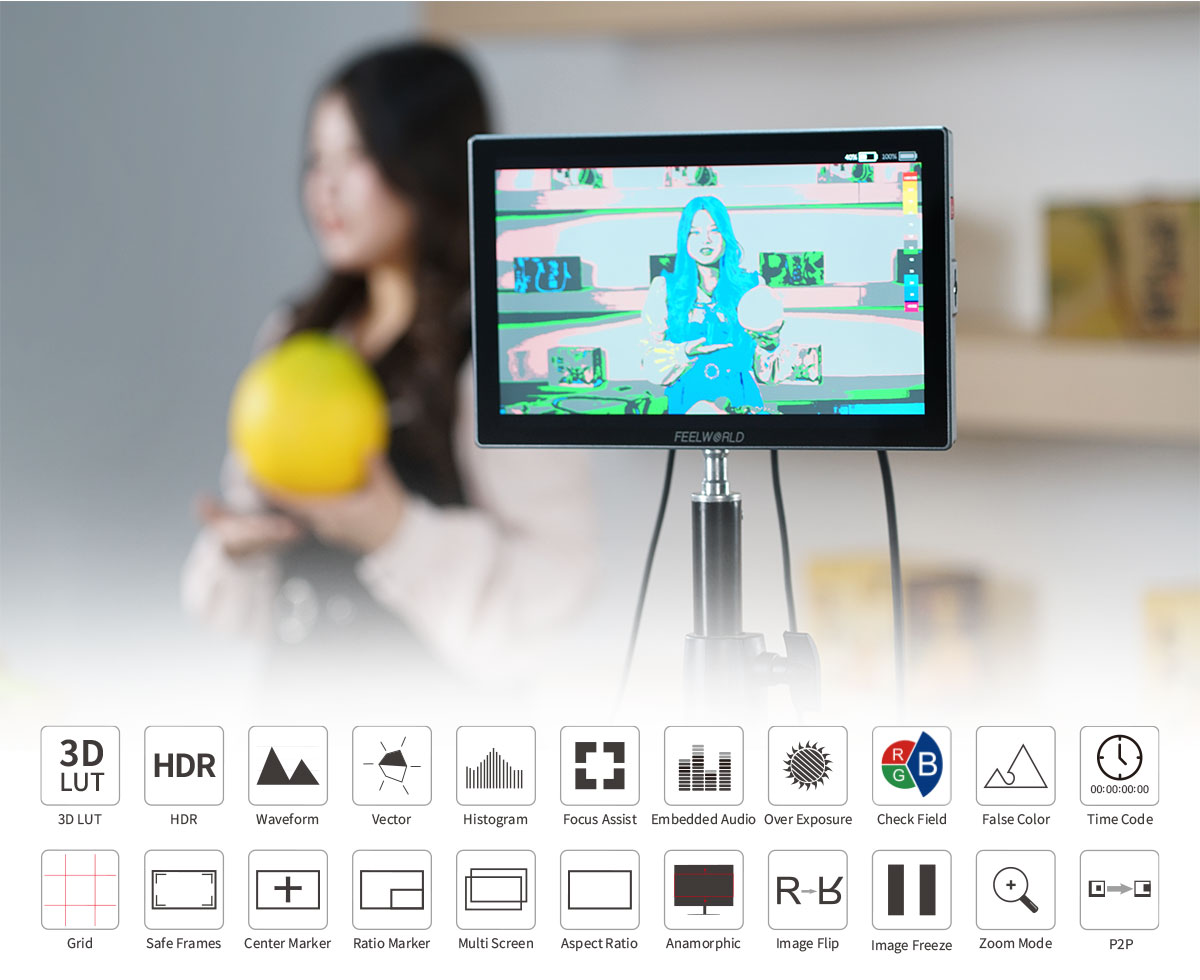

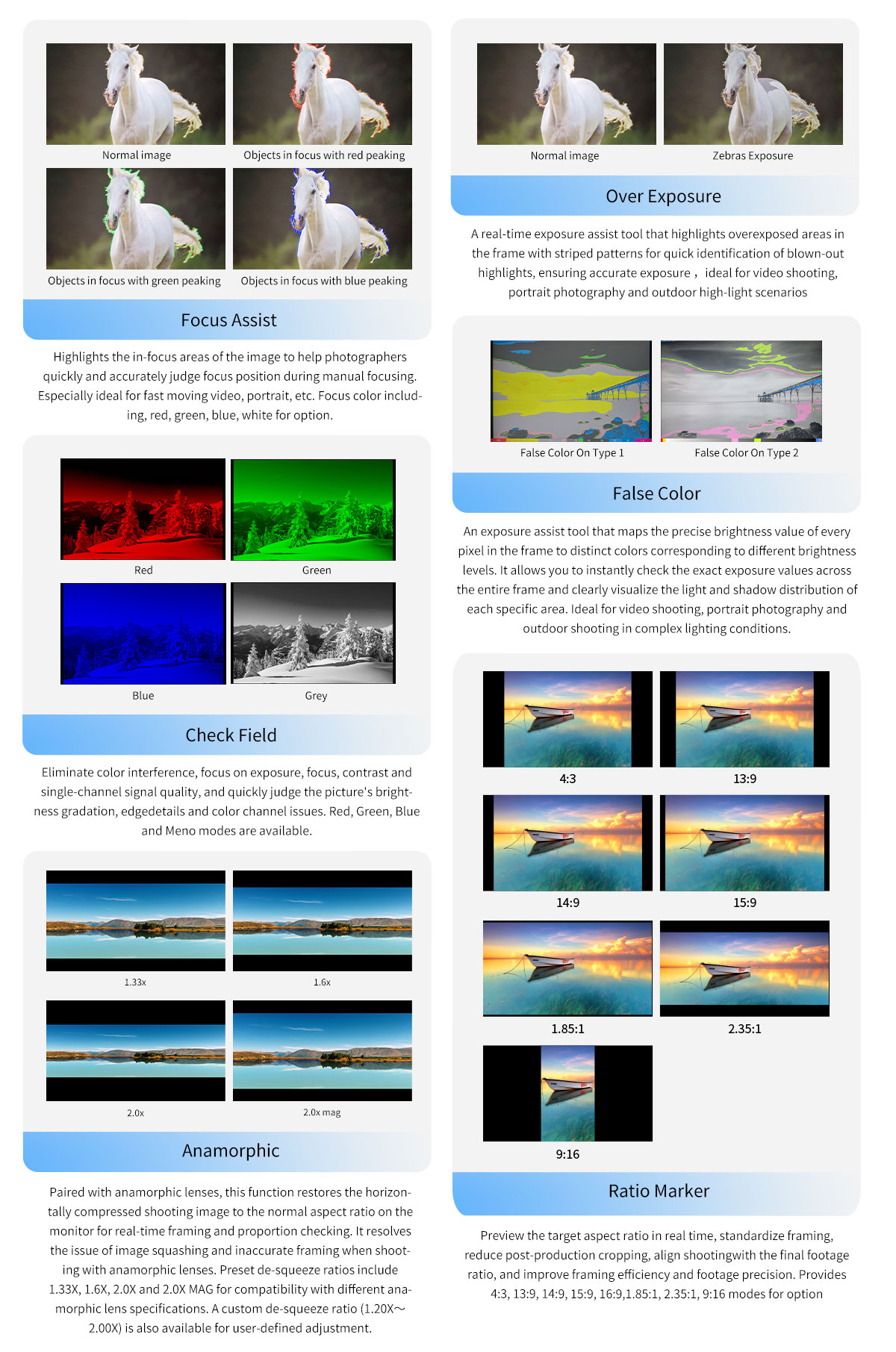

Full Range of Auxiliary Functions

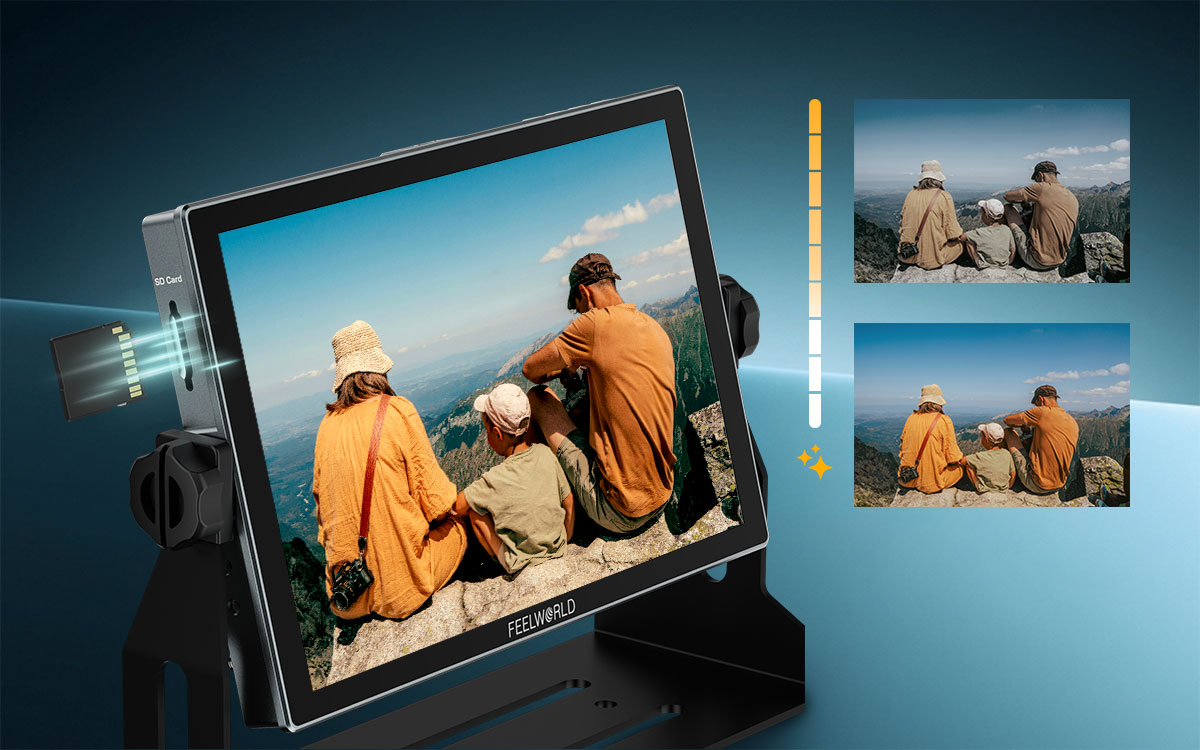

Load Custom 3D LUTs，Preview Filming Look in Field Shooting
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in 4 types(S-Log2,s-Log3, C-Log, V-Log) or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the SD card, and insert it to the SD card slot of the monitor (up to 32 custom files can be imported).

Dynamic HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

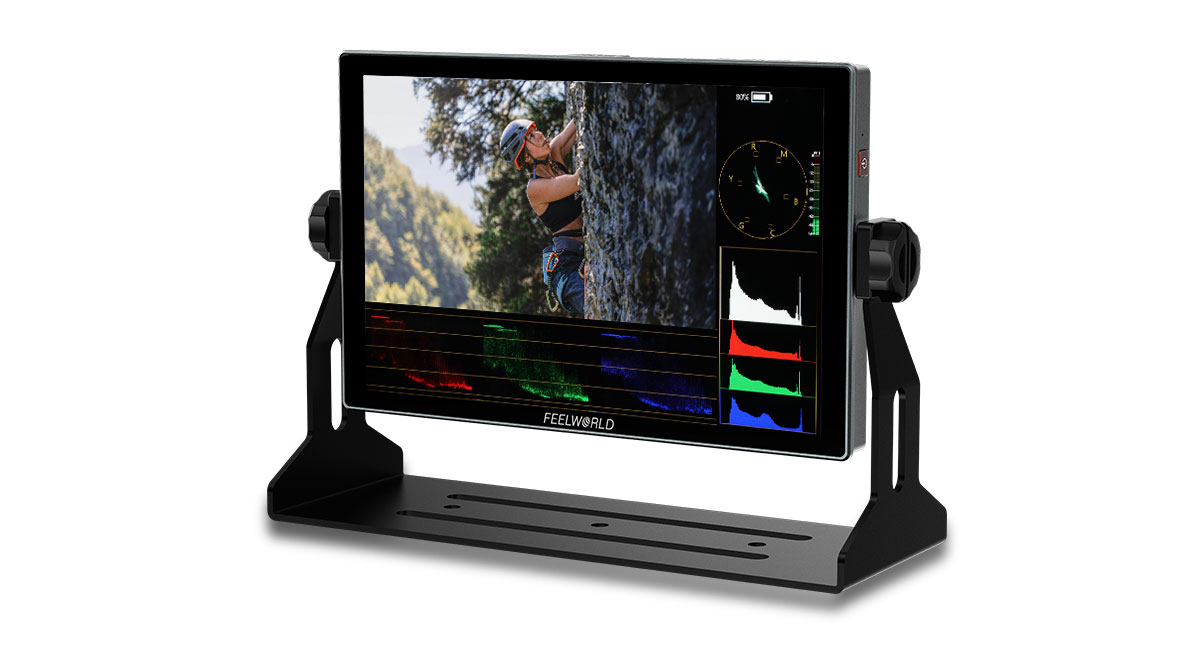

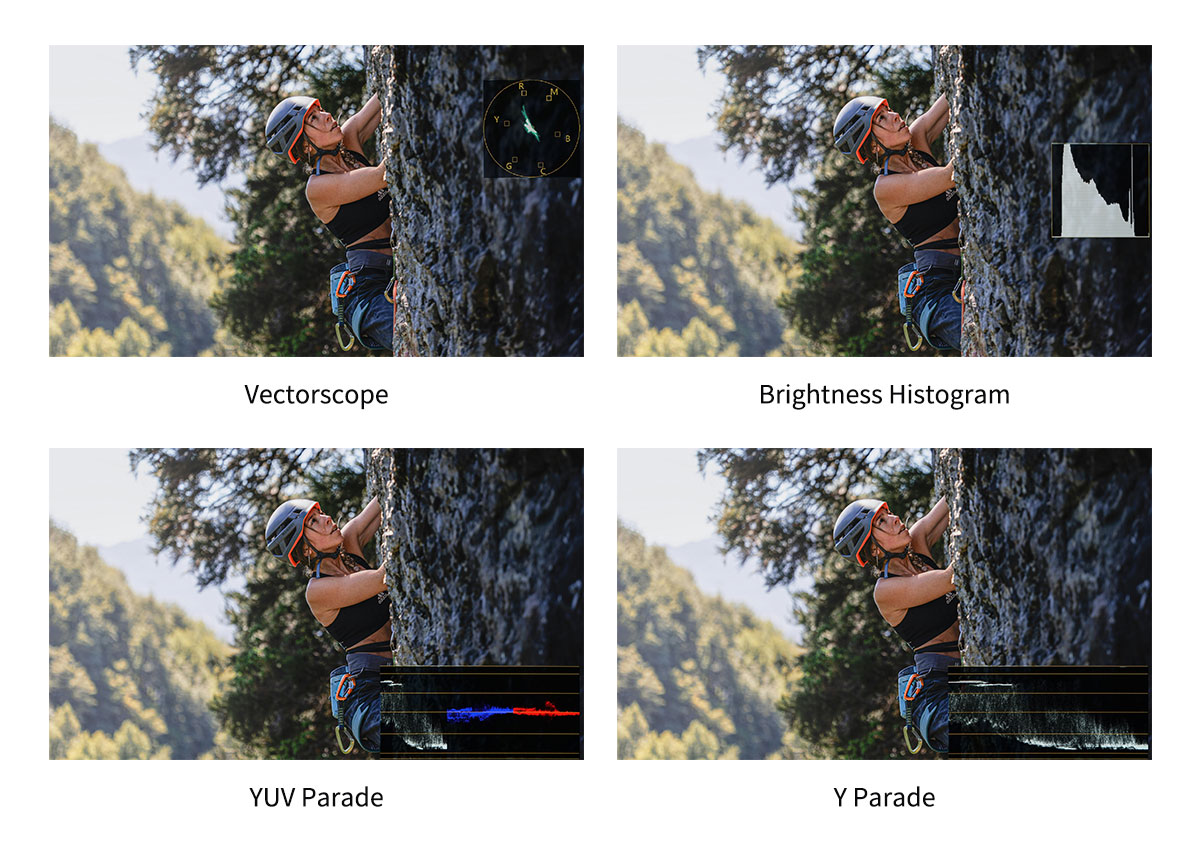

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position. M101S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

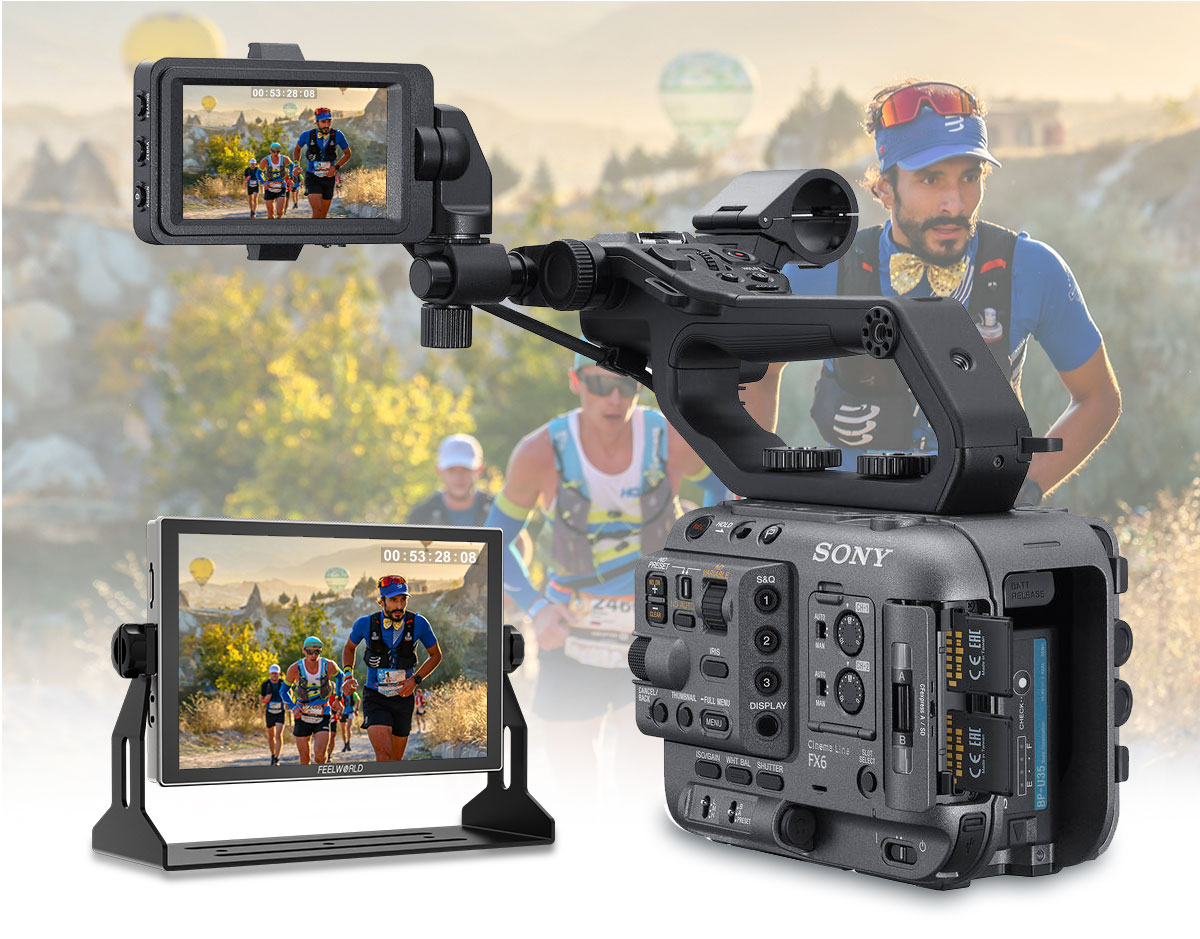

SDI Time Code
M101S supports LTC、VITC time code display under SDI signal, it is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.

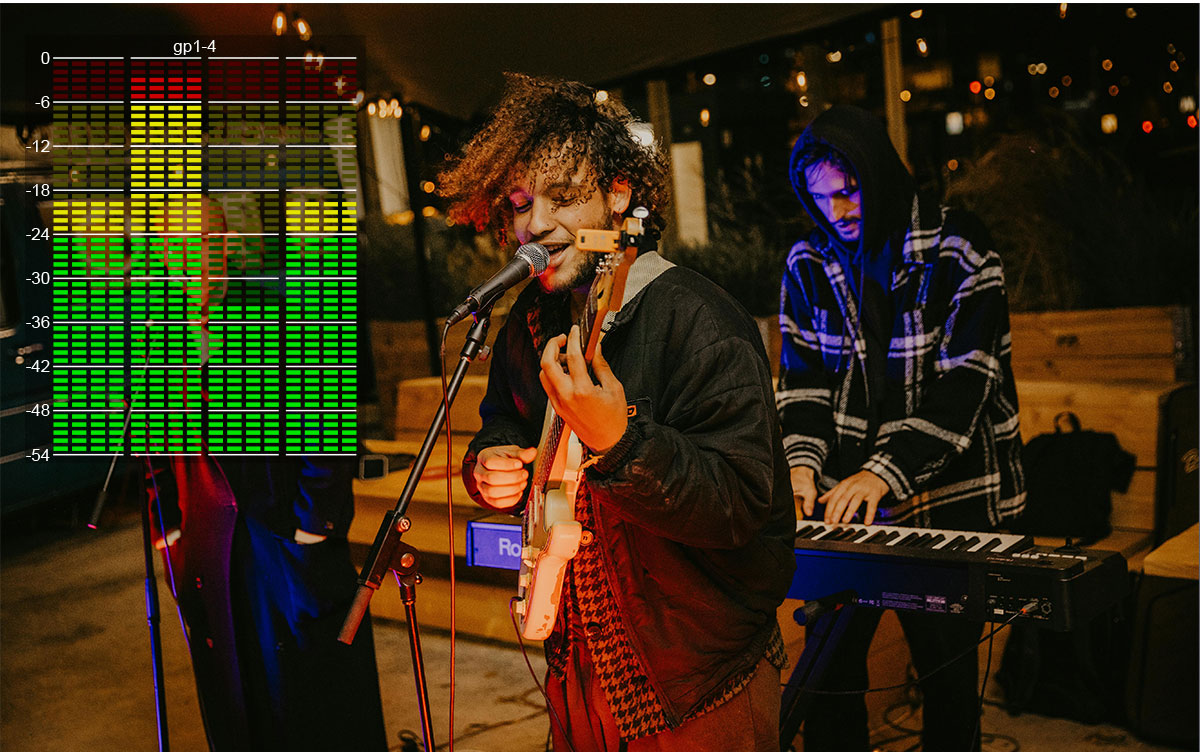

Up to 16-channle Audio Meter Level
M101S can de-embedded audio from SDI and HDMI. Under HDMI, you can select 2 channels, 4 channels, 8 channels audio meters display; under SDI, you can select 2 channels, 4 channels, 8 channels, 16 channels audio meters display . You also can move it horizontal or vertical position , and don' worry cover the image.

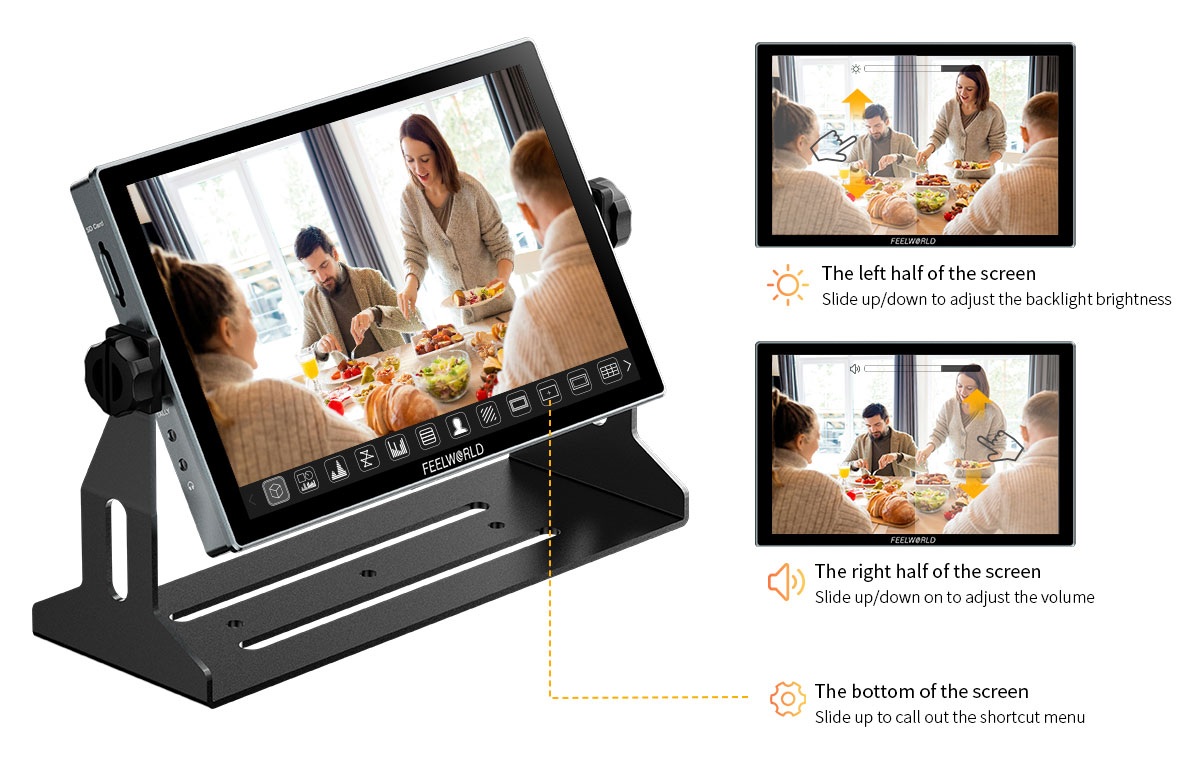

Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

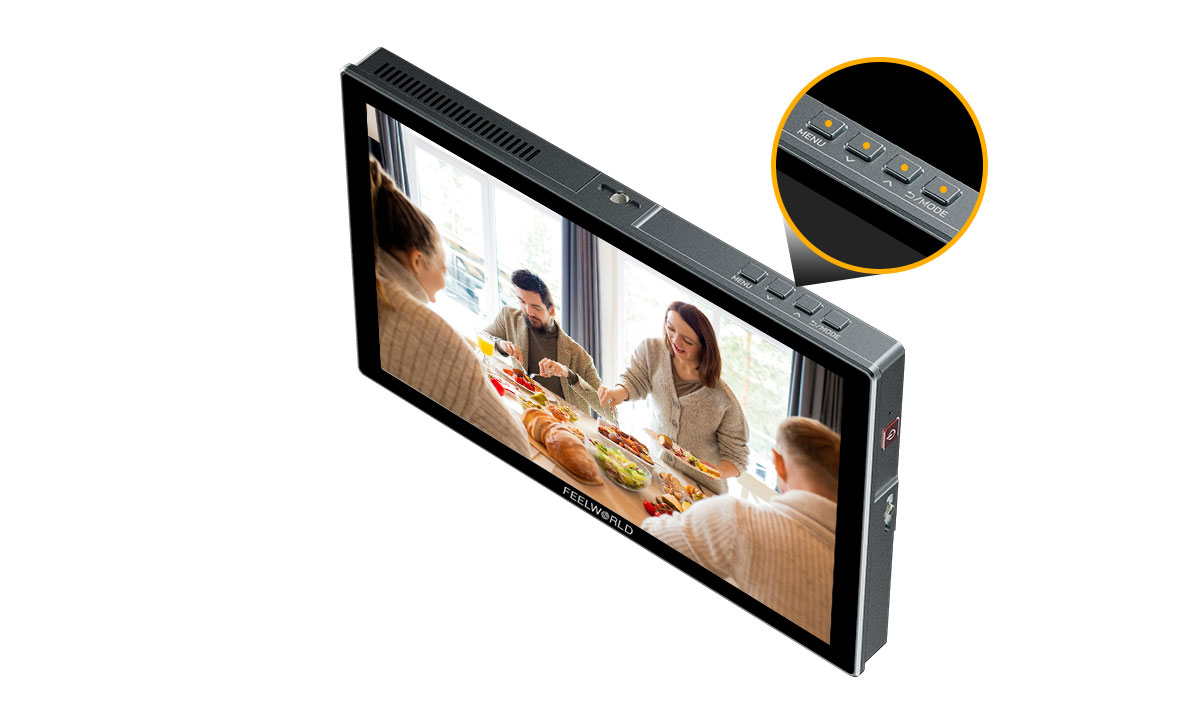

Physical Buttons Control
The M101S also features physical button controls to cater to diverse operation needs. With a straightforward layout and intuitive operation logic, it can be easily mastered even by new users.

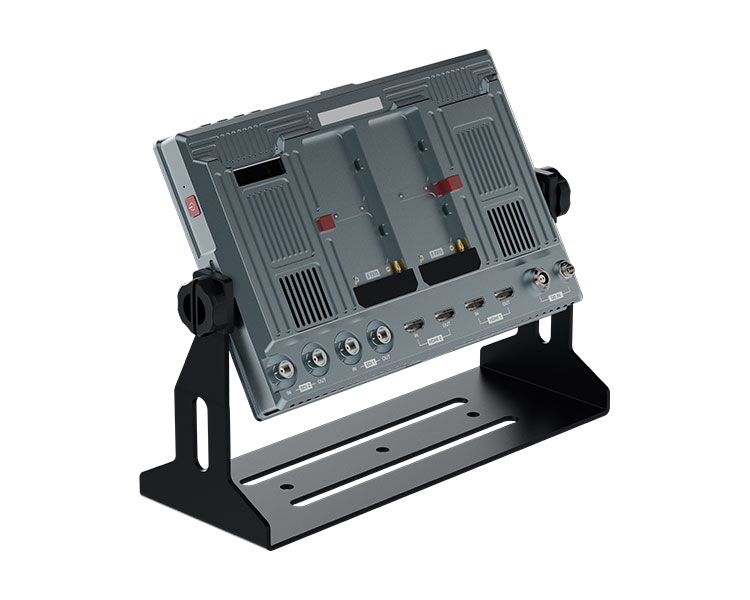

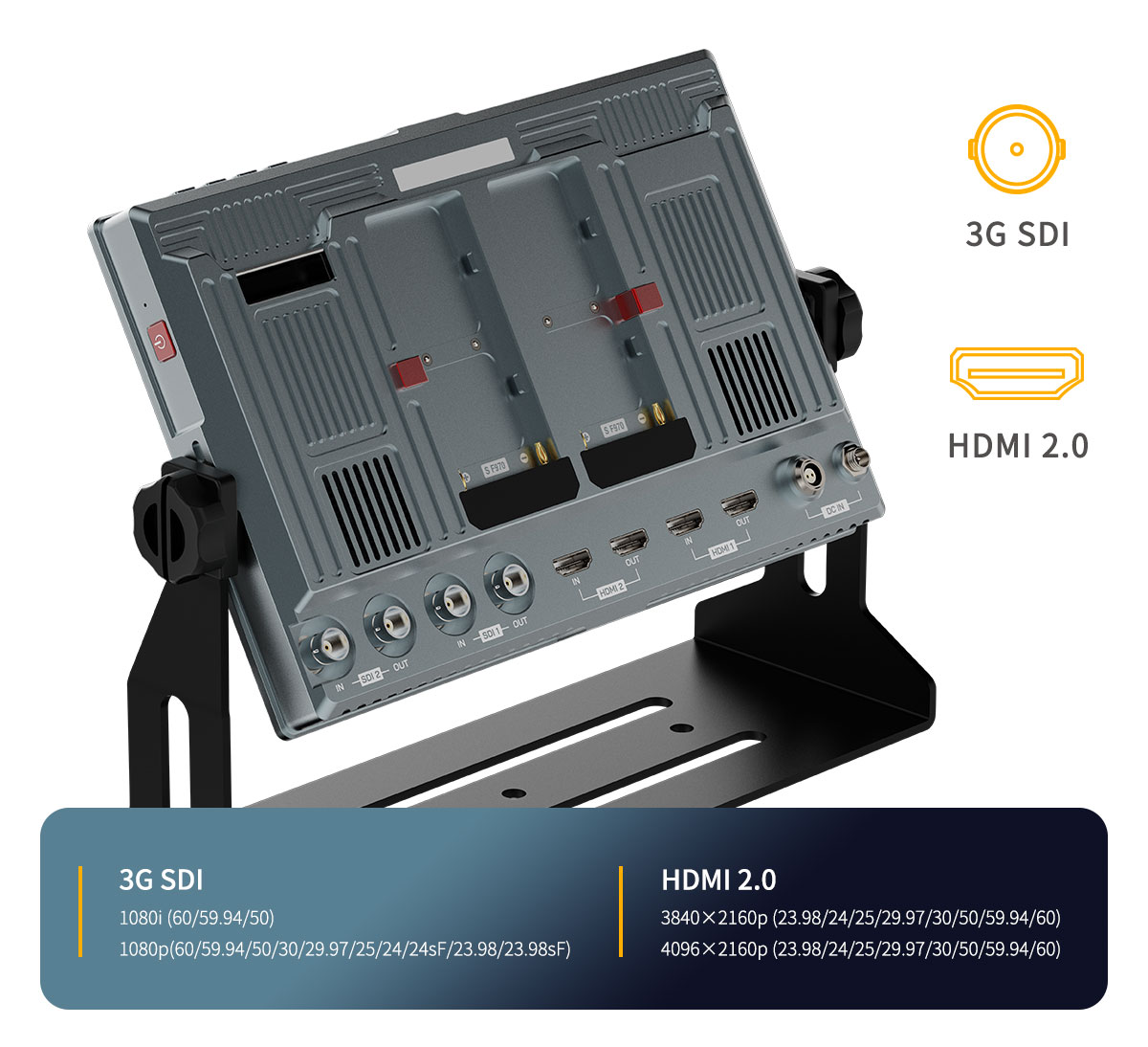

3G-SDI & 4K HDMI Input and Output
The monitor is equipped with two 3G-SDI and two HDMI2.0 inputs and loop outs, support up to 4K 60Hz video signal.

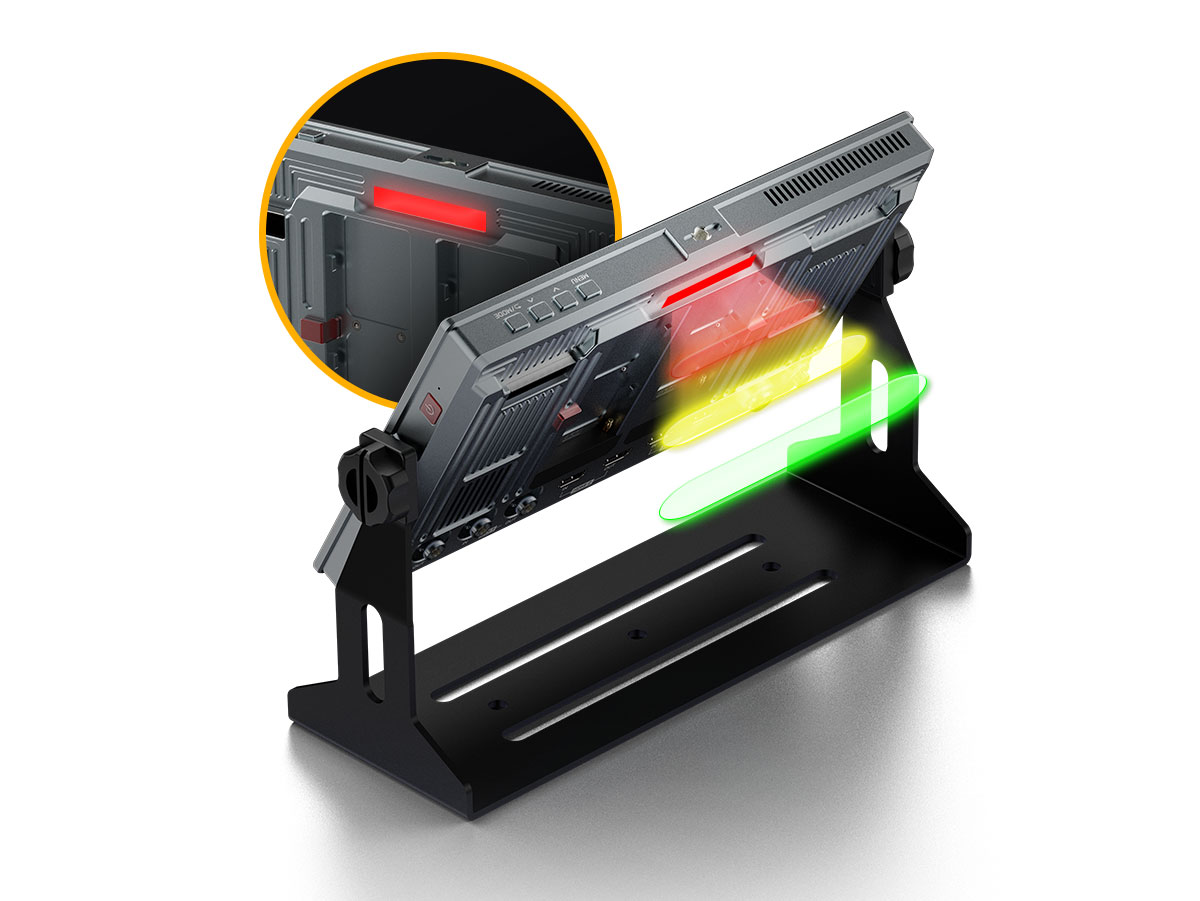

3-Color Tally Indicator, Enhance Team Cooperation
M101S features green, red and yellow Tally indicator — intuitively showing Preview, On Air and Record status at a glance. Designed for seamless live broadcast workflows, it’s your perfect partner for professional on-site broadcasting.
Tally signal is easily connectable via the 3.5mm Tally interface on the left of the monitor, ensuring stable and reliable performance for every live production.

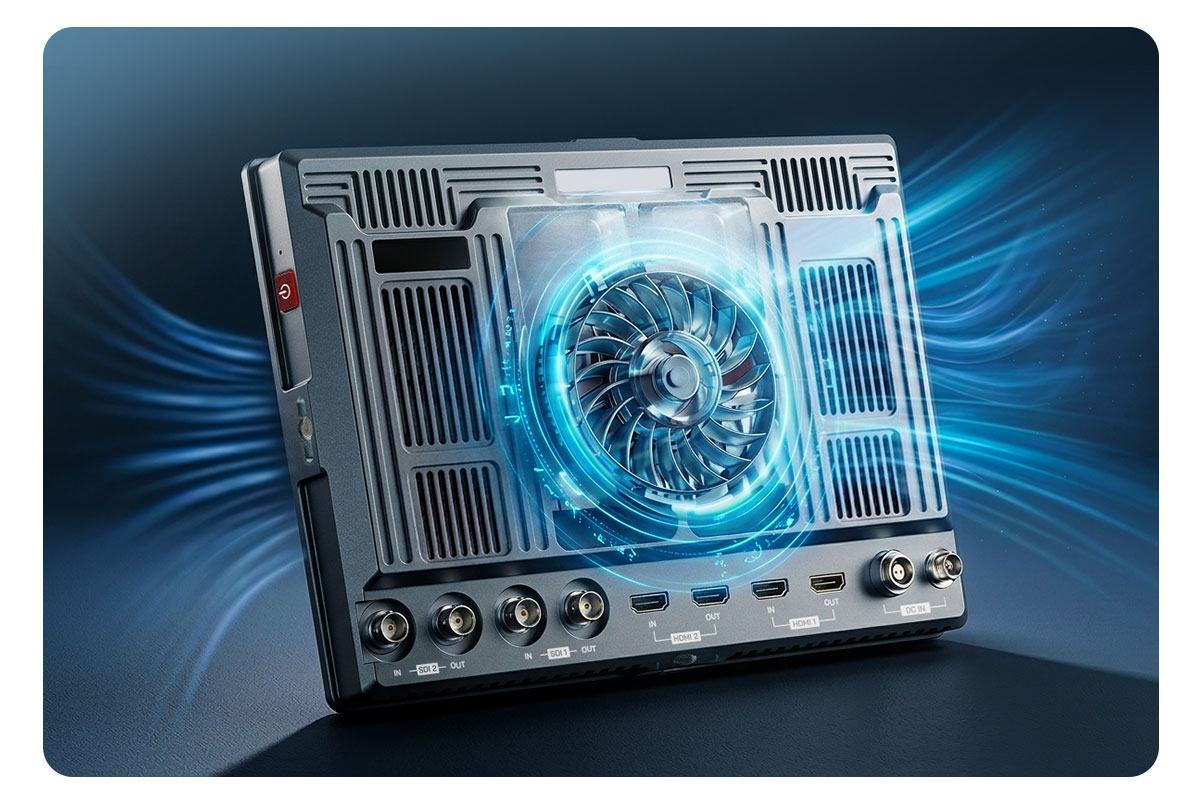

Built-in Cooler
Built-in cooler,and with 5 modes adjustable,default to on 3 mode don't worry the monitor work for long time.

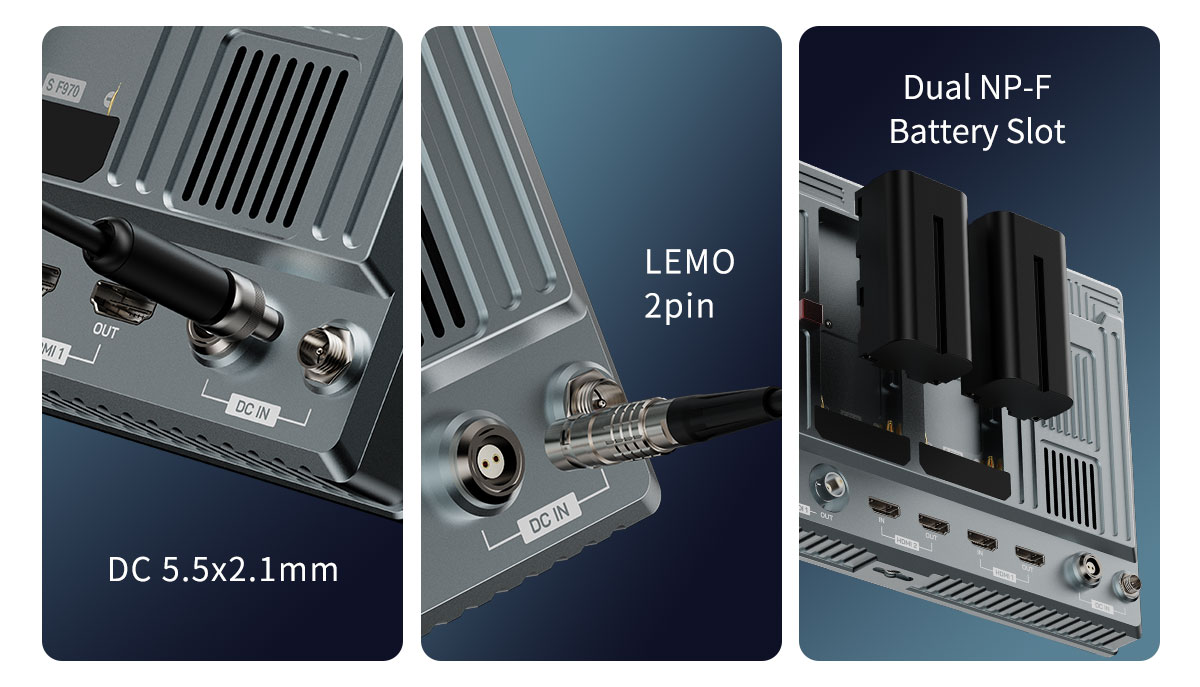

Triple Power Supply Options
The monitor is equipped with a DC 5.5×2.1mm power port and a LEMO 2pin selflocking power port, compatible with 12V/3A adapters. It also features dual NPF battery slots that support NPF series batteries, delivering reliable and longlasting power for the screen.
The monitor install one NP-F970 battery (6600mah) last for about 2 hours. The upper right corner of monitor will display battery level after the battery installed two batteries are installed at the same time, when one is running low, you can quickly switch to the other one without worrying about losing power midway.
Note: The battery and power adapter not included.

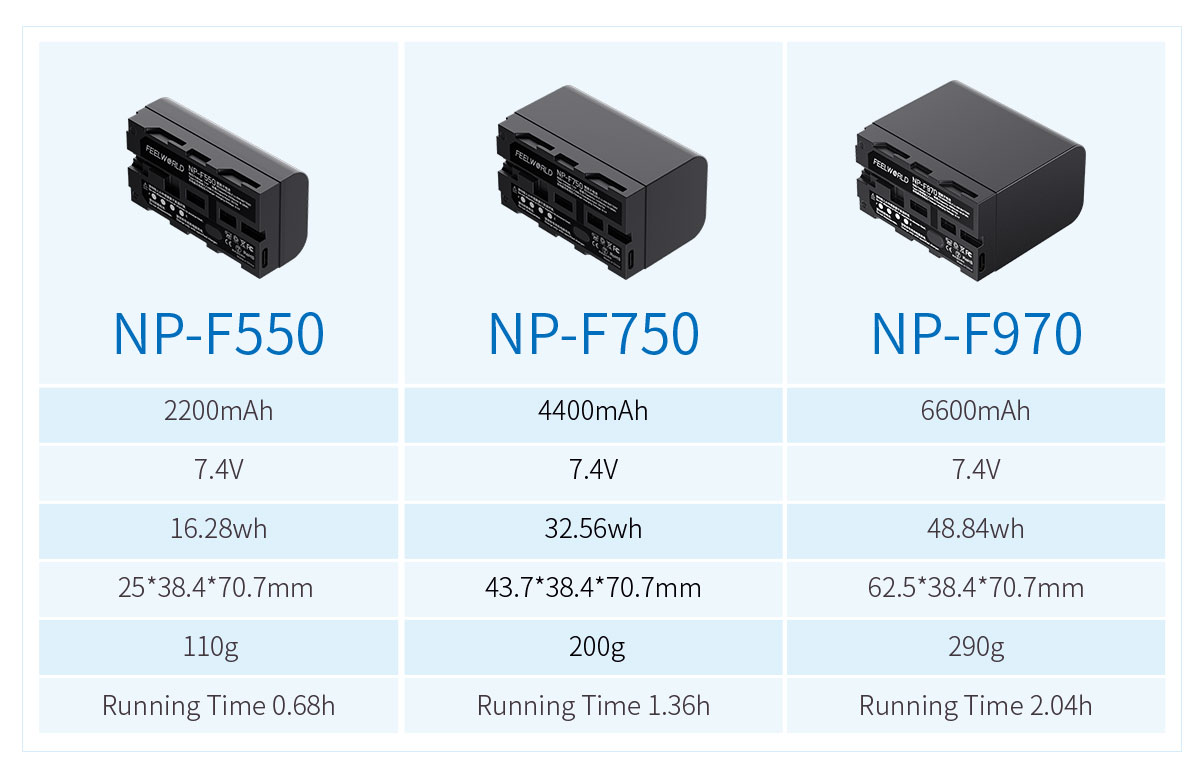

NP-F Battery Optional Recommendation
The power consumption of M101S is 24W, we recommend to choose the higher capacity of FEELWORLD NP-F970 to power.

11 Languages Supporting
M101S built-in up to 11 languages, that means M101S is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

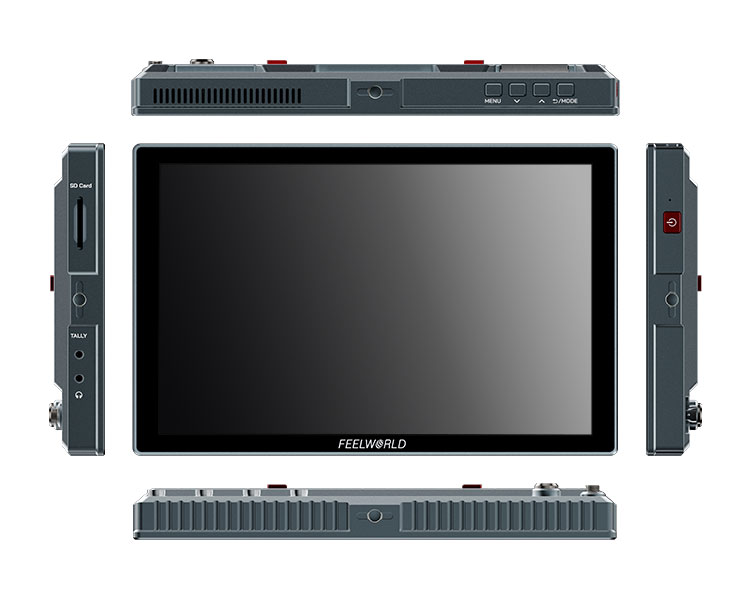

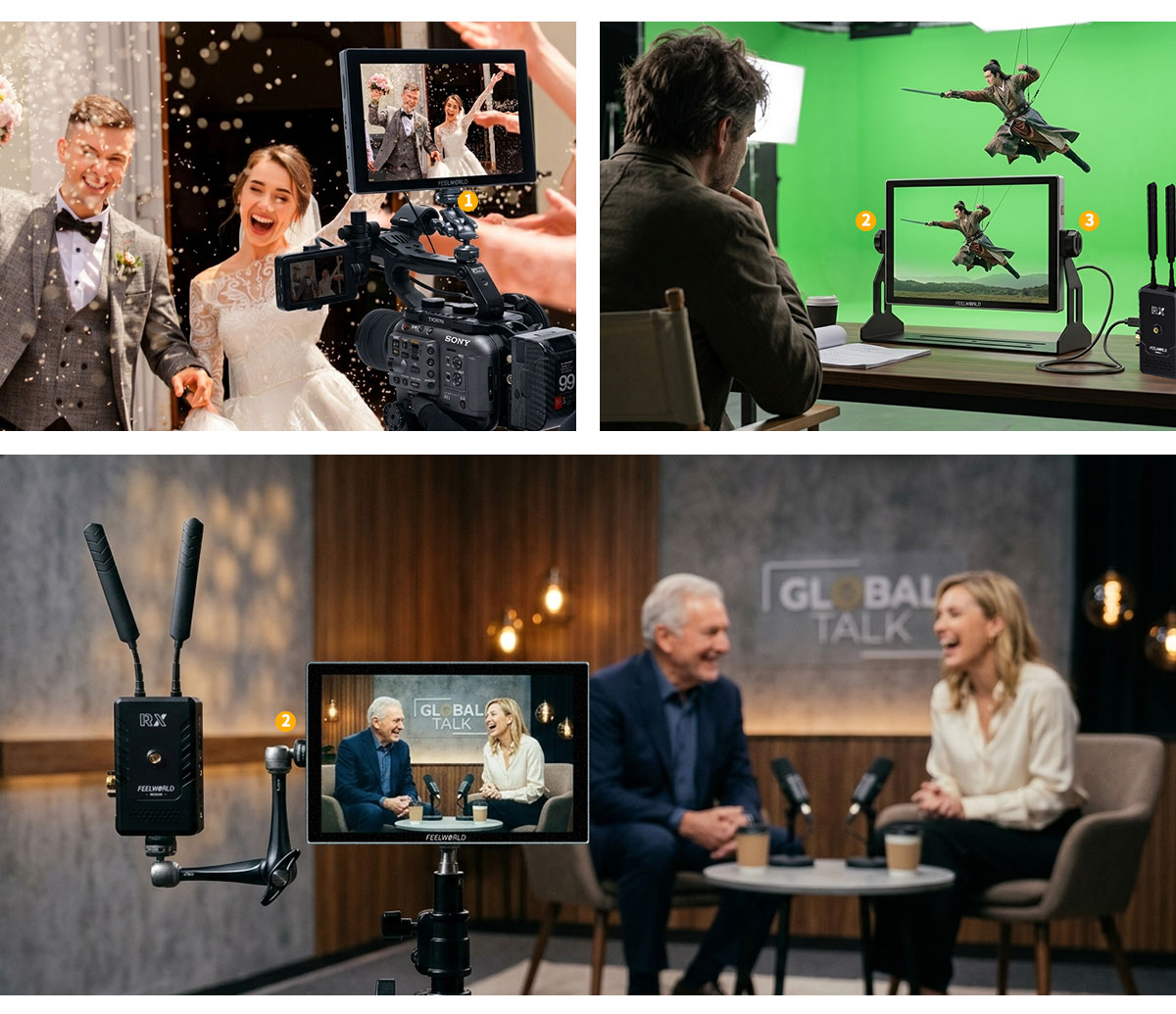

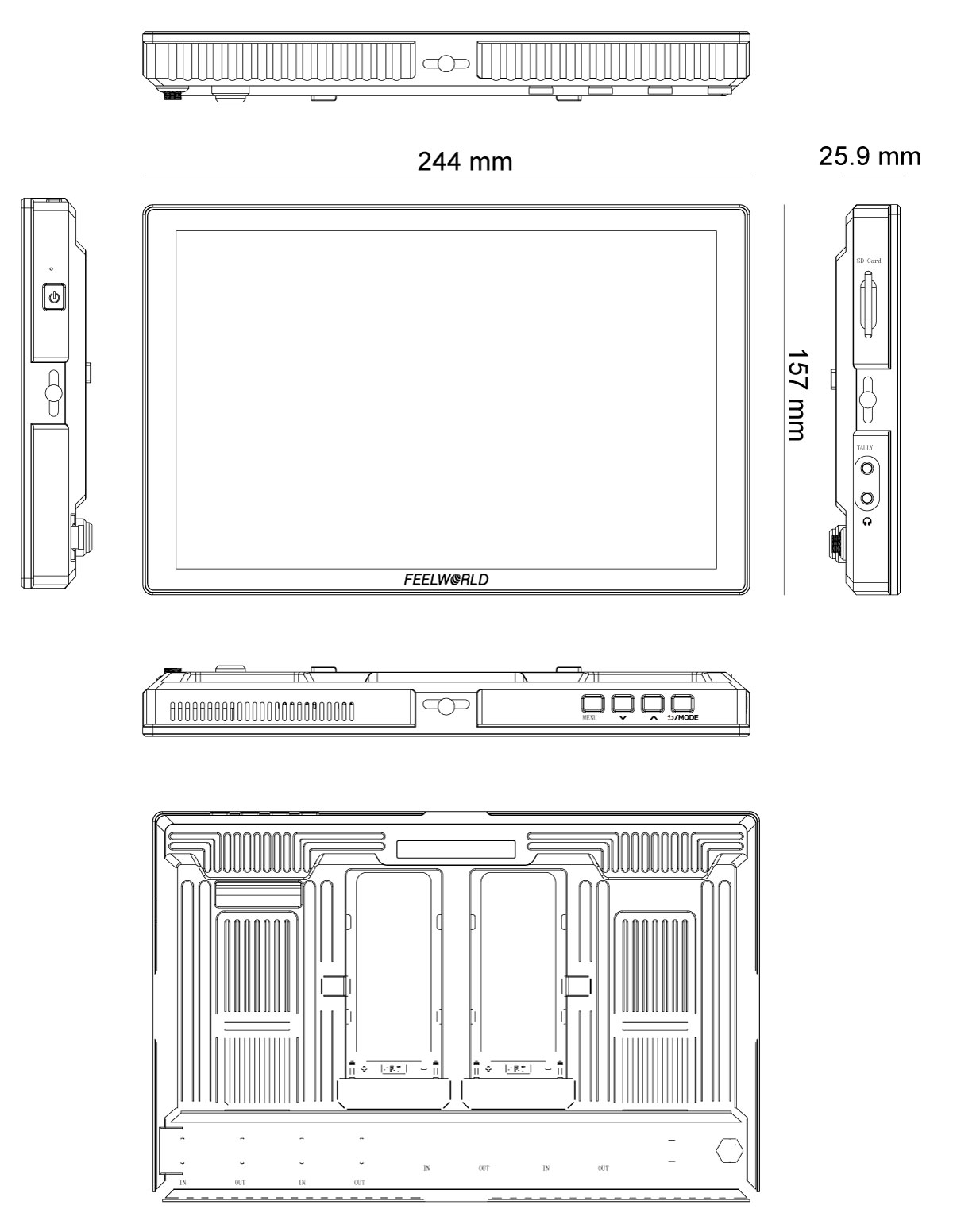

Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 4 standard 1/4”mounting threads (top, bottom, right side, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
