FEELWORLD 4K12X 4K PTZ Camera 12X Optical Zoom AI Tracking HDMI USB IP Remote Control
| Number: | 202306241037024716 |
|---|---|
| Model: | 4K12X |
| Size: | |
| Introduction: |
Simultaneous HDMI/USB/IP Live Streaming Interfaces
12X Optical Zoom Up to 4K@30fps PoE(Power over Ethernet)Supported AI Tracking |
| Input: | RS232, Audio, DC 12V |
| Output: | HDMI, USB-C, LAN |
| DM: | |
| Download: | |
4K LIVE STREAMING PTZ CAMERA
FEELWORLD 4K12X meets all your needs for church live streaming, video conference, online education, live concert,online direct sales, remote telemedicine,etc.
FEELWORLD 4K12X meets all your needs for church live streaming, video conference, online education, live concert,online direct sales, remote telemedicine,etc.
Multiple Interfaces, Easy to Connect
4K12X is equipped with rich interfaces, and supports multiple network protocol.Easy to connect, you can stream to your favorite platforms smoothly.
4K12X is equipped with rich interfaces, and supports multiple network protocol.Easy to connect, you can stream to your favorite platforms smoothly.
Multi Cameras Live Streaming Solution
For medium or large live streaming always need multi cameras shooting to get different views. You can easy to connect multi PTZ cameras via network switch or video switcher.
For medium or large live streaming always need multi cameras shooting to get different views. You can easy to connect multi PTZ cameras via network switch or video switcher.
Application for Multi-cam Live Streaming
Medium and Large Live Streaming Solution
1.Multi-cam: You can use two 4K12X for medium live streaming, and three 4K12X for large live streaming.Use with FEELWORLD L2 PLUS video switcher, can be monitor in real-time and connect PC to play PPT.
2.PTZ control: In the same LAN, you can easily control 4K12X via L2 PLUS or KBC10 controller.
3.Stream to Platform: Through USB/Ethernet, you can stream on your favorite platforms.
1.Multi-cam: You can use two 4K12X for medium live streaming, and three 4K12X for large live streaming.Use with FEELWORLD L2 PLUS video switcher, can be monitor in real-time and connect PC to play PPT.
2.PTZ control: In the same LAN, you can easily control 4K12X via L2 PLUS or KBC10 controller.
3.Stream to Platform: Through USB/Ethernet, you can stream on your favorite platforms.
4K UHD Resolution
Adopts 8.51 megapixel SONY sensor, supports up to 4Kp30fps under video signal of HDMI, USB-C main stream MJPG/H264 and network stream. Provides super sharp,crystal clear videos.
Adopts 8.51 megapixel SONY sensor, supports up to 4Kp30fps under video signal of HDMI, USB-C main stream MJPG/H264 and network stream. Provides super sharp,crystal clear videos.
AI Human Auto Tracking
With real-time tracking and zone tracking.The camera can automatically track you real time so that you stay in the center. Made for Church Services,house of Worship, Teaching and Education,Broadcast, High-Tech Conference, Summit Forum, Events.
AI tracking shortcut key on the remote controller
【F1】：Turn off AI Human Detection
【F2】：Turn on AI Human Detection
【F3】：Toggle between real time tracking mode and zone tracking mode
【F4】：Chang tracking target on real time tracking mode
With real-time tracking and zone tracking.The camera can automatically track you real time so that you stay in the center. Made for Church Services,house of Worship, Teaching and Education,Broadcast, High-Tech Conference, Summit Forum, Events.
AI tracking shortcut key on the remote controller
【F1】：Turn off AI Human Detection
【F2】：Turn on AI Human Detection
【F3】：Toggle between real time tracking mode and zone tracking mode
【F4】：Chang tracking target on real time tracking mode
12X Optical Zoom
The camera with 12x optical zoom lens and 80.5°wide angle lens, easily shooting all the scenes in the field.
The camera with 12x optical zoom lens and 80.5°wide angle lens, easily shooting all the scenes in the field.
Silent PTZ Rotation, Capture Any Moment with Multiple Angle
Capture every person in the room with multi-angle
Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 60° vertically (-30°～+30°).
Capture every person in the room with multi-angle
Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 60° vertically (-30°～+30°).
Low Noise and High SNR
Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
Up to 255 Preset Positions
10 preset positions by IR remote controller，that can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via network control or keyboard controller.
10 preset positions by IR remote controller，that can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via network control or keyboard controller.
Power over Ethernet
4K12X supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6A cable to power your 4K12X.
PoE switcher and network cable requirement
PoE Switcher: PoE devices must comply with the IEEE802.3af/at standard. The PoE output voltage range is 44-57V, the output voltage of POE switcher suggest above 48V.
Network cable: suggest to use CAT5A , better to use CAT6A cable.
4K12X supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6A cable to power your 4K12X.
PoE switcher and network cable requirement
PoE Switcher: PoE devices must comply with the IEEE802.3af/at standard. The PoE output voltage range is 44-57V, the output voltage of POE switcher suggest above 48V.
Network cable: suggest to use CAT5A , better to use CAT6A cable.
Multiple Video Compression
Support YUY2, MJPEG, H.264, H.265, NV12 video encoding formats, MJPEG, H.264, H.265 support up to 3840×2160 resolution 30 frames/second compression; and support AAC, audio compression.
Support YUY2, MJPEG, H.264, H.265, NV12 video encoding formats, MJPEG, H.264, H.265 support up to 3840×2160 resolution 30 frames/second compression; and support AAC, audio compression.

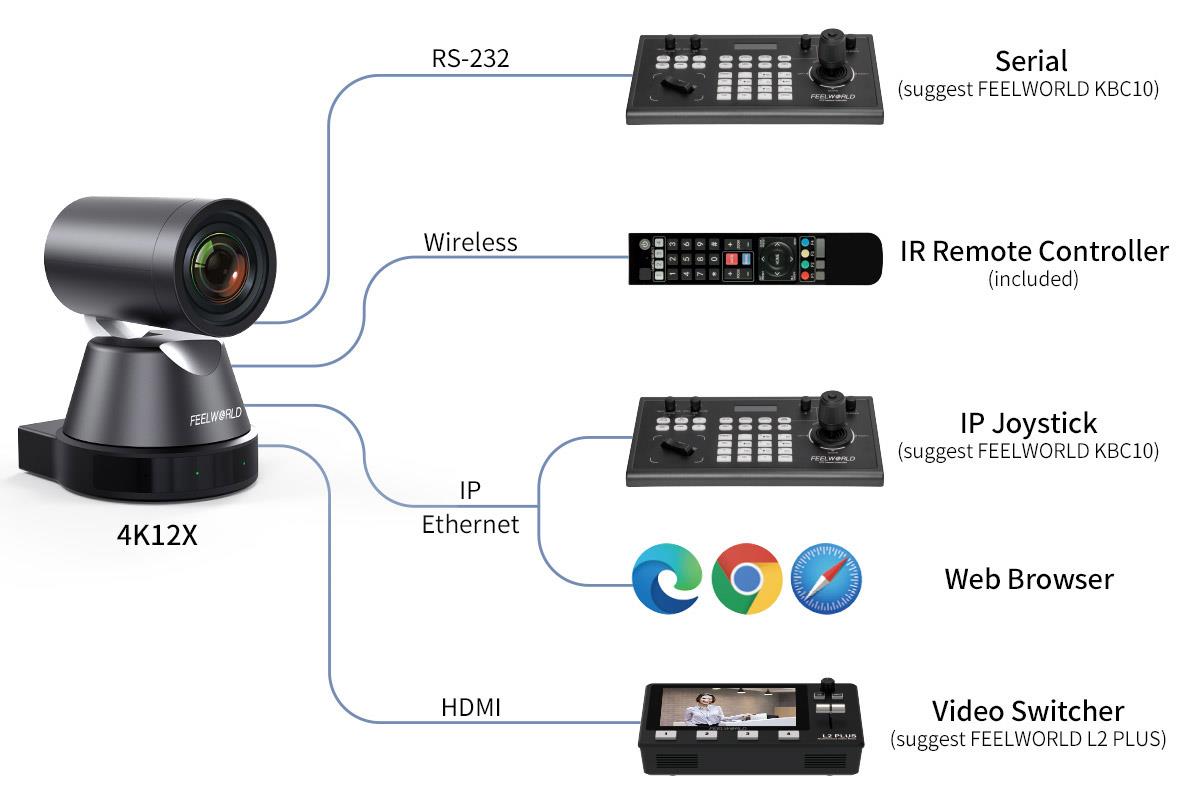

Multi Ways to Control Your Camera
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also get more control ways via connect interface.
Note: The distance of IR remote control about 10M, the higher of battery level, the better effect.
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also get more control ways via connect interface.
Note: The distance of IR remote control about 10M, the higher of battery level, the better effect.

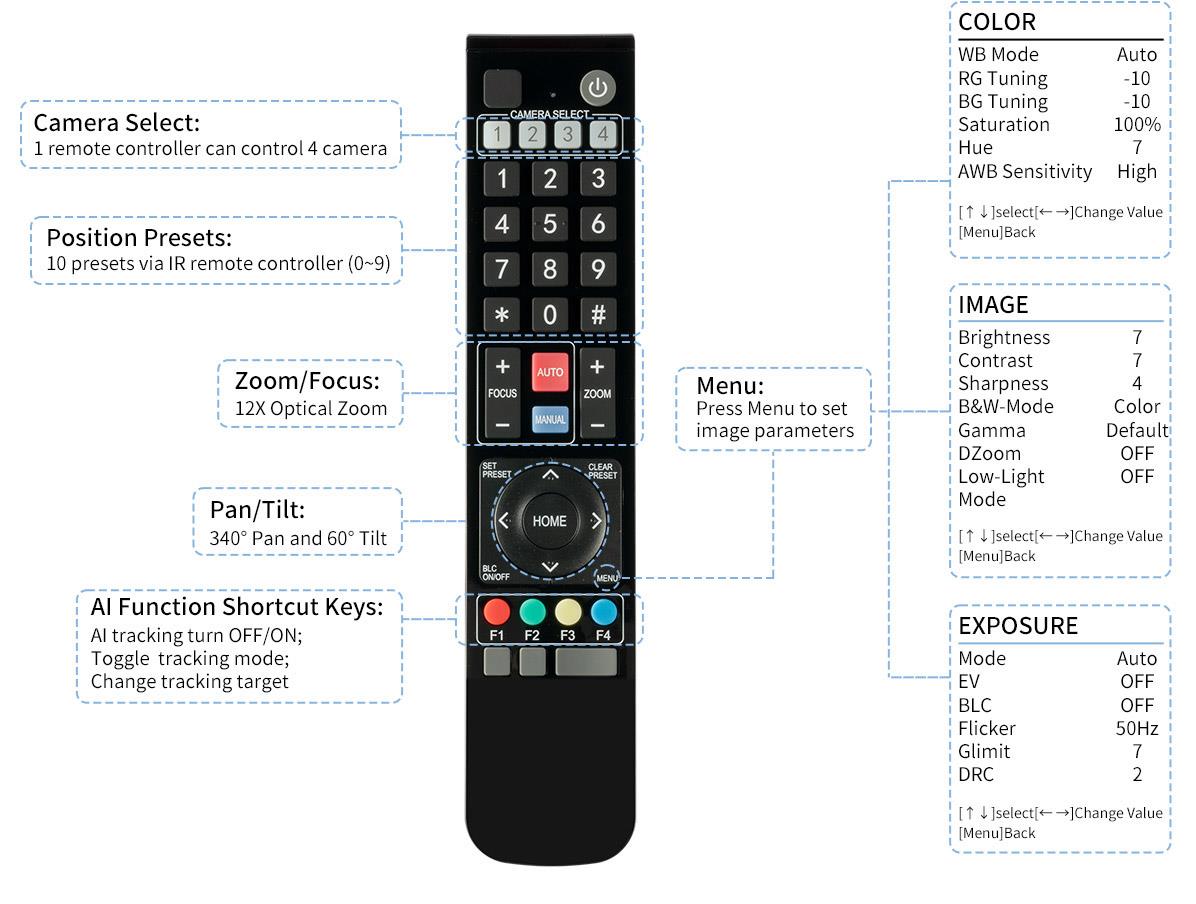

Remote Controller Instruction
Flexible Mounting Options
The camera can be installed on wall/tripod/desktop to capture close-up shots for your every Live Video Production.
The camera can be installed on wall/tripod/desktop to capture close-up shots for your every Live Video Production.
Standard Accessory Wall Mount Bracket
4K12X with a wall mount bracket, you can mount the camera on the wall to get different shooting camera position.
4K12X with a wall mount bracket, you can mount the camera on the wall to get different shooting camera position.
Product Display
* 8.51M megapixel high quality SONY CMOS sensor
* Up to 4K@30fps , presenting ultra clear and vivid image
* 12X optical zoom lens and 80.5° wide angle lens
* Simultaneous HDMI, USB3.0, IP Streaming video out, easily for professional video production
* PoE(Power over Ethernet) supported
* Auto focus, smart frame capture everyone
* Supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
* Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
* High speed and silent pan/tilt, capture all the actions
* Multiple control protocol and network protocol
* Support real-time AI tracking and zone tracking
* Ideal for online education, live streaming, video conference, Tele-medicine, etc.
Camera Parameters
| Model | 4K12X |
| Sensor | 1/2.8 inch high quality CMOS sensor |
| Effective Pixels | 8.51 megapixel, 16：9 |
| View Angle | H：7.6°（N）～80.5°（W） |
| Iris | F1.8 ～ F3.6 |
| Digital Zoom | 15X |
| Optical Zoom | 12X |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
| DNR | 2D & 3D |
| White Balance | Auto/Manual/One-push/Specified Color Temperature |
| Focus | Auto/Manual/One-push |
| Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Iris Mode | F1.8 ～ F11, CLOSE |
| Shutter Speed | 1/25～1/20000 |
| BLC | On/Off |
| Dynamic Range | Off, 1 ～ 8 |
| Video Adjustment | Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black And White Mode, Gamma Curve |
| SNR | >50dB |
Input/output Interface
| Interface | HDMI, LAN(POE), USB3.0, A-IN, RS232-IN, DC12V Power Supply |
| Video Output | HDMI, USB3.0, LAN(support PoE) |
| Video Compression Format | LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12 |
| Audio Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC |
| LAN Interface | 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output |
| Control Interface | RS232-IN |
| Control Protocol | VISCA/Pelco-D/Pelco-P |
| Serial Port Communication Protocols | VISCA/Pelco-D/Pelco-P |
| USB Communication Protocols | UVC（Video Communication Protocol）, UAC（Audio Communication Protocol） |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset |
| Power Supply | HEC3800 Power Socket(DC12V) |
PTZ Parameters
| Pan Rotation | -170°～+170° |
| Tilt Rotation | -30°～+30° |
| Pan Control Speed | 0.1 ～45°/sec |
| Tilt Control Speed | 0.1～30°/sec |
| Preset Speed | Pan: 45°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets(10 via remote control) |
Video Signal
| HDMI | 4KP30/25,1080P60/59.94/50/30/29.97/25,720P60/59.94/50 |
| USB Main Stream | YUY2/NV12:1920×1080@10/5fps;1280×720@25/20/15/10/5fps;1024×576/800×600/800×448/640×360/ 480×270/320×180@30/25/20/15/10/5fps; |
| USB Main Stream | MJPG/H264:3840x2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
| USB Sub-stream | YUY2/NV12:1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps |
| USB Sub-stream | MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
Other Parameters
| Input Voltage | 12V/1A |
| Input Current | <1A |
| Power Consumption | ≤12W |
| Stored Temperature | -10℃～+70℃ |
| Storage Humidity | 20%～95% |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%～80% |
| Dimension (W*H*D) | 130.46x118.44x165.34mm |
| Unit Weight | 1.025kg |
| Outer Carton QTY | 4pcs |
| Outer Carton Size | 520x365x390mm |
| Gross Weight | 11.944kgs |
Structure Dimensions (Unit: mm)

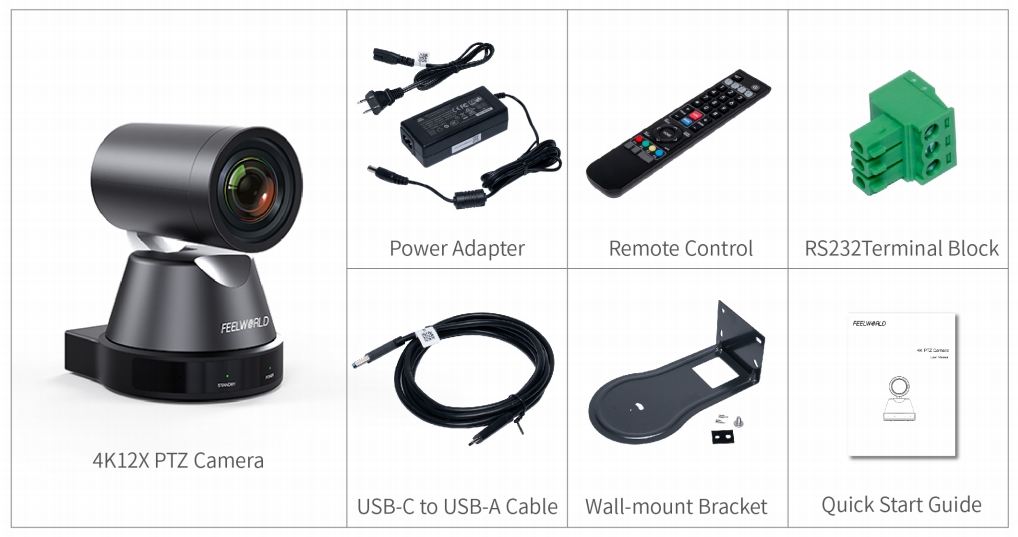

Pack List:
1× PTZ Camera
1× Power Adapter
1× Remote Control
1× USB-C to USB-A Cable
1× RS232 Terminal Block
1× Wall Mount Bracket
1× Quick Start Guide
1× PTZ Camera
1× Power Adapter
1× Remote Control
1× USB-C to USB-A Cable
1× RS232 Terminal Block
1× Wall Mount Bracket
1× Quick Start Guide
Packaging Picture
