D101 PLUS Dual 10.1"4RU Rackmount Monitor 4K HDMI SDI 1920x1200IPS
| Number: | 202410111009255141 |
|---|---|
| Model: | D101 PLUS |
| Size: | 10.1"x2 |
| Introduction: |
Screen Size： 10.1"x2 IPS
Resolution： 1920x1200 pixels Aspect ratio： 16:10 Brightness： 500cd/m² |
| Input: | 3G-SDI, HDMI, CVBS, Audio(L/R), Ethernet |
| Output: | 3G-SDI, HDMI, CVBS, Stereo Headphone |
| DM: | |
| Download: | |
Perfect Video Monitoring Solution
FEELWORLD D101 PLUS is ideal for high end broadcast monitoring,it features 3G SDI,4K HDMI and more video interfaces and has 2 independent 10.1-inch displays can be monitor two different cameras simultaneously.All D101 PLUS include Ethernet so you can connect them to your network and centrally control all your monitors from a single computer.It easy to install in video wall or broadcast truck thanks to its 4RU form factor. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more.
FEELWORLD D101 PLUS is ideal for high end broadcast monitoring,it features 3G SDI,4K HDMI and more video interfaces and has 2 independent 10.1-inch displays can be monitor two different cameras simultaneously.All D101 PLUS include Ethernet so you can connect them to your network and centrally control all your monitors from a single computer.It easy to install in video wall or broadcast truck thanks to its 4RU form factor. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more.
Dual 10.1-inch Full HD Screen
Clearly checking and capture every nuance
D101 PLUS is equipped with dual independently 10.1-inch high resolution IPS panel，160° wide field of view and clearly present more detailed image. 8bit color depth with 16.7M colors display.
Clearly checking and capture every nuance
D101 PLUS is equipped with dual independently 10.1-inch high resolution IPS panel，160° wide field of view and clearly present more detailed image. 8bit color depth with 16.7M colors display.
4RU Rack Mount Design
Suitable for 19 inch width cabinet installation with 4RU mounting height and slim metal design,occupying only a small part of volume， ideal for installation in equipment racks and monitor walls.
Suitable for 19 inch width cabinet installation with 4RU mounting height and slim metal design,occupying only a small part of volume， ideal for installation in equipment racks and monitor walls.
Use for Desktop
The innovation design of D101 PLUS that make it can be use for desktop application, just put down the two metal stripes the rear of monitor.
The innovation design of D101 PLUS that make it can be use for desktop application, just put down the two metal stripes the rear of monitor.
Full Range of Auxiliary Functions

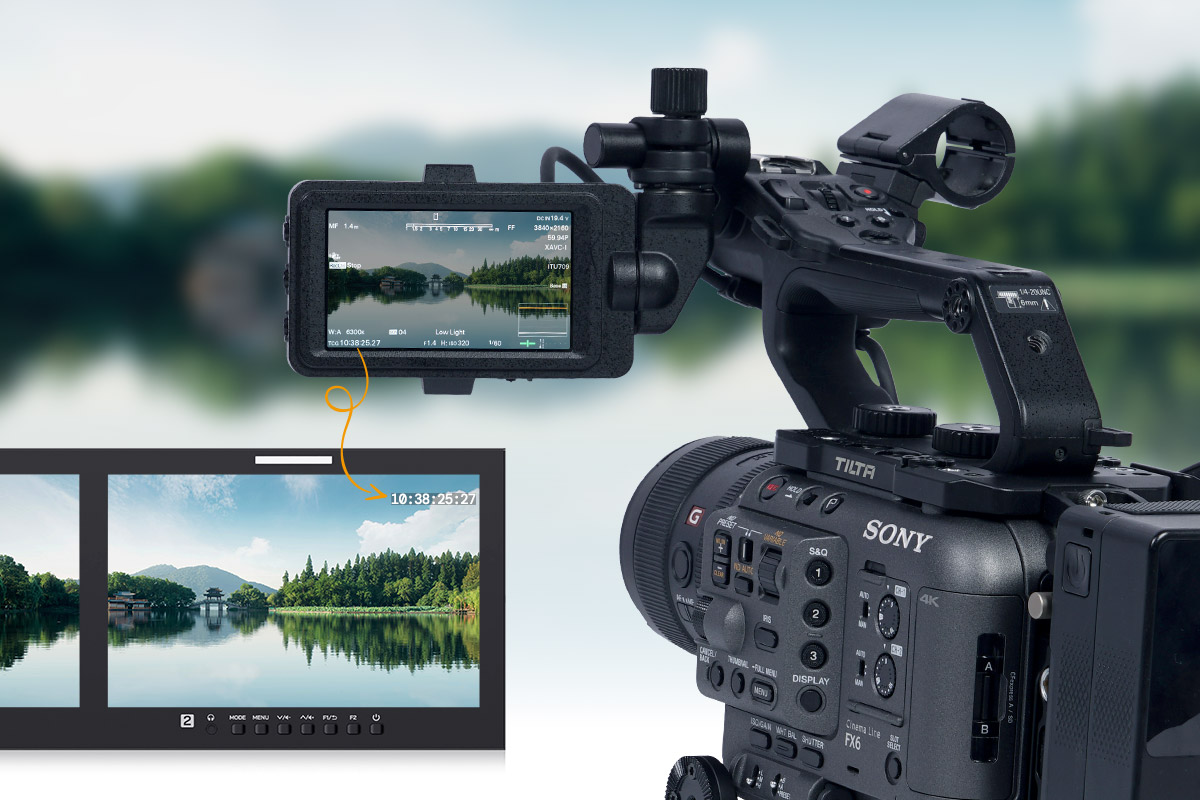

SDI Time Code
The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production
The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the USB flash drive, and imports via connecting the mini USB to USB cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the USB flash drive, and imports via connecting the mini USB to USB cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. D101 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. D101 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
<
Easy Remote Control
All displays can be perfectly adjusted by a connected computer under the control of software.so you can focus on other operation on the workbench at the same time.
Note: the software is suitable for Windows system at present.
All displays can be perfectly adjusted by a connected computer under the control of software.so you can focus on other operation on the workbench at the same time.
Note: the software is suitable for Windows system at present.
Intuitive Button Operation
Each panel is equipped with intuitive buttons to control the screen independently, the 2 custom function keys can be set the common function as shortcut key. All buttons clear at a glance, easy to setup.
Each panel is equipped with intuitive buttons to control the screen independently, the 2 custom function keys can be set the common function as shortcut key. All buttons clear at a glance, easy to setup.
Rich Video Interfaces
D101 PLUS is design for broadcast work and post-production, each panel with 3G-SDI, 4K HDMI and CVBS signal inputs and outputs. Plus, it also have L/R audio.
D101 PLUS is design for broadcast work and post-production, each panel with 3G-SDI, 4K HDMI and CVBS signal inputs and outputs. Plus, it also have L/R audio.
3-color TALLY Light, Enhance Team Cooperation
D101 PLUS with Tally function, perfect for live broadcasts.The front of each screen including tally light,displayed in red, green or yellow to signify on air, preview or recording This means during live production you will always know when you are recording or on-air. Tally is connected via an industry standard parallel pin connector on the rear panel.
D101 PLUS with Tally function, perfect for live broadcasts.The front of each screen including tally light,displayed in red, green or yellow to signify on air, preview or recording This means during live production you will always know when you are recording or on-air. Tally is connected via an industry standard parallel pin connector on the rear panel.
Flexible Power Supply
The monitor comes with DC 12V socket（suitable for 5.5*2.1mm power plug) and 4 pin XLR connector， provide the strong power for the screens.
The monitor comes with DC 12V socket（suitable for 5.5*2.1mm power plug) and 4 pin XLR connector， provide the strong power for the screens.
11 Languages Supporting
Built-in up to 11 languages, that means D101 PLUS is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Built-in up to 11 languages, that means D101 PLUS is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
1. 2x10.1 Inch 1920x1200 full HD IPS screen
2. Intuitive buttons + new menu interface, convenient to operation
3. 4RU rack mount design, easy to mount on TV wall or broadcast truck
4. Upload custom 3D-LUT, preview film look
5. With Waveform, Vector scope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot
6. Connect to Ethernet remotely adjust the monitor via software
7. Front panel built-in 3 colors TALLY indicator, enhance shooting cooperation
8. Multiple signal ports (SDI/HDMI/CVBS), meet different needs.
9. Power using included 12-volt supply or use standard 4-pin XLR
2. Intuitive buttons + new menu interface, convenient to operation
3. 4RU rack mount design, easy to mount on TV wall or broadcast truck
4. Upload custom 3D-LUT, preview film look
5. With Waveform, Vector scope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot
6. Connect to Ethernet remotely adjust the monitor via software
7. Front panel built-in 3 colors TALLY indicator, enhance shooting cooperation
8. Multiple signal ports (SDI/HDMI/CVBS), meet different needs.
9. Power using included 12-volt supply or use standard 4-pin XLR
| * Waveform (RGB、YUV、Y) |
| * Vectorscope |
| * Histogram (RGB1、RGB2、Y) |
| * Custom LUTs (up to 32) |
| * Focus Assist(Red, Green, Blue) |
| * Check Field (Red,Green,Blue,Mono) |
| * Embedded Audio |
| * Over Exposure |
| * Pixel to Pixel |
| * Center Marker (Red, Green, Blue, Black, White, Gray) |
| * Ratio Marker (4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Zoom Mode (2X、4X、9X、16X、User) |
| * False Color |
| * Scan Mode(Under Scan, Over Scan) |
| * Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Custom Color Temperature |
| * Built-in LED tally indicators (Red, Green, Yellow) |
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
The Horizontal, Vertical and Hor&Ver of the image around flip.
Display Spec.
| Model | D101 PLUS |
| Screen Size | 10.1"×2 IPS |
| Resolution | 1920×1200 pixels |
| Dot pitch | 0.1128(H)×0.1128 (W) mm |
| Aspect Ratio | 16:10 |
| Brightness | 500cd/m² |
| Contrast Ratio | 1500:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input (Each LCD)
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
Output (Each LCD)
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 1 X BNC | Video |
Audio (Each LCD)
| Audio Out | Stereo Headphone × 1 |
SDI Support Format
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4K 4096×2160p (60/50/30/29.97/25/24/23.98) |
CVBS (Video) Support Format
| PAL/NTSC auto recognize |
General
| Input Voltage | DC9～24V |
| Power Consumption | ≤24W |
| Power Connector | DC/ 4-pin XLR |
| Working Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Install Way | Rack Mount |
| Unit Size | 482x177x25 mm |
| Unit Weight | 2048g |
| Outer Carton Qty | 5pcs |
| Outer Carton Size | 560*410*320(mm) |
| Gross Weight | kg |
Advanced Features
| * Waveform (RGB、YUV、Y) |
| * Vectorscope |
| * Histogram (RGB1、RGB2、Y) |
| * Custom LUTs (up to 32) |
| * Focus Assist(Red, Green, Blue) |
| * Check Field (Red,Green,Blue,Mono) |
| * Embedded Audio |
| * Over Exposure |
| * Pixel to Pixel |
| * Center Marker (Red, Green, Blue, Black, White, Gray) |
| * Ratio Marker (4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Zoom Mode (2X、4X、9X、16X、User) |
| * False Color |
| * Scan Mode(Under Scan, Over Scan) |
| * Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Custom Color Temperature |
| * Built-in LED tally indicators (Red, Green, Yellow) |
Dimensions (Unit: mm)
Packaging List:
1× Monitor
1× 3A Power Adapter
1× Mini USB to USB Cable
1× Tally Kit
1× Operation Manual
1× Monitor
1× 3A Power Adapter
1× Mini USB to USB Cable
1× Tally Kit
1× Operation Manual
