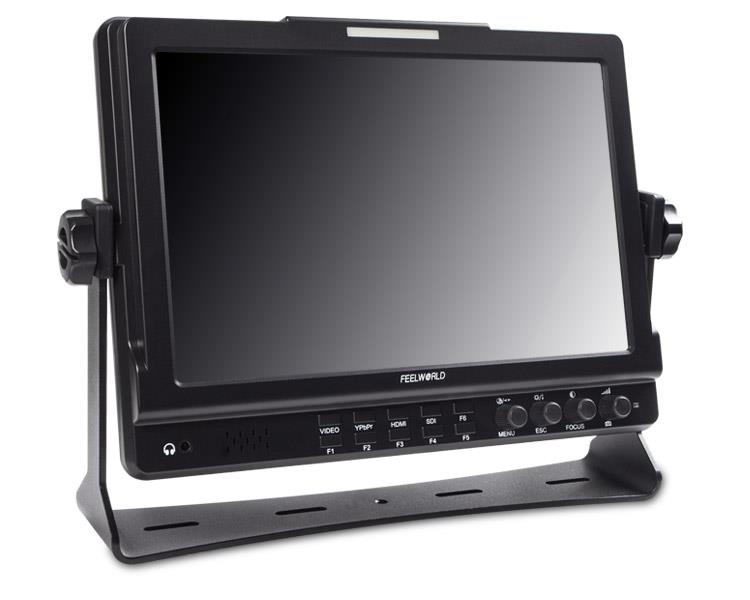

| Number: | 201512240918582127 |
|---|---|
| Model: | FW1018V1 |
| Size: | 10.1" |
| Introduction: |
Screen Size： 10.1" IPS
Resolution： 1920x1200 pixels Aspect ratio： 16:10 Brightness： 320cd/m² |
| Input: | HDMI, Ypbpr, Video, Audio(L/R) |
| Output: | HDMI, Ypbpr, Video, Stereo Headphone, Speaker(bulit-in) |
| DM: | |
| Download: | |
-
1920X1200 IPS FHD Panel
Enjoy Consistent Images from Any Perspective. FW1018V1 uses an IPS panel, which provides a wide 170°/170° viewing angle and brightness output, up to 320cd/m². This means you'll be able to see accurate, consistent and bright images from any viewing point.
-

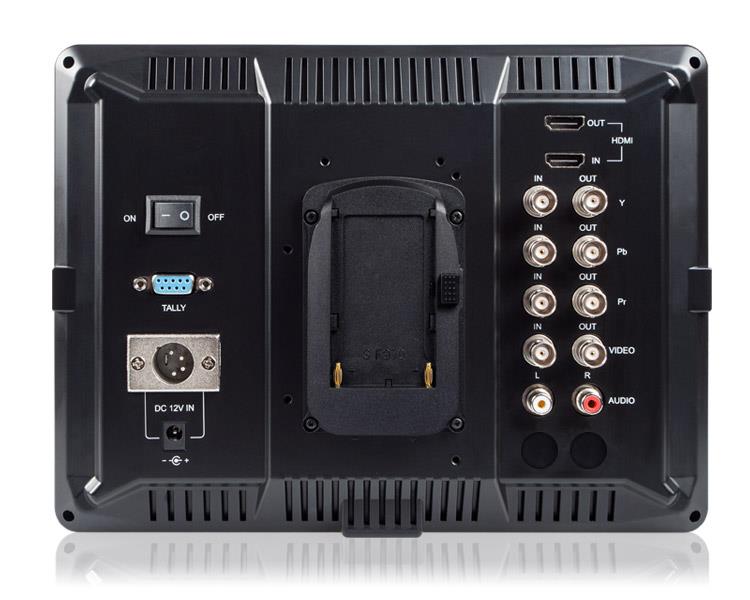

Multiple Inputs and Outputs
HDMI / YPbPr / Video / Audio
Input:
HDMI X 1
Y X 1
Pb X 1
Pr X 1
Video X 1
Auido (L/R) X 2Output:
HDMI X 1
Y X 1
Pb X 1
Pr X 1
Video X 1Audio:
Stereo Headphone
Internal Speaker
-
Professional Peaking Focus Assist

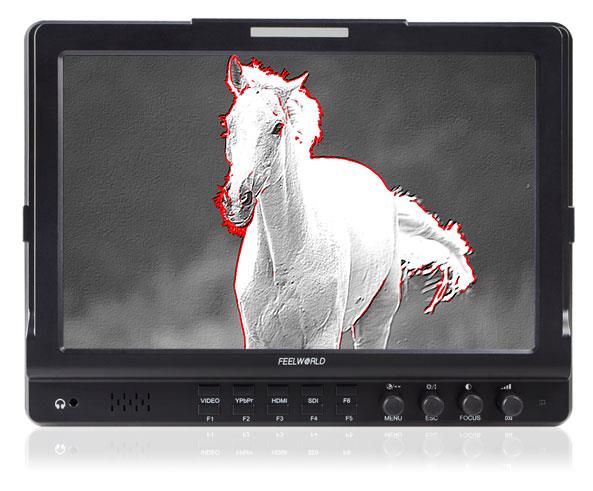

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Up to load 32 LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65). The user stores the LUT document in the root directory of the USB flash driver, and imports via connecting the mini USB to USB cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.
Note: The USB interface behind the battery plate, please remove the battery plate when you need to import LUT files；The mini USB to USB cable excluding.
When you need to analyze image quality more accurately than simply looking at the picture then use FW1018V1's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FW1018V1 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!scopes!
-
3-color Tally Light
DB-9 input signal

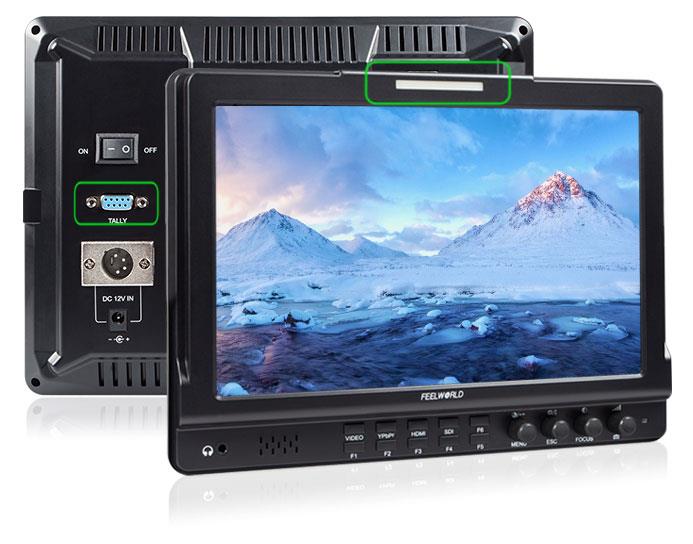

There is front TALLY lights with 3 colors display, and controlled via DB-9 ports on the rear panel.
-
Flexible Battery Systerm

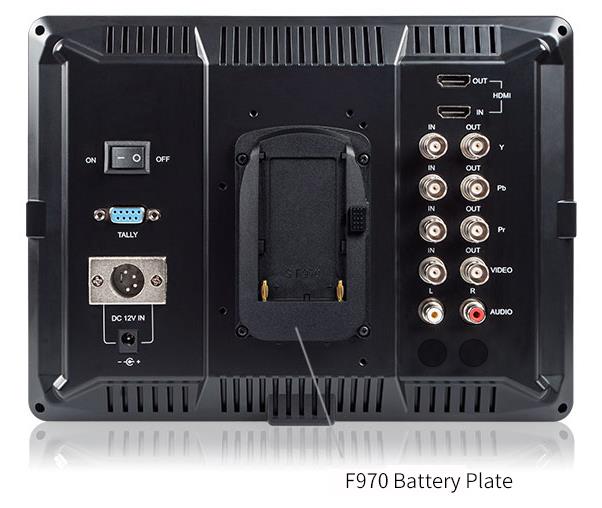

The monitor is powered from 4-pin XLR connector, or 12V DC input with the included power adapter (optional), and FW1018V1 has flexible battery systerm that supports F970, LP-E6, D28S, Anton, Sony V mount plates of your choice.
1. Wide view angle IPS Screen, High resolution 1920x1200, bright, colorful display
2. High Contrast: 800:1
3. High Brightness: 320cd/m²
4. 160°wide viewing angles IPS Panel
5. HDMI, Ypbpr, Video, Audio(L/R) inputs and HDMI, Ypbpr, Video loop-through outputs
6. All Waves
7.Waveform（RGB、YUV、Y）
8. Vector
9. Histogram（RGB1, RGB2, Y）
10. Focus Assist（Red, Green, Blue）
11. Embedded Audio
12. Over Exposure（10~100）
13. Check Field（Red, Green, Blue, Mono）
14. False Colors
15. Nine Grid
16. Safe Frames（80%, 85%, 90%, 93%, 96%, 2.35:1）
17. Center Marker
18. Ratio Marker（4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1）
19. Scan Mode（Under Scan, Over Scan）
20. Aspect Ratio（Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen）
21. Anamorphic（1.33X, 1.6X, 2.0X, 2.0X MAG, User）
22. Image Flip（H Flip, V Flip, H_V Flip）
23. Zoom Mode（2X、4X、9X、16X、User）
24. Image Freeze
25. Pixel to Pixel
26. 3D-LUT
27. Color Adjustment（5600K, 6500K, 9300K, User）
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.
False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 10-100IRE adjustable.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Audio Meter Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. Below -18dB column shows green; -18dB~-08dB column shows yellow; above -08dB shows red.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Nine Grid
Nine Grid is the most common and basic composition method. The area of the picture can be divided into 9 equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.

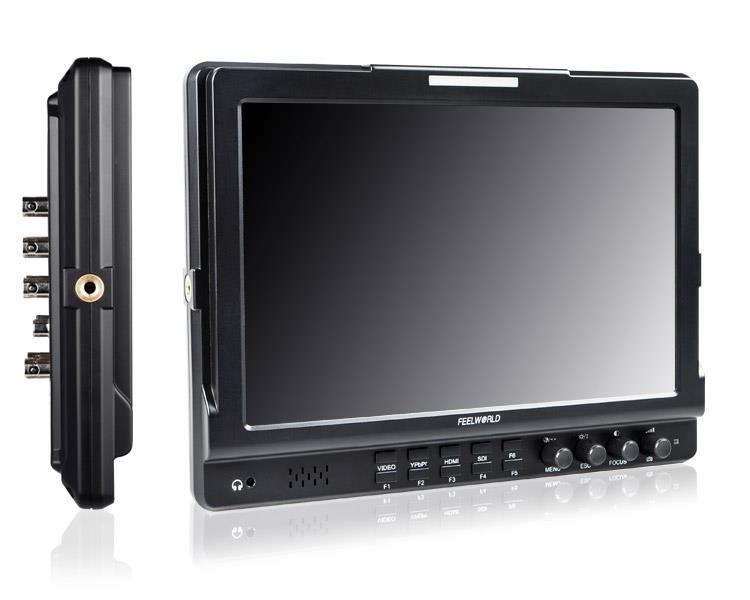

| Model | FW1018V1 |
| Screen Size | 10.1" IPS |
| Resolution | 1920×1200 pixels |
| Dot pitch | 0.113(H)×0.113 (W) mm |
| Aspect Ratio | 16:10 |
| Brightness | 320cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
| 1 X HDMI | HDMI |
| 1 X BNC | Y |
| 1 X BNC | Pb |
| 1 X BNC | Pr |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
| 1 X DB-9 | Tally |
| 1 X HDMI | HDMI |
| 1 X BNC | Y |
| 1 X BNC | Pb |
| 1 X BNC | Pr |
| 1 X BNC | Video |
| Audio | Stereo Headphone, Speaker |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24Hz) |
| Input Voltage | DC7～24V |
| Power Consumption | ≤14W |
| Power Connector | DC/ 4-pin XLR |
| Battery Plate | F970 (Standard); D28S, LP-E6, V-Mount, Anton Bauer (Optional) |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread Socket (3 sides left&right&bottom) |
| Unit Size | 258L×192H×39D mm |
| Unit Weight | 810g |
| Color Box Size | 304L*85w*265H(mm) |
| Outer Carton Qty | 5 |
| Outer Carton Size | 477*319*317 (mm) |
| Gross Weight | 16.8kgs |
| *All Waves |
| *Waveform（RGB、YUV、Y） |
| *Vector |
| *Histogram（RGB1, RGB2, Y） |
| *Focus Assist（Red, Green, Blue） |
| *Embedded Audio |
| *Over Exposure（10~100） |
| *Check Field（Red, Green, Blue, Mono） |
| *False Colors |
| *Nine Grid |
| *Safe Frames（80%, 85%, 90%, 93%, 96%, 2.35:1） |
| * Center Marker |
| *Ratio Marker（4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1） |
| *Scan Mode（Under Scan, Over Scan） |
| *Aspect Ratio（Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen） |
| * Aspect Ratio（Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen） |
| * Image Flip（H Flip, V Flip, H_V Flip） |
| * Zoom Mode（2X、4X、9X、16X、User） |
| *Image Freeze |
| * Pixel to Pixel |
| * 3D-LUT |
| * Color Adjustment（5600K, 6500K, 9300K, User） |
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Tally Kit
1× U bracket
1× Operation Manual
