| Number: | 202508121622422715 |
|---|---|
| Model: | WT1S |
| Size: | |
| Introduction: |
Dual HDMI +SDI ports
1000ft(LOS)transmission distance Up to 4K 30Hz Preset grouping and pairing Direct live straming Wireless full-duplex intercom One TX to 4 RX Smart channel scan Support APP monitoring & recording |
| Input: | 3G-SDI, HDMI, DC 6-16V, Type-C 5V/1.5A |
| Output: | 3G-SDI, HDMI, 3.5mm headphone jack |
| DM: | |
| Download: | |

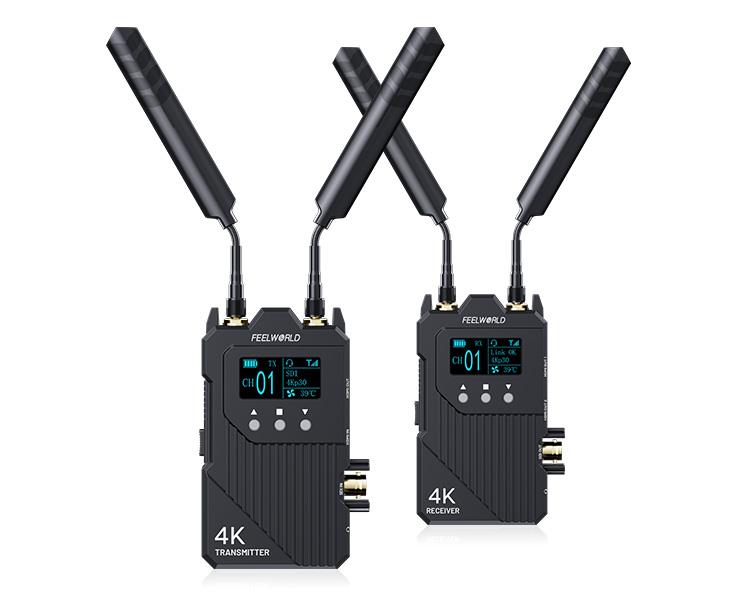

FEELWORLD WT1S TX/RX set is a real-time wireless video transmission system which features 5GHz transmission technology, supports up to 4K30p ultra HD image,integrated with intercom and live streaming. Equipped with SDI/HDMI input and output and other features built for professional filmmaking, the WT1S empowering filmmakers, crews, and content creators everywhere.
With 4K/30fps transmission capability, WT1S presents image with superior clarity, detail and realism, making it competent for filmmaking or other professional applications.

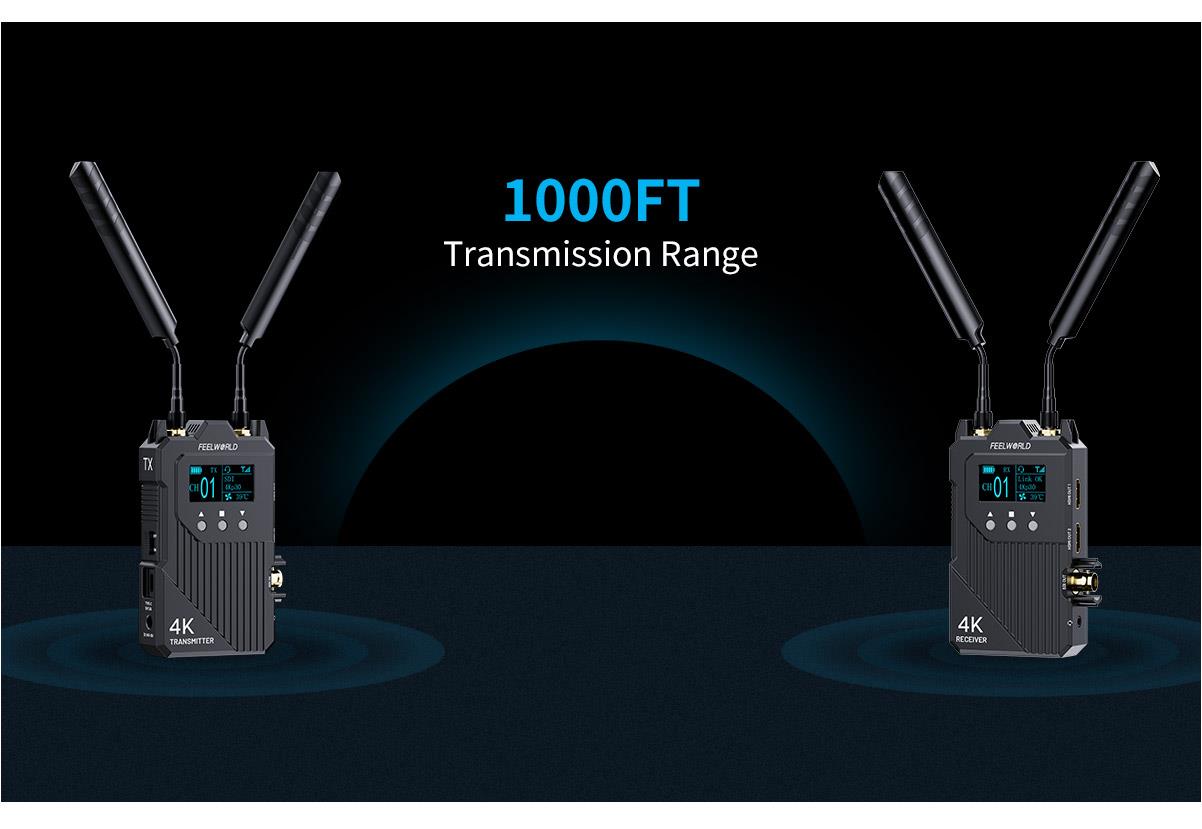

The WT1S has more than 1000ft (300m) hassle-free and reliable range for wireless video and audio transmission; 0.08S low latency achieves real-time monitoring.

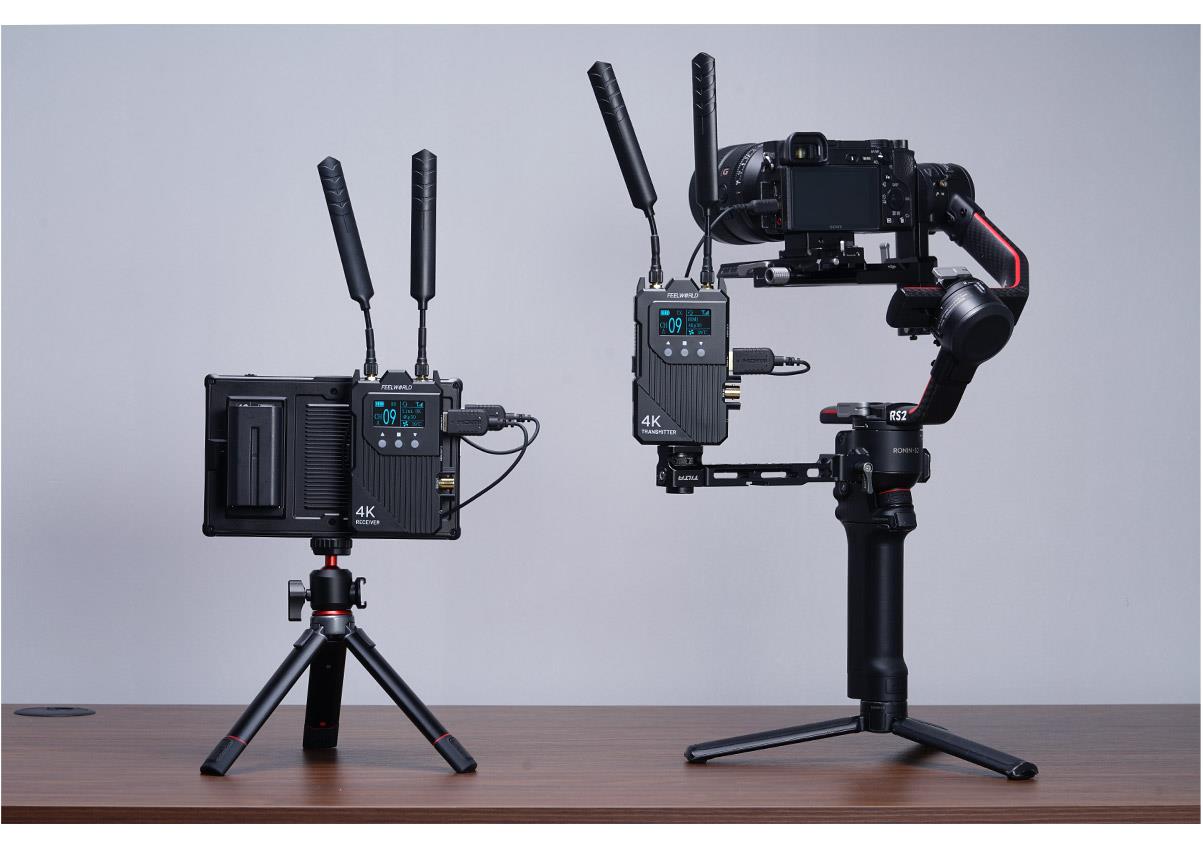

Time is important for busy crew members,WT1S supports preset grouping and pairing,don't need to repetitively and manually set up the transmitter and receivers.
Note: In grouping mode,the grouping name and channel of TX and RX need to be consistent for automatically linking.
Meet the real-time intercom between the director and the photographer
The WT1S features intercom function, which enable communication between the director and the photographer, save your time and costs to set an extra intercom system.

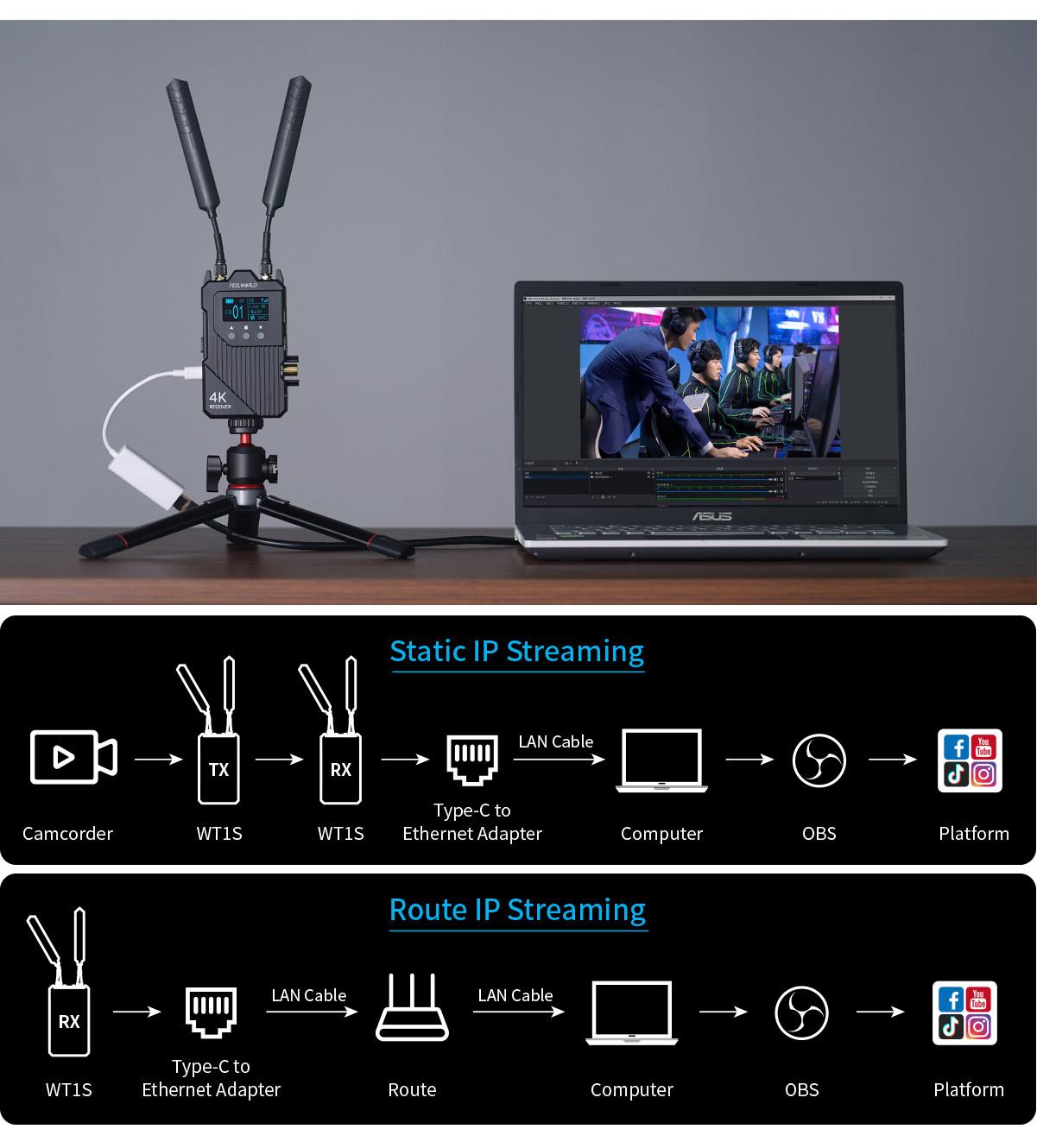

With the Type-C to Ethernet adapter accessory, video feed straight out of RX (the receiver) will be used for live streaming on OBS, VLC on your PC without further encryption and decryption via a video capture device.There are Static IP and Route IP settings.

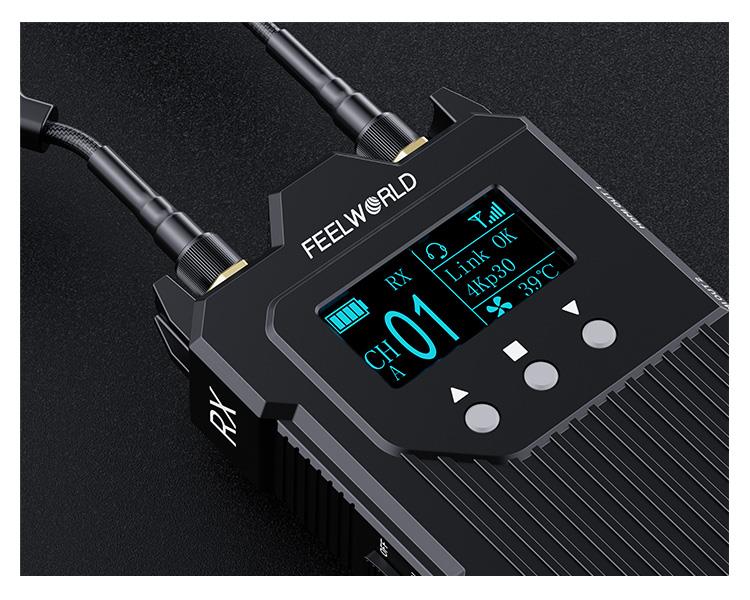

Both TX and RX offers a OLED display. With it, you can monitor the status and setting information, including battery level,current group, transmission resolution, frame rate, current channel and more. Improve the user's experience.

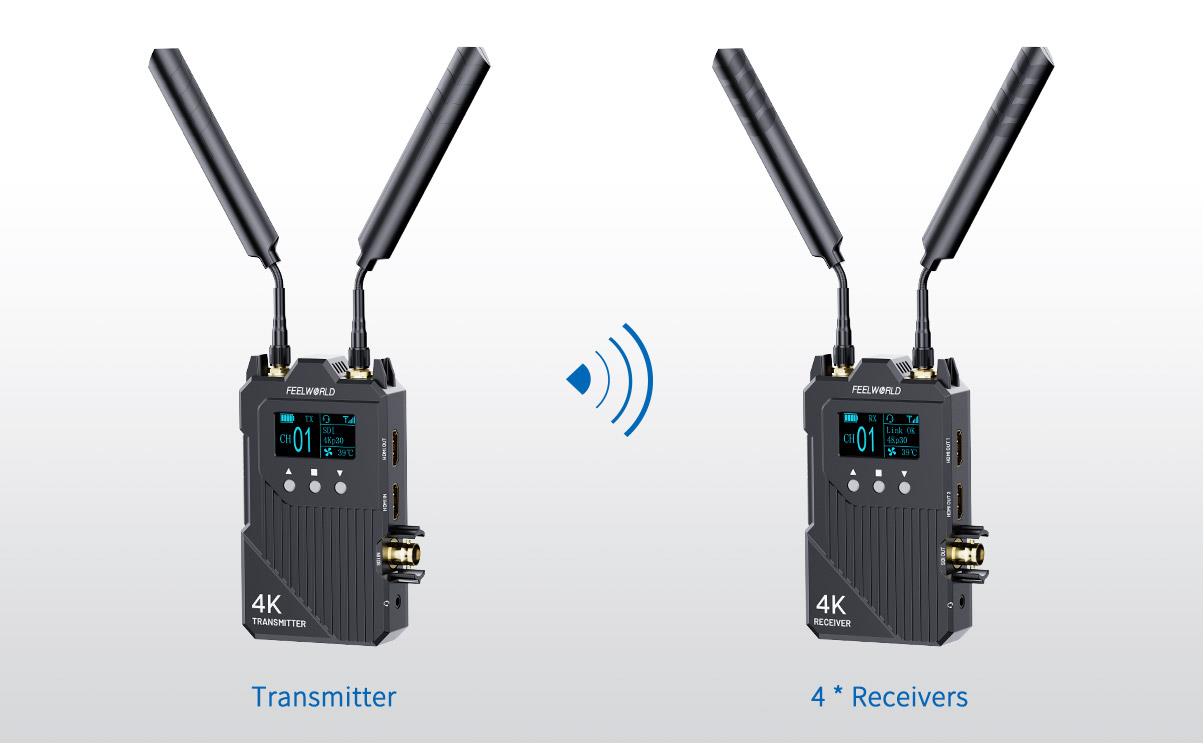

WT1S supports WPS pairing manually,one transmitter allows to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
The receiver comes with smart channel scan function, this helps determine which ones are occupied and select-able.

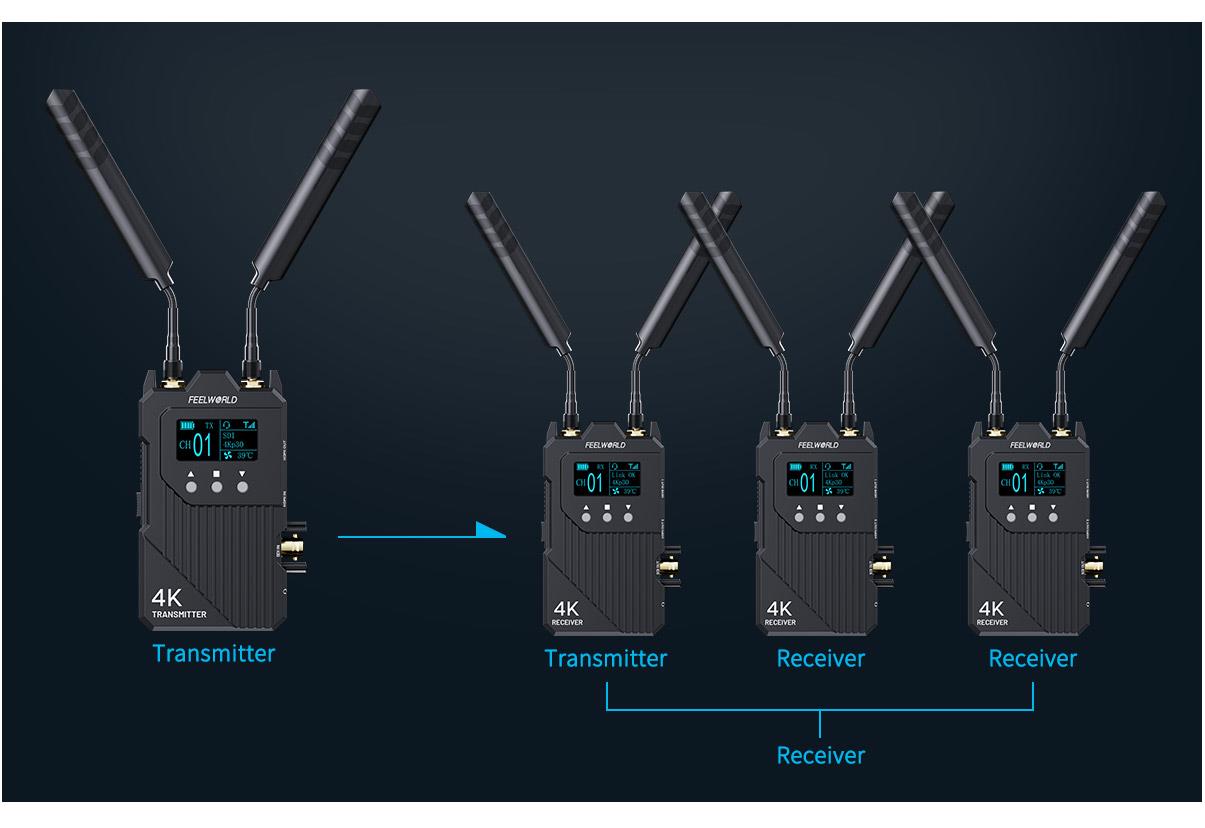

The transmitter can be flexible switched as a receiver. If you purchase two sets WT1S, you can setup 1 Transmitter, 3 receivers.

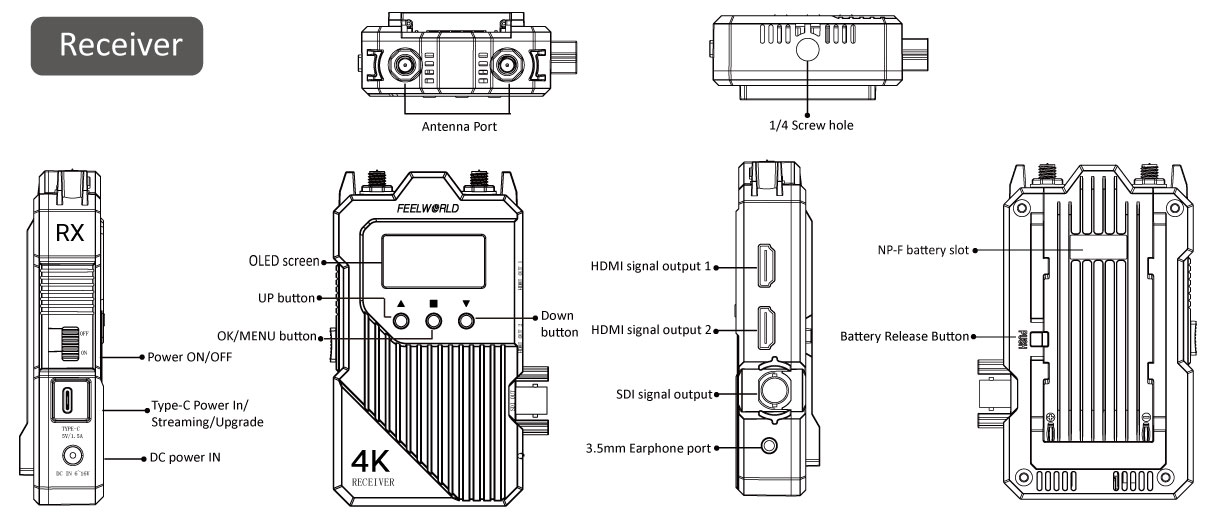

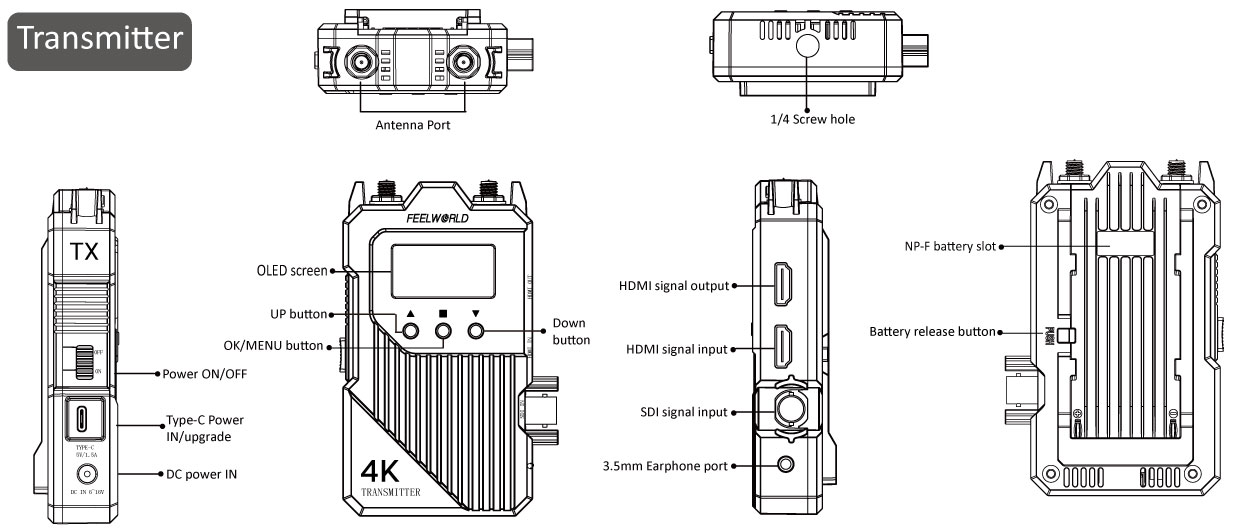

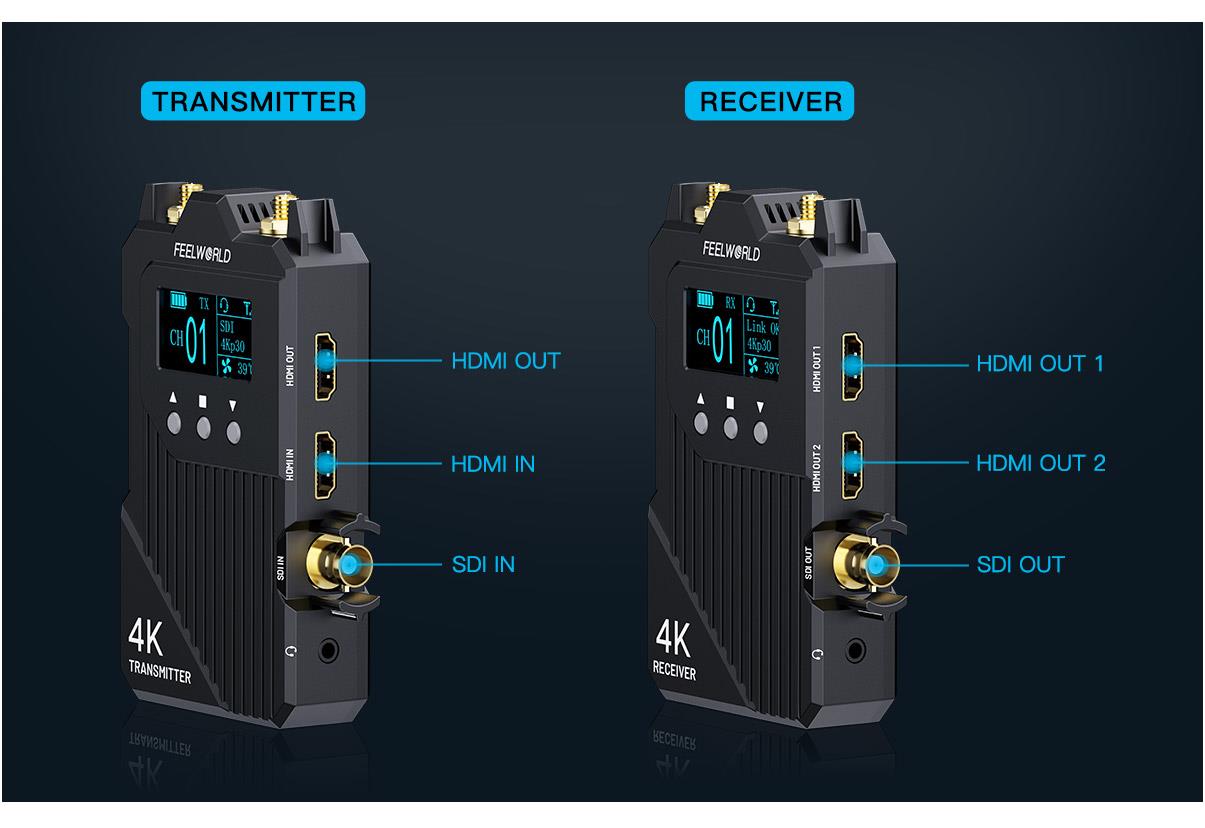

The transmitter features SDI input HDMI input and output,the receiver provides SDI and dual HDMI output, meet various shooting needs.

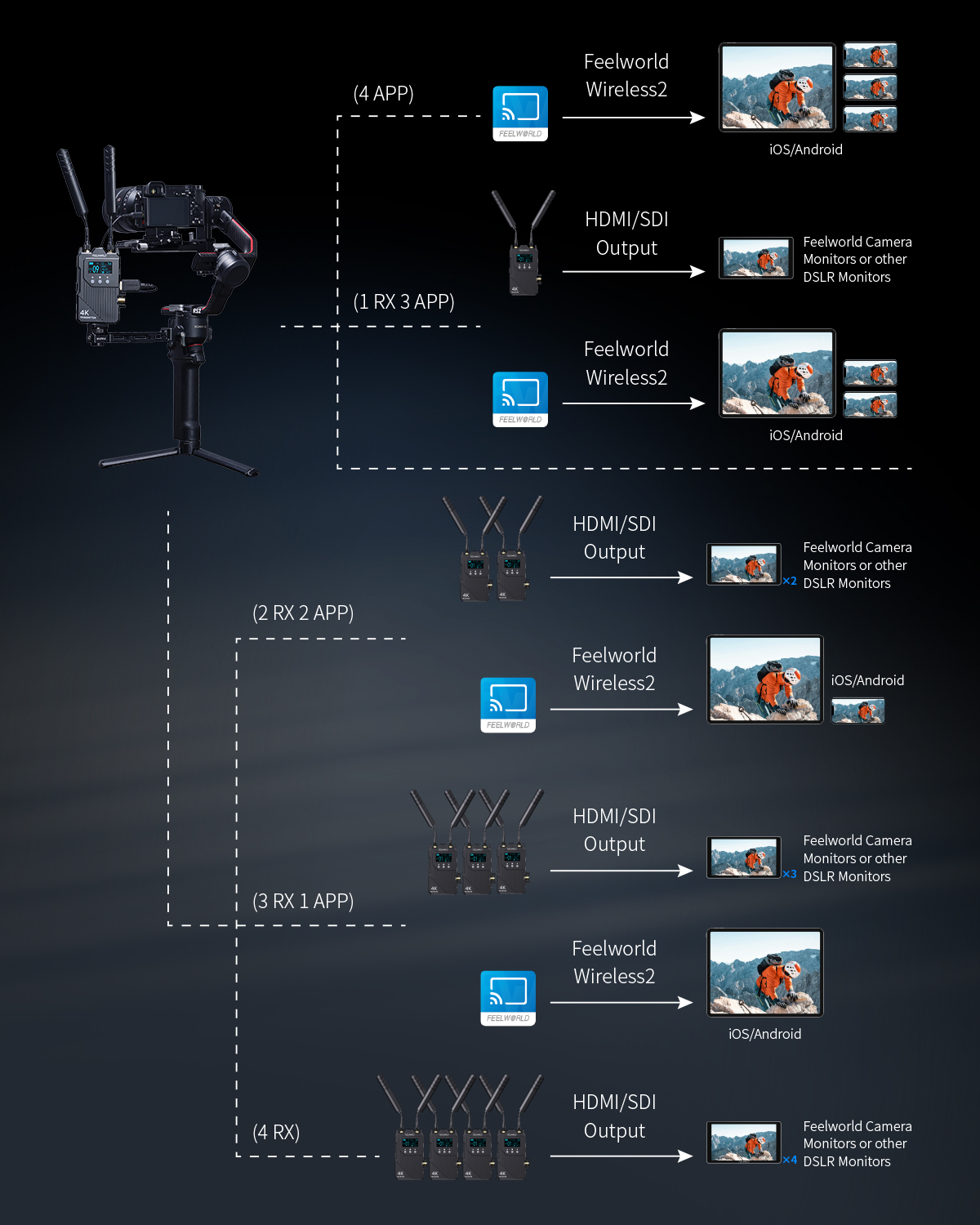

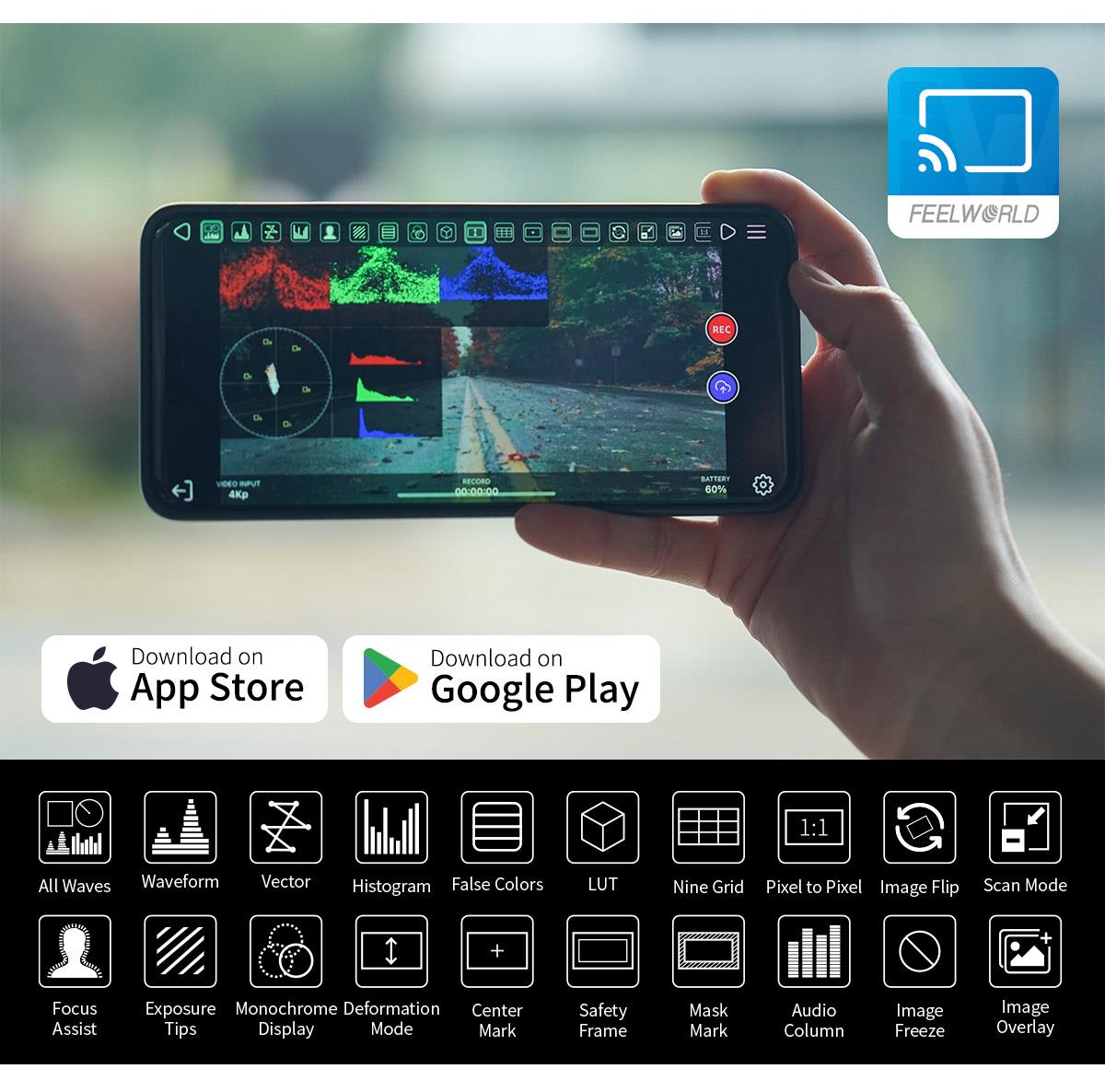

The APP “Feelworld Wireless 2” offers a huge range of monitoring functions that can enhance your shooting workflow.

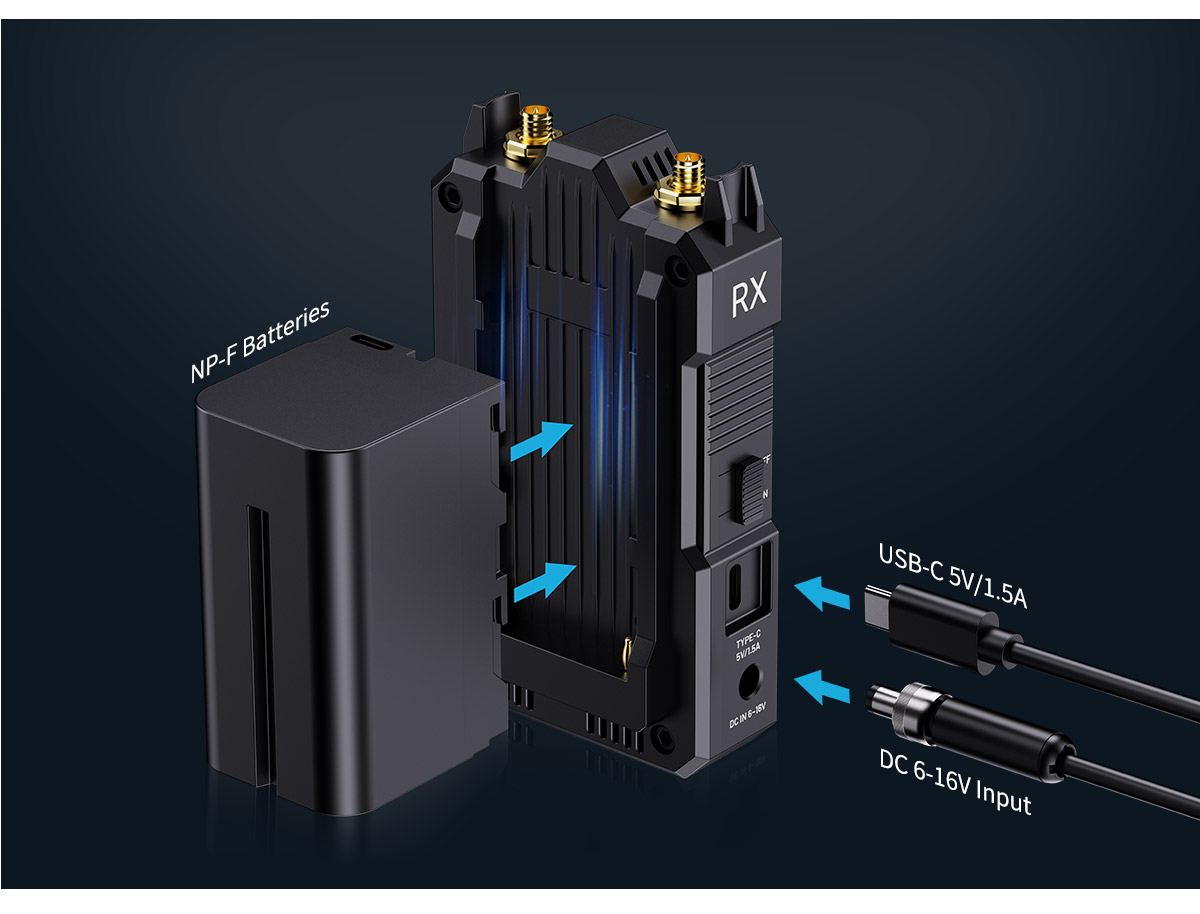

The WT1S supports a wide range of power options DC–6V to 16V, NP-F battery slot for NP-F batteries, and USB-C charger port.

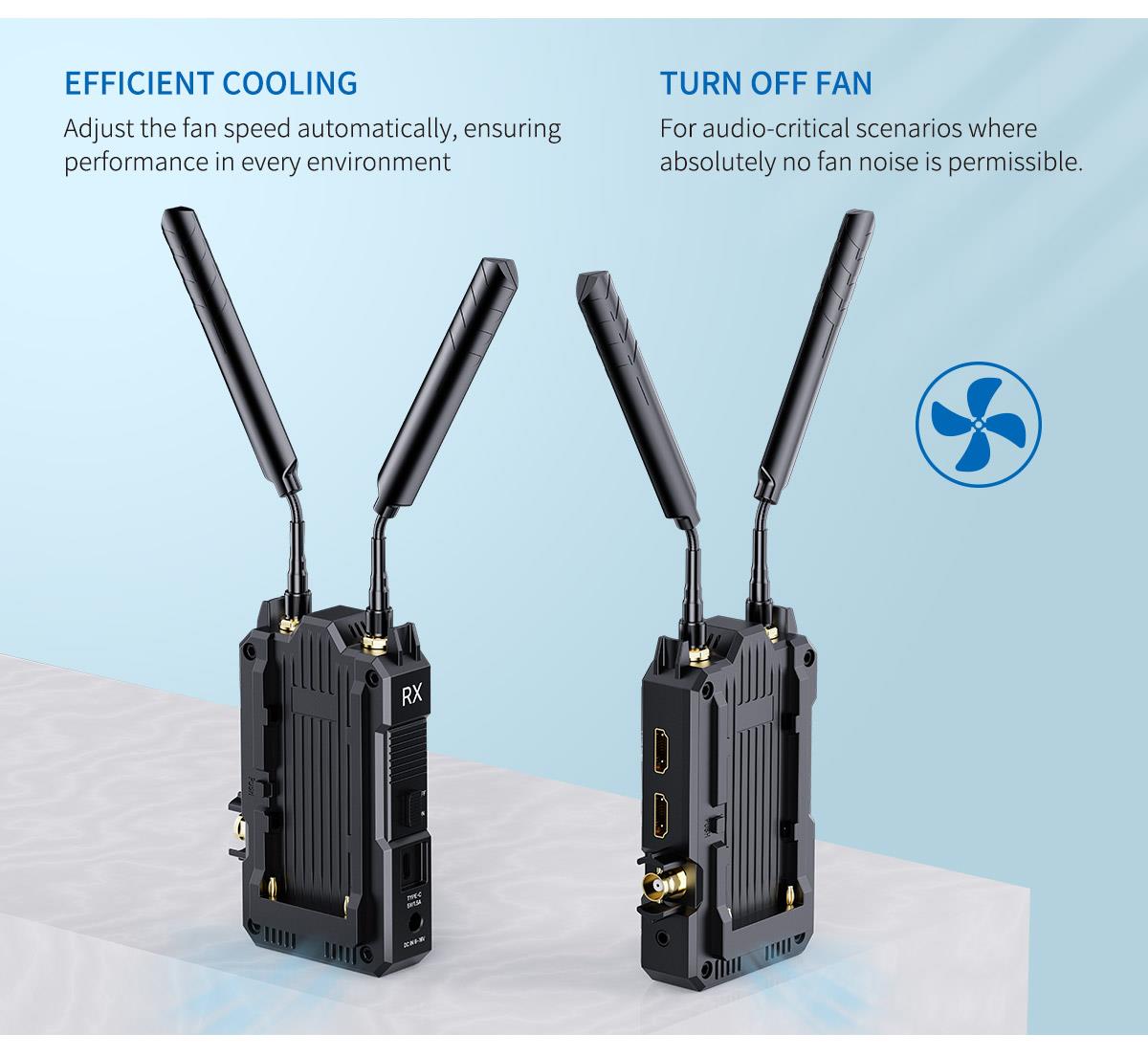

WT1S offers fan cooling system,preventing overheating and ensuring stable signal transmission.It is default to turn on and automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation. In addition, you can turn off the fan manually when you need a no noise environment.
Both the transmitter and receiver has a 1/4 screw thread and with compact & lightweight body,WT1S can be mounted on camera arms, cold shoes and any other places.
* Dual HDMI + SDI signal interfaces, meet your different needs
* More than 1000ft transmission range with 0.08S ultra-low latency
* Up to 4K 30Hz, present image with superior clarity, detail and realism
* Wireless full-duplex talkback, real-time intercom between the director and the photographer
* With type-C to Ethernet adapter accessory, achieve live streaming
* Under Grouping mode, TX and RX can be paired easily and quickly
* The transmitter can be switched as a receiver at will
* One TX to 4 RX, monitoring for everyone on set
* Real-time APP monitoring and recording for Android/iOS system
* 13 frequency channels, AUTO channel scan
| Screen | OLED |
| Interface |
1 * SDI input 1 * HDMI input 1* HDMI output 2 *Antenna port （RP-SMA Male） DC power input 3.5mm headphone jack Type-C |
| Power Supply Way/Voltage |
NP-F battery slot Type-C: 5V/1.5A DC adapter: 6-16V |
| Power Consumption | <5.5W |
| HDMI Format |
480P60, 576P60 720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 2160P30/25/24 HDMI Type A |
| SDI Format |
480P60, 576P60 720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 1*BNC |
| Frequency | 5.1-5.9GHz |
| Modulation Mode | OFDM |
| Transmission Power | 22dBm |
| Bandwidth | 20/40MHz |
| Latency | Min 0.08S |
| Intercom Frequency Response Range | 20Hz~20KHz |
| Operating Temperature | 0℃ ～ 40℃ |
| Storage Temperature | -20℃ ～ 60℃ |
| Unit Size(mm) | 77.1L*30W*118.6H (excluding antenna） |
| Unit Weight | 138.8g |
| Screen | OLED |
| Interface |
1 * SDI input 2* HDMI output 2 *Antenna port （RP-SMA Male） DC power input 3.5mm headphone jack Type-C |
| Power Supply Way/Voltage |
NP-F battery slot Type-C: 5V/1.5A DC adapter: 6-16V |
| Power Consumption | <6W |
| HDMI Format | 480P60, 576P60
720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 2160P30/25/24 HDMI Type A |
| SDI Format | 480P60, 576P60
720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 1*BNC |
| Frequency | 5.1-5.9GHz |
| Modulation Mode | OFDM |
| Receiving Sensitivity | -87dBm |
| Bandwidth | 20/40MHz |
| Latency | Min 0.08S |
| Intercom Frequency Response Range | 20Hz~20KHz |
| Operating Temperature | 0℃ ～ 40℃ |
| Storage Temperature | -20℃ ～ 60℃ |
| Unit Size(mm) | 77.1L*30W*118.6H (excluding antenna） |
| Unit Weight | 138.8g |
| Size of Color Box | 250L*173W*53H (mm) |
| Outer Carton QTY | 10PCS |
| Size of Outer Carton | 305x255x420mm |
| Gross Weight |

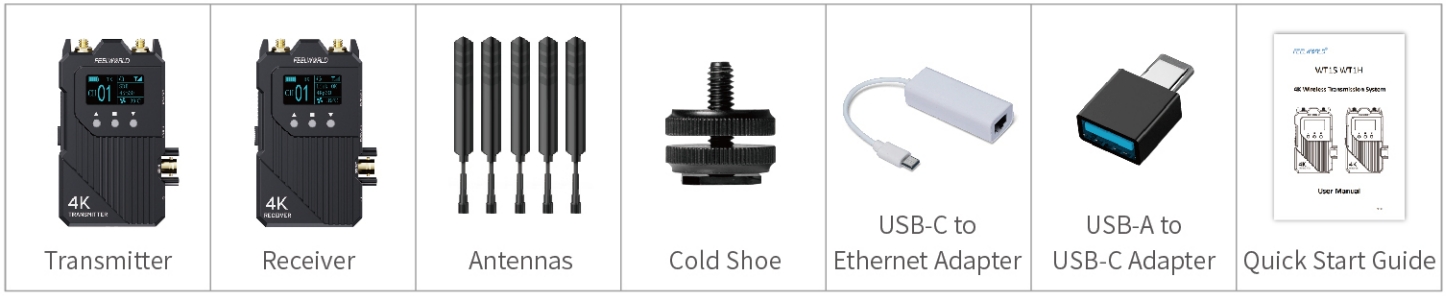

1× Transmitter
1× Receiver
5× Antenna
1× Cold Shoe
1× USB-A to USB-C Adapter
1× USB-C to Ethernet Adapter
1× User Manaul
