FEELWORLD WT1H 4K Wireless Video Transmission System Dual HDMI Full Duplex Intercom Live Streaming
| Number: | 202508141126081274 |
|---|---|
| Model: | WT1H |
| Size: | |
| Introduction: |
Dual HDMI ports
1000ft(LOS)transmission distance Up to 4K 30Hz Preset grouping and pairing Direct live straming Wireless full-duplex intercom One TX to 4 RX Smart channel scan Support APP monitoring & recording |
| Input: | HDMI, DC 6-16V, Type-C 5V/1.5A |
| Output: | HDMI, 3.5mm headphone jack |
| DM: | |
| Download: | |
Enjoying Real-Time, Stable, Flexible Video Monitoring Anywhere
FEELWORLD WT1H TX/RX set is a real-time wireless video transmission system which features 5GHz transmission technology, supports up to 4K30p ultra HD image,integrated with intercom and live streaming. Equipped with 4K HDMI input and output and other features built for professional filmmaking, the WT1H empowering filmmakers, crews, and content creators everywhere.
FEELWORLD WT1H TX/RX set is a real-time wireless video transmission system which features 5GHz transmission technology, supports up to 4K30p ultra HD image,integrated with intercom and live streaming. Equipped with 4K HDMI input and output and other features built for professional filmmaking, the WT1H empowering filmmakers, crews, and content creators everywhere.

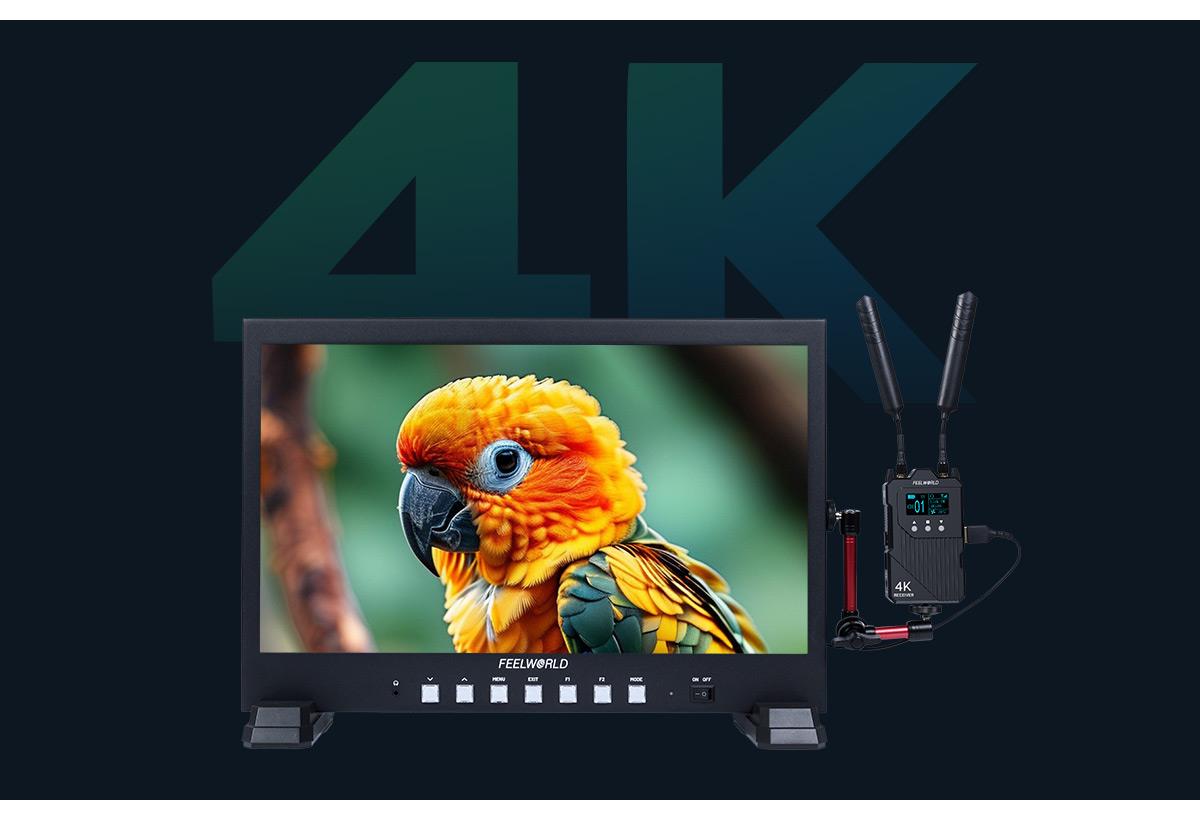

4K Crisp and Sharp Video Transmission
With 4K/30fps transmission capability, WT1H presents image with superior clarity, detail and realism, making it competent for filmmaking or other professional applications.
With 4K/30fps transmission capability, WT1H presents image with superior clarity, detail and realism, making it competent for filmmaking or other professional applications.

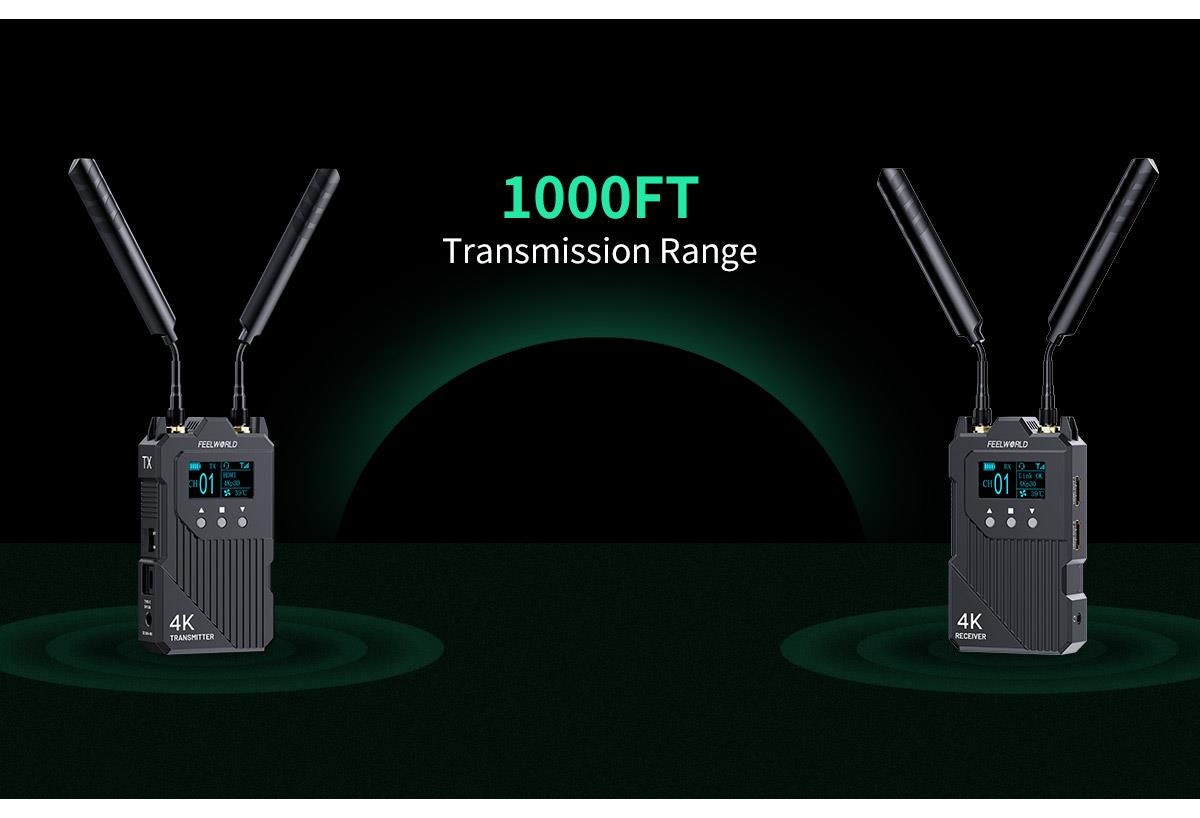

1000FT LOS Range and 0.08S Low Latency
The WT1H has more than 1000ft (300m) hassle-free and reliable range for wireless video and audio transmission; 0.08S low latency achieves real-time monitoring.
The WT1H has more than 1000ft (300m) hassle-free and reliable range for wireless video and audio transmission; 0.08S low latency achieves real-time monitoring.
Preset Grouping and Pairing, Easy Setup
Time is important for busy crew members,WT1H supports preset grouping and pairing,don't need to repetitively and manually set up the transmitter and receivers.
Note: In grouping mode,the grouping name and channel of TX and RX need to be consistent for automatically linking.
Time is important for busy crew members,WT1H supports preset grouping and pairing,don't need to repetitively and manually set up the transmitter and receivers.
Note: In grouping mode,the grouping name and channel of TX and RX need to be consistent for automatically linking.

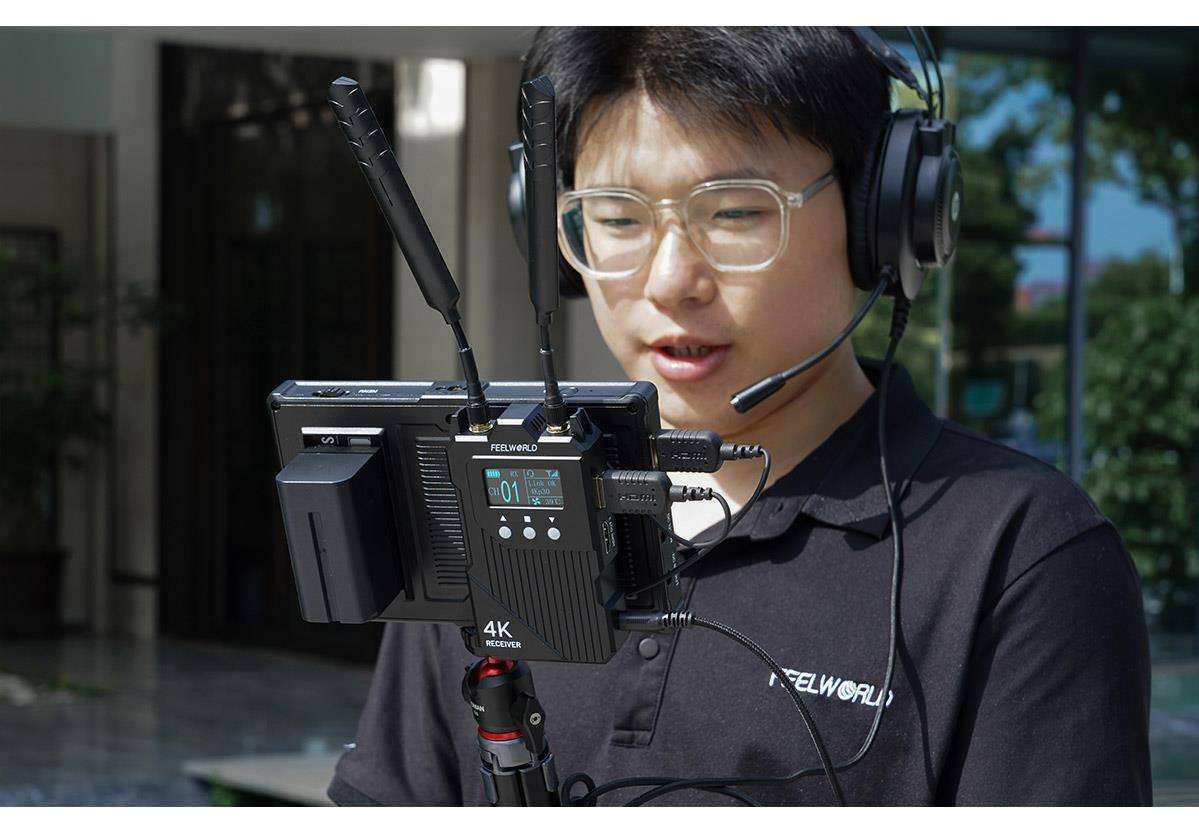

Full Duplex Intercom
Meet the real-time intercom between the director and the photographer
The WT1H features intercom function, which enable communication between the director and the photographer, save your time and costs to set an extra intercom system.
Meet the real-time intercom between the director and the photographer
The WT1H features intercom function, which enable communication between the director and the photographer, save your time and costs to set an extra intercom system.
Effortless Streaming
With the Type-C to Ethernet adapter accessory, video feed straight out of RX (the receiver) will be used for live streaming on OBS, VLC on your PC without further encryption and decryption via a video capture device.There are Static IP and Route IP settings.
With the Type-C to Ethernet adapter accessory, video feed straight out of RX (the receiver) will be used for live streaming on OBS, VLC on your PC without further encryption and decryption via a video capture device.There are Static IP and Route IP settings.

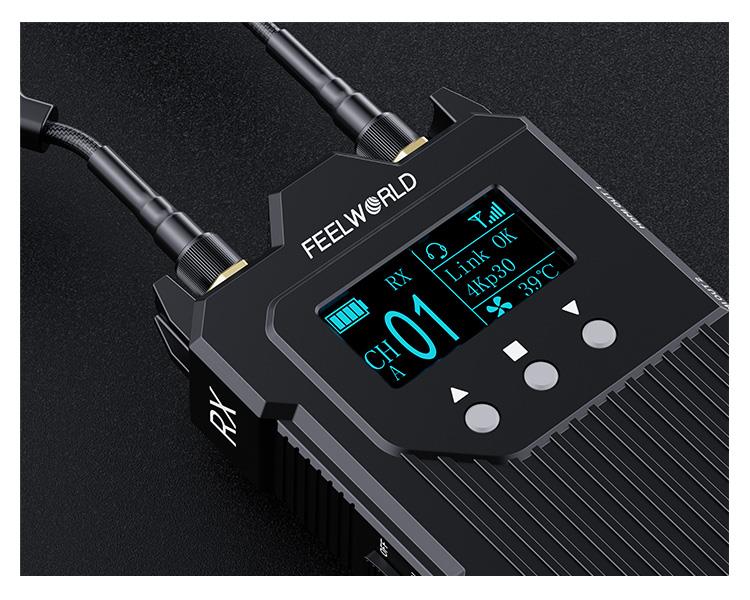

OLED Viewable Design
Both TX and RX offers a OLED display. With it, you can monitor the status and setting information, including battery level,current group, transmission resolution, frame rate, current channel and more. Improve the user's experience.
Both TX and RX offers a OLED display. With it, you can monitor the status and setting information, including battery level,current group, transmission resolution, frame rate, current channel and more. Improve the user's experience.

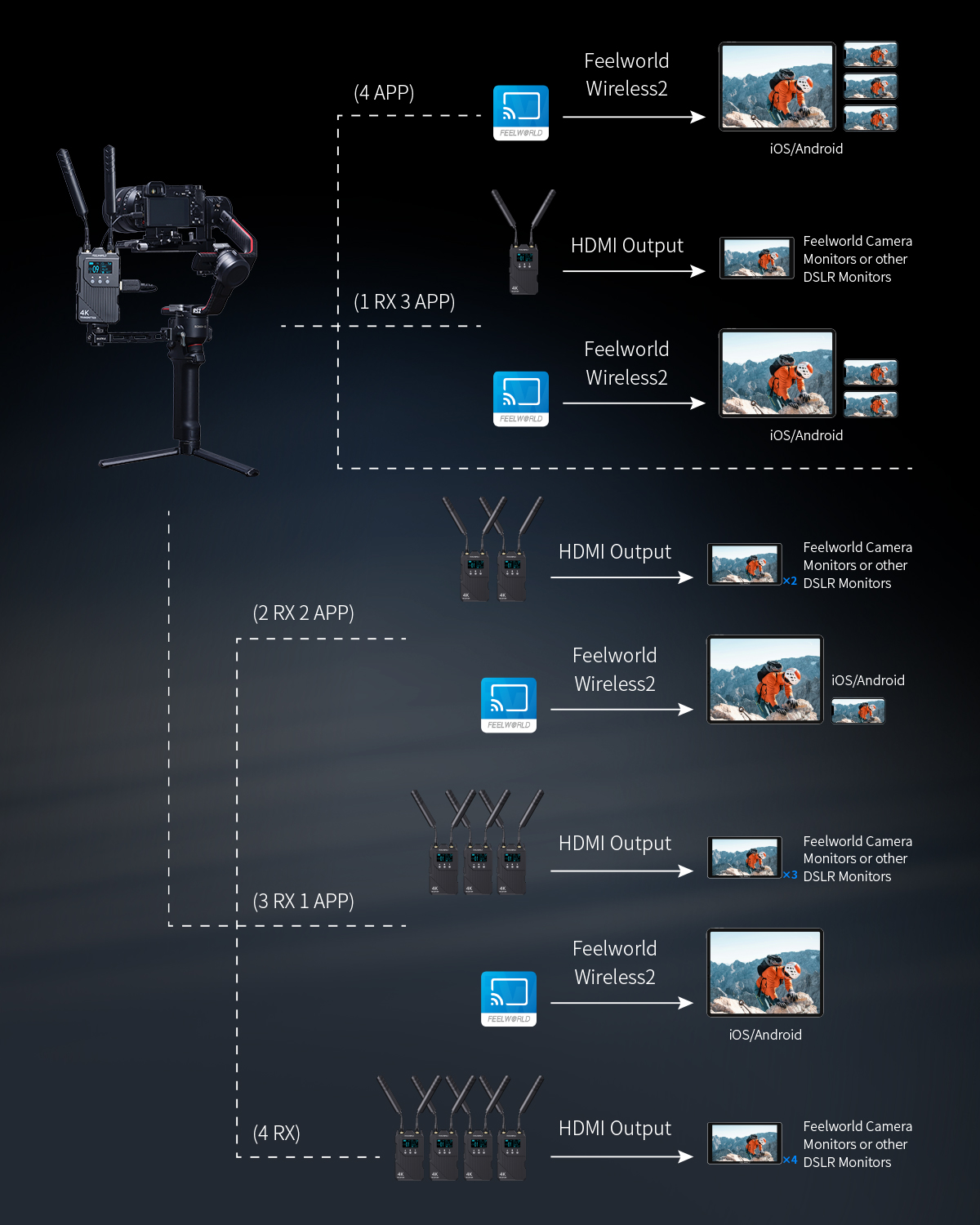

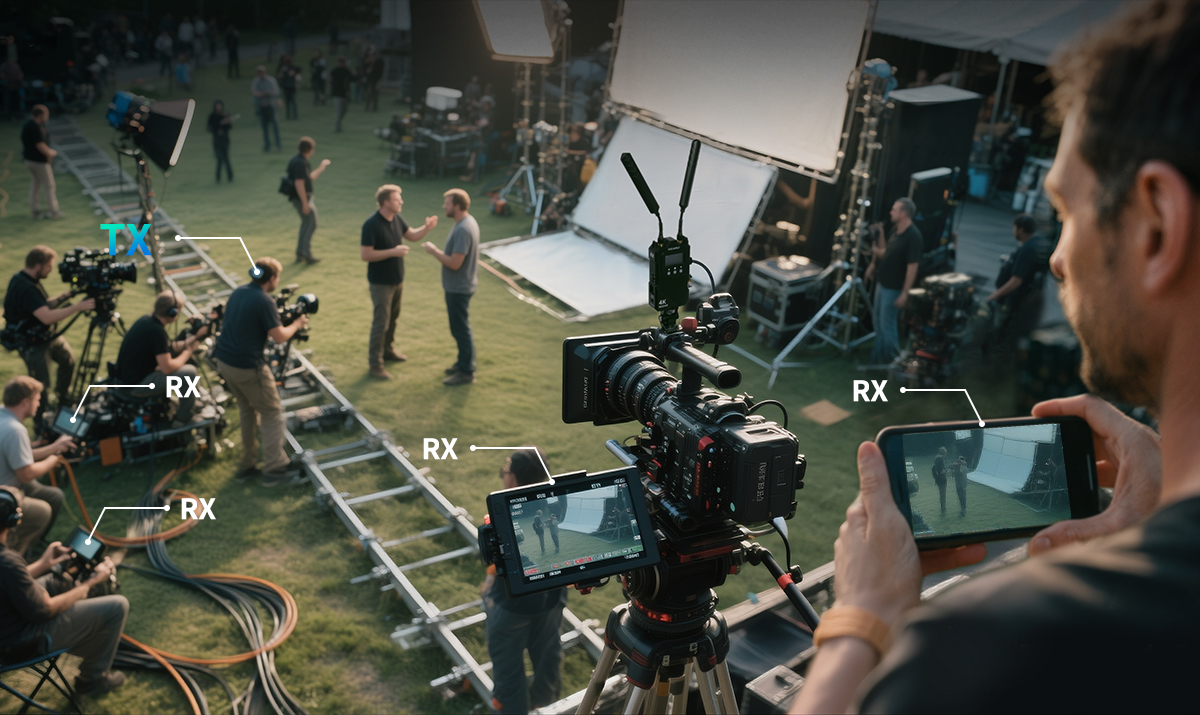

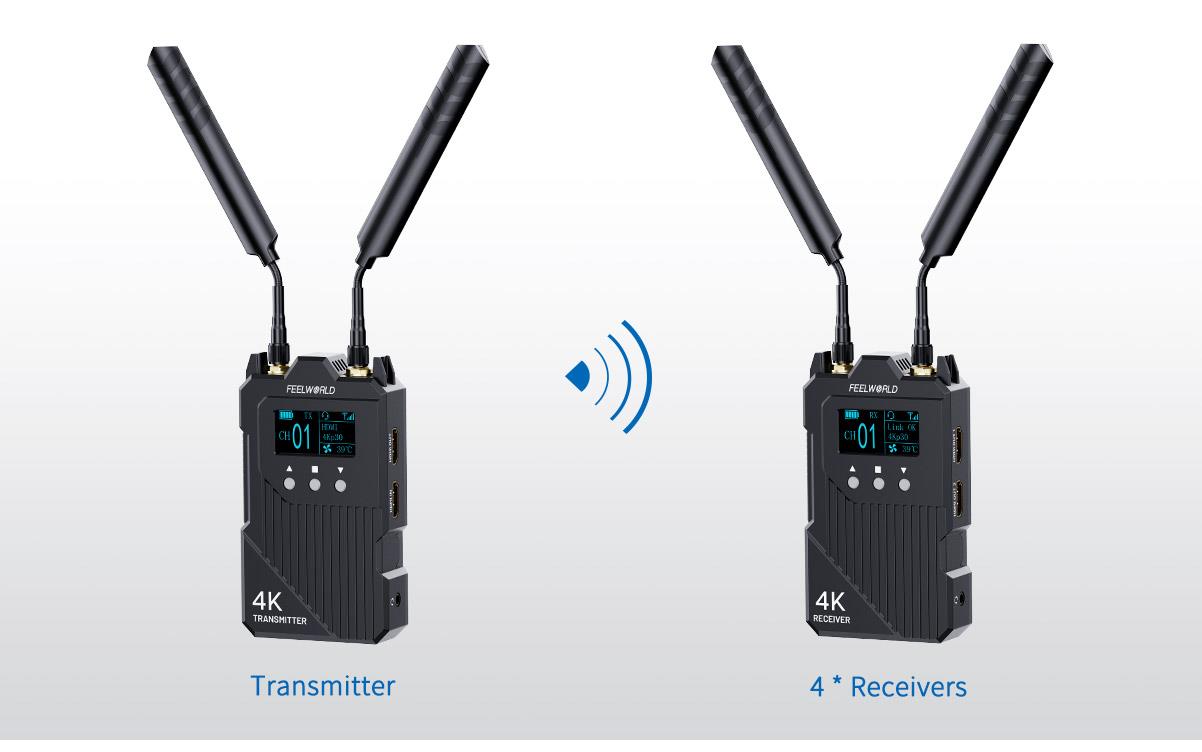

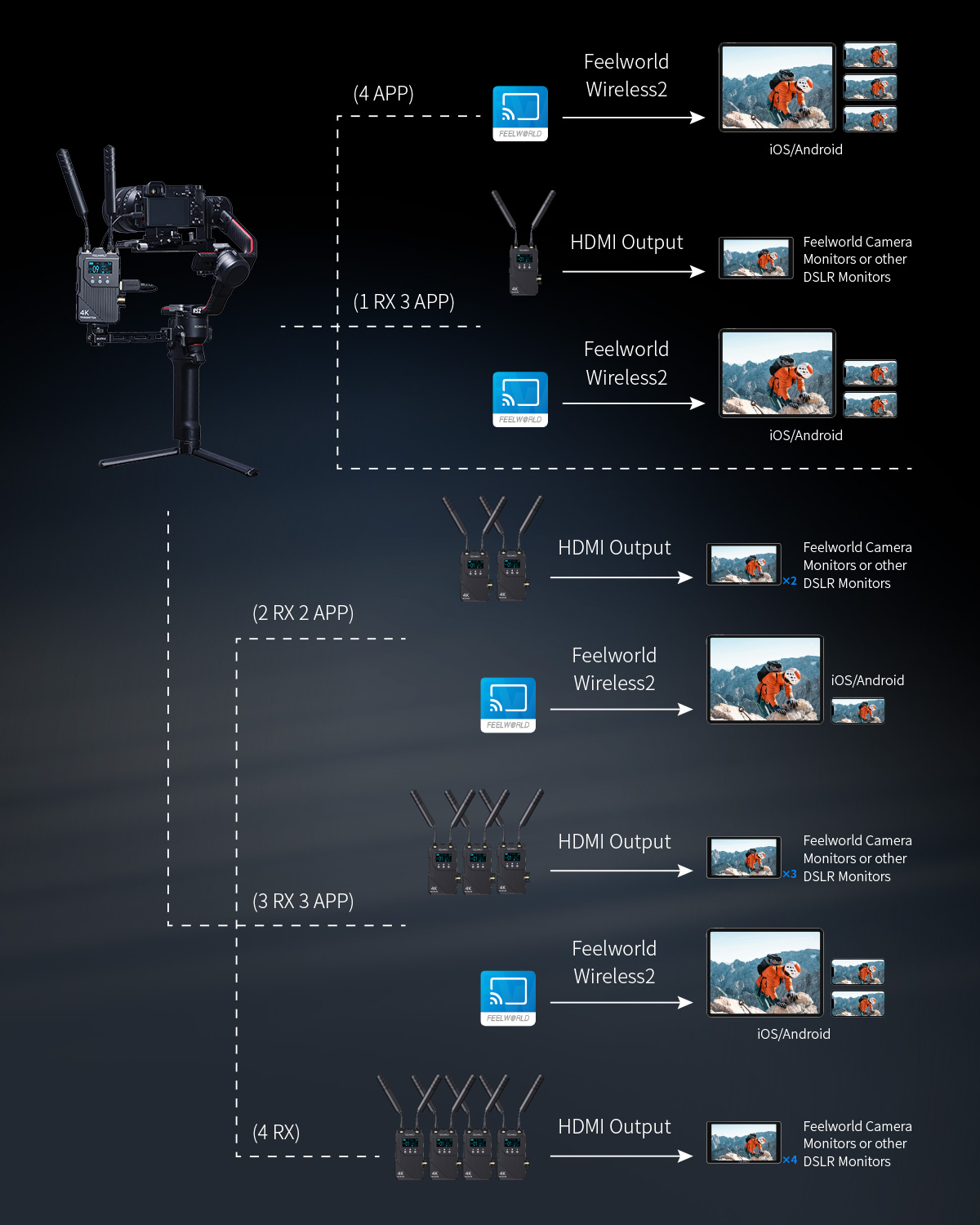

One Transmitter 4 Receivers, Meet More Monitoring Needs
WT1H supports WPS pairing manually,one transmitter allows to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
WT1H supports WPS pairing manually,one transmitter allows to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

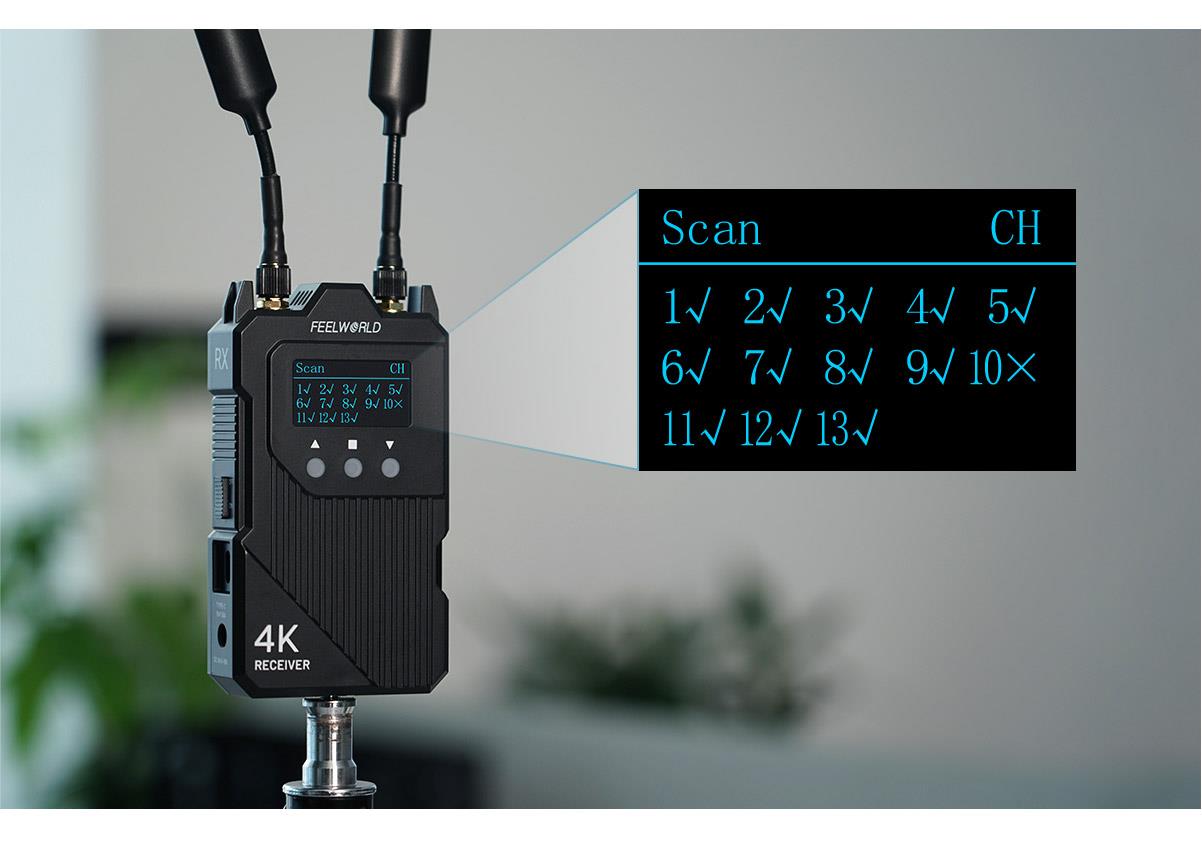

Smart Channel Scan
The receiver comes with smart channel scan function, this helps determine which ones are occupied and select-able.
The receiver comes with smart channel scan function, this helps determine which ones are occupied and select-able.

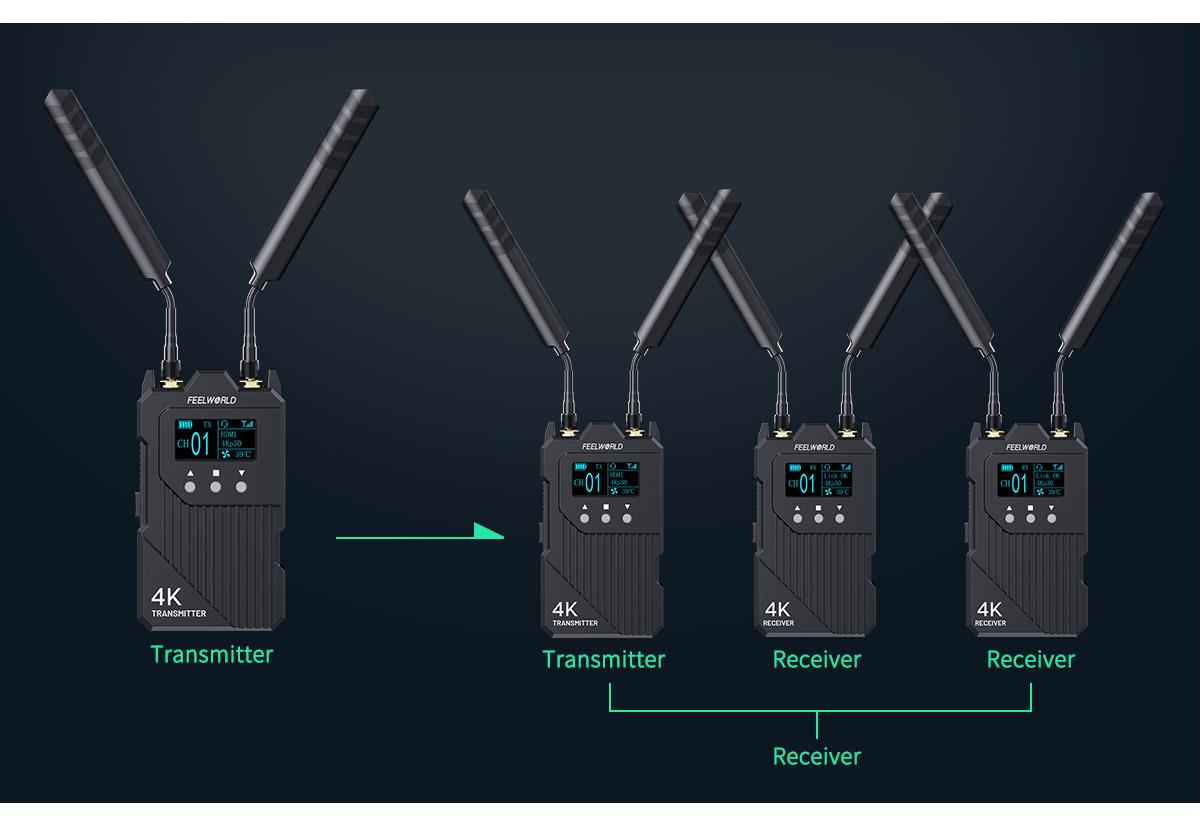

TX to RX, Switching Freely
The transmitter can be flexible switched as a receiver. If you purchase two sets WT1H, you can setup 1 Transmitter, 3 receivers.
The transmitter can be flexible switched as a receiver. If you purchase two sets WT1H, you can setup 1 Transmitter, 3 receivers.

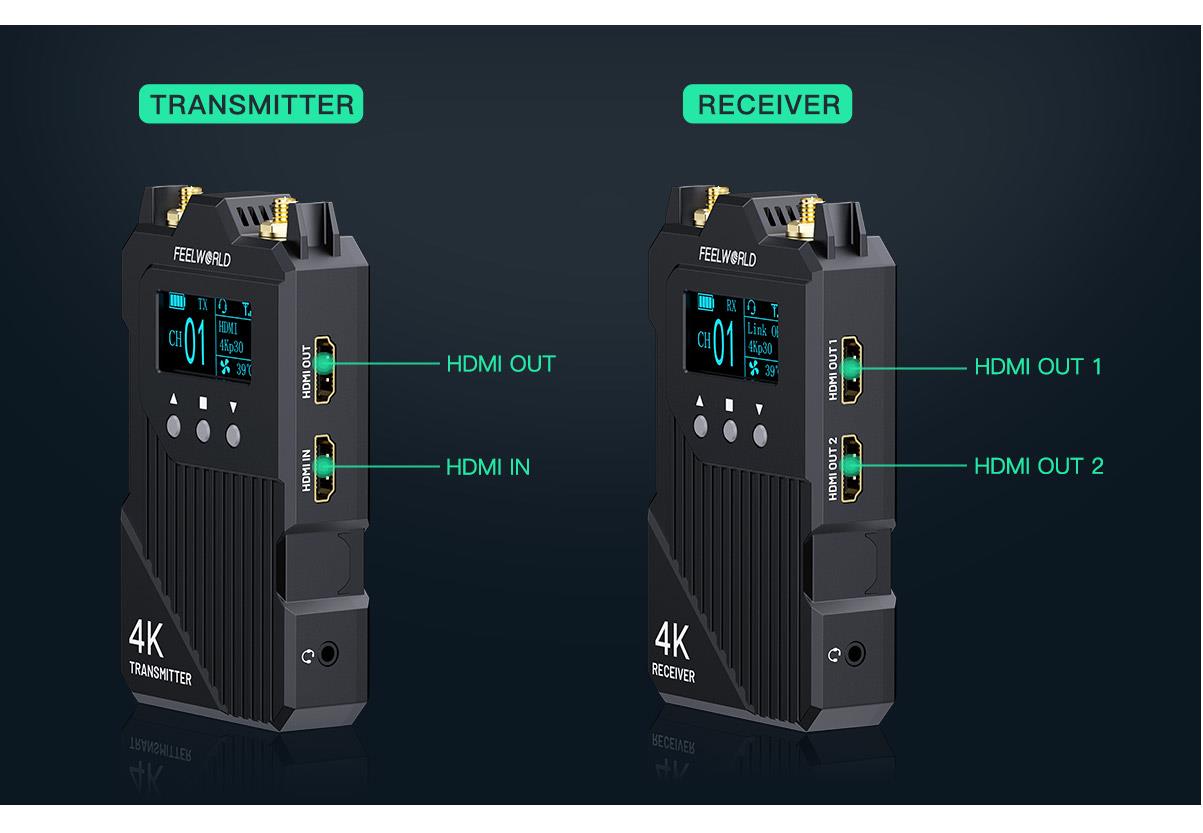

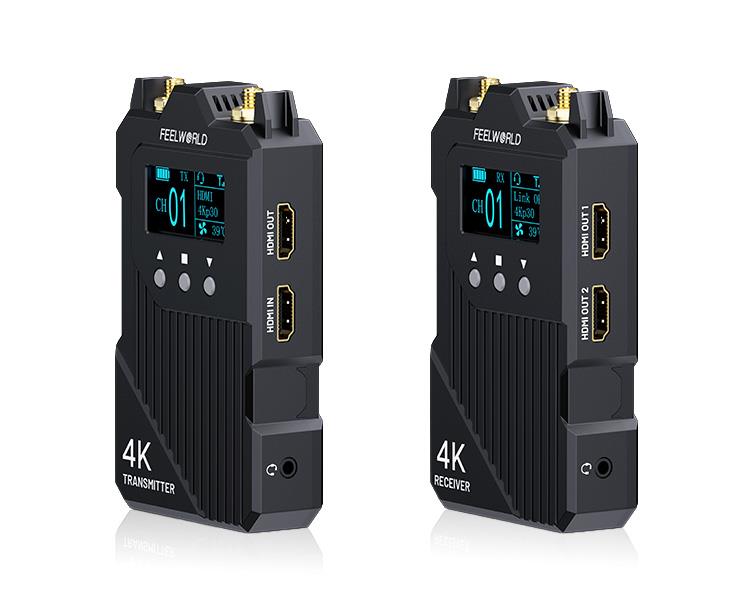

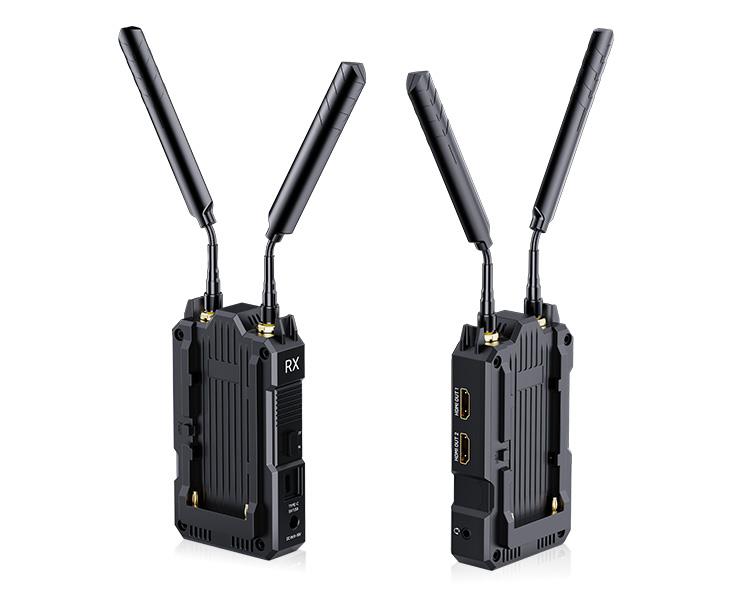

Dual 4K HDMI Ports
The transmitter equipped with a 4K HDMI input and output, it can loop-out the signal to monitor or other devices; the receiver provides dual 4K HDMI outputs,which support simultaneous output the videos.
The transmitter equipped with a 4K HDMI input and output, it can loop-out the signal to monitor or other devices; the receiver provides dual 4K HDMI outputs,which support simultaneous output the videos.

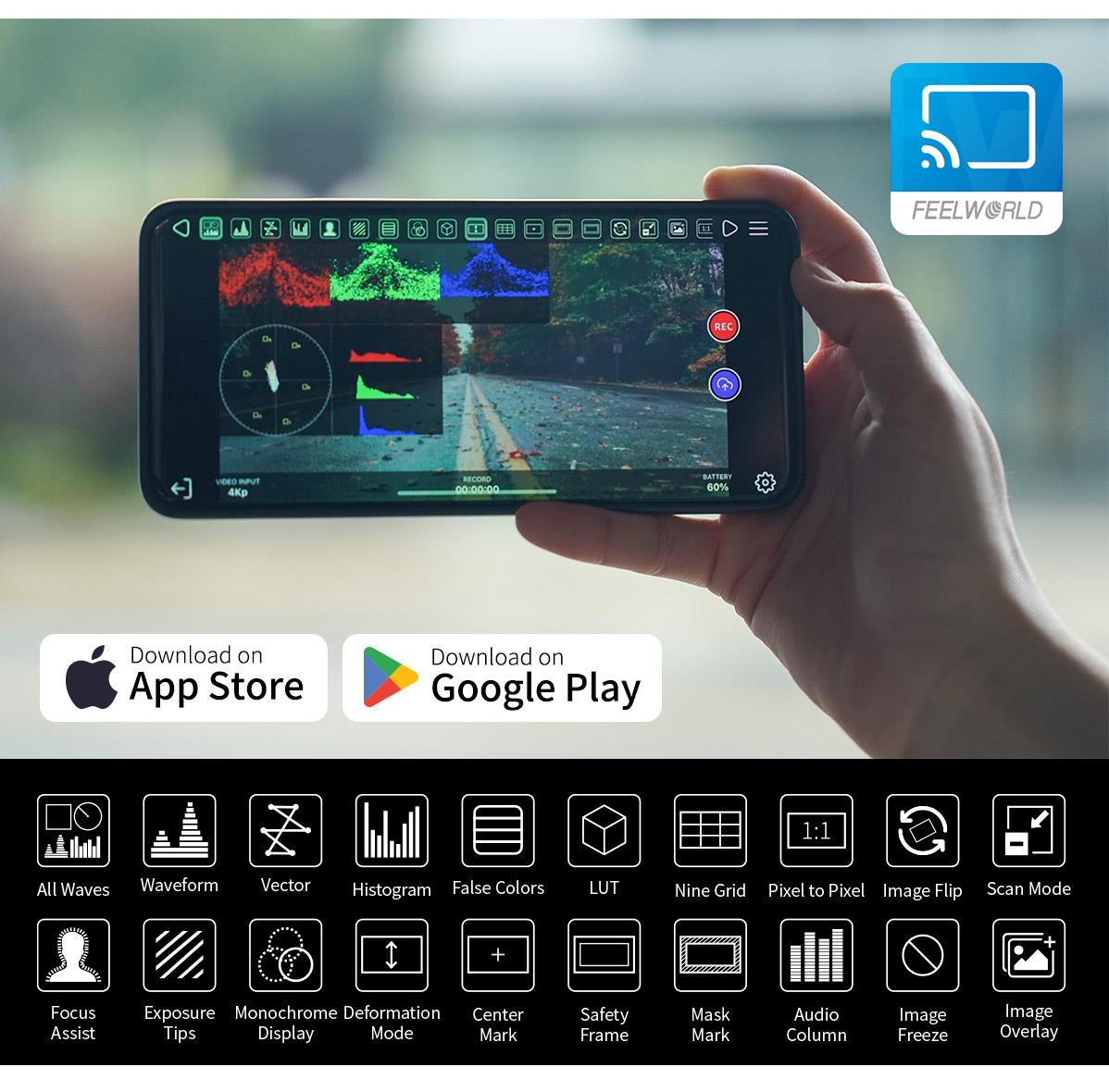

Smart APP Monitoring and Recording
The APP “Feelworld Wireless 2” offers a huge range of monitoring functions that can enhance your shooting workflow.
The APP “Feelworld Wireless 2” offers a huge range of monitoring functions that can enhance your shooting workflow.

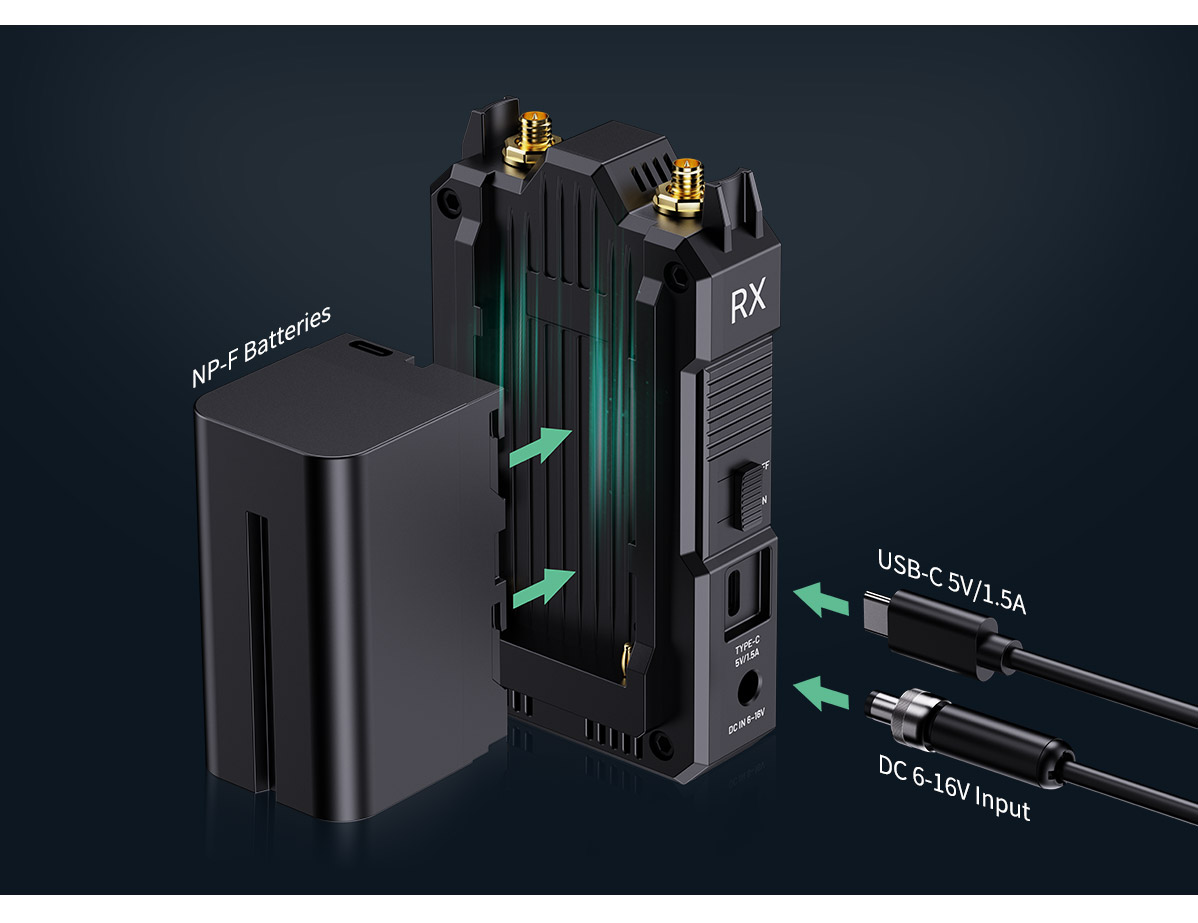

Multiple Power Options
The WT1H supports a wide range of power options DC–6V to 16V, NP-F battery slot for NP-F batteries, and USB-C charger port.
The WT1H supports a wide range of power options DC–6V to 16V, NP-F battery slot for NP-F batteries, and USB-C charger port.

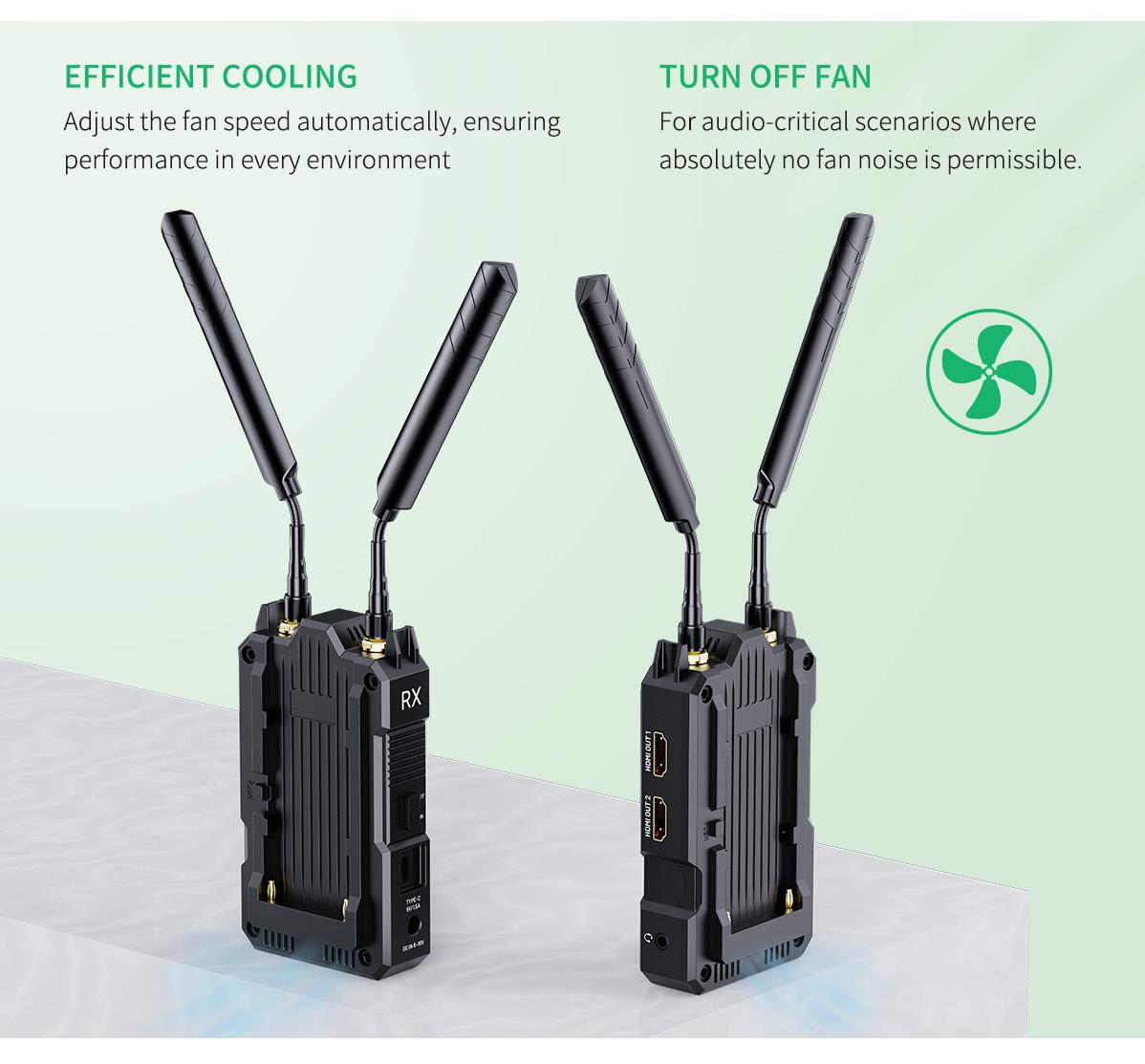

Efficient Cooling System
WT1H offers fan cooling system,preventing overheating and ensuring stable signal transmission.It is default to turn on and automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation. In addition, you can turn off the fan manually when you need a no noise environment.
WT1H offers fan cooling system,preventing overheating and ensuring stable signal transmission.It is default to turn on and automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation. In addition, you can turn off the fan manually when you need a no noise environment.

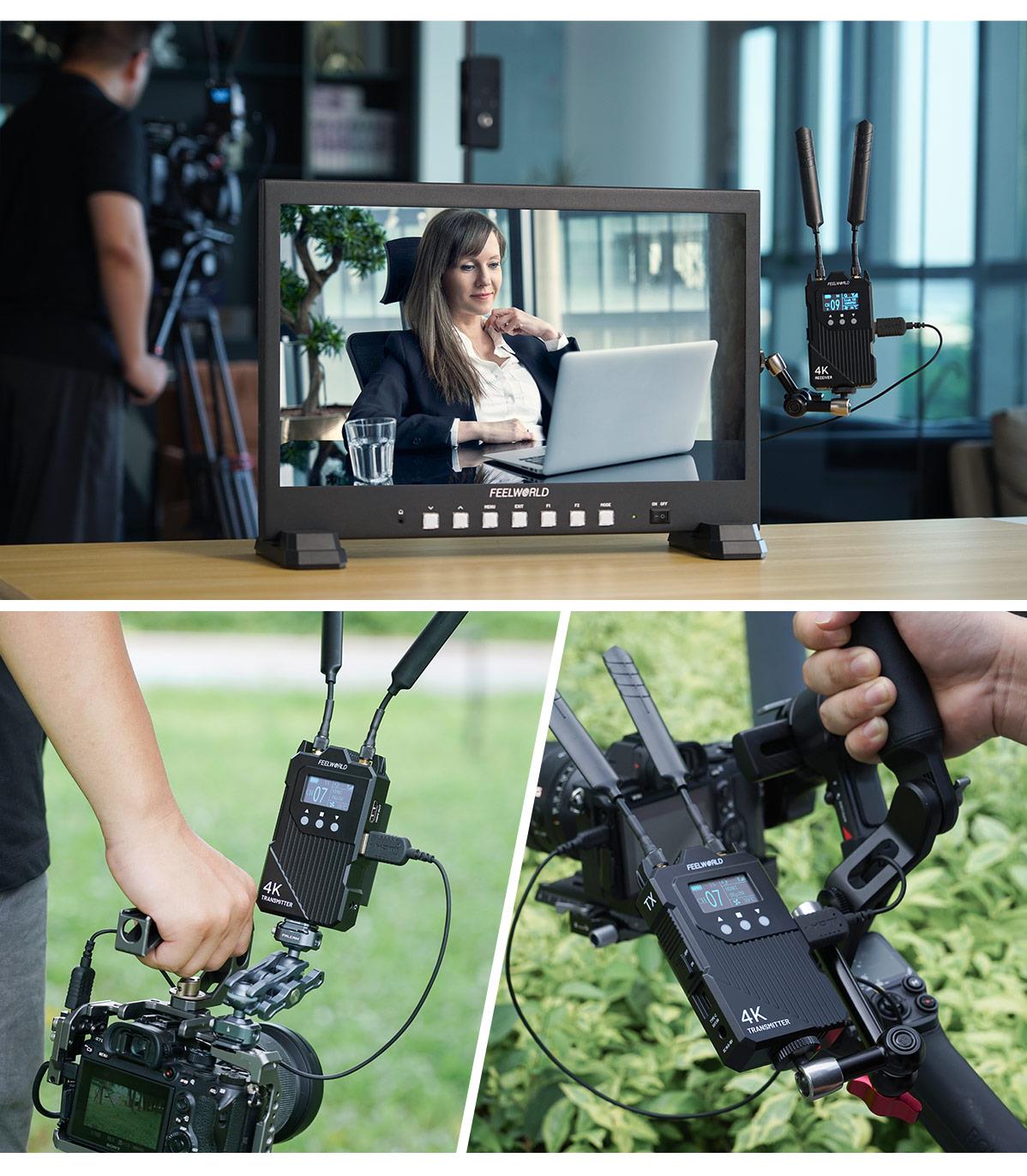

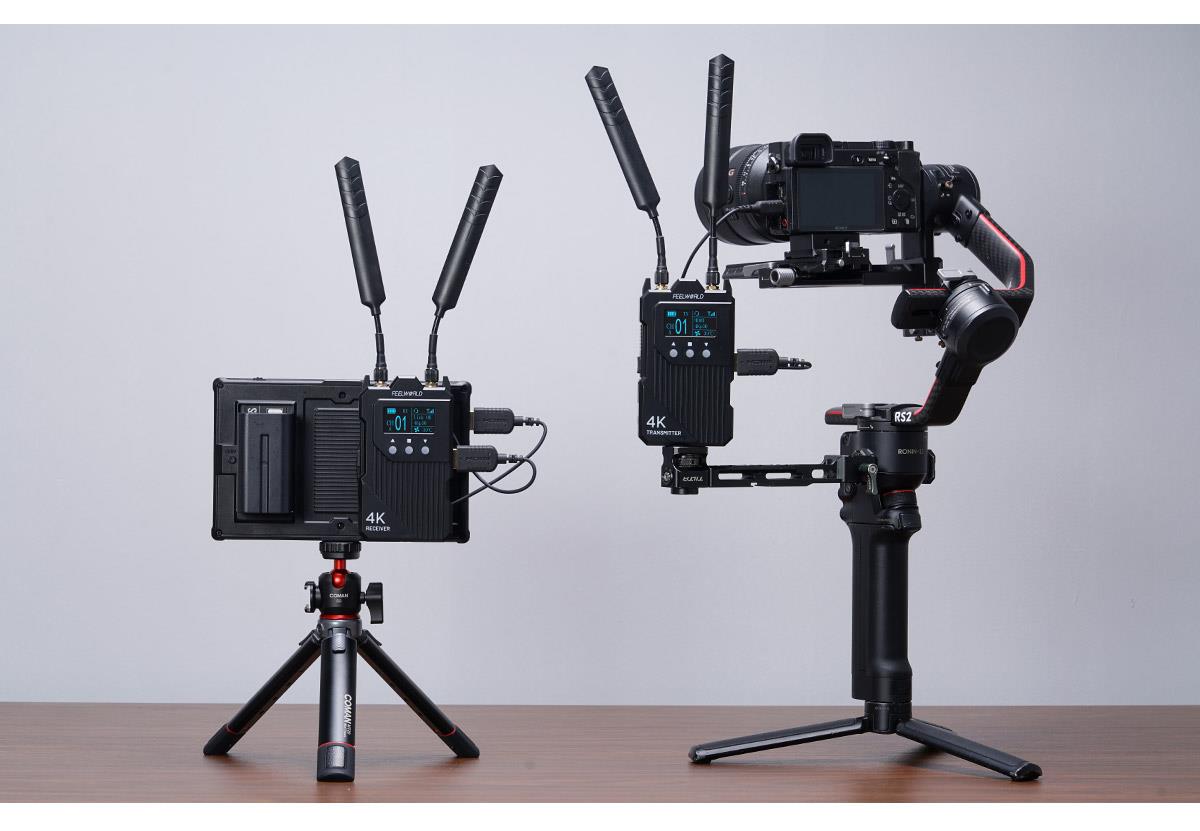

Mounting on Anywhere
Both the transmitter and receiver has a 1/4 screw thread and with compact & lightweight body,WT1H can be mounted on camera arms, cold shoes and any other places.
Both the transmitter and receiver has a 1/4 screw thread and with compact & lightweight body,WT1H can be mounted on camera arms, cold shoes and any other places.
Key Features:
* More than 1000ft transmission range with 0.08S ultra-low latency
* Up to 4K 30Hz, present image with superior clarity, detail and realism
* Wireless full-duplex talkback, real-time intercom between the director and the photographer
* With type-C to Ethernet adapter accessory, achieve live streaming
* Under Grouping mode, TX and RX can be paired easily and quickly
* The transmitter can be switched as a receiver at will
* One TX to 4 RX, monitoring for everyone on set
* Real-time APP monitoring and recording for Android/iOS system
* 13 frequency channels, AUTO channel scan

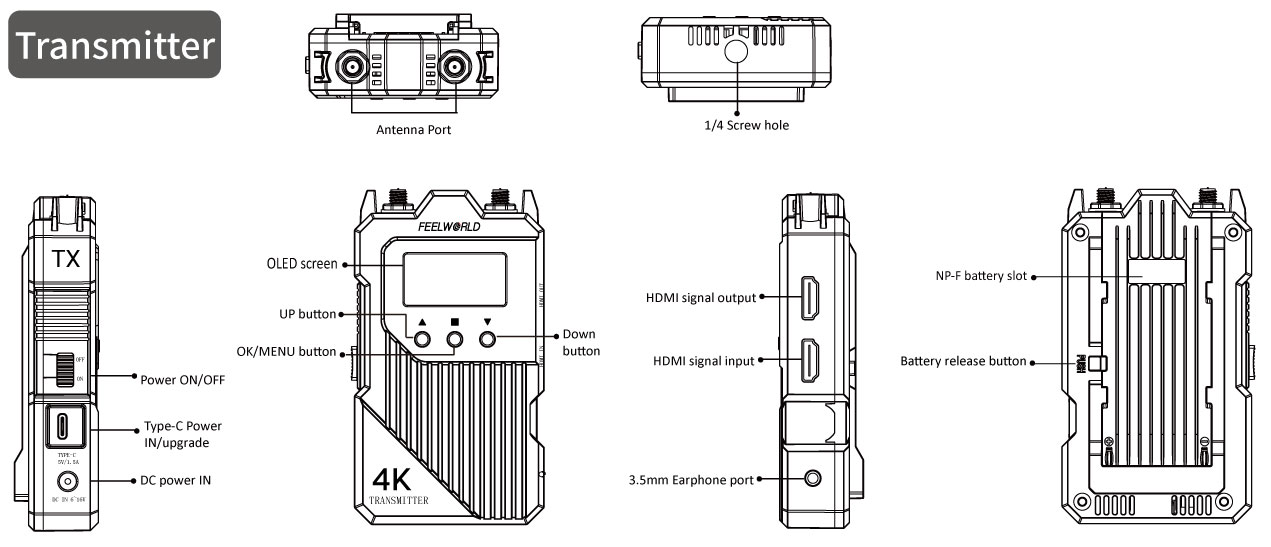

Transmitter
| Screen | OLED |
| Interface |
1 * HDMI input 1* HDMI output 2 *Antenna port （RP-SMA Male） DC power input 3.5mm headphone jack Type-C |
| Power Supply Way/Voltage |
NP-F battery slot Type-C: 5V/1.5A DC adapter: 6-16V |
| Power Consumption | <5.5W |
| HDMI Format |
480P60, 576P60 720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 2160P30/25/24 HDMI Type A |
| Frequency | 5.1-5.9GHz |
| Modulation Mode | OFDM |
| Transmission Power | 22dBm |
| Bandwidth | 20/40MHz |
| Latency | Min 0.08S |
| Intercom Frequency Response Range | 20Hz~20KHz |
| Operating Temperature | 0℃ ～ 40℃ |
| Storage Temperature | -20℃ ～ 60℃ |
| Unit Size(mm) | 77.1L*30W*118.6H (excluding antenna） |
| Unit Weight | 138.8g |
Receiver
| Screen | OLED |
| Interface |
2* HDMI output 2 *Antenna port （RP-SMA Male） DC power input 3.5mm headphone jack Type-C |
| Power Supply Way/Voltage |
NP-F battery slot Type-C: 5V/1.5A DC adapter: 6-16V |
| Power Consumption | <6W |
| HDMI Format | 480P60, 576P60
720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 2160P30/25/24 HDMI Type A |
| Frequency | 5.1-5.9GHz |
| Modulation Mode | OFDM |
| Receiving Sensitivity | -87dBm |
| Bandwidth | 20/40MHz |
| Latency | Min 0.08S |
| Intercom Frequency Response Range | 20Hz~20KHz |
| Operating Temperature | 0℃ ～ 40℃ |
| Storage Temperature | -20℃ ～ 60℃ |
| Unit Size(mm) | 77.1L*30W*118.6H (excluding antenna） |
| Unit Weight | 138.8g |
Packaging Information
| Size of Color Box | 250L*173W*53H (mm) |
| Outer Carton QTY | 10PCS |
| Size of Outer Carton | 305x255x420mm |
| Gross Weight |
Product Overview
Packaging List:
1× Transmitter
1× Receiver
5× Antenna
1× Cold Shoe
1× USB-A to USB-C Adapter
1× USB-C to Ethernet Adapter
1× User Manaul
1× Transmitter
1× Receiver
5× Antenna
1× Cold Shoe
1× USB-A to USB-C Adapter
1× USB-C to Ethernet Adapter
1× User Manaul
Color Box
