FEELWORLD T7 PRO 7 Inch 2000NIT Camera Field Video Monitor Aluminium Housing 4K HDMI
| Number: | 202505161349521924 |
|---|---|
| Model: | T7 PRO |
| Size: | 7" |
| Introduction: |
Screen Size： 7" IPS
Resolution： 1920x1200 pixels Aspect ratio： 16:10 Brightness： 2000cd/m² |
| Input: | HDMI 2.0, DC 12V, Mini USB |
| Output: | HDMI 2.0, Stereo Headphone |
| DM: | |
| Download: | |

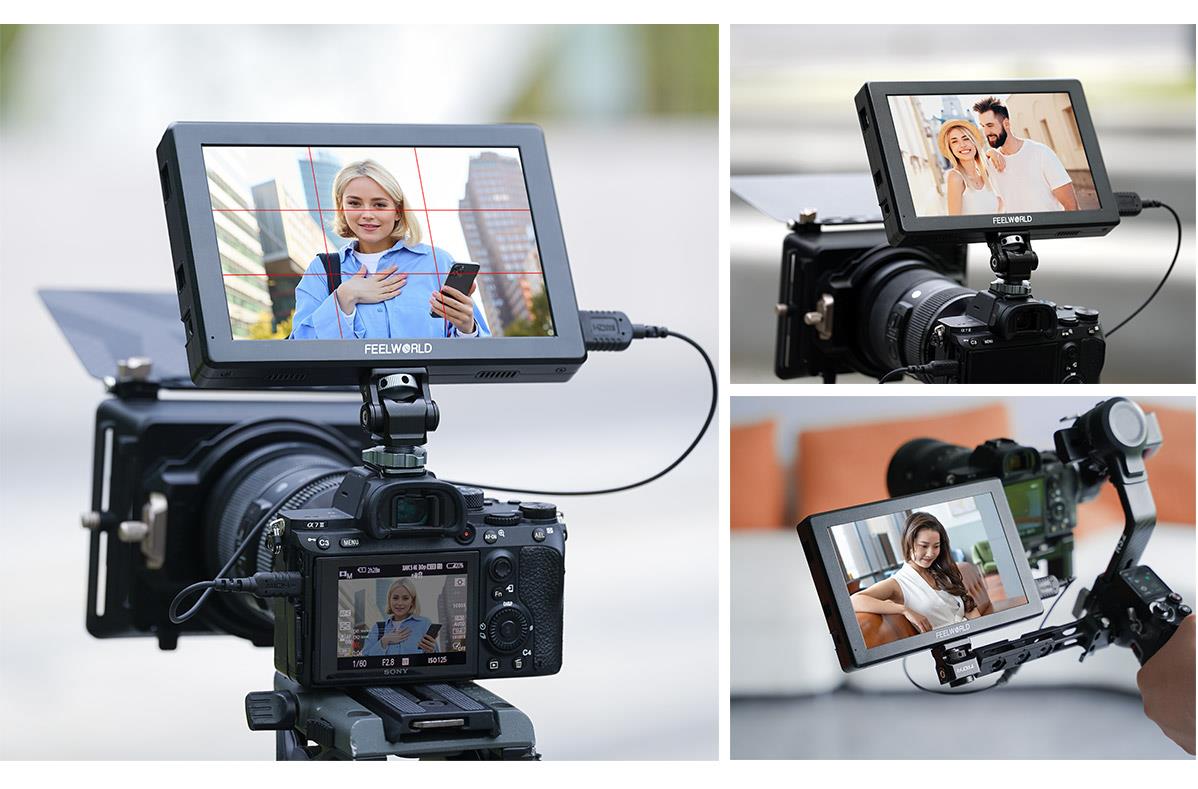

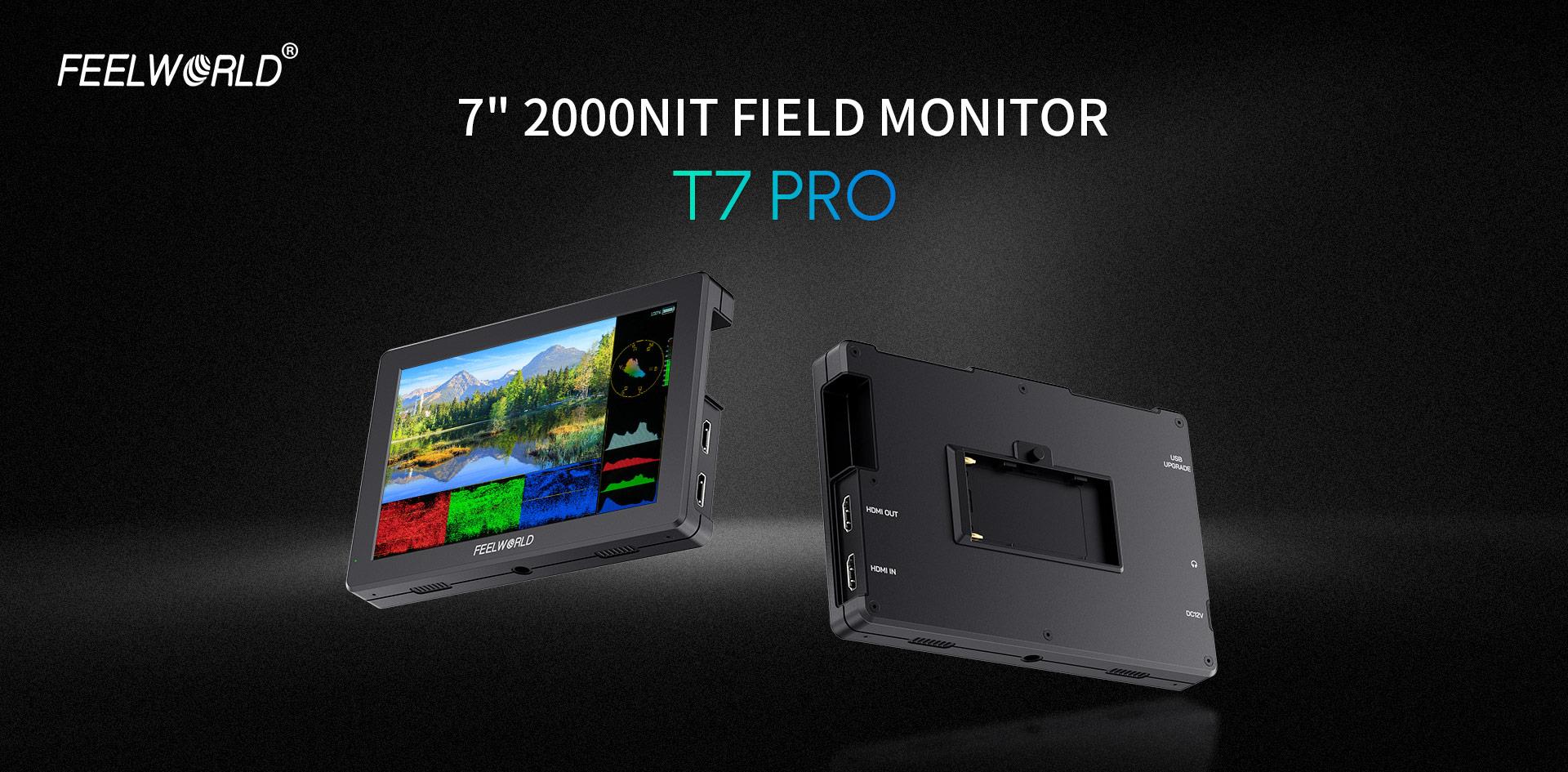

Bright. Durable. Professional
FEELWORLD T7 PRO is a full HD live monitor with 2000 nits ultra-high brightness,featuring aluminum housing for heat dissipation and stable operation in high brightness mode. Equipped with 4K HDMI high-speed transmission interface directly connected to professional device, built-in waveform, focus assist, HDR, 3D-LUT allow you to quickly make videos. It is perfect for video creation and live production.
FEELWORLD T7 PRO is a full HD live monitor with 2000 nits ultra-high brightness,featuring aluminum housing for heat dissipation and stable operation in high brightness mode. Equipped with 4K HDMI high-speed transmission interface directly connected to professional device, built-in waveform, focus assist, HDR, 3D-LUT allow you to quickly make videos. It is perfect for video creation and live production.
2000Nits Ultra-Brightness, Daylight Viewable
The peak brightness of T7 PRO is 2000nits, lets you see your images clearly, even in bright daylight.
The peak brightness of T7 PRO is 2000nits, lets you see your images clearly, even in bright daylight.
7-inch Full HD Screen
True-to-life colors and crystal-clear details
With extremely high resolution 7-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
True-to-life colors and crystal-clear details
With extremely high resolution 7-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.

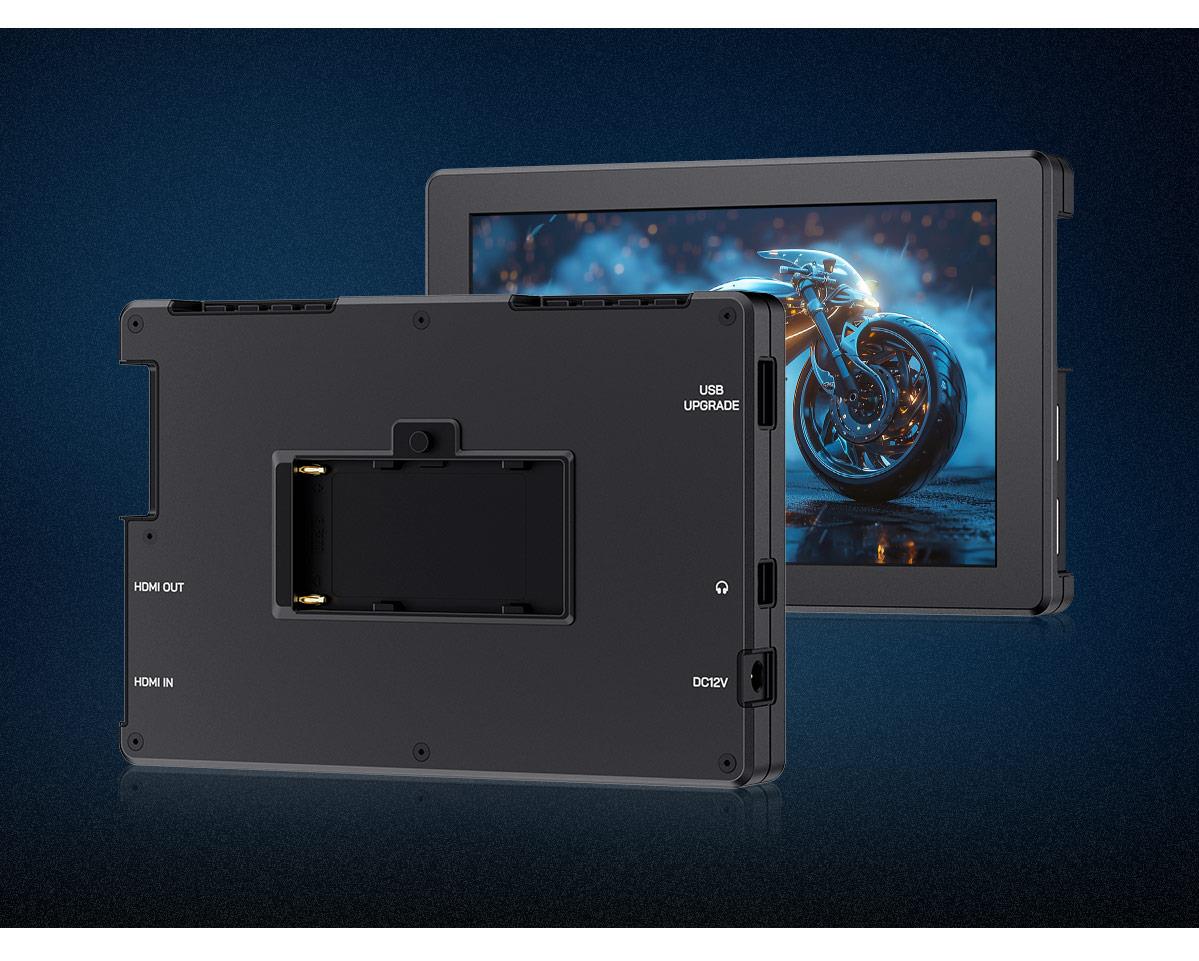

Rugged and Durable Aluminium Housing
T7 PRO features a rugged aluminum housing with excellent heat dissipation. Suitable for various shooting environments.
T7 PRO features a rugged aluminum housing with excellent heat dissipation. Suitable for various shooting environments.

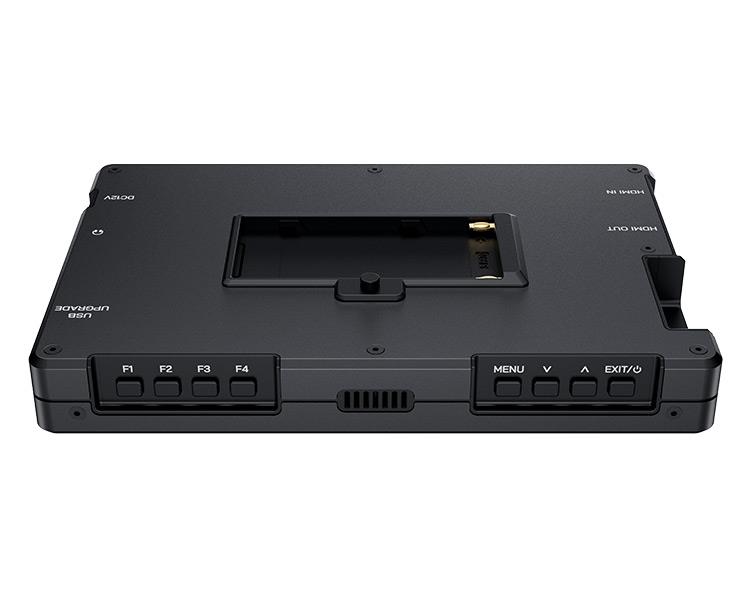

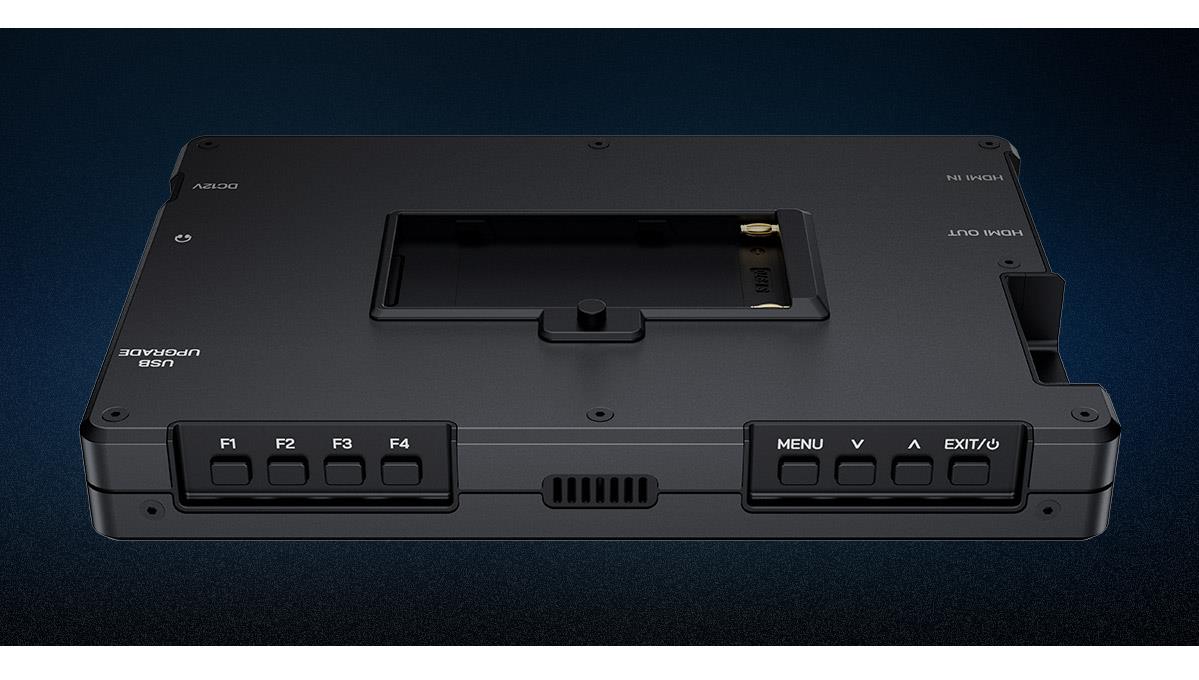

Quick Access with Custom Buttons
T7 PRO provides multiple intuitive buttons for easy menu navigation. Three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.
T7 PRO provides multiple intuitive buttons for easy menu navigation. Three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.
9：16 Vertical Screen Marker
T7 PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.
T7 PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.
4 Menu User for Quick Switch
The monitor provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically,can be easily recalled or switched based on different shooting needs.
The monitor provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically,can be easily recalled or switched based on different shooting needs.
Full Range of Auxiliary Functions
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Insert the USB flash drive to the standard accessory USB to Mini USB cable, then connect with the mini USB interface of T7 PRO.
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Insert the USB flash drive to the standard accessory USB to Mini USB cable, then connect with the mini USB interface of T7 PRO.

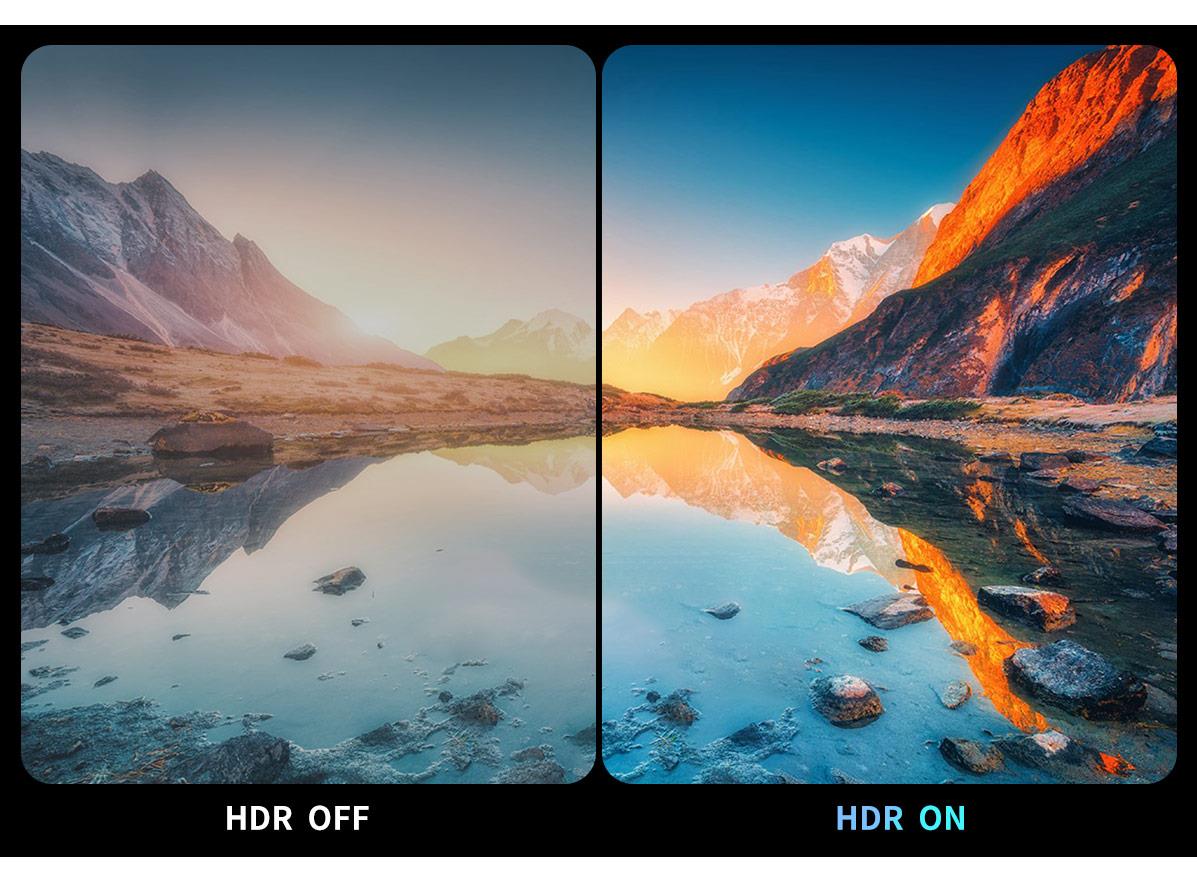

HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

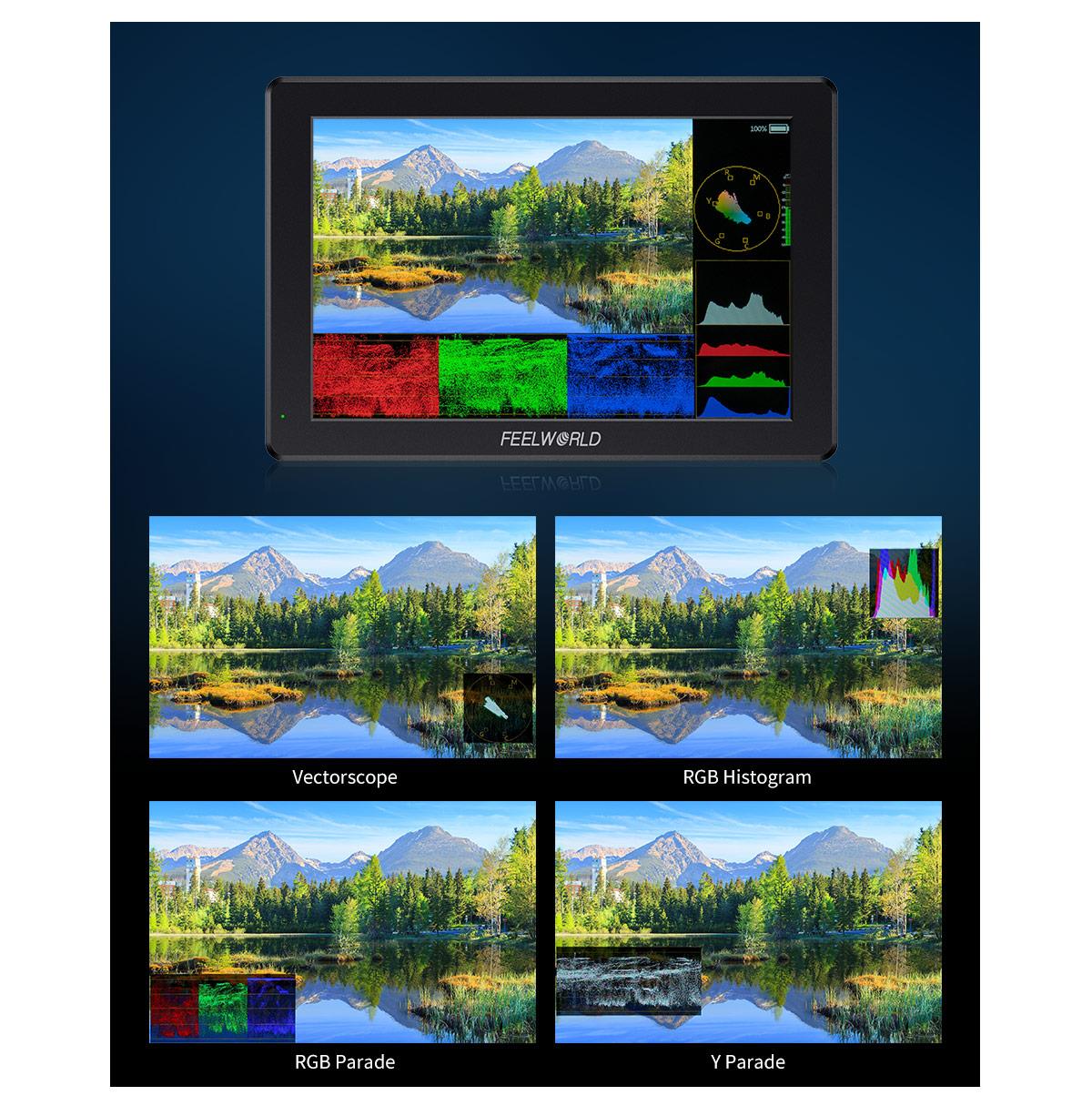

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. T7 PRO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. T7 PRO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

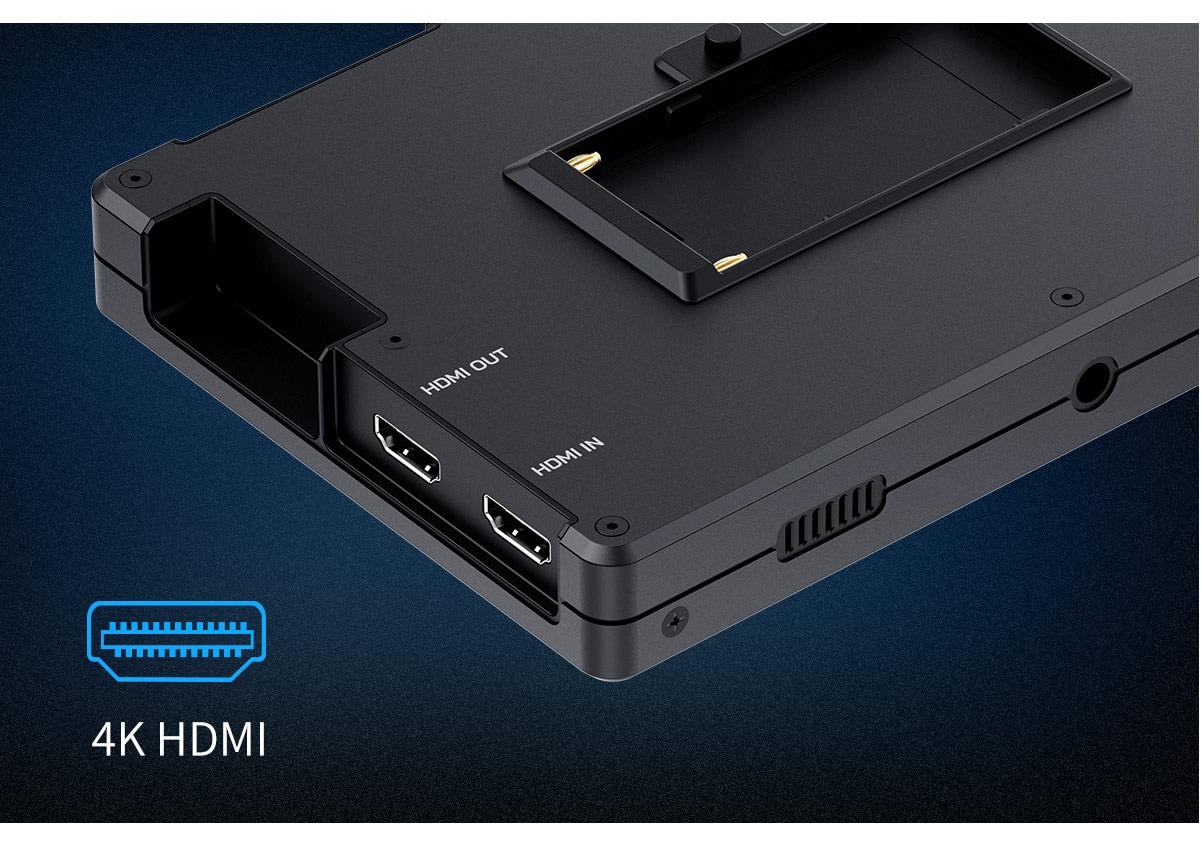

4K HDMI Input and Output，High Speed Transmission
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with camcorder and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with camcorder and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

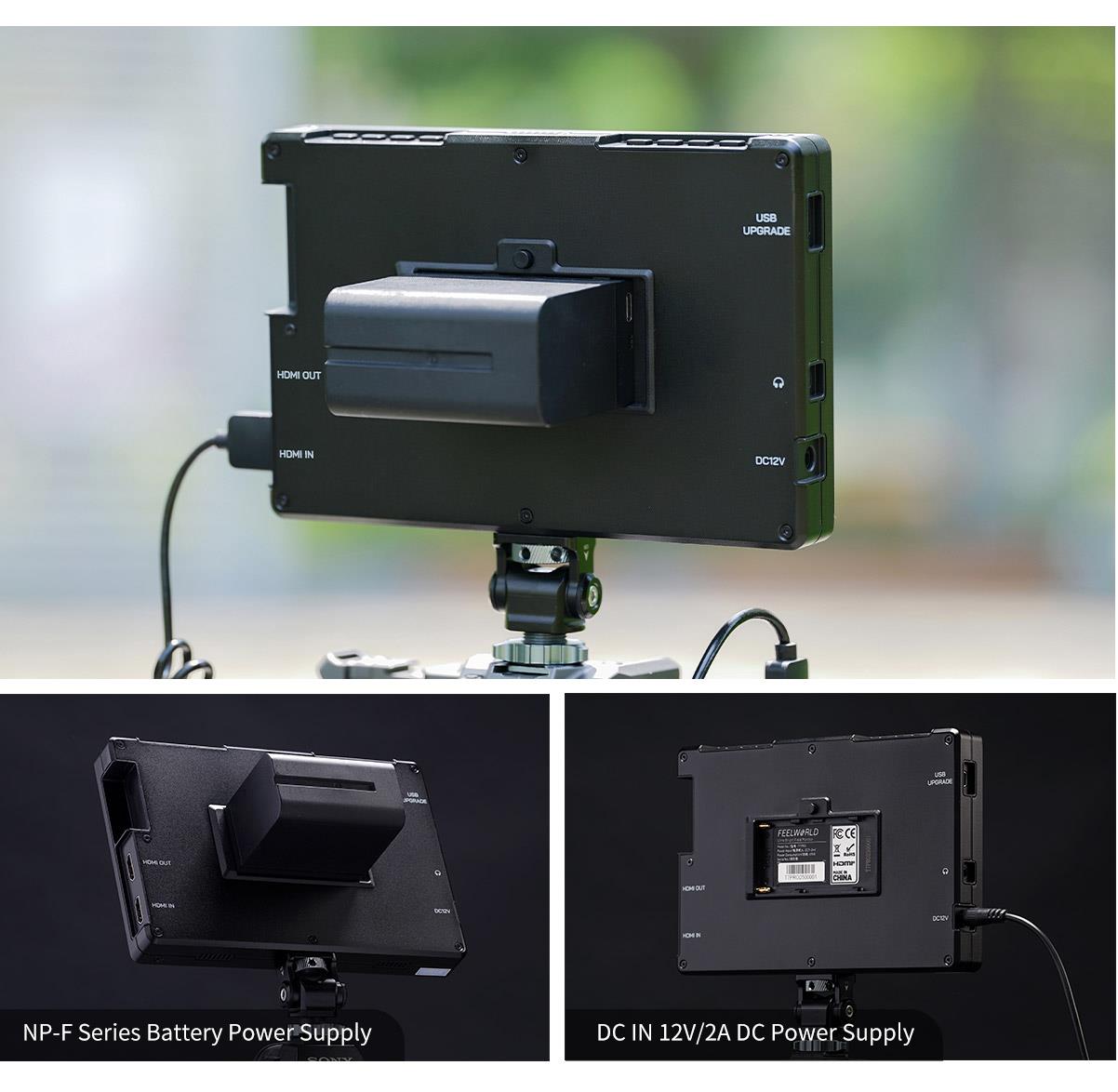

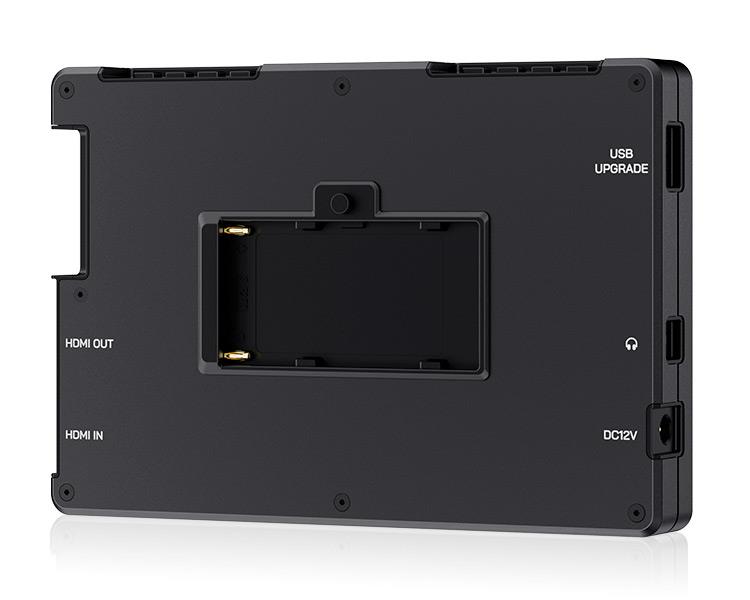

Flexible Power Supply Option
You can connect to DC power input to get continuous power （suitable for use 2A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application. Install one F970 battery (6600mah) last for about 2.7hours.
Note:the battery excluding, please purchase separately.
You can connect to DC power input to get continuous power （suitable for use 2A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application. Install one F970 battery (6600mah) last for about 2.7hours.
Note:the battery excluding, please purchase separately.

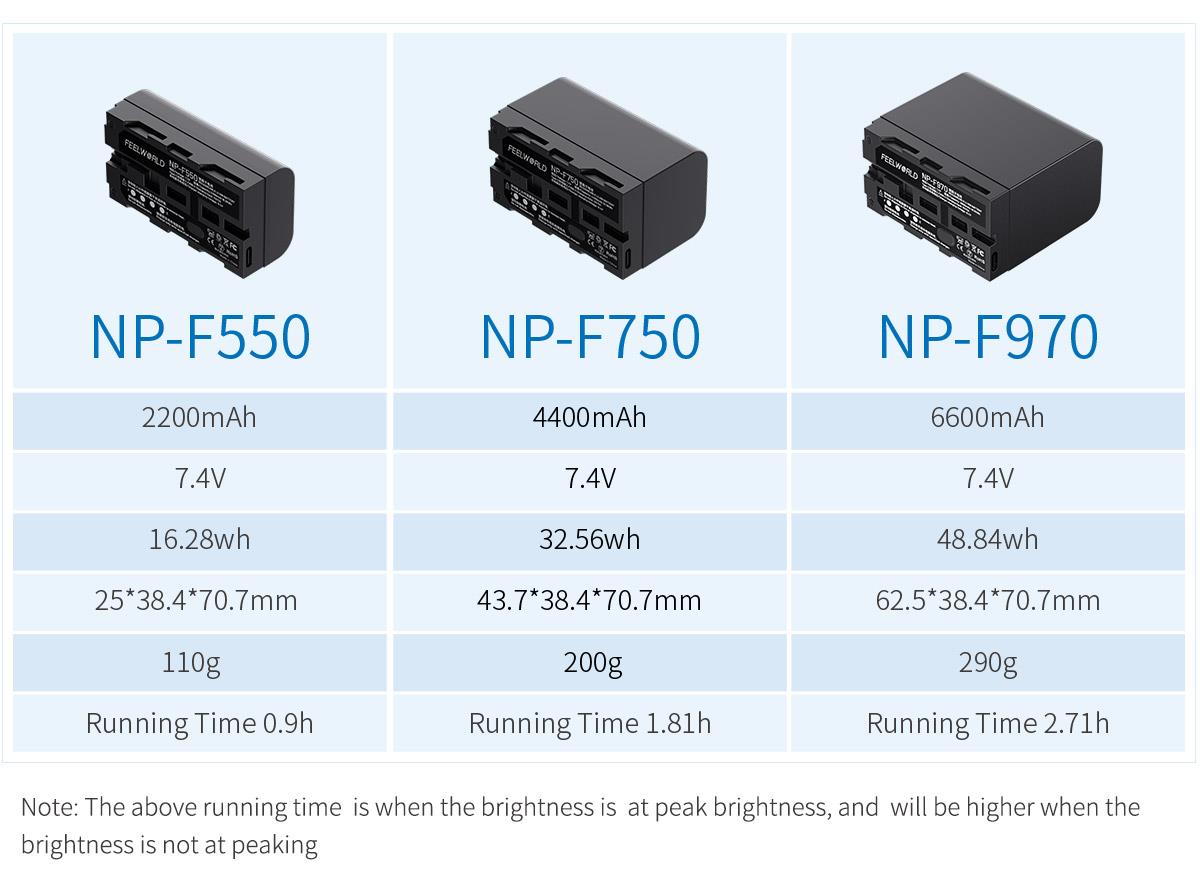

NP-F Battery Optional Recommendation
The power consumption of T7 PRO is 18W, suggest choose the higher capacity FEELWORLD NP-F970 battery to power it.
The power consumption of T7 PRO is 18W, suggest choose the higher capacity FEELWORLD NP-F970 battery to power it.

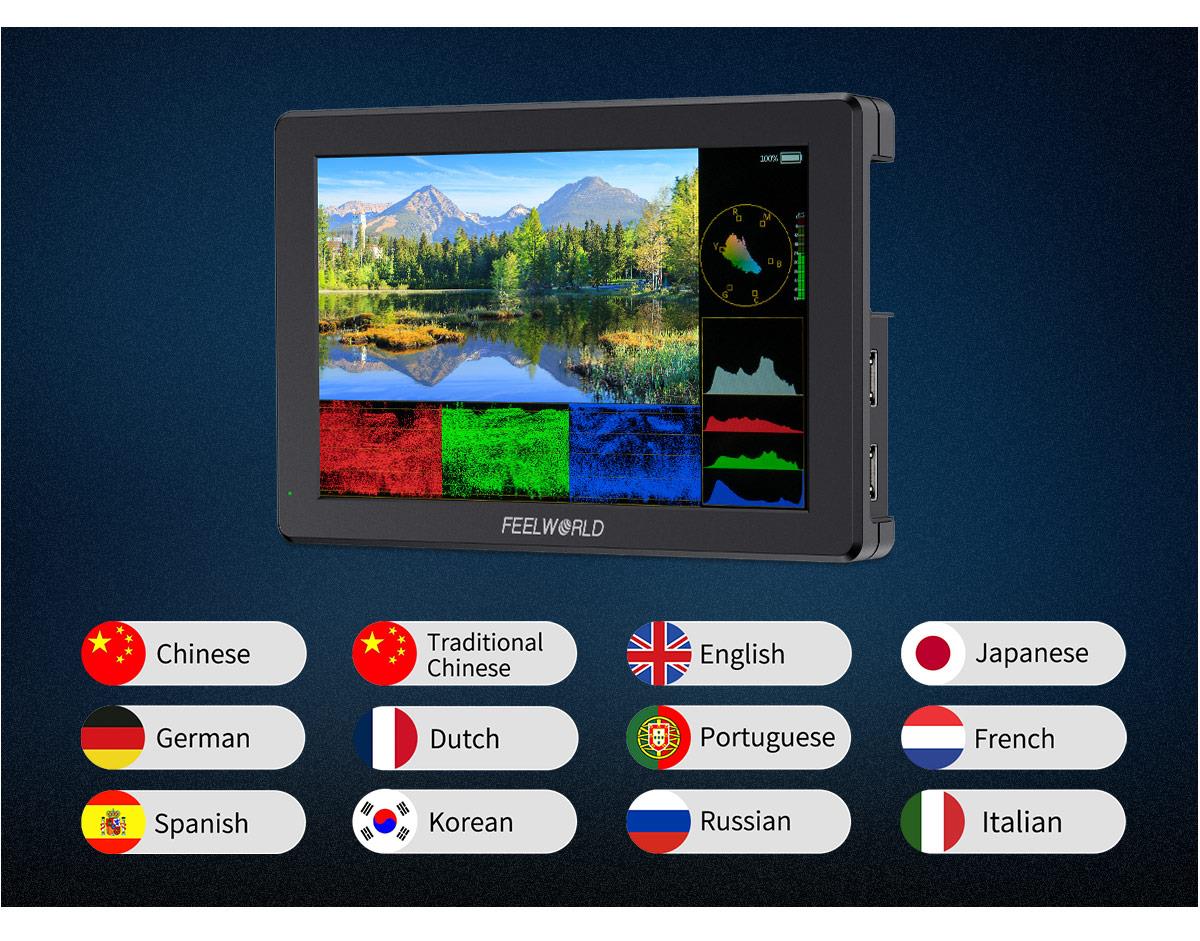

12 Languages Supporting
T7 PRO built-in up to 12 languages, that means T7 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
T7 PRO built-in up to 12 languages, that means T7 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

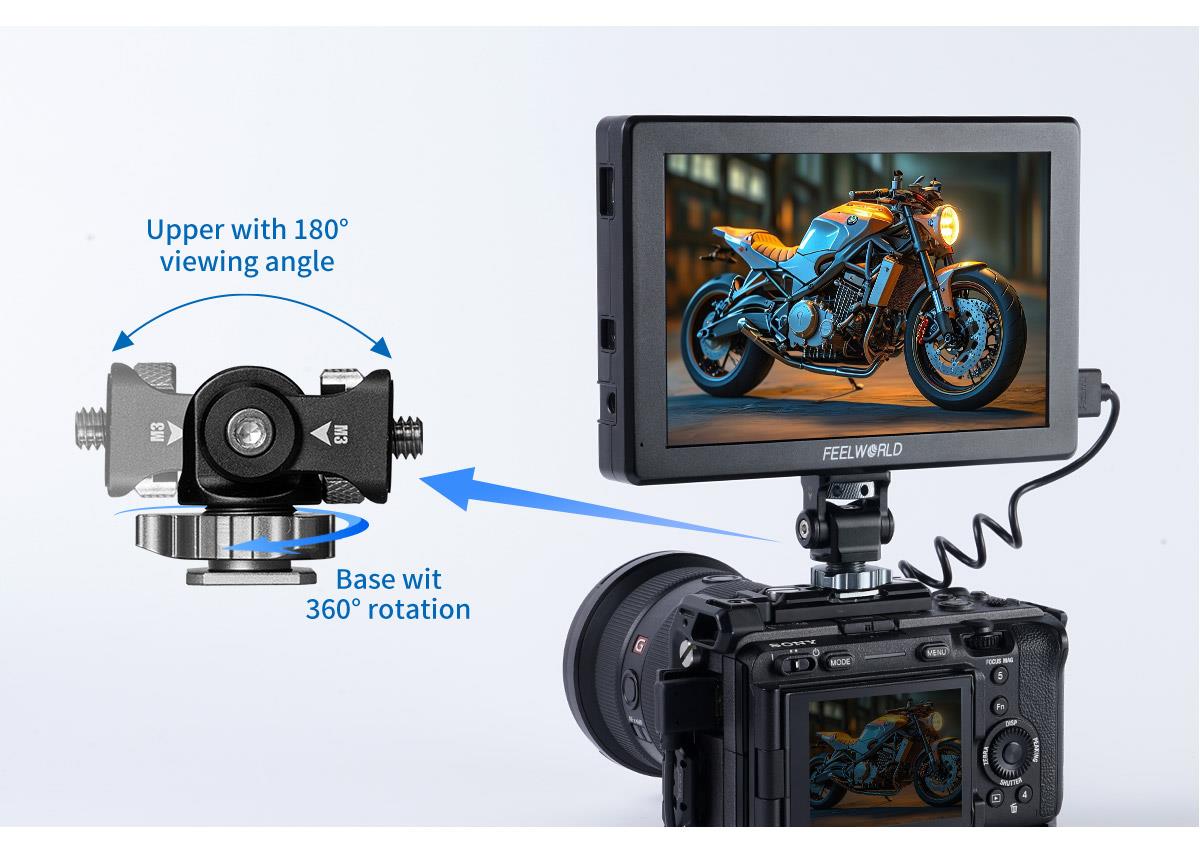

Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
Portable Sun-hood
In order to meet the needs of different photographers, T7 PRO still with portable sun-hood , and easy to install.
In order to meet the needs of different photographers, T7 PRO still with portable sun-hood , and easy to install.
HDMI Cable type reference for matching different camera models

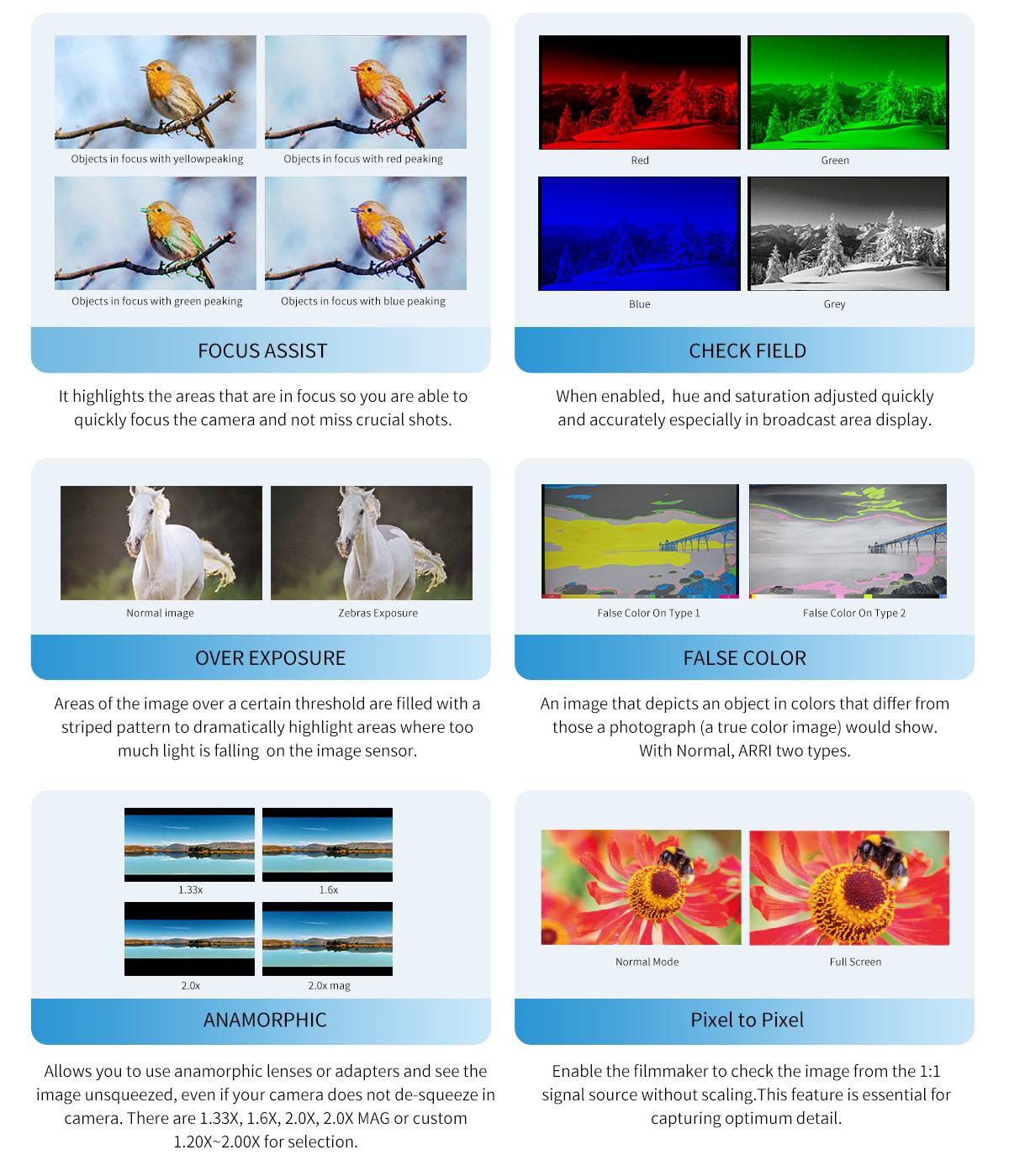

Advanced Features
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32) |
| * Waveform (RGB, YUV, Y) |
| * HDR |
| * Vector |
| * Histogram (RGB,Y ) |
| * Embedded Audio |
| * Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable) |
| * False Colors (Normal, ARRI) |
| * Over Exposure (10IRE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x) |
| * Image Flip (H Flip, V Flip, H_V Flip ) |
| * Image Freeze |
| * Center Marker |
| * Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16) |
| * Marker Color (Red, Green, Blue, Black, White, Gray) |
| * Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9) |
| * Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%) |
| * Pixel to Pixel |
| * Display Range( Auto, Limit, Full) |
| * EDID Settings(2.0,1.4) |
| * User Switch (1~4) |
| * OSD Time(Off, 15Sec, 30Sec, 45Sec) |
| * OSD Transparency (Off, 25%, 50%, 75%) |
| * The background color of screen when no signal (Red, Green, Blue, Black, White, Gray) |
| * Power Settings (Auto, Manual) |
| * Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255) |
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 4 ,9, 16, 25, 36, 49,64,81equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.

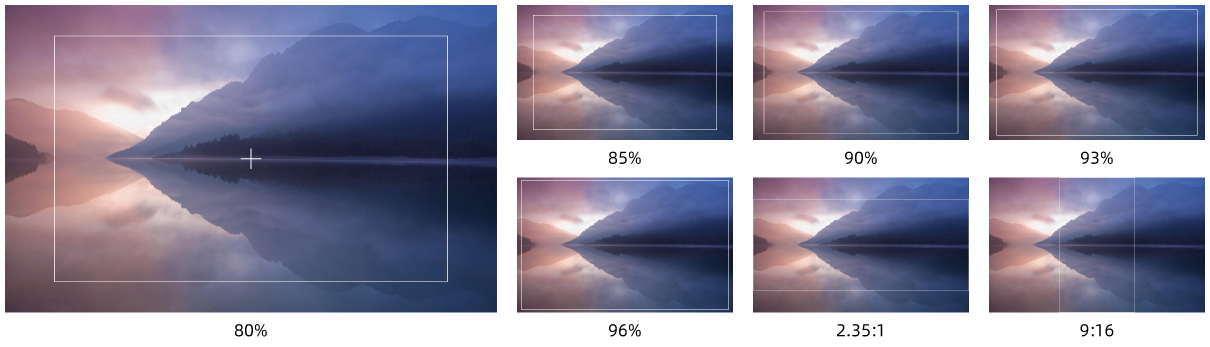

Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1,9:16). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.

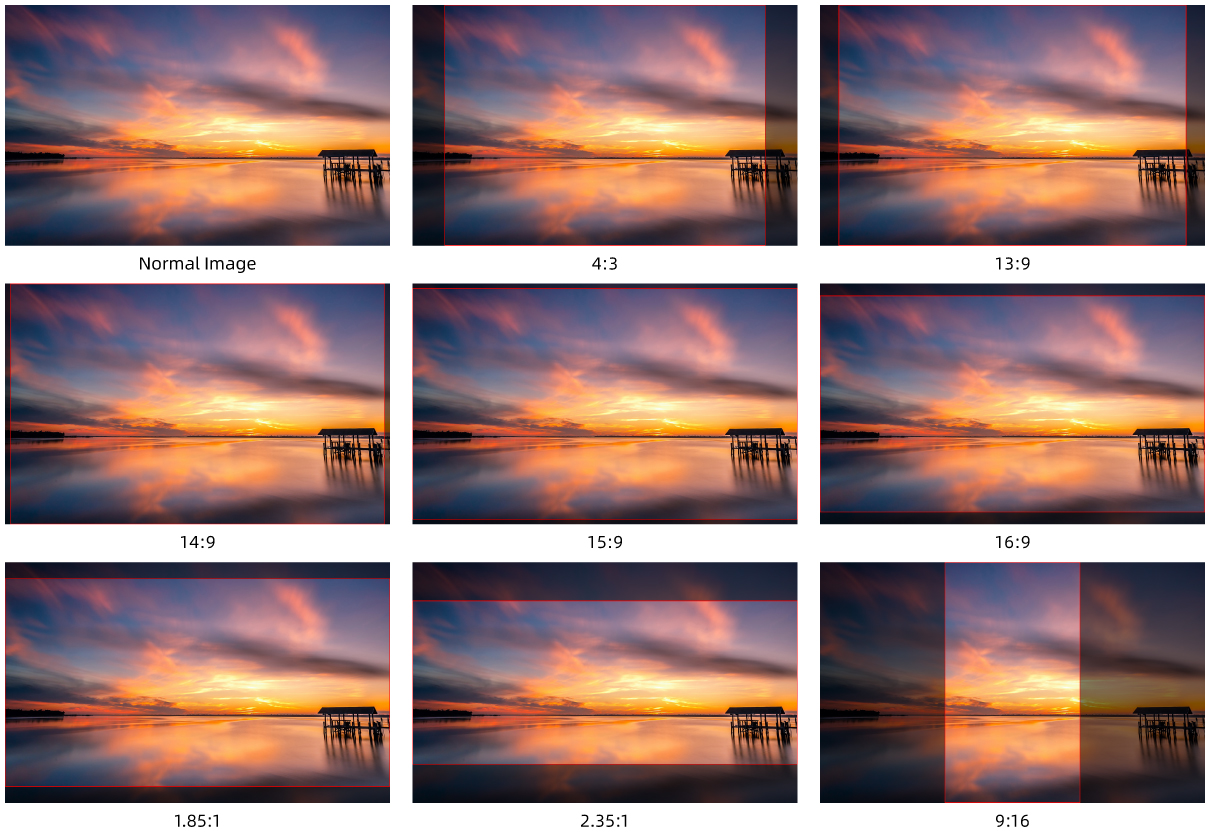

Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1,9:16). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Display Spec.
| Model | T7 PRO |
| Screen Size | 7"IPS |
| Resolution | 1920X1200 pixels |
| Pixel Pitch | 0.07875(W) x 0.07875 (H) (mm) |
| Color Depth | 8bit |
| Aspect Ratio | 16:10 |
| Brightness | 2000cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI 2.0 |
| 1 X USB | Mini USB (LUT file import and Firmware update) |
Output
| 1 X HDMI | HDMI2.0 |
Audio
| Audio | 3.5mm Stereo Headphone |
HDMI Input and Output Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4K 4096×2160p(60/50/30/29.97/25/24/23.98) |
General
| Power Connector | DC IN |
| Input Voltage | DC7～24V |
| Power Consumption | ≤18W |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread Point (bottom) |
| Unit Size | 182.8x122.8x24 (mm) |
| Unit Weight | 336g |
| Color Box Size | 222*158*76(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 450*234*385 (mm) |
| Gross Weight | kg |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

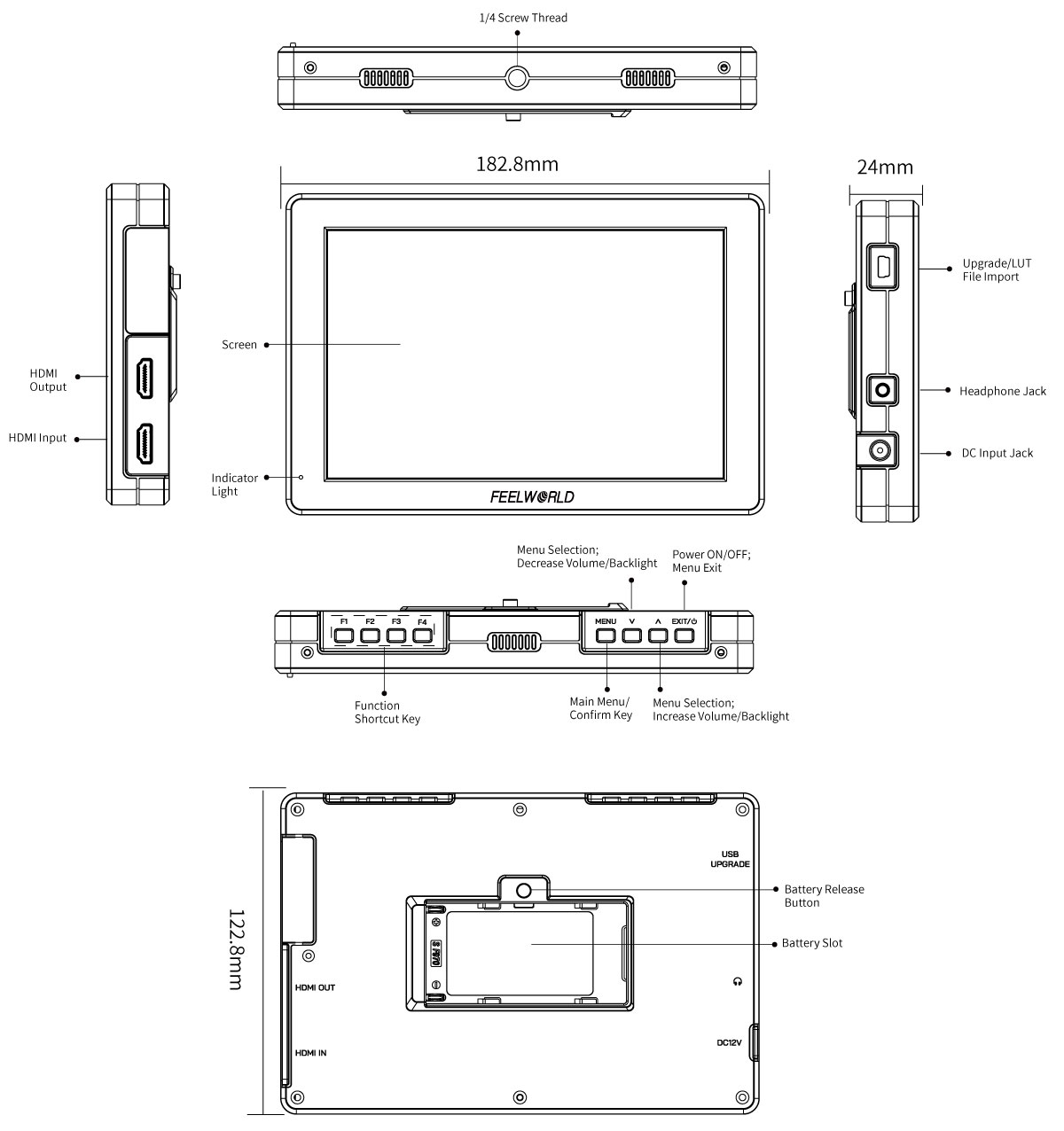

Structure Dimensions (Unit: mm)

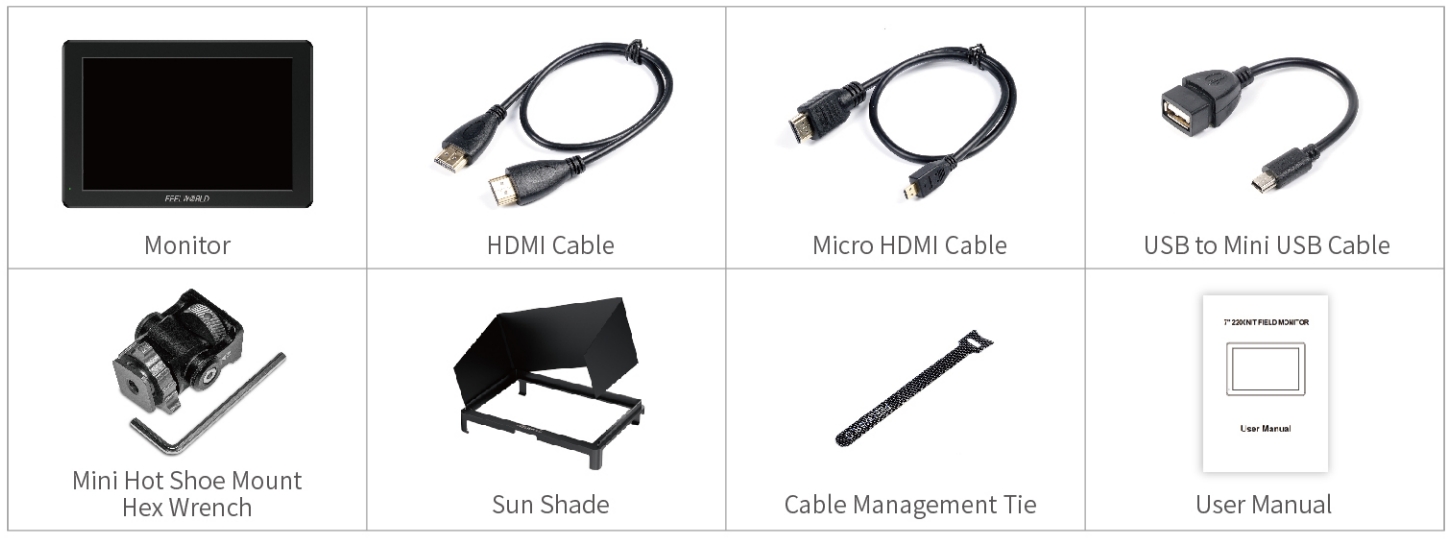

Packaging List:
1× Monitor
1× Micro HDMI Cable
1× HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB to Mini USB Cable
1× Sun Shade
1× Cable Management Tie
1× Manual
1× Monitor
1× Micro HDMI Cable
1× HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB to Mini USB Cable
1× Sun Shade
1× Cable Management Tie
1× Manual
Packaging Picture
