FEELWORLD T6 6-Inch Camera Field Video Monitor Aluminium Housing 4K HDMI 1920x1080 IPS
| Number: | 202505261721031335 |
|---|---|
| Model: | T6 |
| Size: | 6" |
| Introduction: |
Screen Size： 6" IPS
Resolution： 1920x1080 pixels Aspect ratio： 16:9 Brightness： 450cd/m² |
| Input: | HDMI 2.0, DC 12V, Type-C |
| Output: | HDMI 2.0, DC OUT 8V, Stereo Headphone |
| DM: | |
| Download: | |
Aluminium Housing| Slim Lightweight | Powerful Functions

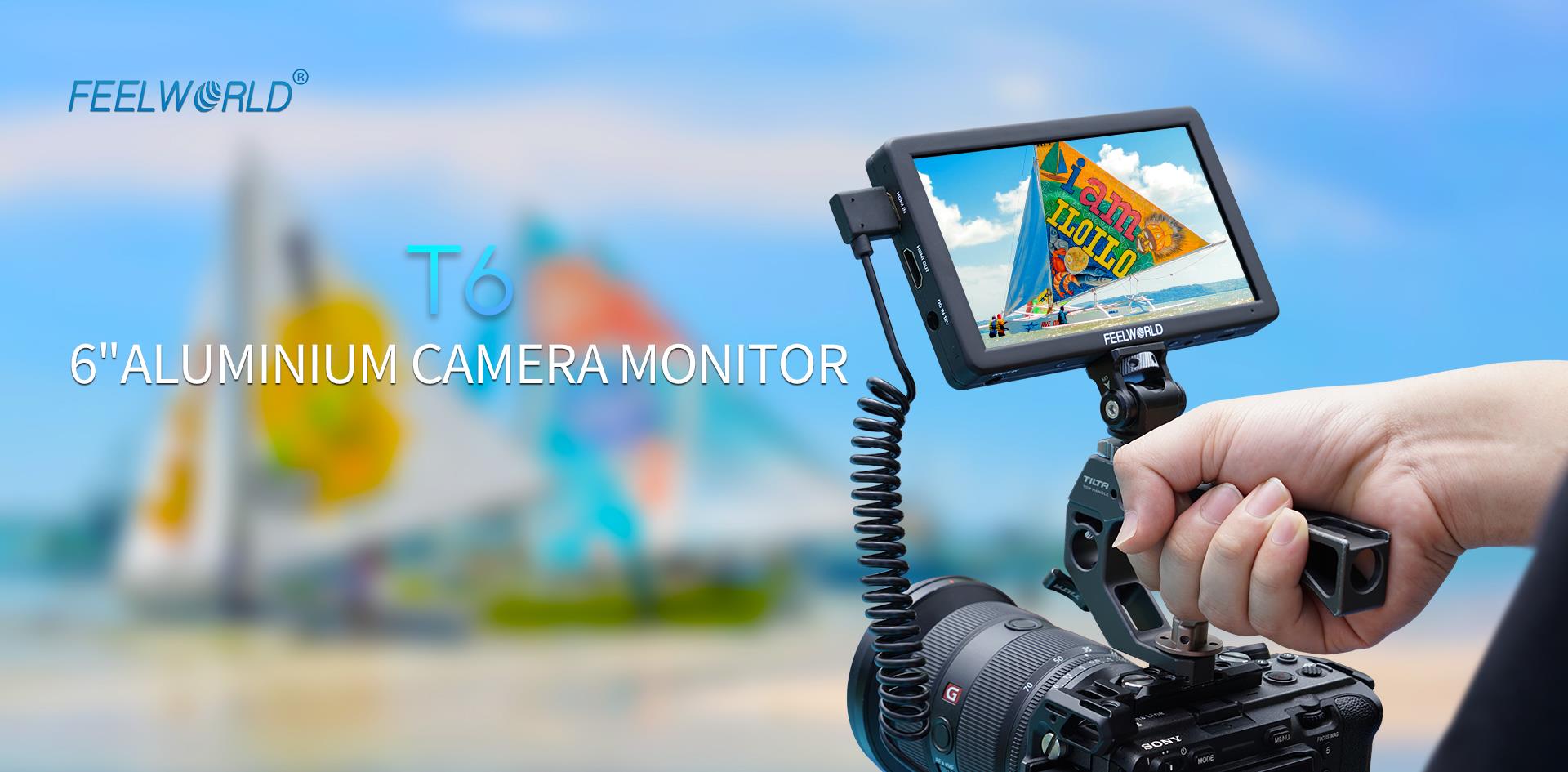

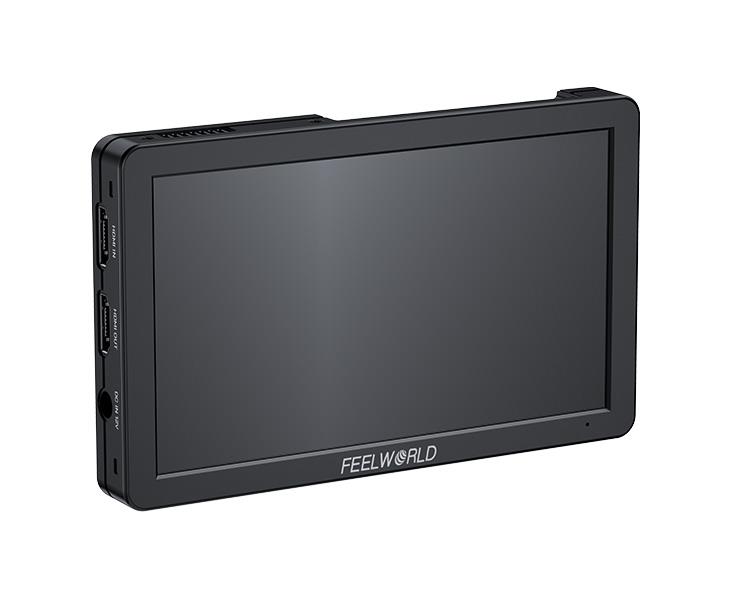

T6 is a 6-inch aluminum HDMI camera monitor with a slim and rugged design—ideal for on-the-go shooting. Up to 4K 60Hz transmission rate and the advanced camera monitoring tools for video & photography enhance your workflow, making it perfect for vloggers, photographers and content creators.
T6 is a 6-inch aluminum HDMI camera monitor with a slim and rugged design—ideal for on-the-go shooting. Up to 4K 60Hz transmission rate and the advanced camera monitoring tools for video & photography enhance your workflow, making it perfect for vloggers, photographers and content creators.

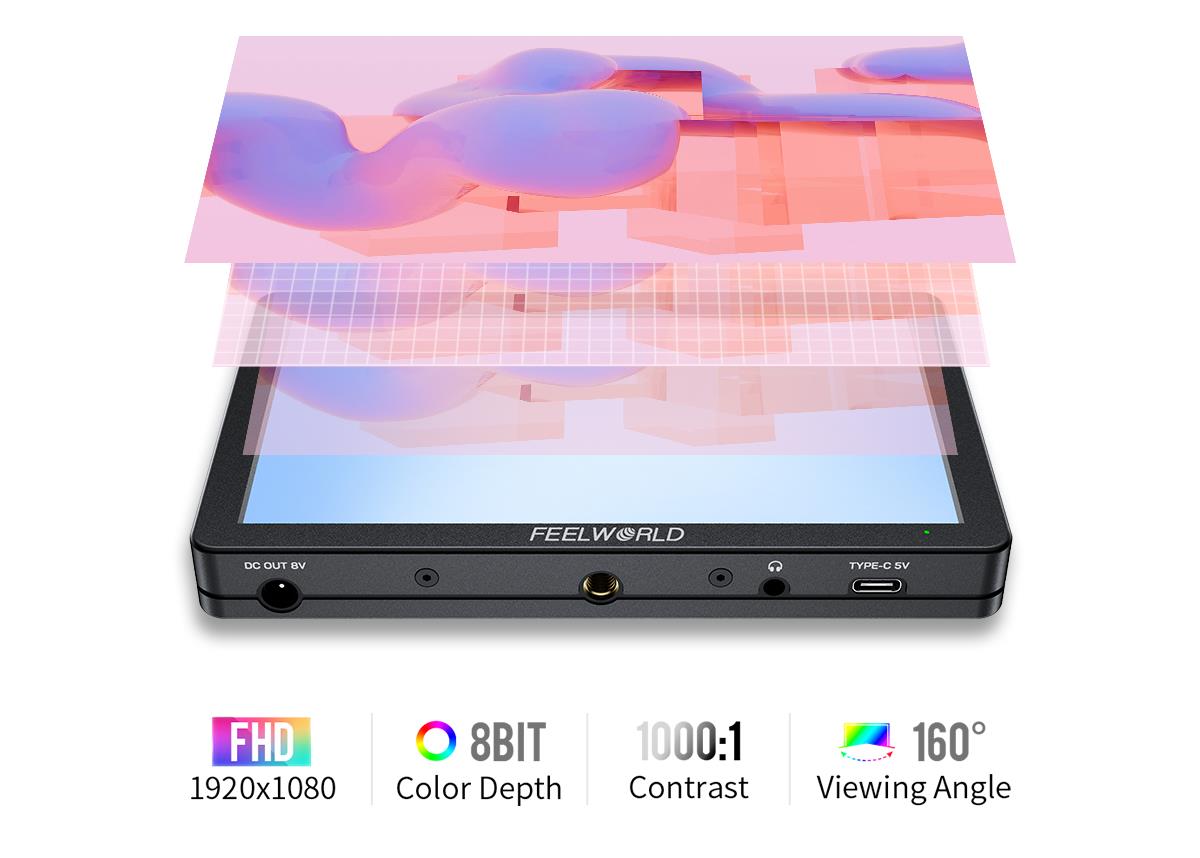

6-inch Full HD IPS Screen
True-to-life colors and crystal-clear details
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
True-to-life colors and crystal-clear details
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.

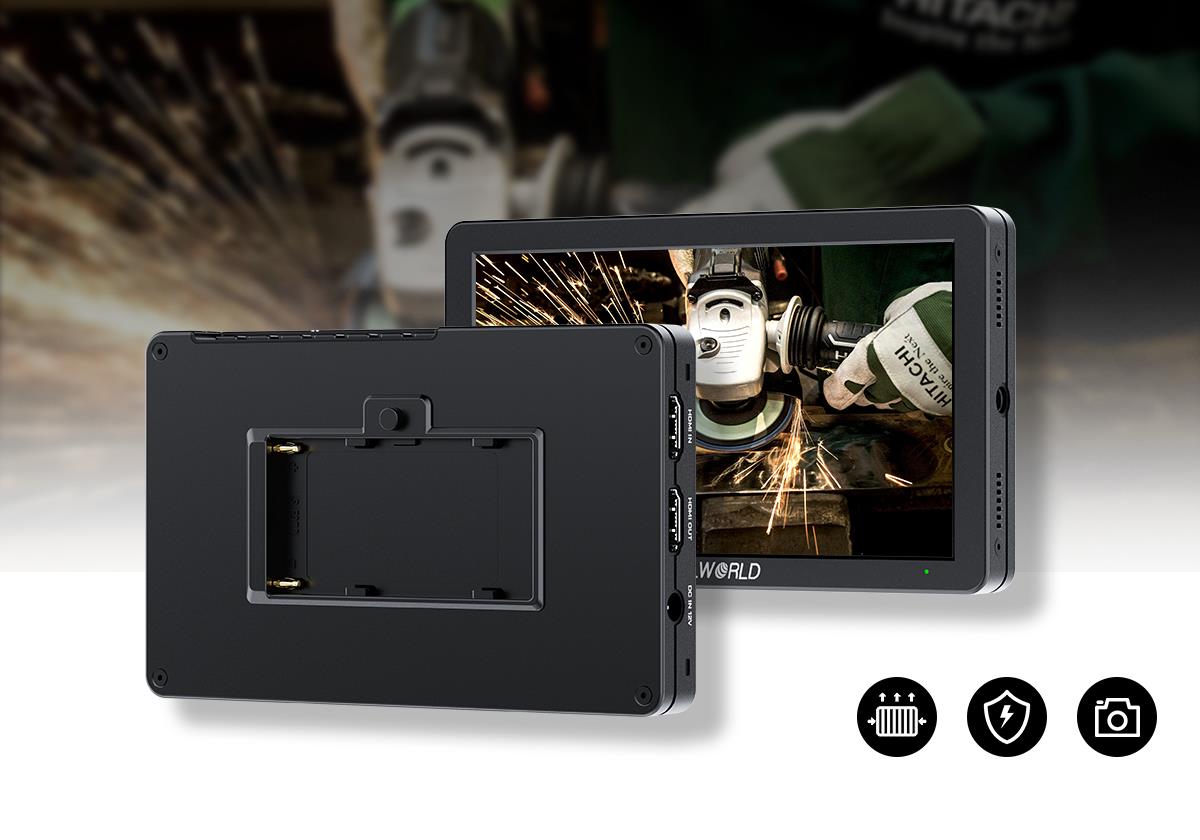

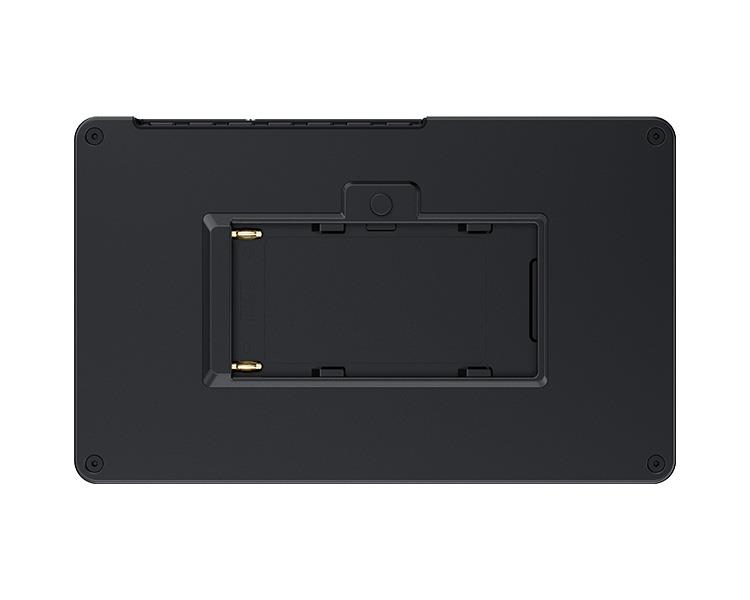

Rugged and Durable Aluminium Housing
T6 features a rugged aluminum housing with excellent heat dissipation. Suitable for various shooting environments.
T6 features a rugged aluminum housing with excellent heat dissipation. Suitable for various shooting environments.

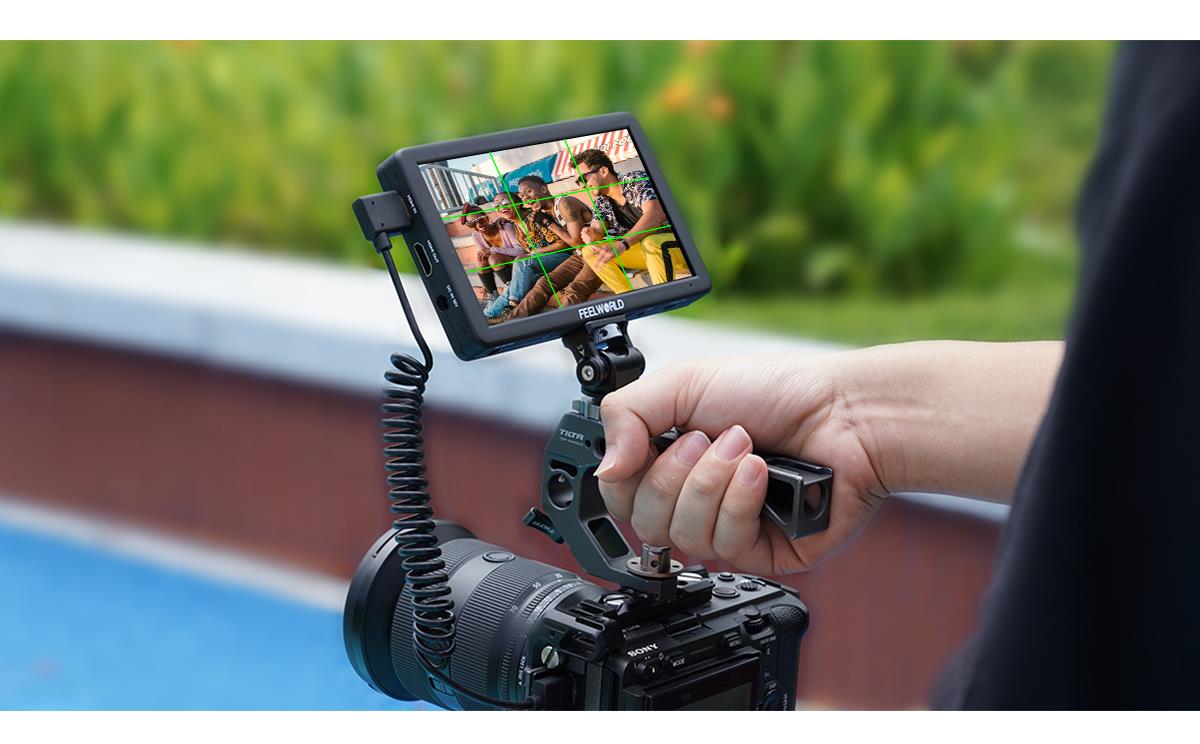

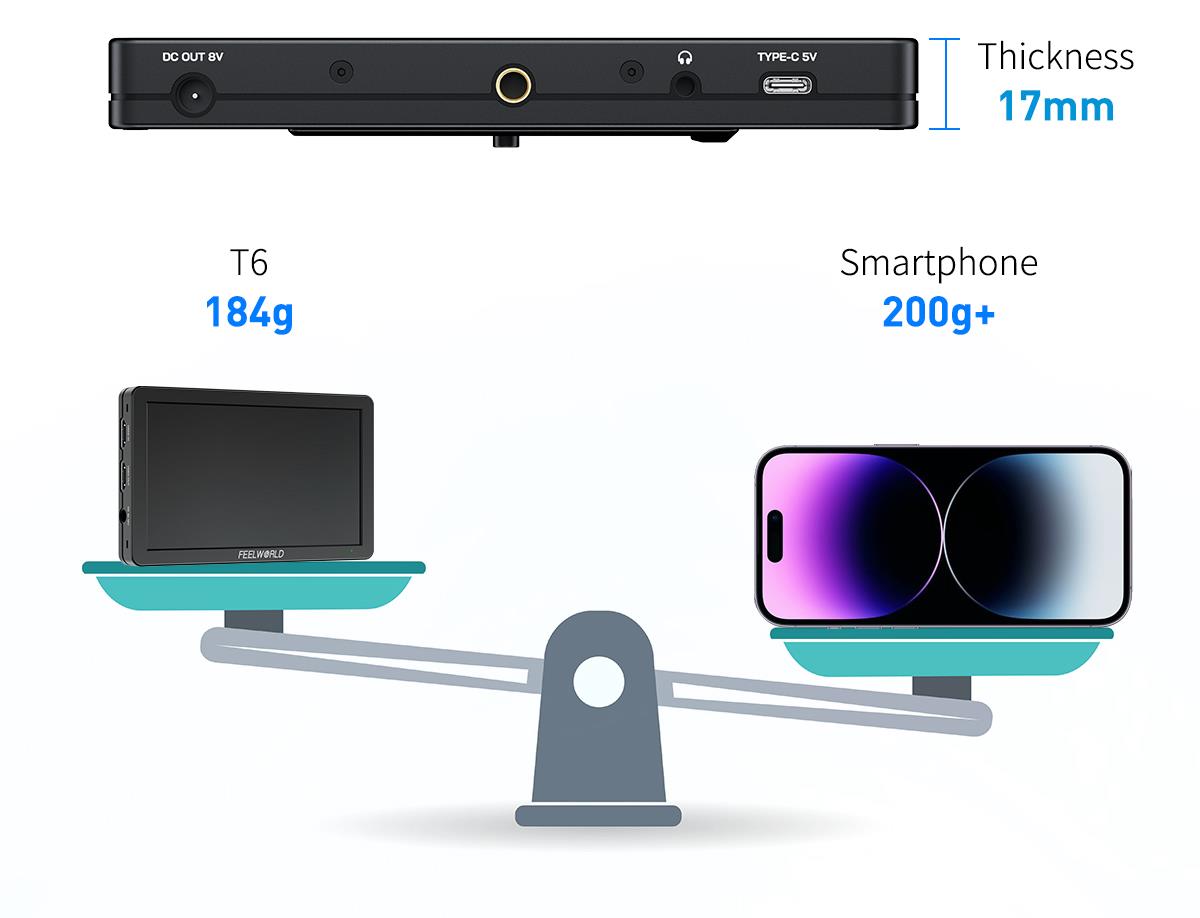

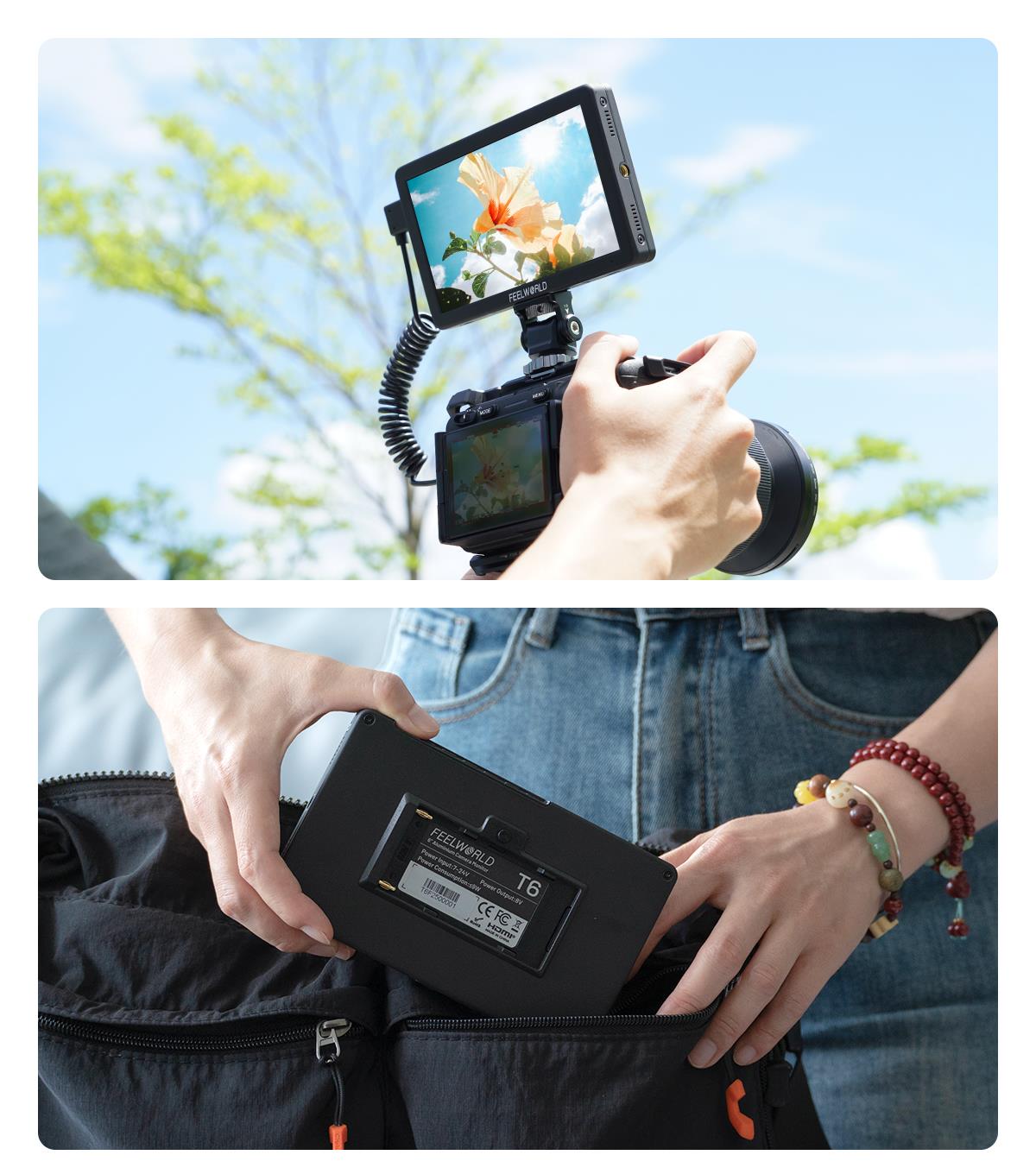

Compact and Lightweight Design
Compact and easy to carry, the T6 is your perfect travel companion for mobile shooting.
Compact and easy to carry, the T6 is your perfect travel companion for mobile shooting.

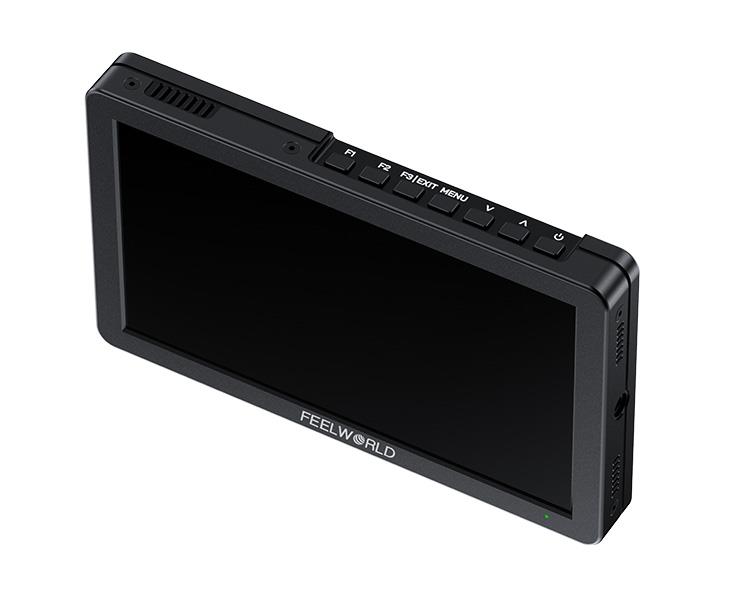

Quick Access with Custom Buttons
T6 provides multiple intuitive buttons for easy menu navigation. Three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.
T6 provides multiple intuitive buttons for easy menu navigation. Three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.

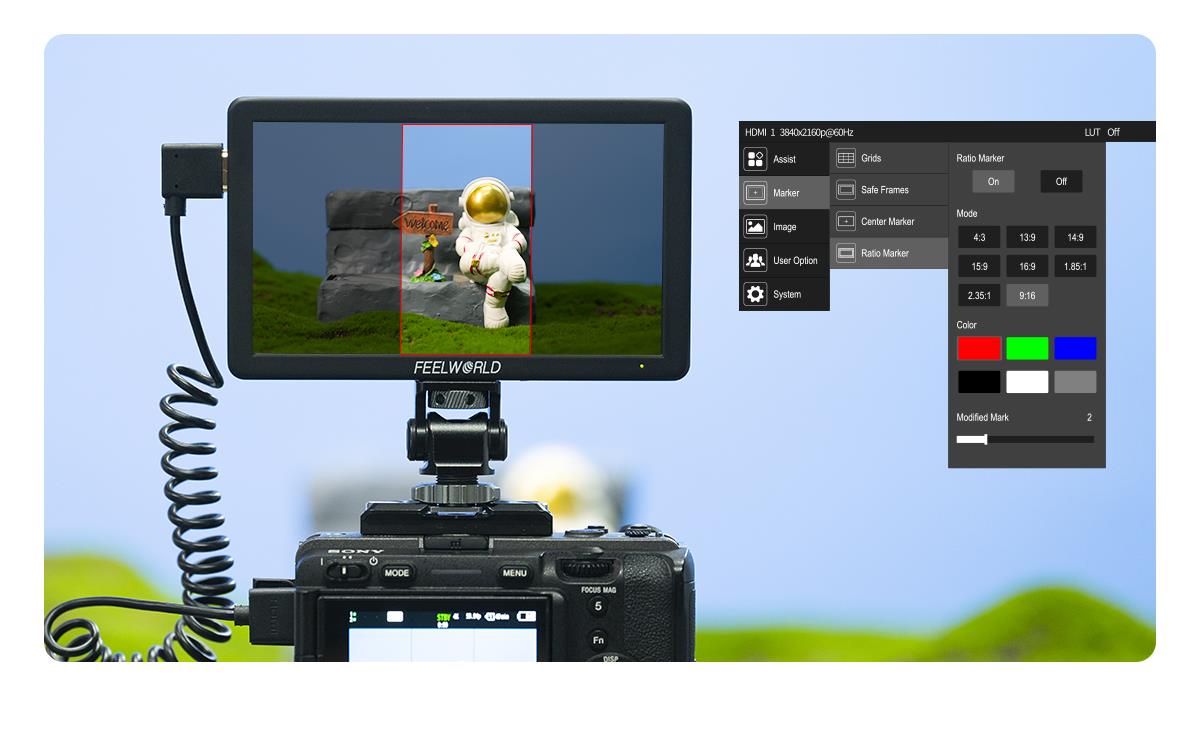

9：16 Vertical Screen Marker
T6 has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.
T6 has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.

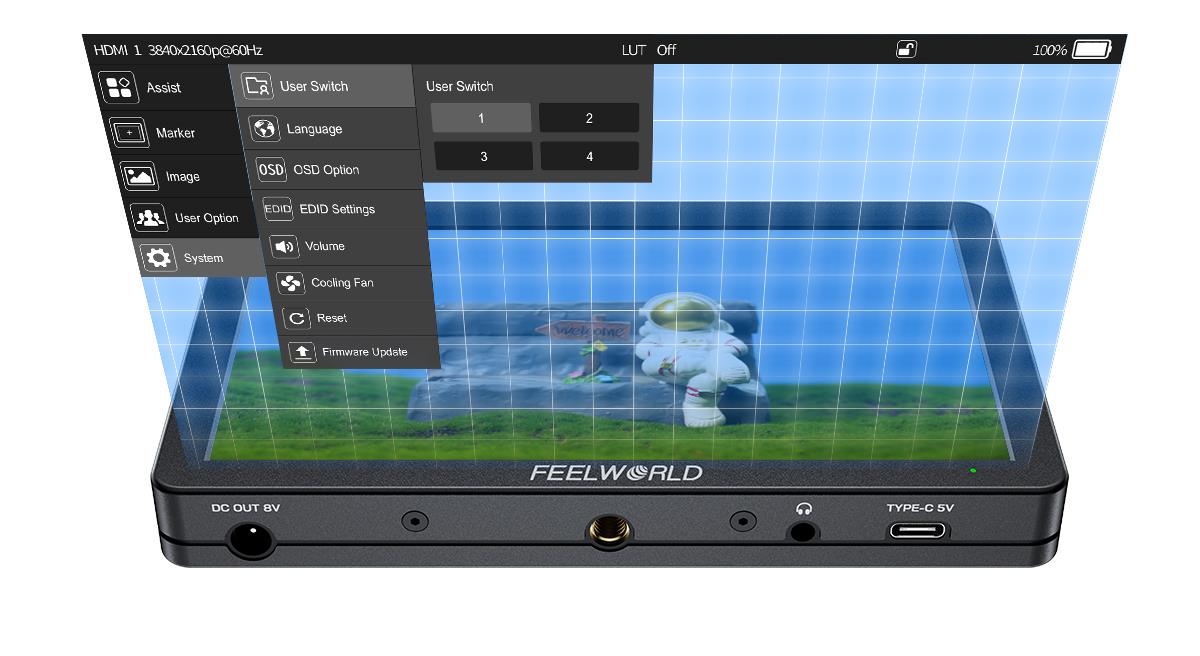

4 Menu User for Quick Switch
The monitor provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically,can be easily recalled or switched based on different shooting needs.
The monitor provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically,can be easily recalled or switched based on different shooting needs.

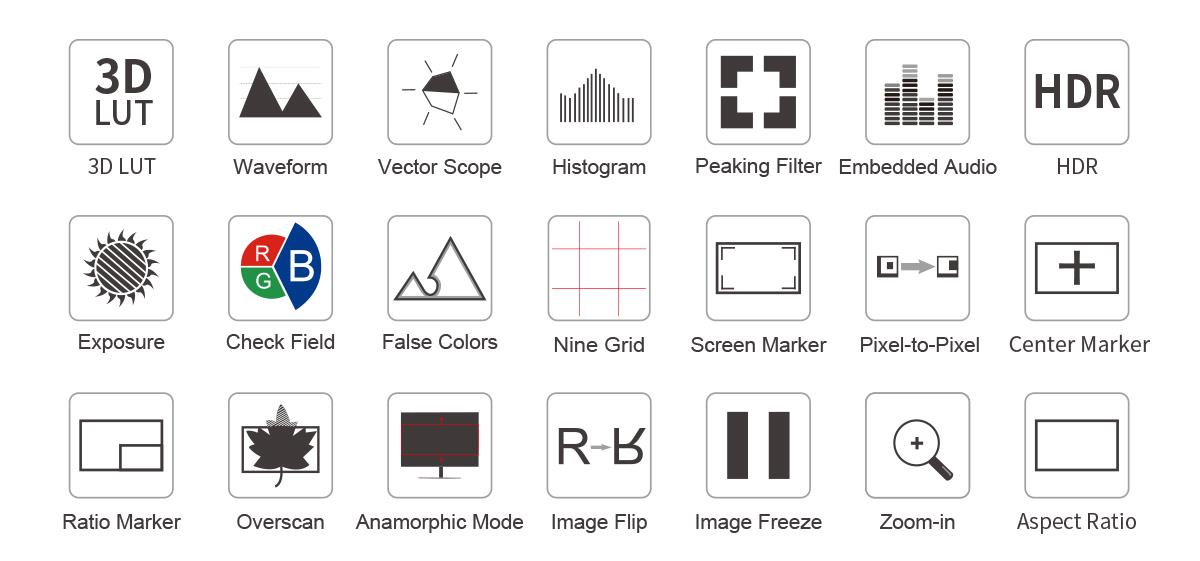

Full Range of Auxiliary Functions
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Insert the USB flash drive to the standard accessory Type-C to USB adapter, then connect with Type-C interface of T6.
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Insert the USB flash drive to the standard accessory Type-C to USB adapter, then connect with Type-C interface of T6.

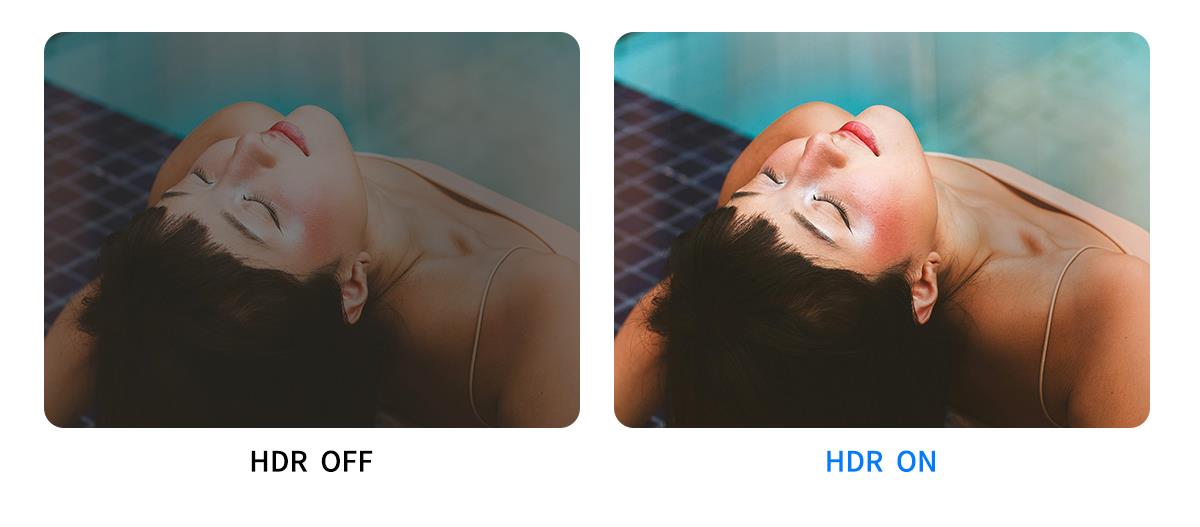

HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

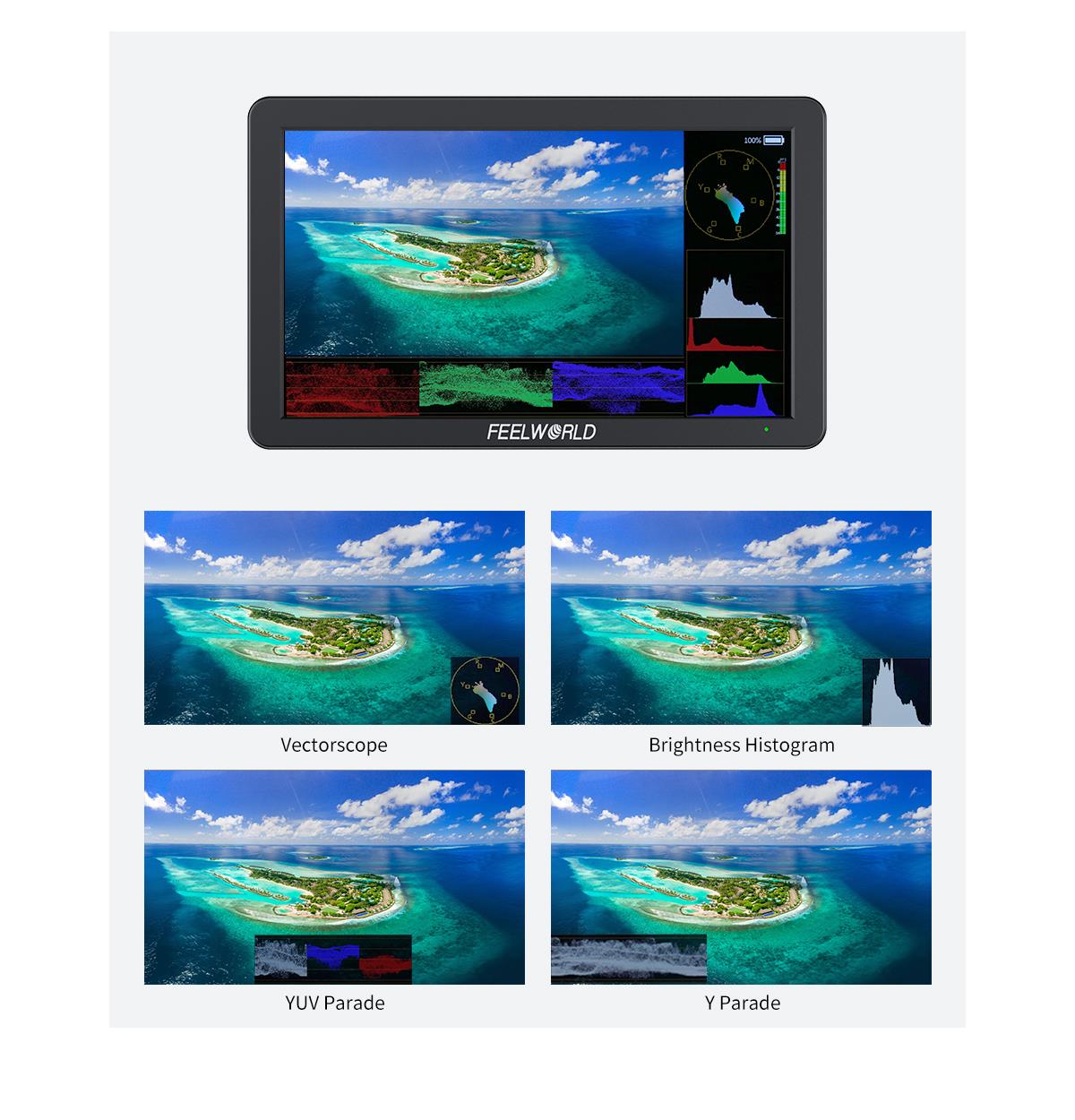

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. T6 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. T6 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

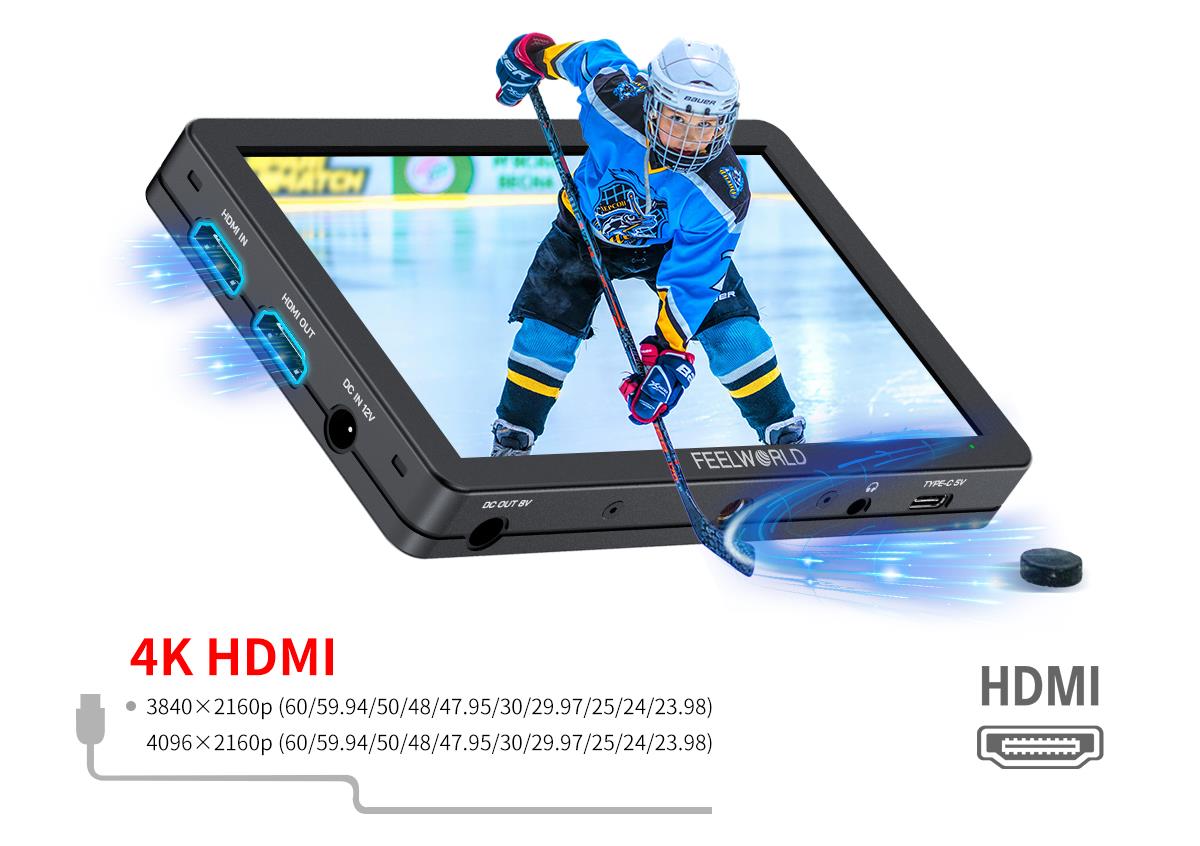

4K HDMI Input and Output，High Speed Transmission
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with camcorder and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with camcorder and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

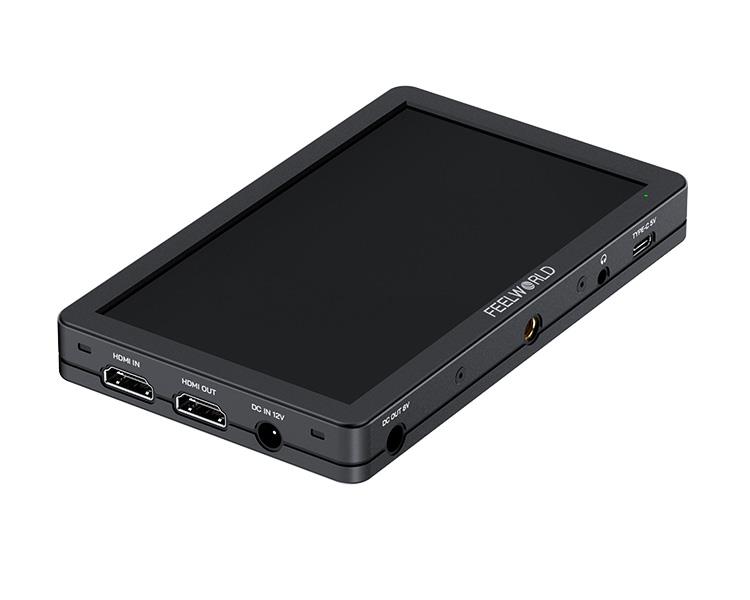

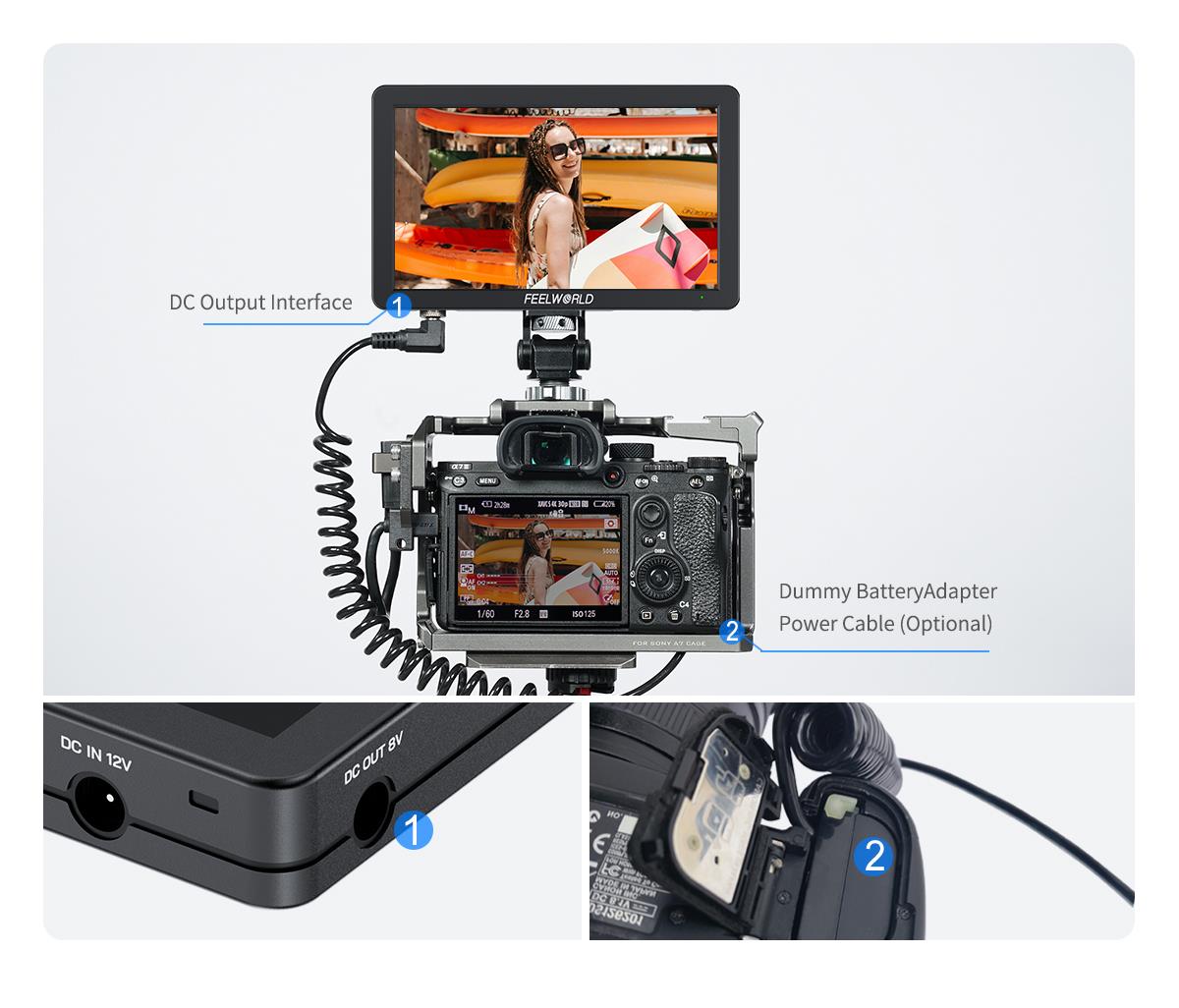

DC 8V OUT, Power Your Camera On the Go
T6 provides auxiliary DC 8V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the T6 extends camera run-time, while providing a more usable display.
T6 provides auxiliary DC 8V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the T6 extends camera run-time, while providing a more usable display.

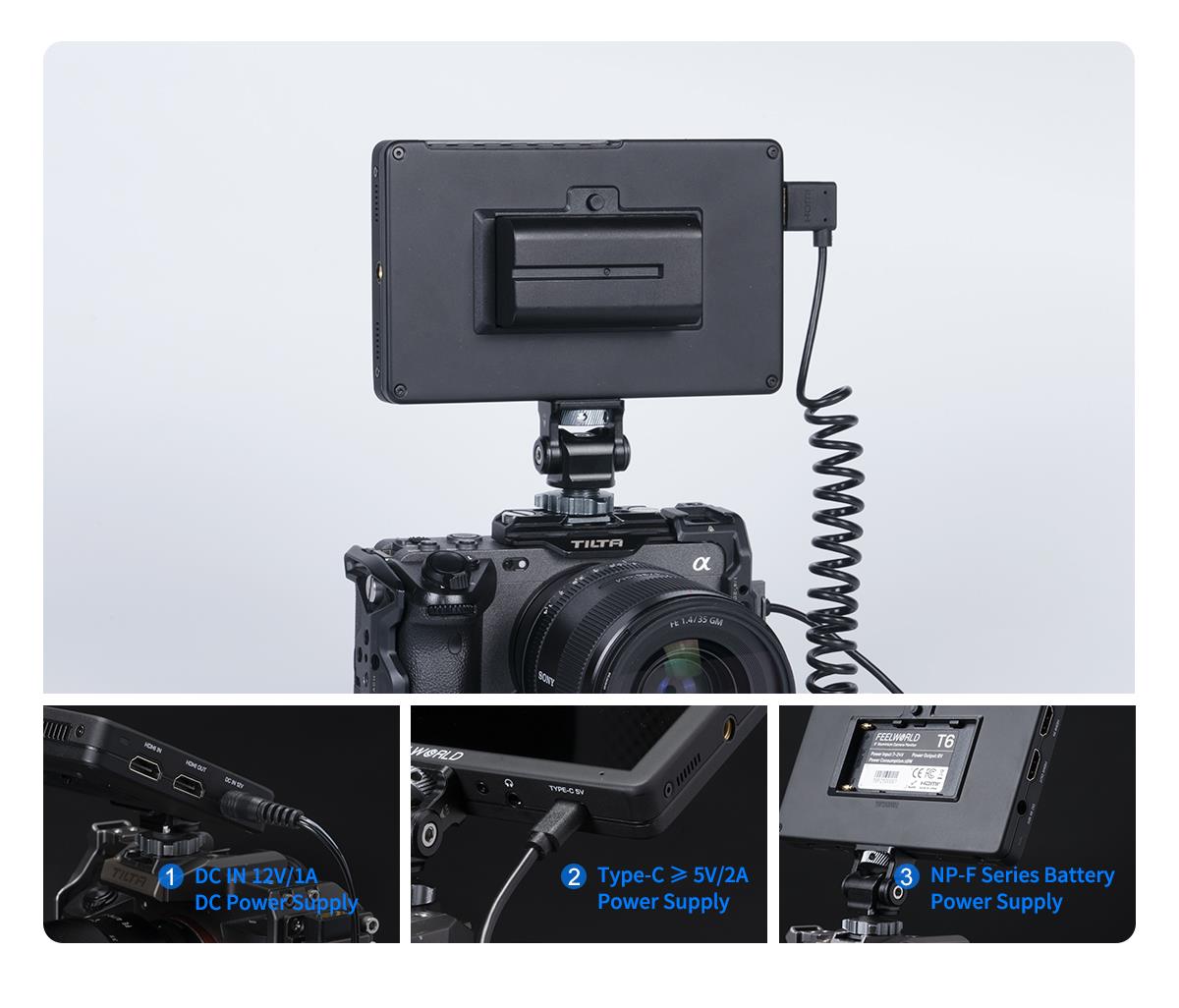

Multiple Power Supply,Long-lasting Power for Shooting
You can connect to DC power input to get continuous power （suitable for use 1A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application. Install one F750 battery (4400mah) last for about 3.5 hours. The monitor also provides a 5V Type-C input, which can be powered by 5V/2A or more than 2A mobile phone charger or power bank.
Note: 1. the battery excluding, please purchase separately. 2. When using DC OUT 8V to power other device simultaneously, need to use 12V/2.5A power adapter at least.
You can connect to DC power input to get continuous power （suitable for use 1A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application. Install one F750 battery (4400mah) last for about 3.5 hours. The monitor also provides a 5V Type-C input, which can be powered by 5V/2A or more than 2A mobile phone charger or power bank.
Note: 1. the battery excluding, please purchase separately. 2. When using DC OUT 8V to power other device simultaneously, need to use 12V/2.5A power adapter at least.

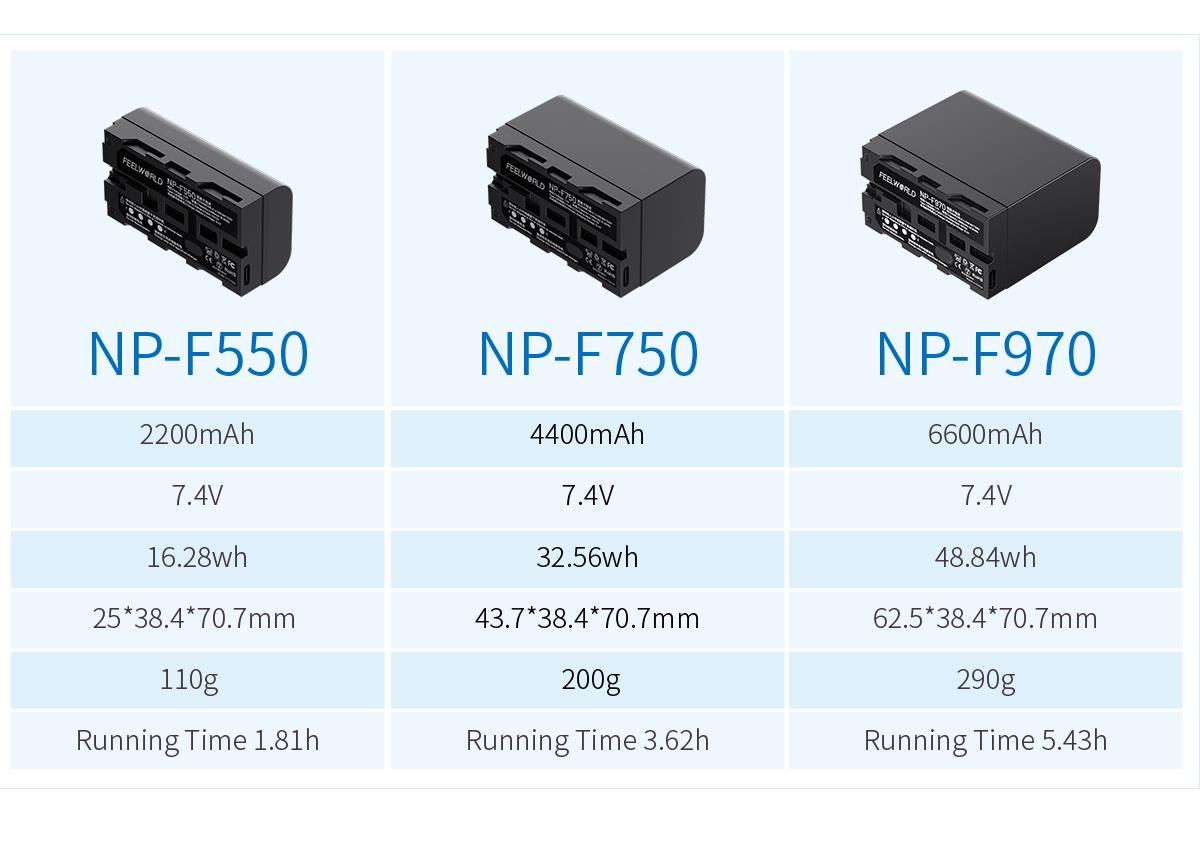

NP-F Battery Optional Recommendation
The power consumption of T6 is 9W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.
The power consumption of T6 is 9W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

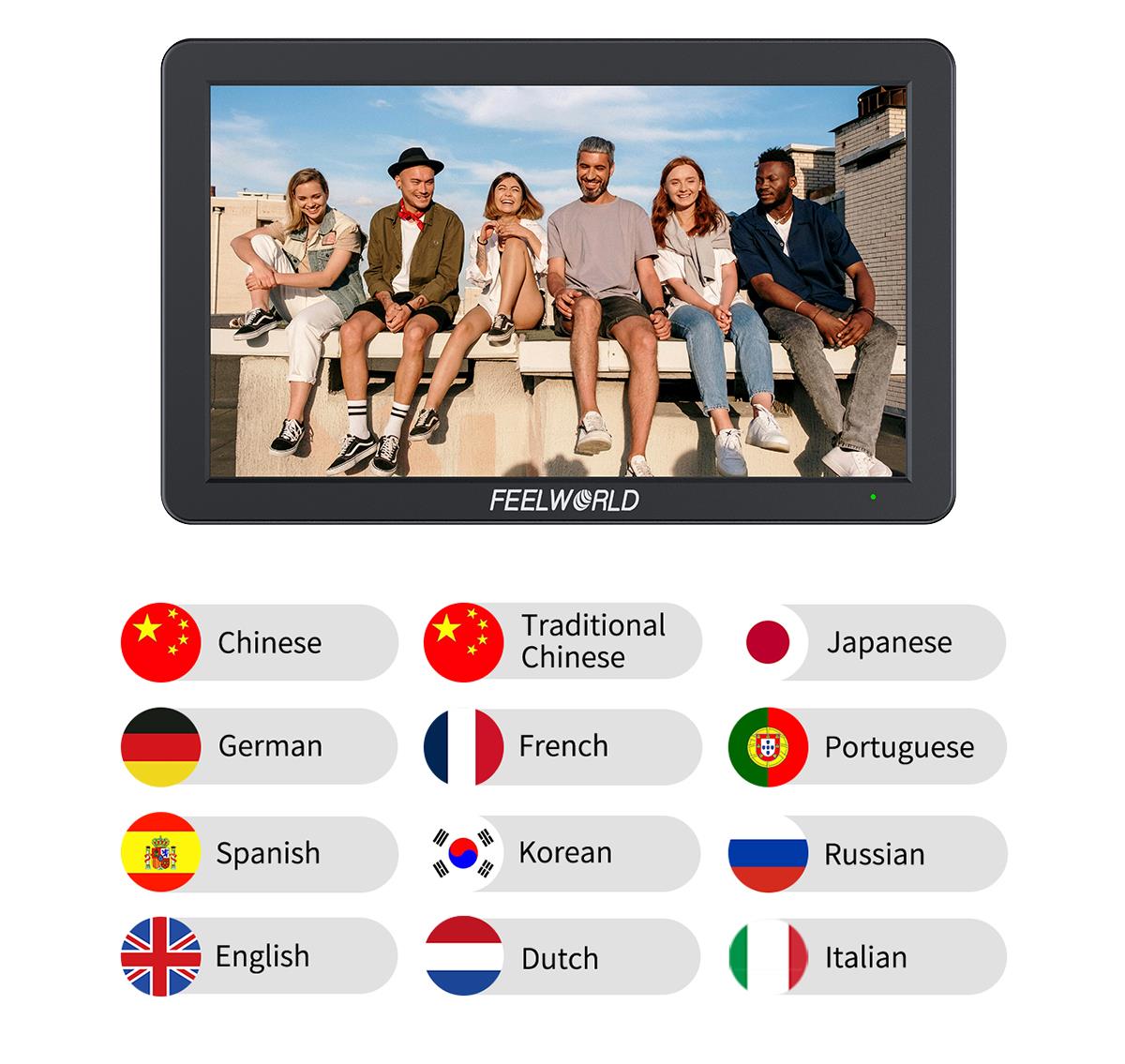

12 Languages Supporting
T6 built-in up to 12 languages, that means T6 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
T6 built-in up to 12 languages, that means T6 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

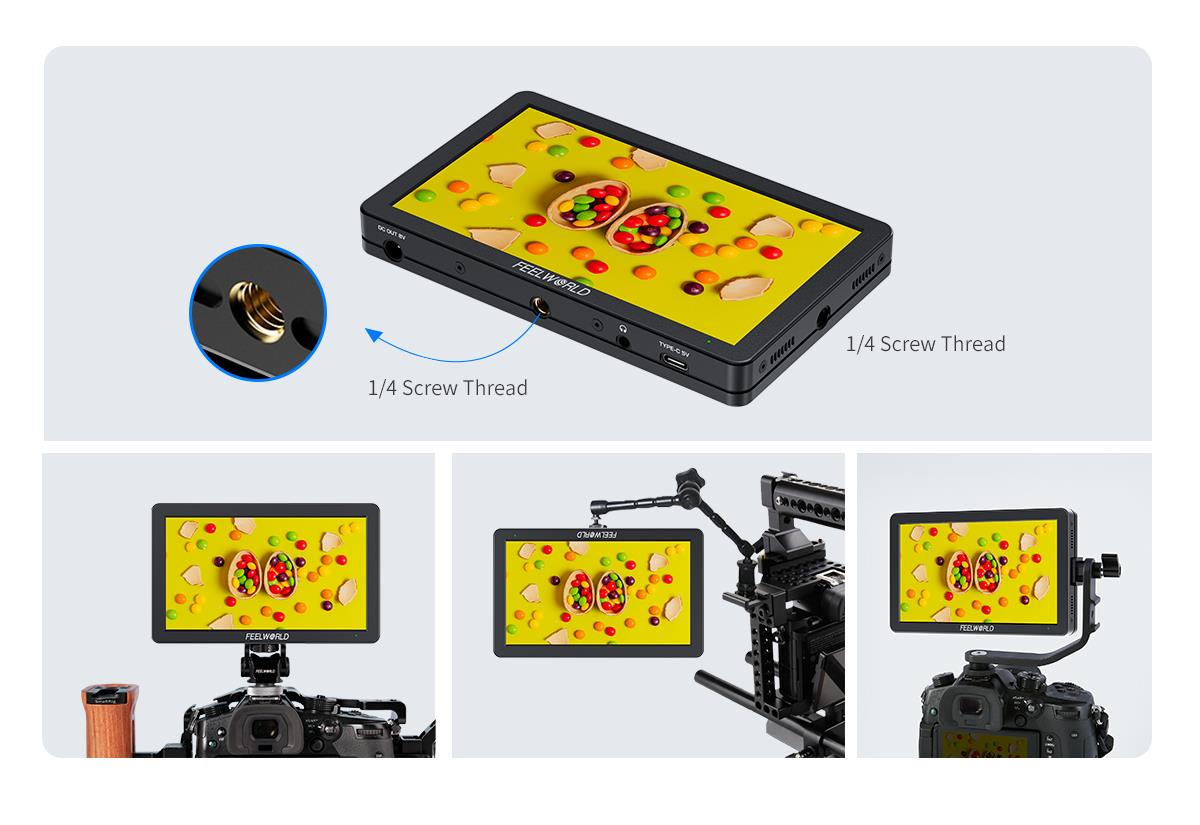

Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

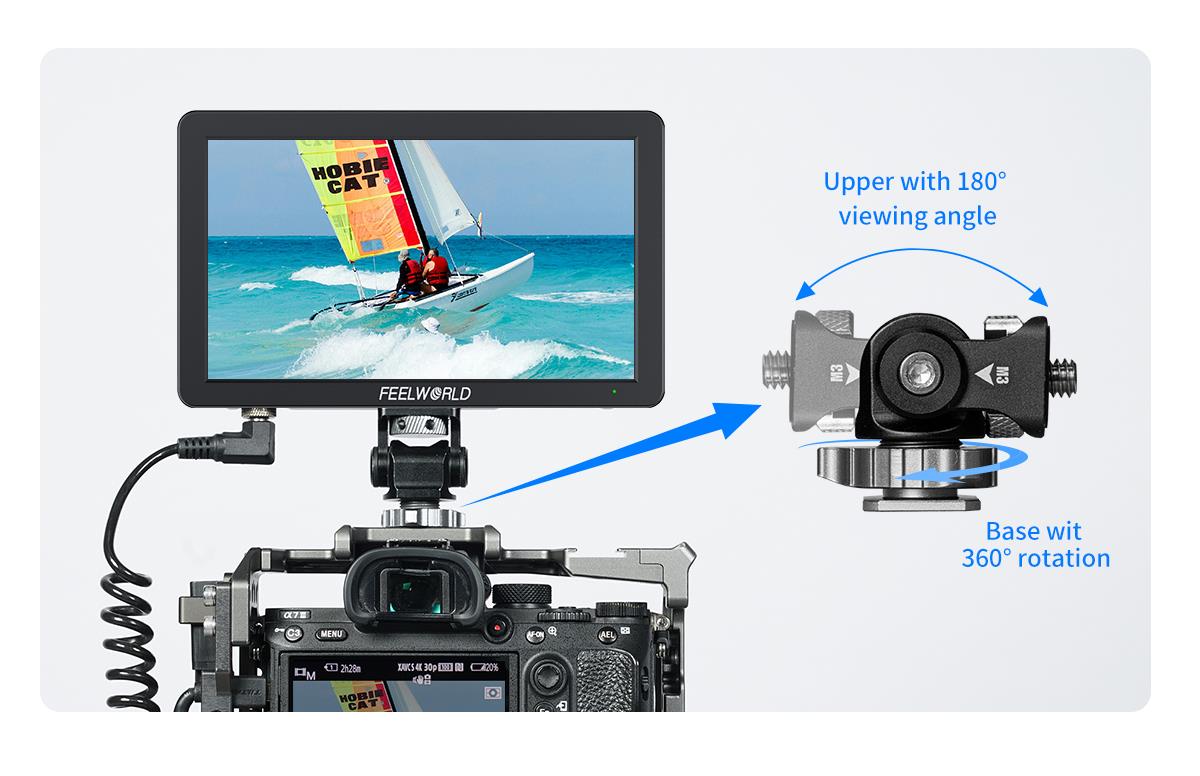

Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

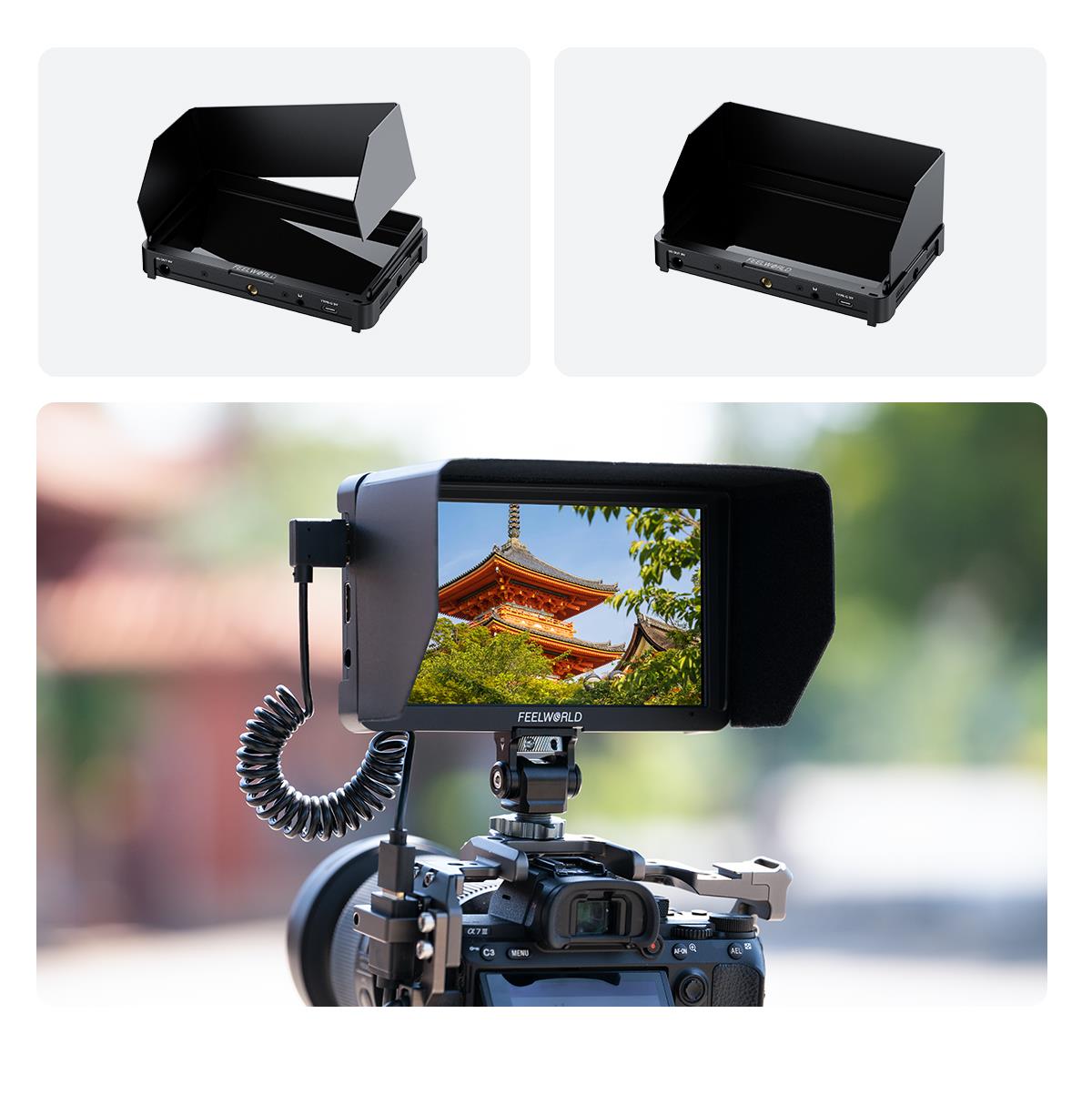

Portable Sun-hood
The standard portable sun-hood can easy to resist the strong light, and easy to install.
The standard portable sun-hood can easy to resist the strong light, and easy to install.
HDMI Cable type reference for matching different camera models
Advanced Features
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32) |
| * Waveform (RGB, YUV, Y) |
| * HDR |
| * Vector |
| * Histogram (RGB,Y ) |
| * Embedded Audio |

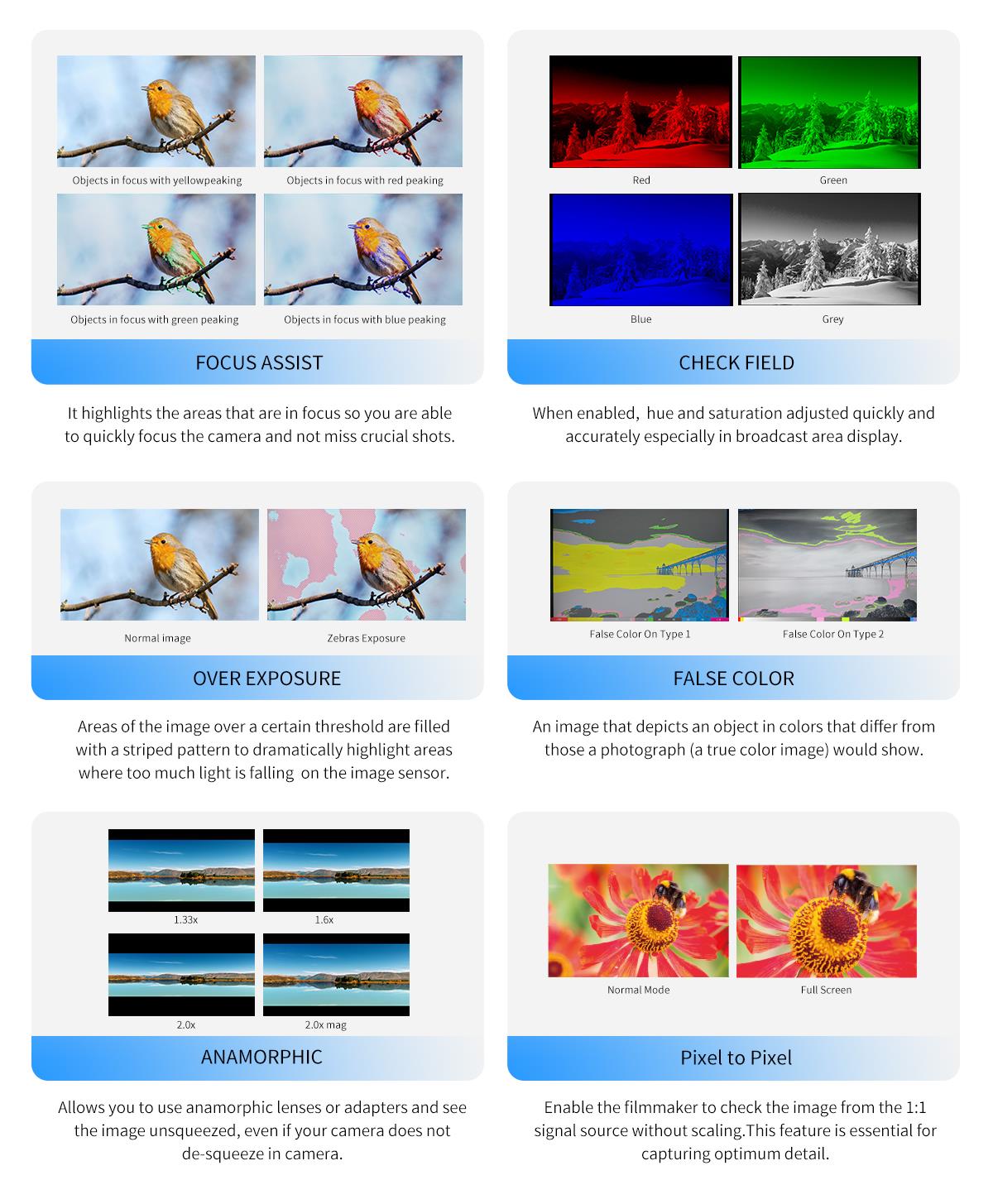

| * Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable) |
| * False Colors (Normal, ARRI) |
| * Over Exposure (10IRE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x) |
| * Image Flip (H Flip, V Flip, H_V Flip ) |
| * Image Freeze |
| * Center Marker |
| * Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16) |
| * Marker Color (Red, Green, Blue, Black, White, Gray) |
| * Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9) |
| * Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%) |
| * Pixel to Pixel |
| * Display Range( Auto, Limit, Full) |
| * EDID Settings(2.0,1.4) |
| * User Switch (1~4) |
| * OSD Time(Off, 15Sec, 30Sec, 45Sec) |
| * OSD Transparency (Off, 25%, 50%, 75%) |
| * The background color of screen when no signal (Red, Green, Blue, Black, White, Gray) |
| * Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255) |
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 4 ,9, 16, 25, 36, 49,64,81equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1,9:16). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1,9:16). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Display Spec.
| Model | T6 |
| Screen Size | 6"IPS |
| Resolution | 1920X1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) (mm) |
| Color Depth | 8bit |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Signal Input
| 1 X HDMI | HDMI 2.0 |
Signal Output
| 1 X HDMI | HDMI2.0 |
Audio
| Audio | 3.5mm Stereo Headphone |
HDMI Input and Output Support Format
| 480i/576i/480p/576p |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4K 4096×2160p(60/50/30/29.97/25/24/23.98) |
General
| Power Input | DC IN 12V, Barrel (5.5mm outer, 2.1mm inner);Type-C 5V(please use 5V/2A or more than 2A Type-C power supply) |
| Power Output | DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner）,can be power for DSLR or mirrorless camera |
| Power Consumption | ≤9W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread Point (right side, bottom) |
| Unit Size | 151.8*92.8*17.1 (mm) |
| Unit Weight | 184g |
| Color Box Size | 186L*124W*80H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | kg |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

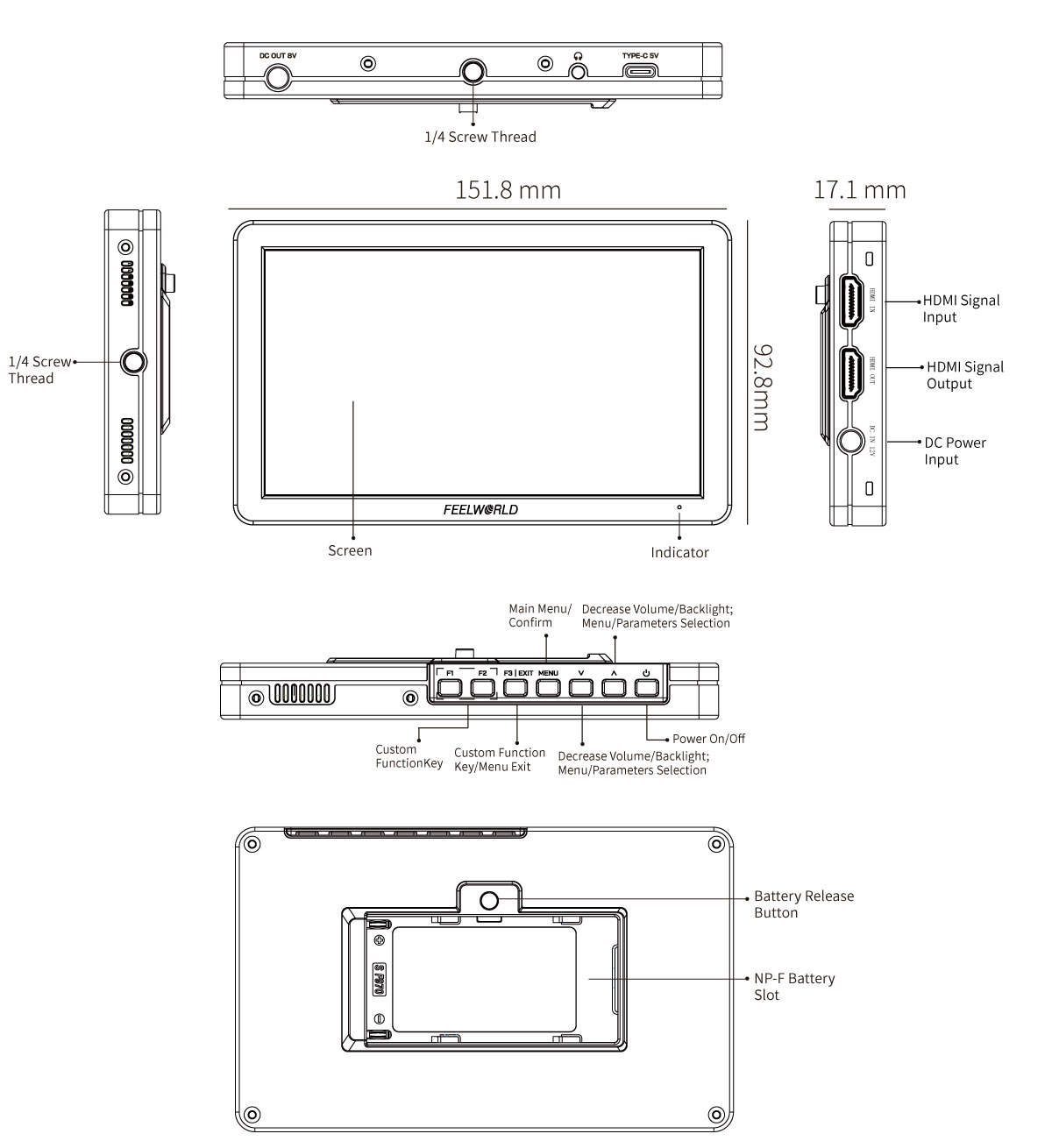

Structure Dimensions (Unit: mm)

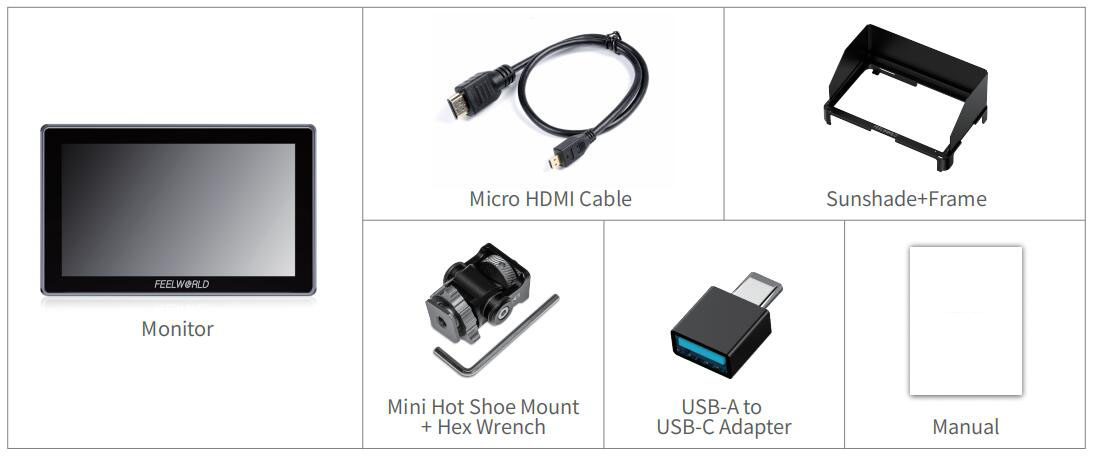

Packaging List:
1× Monitor
1× Micro HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB-A to USB-C Adapter
1× Sun Shade
1× Manual
1× Monitor
1× Micro HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB-A to USB-C Adapter
1× Sun Shade
1× Manual
Packaging Picture
