FEELWORLD SH7 7-inch Ultra Bright 2200nit On-camera Monitor SDI HDMI Cross Conversion
| Number: | 202309230907168787 |
|---|---|
| Model: | SH7 |
| Size: | 7" |
| Introduction: |
Screen Size： 7" IPS
Resolution： 1920x1200 pixels Aspect ratio： 16:10 Brightness： 2200cd/m² |
| Input: | 1*HDMI, 1*SDI, SD Card, DC IN 12V |
| Output: | 1*HDMI, 1*SDI, DC OUT 8V, Stereo Headphone |
| DM: | |
| Download: | |
Bright . Professional . Beautiful
Do you want to create freely in the brightest environment and share your creation on-set? FEELWORLD SH7 with peak brightness of 2200nit which can be used in the brightest of environments, and packed a series of powerful functions.You can easily convert SDI signal input to HDMI output, or you can convert HDMI input to SDI output; you can also output the HD video or image with LUT effect to the director for real-time monitoring in field; by using the F970 external kit on the rear of the monitor, wireless transmission and other devices can be installed to reduce on-site wiring worries. An ideal directors’ monitor, focus pullers’ monitor, program or preview display for video switchers, and perfect for vloggers presenting to camera.
Do you want to create freely in the brightest environment and share your creation on-set? FEELWORLD SH7 with peak brightness of 2200nit which can be used in the brightest of environments, and packed a series of powerful functions.You can easily convert SDI signal input to HDMI output, or you can convert HDMI input to SDI output; you can also output the HD video or image with LUT effect to the director for real-time monitoring in field; by using the F970 external kit on the rear of the monitor, wireless transmission and other devices can be installed to reduce on-site wiring worries. An ideal directors’ monitor, focus pullers’ monitor, program or preview display for video switchers, and perfect for vloggers presenting to camera.
7-inch Full HD Screen
Viewing clearly and capture every detail with confidence
With extremely high resolution 7-inch IPS panel, 16.7M(8bit) colors, provides excellent details and rich color.
Viewing clearly and capture every detail with confidence
With extremely high resolution 7-inch IPS panel, 16.7M(8bit) colors, provides excellent details and rich color.
Multiple Color Gamut, Meet the Different Needs of Photographers
The monitor supports REC709、DCIP3、BT2020 multiple color gamut, presenting rich color, meet the different needs of photographers for color gamut.
The monitor supports REC709、DCIP3、BT2020 multiple color gamut, presenting rich color, meet the different needs of photographers for color gamut.
Ultra Bright 2200nits, Daylight Viewable
Ideal for outdoor shooting
The ultra-high brightness makes shooting outdoors in bright sunlight a breeze.
Ideal for outdoor shooting
The ultra-high brightness makes shooting outdoors in bright sunlight a breeze.
Light Sensor for Auto Dimming
Built-in an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
Built-in an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.

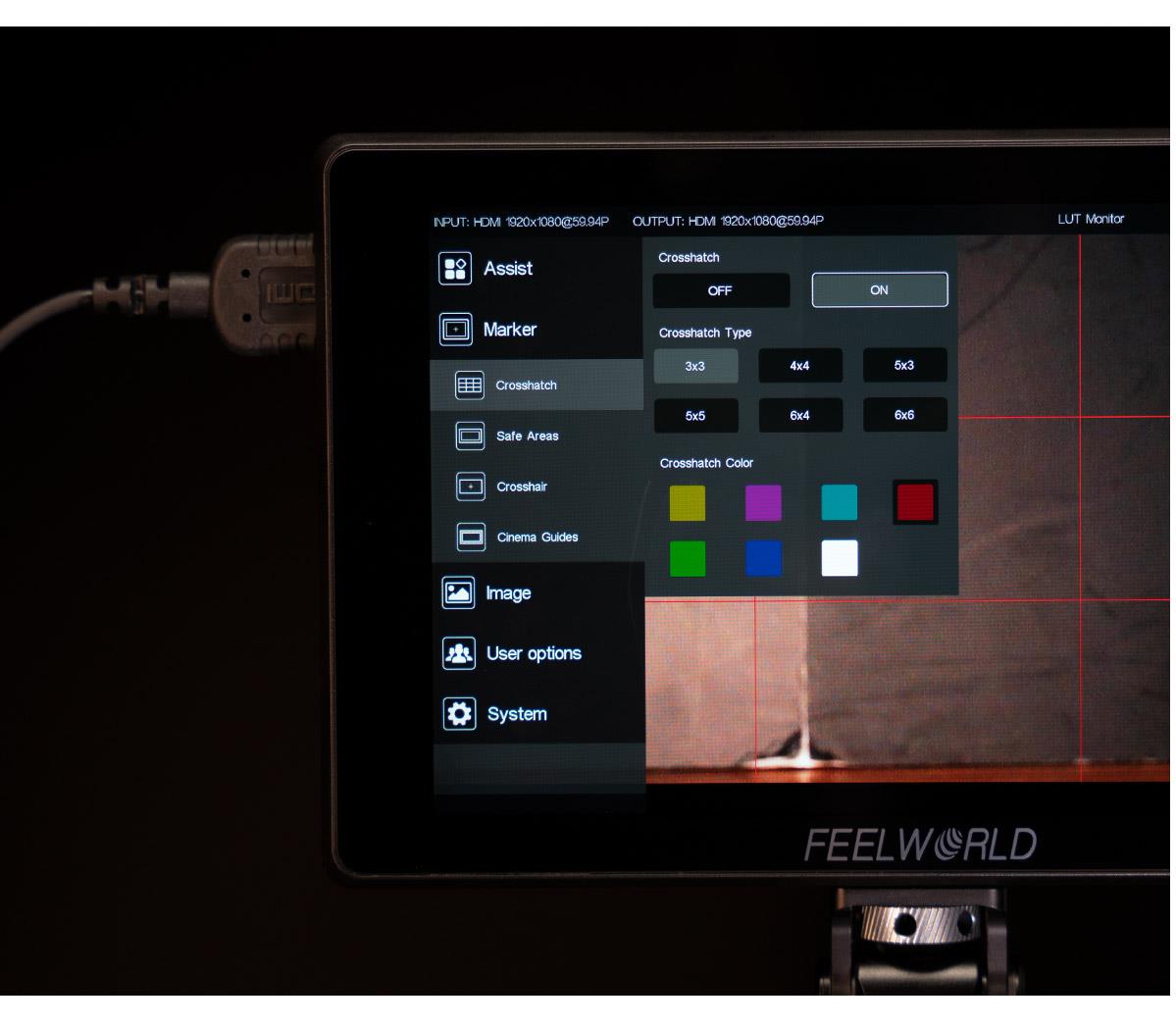

New UI Menu, More Intuitive and Intelligent
Adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.
Adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.
Custom Shortcut Keys
On the top of SH7 comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
On the top of SH7 comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Professional Auxiliary Tools, Help You Focus and Exposure Accurately
SDI Timecode Supporting
SH7 supports time code display under SDI signal, it is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.
SH7 supports time code display under SDI signal, it is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Support to load 50 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. SH7 allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.
Support to load 50 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. SH7 allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.
3D LUT Loop-out
HDMI/SDI can output the video or image with 3D LUT effect. When you are live streaming, you can connect the SH7 output as a live broadcast image to add a cinematic ; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.
HDMI/SDI can output the video or image with 3D LUT effect. When you are live streaming, you can connect the SH7 output as a live broadcast image to add a cinematic ; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.
HDR Monitoring
What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.
What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. SH7 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. SH7 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
SDI and HDMI Input and Output
Compatible with movie cameras, DSLR cameras
SDI perfect for the movie cameras，HDMI easy to connect with DSLR or mirrorless camera. Connect to external display via output port,allows the director and photographer monitoring synchronous. And provides 3.5mm headphone jack to monitor audio.
Note:The HDMI output resolution of camera need to support 1920x1080 or Auto mode.
Compatible with movie cameras, DSLR cameras
SDI perfect for the movie cameras，HDMI easy to connect with DSLR or mirrorless camera. Connect to external display via output port,allows the director and photographer monitoring synchronous. And provides 3.5mm headphone jack to monitor audio.
Note:The HDMI output resolution of camera need to support 1920x1080 or Auto mode.
HDMI and SDI Cross Conversion，Easy to Handle Various Application
SH7 built-in signal cross conversion, allows you to convert HDMI to SDI signal or SDI to HDMI signal. You can easy to convert signals and needn't the additional converters. Can be used for various broadcasting and live production.
SH7 built-in signal cross conversion, allows you to convert HDMI to SDI signal or SDI to HDMI signal. You can easy to convert signals and needn't the additional converters. Can be used for various broadcasting and live production.
Built-in Cooler
Built-in cooler, don't worry the monitor work for long time.
Built-in cooler, don't worry the monitor work for long time.
Innovative External Install and Power Design
Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
DC Power Input and Output

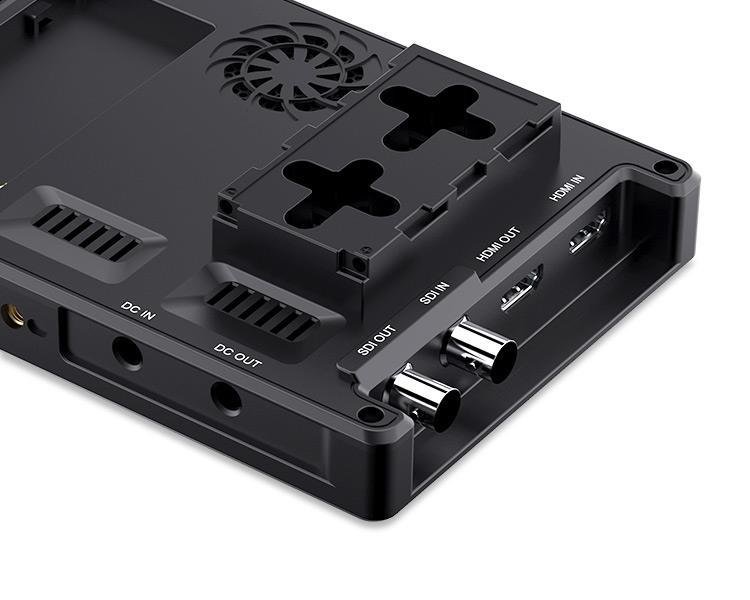

The SH7 is not only equipped with DC IN 12V (suit for use 12/1.5A adapter), but also provides auxiliary power out (DC OUT 8V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the SH7 extends camera run-time, while providing a more usable display.
The SH7 is not only equipped with DC IN 12V (suit for use 12/1.5A adapter), but also provides auxiliary power out (DC OUT 8V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the SH7 extends camera run-time, while providing a more usable display.
NP-F Battery Plate,Long-lasting Power for Outdoor Shooting
Long-lasting power for outdoor shooting

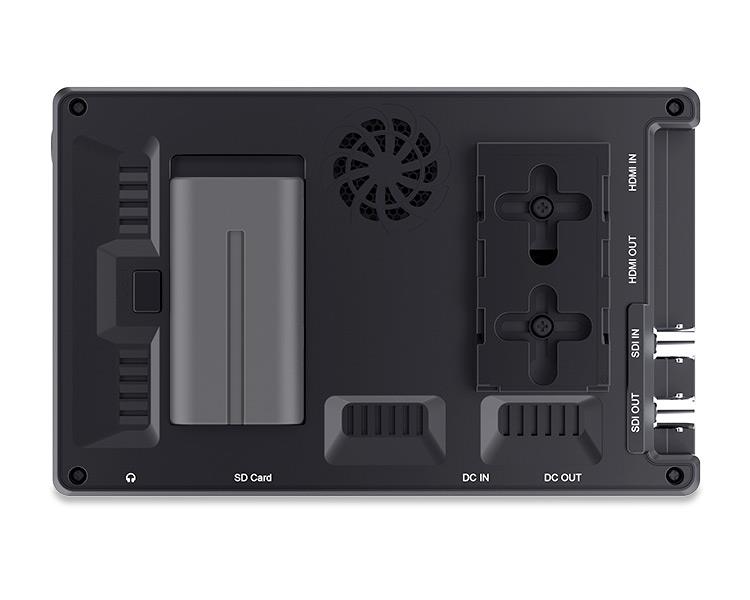

The rear of monitor of SH7 has a battery plate, can install standard NP-F battery, no need power for your bright screen when outdoor shooting. Install one F970 battery (6600mah) last for about 3 hours.
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series (Note: the battery not including, please purchase separately. Higher capability (working time) will be longer)
Long-lasting power for outdoor shooting
The rear of monitor of SH7 has a battery plate, can install standard NP-F battery, no need power for your bright screen when outdoor shooting. Install one F970 battery (6600mah) last for about 3 hours.
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series (Note: the battery not including, please purchase separately. Higher capability (working time) will be longer)
Multi Languages Supporting
SH7 built-in up to 9 languages, meet the different needed.
SH7 built-in up to 9 languages, meet the different needed.
Multiple Mounting Points, Meet Different Need of Monitoring

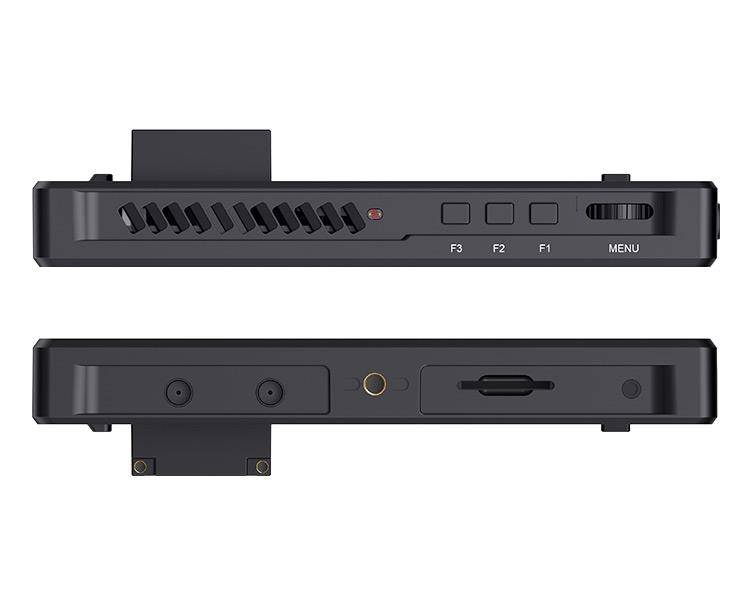

The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
Convenient Mounting - Tilt Arm
The monitor included a Tilt Arm, shooters will have a secure way to position their monitor while maintaining a low profile.
•The monitor can be rotated 360°with two different ways, for viewing convenience.(1. rotate 360°from up to down through the side mounting point of tilt arm; 2. rotate 360°from left to right through the bottom mounting point of tilt arm).
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
• There are two small dots on the tilt arm, which are aligned with the monitor for installation, the connection is more stable, just grab the monitor to rotate without loosening the screws.The monitor included a Tilt Arm, shooters will have a secure way to position their monitor while maintaining a low profile.
•The monitor can be rotated 360°with two different ways, for viewing convenience.(1. rotate 360°from up to down through the side mounting point of tilt arm; 2. rotate 360°from left to right through the bottom mounting point of tilt arm).
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 50) |
| * SDI/HDMI support LUT out |
| * Waveform (RGB, YUV, Y) |
| * HDR |
| * Vector |
| * Histogram (RGB,Y ) |
| * Embedded Audio |
| * Focus Assist(Yellow, Magenta, Cyan, Red, Green, Blue, White seven focus colors optional; 1~8 focus level adjustable) |
| * False Colors (Spectrum, ARRI) |
| * Zebra Exposure (0IRE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) |
| * Mirror (Auto, Flip H, FlipV ) |
| * Image Freeze |
| * Center Marker |
| * Time code(for SDI signal) |
| * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1, 4:5, 9:16: 1.85:1, 2.35:1) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user.Under the “user”, you can customize the Video Width and Video Height100% ~ 300%) |
| * Cinema Guides(16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.91:1, 5:4, 1:1.9) |
| * Marker Color (Yellow, Magenta, Cyan, Red, Green, Blue, White) |
| * Crosshatch (3x3, 4x4, 5x3, 5x5, 6x4, 6x6) |
| * Zoom (1.0x～5.0x) |
| * Pixel to Pixel |
| * Display Setup (can be adjust the image Brightness, Saturation, Hue, Sharpness 0~100) |
| * Color Space ( REC709, DCIP3, BT2020) |
| * Color Temp. ( 5600K, 6500K, 9300K, User.Under the “user”, the red, green, and blue values of the image can be adjusted 0~255) |
| * Built-in fan (Low, Middle, High) |
| *Battery Power Display |
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Audio Meter Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Nine Grid
Nin grid is the most common and basic composition method. The area of the picture can be choose divided into 9,16, 15,25,24,36 equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16: 1.85:1, 2.35:1). You can switch the Mark color between Yellow, Magenta, Cyan, Red, Green, Blue, White according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.9:1, 5:4, 1:1.9); the transparency of the ratio marker has 4 display effects optional (0%, 25%, 50%, 75%). You can switch the marker colors between yellow, red, green, blue, white and black according to different tone of the subject.
Display Spec.
| Model | SH7 |
| Screen Size | 7" IPS |
| Resolution | 1920x1200 pixels |
| Pixel Pitch | 0.07875 (H) × 0.07875(V) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 2200cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI 1.3 |
| 1 X SD Card | SD Card Slot (LUT files and firmware update file import) |
Output
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI1.3 |
| 1 X DC | Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. |
Audio
| Audio | 3.5mm Stereo Headphone |
SDI Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
HDMI Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50) |
General
| Input Voltage | DC7～24V |
| Power Consumption | ≤15W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread ( Right,Bottom) |
| Unit Size | 186.8Lx118Hx23D(mm) |
| Unit Weight | 420g |
| Color Box Size | 222L*158W*78H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 535*230*405 (mm) |
| Gross Weight | kgs |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 50) |
| * Waveform (RGB, YUV, Y) |
| * HDR |
| * Vector |
| * Histogram (RGB,Y ) |
| * Embedded Audio |
| * Focus Assist(Yellow, Magenta, Cyan, Red, Green, Blue, White seven focus colors optional; 1~8 focus level adjustable) |
| * False Colors (Spectrum, ARRI) |
| * Zebra Exposure (0IRE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) |
| * Mirror (Auto, Flip H, FlipV ) |
| * Image Freeze |
| * Center Marker |
| * Time code(for SDI signal) |
| * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1, 4:5, 9:16: 1.85:1, 2.35:1) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) |
| * Cinema Guides(16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.91:1, 5:4, 1:1.91) |
| * Marker Color (Yellow, Magenta, Cyan, Red, Green, Blue, White) |
| * Nine Grid (3x3, 4x4, 5x3, 5x5, 6x4, 6x6) |
| * Zoom (1.0x～5.0x) |
| * Pixel to Pixel |
Structure Dimensions (Unit: mm)
Packaging List:
1× Monitor
1× Mini/Micro HDMI to HDMI Cable
1× Tilt Arm
1× Disassemble Wrench
1× Manual
1× Monitor
1× Mini/Micro HDMI to HDMI Cable
1× Tilt Arm
1× Disassemble Wrench
