FEELWORLD SC6 6-inch 1500NIT High Brightness Aluminium Filed Camera Video Monitor 3G SDI 4K HDMI60Hz
| Number: | 202508221433281830 |
|---|---|
| Model: | SC6 |
| Size: | 6" |
| Introduction: |
Screen Size： 6"IPS
Resolution： 1920x1080 pixels Aspect ratio： 16:9 Brightness： 1500cd/m² |
| Input: | 1*HDMI, 1*3G-SDI, 1*Type-C, DC IN 12V, |
| Output: | 1*HDMI, 1*3-SDI, 3.5mm headphone jack |
| DM: | |
| Download: | |

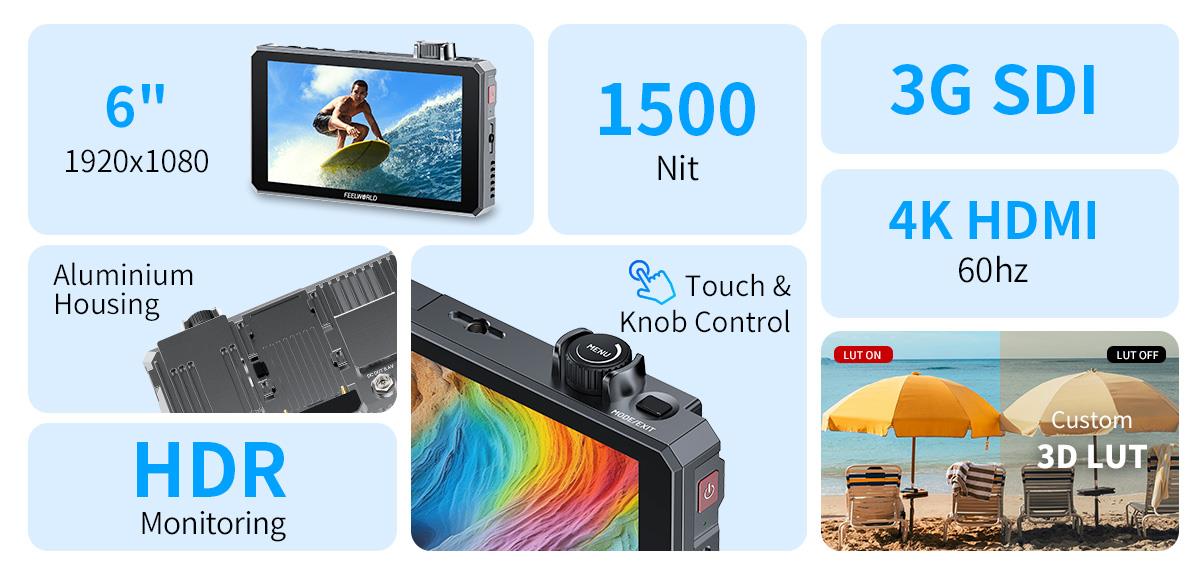

Bright & Clear| Rugged & Durable| Smooth Transmission
The FEELWORLD SC6 features a 6-inch full HD IPS panel, delivers exceptionally detailed and true-to-life image; 1500nits high brightness ,daylight viewable; full aluminium alloy body, rugged and durable,coupled with multiple heat dissipation pathways, enhance the reliability of monitoring; the sensitive touch control and innovative knob button operation for optional, 4K 60Hz HDMI & 3G SDI transmission, flexible operation and seamless signal handling; built-in3D LUT, HDR, waveform and other professional functions, empower your creativity.
The FEELWORLD SC6 features a 6-inch full HD IPS panel, delivers exceptionally detailed and true-to-life image; 1500nits high brightness ,daylight viewable; full aluminium alloy body, rugged and durable,coupled with multiple heat dissipation pathways, enhance the reliability of monitoring; the sensitive touch control and innovative knob button operation for optional, 4K 60Hz HDMI & 3G SDI transmission, flexible operation and seamless signal handling; built-in3D LUT, HDR, waveform and other professional functions, empower your creativity.

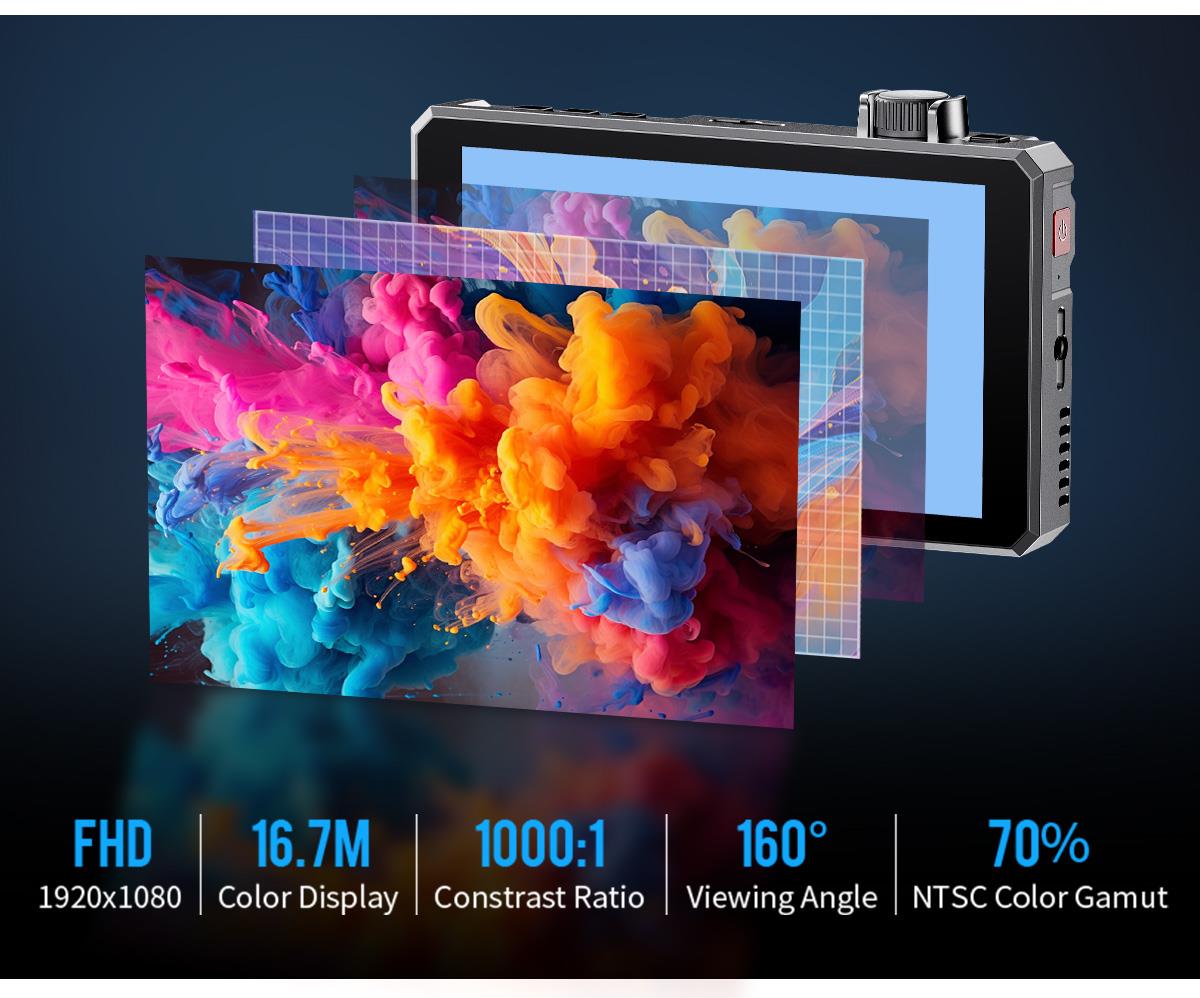

Vibrant Colors & Superior Performance
Featuring a 6-inch IPS LCD panel for exceptional color performance and a 160°viewing angle,delivering a superior visual experience.
Featuring a 6-inch IPS LCD panel for exceptional color performance and a 160°viewing angle,delivering a superior visual experience.

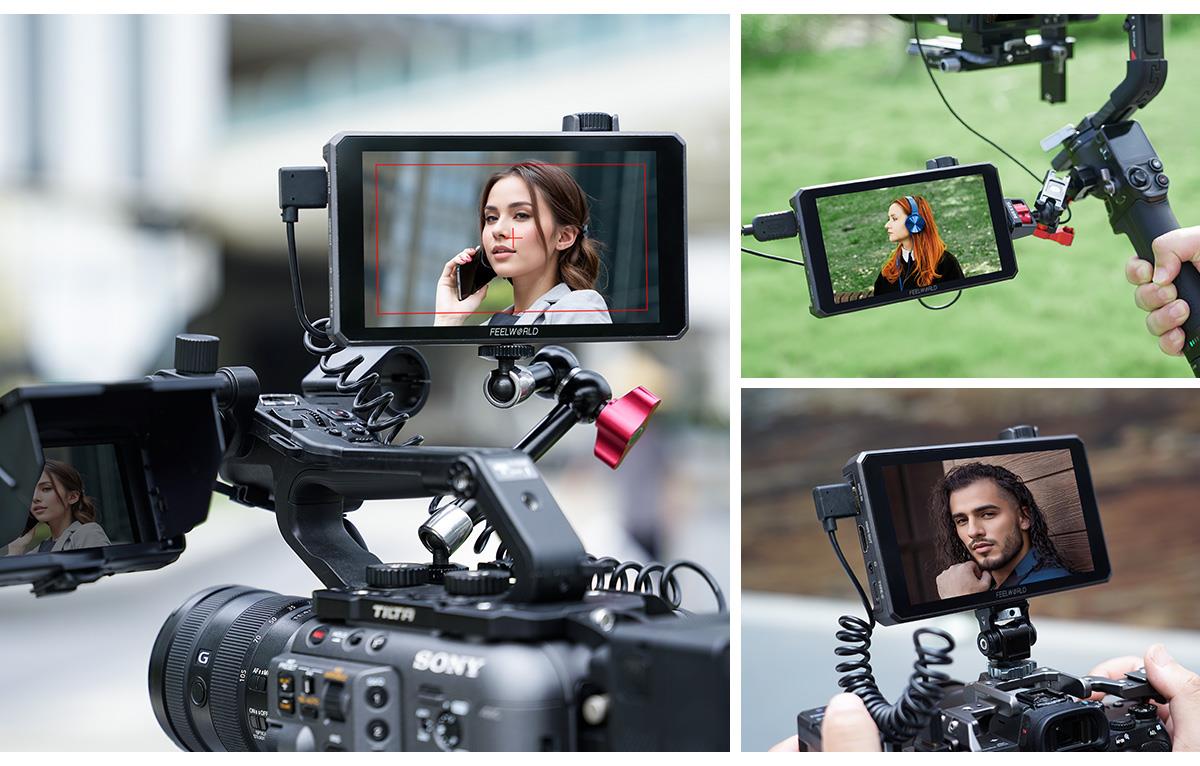

1500Nits High Brightness,Visible In Sunlight
High brightness 1500nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
High brightness 1500nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

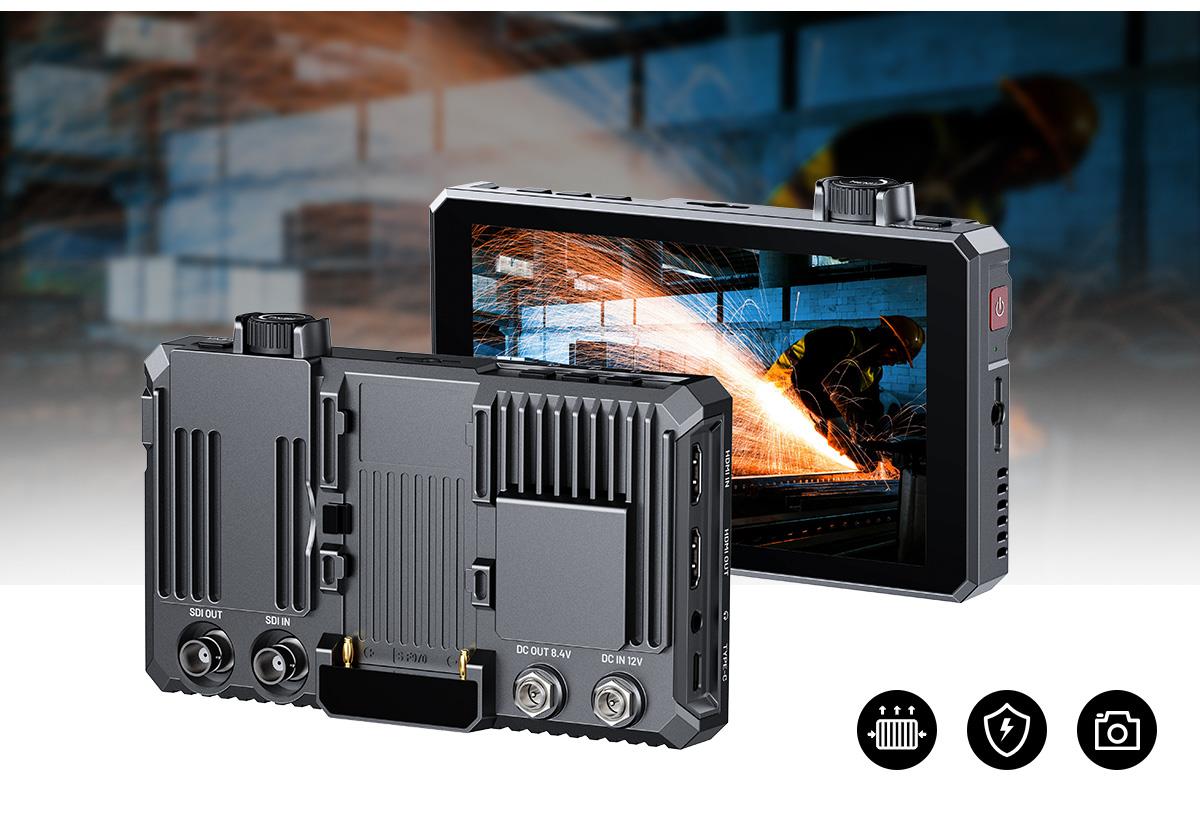

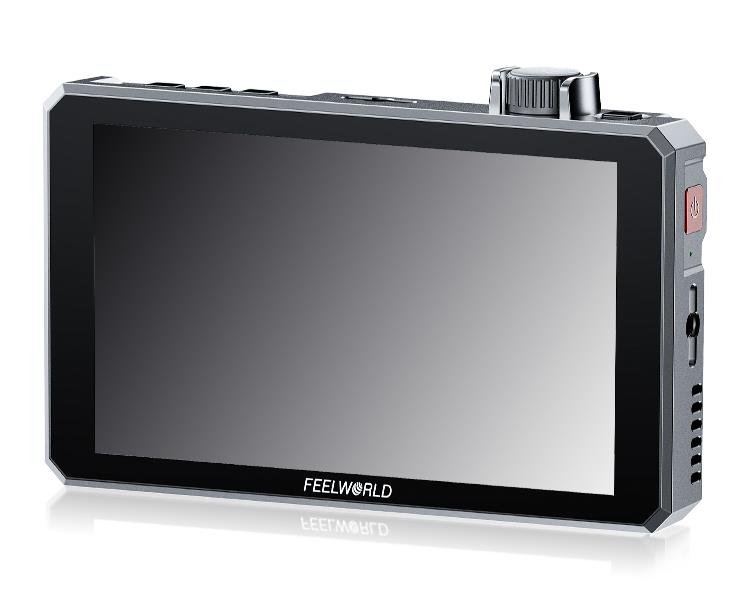

Rugged Aluminium Alloy Body
Adopts rugged and highly thermally conductive aluminium alloy body,coupled with multiple heat dissipation pathways,significantly improving heat dissipation efficiency,suitable for various shooting environments.
Adopts rugged and highly thermally conductive aluminium alloy body,coupled with multiple heat dissipation pathways,significantly improving heat dissipation efficiency,suitable for various shooting environments.

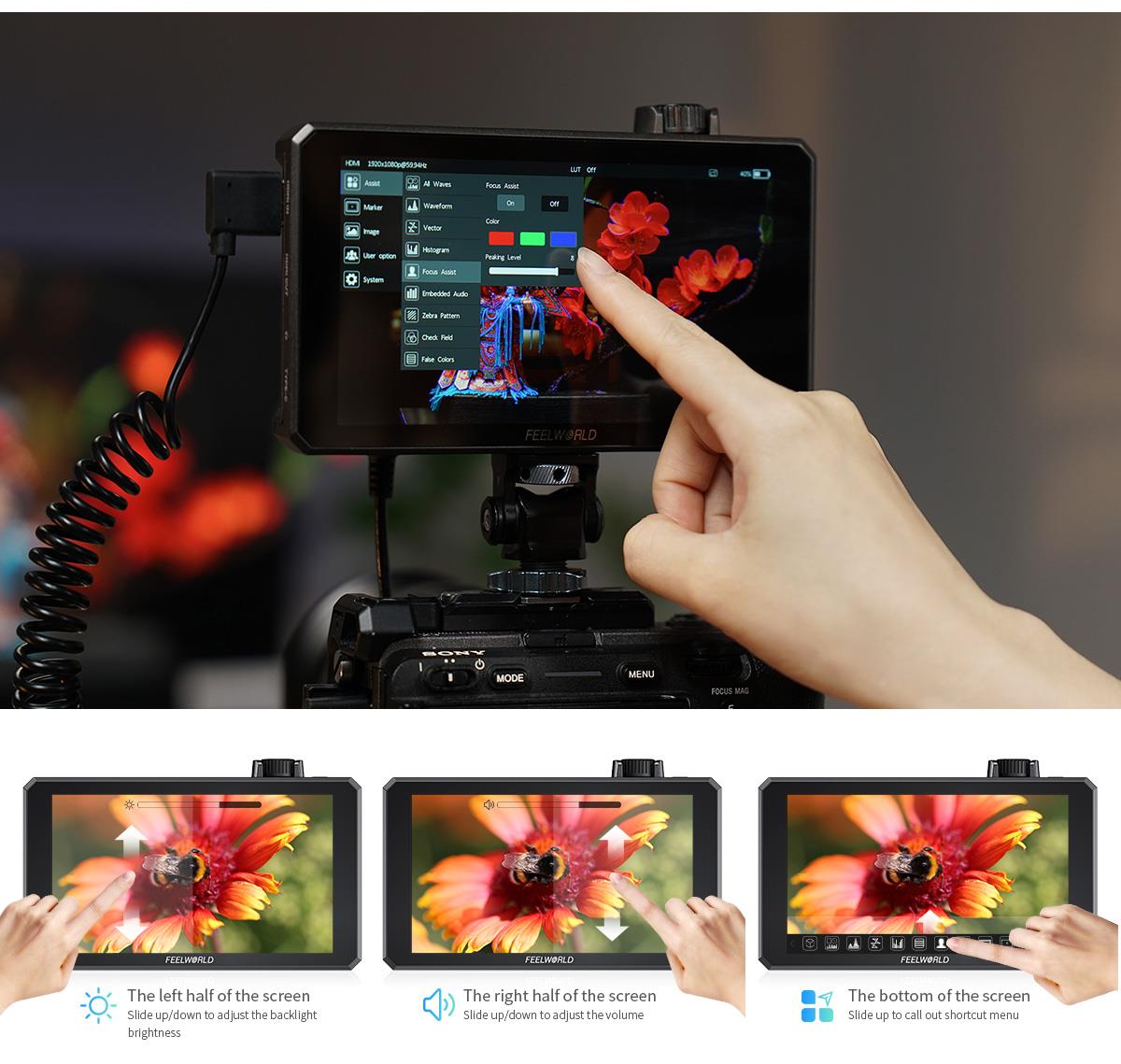

Intelligent Full Touch Control
The innovative touch screen user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.
The innovative touch screen user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

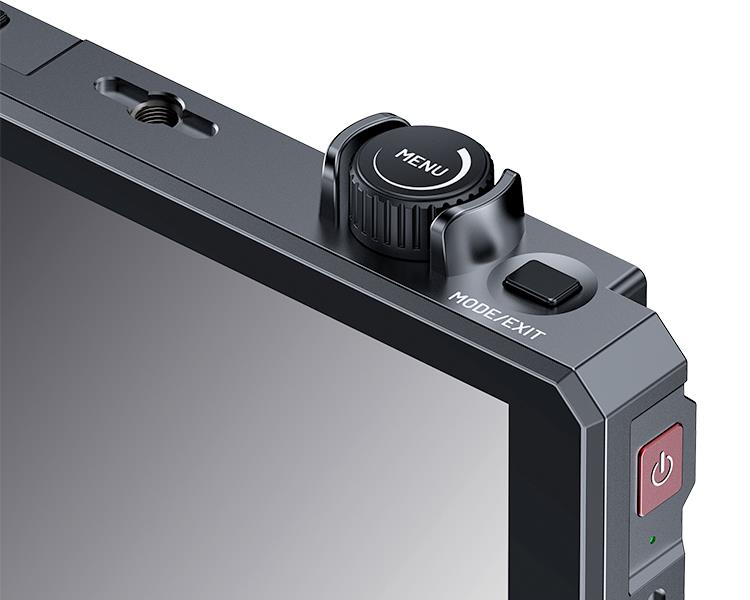

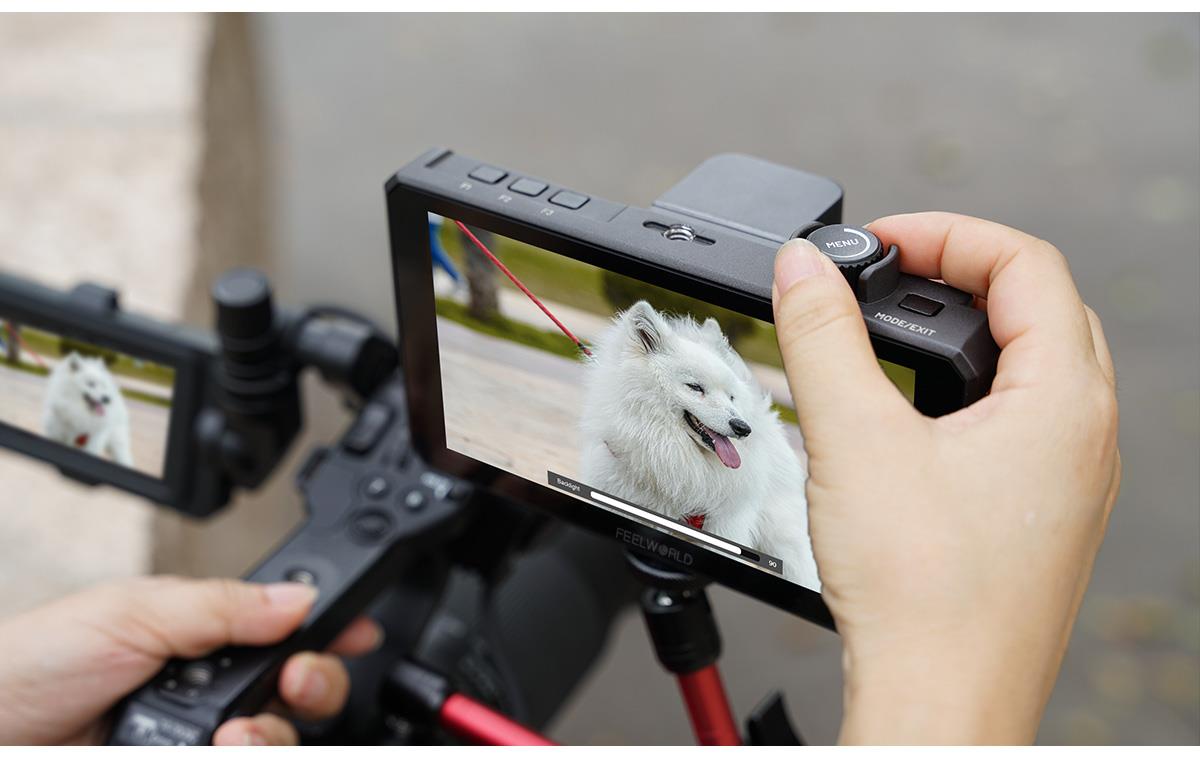

Knob Key Control
SC6 also supports physical button control. Rotate/Press the knob for quick selection and function settings.All operations can be completed with single hand.
SC6 also supports physical button control. Rotate/Press the knob for quick selection and function settings.All operations can be completed with single hand.

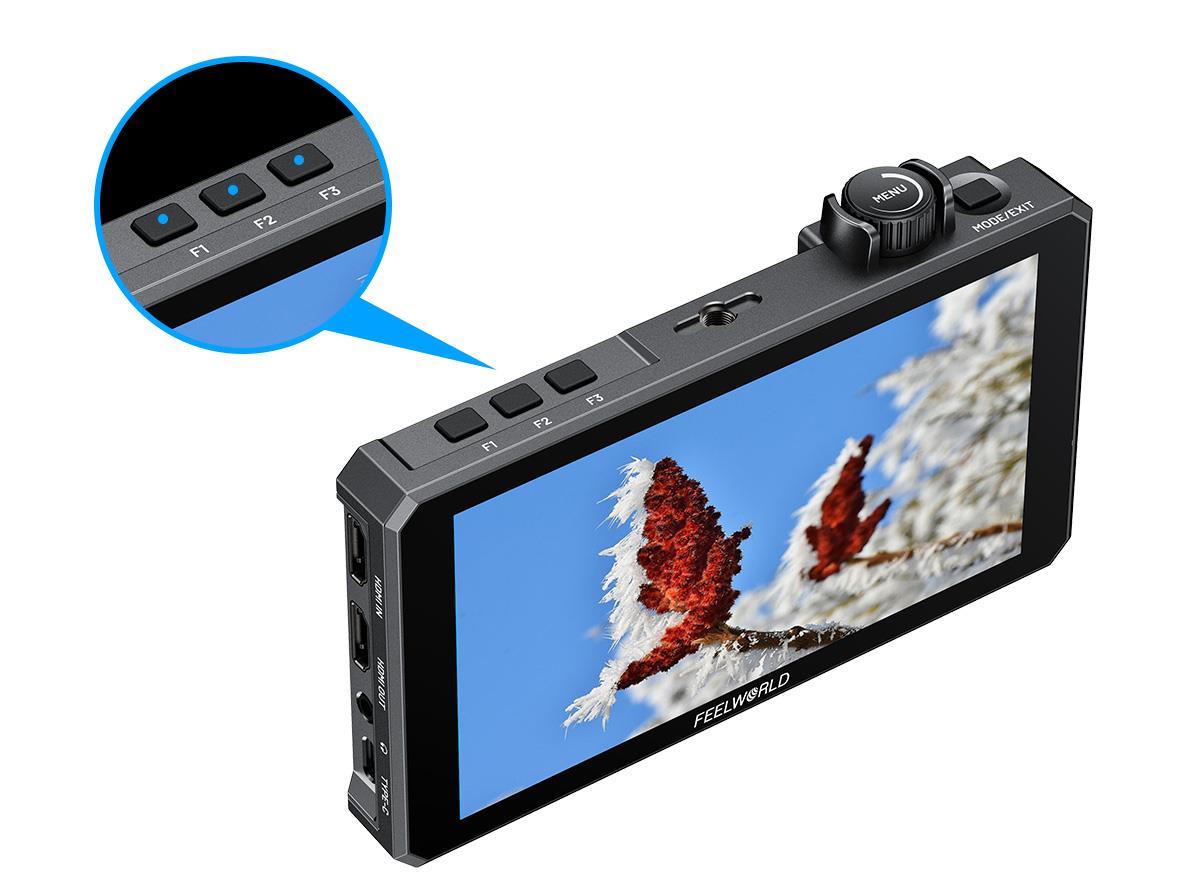

Quick Access with Custom Buttons
SC6 provides three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.
SC6 provides three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.
9：16 Vertical Screen Marker
SC6 has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.
SC6 has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.

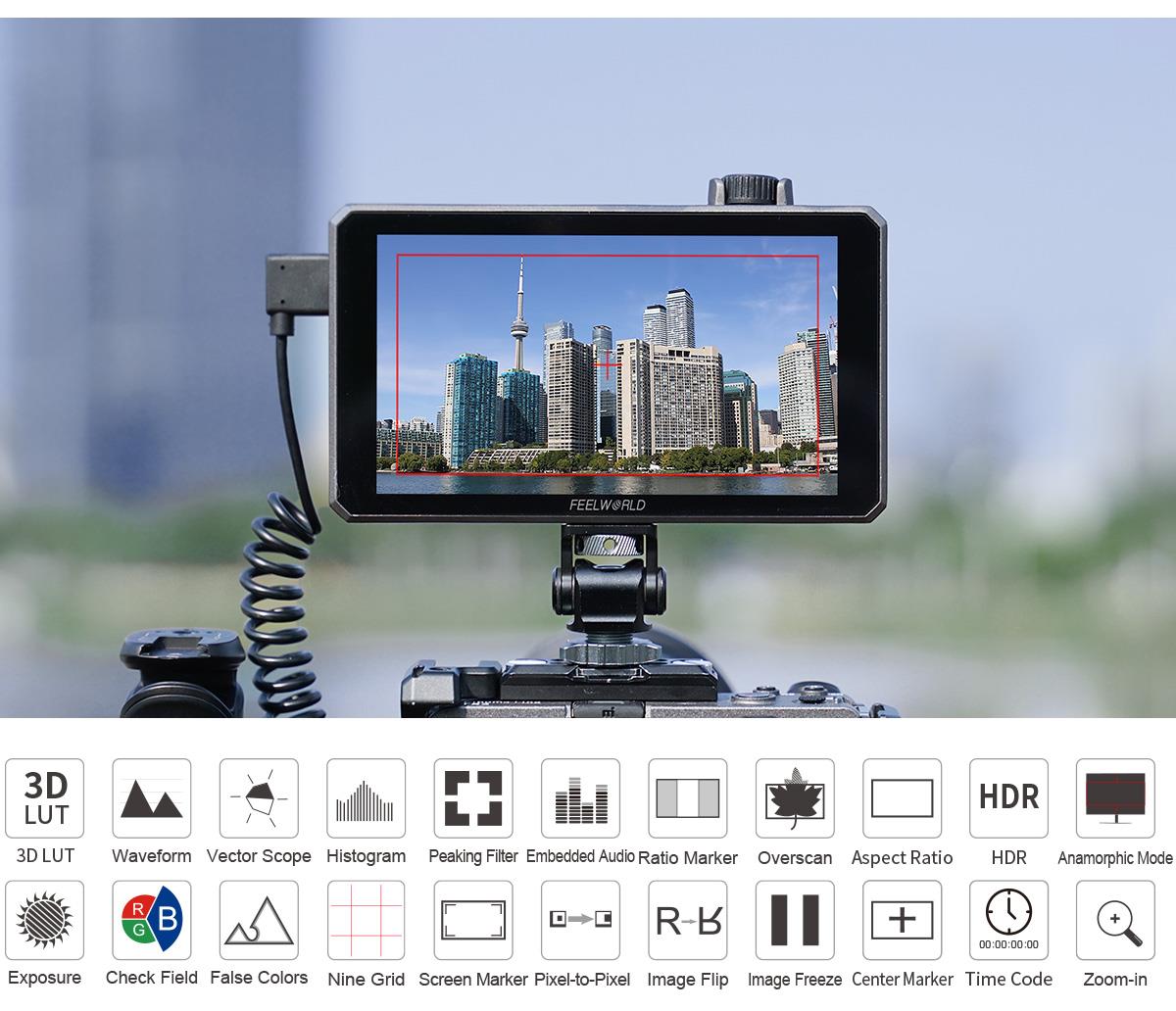

Rich Auxiliary Functions

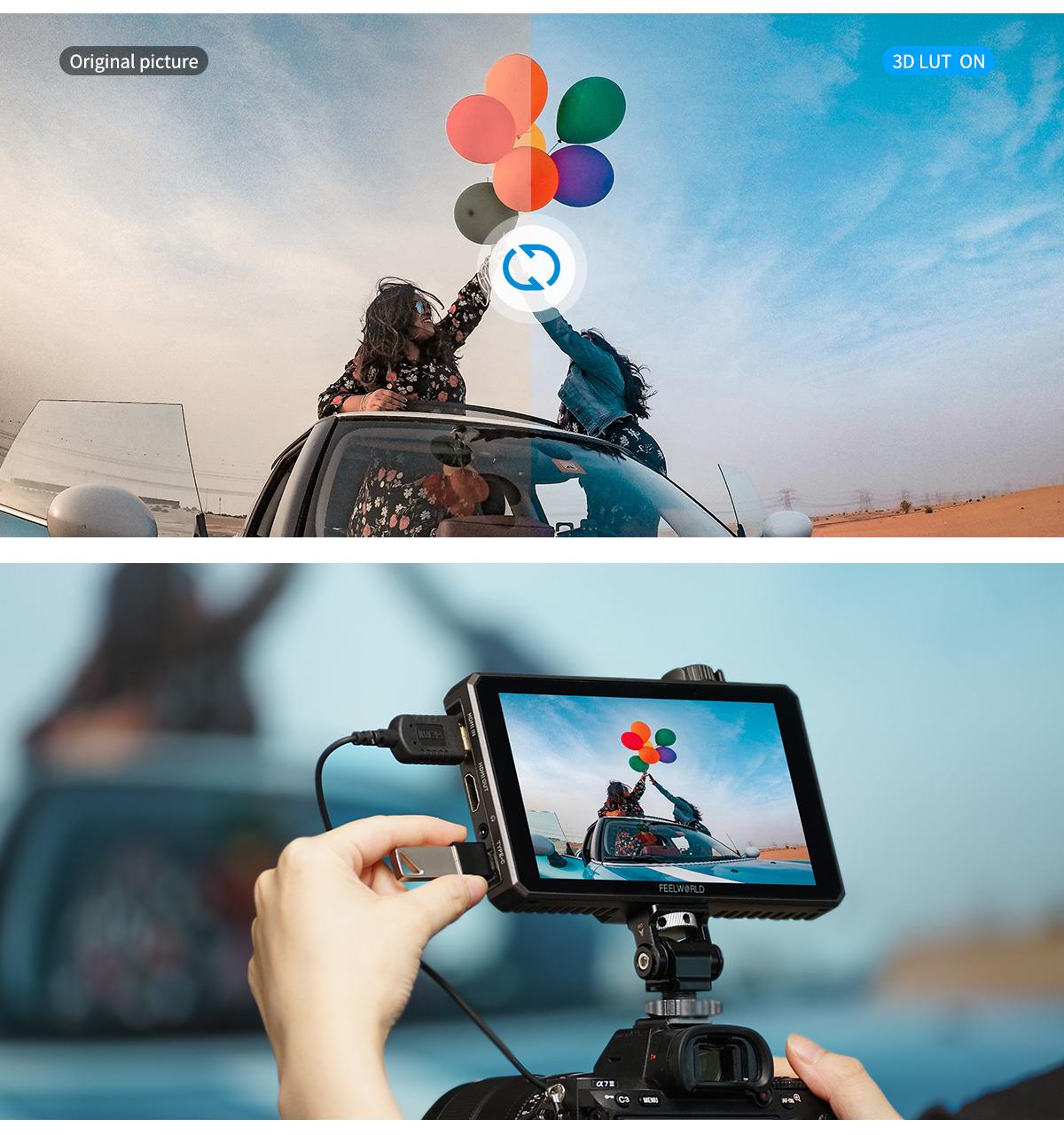

Load Custom 3D LUTs，Preview Filming Look in Field Shooting
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Insert the USB flash drive to the standard accessory USB to Type-C adapter, then connect with the Type-C interface of SC6.
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Insert the USB flash drive to the standard accessory USB to Type-C adapter, then connect with the Type-C interface of SC6.

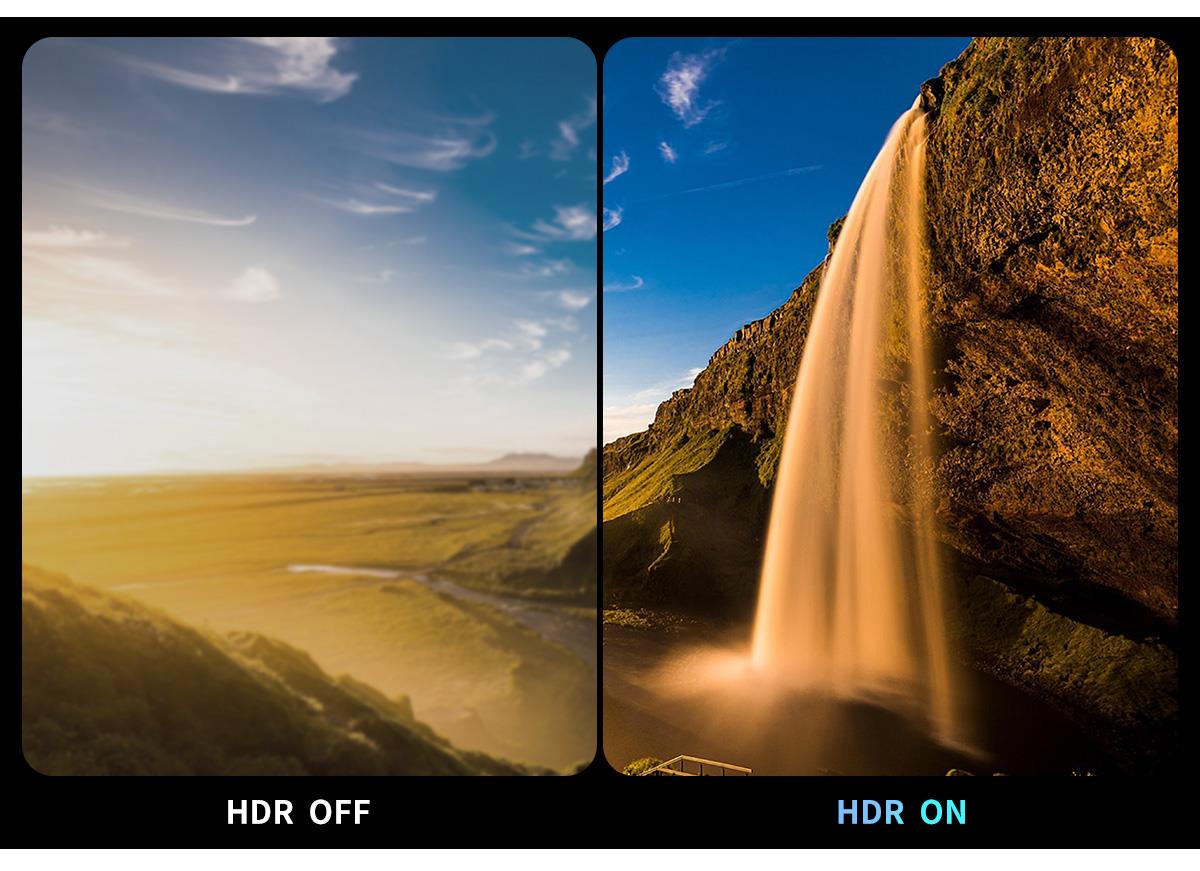

HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

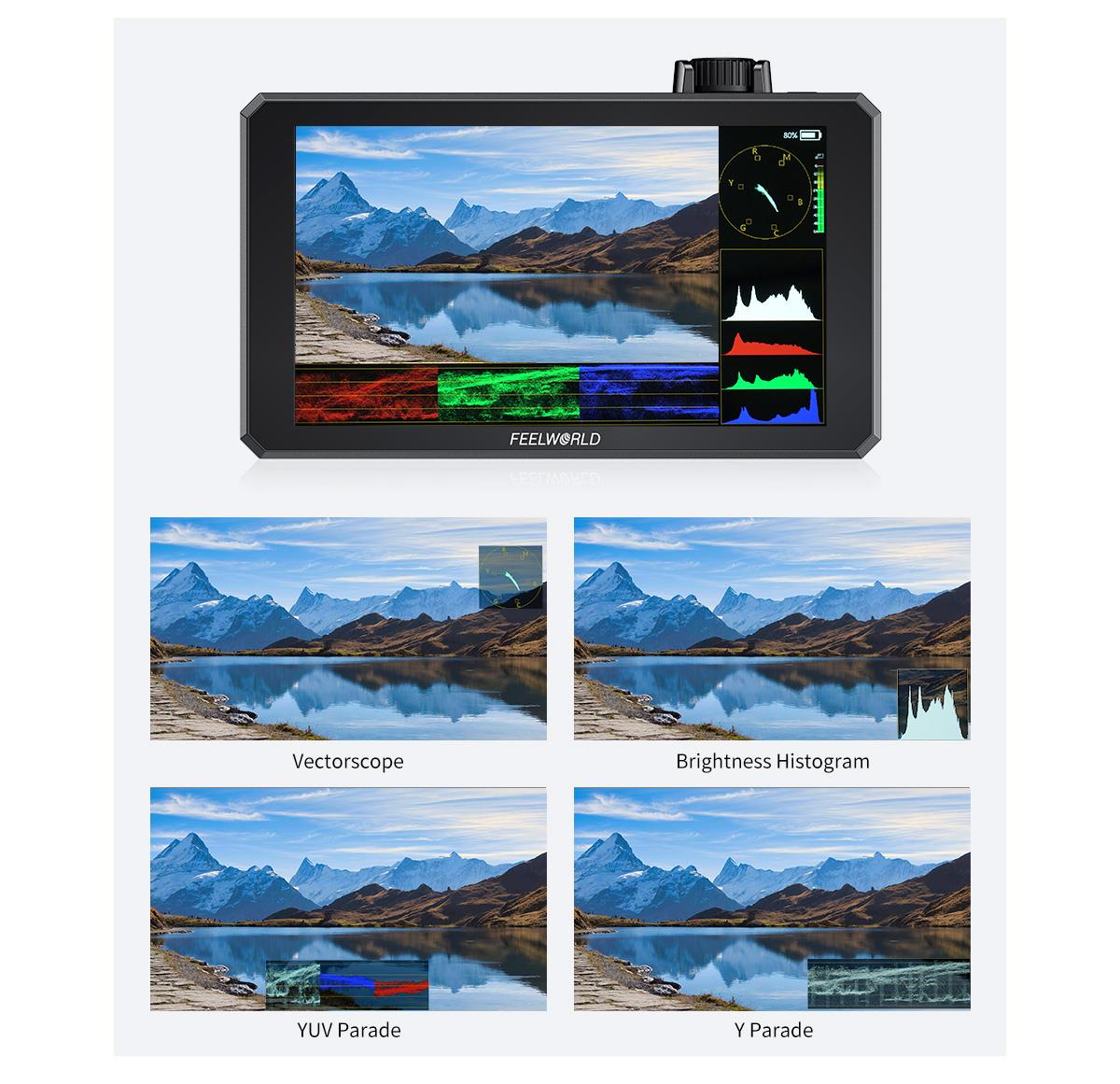

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. SC6 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. SC6 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

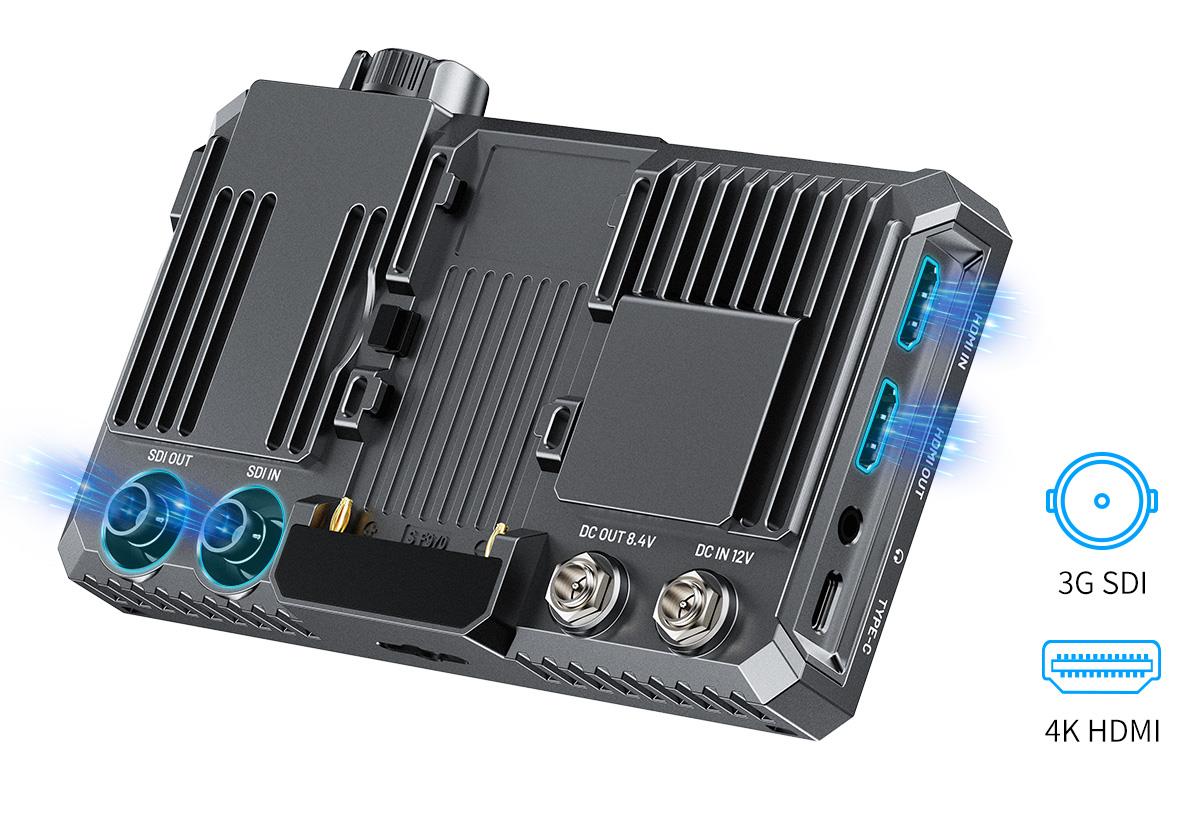

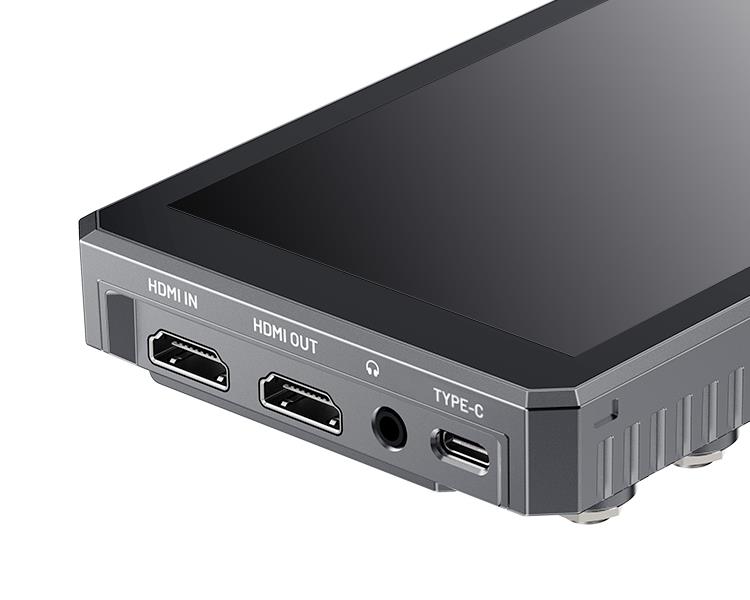

3G SDI & 4K HDMI Inputs and Outputs
Equipped with 3G SDI professional ports and 4K 60Hz signal input and output for high speed transmission.Compatible with camcorder and the latest DSLR cameras on the market. And also provides a 3.5mm headphone jack to monitor audio.
Equipped with 3G SDI professional ports and 4K 60Hz signal input and output for high speed transmission.Compatible with camcorder and the latest DSLR cameras on the market. And also provides a 3.5mm headphone jack to monitor audio.

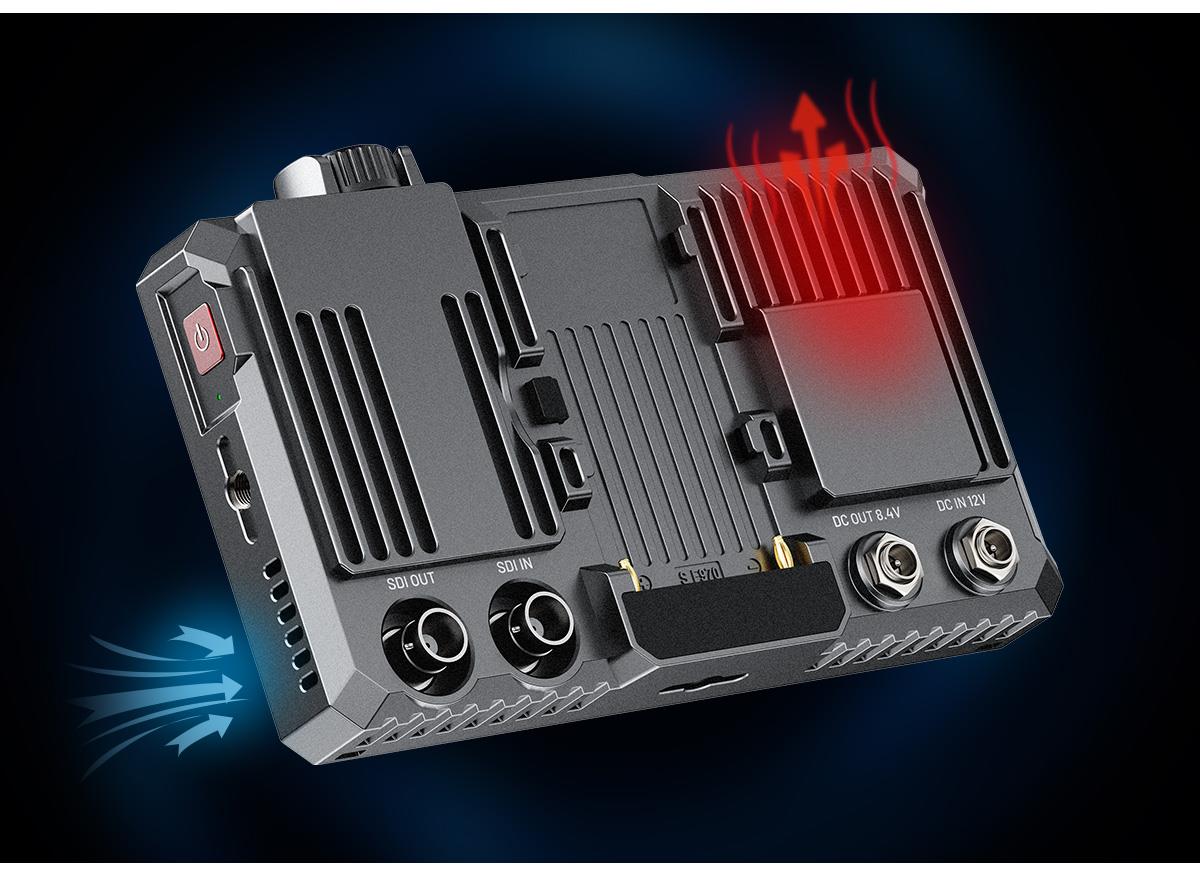

Efficient Cooling System
Built-in a cooling fan,you can adjust the fan speed from 1~5 based on the body temperature，default to 3, ensuring effective heat dissipation. In addition, you can turn off the fan when you need a no noise environment.
Built-in a cooling fan,you can adjust the fan speed from 1~5 based on the body temperature，default to 3, ensuring effective heat dissipation. In addition, you can turn off the fan when you need a no noise environment.

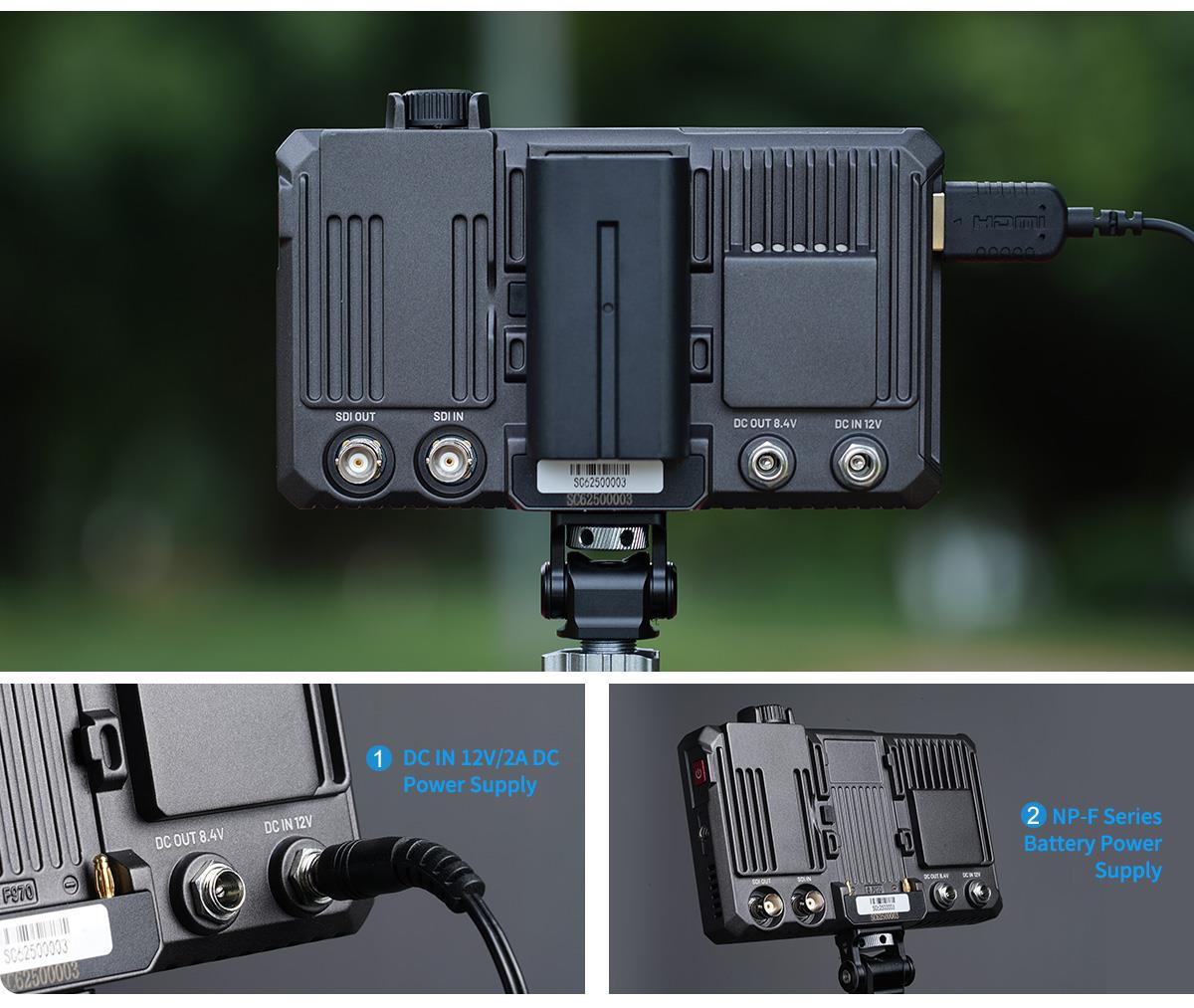

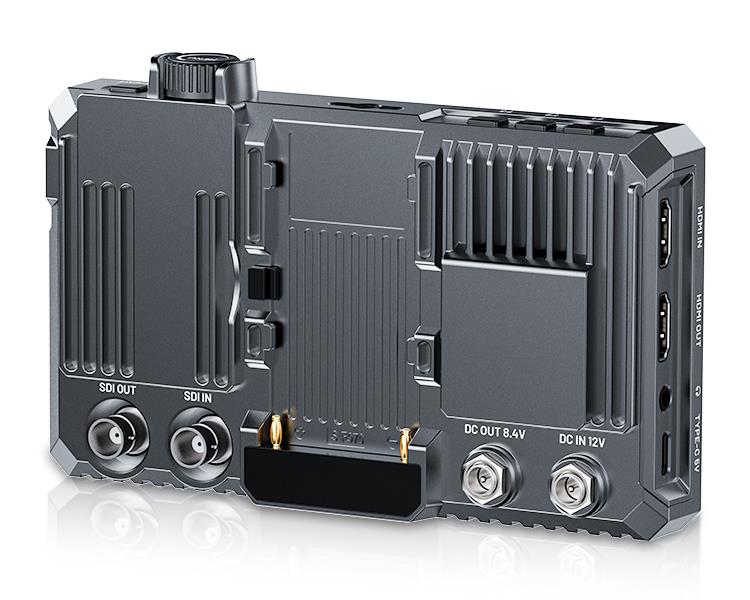

Flexible Power Supply Options
You can connect to DC power input to get continuous power （suitable for use 2A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application. Install one F970 battery (6600mah) last for about 3 hours.
Note: 1. The battery excluding, please purchase separately.
2.When using DC OUT 8.4V to power other device simultaneously, need to use 12V/4A power adapter at least
You can connect to DC power input to get continuous power （suitable for use 2A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application. Install one F970 battery (6600mah) last for about 3 hours.
Note: 1. The battery excluding, please purchase separately.
2.When using DC OUT 8.4V to power other device simultaneously, need to use 12V/4A power adapter at least

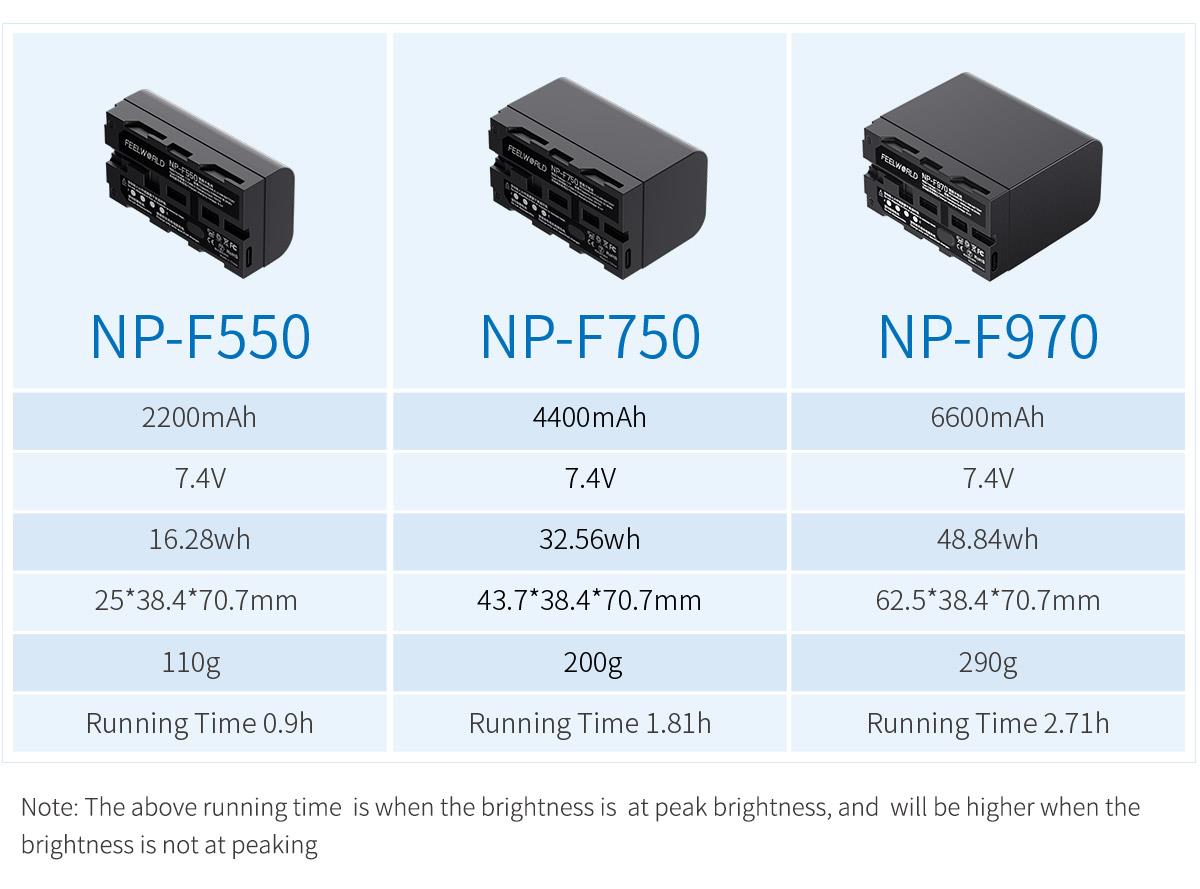

NP-F Battery Optional Recommendation
The power consumption of SC6 PRO is 18W, suggest choose the higher capacity FEELWORLD NP-F970 battery to power it.
The power consumption of SC6 PRO is 18W, suggest choose the higher capacity FEELWORLD NP-F970 battery to power it.

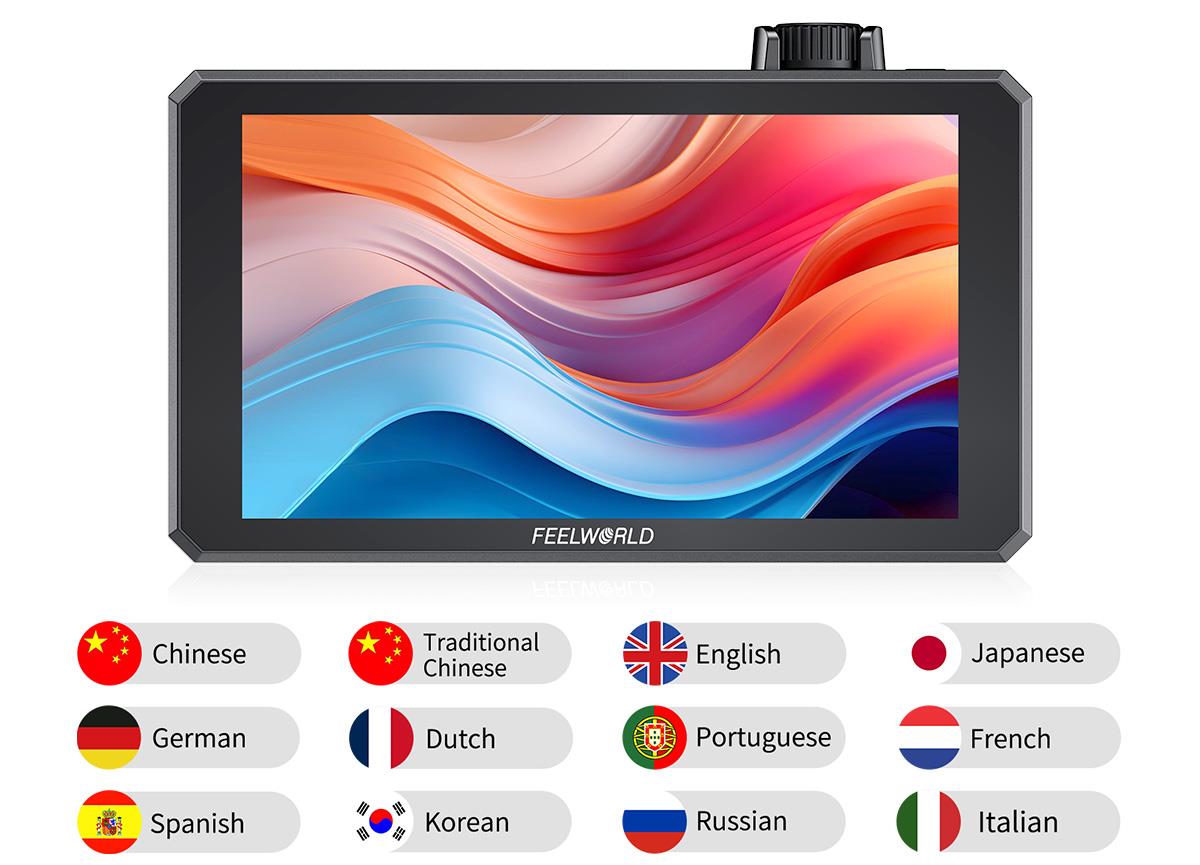

12 Languages Supporting
SC6 built-in up to 12 languages, that means SC6 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
SC6 built-in up to 12 languages, that means SC6 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

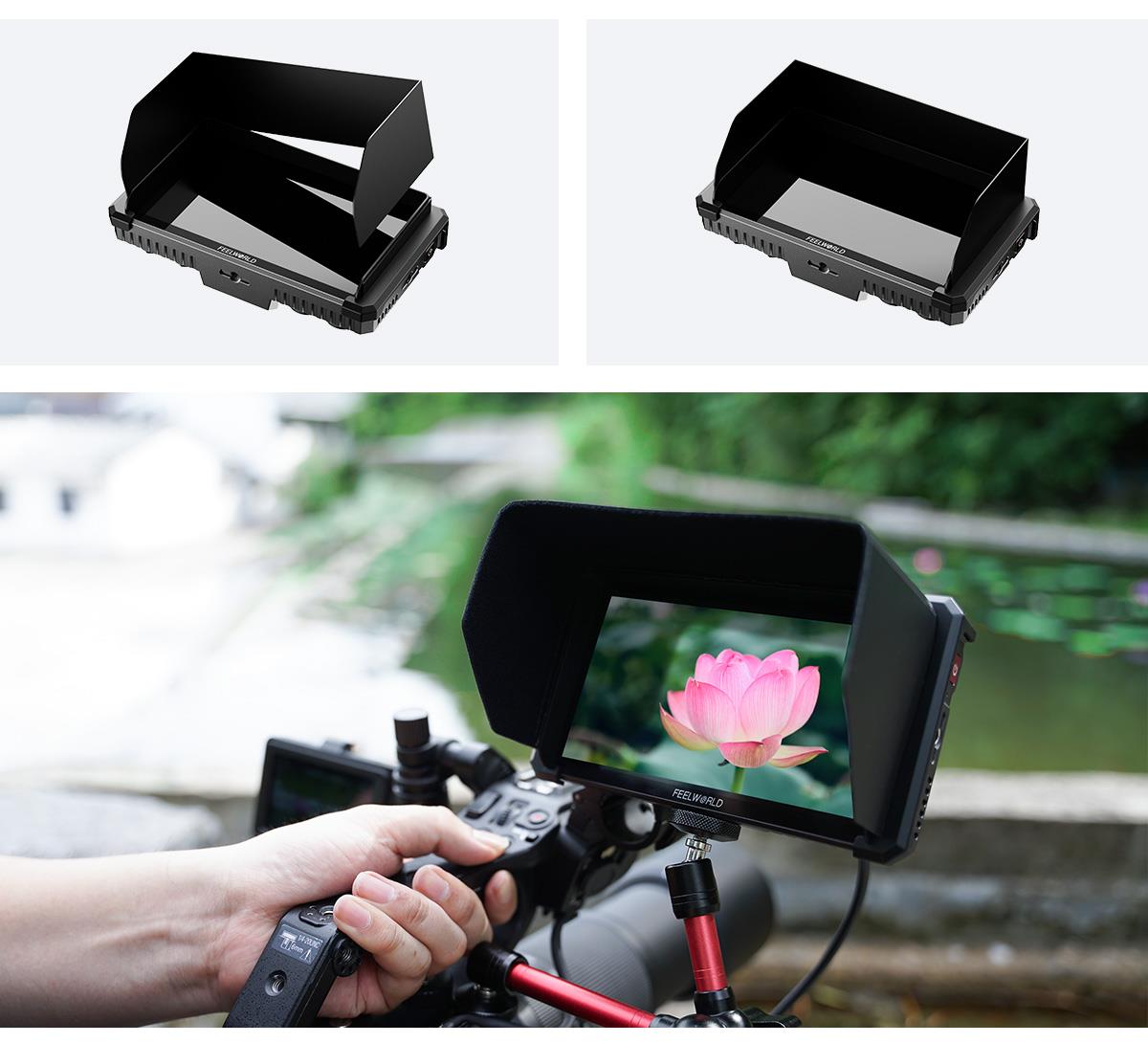

Portable Sun-hood
The standard portable sun-hood can easy to resist the strong light, and easy to install.
The standard portable sun-hood can easy to resist the strong light, and easy to install.
HDMI Cable type reference for matching different camera models
Advanced Features
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32) |
| * All waves |
| * Waveform (RGB, YUV, Y) |
| * HDR |
| * Vector |
| * Histogram (RGB1,RGB2,Y ) |
| * Embedded Audio |

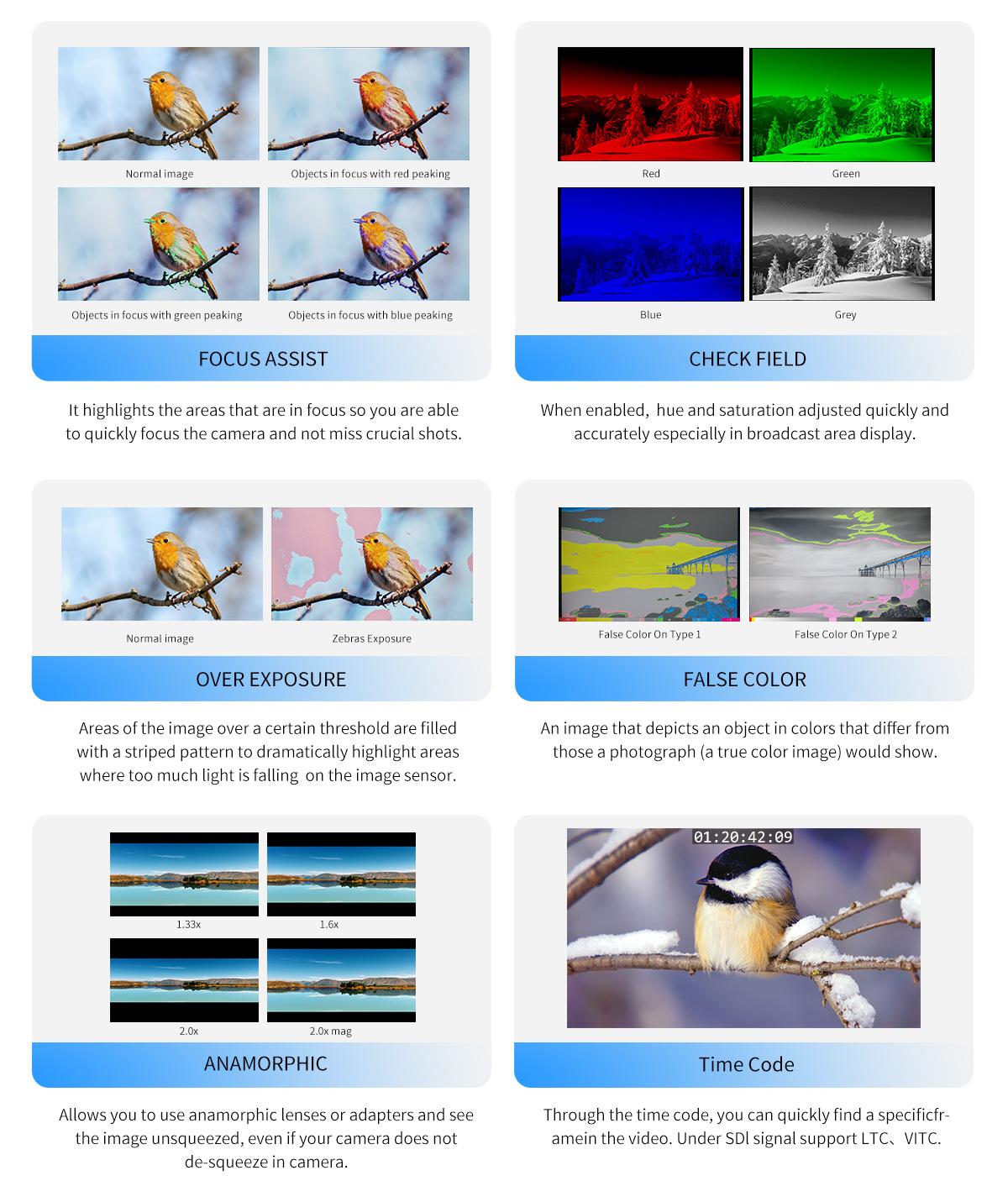

| * Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable) |
| * False Colors (Normal, ARRI) |
| * Zebra Pattern (10IRE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x) |
| * Image Flip (H Flip, V Flip, H_V Flip ) |
| * Image Freeze |
| * Center Marker |
| * Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16) |
| * Marker Color (Red, Green, Blue, Black, White, Gray) |
| * Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9) |
| * Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%) |
| * Pixel to Pixel |
| * SDI Time Code(LTC, VITC) |
| * Display Range( Auto, Limit, Full) |
| * EDID Settings(2.0,1.4) |
| * User Switch (1~4) |
| * OSD Time(Off, 15Sec, 30Sec, 45Sec) |
| * OSD Transparency (Off, 25%, 50%, 75%) |
| * The background color of screen when no signal (Red, Green, Blue, Black, White, Gray) |
| * Cooling Fan (1~5 can be adjusted) |
| * Power Settings (Auto, Manual) |
| * Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255) |
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.

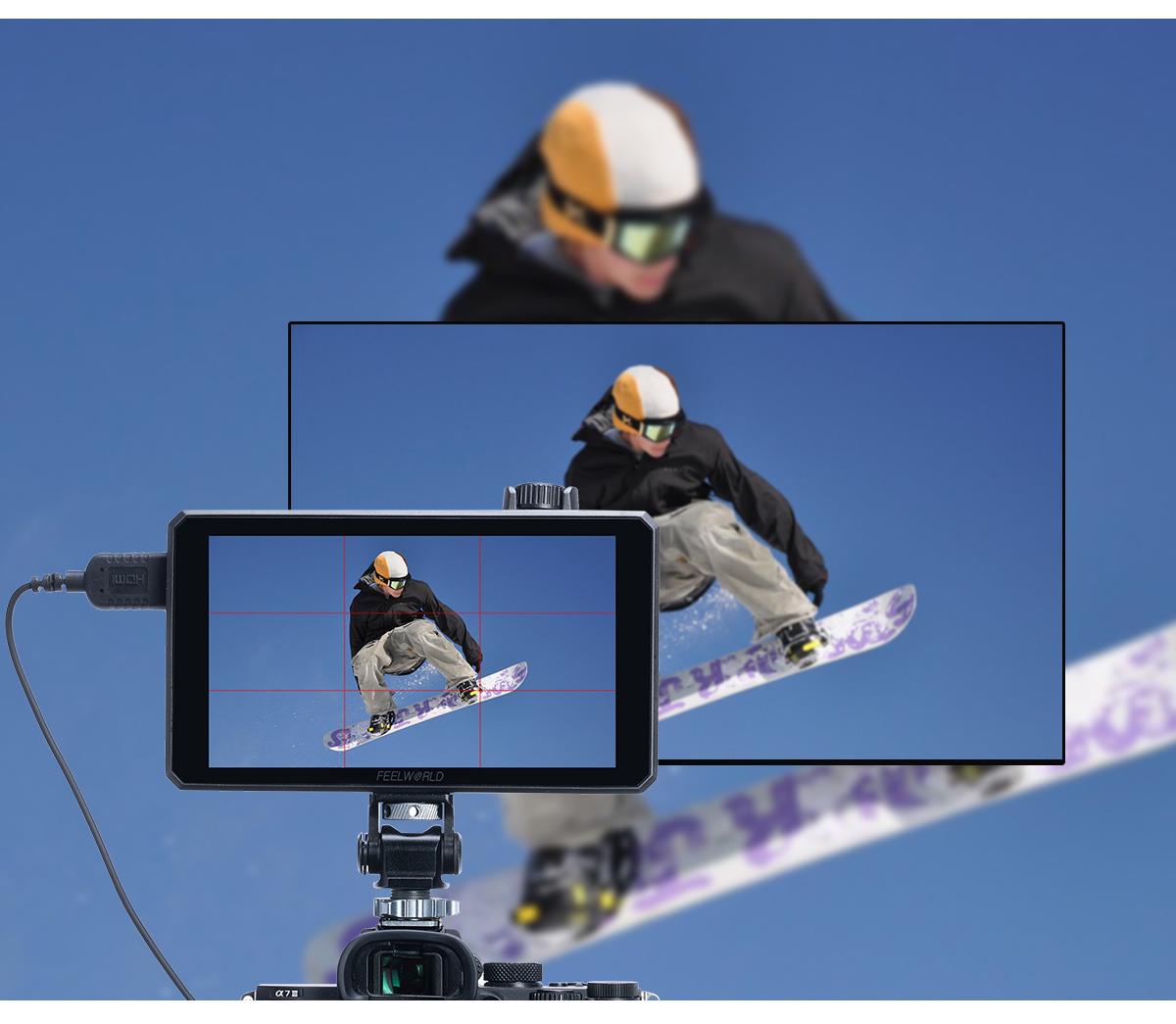

Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 4 ,9, 16, 25, 36, 49,64,81equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1,9:16). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1,9:16). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Display Spec.
| Model | SC6 |
| Screen Size | 6"IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069(L) x 0.069(W) mm (mm) |
| Color Depth | 8bit |
| Aspect Ratio | 16:9 |
| Brightness | 1500cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | Ton+Toff=35ms |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X USB | USB-C(LUT file import and Firmware update) |
Output
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI2.0 |
Audio
| Audio | 3.5mm Stereo Headphone |
3G-SDI Input and Output Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
HDMI Input and Output Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4K 4096×2160p(60/50/30/29.97/25/24/23.98) |
General
| Power Input | DC IN 12V, Barrel (5.5mm outer, 2.1mm inner) |
| Power Output | DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner）Can be power for DSLR or mirrorless camera |
| Input Voltage | DC7～24V |
| Power Consumption | ≤18W |
| Battery Slot | NP-F Battery Slot |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread Point (Top, Right side, bottom) |
| Unit Size | 165x103x28.8 (mm) |
| Unit Weight | 398g |
| Color Box Size | 186L*124W*80H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | kg |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

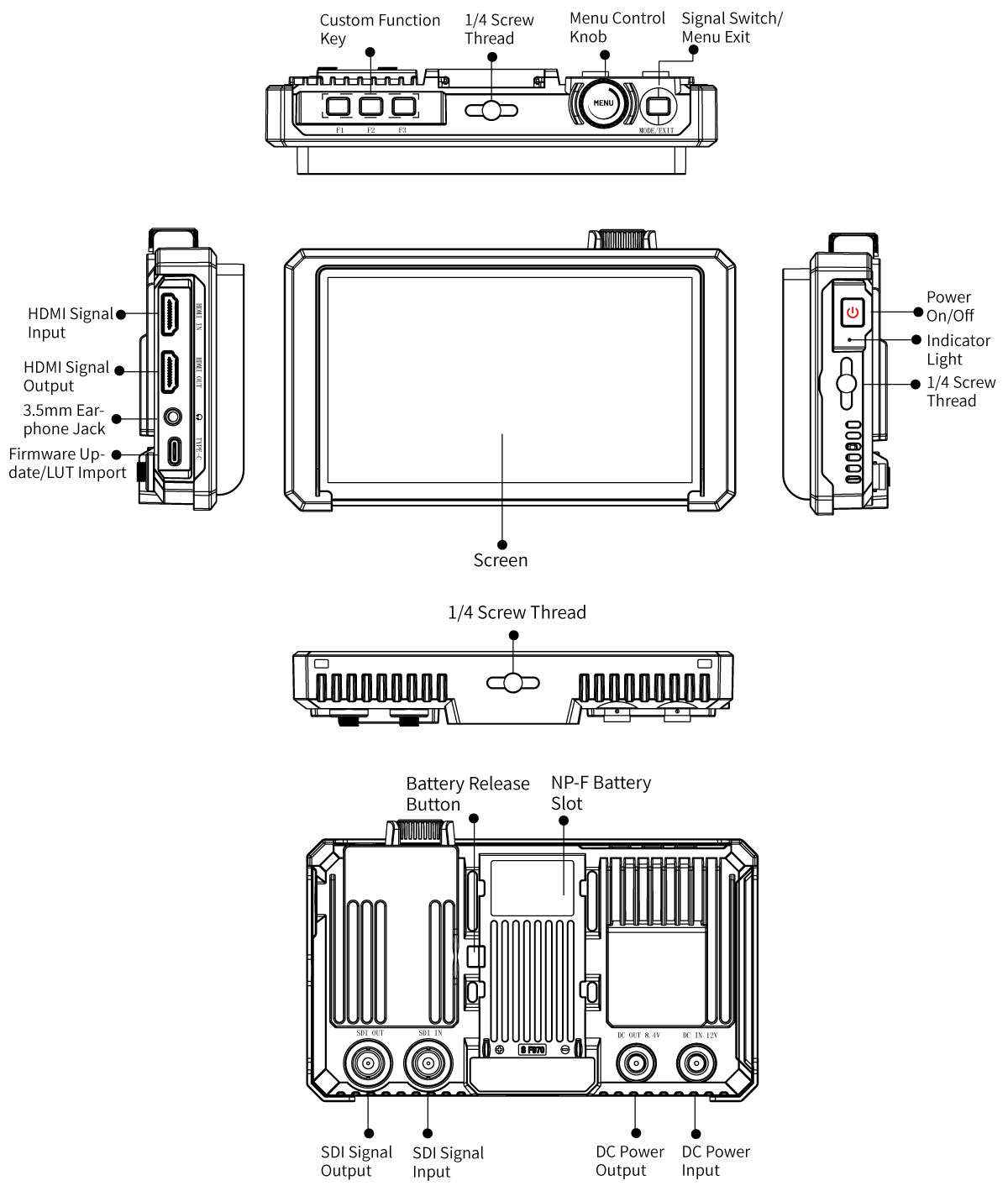

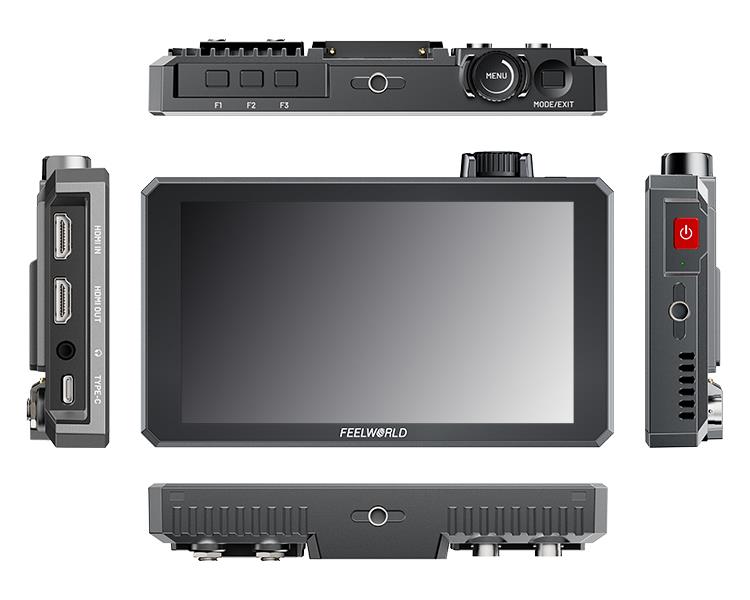

PRODUCT OVERIVEW

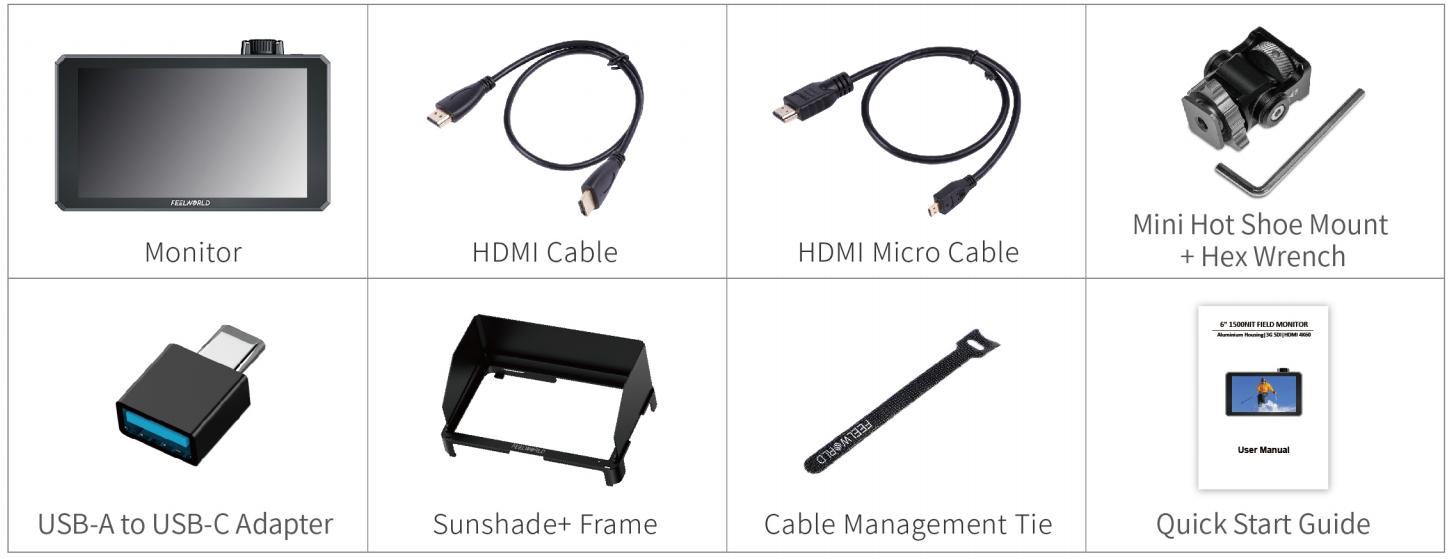

Packaging List:
1× Monitor
1× Micro HDMI Cable
1× HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB-A to USB-C Adapter
1× Sun Shade + Frame
1× Cable Management Tie
1× Manual
1× Monitor
1× Micro HDMI Cable
1× HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB-A to USB-C Adapter
1× Sun Shade + Frame
1× Cable Management Tie
1× Manual
Packaging Picture
