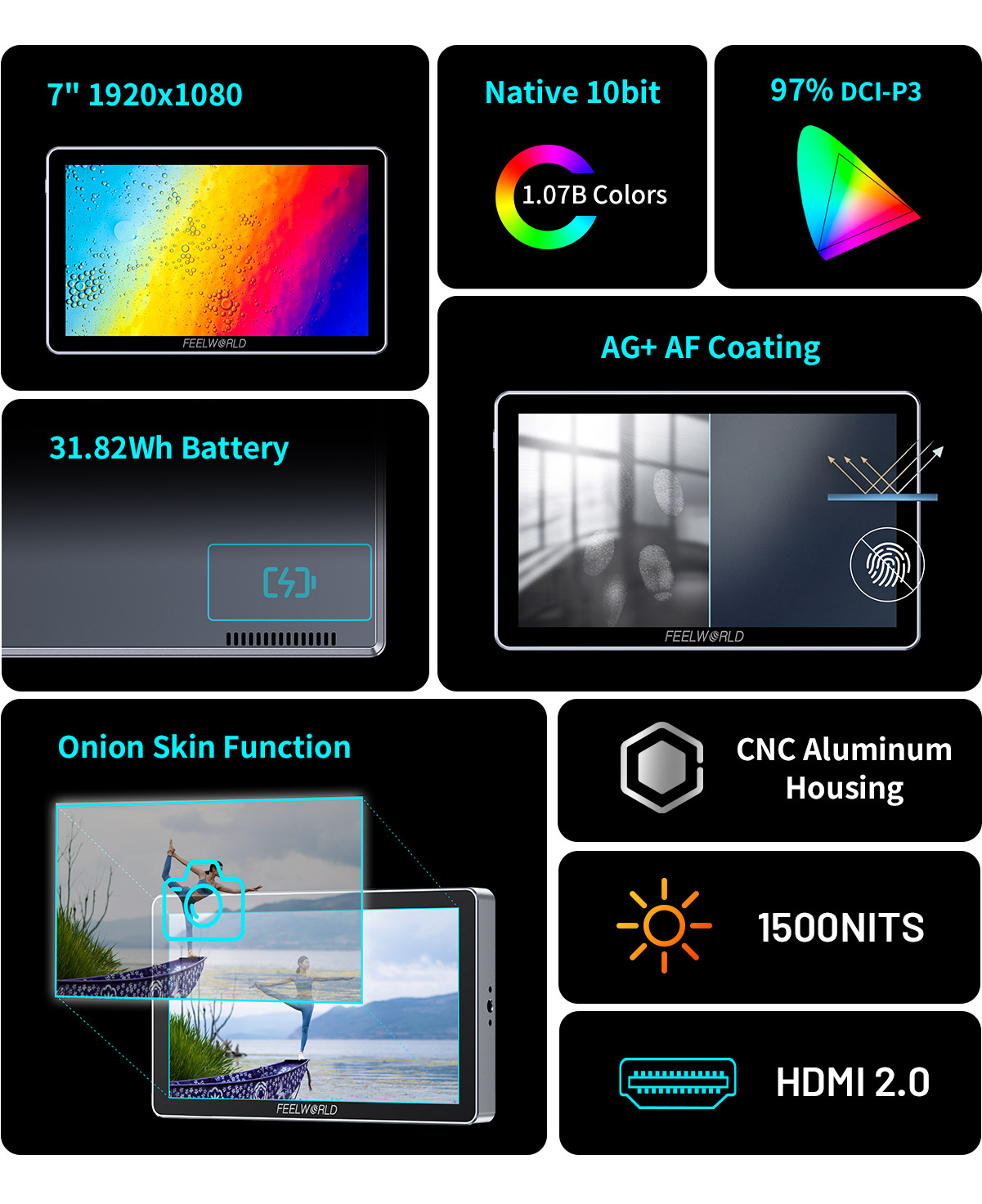

Longer Runtime · Richer Colors · Brighter Display

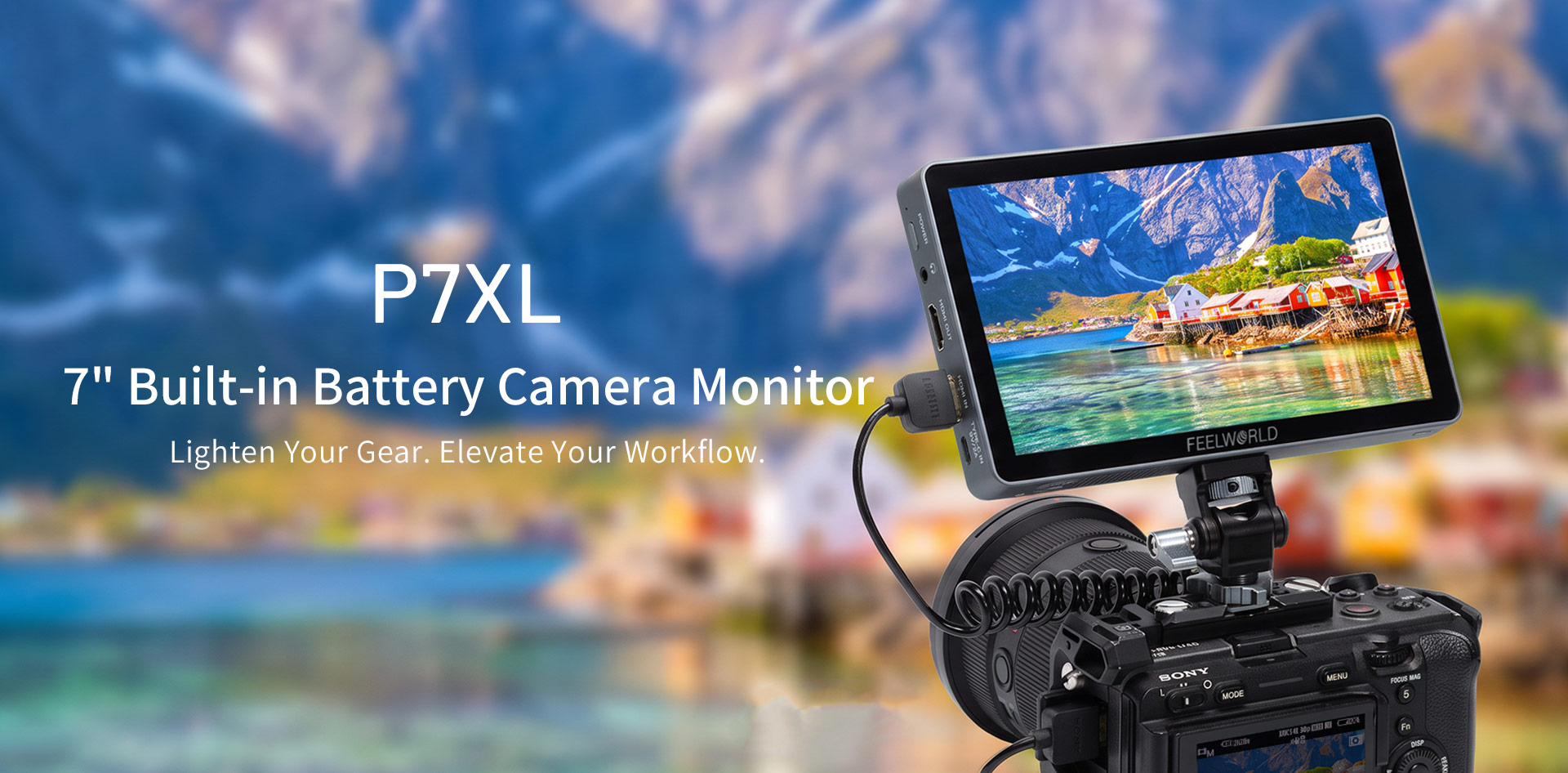

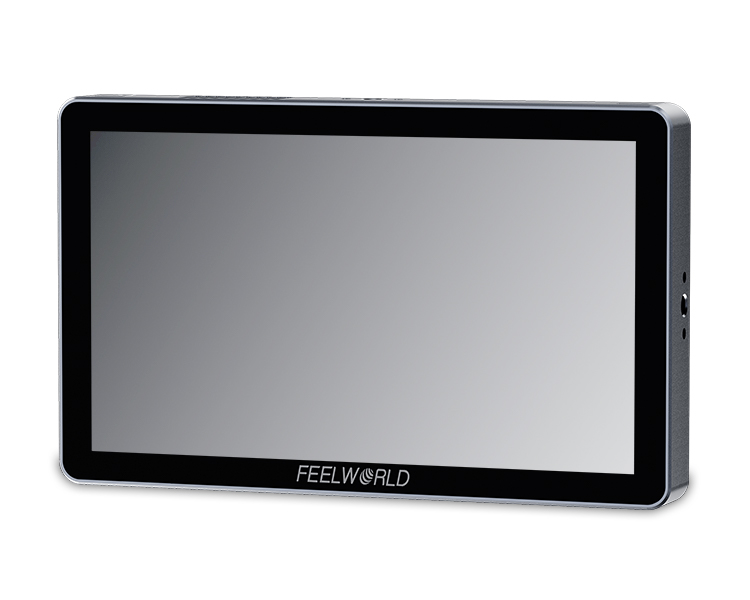

Following the P6XL, FEELWORLD continues to expand its built-in battery monitor lineup with the new 7" P7XL. Featuring a built-in 31.82Wh/7.4V rechargeable battery with Type-C charging, it delivers extended runtime without the need to carry an additional battery.
The 7" Full HD 10-bit high-brightness display delivers richer color gradation and accurate image reproduction, giving you a clear and precise view of every shot. Whether you're shooting video, creating content outdoors, or working on set, the P7XL helps reduce the gear you need to carry, so you can stay focused on your work.

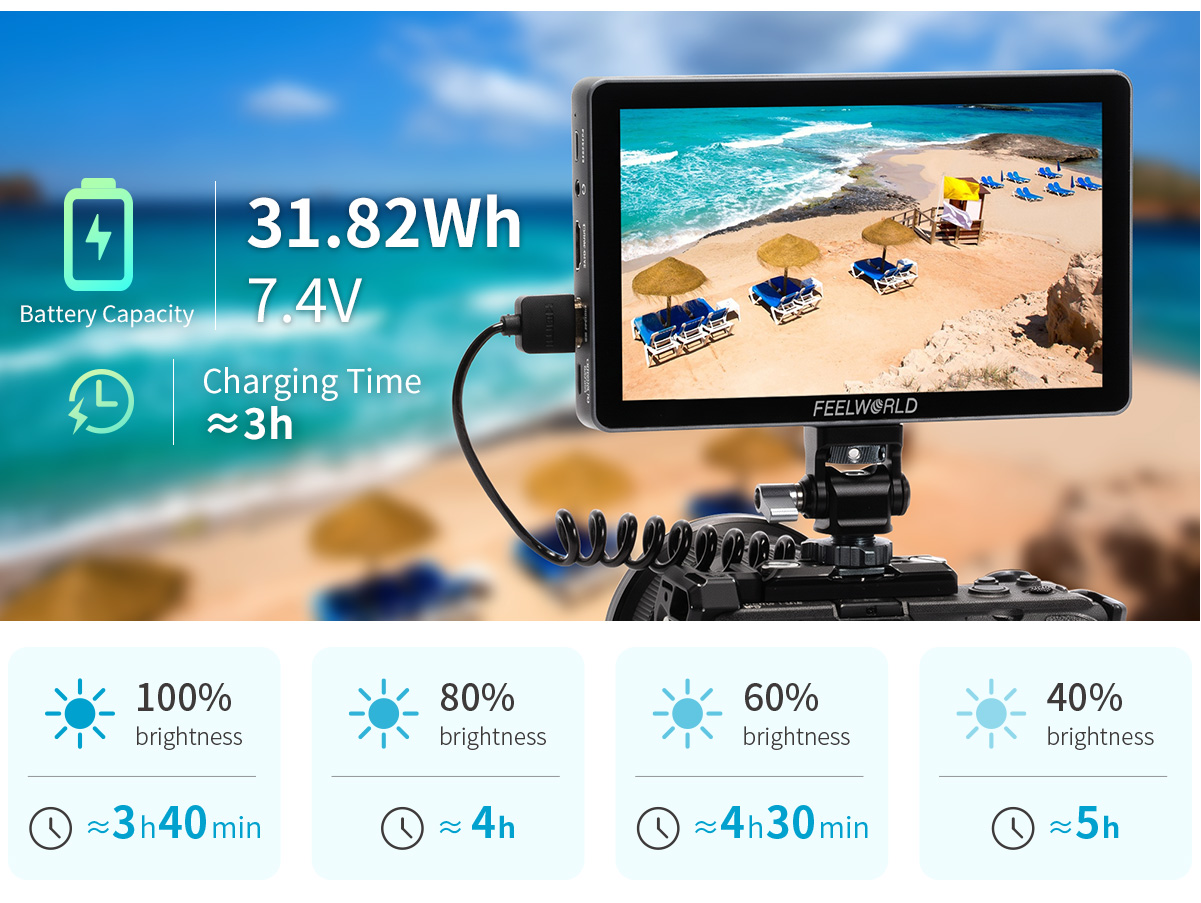

Built-in Rechargeable Battery
The built-in 31.82Wh/7.4V rechargeable battery provides reliable power and you can use the included charger to charg,so you can shoot longer without the need for an additional battery.

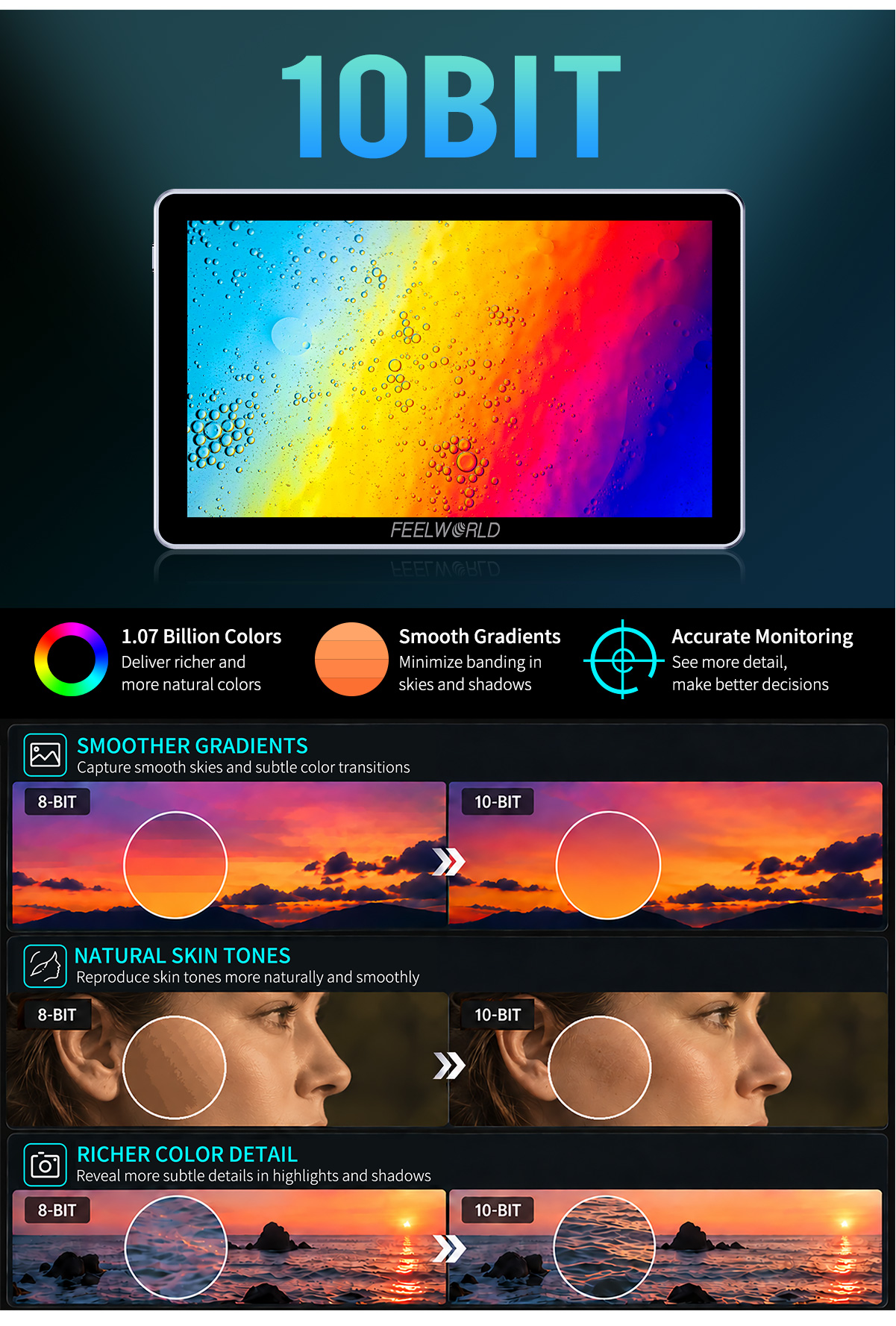

7" Native 10-bit Panel
Richer Color, Smoother Gradients, Accurate Monitoring
Equipped with 7-inch full HD native 10-bit panel, see smoother gradients, richer colors and finer details for more accurate on-set monitoring.

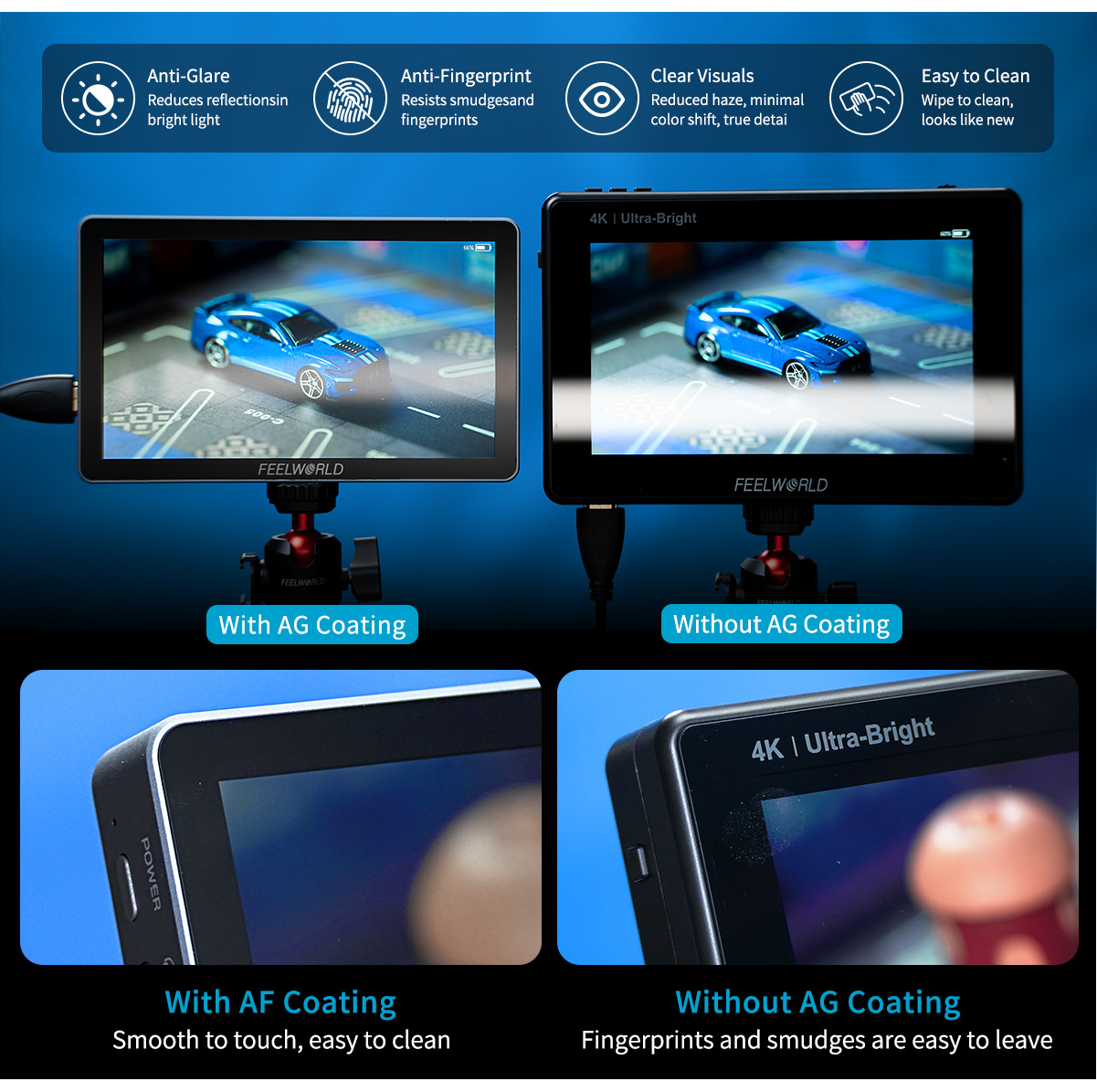

Anti-Glare & Anti-Fingerprint Coating
Reduces reflections and fingerprints, ensuring clear visuals inbright environments while keeping the screen clean and pristine. delivering a stable and comfortable monitoring experience.
1500Nits High Brightness，Viewable in Sunlight
1500nits high peak brightness offsets AG coating light loss, nsuring clear visibility even under direct sunlight and harsh outdoor lighting. Perfect for outdoor live streaming and monitoring.

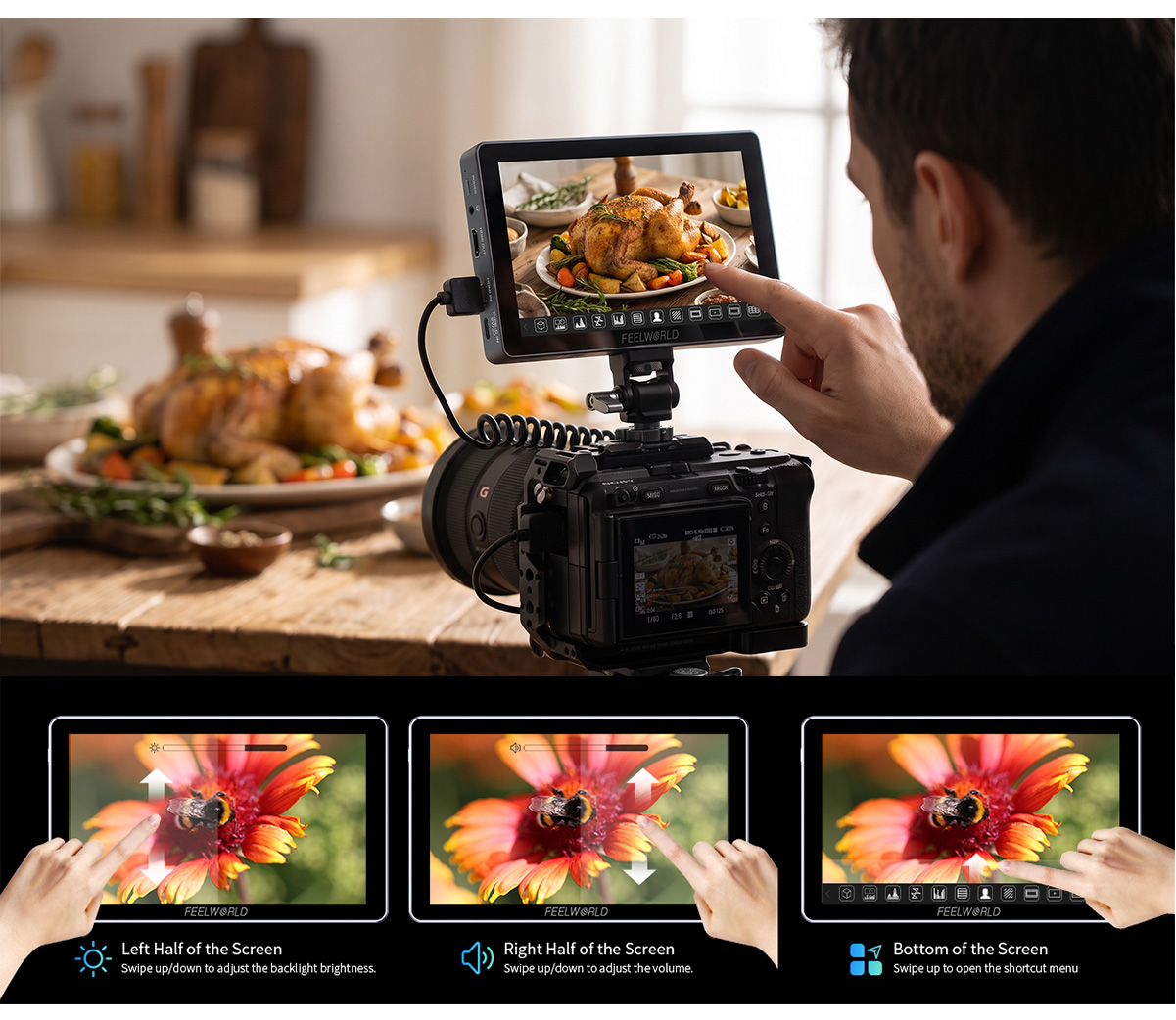

Responsive Touch Control
An innovative LCD touchscreen interface gives you comprehensive, precise control. Simply tap or swipe to access and adjust settings effortlessly.

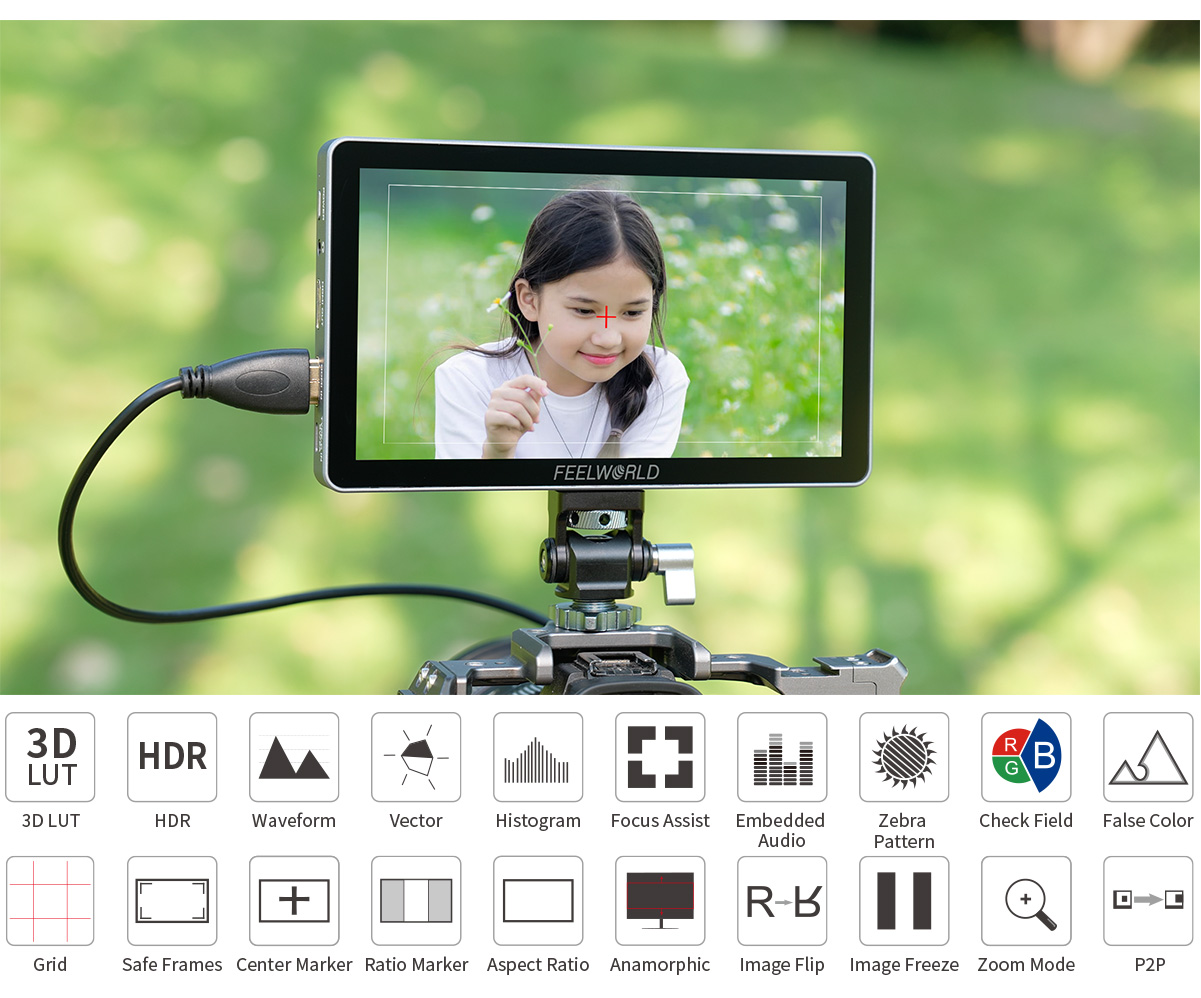

Professional Monitoring, Powerful Tools
Achieve accurate focus and exposure with comprehensive monitoring tools, from on-set production to post-production.

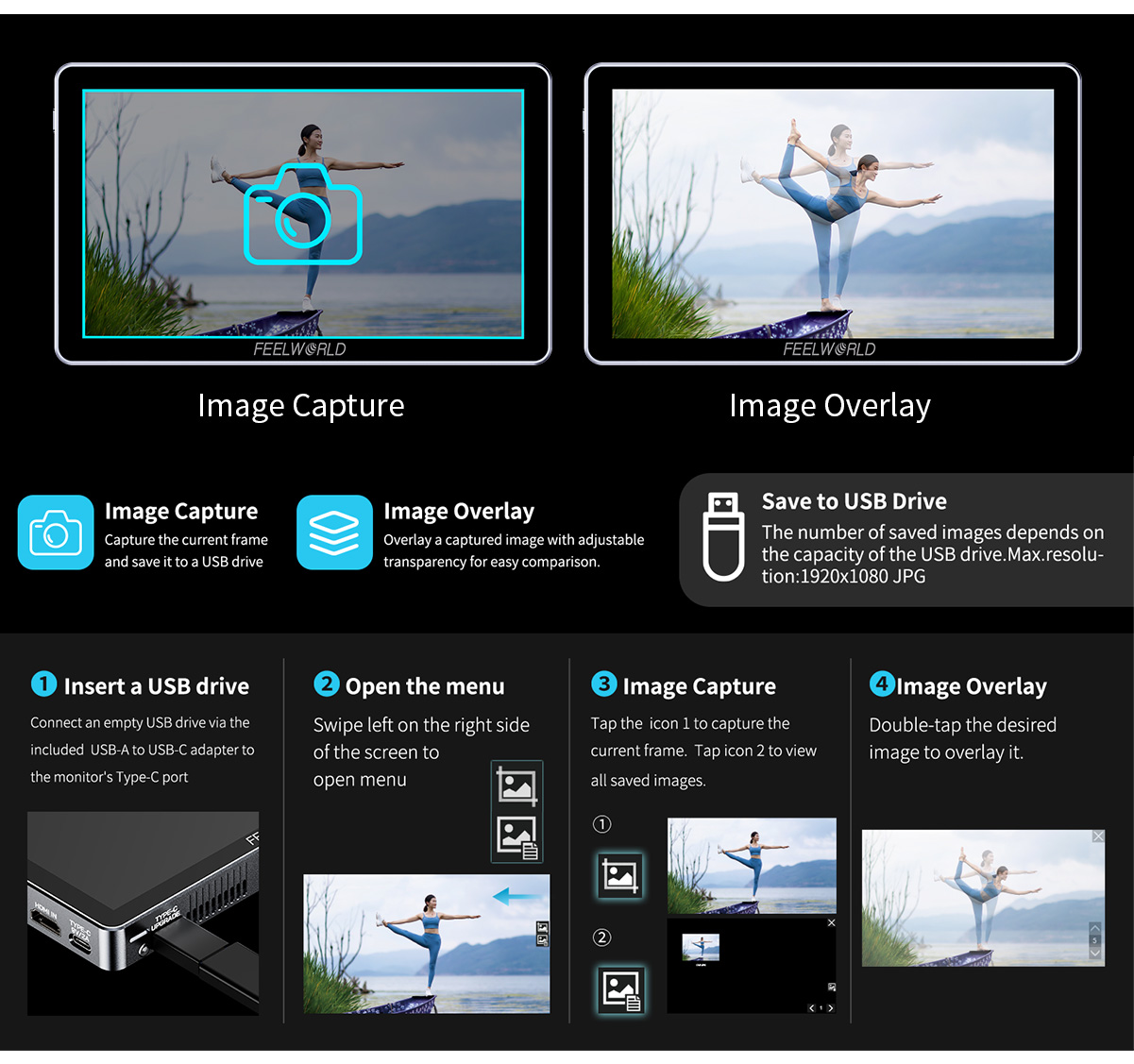

Onion Function (Freeze Frame)
Insert a USB Drive to capture any frame from the video and overlay, it with adjustable transparency for easy comparison.

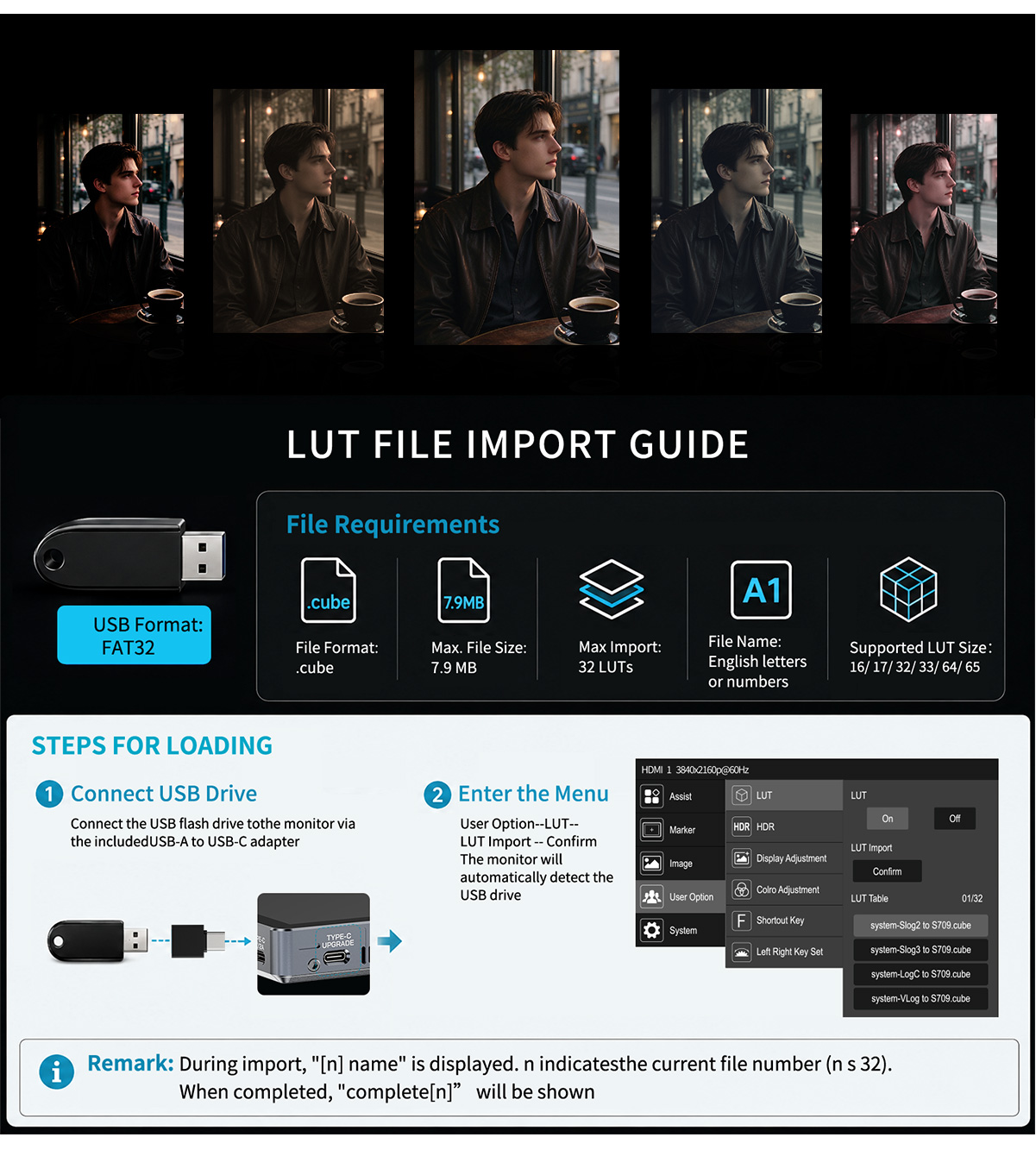

Load 3D LUTs, Preview Cinematic Looks
LUT support simplifies on-set color management and streamlines your workflow. It includes 4 built-in LUTs — S-Log2, S-Log3, LogC, and V-Log — and supports uploading 32 custom .cube files for creating and previewing your own cinematic looks.

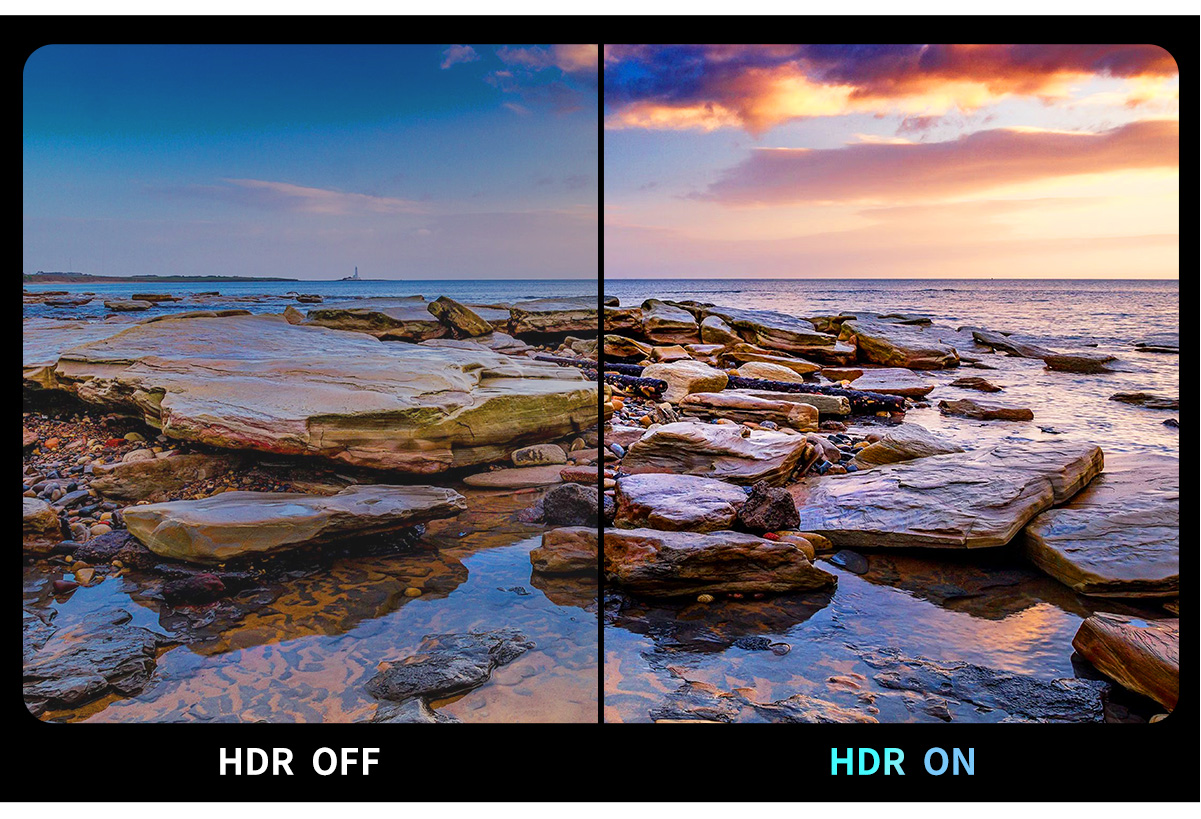

Dynamic HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

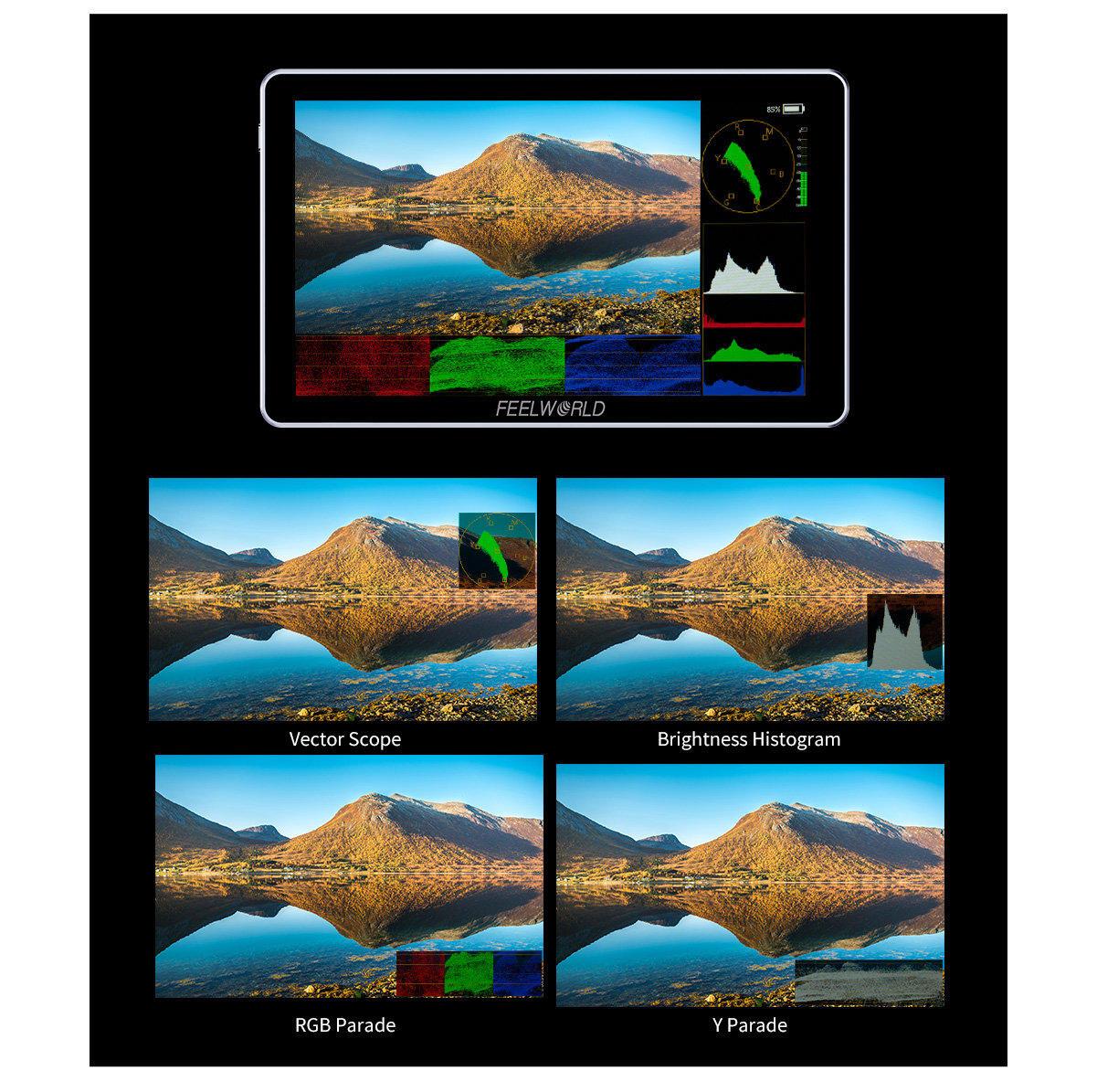

Comprehensive Waveform Monitoring, Precise Signal Control
Supports waveform, vector scope, histogram, and audio level displays for comprehensive monitoring of video and audio signals.

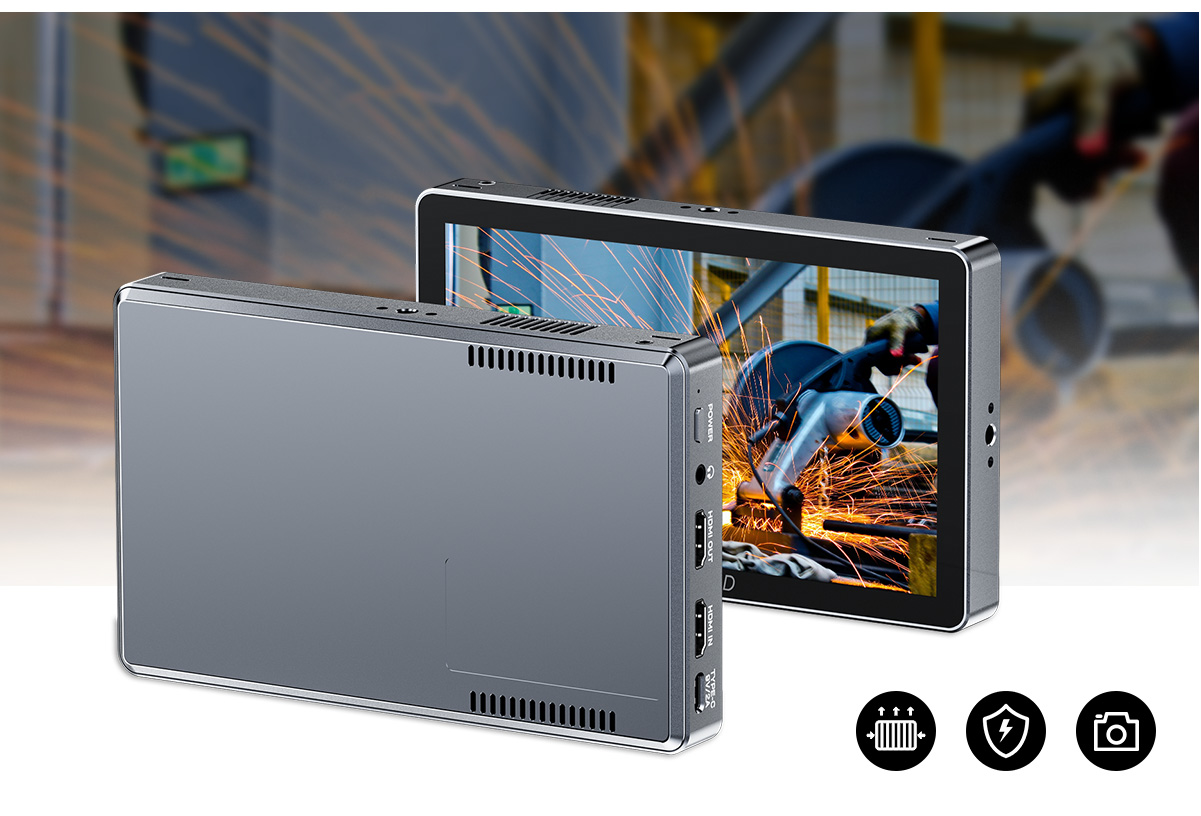

CNC Aluminum Alloy Body
Built with a precision-machined CNC aluminum alloy body, the monitor combines durability, refined craftsmanship, and efficient heat dissipation. A robust design made for demanding shooting environments.

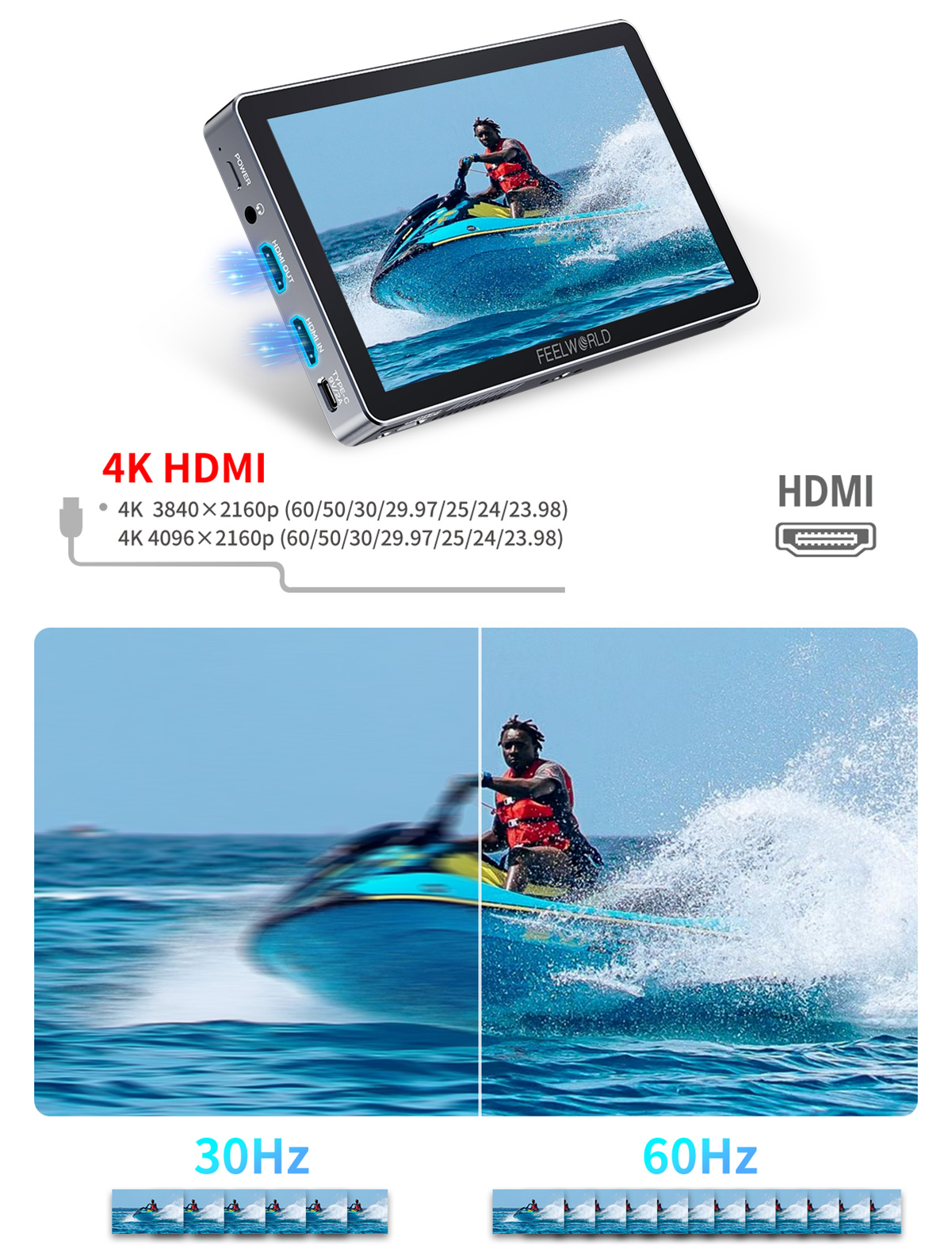

HDMI 2.0 Input & Output, High-Speed Transmission
Support up to 4096x2160/60p &3840x2160/60p signal,compatible with camcorder and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

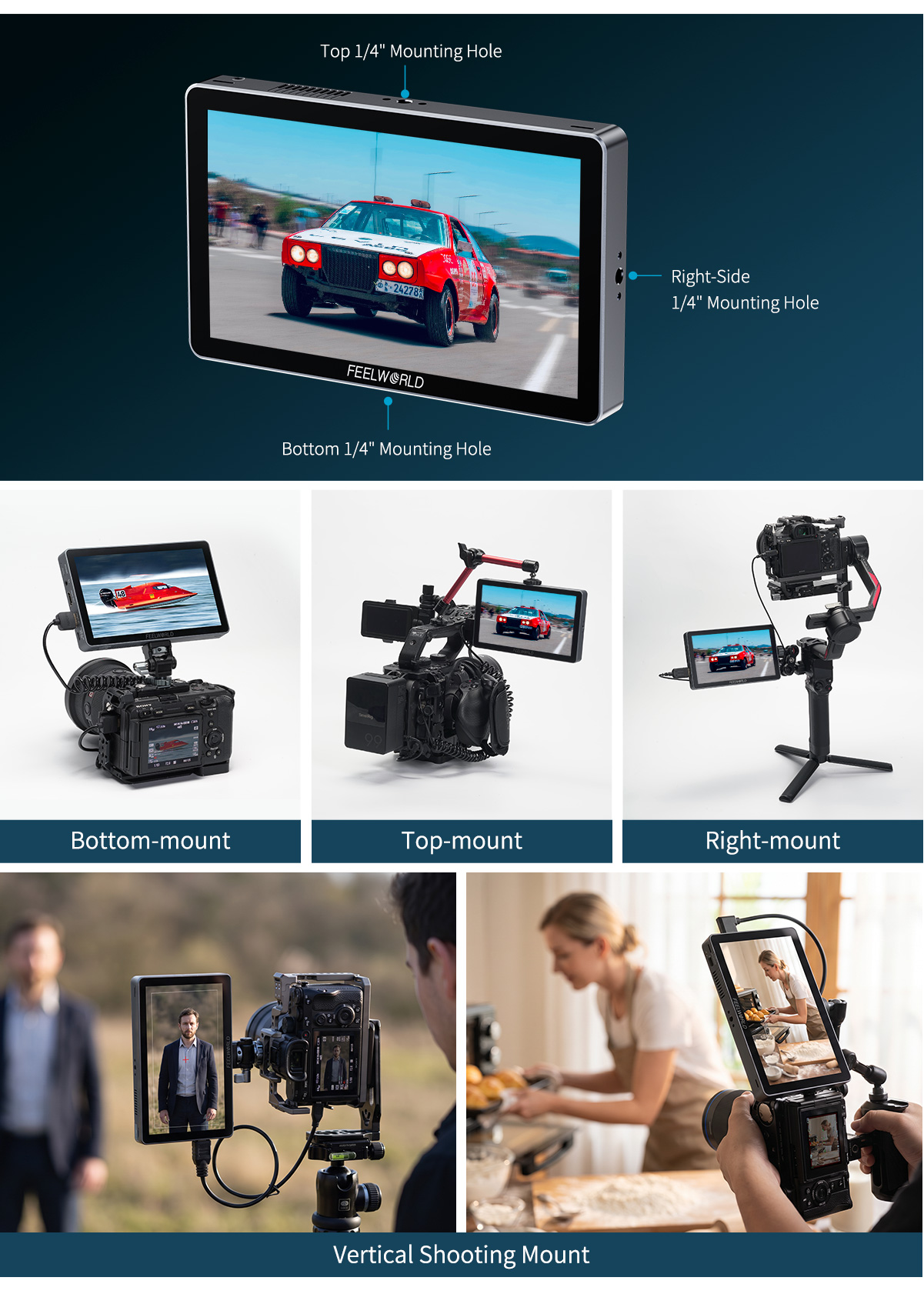

Flexible mounting to meet diverse monitoring requirements.
Up to 12 Languages
Built-in up to 12 languages, that means P7XL is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

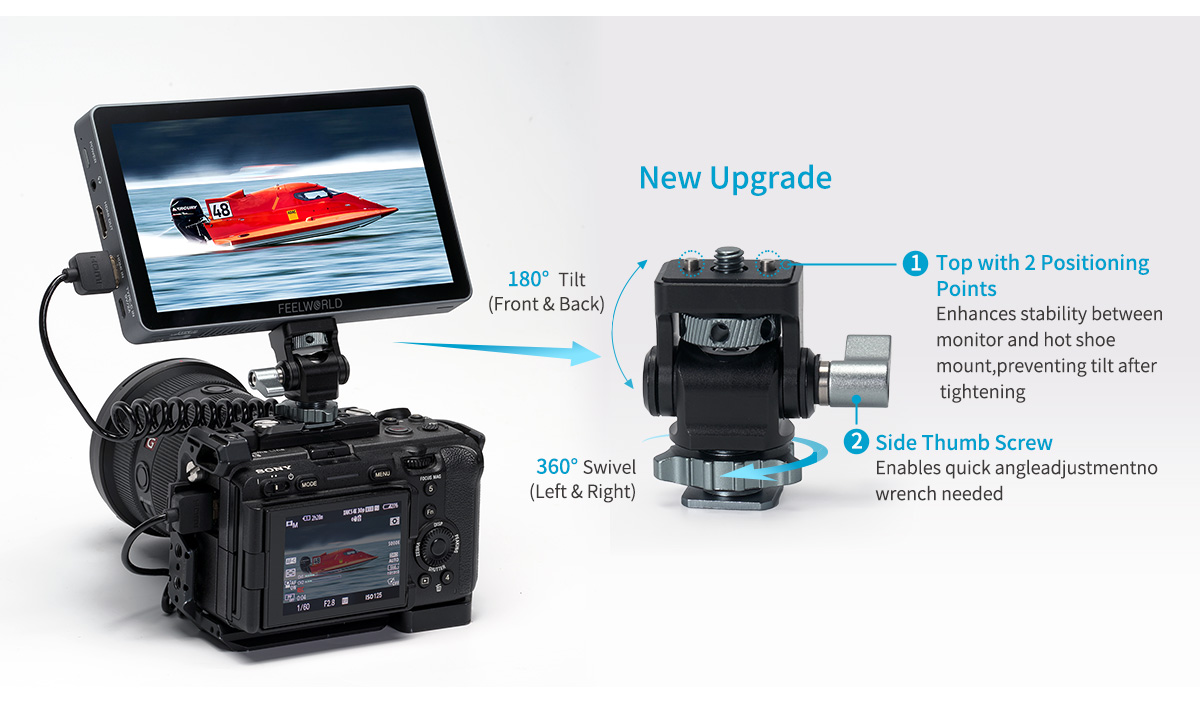

Upgraded Hot Shoe Mount Adapter
Secure Connection. Quick Adjustment.
Upgraded hot shoe mount adapter with dual positioning points for a more secure connection, a side thumb screw for quick adjustment, and 180° tilt + 360° rotation for flexible viewing angles.

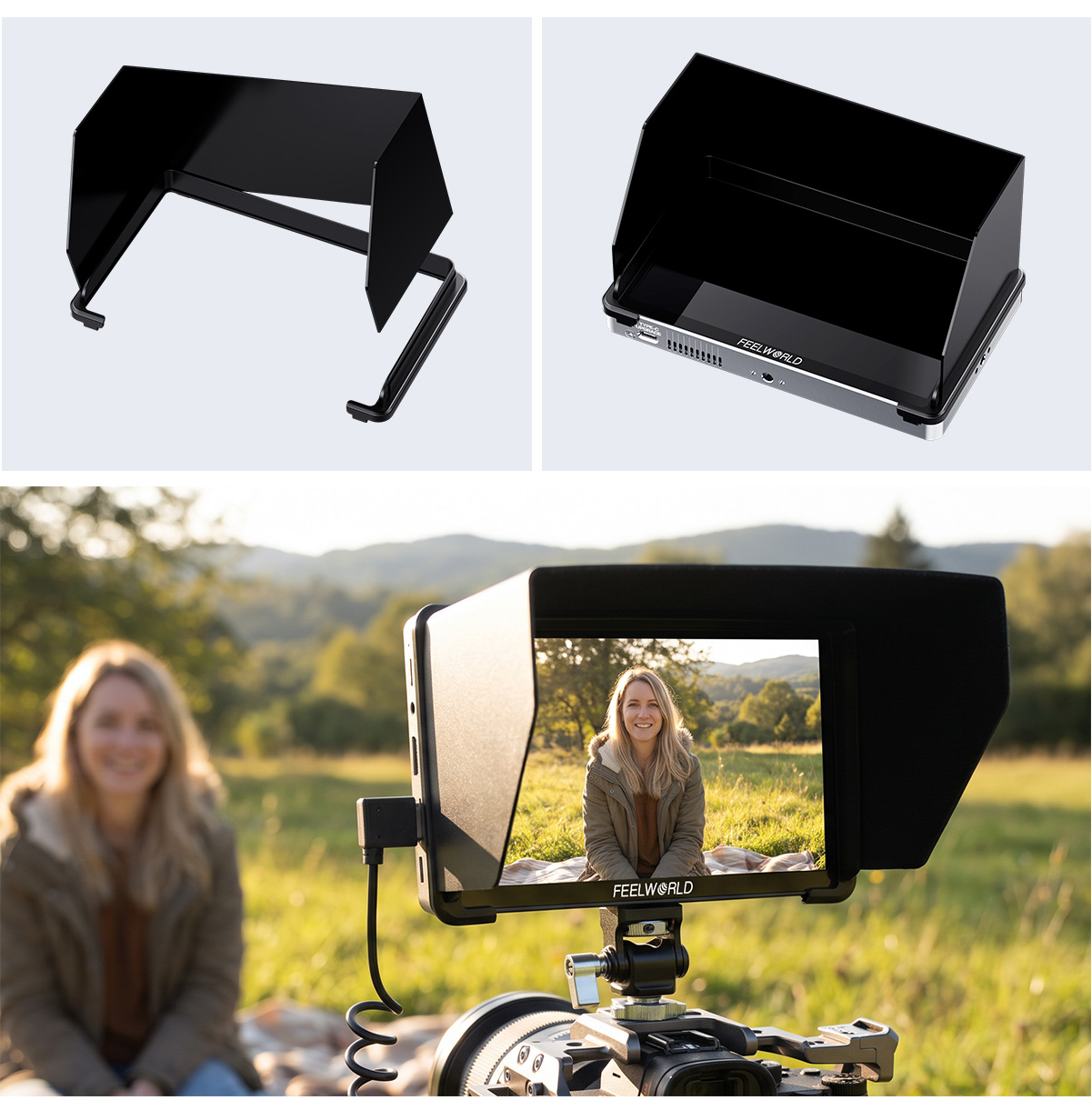

Portable Sun-hood
The standard portable sun-hood can easy to resist the strong light, and easy to install.

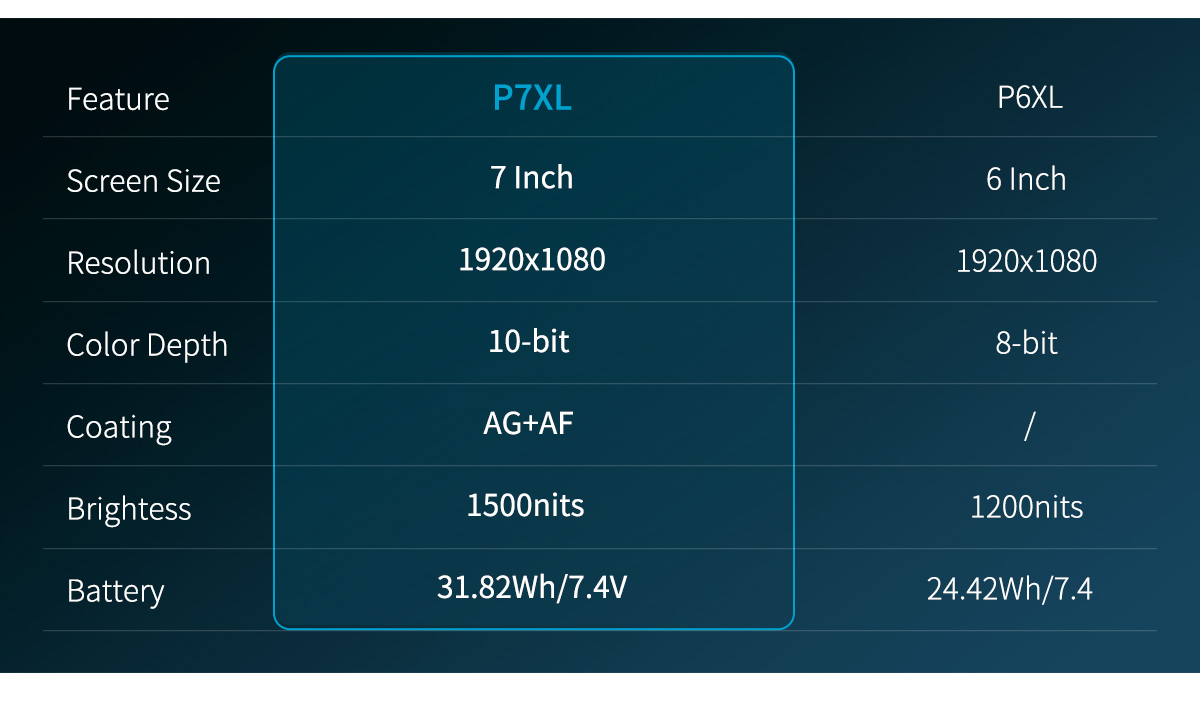

P7XL Feature Upgrade Comparison
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32) |
| * Waveform (RGB, YUV, Y) |
| * HDR |
| * Vector |
| * Histogram (RGB1,RGB2,Y ) |
| * Embedded Audio |
| * Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable) |
| * False Colors (Normal, ARRI) |
| * Over Exposure (10RE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Grid (2x2,3x3,4x4,5x5,6x6,7x7,8x8,9x9, Custom) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
| * Image Flip ( H Flip, V Flip, H_V Flip ) |
| * Image Freeze |
| * Center Marker |
| * Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16) |
| * Marker Color (Red, Green, Blue, Black, White, Gray) |
| * User Switch (1~4) |
| * Zoom Mode (2X、4X、9X、16X、User) |
| * Pixel to Pixel |
| * Display Adjustment (can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100) |
| * Display Range(Auto, Limit, Full) |
| * Color Temp. ( 5600K, 6500K, 9300K, User.Under the “user”, the red, green, and blue values of the image can be adjusted 0~255) |
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.

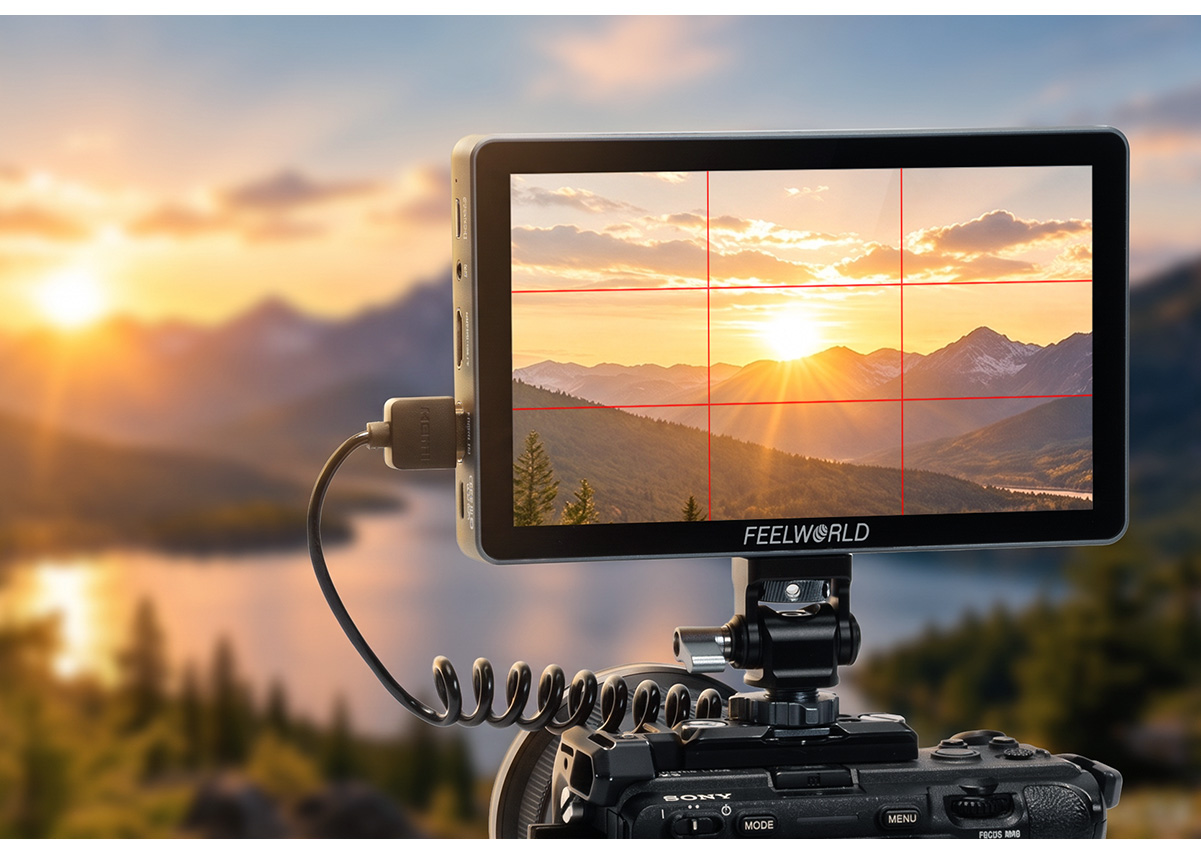

Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 4 ,9, 16, 25, 36, 49,64,81equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Display Spec.
| Model | P7XL |
| Screen Size | 7"IPS |
| Resolution | 1920X1080 pixels |
| Dot Pitch | 0.027(H) x 0.081(V) mm |
| AG+AF Coating | Haze: 10%±4%; Glossiness: ≥70; Light transmittance: ≥83% |
| Color Display | 1.07B |
| Color Depth | 10-bit |
| Color Gamut | 97% DCI-P3 |
| Aspect Ratio | 16:9 |
| Brightness | 1500cd/m² |
| Contrast Ratio | 1500:1 |
| Backlight | LED |
| Response Time | Ton+Toff=25ms |
| Viewing Angle | 88°/88°(L/R) 88°/88°(U/D) |
Signal Input
| 1 X HDMI | HDMI 2.0 |
Signal Output
| 1 X HDMI | HDMI2.0 |
Other Interface
| 1 X USB | USB-C (Firmware update/LUT file import) |
Audio
| Audio | 3.5mm Stereo Headphone |
Battery
| Battery Capacity | 4300mAh/31.82Wh |
| Voltage | 7.4V |
| Running Time | About 3h 40min (at 100% brightness); about 4h (at 80% brightness); about 4h 30min (at 60% brightness); about 5h (at 40% brightness) |
| Charging Time | About 3 hours |
Power Input
| USB | Type-C 9V/2A |
HDMI Input and Output Support Format
| 480i/576i/480p/576p |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4K 4096×2160p(60/50/30/29.97/25/24/23.98) |
General
| Power Consumption | charging + working:≤20W; charging alone : ≤24W; full charged working alone:≤12W |
| Working Temperature | -20°C~45°C |
| Storage Temperature | -30°C~55°C |
| Install Way | 1/4"-20 Thread Socket (right side, top, bottom) |
| Unit Size | 176Lx107Hx20D |
| Unit Weight | 526g |
| Color Box Size | 222L*158W*78H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 535*230*405 (mm) |
| Gross Weight | 10.5kg |

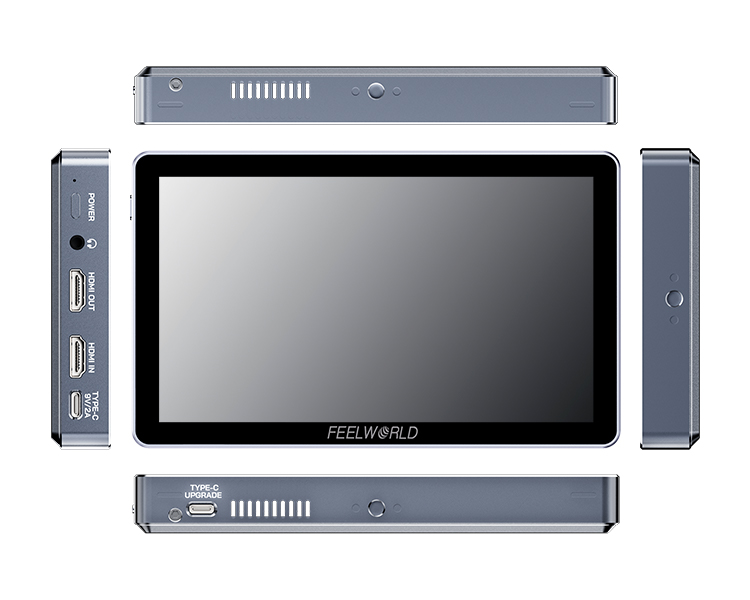

Structure Dimensions (Unit: mm)

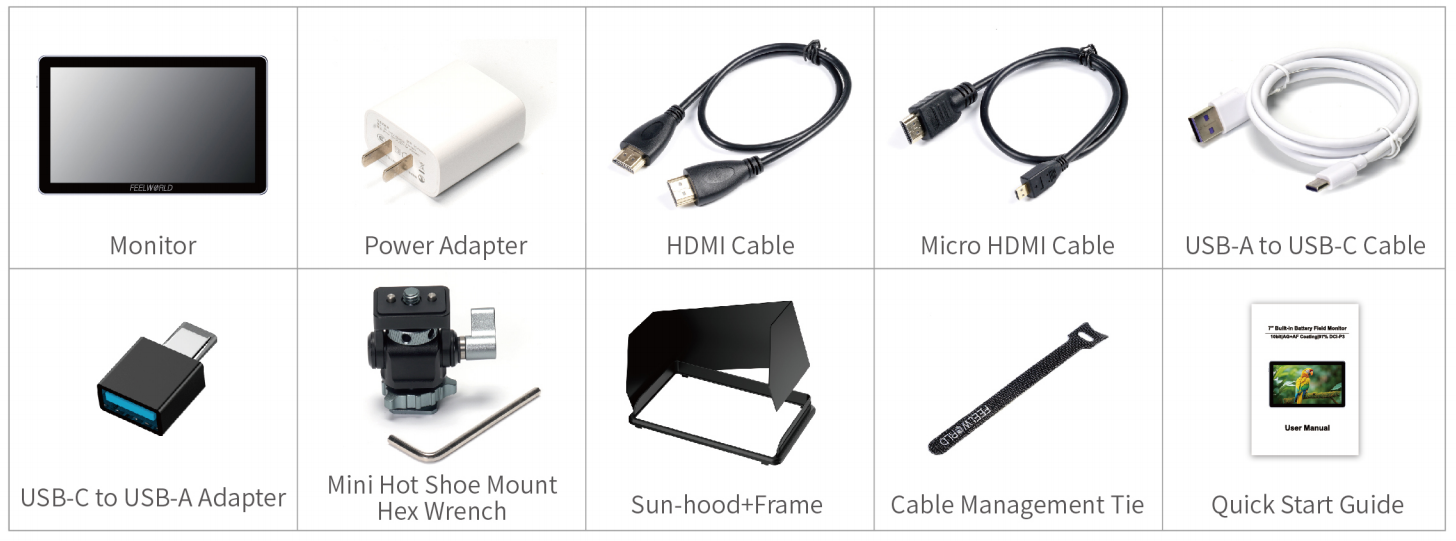

Packaging List:
1× Monitor
1× Power Adapter
1× A-A HDMI Cable
1× Micro HDMI Cable
1× USB-A to USB-C Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× USB-A to USB-C Adapter
1× Sunshade+Frame
1× Cable Management Tie
1× Manual
