FEELWORLD P6XL 6 Inch Aluminium Built-in Battery DSLR Camera Field Monitor Touch Screen 4K HDMI High Brightness 1200nit
| Number: | 202411271646071343 |
|---|---|
| Model: | P6XL |
| Size: | 6" |
| Introduction: |
Screen Size： 6" IPS
Resolution： 1920x1080 pixels Aspect ratio： 16:9 Brightness： 1200cd/m² |
| Input: | HDMI 1.4, Type-C 9V/2A， Type-C Upgrade |
| Output: | Headphone Jack |
| DM: | |
| Download: | |
Portable . Rechargeable . Bright
FEELWORLD always focus on the products which can less the photograph equipment for the user, and first release built-in battery monitor P6XL. It built-in 22.2Wh/7.4V battery and can easy to charge via Type-C port, no need to carry additional battery. Equipped with 6-inch full HD high brightness screen, easy to start creative whatever where you go, that's perfect for vloggers, creatives and photographers.
FEELWORLD always focus on the products which can less the photograph equipment for the user, and first release built-in battery monitor P6XL. It built-in 22.2Wh/7.4V battery and can easy to charge via Type-C port, no need to carry additional battery. Equipped with 6-inch full HD high brightness screen, easy to start creative whatever where you go, that's perfect for vloggers, creatives and photographers.

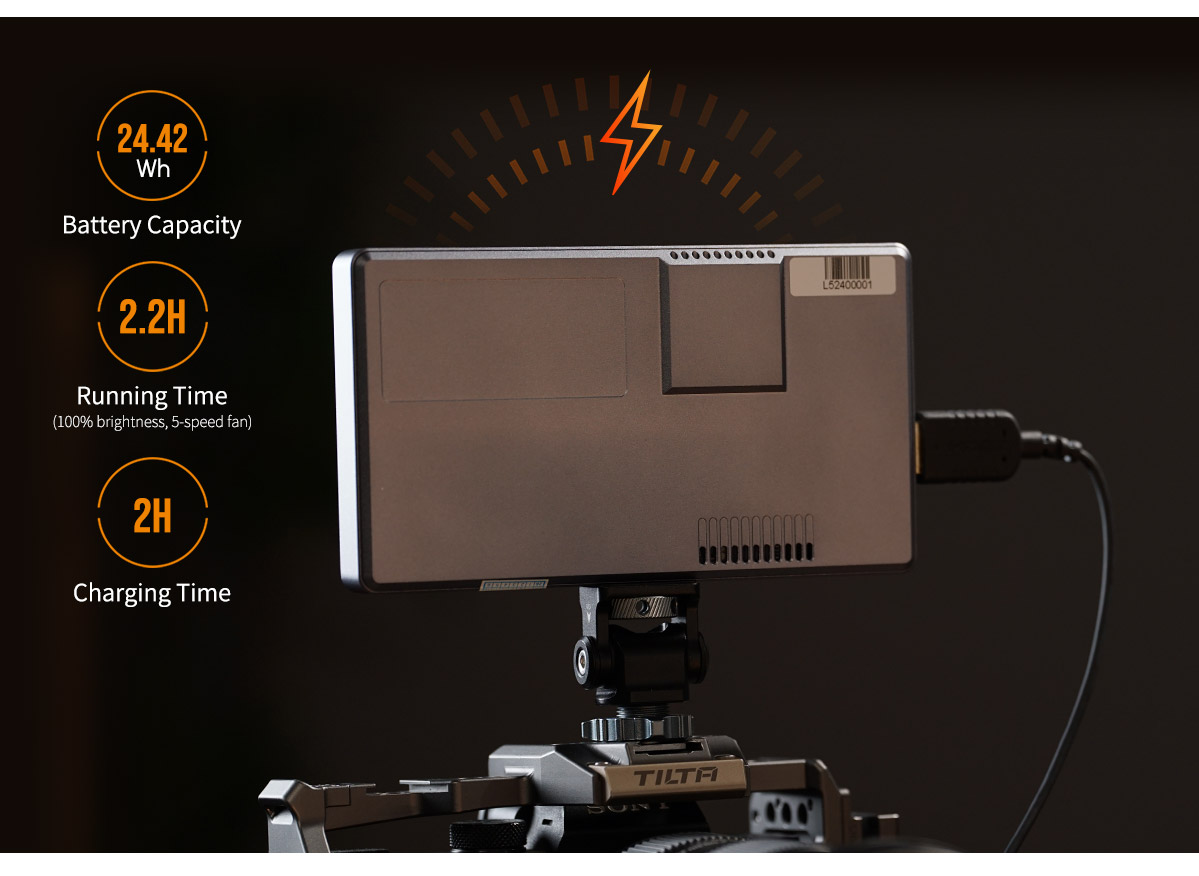

Built-in Rechargeable Battery

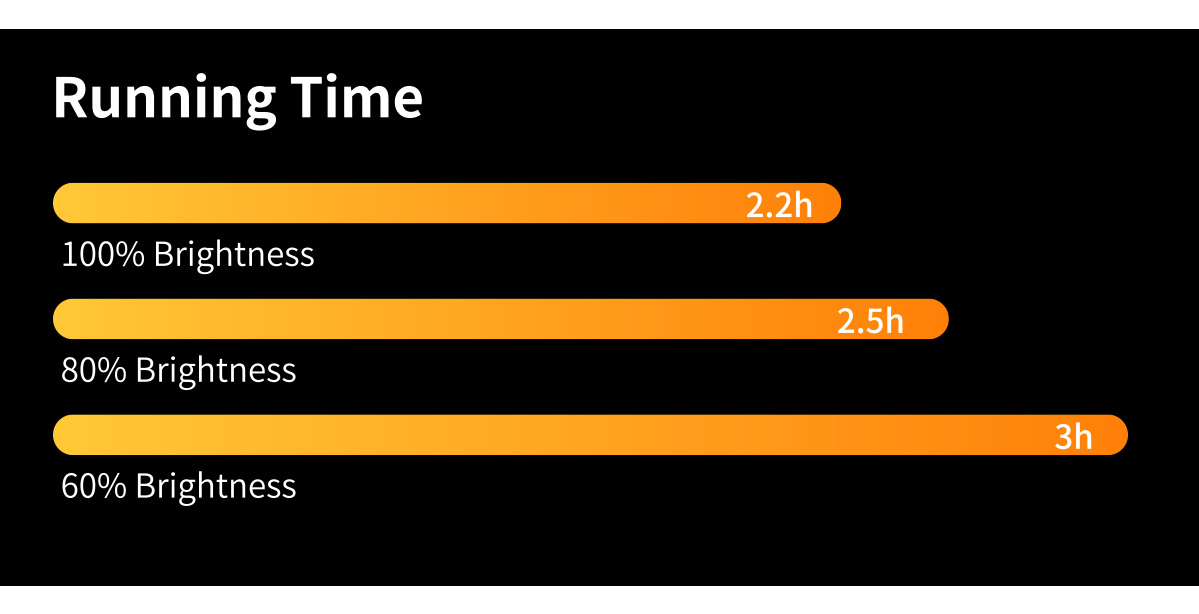

The built-in 22.2Wh/7.4 battery makes P6XL portable for mobile shooting and offers 2 hours of run-time at 100% brightness. The monitor features a USB Type-C port that can receive power from charger through the included charging cable.
Note: The voltage of the charger must be 9V；When charging the battery level shows 100% is not means full charged, till the indicator light to turn green that means really full charged.
The built-in 22.2Wh/7.4 battery makes P6XL portable for mobile shooting and offers 2 hours of run-time at 100% brightness. The monitor features a USB Type-C port that can receive power from charger through the included charging cable.
Note: The voltage of the charger must be 9V；When charging the battery level shows 100% is not means full charged, till the indicator light to turn green that means really full charged.
Ultra Portable
The traditional monitor with a about 200g external F750 battery plus the weight of the monitor total at least 500g.The P6XL although built-in battery but its only 332g and the thickness is 17mm, which not only saves the trouble of carrying a pile of batteries but also greatly reduces the weight. Lightweight and slim design allows you to start creation anytime, anywhere.
The traditional monitor with a about 200g external F750 battery plus the weight of the monitor total at least 500g.The P6XL although built-in battery but its only 332g and the thickness is 17mm, which not only saves the trouble of carrying a pile of batteries but also greatly reduces the weight. Lightweight and slim design allows you to start creation anytime, anywhere.
Convenient to Use With Stabilizer
Mobile shooting inevitably requires to use stabilizer, and the reduced weight makes P6XL the preferred choice for use stabilizer during actual workflow.
Mobile shooting inevitably requires to use stabilizer, and the reduced weight makes P6XL the preferred choice for use stabilizer during actual workflow.
6-inch Full HD Screen
Clearly checking and capture every nuance
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
Clearly checking and capture every nuance
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
1200Nit, Daylight Viewable
High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Sharp Screenshot + Image Overlay
P6XL supports screenshot and stored via USB flash drive, you can capture any image, then compared with real-time video by semi-transparent image superposition. It is convenient for photographers to compare the composition and correct the displacement during the shooting. In addition, you can also import custom image (must be JPG image and the resolution not exceeding 1920x1080).
Note:Please make sure the USB flash drive without any upgrade files before use this function or plug empty USB flash drive directly. And don't remove the USB flash drive when using the function.
P6XL supports screenshot and stored via USB flash drive, you can capture any image, then compared with real-time video by semi-transparent image superposition. It is convenient for photographers to compare the composition and correct the displacement during the shooting. In addition, you can also import custom image (must be JPG image and the resolution not exceeding 1920x1080).
Note:Please make sure the USB flash drive without any upgrade files before use this function or plug empty USB flash drive directly. And don't remove the USB flash drive when using the function.
Full Range of Auxiliary Functions
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Support to load 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Import the LUT files to USB flash drive connect to the Type-C port of the monitor via the attached USB-A to USB-C adapter.
Support to load 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Import the LUT files to USB flash drive connect to the Type-C port of the monitor via the attached USB-A to USB-C adapter.
HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in the menu. P6XL becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in the menu. P6XL becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
4K HDMI Input，High Speed Transmission
P6XL equipped with a 4K HDMI input, supports up to 2160p/30p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
P6XL equipped with a 4K HDMI input, supports up to 2160p/30p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
11 Languages Supporting
P6XL built-in up to 11 languages, that means P6XL is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
P6XL built-in up to 11 languages, that means P6XL is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
Portable Sun-hood
The standard portable sun-hood can easy to resist the strong light, and easy to install.
Exclusive Charging Expansion Bracket (Optional)
Worryless the battery life
When the outdoor shooting is long and the 2-hour battery life is not enough, how should we do? Don't worry, you can choose the P6XL exclusive charging expansion bracket, just only install the bracket on the P6XL and fix the power bank on the bracket to power the monitor via the Type-C 9V/2A interface.
Worryless the battery life
When the outdoor shooting is long and the 2-hour battery life is not enough, how should we do? Don't worry, you can choose the P6XL exclusive charging expansion bracket, just only install the bracket on the P6XL and fix the power bank on the bracket to power the monitor via the Type-C 9V/2A interface.
In addition, the bracket also equipped with a 3/8 and multiple 1/4 screw threads to expansion mount video transmission and other devices.
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32) |
| * Waveform (RGB, YUV, Y) |
| * HDR |
| * Vector |
| * Histogram (RGB1,RGB2,Y ) |
| * Embedded Audio |
| * Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable) |
| * False Colors (Normal, ARRI) |
| * Over Exposure (10RE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Grid (2x2,3x3,4x4,5x5,6x6,7x7,8x8,9x9, Custom) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
| * Image Flip ( H Flip, V Flip, H_V Flip ) |
| * Image Freeze |
| * Center Marker |
| * Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16) |
| * Marker Color (Red, Green, Blue, Black, White, Gray) |
| * User Switch (1~4) |
| * Zoom Mode (2X、4X、9X、16X、User) |
| * Pixel to Pixel |
| * Display Adjustment (can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100) |
| * Display Range(Auto, Limit, Full) |
| * Built-in fan(can be adjustable 1~5) |
| * Color Temp. ( 5600K, 6500K, 9300K, User.Under the “user”, the red, green, and blue values of the image can be adjusted 0~255) |
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 4 ,9, 16, 25, 36, 49,64,81equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Display Spec.
| Model | P6XL |
| Screen Size | 6" IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) (mm) |
| Aspect Ratio | 16:9 |
| Brightness | 1200cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Signal Input
| 1 X HDMI | HDMI 1.4 |
Other Interface
| 1 X USB | USB-C (Firmware update/LUT file import) |
Audio
| Audio | 3.5mm Stereo Headphone |
Battery
| Battery Capacity | 3000mAh/22.2Wh |
| Voltage | 7.4V |
| Running Time | About 2 hours (at 100% brightness/5-speed fan) |
| Charging Time | About 2 hours |
Power Input
| USB | Type-C 9V/2A (compatible with PD2.0/3.0 fast charging protocol; Samsung AFC fast charging protocol; HUAWEI FCP fast charging protocol; QC2.0/3.0 fast charging protocol) Note: the voltage of the charger must be 9V |
HDMI Input Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 3840x2160p (30/29.97/25/24/23.98) |
General
| Power Consumption | charging + working:≤21W; charging alone : ≤14W; full charged working alone:≤9W |
| Working Temperature | -20°C~70°C |
| Storage Temperature | -30°C~80°C |
| Install Way | 1/4"-20 Thread Socket (bottom) |
| Unit Size | 154x87x17(mm) |
| Unit Weight | 332g |
| Color Box Size | 186*214*80(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | 8.42kg |
Structure Dimensions (Unit: mm)
Packaging List:
1× Monitor
1× Power Adapter
1× A-A HDMI Cable
1× Micro HDMI Cable
1× USB-A to USB-C Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× USB-A to USB-C Adapter
1× Sunshade+Frame
1× Cable Management Tie
1× Manual
1× Monitor
1× Power Adapter
1× A-A HDMI Cable
1× Micro HDMI Cable
1× USB-A to USB-C Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× USB-A to USB-C Adapter
1× Sunshade+Frame
1× Cable Management Tie
1× Manual
Packaging Picture
