| Number: | 202610061034494275 |
|---|---|
| Model: | LUT7T |
| Size: | 7" |
| Introduction: |
Screen Size： 7" IPS Resolution： 1920x1080 pixels Aspect ratio： 16:9 Color Depth: 10bit Brightness： 2000cd/m² |
| Input: | HDMI 2.0, DC IN, Type-C (PD) |
| Output: | HDMI 2.0, 3.5mm Headphone Jack |
| DM: | |
| Download: | |

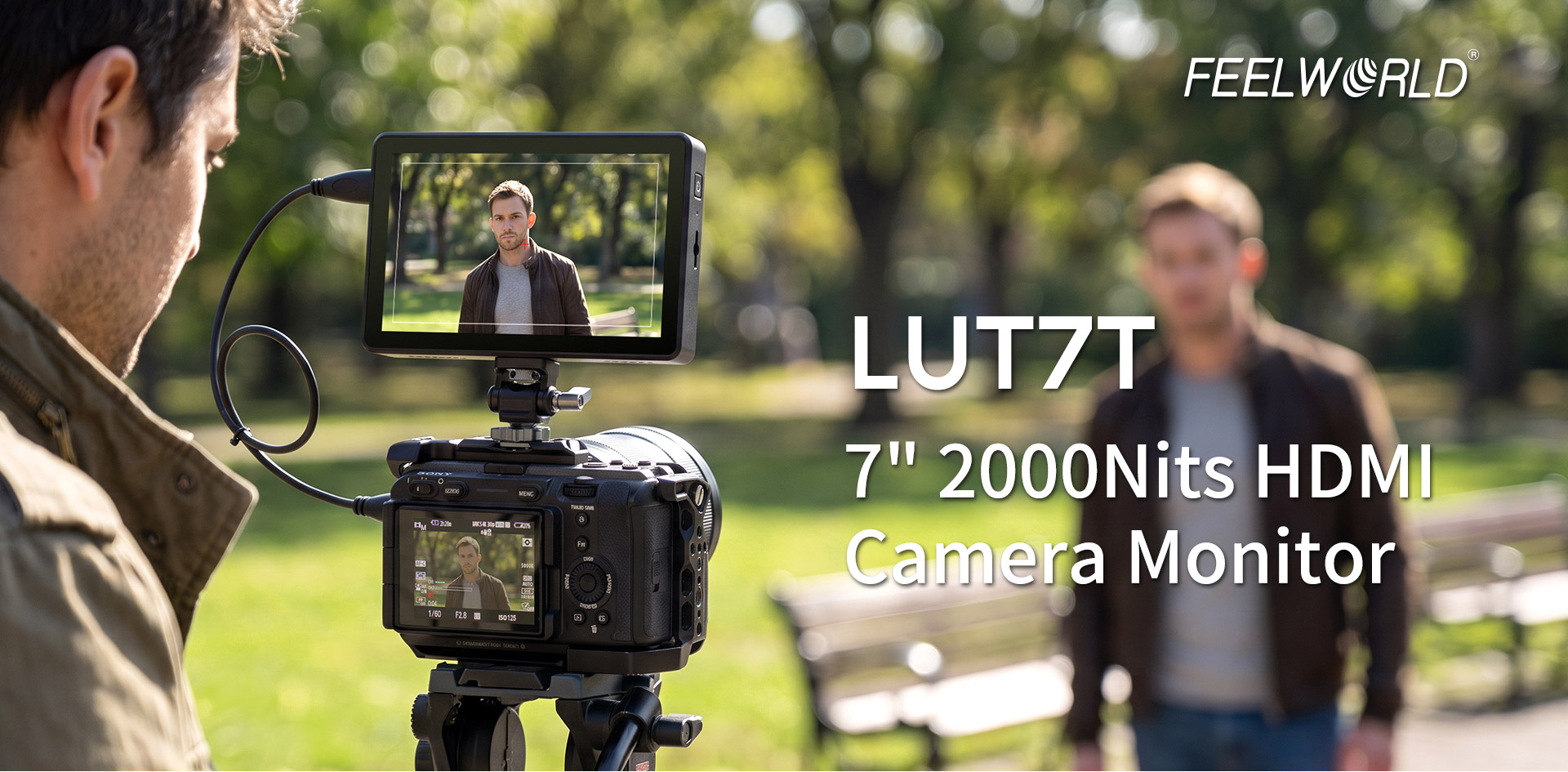

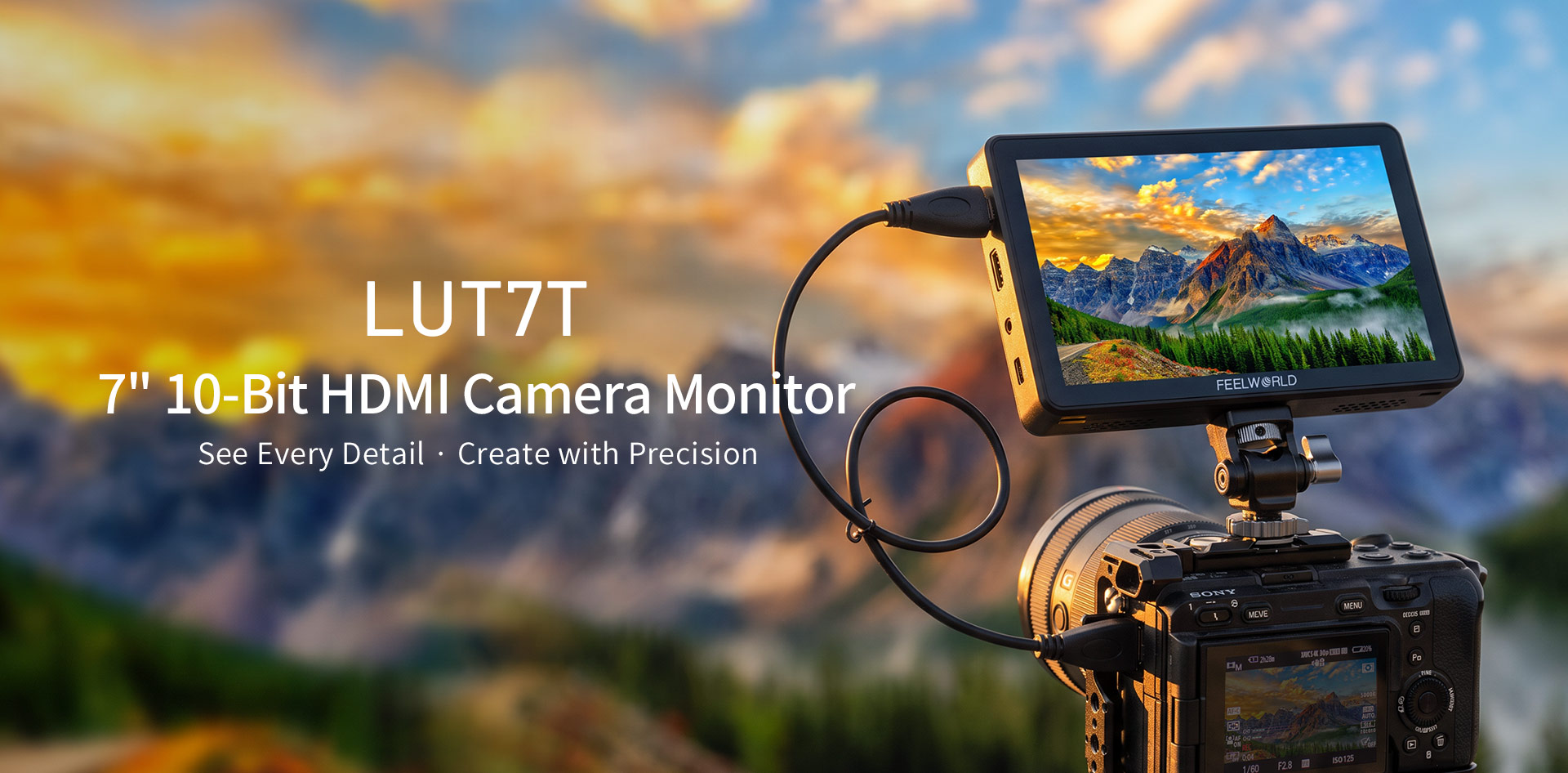

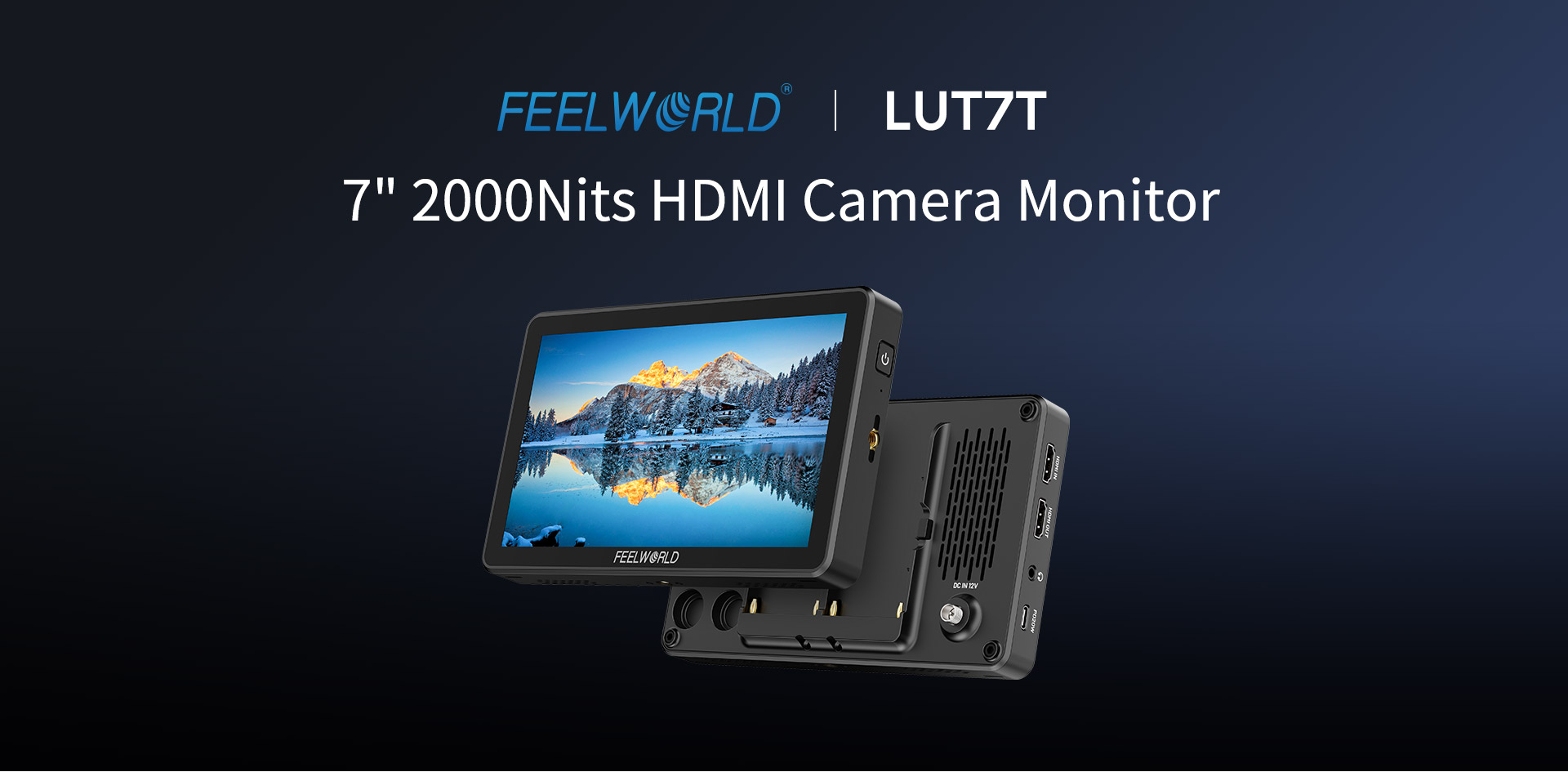

See More. Shoot Better. Create Freely
The FEELWORLD LUT7T features a native 10-bit display for smooth, accurate color gradation and exceptional image detail. Its 2000-nit high brightness, combined with AG+AF coatings, minimizes glare, reflections, and fingerprint interference, ensuring clear visibility even under bright outdoor conditions.
With HDMI 2.0, the LUT7T delivers reliable, high-bandwidth signal transmission, while its slim, lightweight design makes it easy to mount and carry on set. A comprehensive suite of professional monitoring tools—including HDR, 3D LUTs, waveform, vectorscope, histogram, and focus assist—gives you precise control over exposure, color, focus, and composition. From setup to final capture, the LUT7T helps you monitor more efficiently, make more confident decisions, and bring every shot closer to your creative vision.

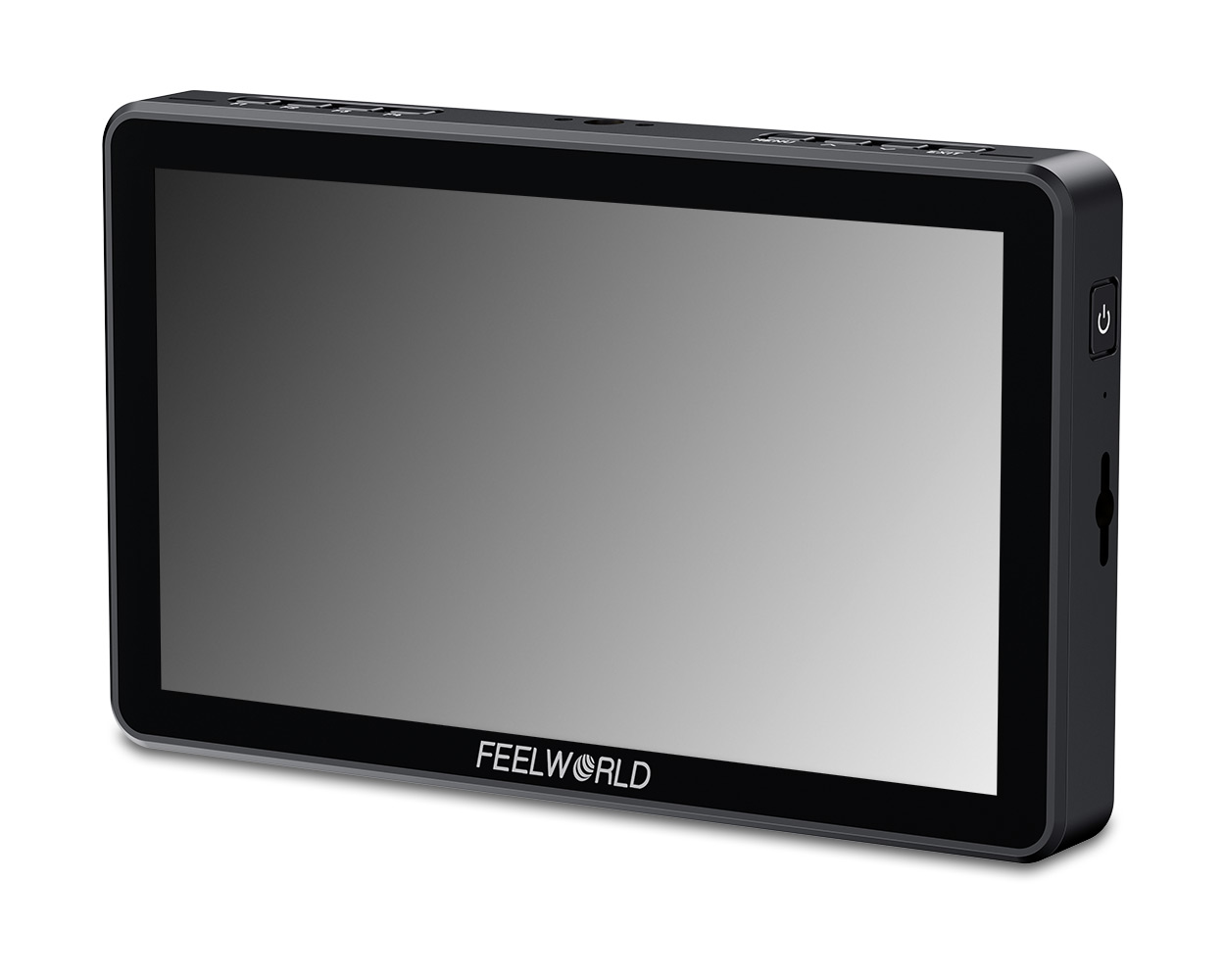

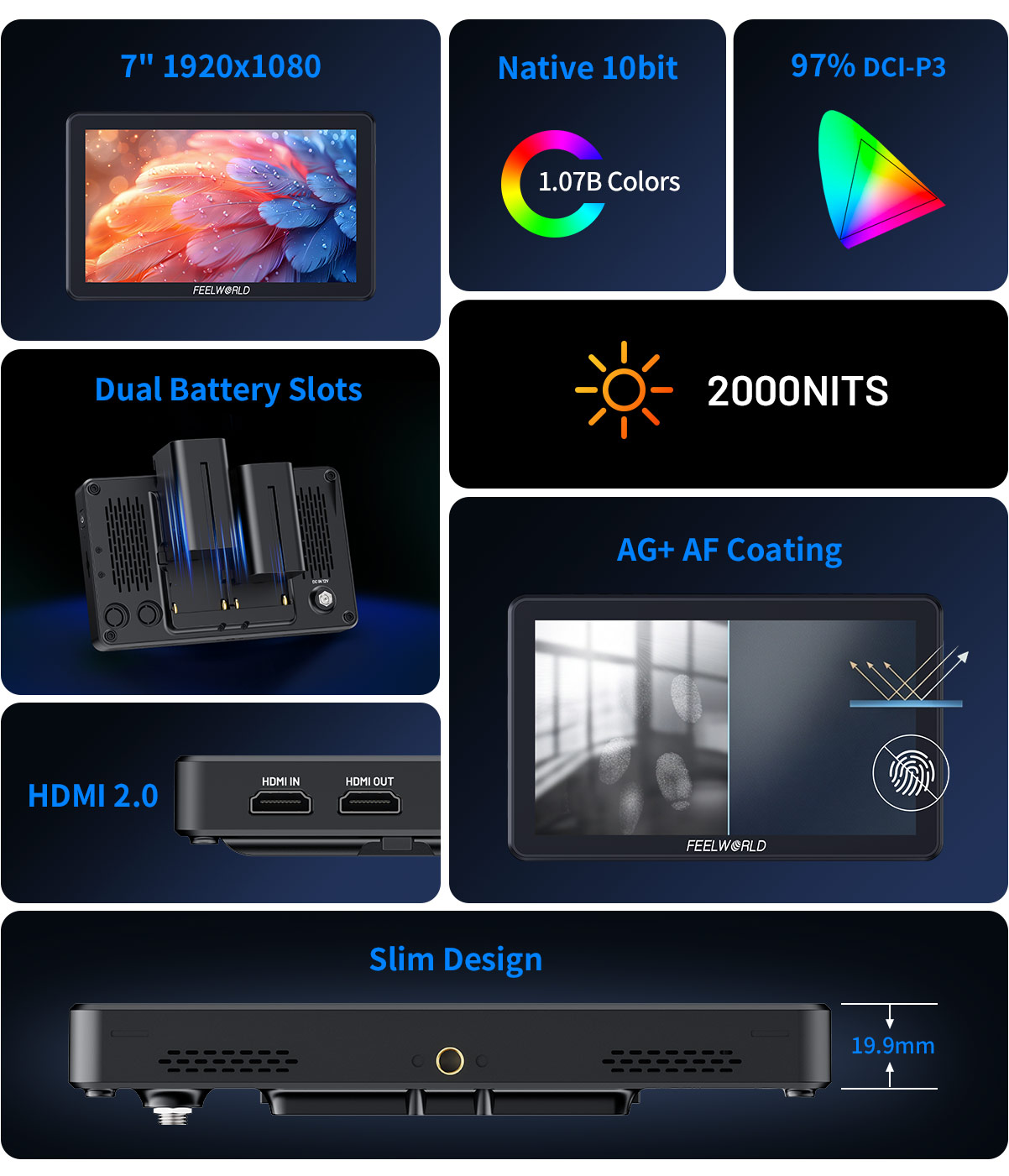

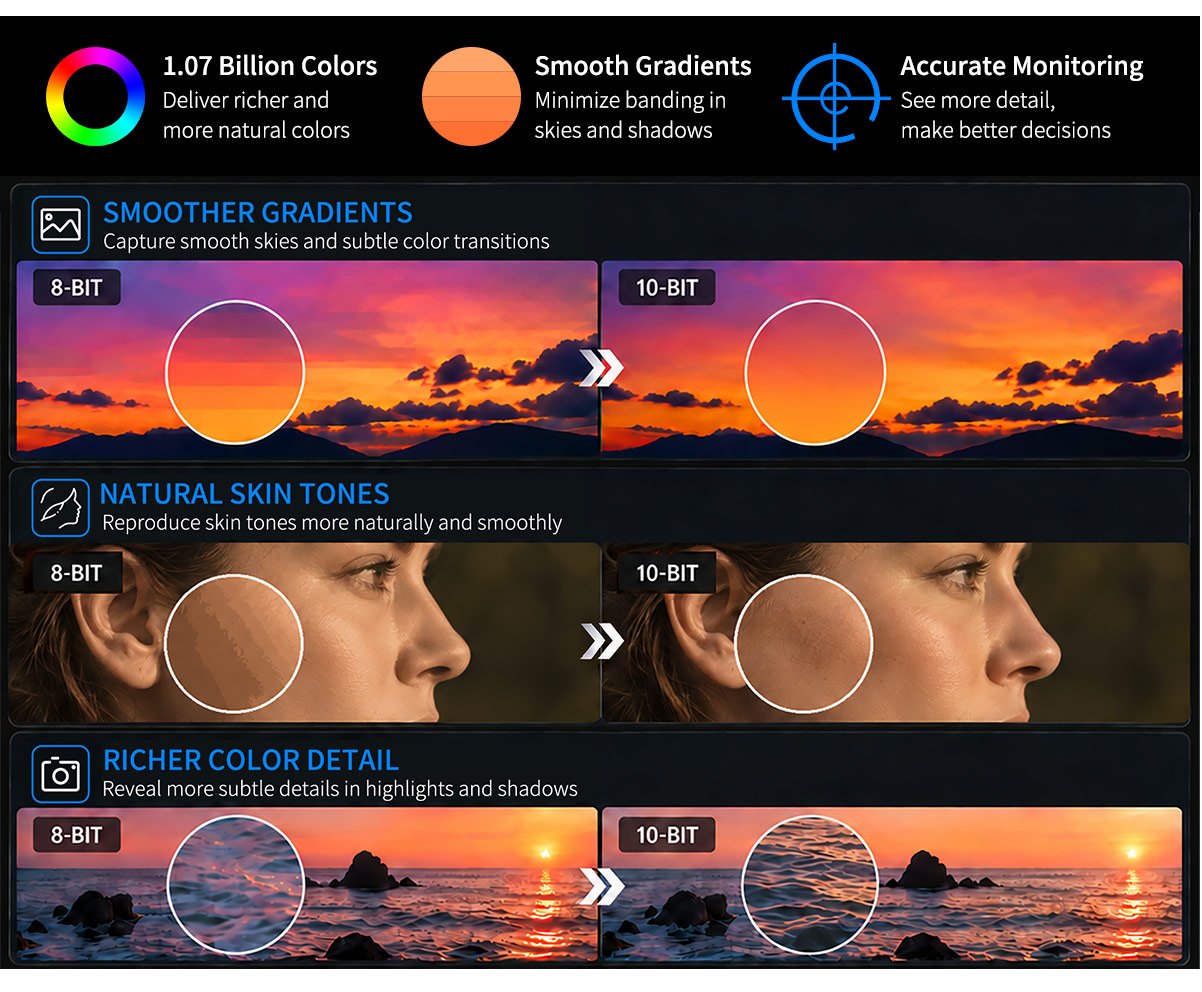

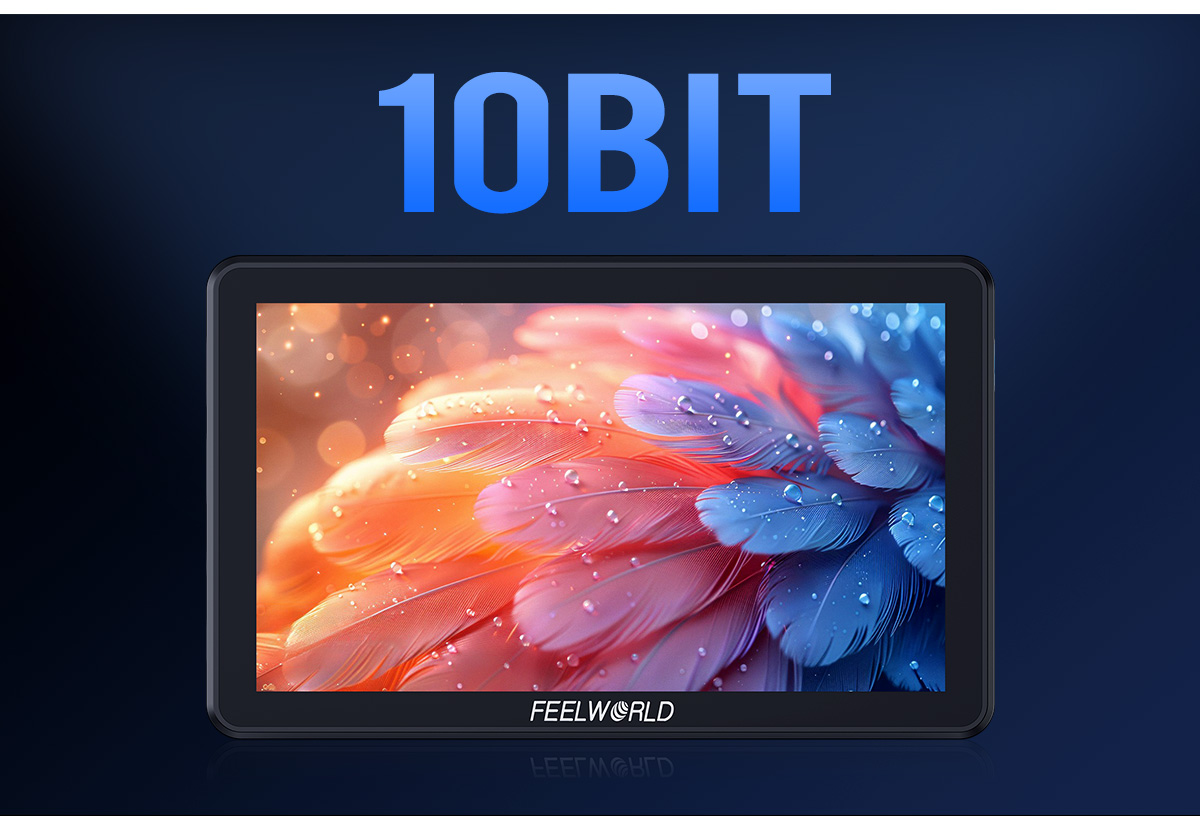

7" Native 10-bit Panel
Richer Color, Smoother Gradients, Accurate Monitoring
Equipped with 7-inch full HD native 10-bit panel, see smoother gradients, richer colors and finer details for more accurate on-set monitoring.

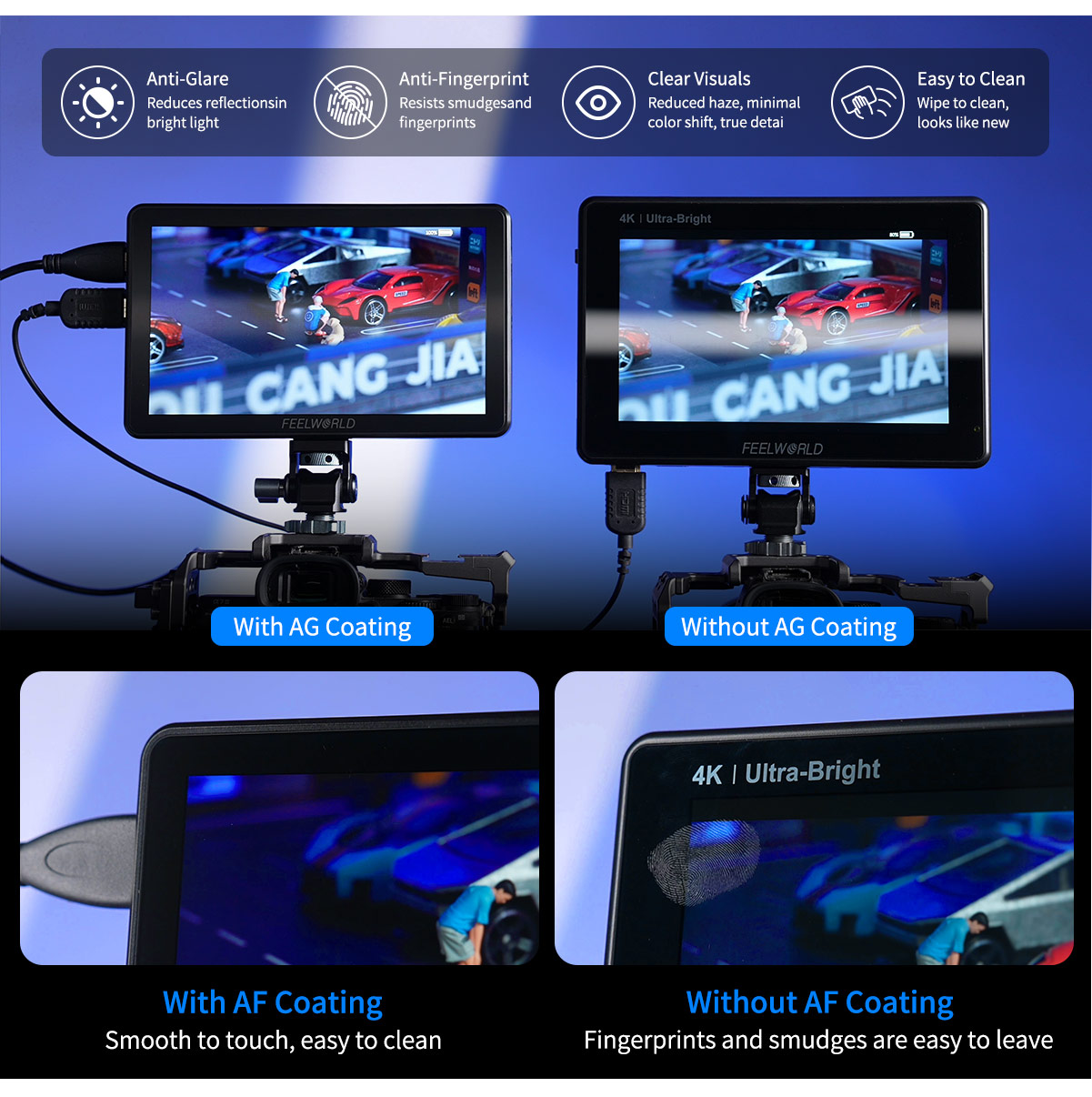

Anti-Glare & Anti-Fingerprint Coating
Reduces reflections and fingerprints, ensuring clear visuals inbright environments while keeping the screen clean and pristine. delivering a stable and comfortable monitoring experience.

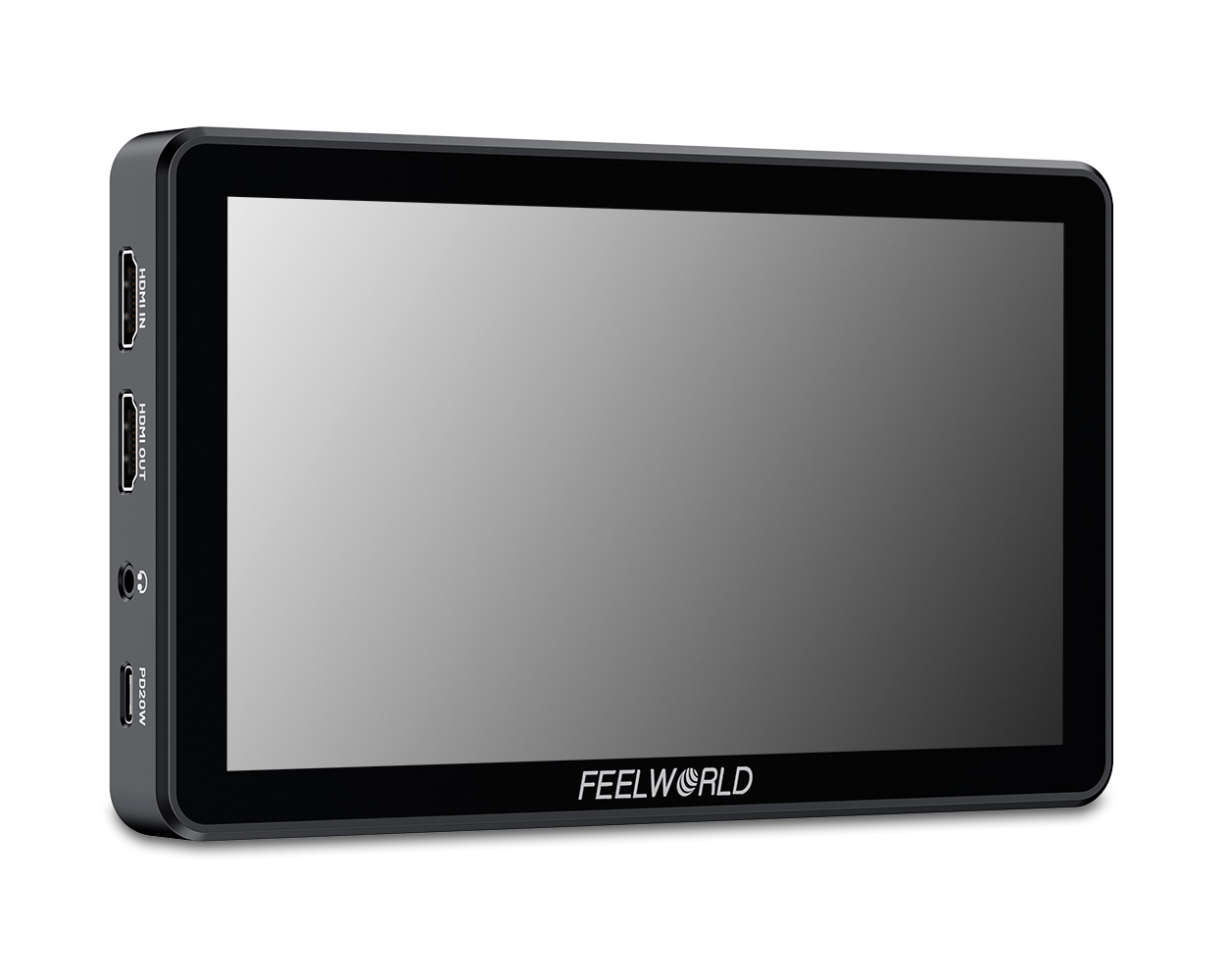

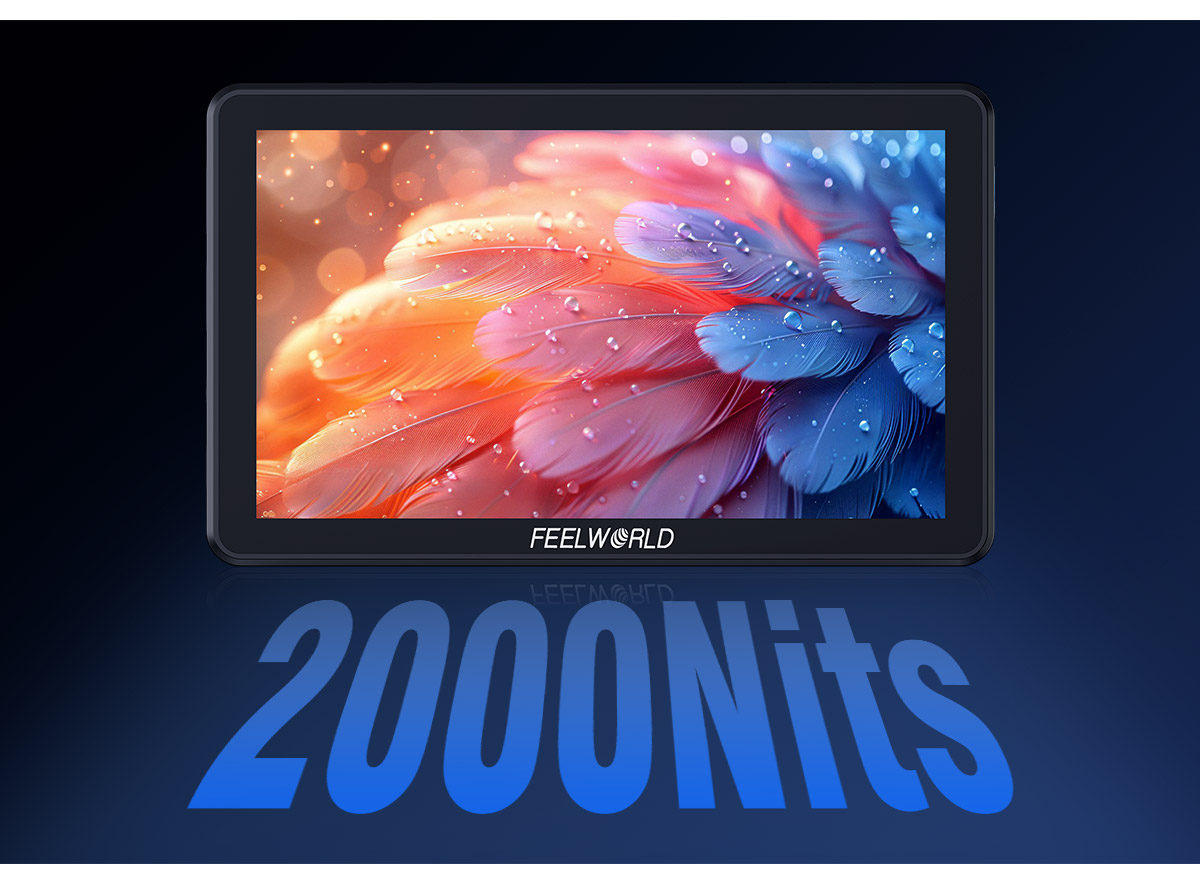

2000Nits Ultra Brightness，Viewable in Sunlight
2000nits Ultra-High Peak Brightness offsets AG coating light loss, nsuring clear visibility even under direct sunlight and harsh outdoor lighting. Perfect for outdoor live streaming and monitoring.

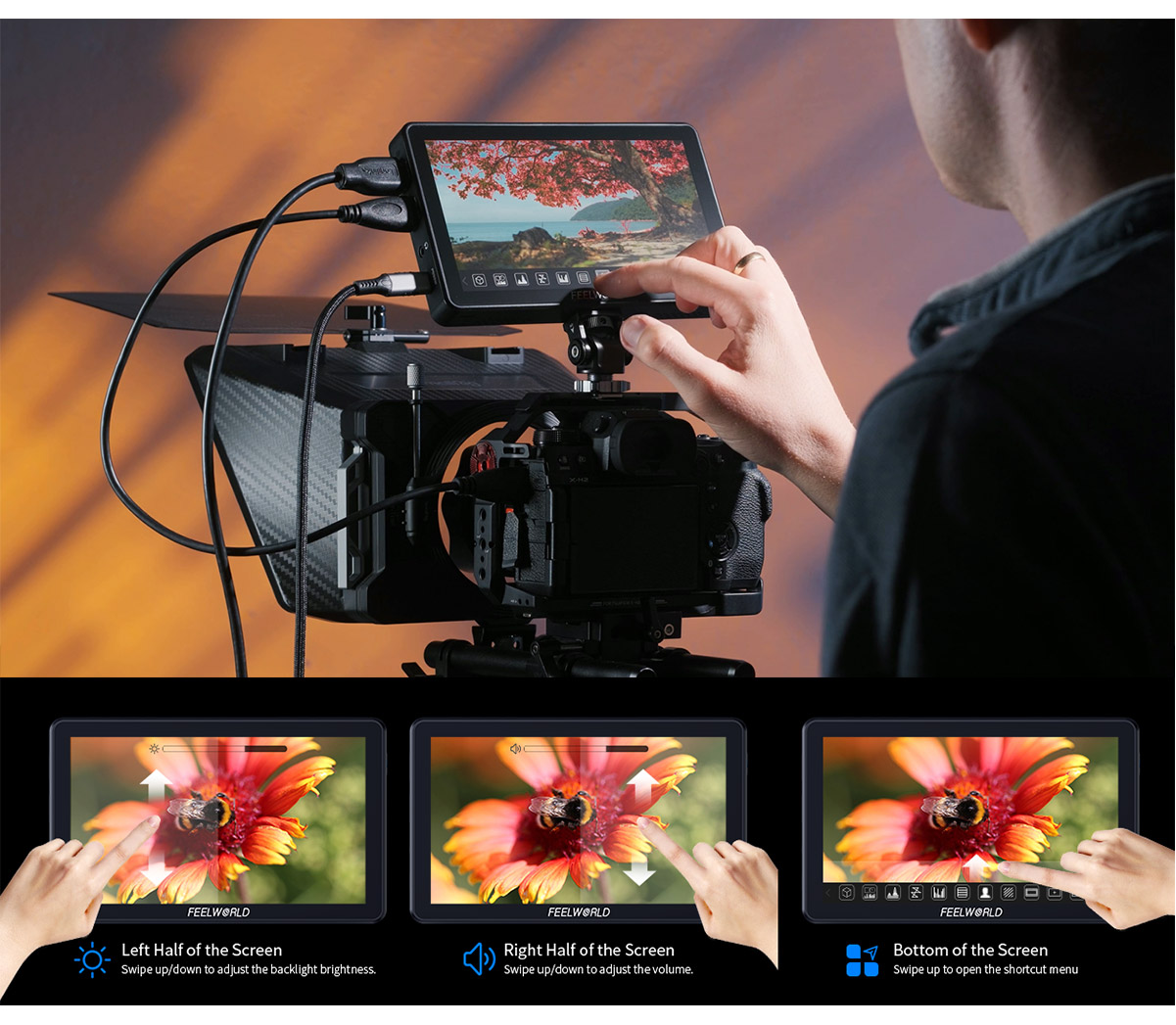

Responsive Touch Control
An innovative LCD touchscreen interface gives you comprehensive, precise control. Simply tap or swipe to access and adjust settings effortlessly.

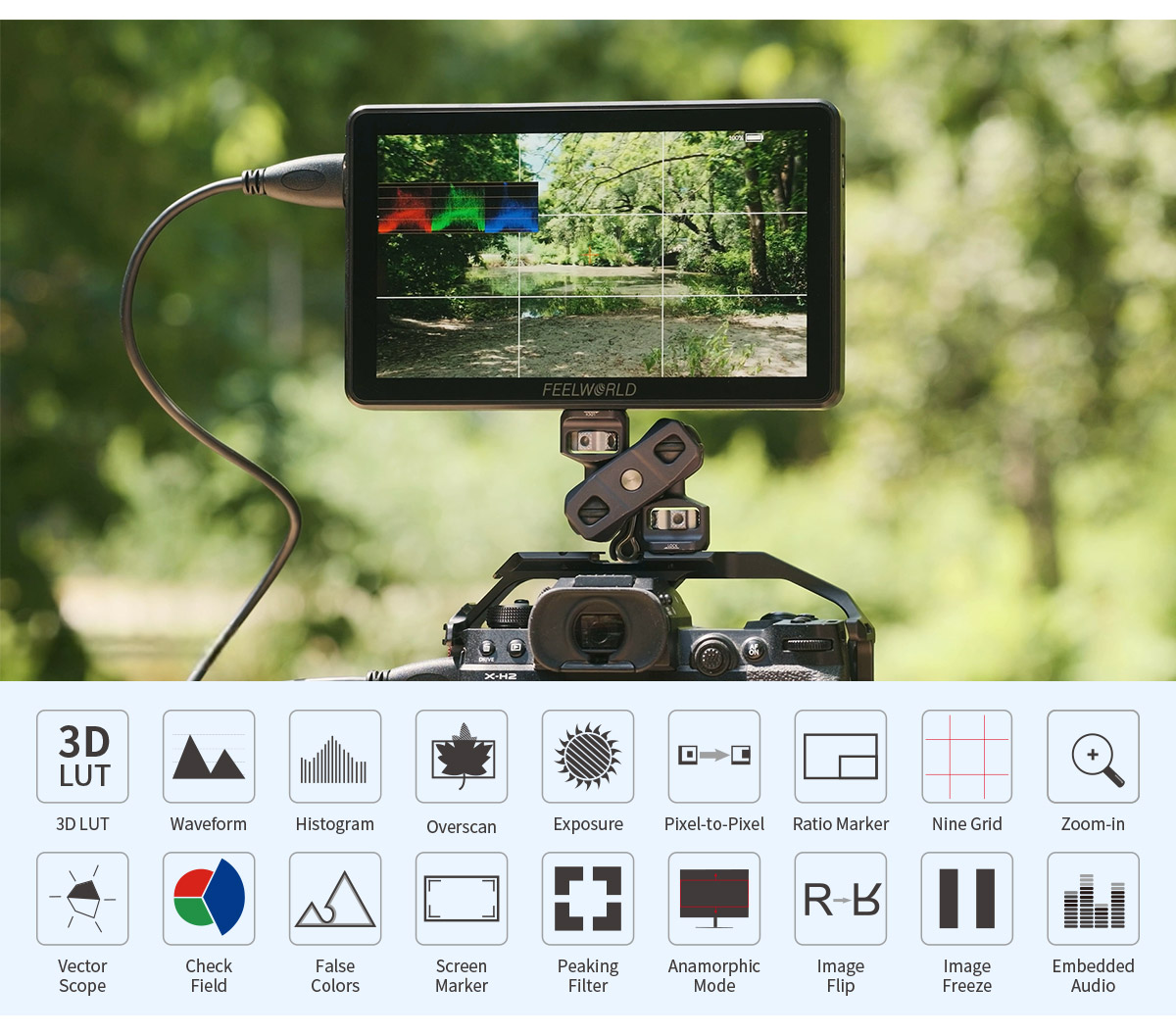

Professional Monitoring, Powerful Tools
Achieve accurate focus and exposure with comprehensive monitoring tools, from on-set production to post-production.

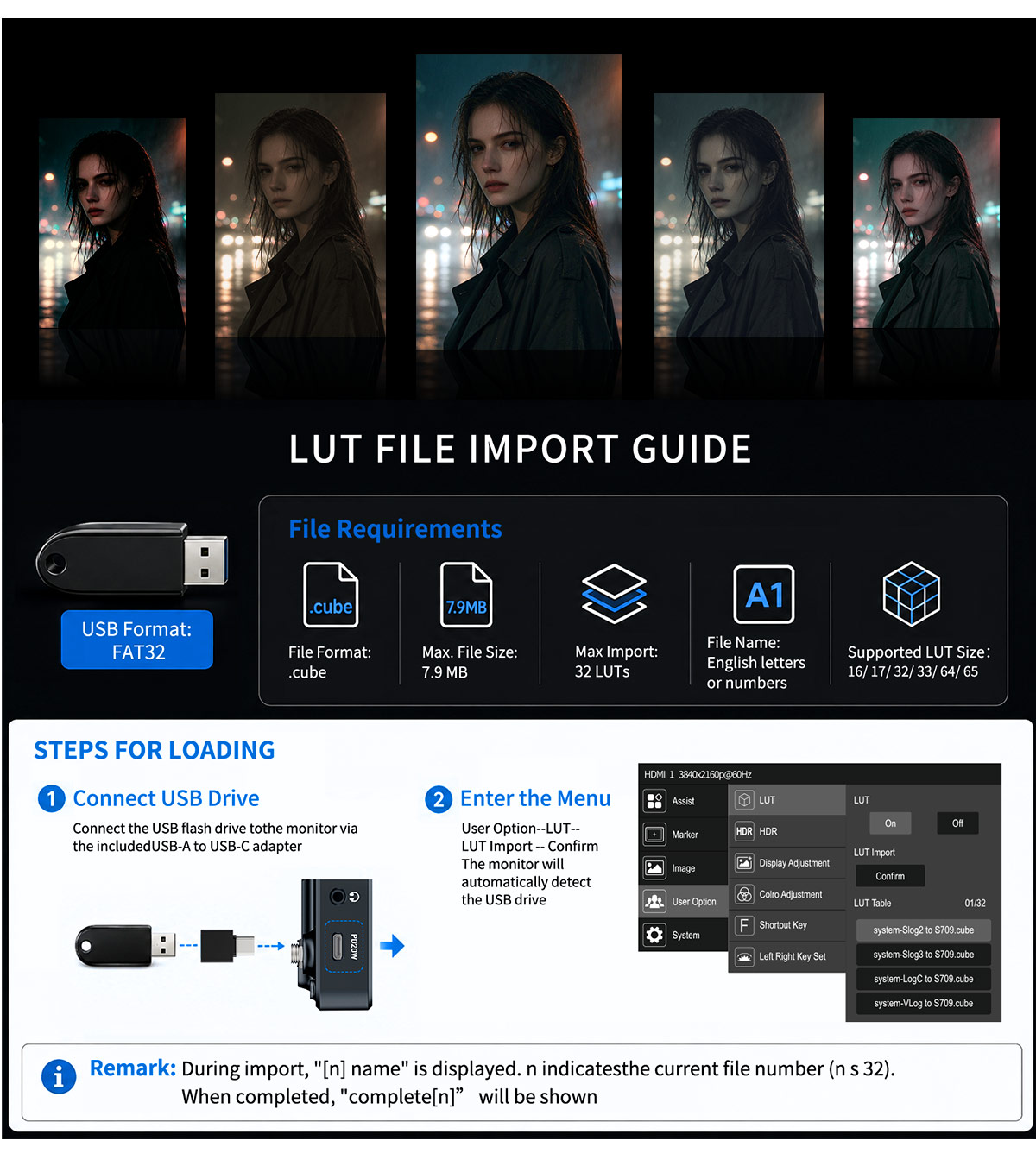

Load 3D LUTs, Preview Cinematic Looks
LUT support simplifies on-set color management and streamlines your workflow. It includes 4 built-in LUTs — S-Log2, S-Log3, LogC, and V-Log — and supports uploading 32 custom .cube files for creating and previewing your own cinematic looks.

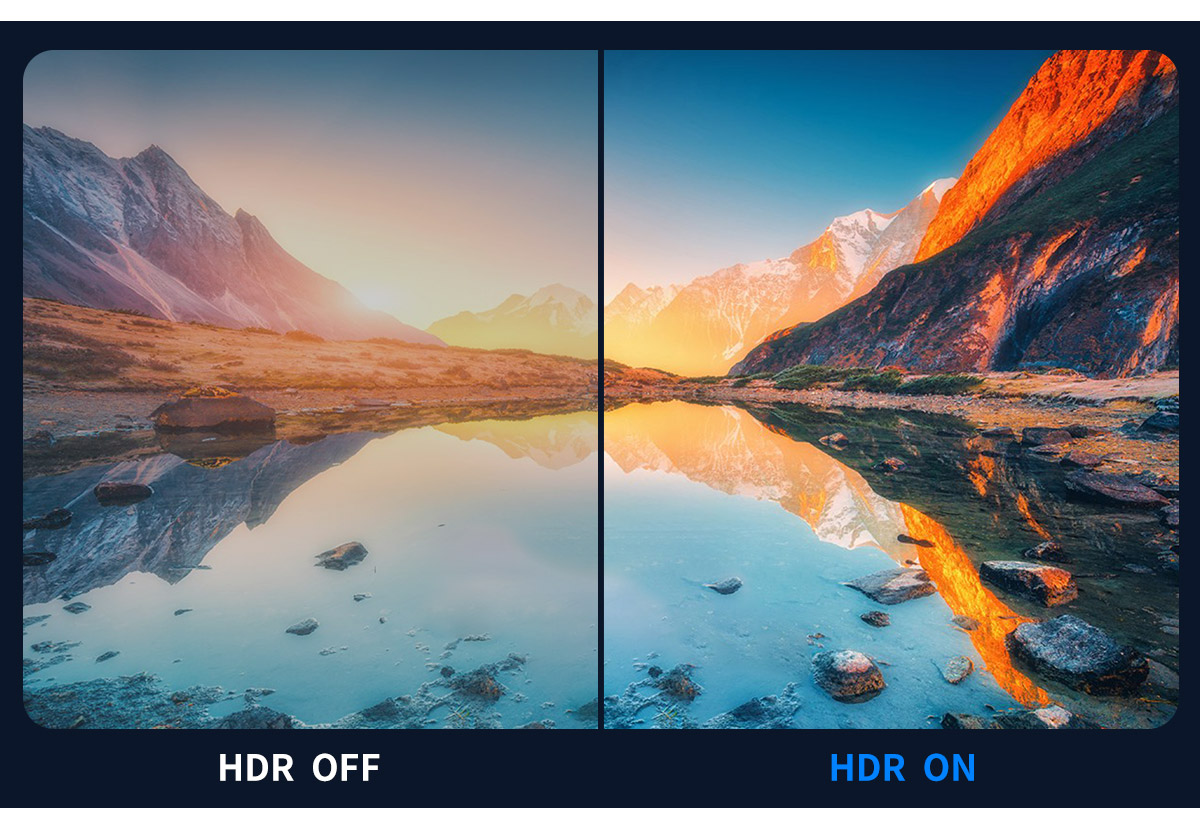

Dynamic HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

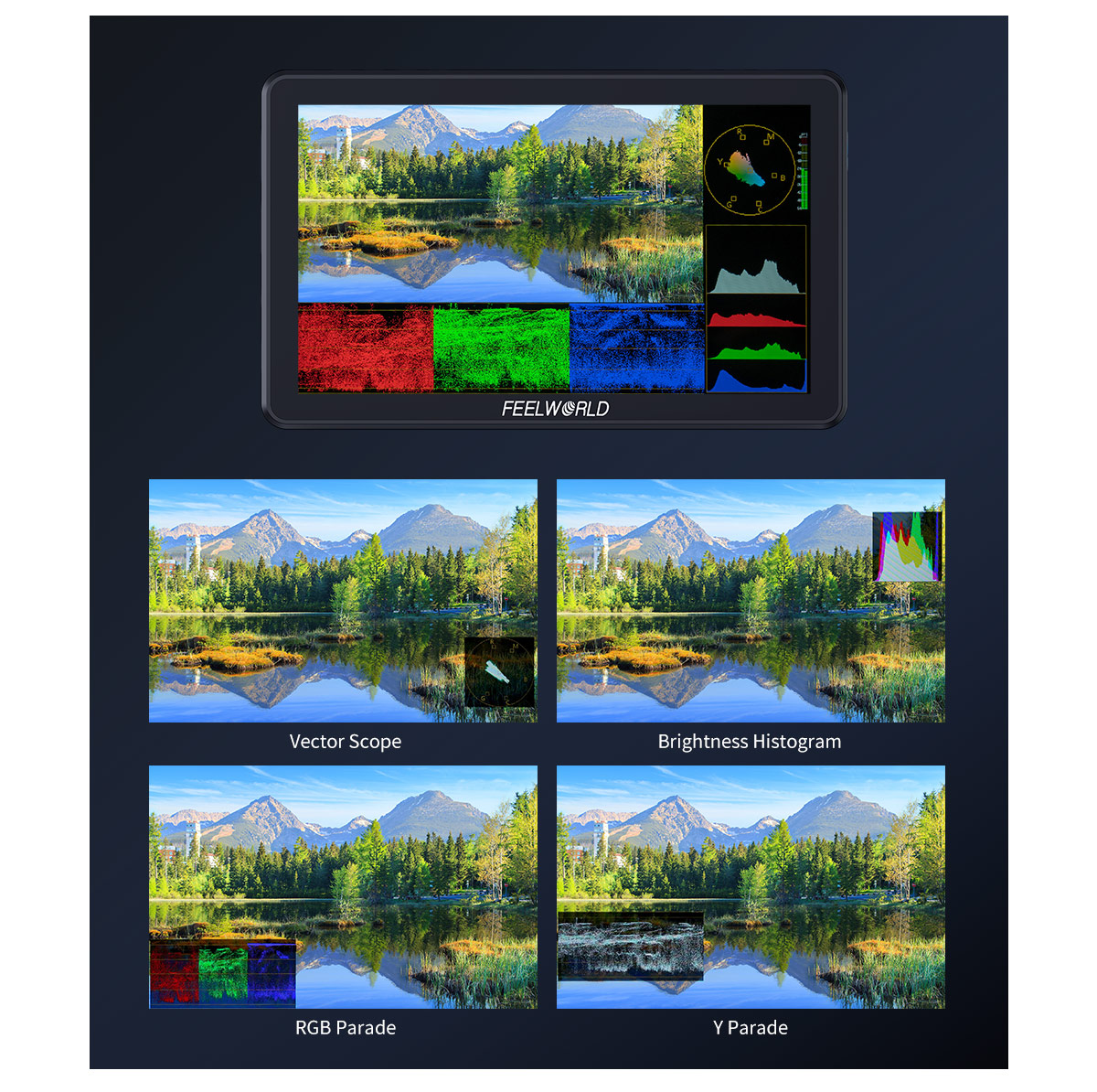

Comprehensive Waveform Monitoring, Precise Signal Control
Supports waveform, vector scope, histogram, and audio level displays for comprehensive monitoring of video and audio signals.

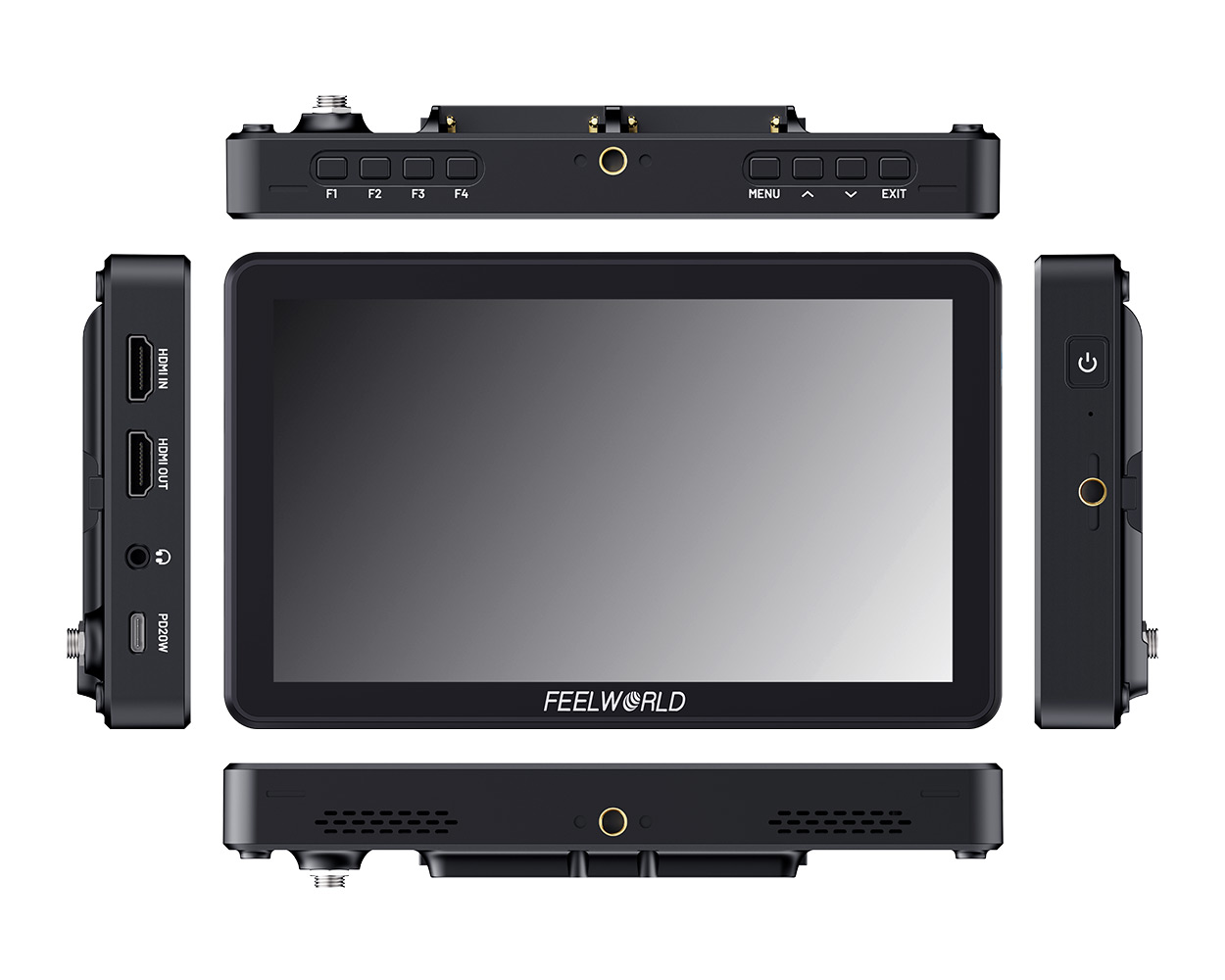

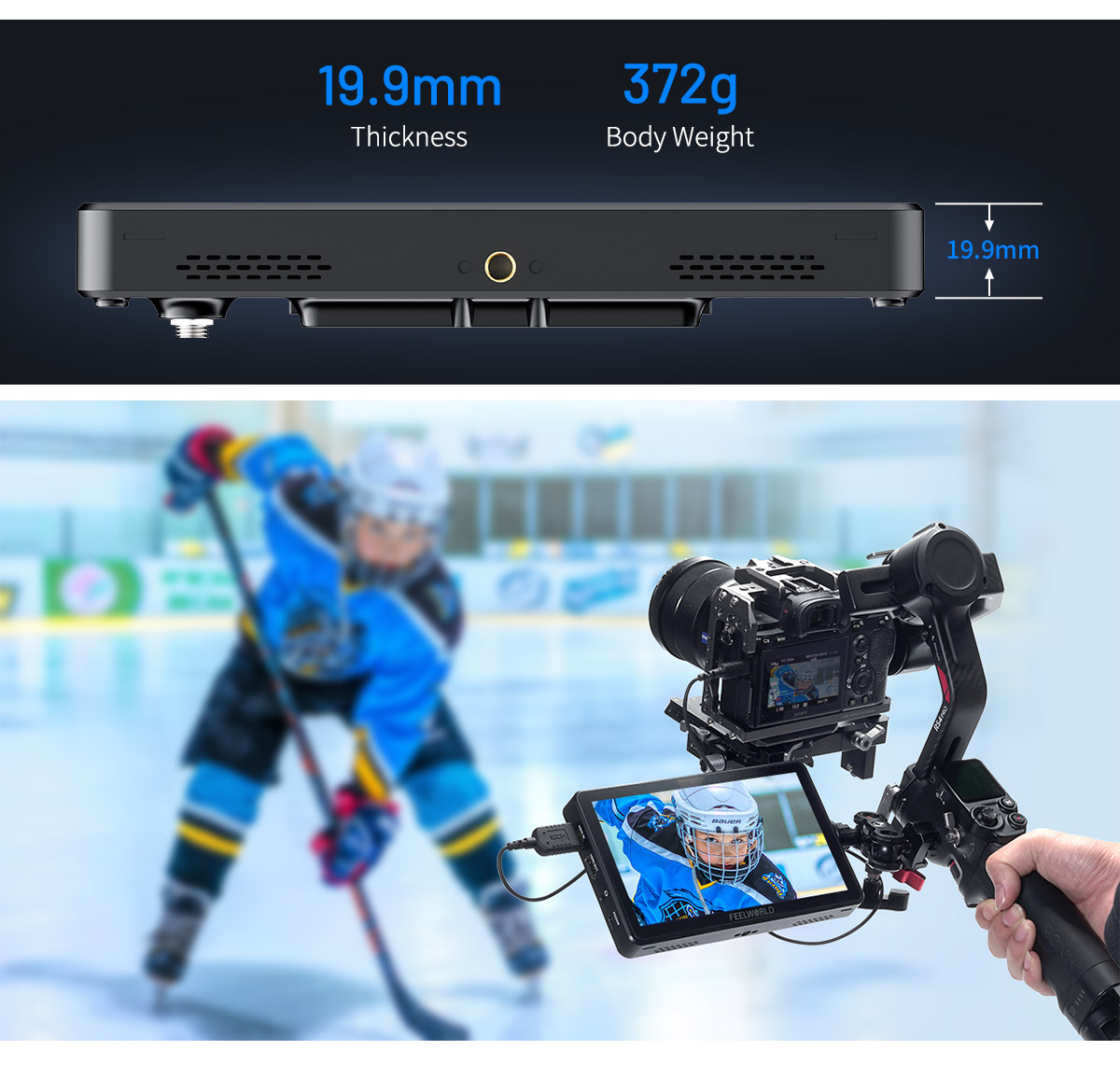

Slimmer Form. Enhanced Portability
Traditional 7-inch monitors can feel bulky and front- heavy when mounted on a camera. At just 19.9mm thin, LUT7T keeps your setup slim, lightweight, and more comfortable to handle.

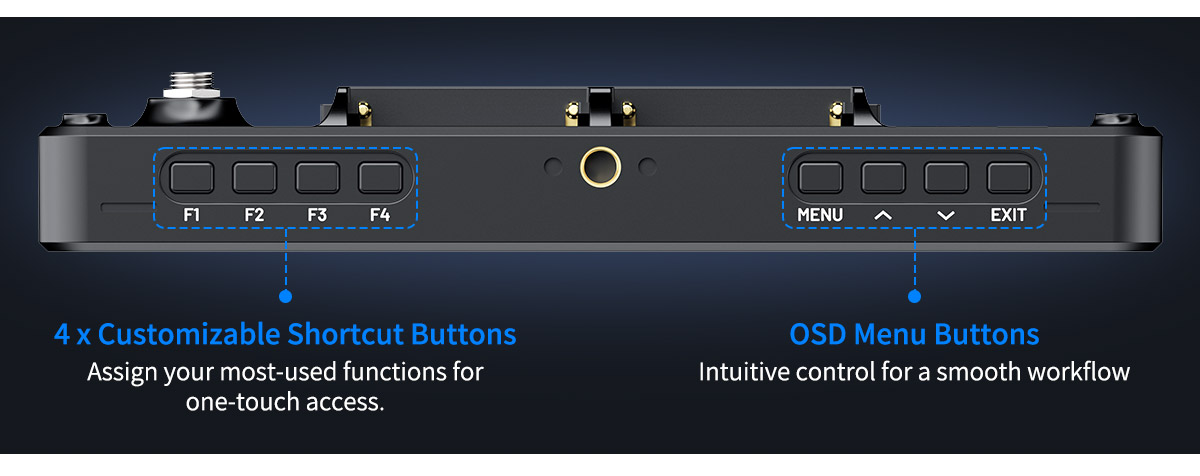

Physical Button Control
Simple. Intuitive. Always at Your Fingertips
LUT7T combines intuitive physical controls with four customizable shortcut buttons, giving you instant access to your most-used functions and keeping your shooting workflow fast and efficient.

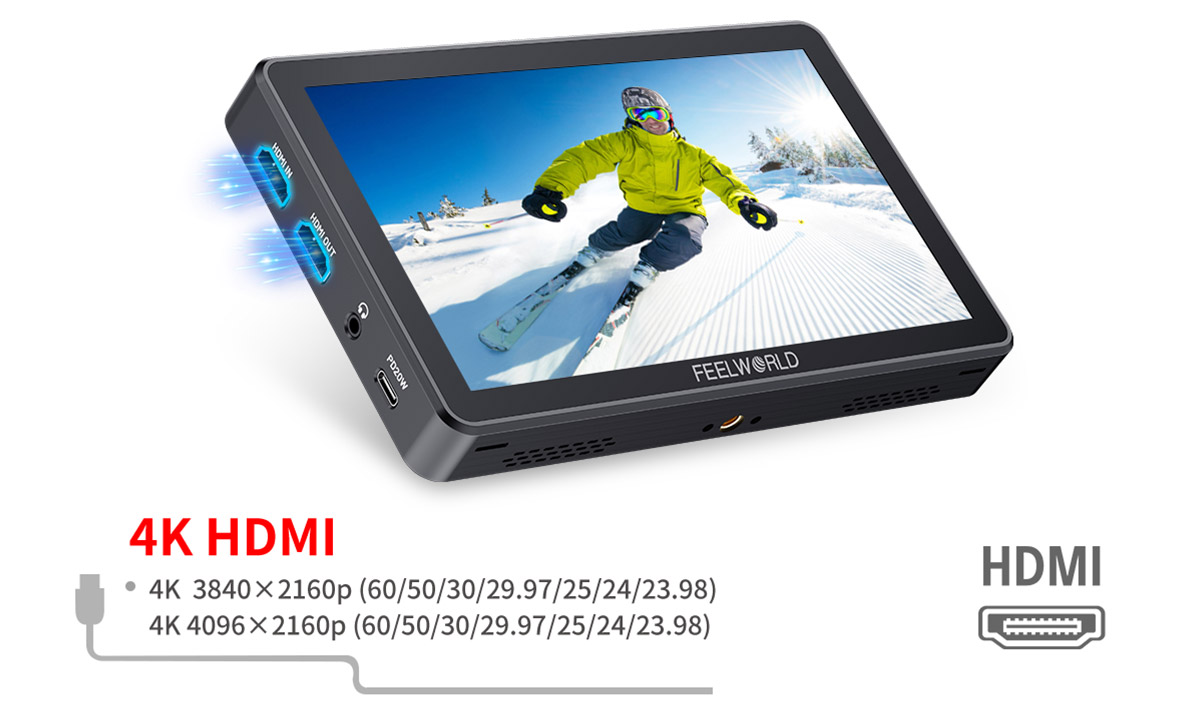

HDMI 2.0 Input & Output, High-Speed Transmission
Support up to 4096x2160/60p &3840x2160/60p signal, compatible with camcorder and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

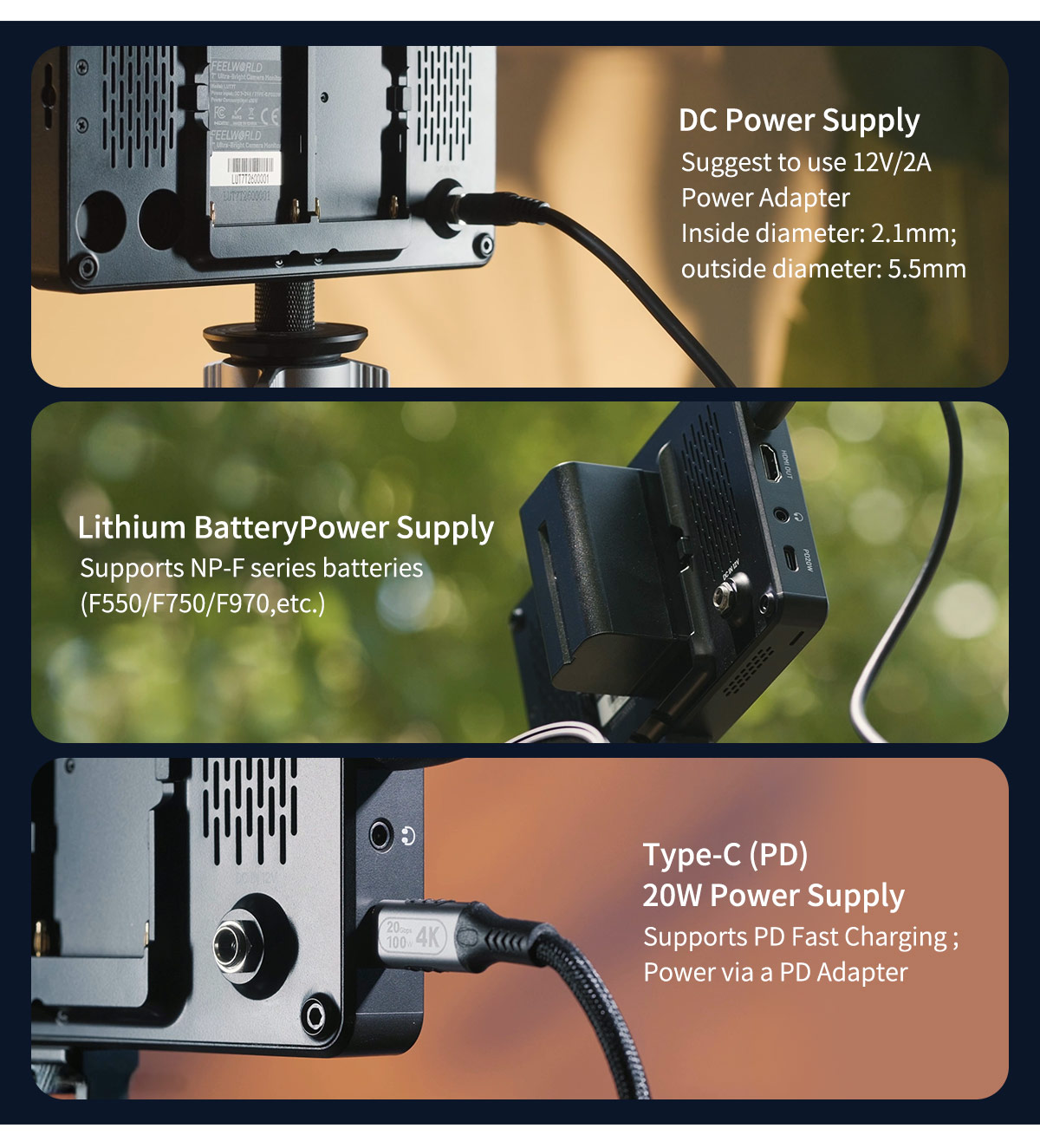

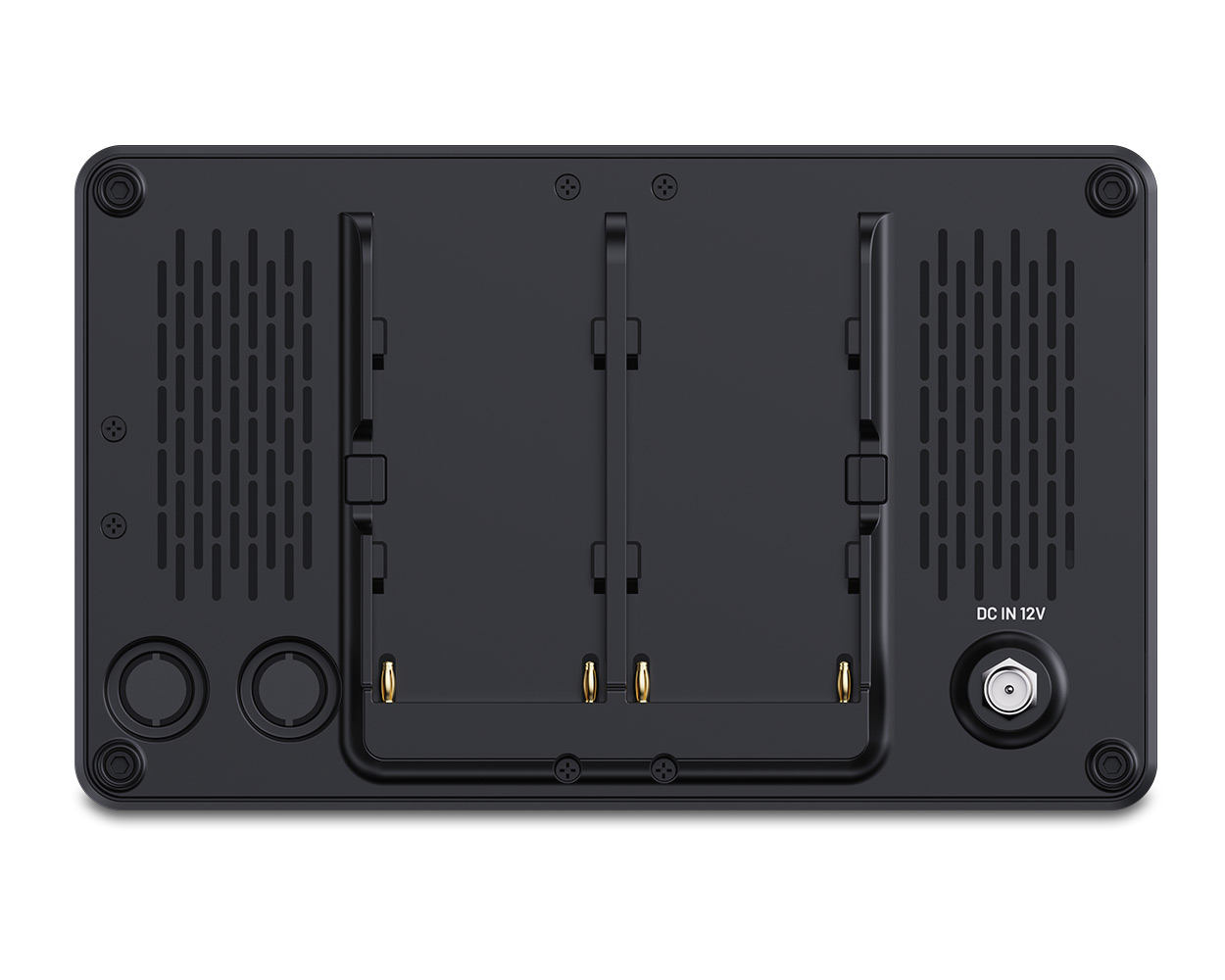

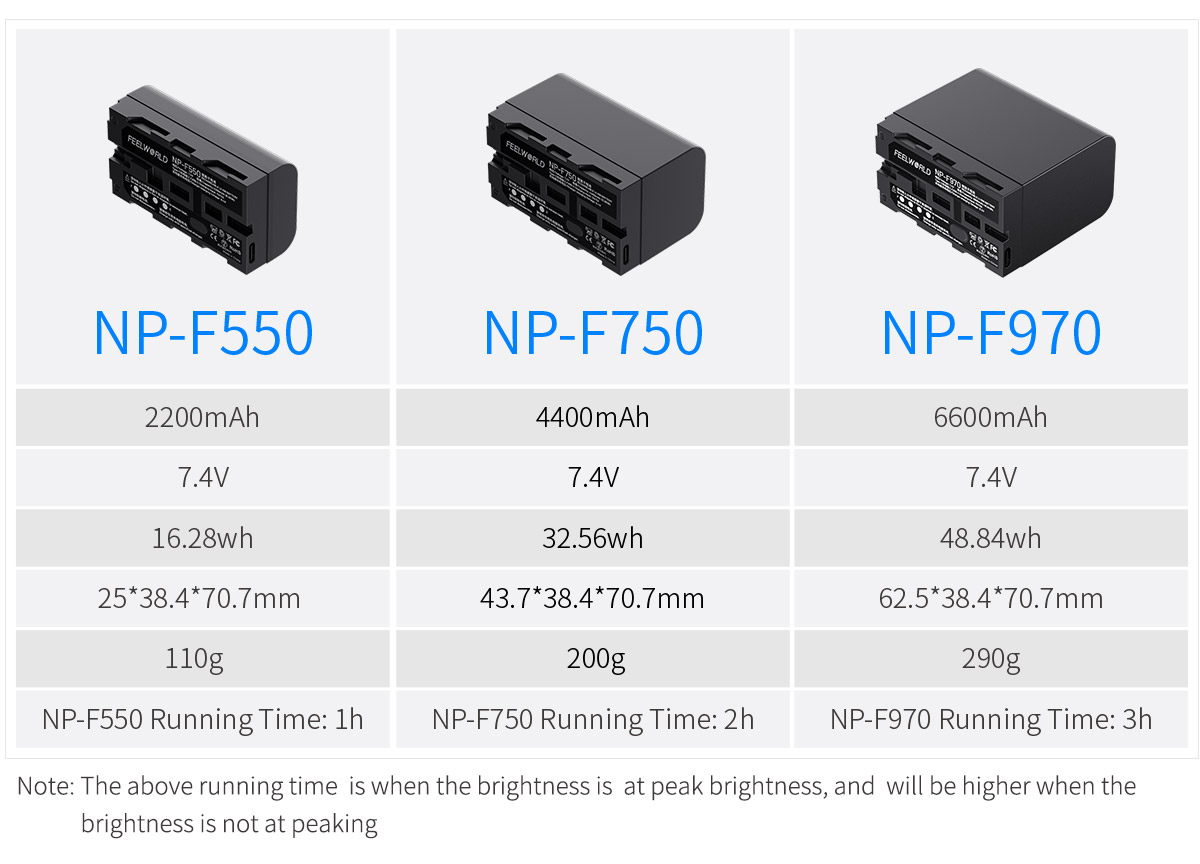

Versatile Power Options
NP-F Battery Optional Recommendation
The power consumption of LUT7T is 16W, you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

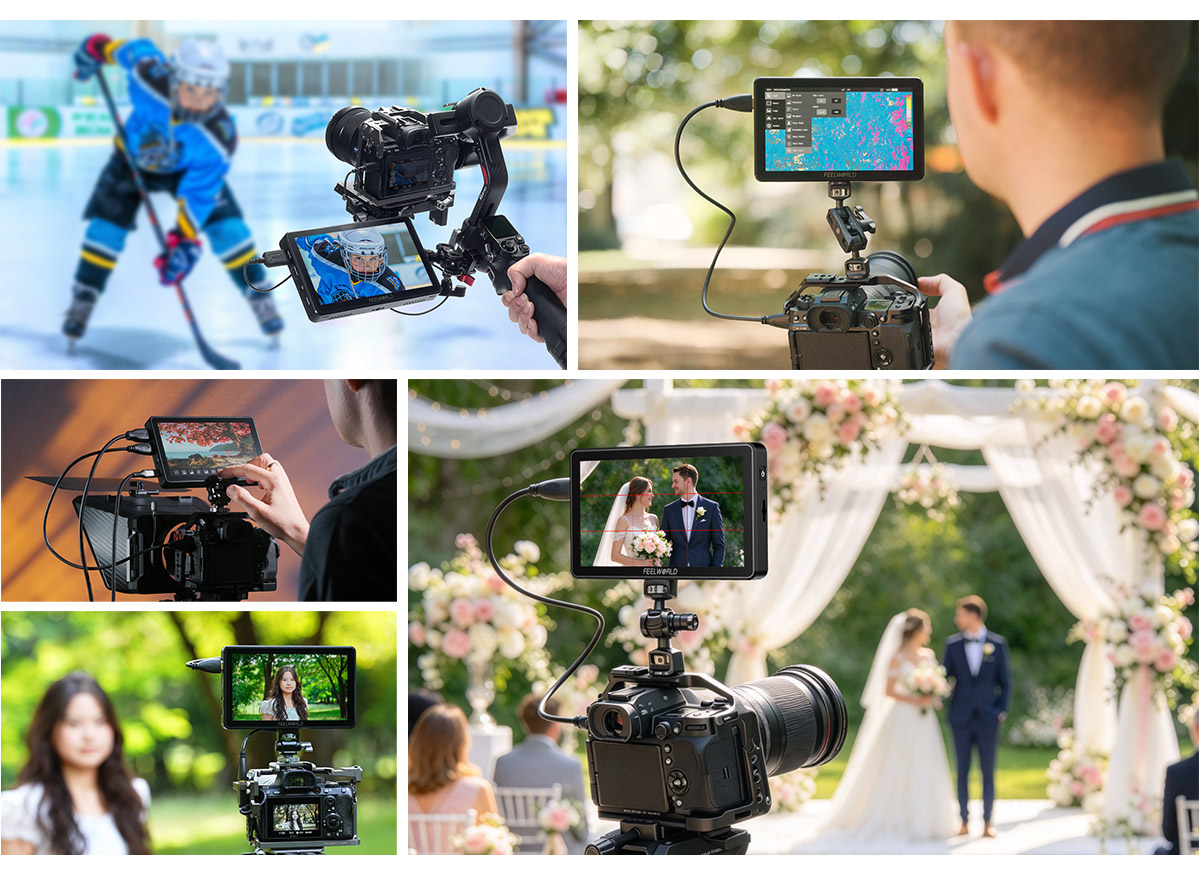

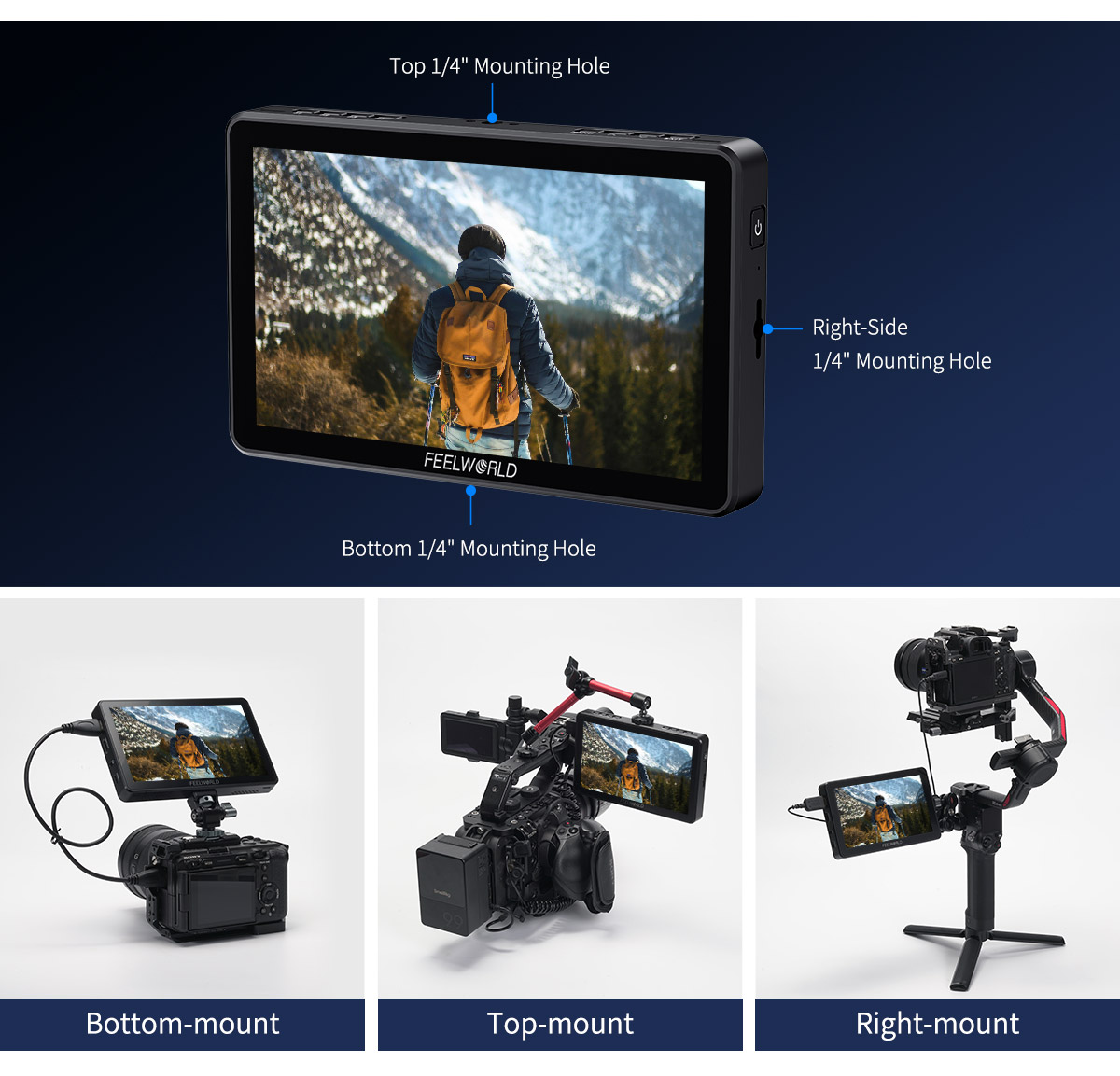

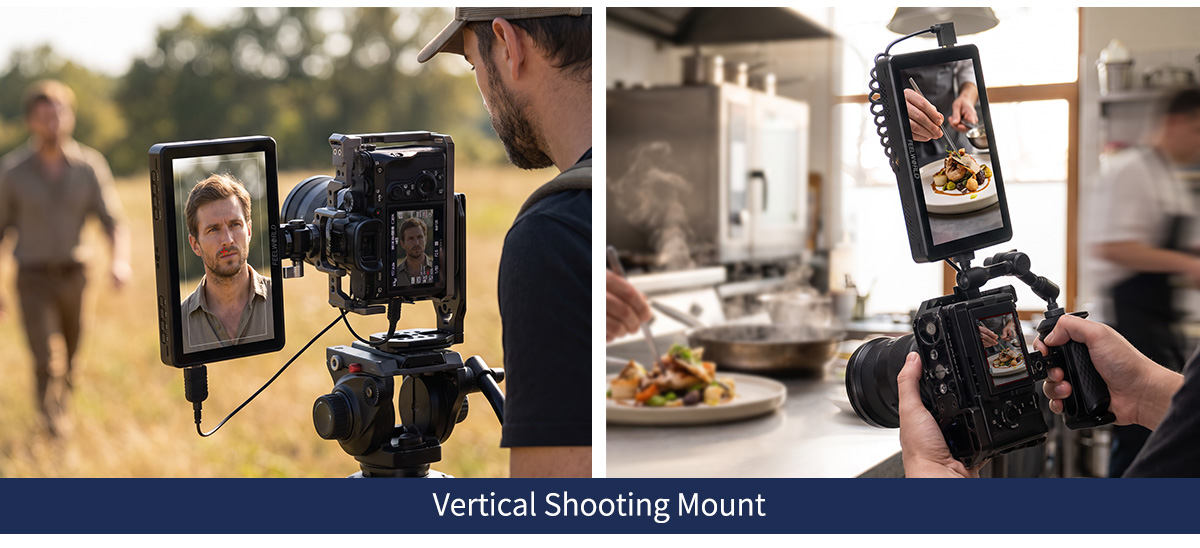

Flexible mounting to meet diverse monitoring requirements.
Up to 12 Languages
Built-in up to 12 languages, that means LUT7T is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

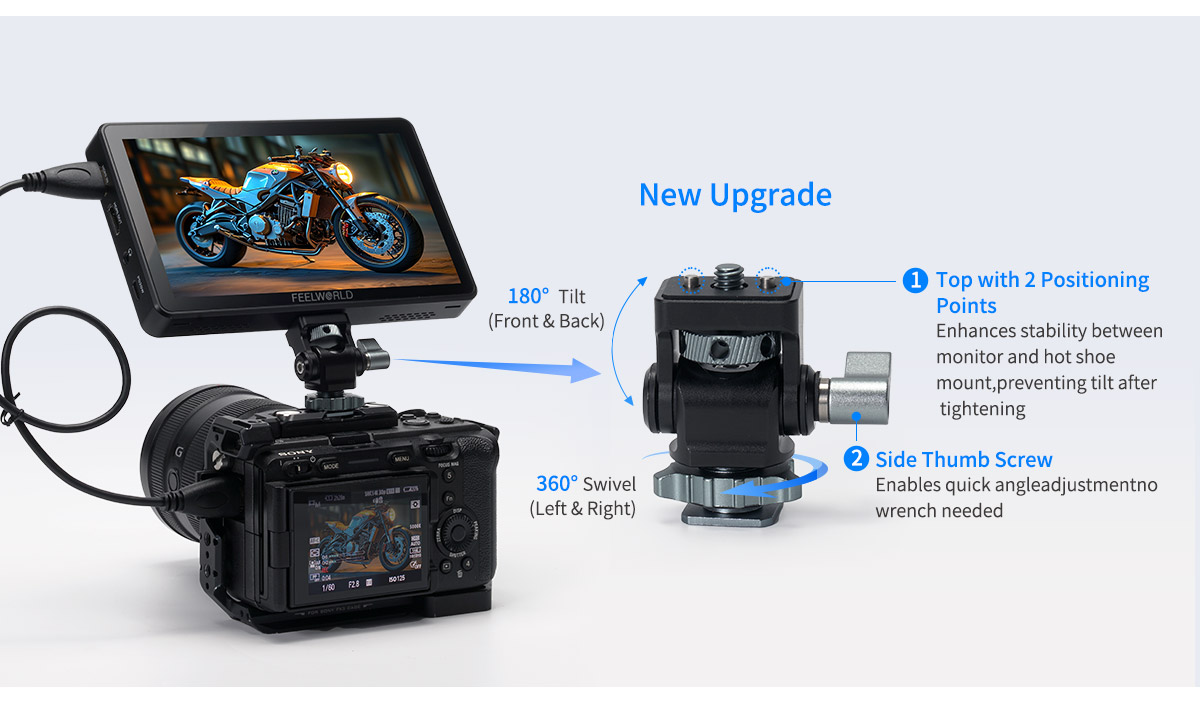

Upgraded Hot Shoe Mount Adapter
Secure Connection. Quick Adjustment.
Upgraded hot shoe mount adapter with dual positioning points for a more secure connection, a side thumb screw for quick adjustment, and 180° tilt + 360° rotation for flexible viewing angles.

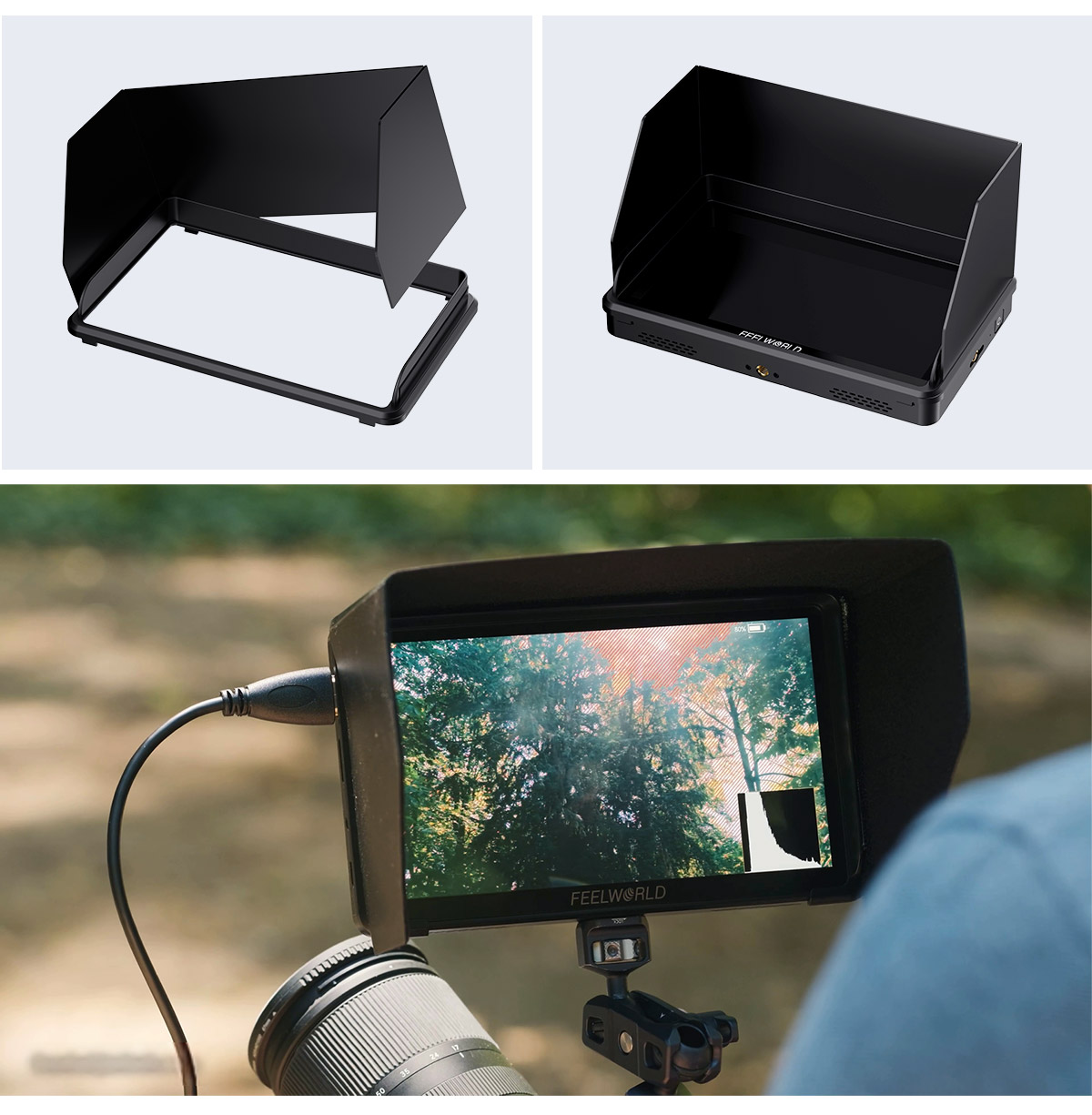

Portable Sun-hood
The standard portable sun-hood can easy to resist the strong light, and easy to install.

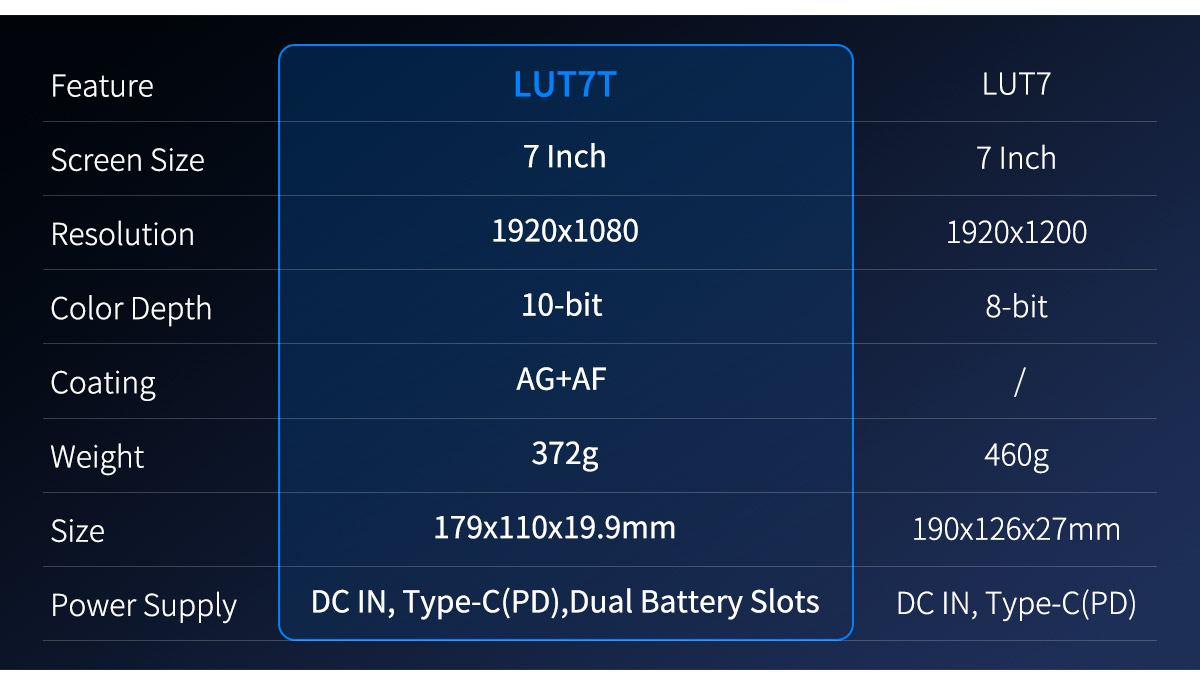

LUT7T Feature Upgrade Comparison
Advanced Features
| * Support custom 3D LUT uploading (up to 32) |
| * Waveform (RGB, YUV, Y) |
| * HDR (HLG1,HLG2,HLG3) |
| * Vector |
| * Histogram (RGB1、RGB2、Y) |
| * Embedded Audio |

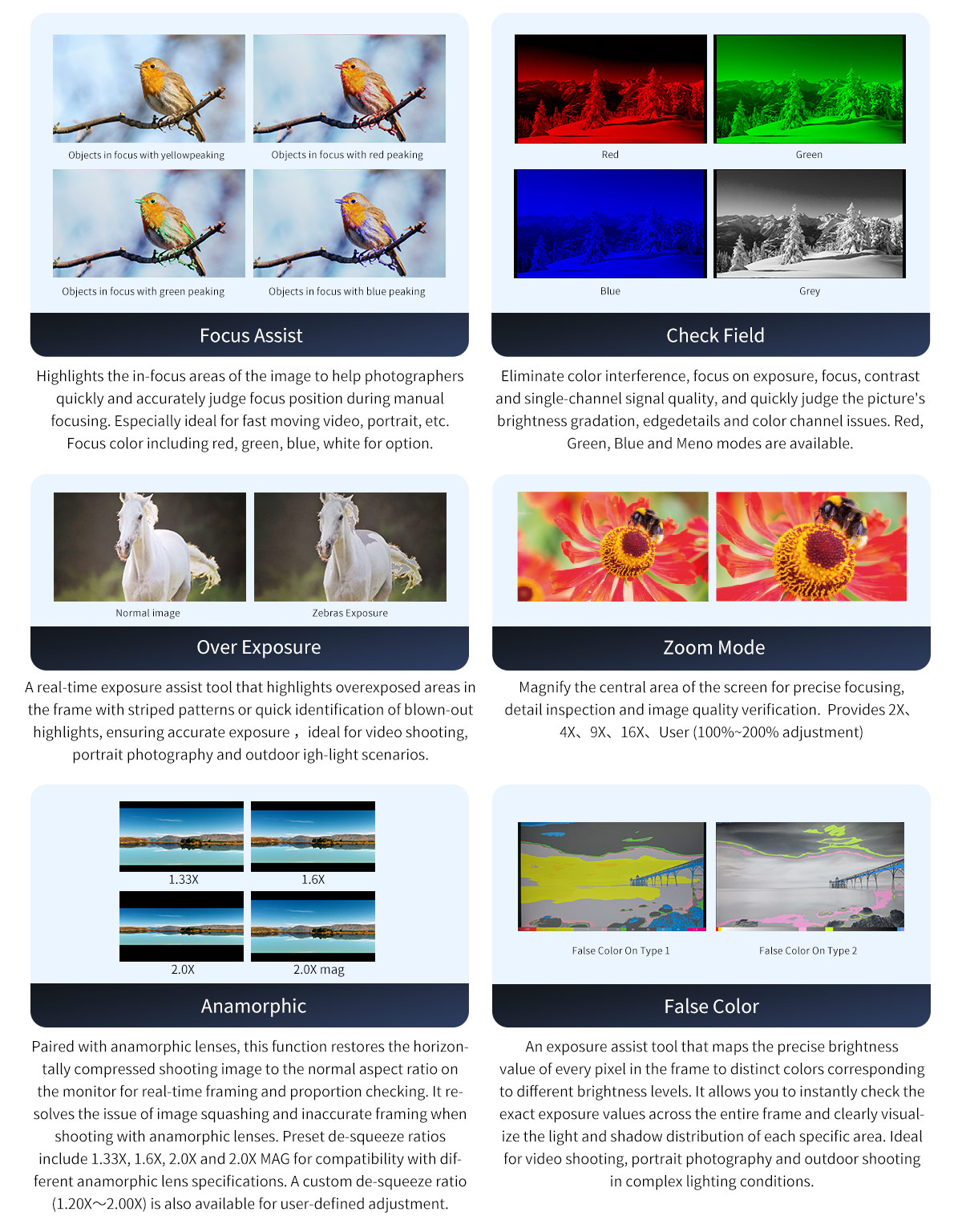

| * Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable) |
| * False Colors (Normal, ARRI) |
| * Zebra Pattern (10IRE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * SDI Time Code (LTC,VITC) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x) |
| * Image Flip (H Flip, V Flip, H_V Flip ) |
| * Image Freeze |
| * Center Marker |
| * Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16) |
| * Marker Color (Red, Green, Blue, Black, White, Gray) |
| * Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9) |
| * Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%) |
| * Pixel to Pixel |
| * Display Adjustment( Backligt, Brightness, Contrast, Saturation, Tint 0~100 adjustment) |
| * Display Range( Auto, Limit, Full) |
| * EDID Settings(2.0,1.4) |
| * User Switch (1~4) |
| * OSD Time(Off, 15Sec, 30Sec, 45Sec) |
| * OSD Transparency (Off, 25%, 50%, 75%) |
| * The background color of screen when no signal (Red, Green, Blue, Black, White, Gray) |
| * Power Settings ( Auto, Manual) |
| * Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255) |
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 4 ,9, 16, 25, 36, 49,64,81equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1,9:16). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1,9:16). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Display Spec.
| Model | LUT7T |
| Screen Size | 7"IPS |
| Resolution | 1920X1080 pixels |
| Dot Pitch | 0.027(H) x 0.081(V) mm |
| AG+AF Coating | Haze: 10%±4%; Glossiness: ≥70; Light transmittance: ≥83% |
| Color Display | 1.07B |
| Color Depth | 10-bit |
| Color Gamut | 97% DCI-P3 |
| Aspect Ratio | 16:9 |
| Brightness | 2000cd/m² |
| Contrast Ratio | 1500:1 |
| Backlight | LED |
| Response Time | Ton+Toff=25ms |
| Viewing Angle | 88°/88°(L/R) 88°/88°(U/D) |
Signal Input
| 1 X HDMI | HDMI 2.0 |
Signal Output
| 1 X HDMI | HDMI2.0 |
Audio
| Audio | 3.5mm Stereo Headphone |
HDMI Input and Output Support Format
| 480i/576i/480p/576p |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4K 4096×2160p(60/50/30/29.97/25/24/23.98) |
General
| Power Input | DC IN 12V, Barrel (5.5mm outer, 2.1mm inner);Type-C (PD) 20W |
| Battery Slot | Dual NP-F Battery Slots |
| Power Consumption | 16W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread Point (right side, top, bottom) |
| Unit Size | 179Lx110Hx19.9D (mm) |
| Unit Weight | 372g |
| Color Box Size | 222L*158W*78H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 535*230*405 (mm) |
| Gross Weight | kg |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

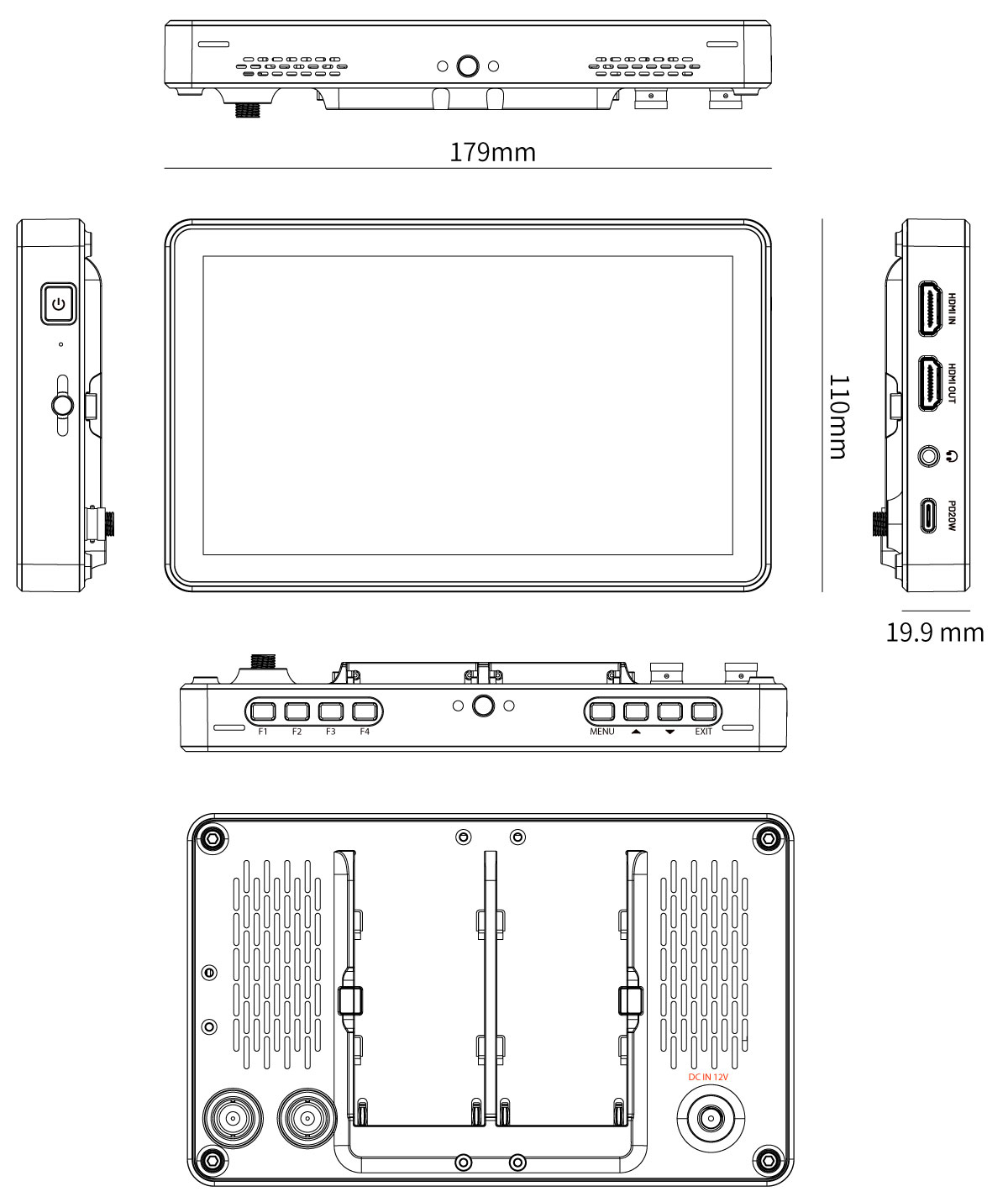

Structure Dimensions (Unit: mm)

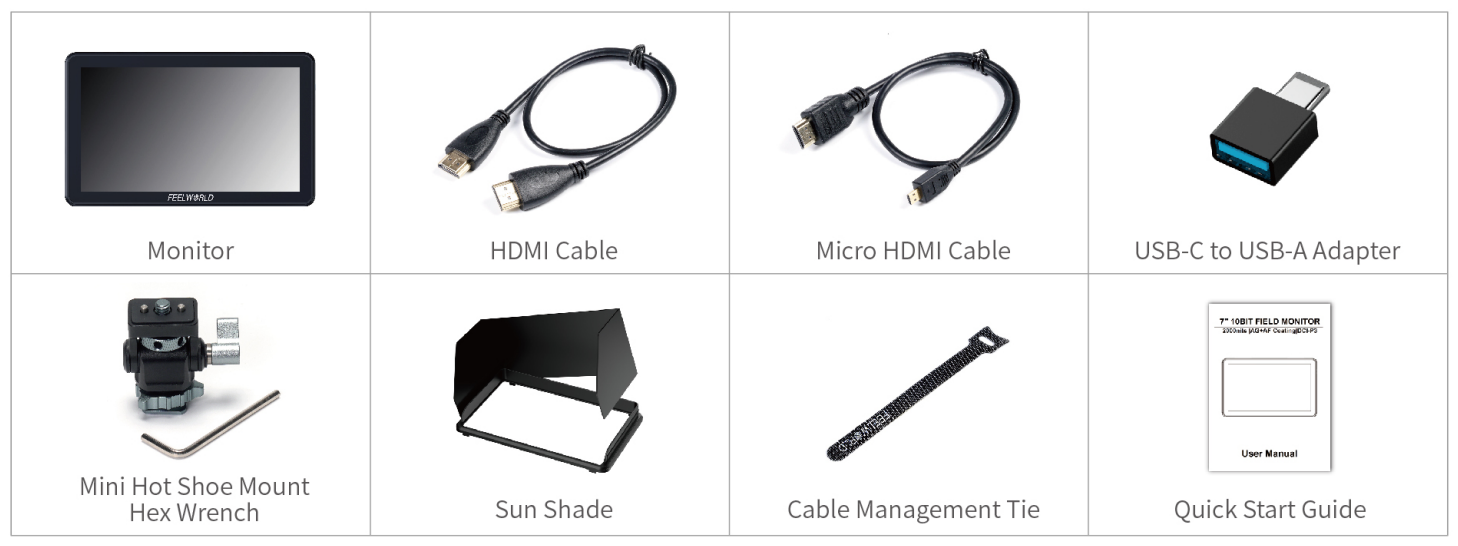

Packaging List:
1× Monitor
1× Micro HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB-A to USB-C Adapter
1× Cable Management Tie
1× Sun Shade
1× Quick Start Guide
Packaging Picture
