| Number: | 202305101355546075 |
|---|---|
| Model: | LUT5E |
| Size: | 5.5" |
| Introduction: |
Screen Size： 5.5" IPS
Resolution： 1920x1080 pixels Aspect ratio： 16:9 Brightness： 1600cd/m² |
| Input: | HDMI |
| Output: | HDMI, DC OUT 8V, Stereo Headphone |
| DM: | |
| Download: | |
Compact, portable, high brightness, 4K HDMI, easy to focus,easy to power are the advantages of LUT5E. Level up creation for photographer, 1st AC and content creator.
Viewing clearly and capture every detail with confidence
With extremaly high resolution IPS panel, 16.7M(8bit) color gamut, provides excellent details,accurately reflect the original colors.
Backed by 1600nits of brightness, LUT5E isn't afraid to get a little sun. The screen visible clearly even outdoor shooting, no need to use sun-hood.
Built-in an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.
Supports upload 50 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via SD card (up to load 50).
What you see is what you get
Compare the normal image, HDR provides stunning dynamic range and image details. LUT5E built-in HLG 2020、HLG 709、HLG P3 for option.
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode . LUT5E becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Support 4K@30Hz signal input and output, transmitted without loss,and the screen is clearer.
Simplify your Filming Equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of filming equipment.
The monitor supports DC 12V power input (can be use 12V/1.5A adapter) and DC 8V power output. The output can be power to DSLR or mirrorless camera via dummy battery power cable, extend the camera run-time.
The rear of the monitor provides a battery slot, which can be installed with standard Sony NP-F series batteries.Easy to power when outdoor filming.
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series
LUT5E built-in up to 10 languages, meet the different needed.
The monitor is equipped with 2 standard 1/4” mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc.
* 5.5-inch 1920x1080 full HD IPS screen
* Touch screen menu operation, improve shooting efficiency
* High-bright 1600nit, visible in the sun
* Light sensor auto dimming
* Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
* Supports HDR monitoring, what you see is what you get
* Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
* Stereo Earphone output
* DC 8V power out to power your DSLR camera or mirrorless camera

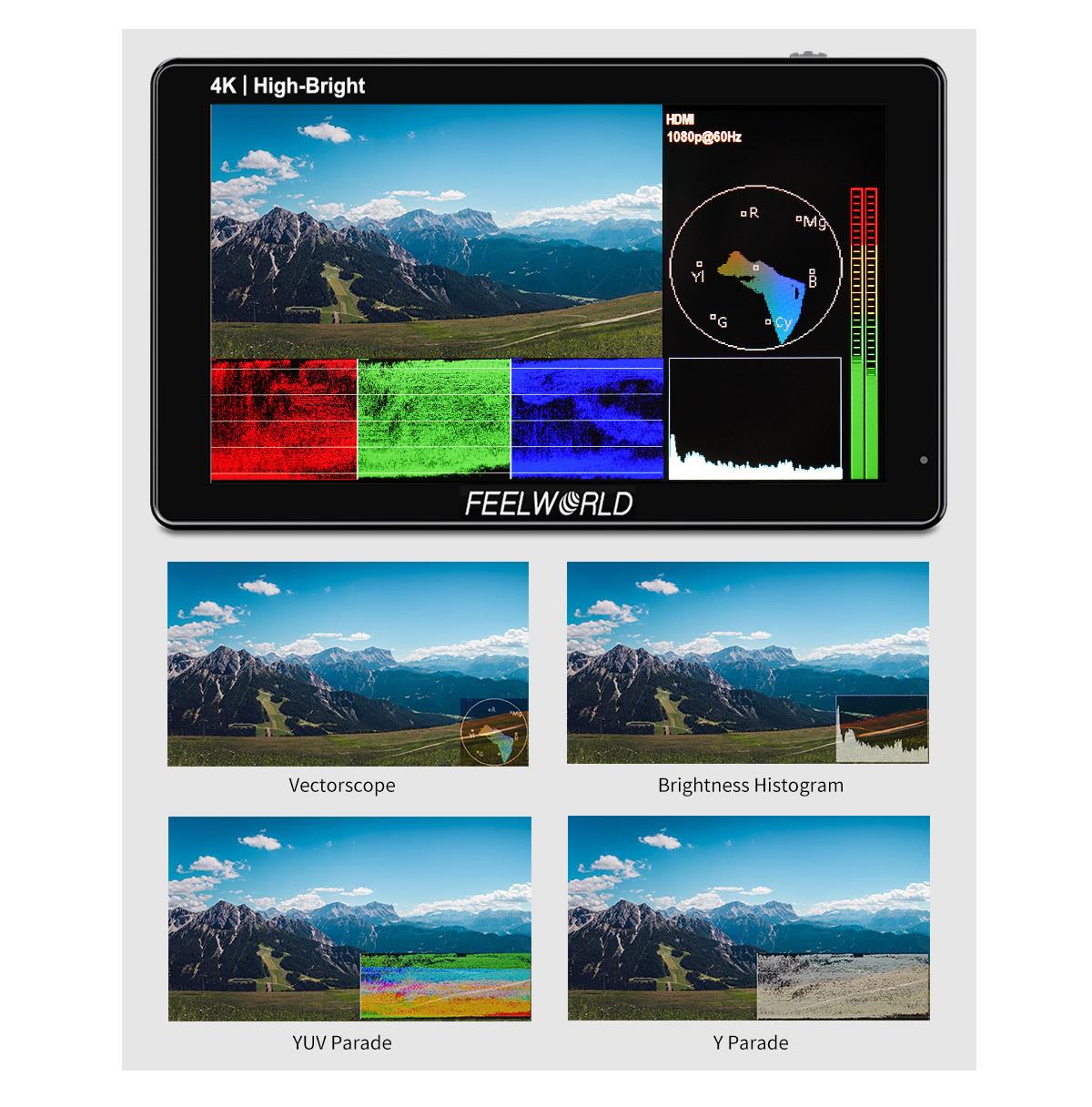

Waveform / Vector scope / Histogram
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Audio Meter Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. Under SDI audio, it supports 4-ch embedded audio meters display. Under HDMI audio, only 2 channels audio displays are supported..
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Nine Grid
Nine grid is the most common and basic composition method. The area of the picture is divided into nine equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1). You can switch the Mark color between Yellow, Red, Green, Blue, White and Black according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1); the transparency of the ratio marker has 4 display effects optional (0%, 25%, 50%, 75%). You can switch the marker colors between yellow, red, green, blue, white and black according to different tone of the subject.
| Model | LUT5E |
| Screen Size | 5.5" IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (L) x 0.069(W) (mm) |
| Aspect Ratio | 16:9 |
| Brightness | 1600cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| 1 X HDMI | HDMI |
| 1 X HDMI | HDMI |
| 1 X DC | Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. |
| Audio | 3.5mm Stereo Headphone |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
| Input Voltage | DC7～24V |
| Power Consumption | ≤9W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~70°C |
| Install Way | 1/4"-20 Thread Socket ( Right, Bottom) |
| Unit Size | 142Lx86Hx28D(mm) |
| Unit Weight | 270g |
| Color Box Size | 186L*124W*80H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | 7.5kgs |
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload |
| * Support Touch Menu |
| * Parade (RGB, YUV, Y) |
| * All Waves |
| * Vector |
| * RGB Histogram |
| * Brightness Histogram |
| * Embedded Audio |
| * Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) |
| * False Colors |
| * Zebra Exposure (1%~100% adjustable) |
| * Check Field (Red, Green, Blue, Gray) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1) |
| * Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) |
| * Marker Color (red, green, blue, white, black, yellow) |
| * Color Temperature Adjustment (5600K, 6500K, 9300K, user) |
| * Nine Grid |
| * Zoom (100%~500%) |
| * Aspect Ratio |
| * Pixel to Pixel |
1× Micro HDMI Cable
1× Mini hot shoe mount+Hex wrench
1× Manual
