| Number: | 202009210851151590 |
|---|---|

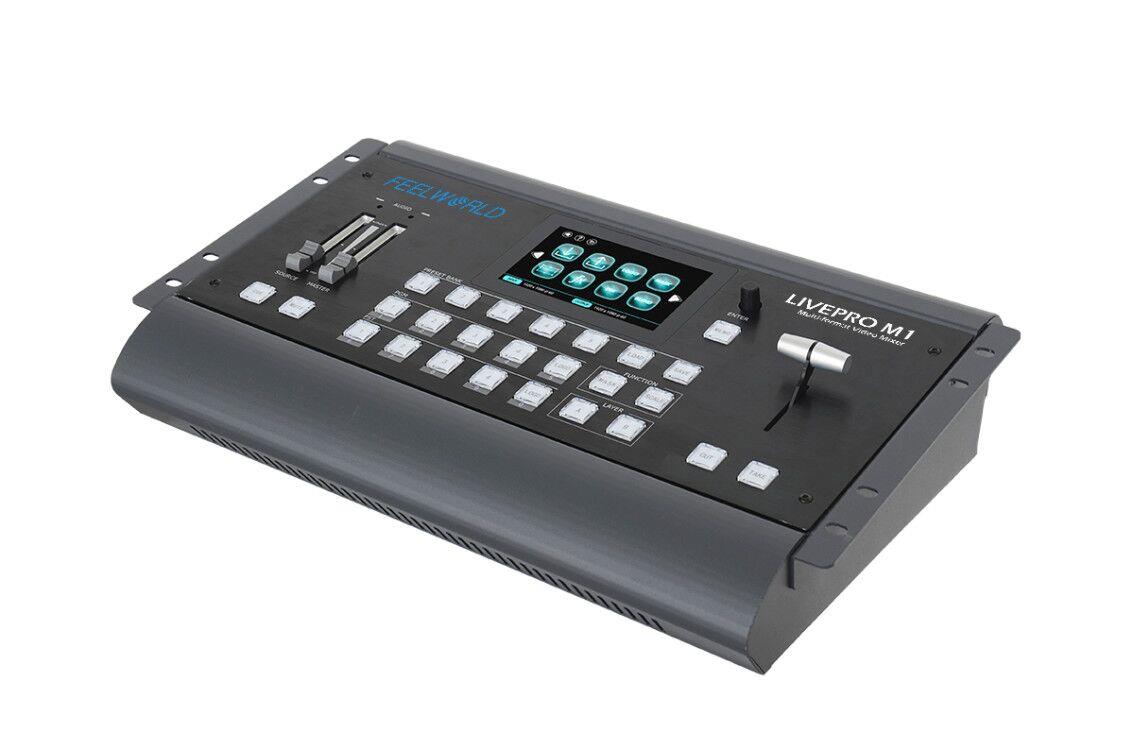

| Model: | LIVEPRO M1 |
| Size: | 4.3" LCD screen |
| Introduction: |
4.3" LCD touch screen
Modular design throughout Support hot swap modules Multiple audio outputs available Preview 4 inputs Mask feature for foreground layer including support for user defined mask |
| Input: | 1 slot up to 4 single inputs , select from DVI Module , HDMI Module , SDI Module , USB Module . Audio IN L/R |
| Output: | 1 slot,select from With SDI , Without SDI . Audio OUT L/R , 1×3.5mm Stero Jack |
| DM: | |
| Download: | |
Operator can run LIVEPRO M1 by its touch panel and its operation control panel, preview all the inputs and preset by its PVW HDMI output ports, and seamless switching on its PGM program output port, with seamless transition efforts including Fade or Wipe.
LIVEPRO M1 is not only a traditional video mixer, but also a video scaler by its integration pixel scale engine for the modern displays, including LED display, which user doesn’t need to have a video scaler behind. And LIVEPRO M1 is fully modular base to meet different flexible configuration requirement.
● Modular design throughout
● Support hot swap modules
● Preview 4 inputs
● Seamless switching between PST and PGM
● Multiple audio outputs available
● 4.3 inch LCD touch screen
● 2 video layers plus, additional layers for OSD, LOGO, STILL
● Mask feature for foreground layer including support for user defined mask
● Compatible with all display types
● Genlock Y in
● Save presets and settings on board and to USB
● 14 transition effects on the T-BAR and TAKE button
| Input: 1 slot up to 4 signal inputs , select from | |
| DVI Module | 1×DVI-I (compatible with DVI/VGA/YPbPr/CVBS) |
| HDMI Module | 1×HDMI-A |
| SDI Module | 1×2×BNC (1 In | 1 Loop） |
| USB Module | 1×2×USB (1 In | 1 backup） |
| Output: 1 slot,select from | |
| With SDI | 1×2×HDMI-A | 1×BNC |
| Without SDI | 1×2×HDMI-A |
| Audio | |
| IN L/R | 2×RCA |
| OUT L/R | 2×RCA |
| OUT | 1×3.5mm Stero Jack |
| Communication | |
| LAN | 1×RJ 45 |
| Tally | 1×DB15 |
| USB | 1×USB-B |
| Genlock Y | 1×BNC |
| Power | |
| 1×IEC | |
| Input Resolutions | |
| SDI | SMPTE 480i | 576i | 720p@50/60 | 1080i@59.94/60 | 1080p@23.98/24/25/29.97/30/59/59.94/60 |
| DVI | HDMI | SMPTE 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60 |
| VESA 800×600@60 | 1024×768@60 | 1280×720@60 | 1280×800@60 | 1280×960@60 | 1280×1024@60 |1400×1050@60 | 1600×1200@60 | 1920×1080@60 | |
| Output Resolutions Select from below or customized | |
| SDI | SMPTE 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60 |
| HDMI | SMPTE 720p @50/59.94/60 | 1080p@50/59.94/60 |
| VESA 800×600@60 |1024×768@60 |1280×768@60 | 1280×1024@60 | 1600×1200@60 | 1920×1080@60 | |
| Supported Standard | |
| SDI | 3G |
| HDMI | 1.3 |
| DVI | Single Link |
| USB | 2.0 |
| Processing Engine: 10bit | |
| Layers | 2 |
| MASK Edit | Support |
| Brightness | Standard range |
| EDID Management | Yes |
| Input Voltage | AC 85V-264V, 50/60Hz |
| Max Power | 120W |
| Temperature | 0– 55°C |
| Humidity | 10% - 90% |
| Weight | 5.5kg |
| Dimension | 462mm×280mm×95mm |
