FEELWORLD FW568 PRO 6-inch 1200nit High Bright Camera DSLR Monitor 4K HDMI 60Hz
| Number: | 202502251542151404 |
|---|---|
| Model: | FW568 PRO |
| Size: | 6" IPS |
| Introduction: |
Screen Size： 6" IPS
Resolution： 1920x1080pixels Aspect ratio： 16:9 Brightness： 1200cd/m² |
| Input: | HDMI 2.0, Type-C |
| Output: | HDMI 2.0, Stereo Headphone, DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) |
| DM: | |
| Download: | |
Lightweight . Bright . Useful
FEELWORLD FW568 PRO has moderate size, ultra light weight, high bright screen, up to 4K@60Hz HDMI transmission rate and a series of camera auxiliary functions. It is a monitor that can meet your creative needs anytime and anywhere.
FEELWORLD FW568 PRO has moderate size, ultra light weight, high bright screen, up to 4K@60Hz HDMI transmission rate and a series of camera auxiliary functions. It is a monitor that can meet your creative needs anytime and anywhere.
6-inch Full HD Screen
Clearly checking and capture every nuance
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
Clearly checking and capture every nuance
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
1200Nit, Daylight Viewable
High brightness 1200nit is viewable in almost every kind of light.Indoors, outdoors or anywhere you need.
High brightness 1200nit is viewable in almost every kind of light.Indoors, outdoors or anywhere you need.
Lightweight Design, Ideal Partner for Gimbal
The weight of FW568 PRO only 204g, this lightweight design make it ideal for work with gimbal for moving shooting.
The weight of FW568 PRO only 204g, this lightweight design make it ideal for work with gimbal for moving shooting.
Intuitive Button Operation
FW568 PRO provides multiple intuitive buttons,you can control the menu easily. Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
FW568 PRO provides multiple intuitive buttons,you can control the menu easily. Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
9：16 Vertical Screen Marker
FW568 PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.
FW568 PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.
Menu User Switch
FW568 PRO provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically, and can be called directly or switch next time.
FW568 PRO provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically, and can be called directly or switch next time.
Full Range of Auxiliary Functions
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Insert the USB flash drive to the standard accessory Type-C to USB adapter, then connect with Type-C interface of FW568 PRO.
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Insert the USB flash drive to the standard accessory Type-C to USB adapter, then connect with Type-C interface of FW568 PRO.
HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. FW568 PRO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. FW568 PRO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
4K HDMI Input and Output，High Speed Transmission
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
DC 8.4V OUT, Power Your DSLR or Mirrorless Camera
FW568 PRO provides auxiliary DC 8.4V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the FW568 PRO extends camera run-time, while providing a more usable display.
FW568 PRO provides auxiliary DC 8.4V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the FW568 PRO extends camera run-time, while providing a more usable display.
Multiple Power Supply,Long-lasting Power for Shooting
You can connect to DC power input to get continuous power （suitable for use 1.5A power adapter,DC 5.5*2.1mm power plug) or use the standard NP-F battery plate to install NP-F series battery for mobile application. Install one F750 battery (4400mah) last for about 3 hours. The monitor also provides a 5V Type-C input, which can be powered by mobile phone charger or power bank (suggest 5V/3A).
Note: the battery excluding, please purchase separately.
You can connect to DC power input to get continuous power （suitable for use 1.5A power adapter,DC 5.5*2.1mm power plug) or use the standard NP-F battery plate to install NP-F series battery for mobile application. Install one F750 battery (4400mah) last for about 3 hours. The monitor also provides a 5V Type-C input, which can be powered by mobile phone charger or power bank (suggest 5V/3A).
Note: the battery excluding, please purchase separately.
NP-F Battery Optional Recommendation
The power consumption of FW568 PRO is 11W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.
The power consumption of FW568 PRO is 11W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.
12 Languages Supporting
FW568 PRO built-in up to 12 languages, that means FW568 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
FW568 PRO built-in up to 12 languages, that means FW568 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
Portable Sun-hood
The standard portable sun-hood can easy to resist the strong light, and easy to install.
The standard portable sun-hood can easy to resist the strong light, and easy to install.
Functions
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32) |
| * Waveform (RGB, YUV, Y) |
| * HDR |
| * Vector |
| * Histogram (RGB1,RGB2,Y ) |
| * Embedded Audio |
| * Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable) |
| * False Colors (Normal, ARRI) |
| * Over Exposure (10RE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Grid (2x2,3x3,4x4,5x5,6x6,7x7,8x8,9x9, Custom) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
| * Image Flip ( H Flip, V Flip, H_V Flip ) |
| * Image Freeze |
| * Center Marker |
| * Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1,9:16) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16) |
| * Marker Color (Red, Green, Blue, Black, White, Gray) |
| * User Switch (1~4) |
| * Zoom Mode (2X、4X、9X、16X、User) |
| * Pixel to Pixel |
| * Display Adjustment (can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100) |
| * Display Range(Auto, Limit, Full) |
| * EDID Setting (1.4, 2.0) |
| * Power Setting (Auto, Manual) |
| * Color Temp. ( 5600K, 6500K, 9300K, User.Under the “user”, the red, green, and blue values of the image can be adjusted 0~255) |
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 4 ,9, 16, 25, 36, 49,64,81equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Display Spec.
| Model | FW568 PRO |
| Screen Size | 6" IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 1200cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI 2.0 |
| 1 X Type-C | 1. 5V Type-C (Note: please use more than 5V/2A Type-C power supply); 2. Firmware update/LUT file import |
Output
| 1 X HDMI | HDMI 2.0 |
| 1 X DC Output | DC Output |
Audio
| Audio | Stereo Headphone |
HDMI Input/ Output Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4096×2160p (60/50/30/29.97/25/24/23.98) |
General
| Input Voltage | DC7～24V |
| Power Consumption | ≤11W |
| Power Connector | DC (suitable for 5.5x2.1mm power plug cable) |
| Working Temperature | -0°C~50°C |
| Storage Temperature | -10°C~60°C |
| Install Way | ¼-20 thread points (bottom, right side) |
| Unit Size | 161x96x33.3 (mm) |
| Unit Weight | 204g |
| Color Box Size | 186L*124W*80H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | 6.65kgs |
Dimensions (Unit: mm)

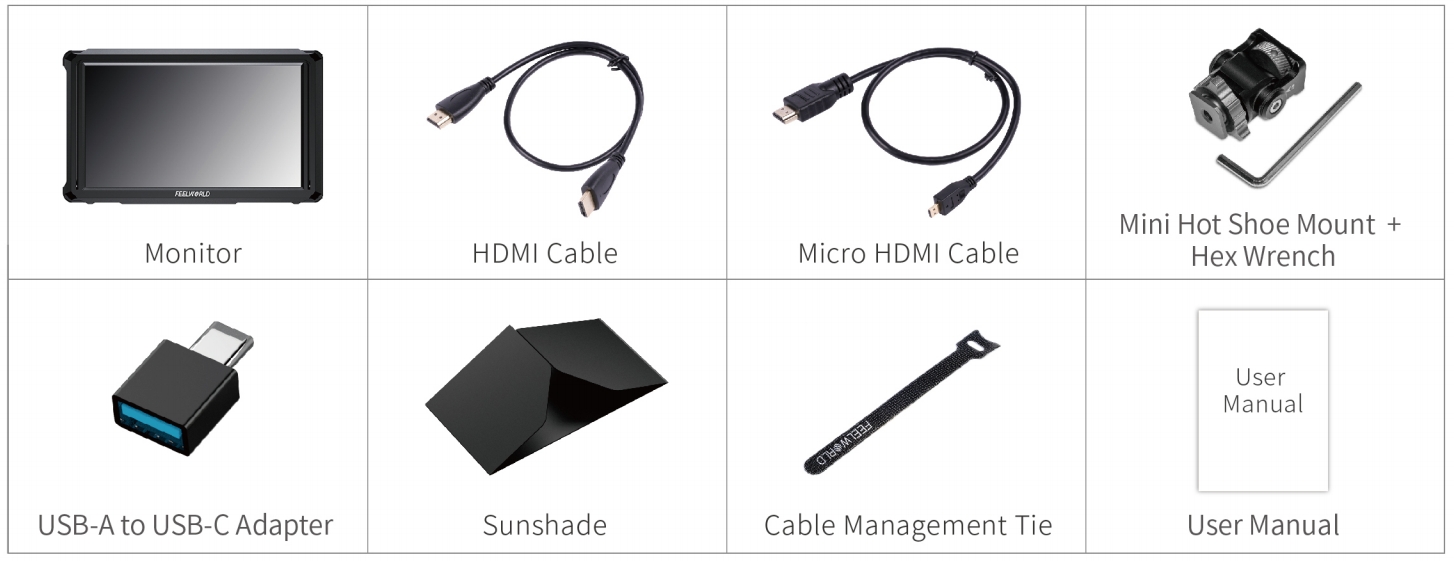

PACKAGING LIST:
1× Monitor
1× HDMI Cable
1× Micro HDMI Cable
1× Sunshade
1× Mini Hot Shoe Mount+Hex Wrench
1× USB-A to USB-C Adapter
1× Cable Management Tie
1× Manual
1× Monitor
1× HDMI Cable
1× Micro HDMI Cable
1× Sunshade
1× Mini Hot Shoe Mount+Hex Wrench
1× USB-A to USB-C Adapter
1× Cable Management Tie
1× Manual
Packaging Picture
