FEELWORLD FVM215-1000 21.5-inch Professional Production Broadcast Monitor High Brightness 1000nit Full HD IPS 4K60Hz HDMI 3G-SDI
| Number: | 202503221327291048 |
|---|---|
| Model: | FVM215-1000 |
| Size: | 21.5" |
| Introduction: |
Screen Size： 21.5" IPS
Resolution： 1920x1080 pixels Aspect ratio： 16:9 Brightness： 1000cd/m² |
| Input: | 2*HDMI, 1*3G-SDI, USB-A, DC IN 12V, XLR |
| Output: | 2*HDMI, 1*3-SDI, 3.5mm headphone jack, Speakers |
| DM: | |
| Download: | |
High Quality Monitoring Solution
FEELWORLD FVM215-1000 is equipped with a high brightness full HD large screen, which presenting crisp and clear images in any daylight situation or indoors. On-site monitoring just gets easier for you and your customers. It works with all SD/HD/3D-SDI and up to 4K HDMI@60Hz video formats and including XLR,DC IN power input and V-mount battery plate so you can use it with battery or plug it into DC power. A series of camera auxiliary functions can help photographer to compose on-site and save post production time. This monitor can be mounted on wall through a VESA mount points in addition to a desktop stand. FVM215-1000 is perfect for live production, on-site shooting and broadcast studio.
FEELWORLD FVM215-1000 is equipped with a high brightness full HD large screen, which presenting crisp and clear images in any daylight situation or indoors. On-site monitoring just gets easier for you and your customers. It works with all SD/HD/3D-SDI and up to 4K HDMI@60Hz video formats and including XLR,DC IN power input and V-mount battery plate so you can use it with battery or plug it into DC power. A series of camera auxiliary functions can help photographer to compose on-site and save post production time. This monitor can be mounted on wall through a VESA mount points in addition to a desktop stand. FVM215-1000 is perfect for live production, on-site shooting and broadcast studio.
21.5" Full HD Large Screen
Clearly checking and capture every nuance
Equipped with 21.5-inch full HD large screen, rich colors present high quality image.178°(H/V) wide viewing angle large screen with professional color gamut, almost no color difference at any angle.
Clearly checking and capture every nuance
Equipped with 21.5-inch full HD large screen, rich colors present high quality image.178°(H/V) wide viewing angle large screen with professional color gamut, almost no color difference at any angle.
Professional CalMan Software Calibration
Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction.
Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction.
1000NIT, Fearless of Sunlight
High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
New MENU Interface, More Intuitive
FVM215-1000 adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function，greatly improves your working efficiency.
FVM215-1000 adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function，greatly improves your working efficiency.
Full Range of Auxiliary Functions
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Support to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the USB flash drive, and insert to USB interface of the device (up to 32 custom files can be imported).
Support to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the USB flash drive, and insert to USB interface of the device (up to 32 custom files can be imported).
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FVM215-1000 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FVM215-1000 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Intuitive Button Operation
The intuitive button design,clear at a glance, easy to setup. The 2 custom function keys can be set the common function as shortcut key,improve working efficiency.
The intuitive button design,clear at a glance, easy to setup. The 2 custom function keys can be set the common function as shortcut key,improve working efficiency.
Compatible with Camcorder and DSLR
FVM215-1000 is equipped with a 3G-SDI input and output and two HDMI 2.0 inputs and outputs support up to 4K 60Hz,compatible with professional camcorder and various cameras. Plus, it also has stereo headphone jack and speaker.
FVM215-1000 is equipped with a 3G-SDI input and output and two HDMI 2.0 inputs and outputs support up to 4K 60Hz,compatible with professional camcorder and various cameras. Plus, it also has stereo headphone jack and speaker.
Multiple Power Supply Modes
Via V-mount battery plate support to install Sony V-mount battery; via XLR or DC IN interface,support DC 12/5A power adapter to adapt to the shooting needs of different scenes.
Via V-mount battery plate support to install Sony V-mount battery; via XLR or DC IN interface,support DC 12/5A power adapter to adapt to the shooting needs of different scenes.
11 Languages Supporting
Built-in up to 11 languages, that means FVM215-1000 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Built-in up to 11 languages, that means FVM215-1000 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
VESA Mount Position, More Monitoring Possibility
The rear of monitor comes with 100x100mm VESA mount position, you can mount the monitor on the VESA bracket or on the wall.
The rear of monitor comes with 100x100mm VESA mount position, you can mount the monitor on the VESA bracket or on the wall.

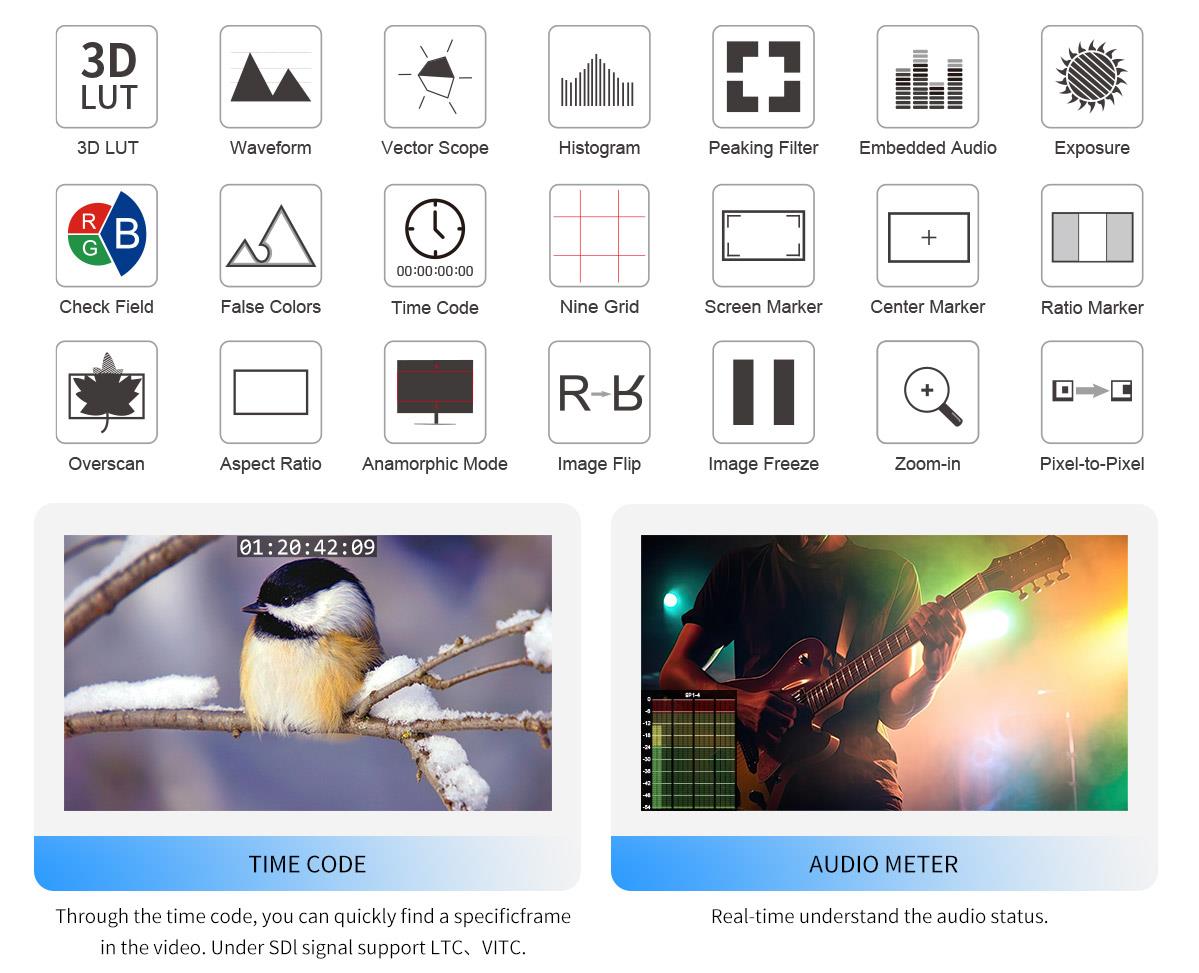

Advanced Features
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32) |
| * Waveform (RGB, YUV, Y) |
| * Vector |
| * Histogram (RGB,Y ) |
| * Embedded Audio |
| * Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable) |
| * False Colors |
| * Over Exposure (10IRE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Time Code--under SDI signal (LTC, VITC) |
| * Nine Grid |
| * Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x) |
| * Image Flip (H Flip, V Flip, H_V Flip ) |
| * Image Freeze |
| * Center Marker |
| * Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1) |
| * Marker Color (Red, Green, Blue, Black, White, Gray) |
| * Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%) |
| * Pixel to Pixel |
| * Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255) |
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Nine Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 9 equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1,9:16). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1,9:16). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Display Spec.
| Model | FVM215-1000 |
| Screen Size | 21.5"IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.24795 (H) x 0.24795 (V) (mm) |
| Color Depth | 8bit |
| Color Gamut | 72% NTSC |
| Aspect Ratio | 16:9 |
| Brightness | 1000cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Input
| 1 X SDI | 3G-SDI |
| 2 X HDMI | HDMI 2.0 |
| 1 X USB | USB-A (LUT file import and Firmware update) |
Output
| 1 X SDI | 3G-SDI |
| 2 X HDMI | HDMI2.0 |
Audio
| Audio | 3.5mm Stereo Headphone |
3G-SDI Input and Output Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
HDMI Input and Output Support Format
| 720p (60/59.94/50/30/29.97/25/24) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4K 4096×2160p(24/23.98) |
General
| Power Connector | DC IN, XLR |
| Input Voltage | DC12～24V |
| Power Consumption | ≤52W |
| Working Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Battey Plate | V-mount battery plate |
| VESA Size | 100x100mm |
| Unit Size | 511.6x345x21.8(mm) |
| Unit Weight | 4.275kg |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Structure Dimensions (Unit: mm)
Packaging List:
1× Monitor
1× SDI Cable
1× Micro HDMI Cable
1× HDMI Cable
1× 5A Power Adapter
1× V-mount Battery Plate (default to mount on the monitor)
1× Manual
1× Monitor
1× SDI Cable
1× Micro HDMI Cable
1× HDMI Cable
1× 5A Power Adapter
1× V-mount Battery Plate (default to mount on the monitor)
1× Manual
Packaging Picture
