| Number: | 202603261046504262 |
|---|---|
| Model: | FRM701G |
| Size: | 7" |
| Introduction: |
Screen Size： 7"x2 IPS Resolution： 1920x1200 pixels Aspect ratio： 16:10 Brightness： 450cd/m² |
| Input: | 12G-SDI, HDMI 2.0, CVBS, Audio (L/R), Tally, LAN, Type-C |
| Output: | 12G-SDI, HDMI 2.0, CVBS |
| DM: | |
| Download: | |

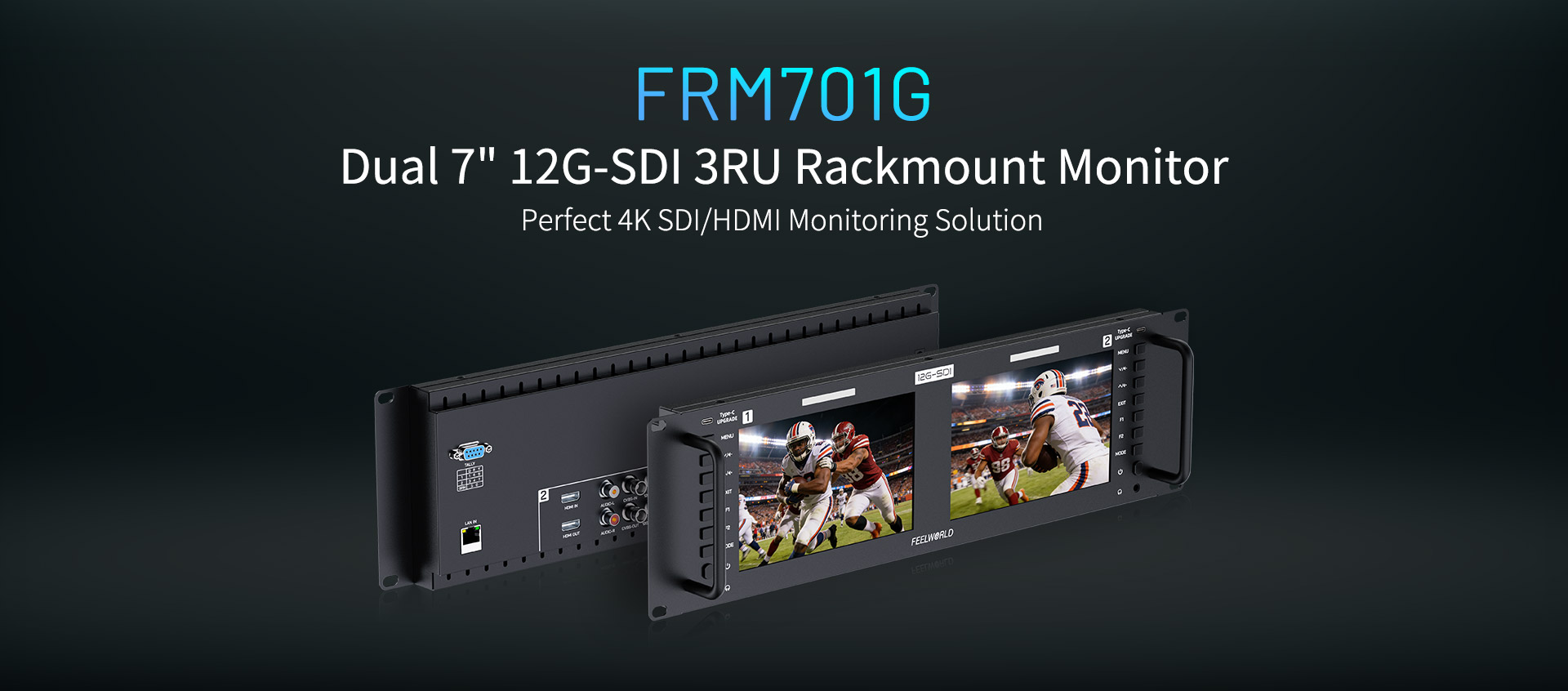

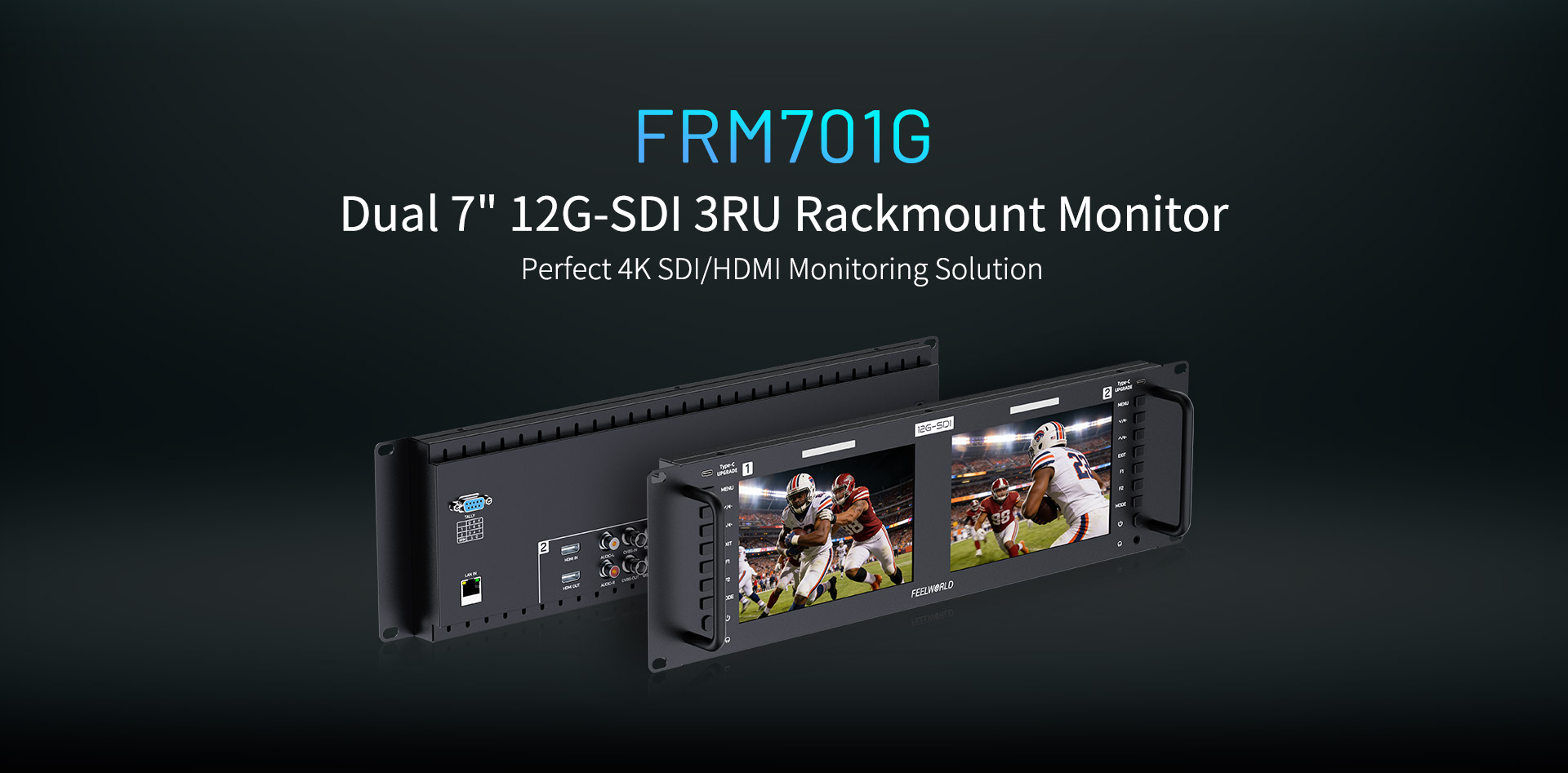

Perfect 4K Broadcast Quality Monitoring

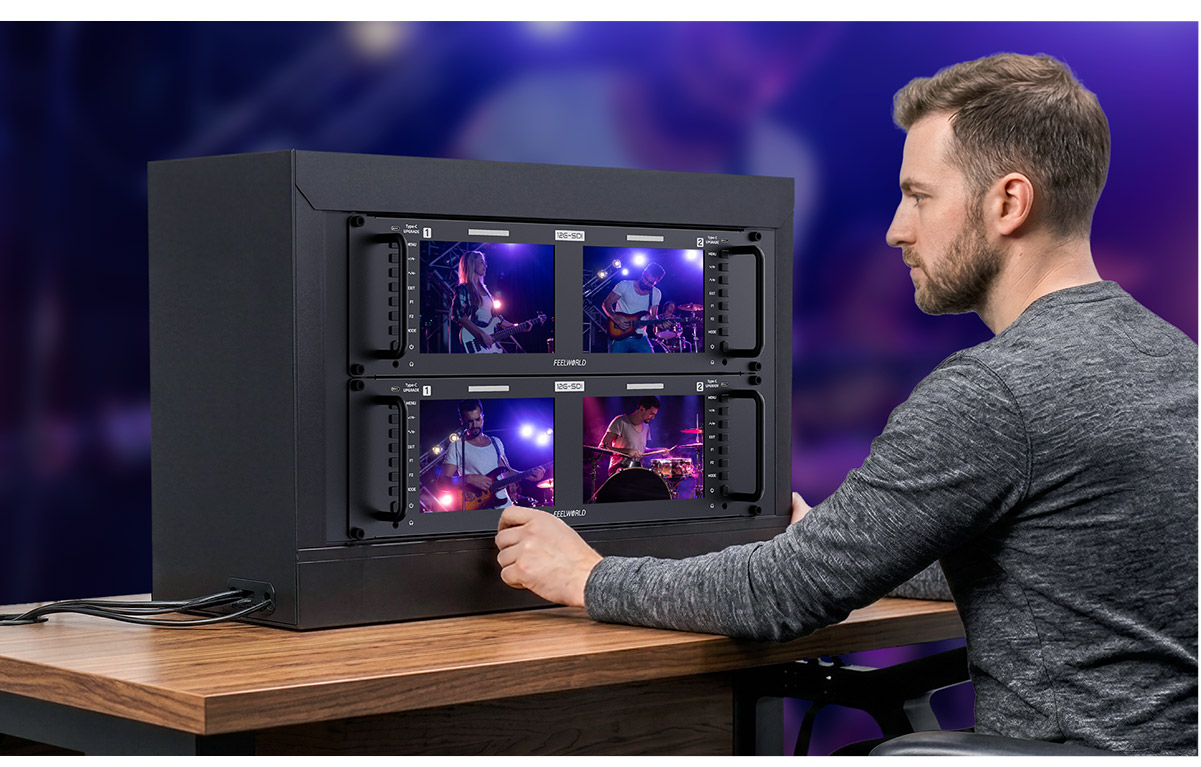

No matter where you need to monitor 4K SDI or 4K HDMI signals, the FEELWORLD FRM701G is your ideal choice.It comes with two independent 7-inch displays, allowing you to monitor two different signal sources simultaneously.Supports 4K@60Hz input and loop out, and features a 3RU rack-mount design for easy installation in video walls or OB vans.Perfect for broadcasting, post-production, on-set monitoring, flight case systems, OB vans, and more.

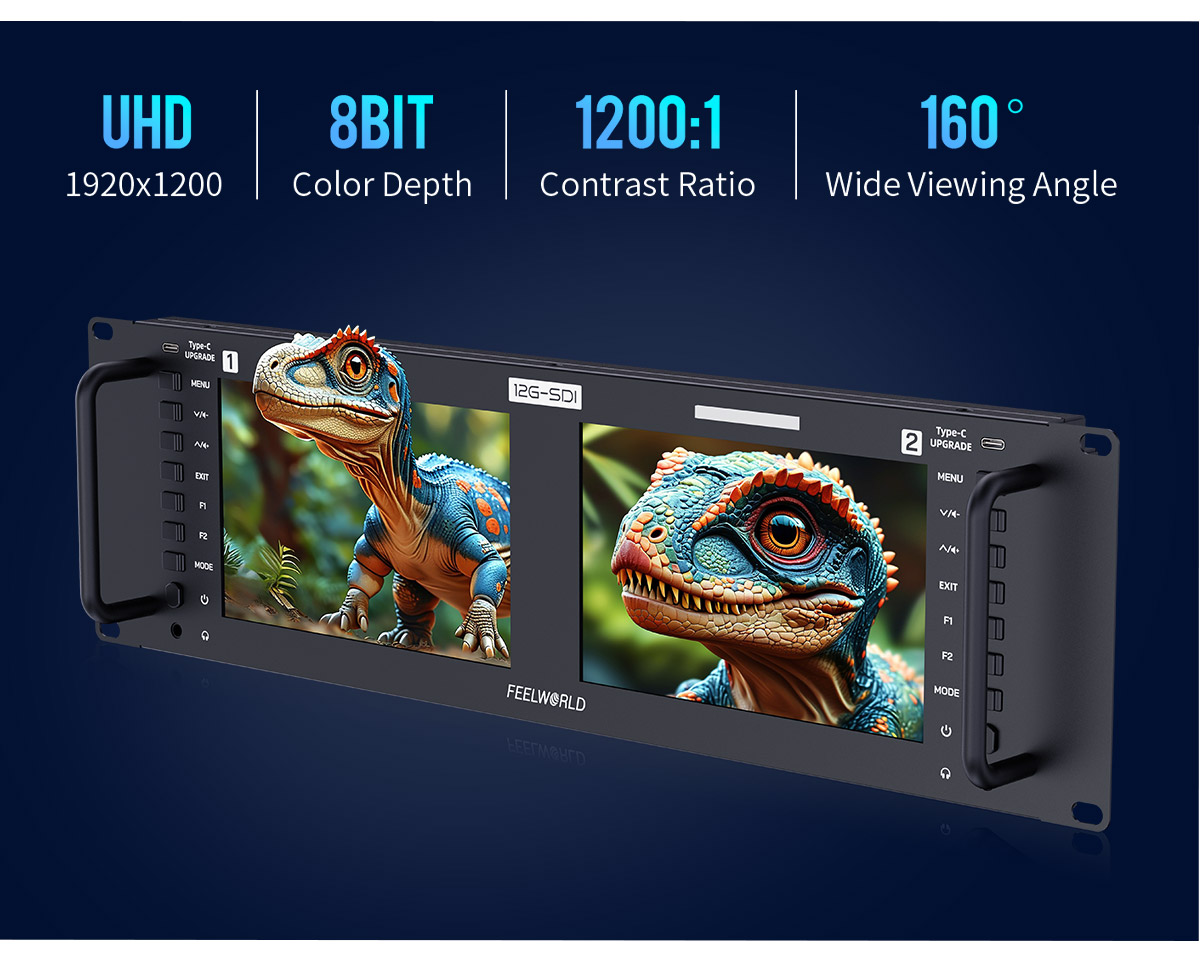

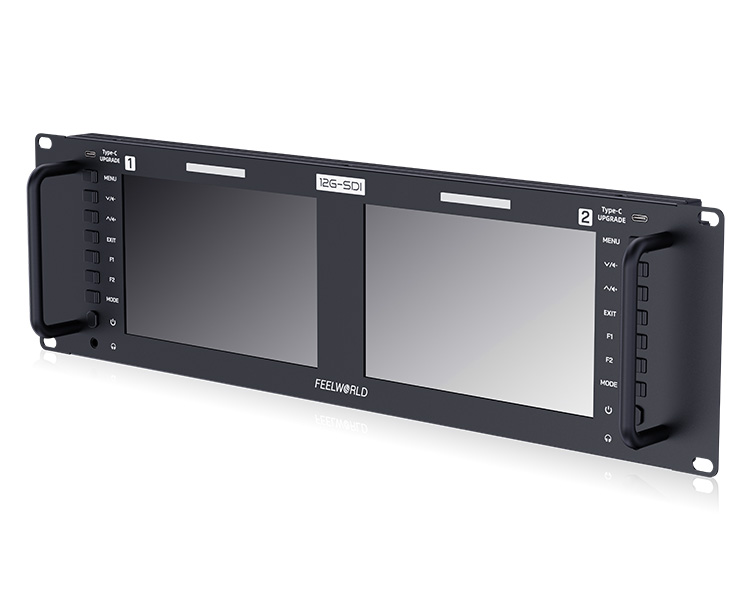

2x7" Full HD IPS
Clearly checking and capture every nuance
FRM701G equipped with dual 7-inch high resolution 1920x1200 panels that allow you to check out two video signals at the same time, making it easy to create a multi-camera monitoring scenario. Vibrant color reproduction for high-quality imaging.160°wide viewing angle allows you to enjoy a more perfect visual experience.

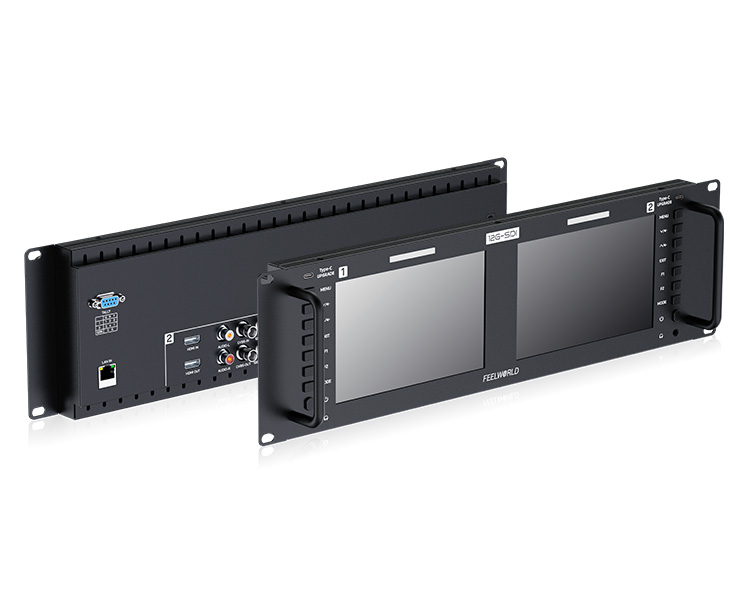

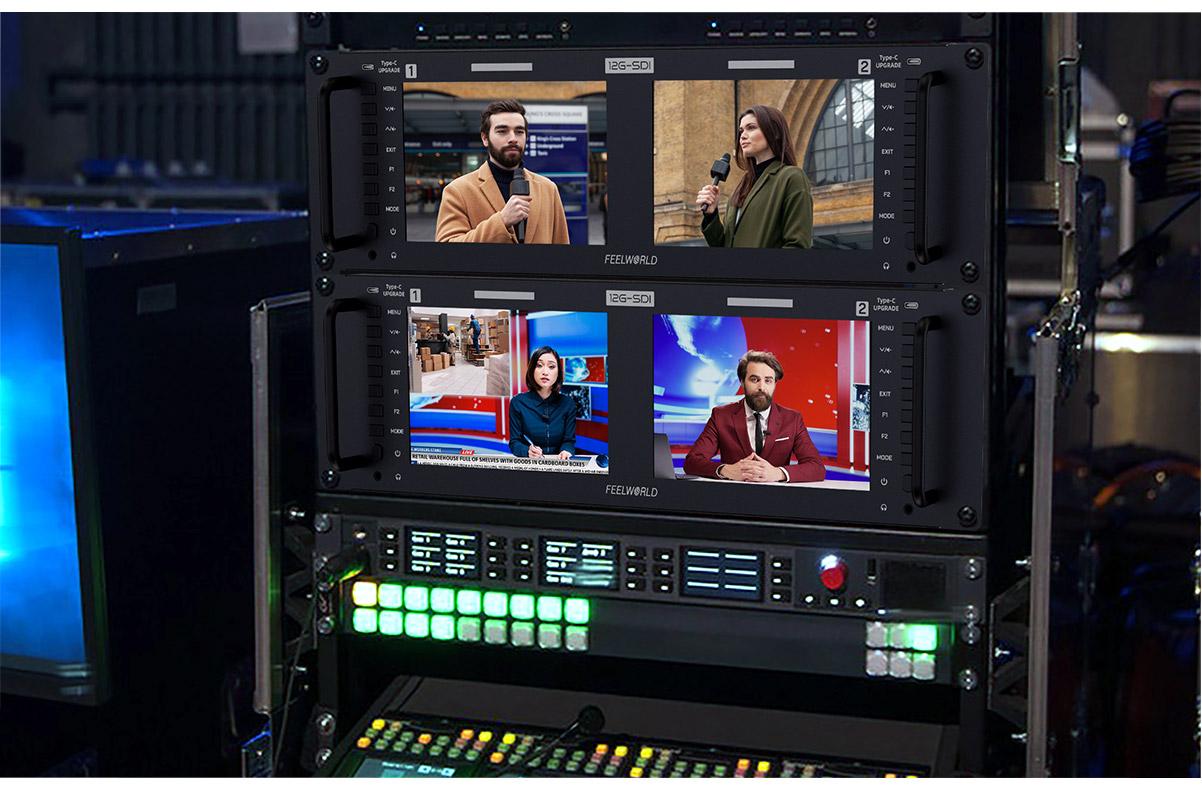

Compact 3RU Rackmount Design
FRM701G with 3 rack units high, and the thickness only 30.5mm and a standard 19 inch rack width, this means it is ideal for installation in equipment racks and monitor walls.

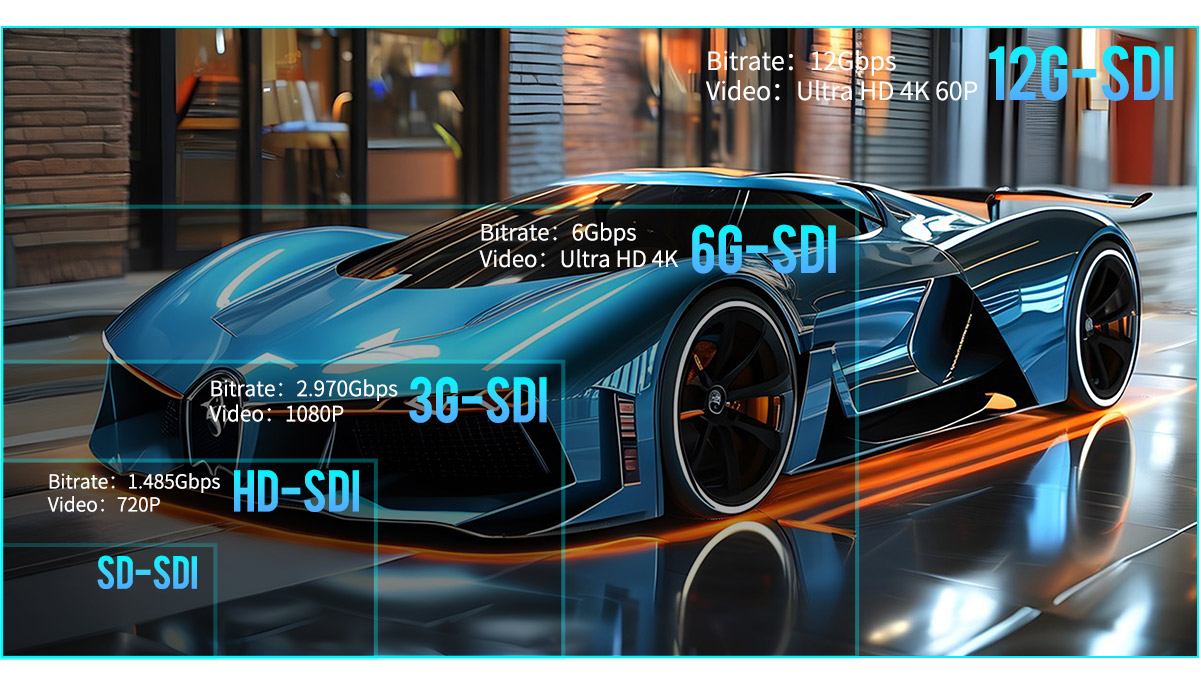

12G-SDI High Speed Transmission
Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.

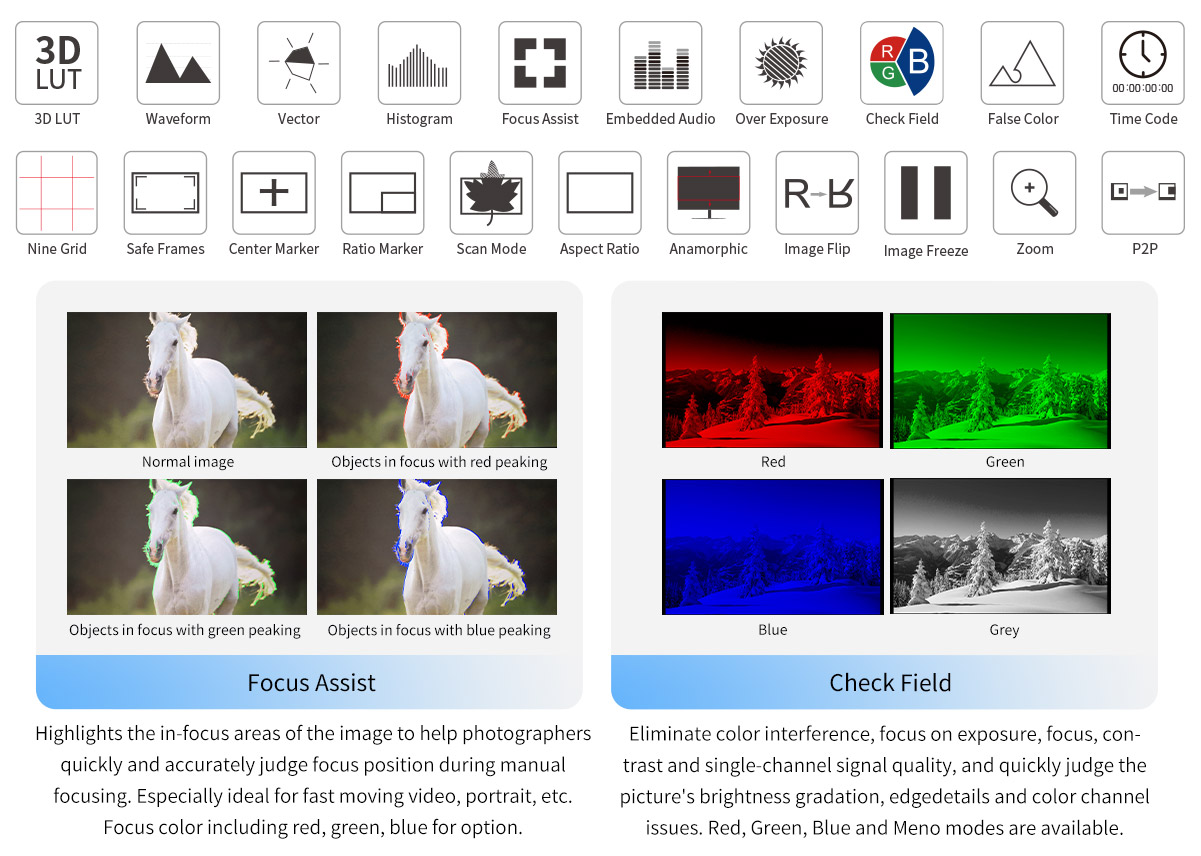

Full Range of Auxiliary Functions

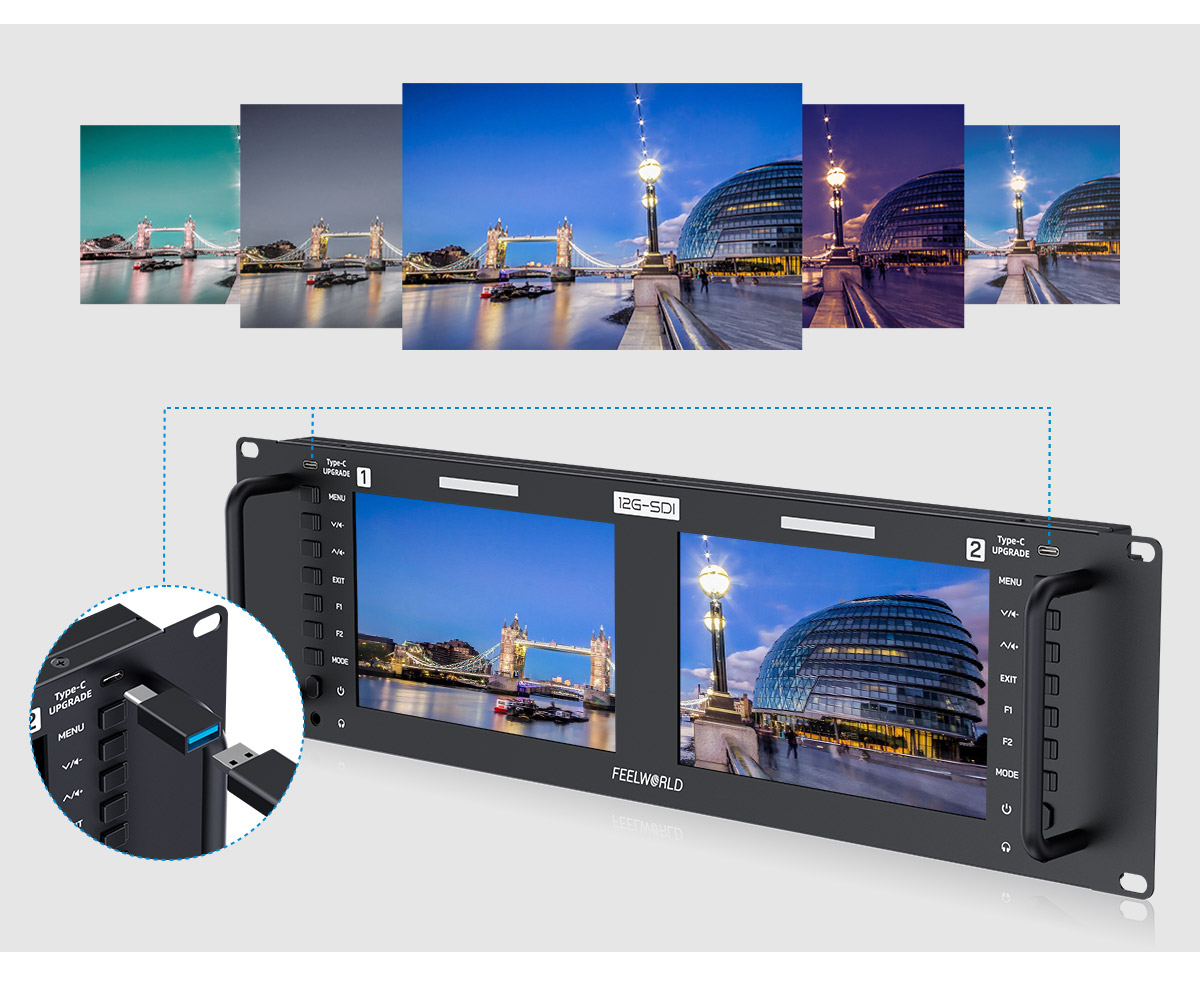

Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in 4 types(S-Log2,s-Log3, C-Log, V-Log) or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the USB flash drive, and connect to Type-C interface of the device via the standard accessory USB-C to USB-A adapter (up to 32 custom files can be imported).

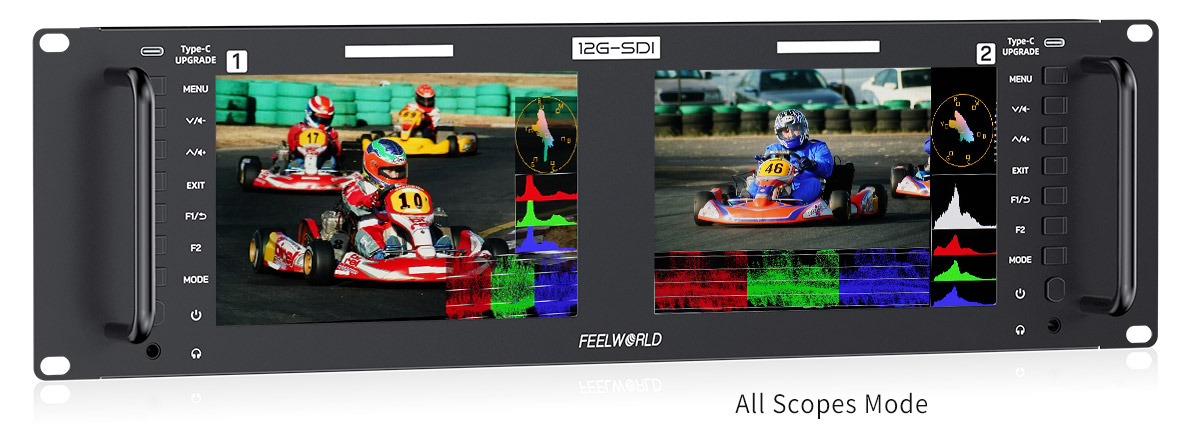

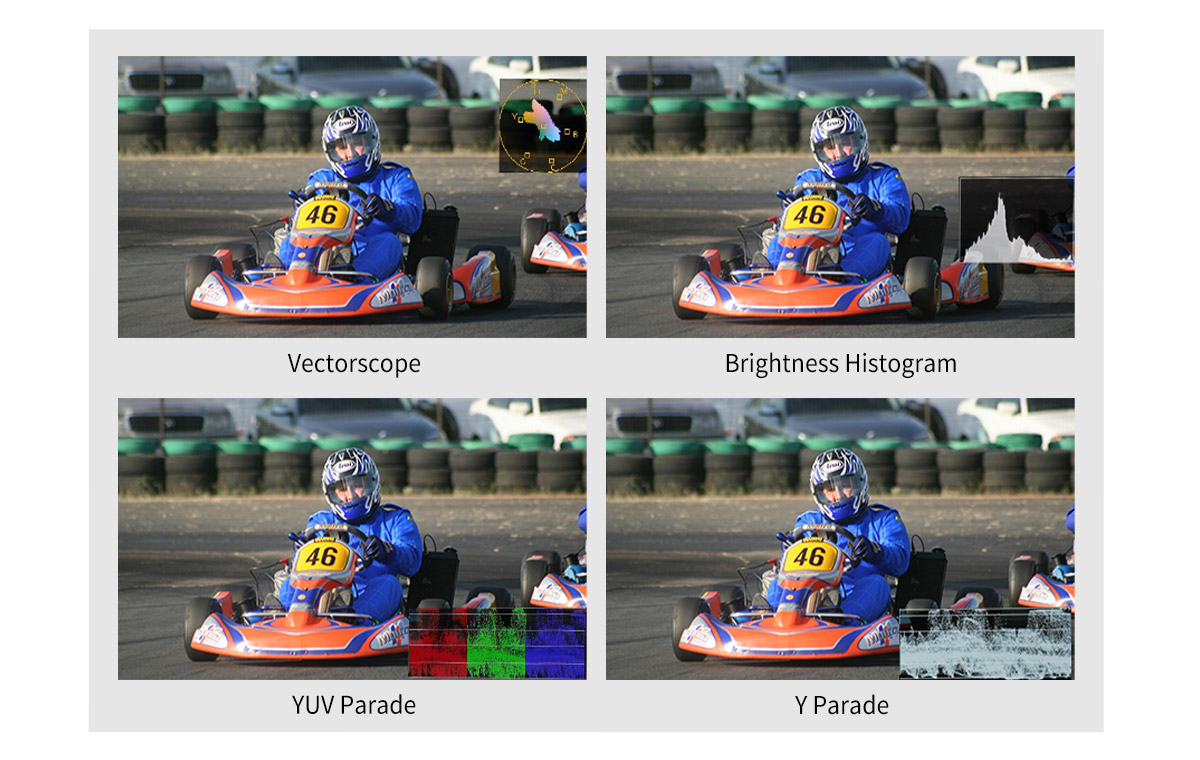

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can view two independent sources simultaneously and choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FRM701G becomes the ideal choice for live production monitoring,so you no longer need to use a separate expensive scopes!

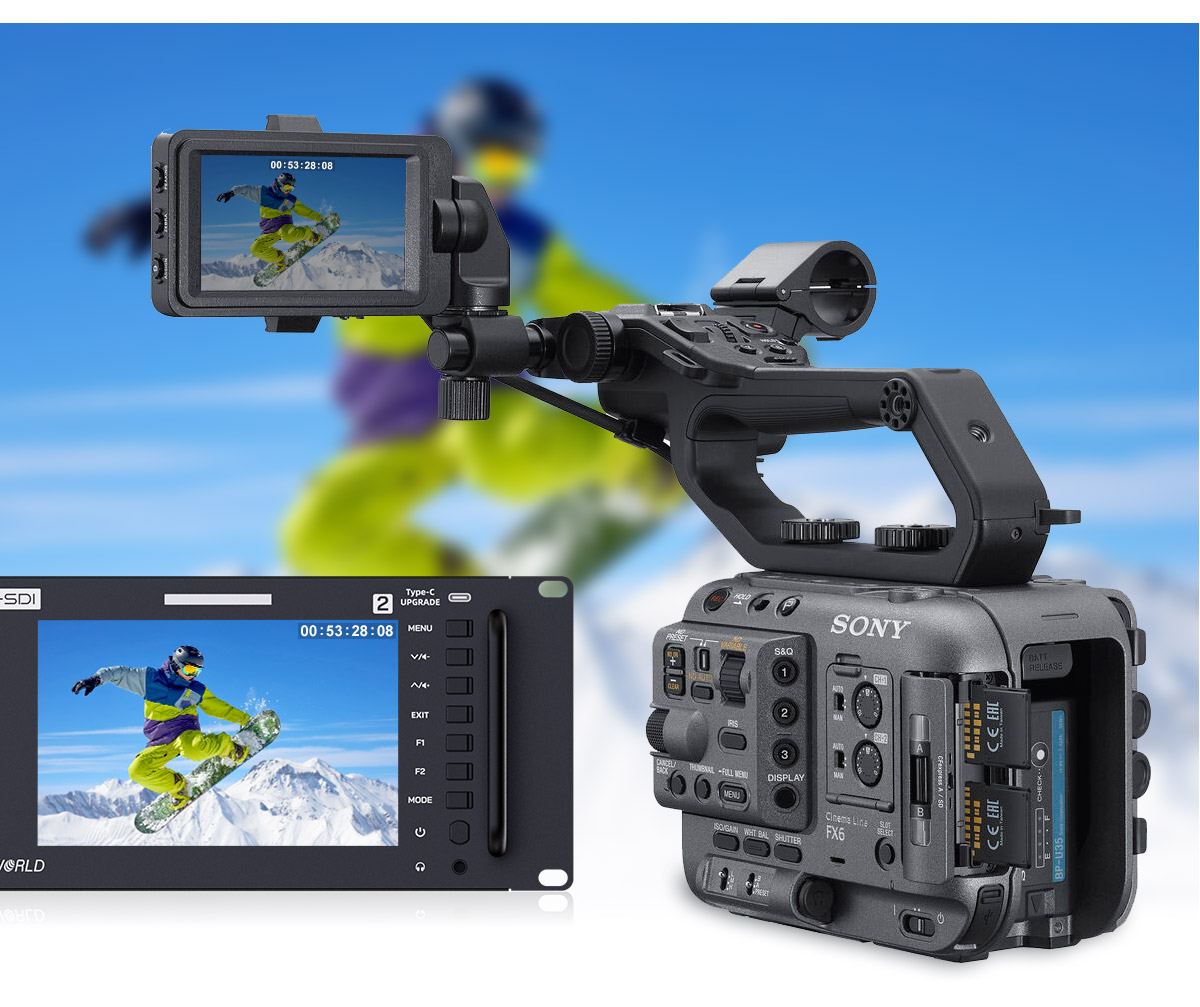

SDI Time Code
The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production

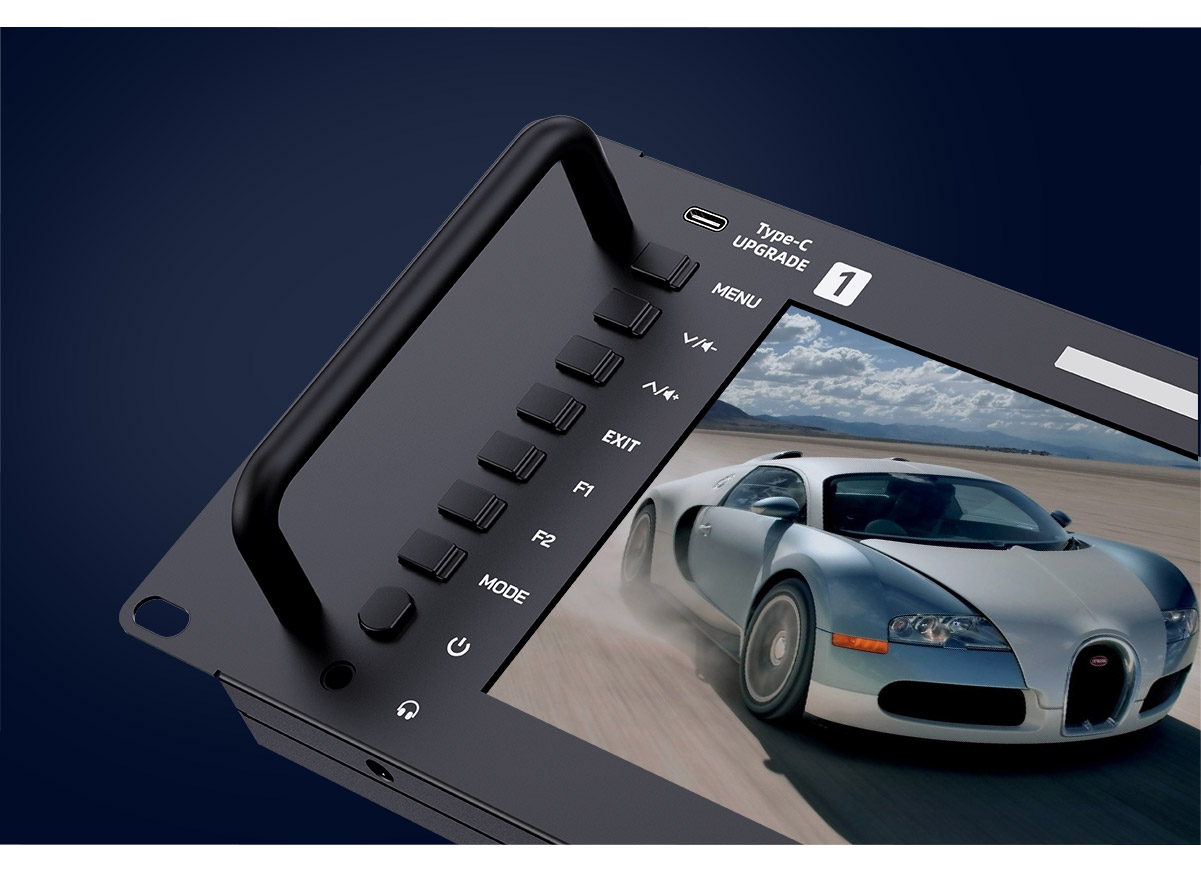

Flexible and Intuitive Button Operation
The FRM701G is equipped with 2 exquisite front panels, each fitted with intuitive buttons that come with independent control screens — enabling quick and simple operation. It also features two F shortcut keys, allowing photographers to pre-set shortcut functions according to the actual needs of the shooting scene and quickly call up the required functions during shooting.

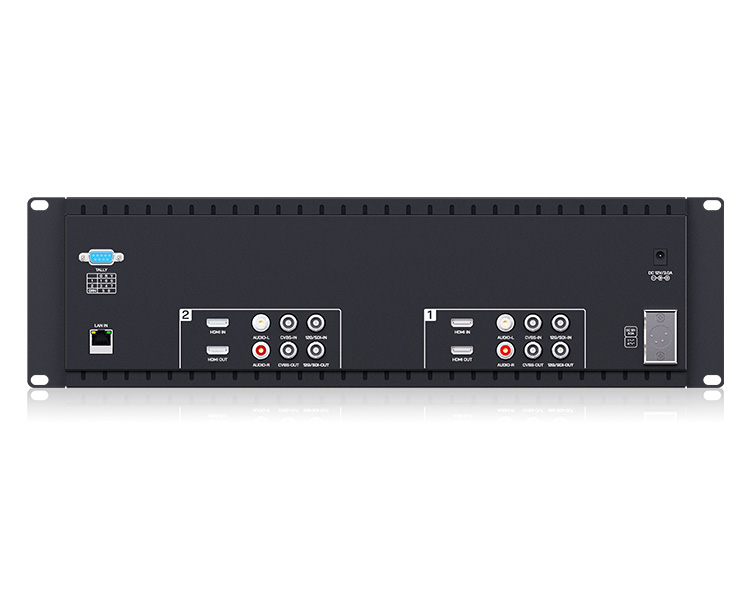

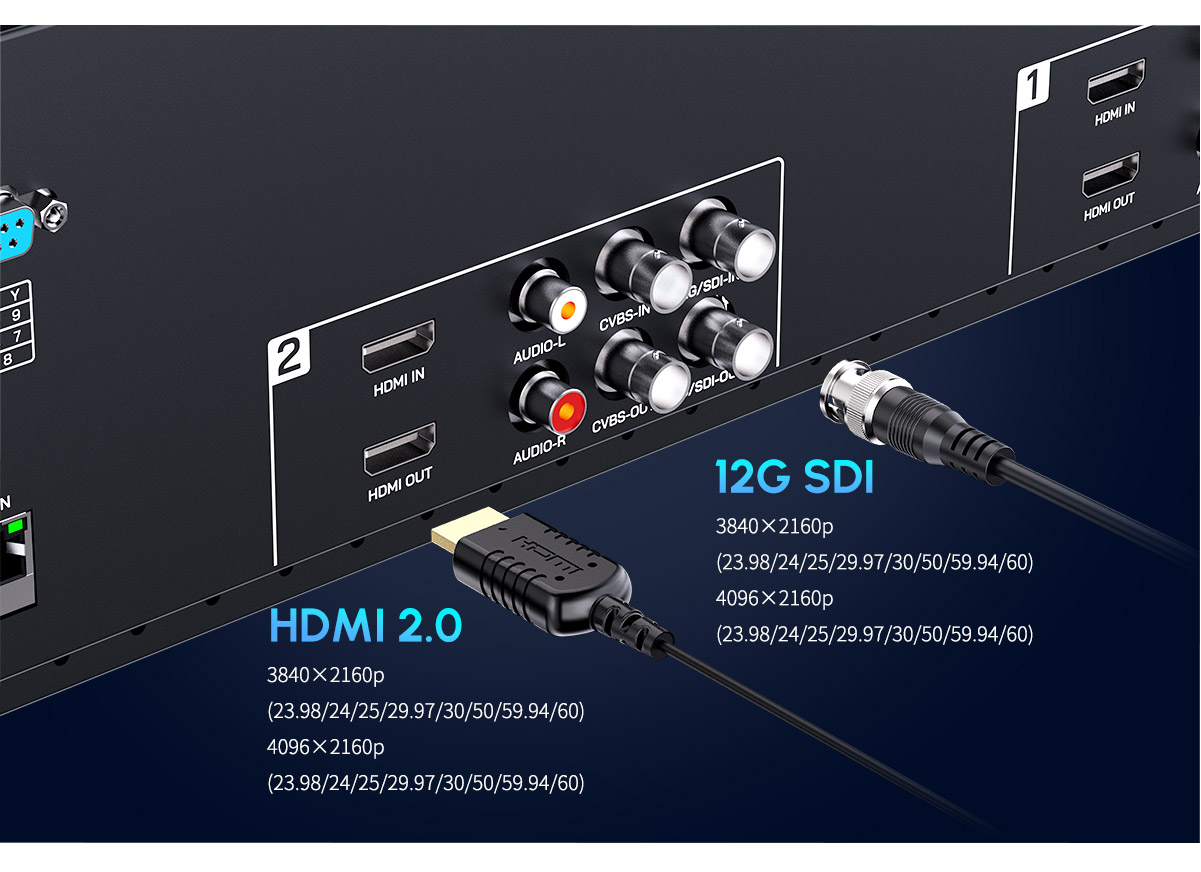

12G-SDI/HDMI2.0 Video Signal
The monitor is equipped with 12G-SDI/HDMI2.0 input and loop out, support up to 4K 60Hz video signals. In addition, the monitor also comes with CVBS and Audio L/R interfaces, meet the different needs.

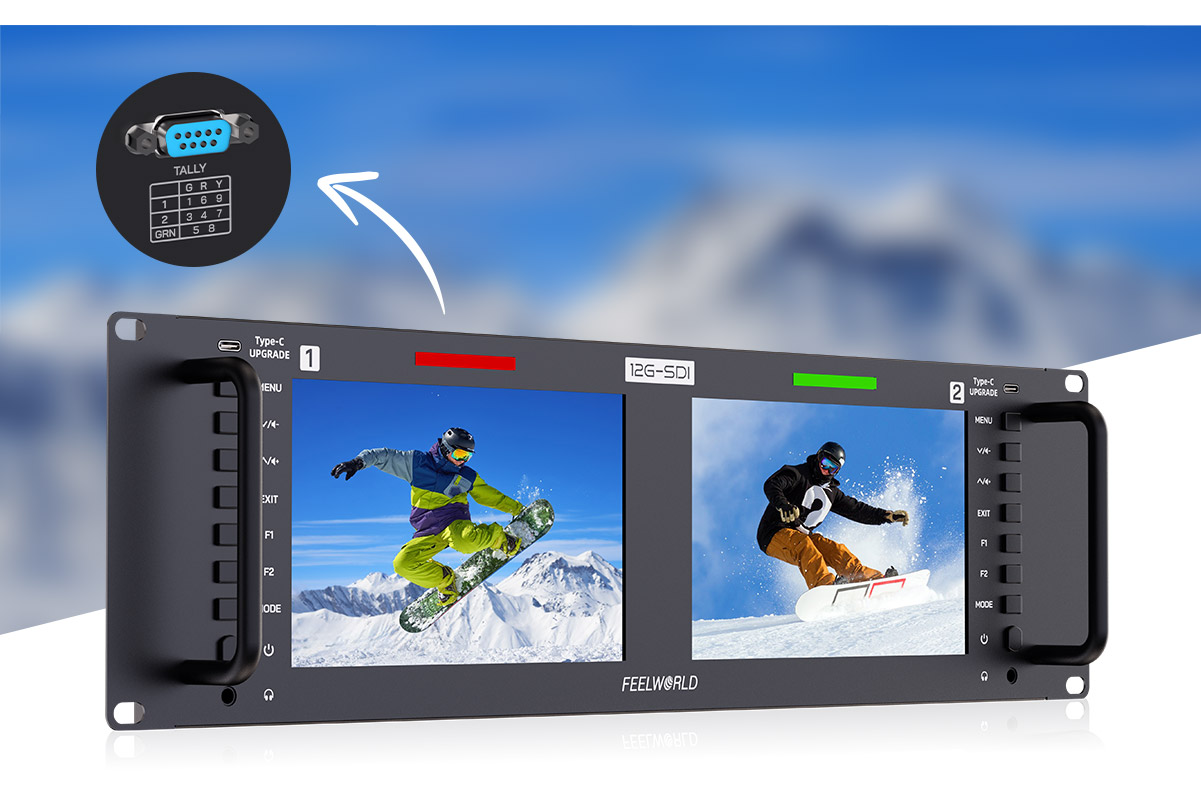

3-Color Tally Indicator, Enhance Team Cooperation
FRM701G features front-facing green, red and yellow Tally indicators on each screen — intuitively showing Preview, On Air and Record status at a glance. Designed for seamless live broadcast workflows, it’s your perfect partner for professional on-site broadcasting.

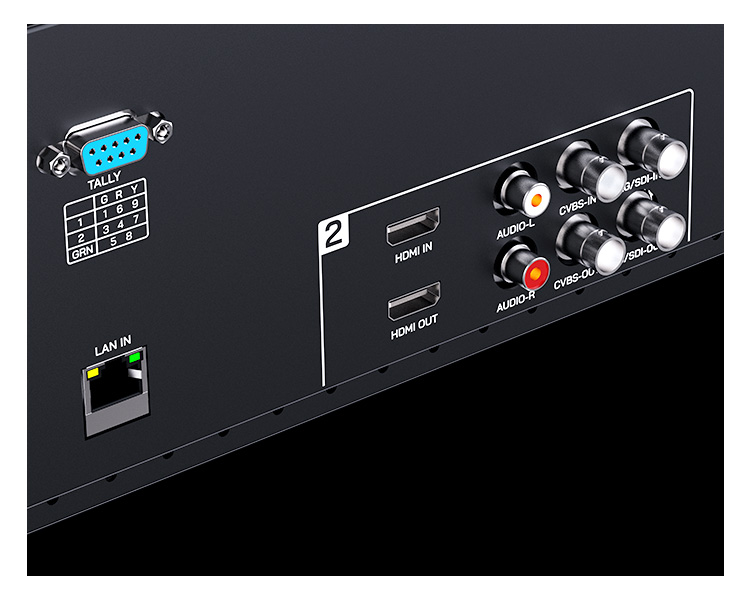

Tally signals are easily connectable via the DB9 Tally interface on the rear of the monitor, ensuring stable and reliable performance for every live production.

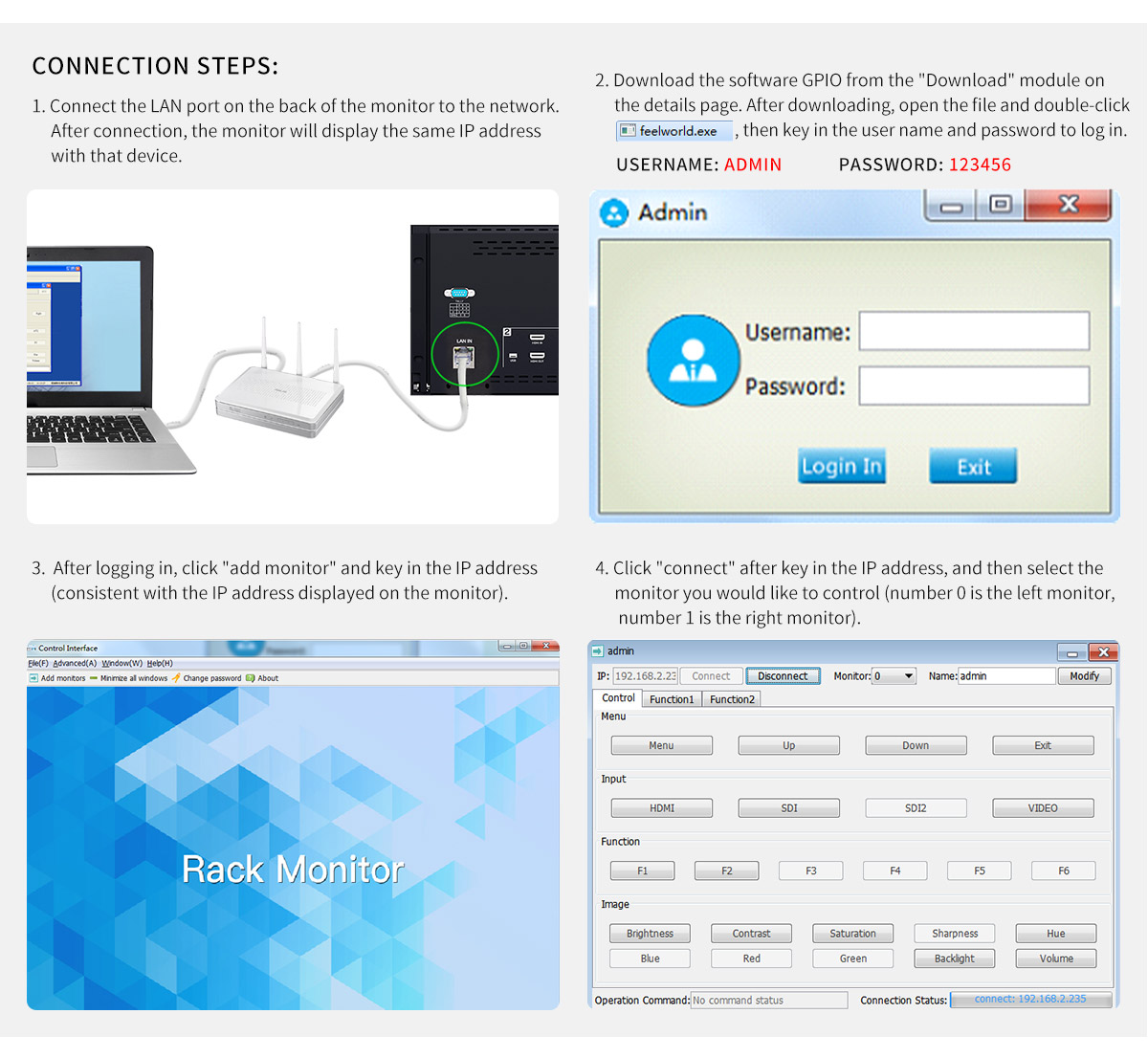

Easy Remote Control
Connecting the LAN interface of FRM701G can remotely adjustment for the monitor via the control software GPIO, which makes it very easy to set up a matching monitor.
Note: the software is suitable for Windows system at present.

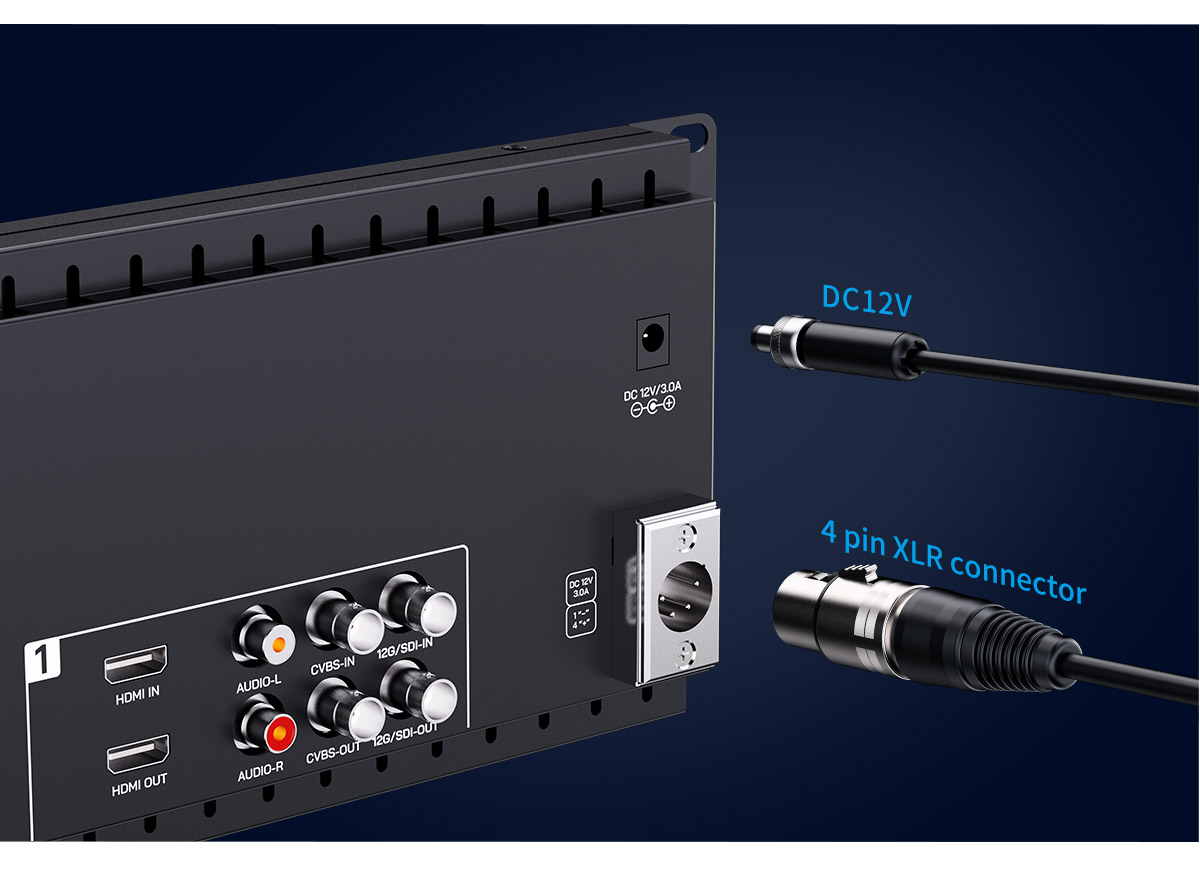

Flexible Power Supply
FRM701G comes with DC 12V and 4 pin XLR connector (suitable for 12V/3A power adapter), strong power for the screens.
11 Languages Supporting
Built-in up to 11 languages, that means FRM701G is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
1. 2x7 Inch 1920x1200 full HD IPS screen
2. Intuitive buttons + new menu interface, convenient to operation
3. 3RU rack mount design, easy to mount on TV wall or broadcast truck
4. Upload custom 3D-LUT, preview film look
5. With Waveform, Vector scope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot
6. Connect to Ethernet remotely adjust the monitor via software
7. Front panel built-in 3 colors TALLY indicator, enhance shooting cooperation
8. Multiple signal ports (12G-SDI/HDMI/CVBS), meet different needs.
9. Power using included 12-volt supply or use standard 4-pin XLR
| * Waveform (RGB、YUV、Y) |
| * Vectorscope |
| * Histogram (RGB1、RGB2、Y) |
| * Custom LUTs (up to 32) |
| * Focus Assist(Red, Green, Blue) |
| * Check Field (Red,Green,Blue,Mono) |
| * Embedded Audio |

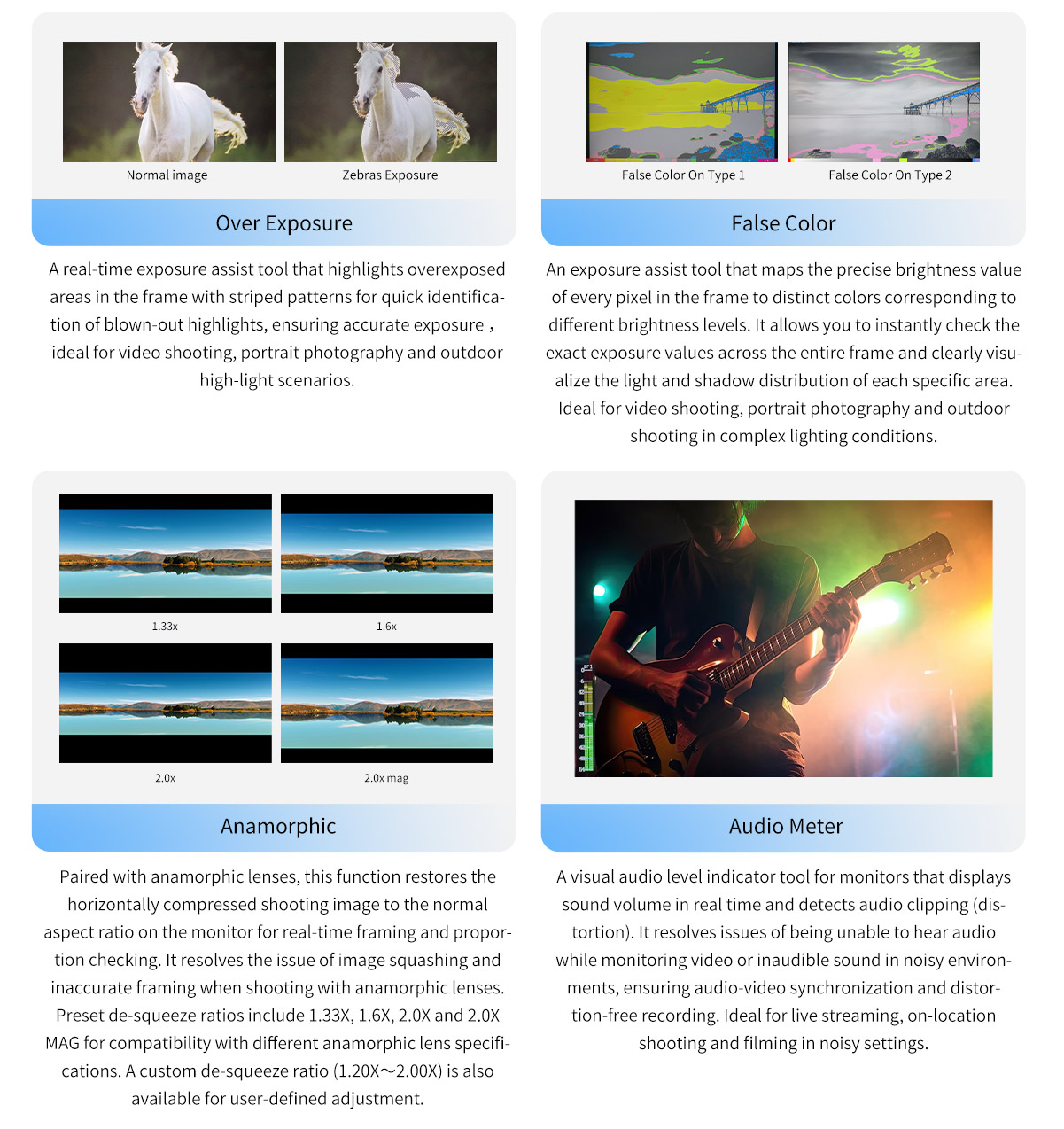

| * Over Exposure |
| * SDI Time Code (LTC, VITC) |
| * Pixel to Pixel |
| * Center Marker (Red, Green, Blue, Black, White, Gray) |
| * Ratio Marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Zoom Mode (2X、4X、9X、16X、User) |
| * False Color |
| * Scan Mode(Under Scan, Over Scan) |
| * Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Custom Color Temperature |
| * Built-in LED tally indicators (Red, Green, Yellow) |
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
Display Spec.
| Model | FRM701G |
| Screen Size | 7"×2 IPS |
| Resolution | 1920×1200 pixels |
| Pixel pitch | 26.25(H)× 3× 78.75(V) um |
| Color Depth | 8bit |
| Aspect Ratio | 16:10 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Signal Input (Each LCD)
| 1 X BNC | 12G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
Signal Output (Each LCD)
| 1 X BNC | 12G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X BNC | Video |
Control Port
| LAN | RJ45 × 1 |
Audio (Each LCD)
| Audio Out | Stereo Headphone × 1 |
12G-SDI Support Format
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 3840×2160p (60/59.94/50/30/29.97/25/24/23.98) |
| 4096×2160p (60/59.94/50/30/29.97/25/24/23.98) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 3840×2160p (60/59.94/50/30/29.97/25/24/23.98) |
| 4096×2160p (60/59.94/50/30/29.97/25/24/23.98) |
CVBS (Video) Support Format
| PAL/NTSC auto recognize |
General
| Input Voltage | DC9～24V |
| Power Consumption | ≤26W |
| Power Input | DC 12V(suitable for 5.5x2.1mm power plug); 4-pin XLR |
| Working Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Install Way | Rack Mount |
| Unit Size | 482.6Lx132Hx30.5D mm |
| Unit Weight | 1890g |
| Outer Carton Qty | 5 |
| Outer Carton Size | 480*274*500 (mm) |
| Gross Weight | 14.5kgs |

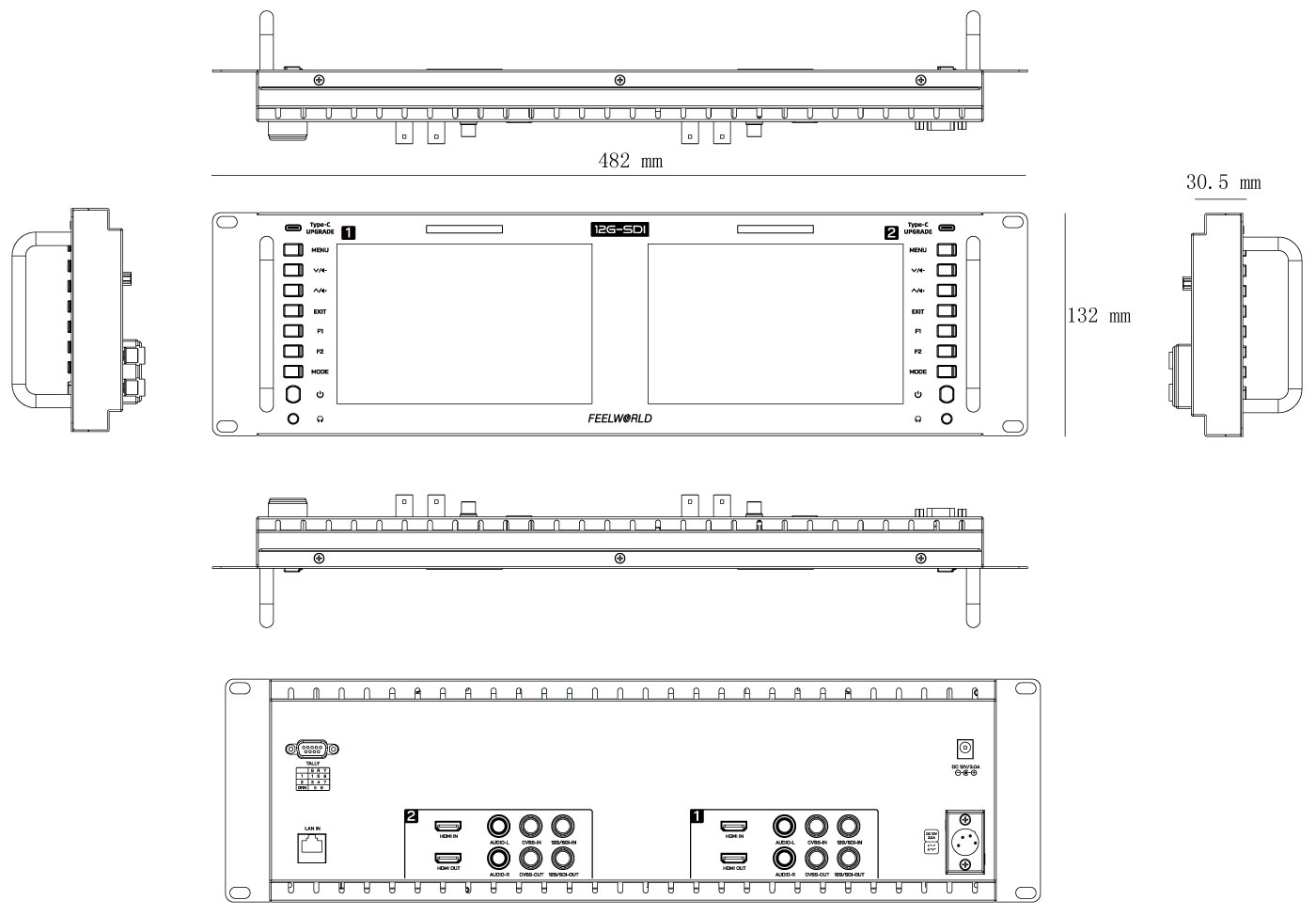

Dimensions (Unit: mm)

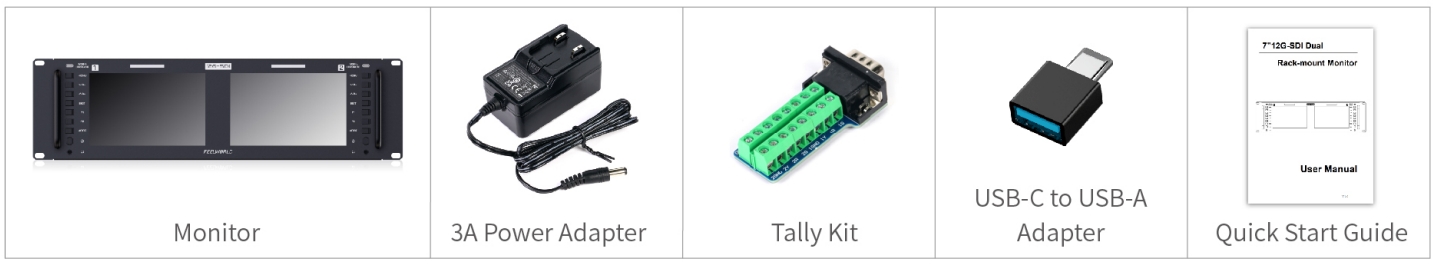

Packaging List:
1× Monitor
1× 3A Power Adapter
1× USB-C to USB-A Adapter
1× Tally Kit
1×Quick Start Guide
