Perfect 4K Broadcast Quality Monitoring

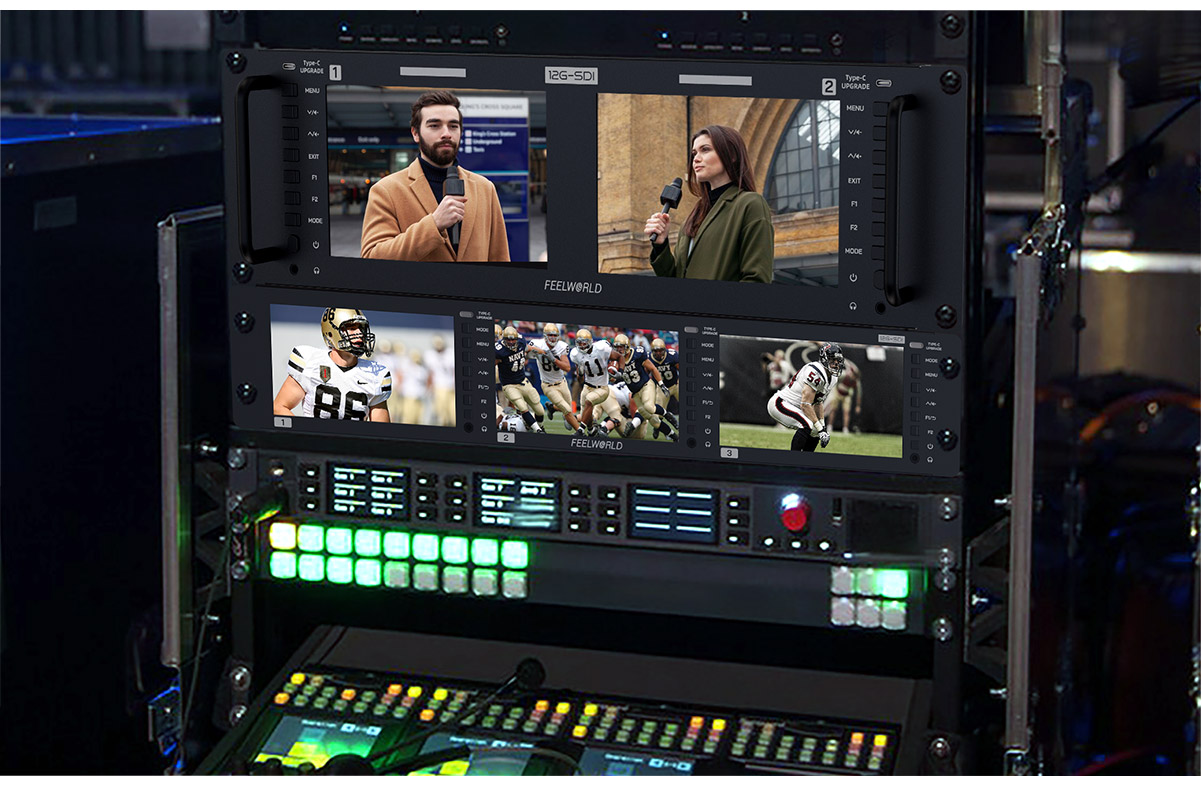

FEELWORLD continues to roll out the 12G rack-mount monitor FRM501G.It comes with three independent 5.5-inch displays, allowing you to monitor three different signal sources simultaneously.Supports 4K@60Hz input and loop out, and features a 2RU rack-mount design for easy installation in video walls or OB vans.Perfect for broadcasting, post-production, on-set monitoring, flight case systems, OB vans, and more.

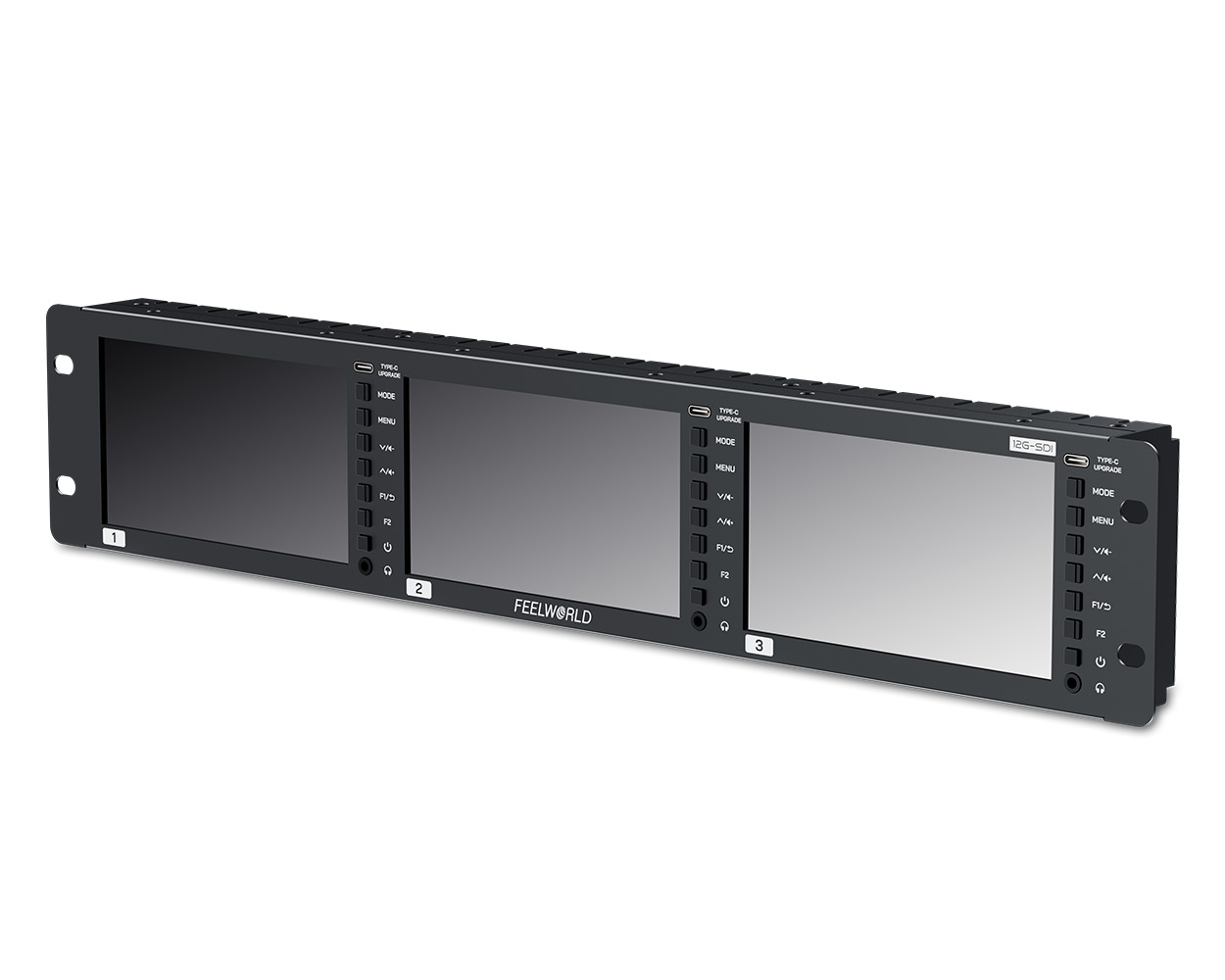

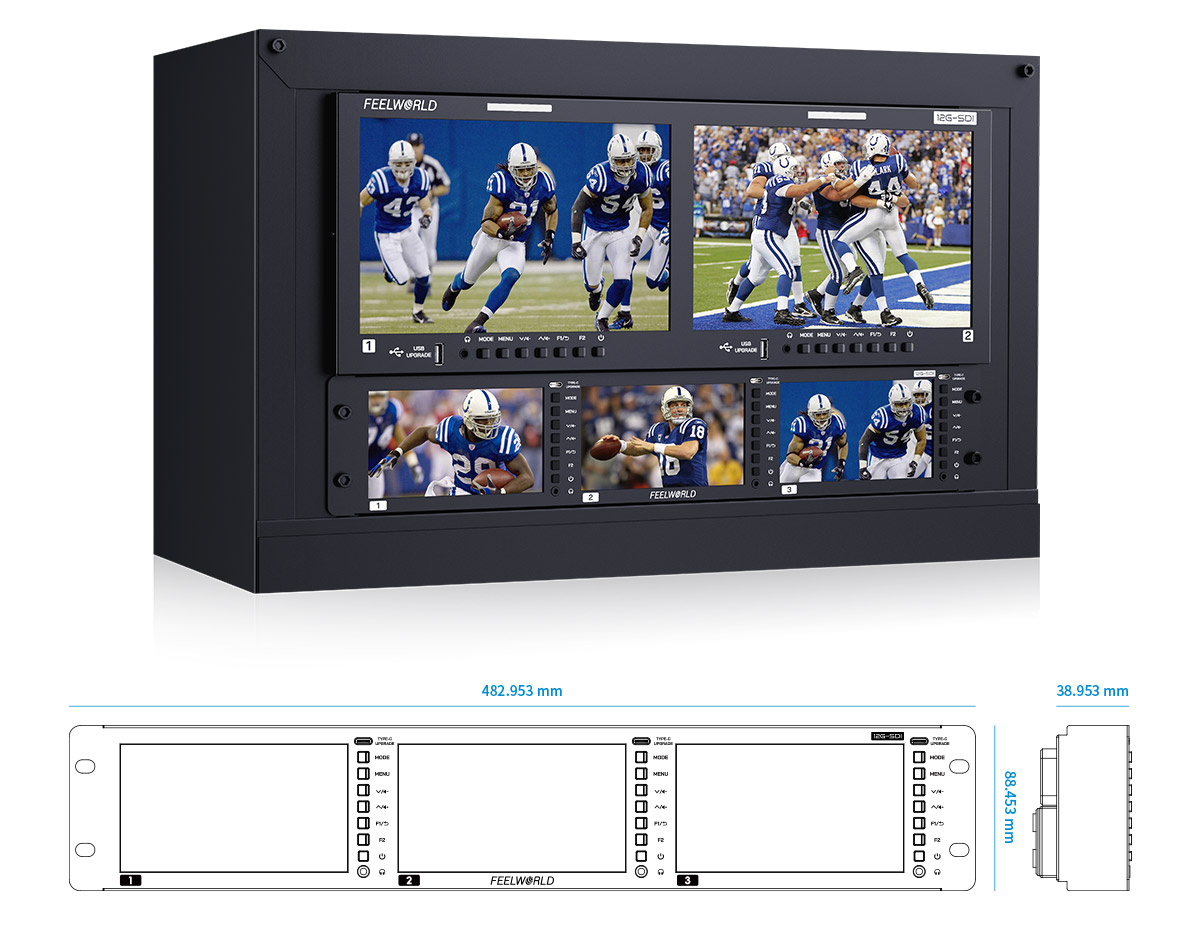

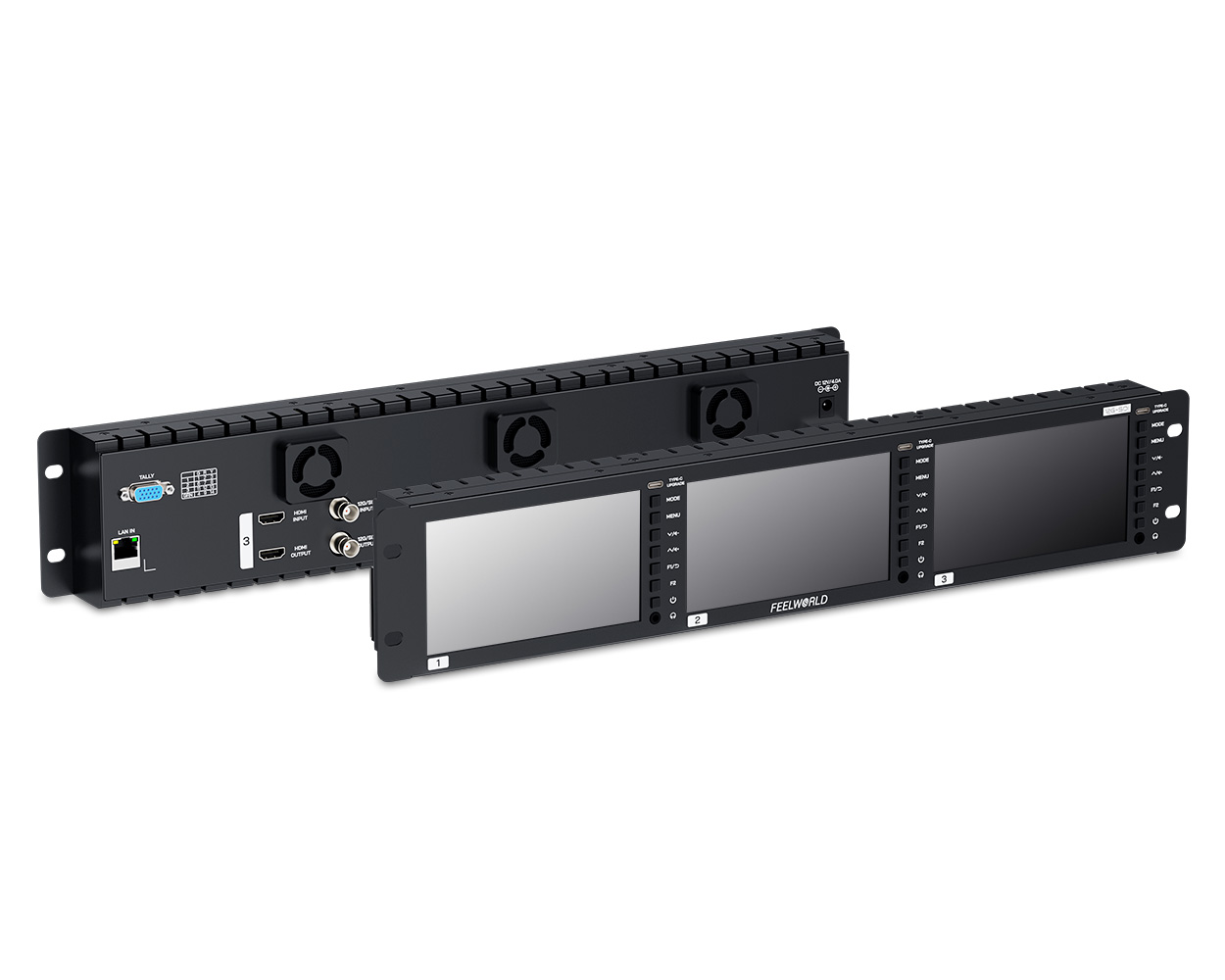

Compact 2RU Rackmount Design
FRM501G with 2 rack units high,the thickness 39mm and a standard 19 inch rack width, this means it is ideal for installation in equipment racks and monitor walls.

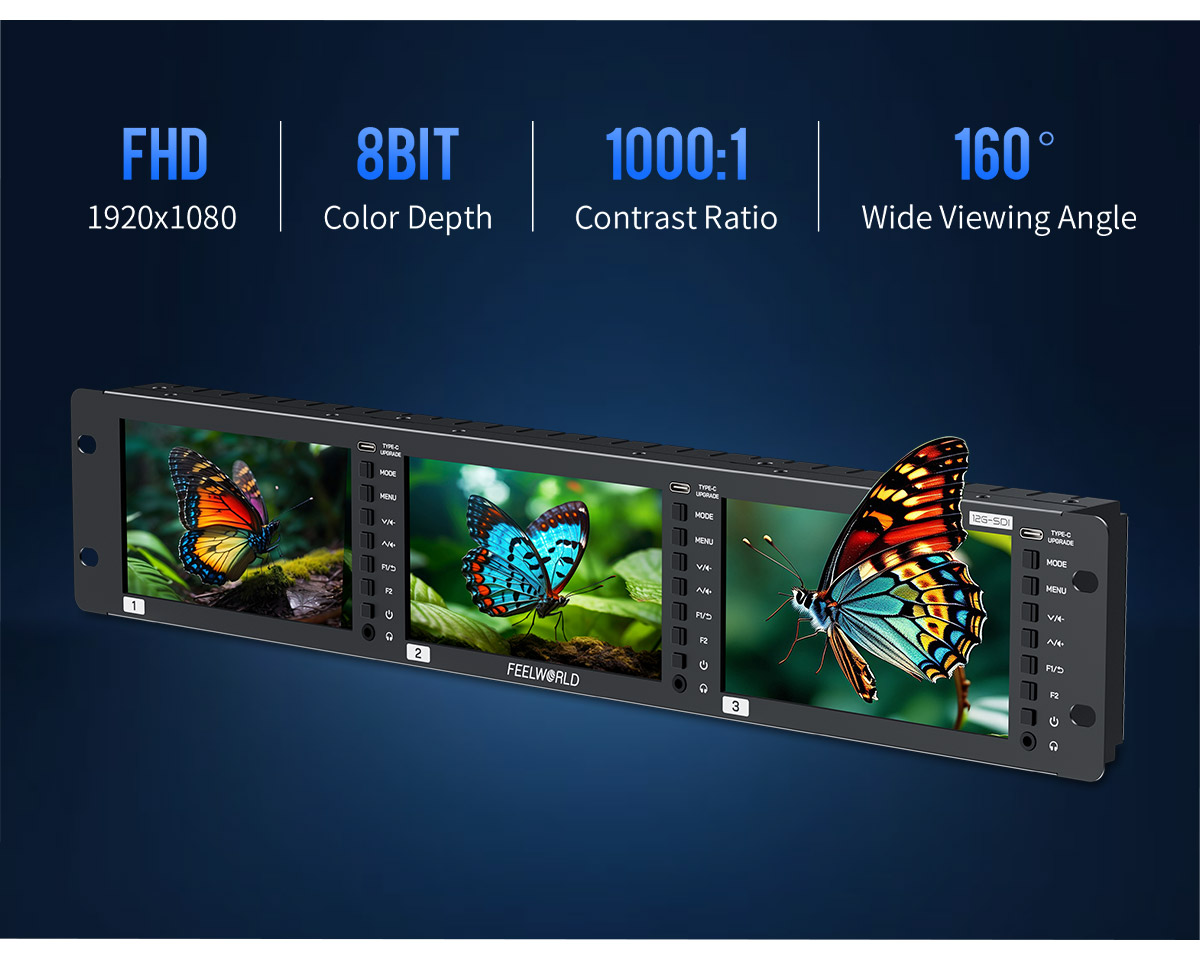

3x5.5" Full HD IPS
Clearly checking and capture every nuance
FRM501G equipped with triple 5.5-inch high resolution 1920x10800 panels that allow you to check out three video signals at the same time, making it easy to create a multi-camera monitoring scenario. Vibrant color reproduction for high-quality imaging.160°wide viewing angle allows you to enjoy a more perfect visual experience.

1000nits High Brightness
The peaking brightness up to 1000nits, you can get clear and bright colors even when using outdoor.

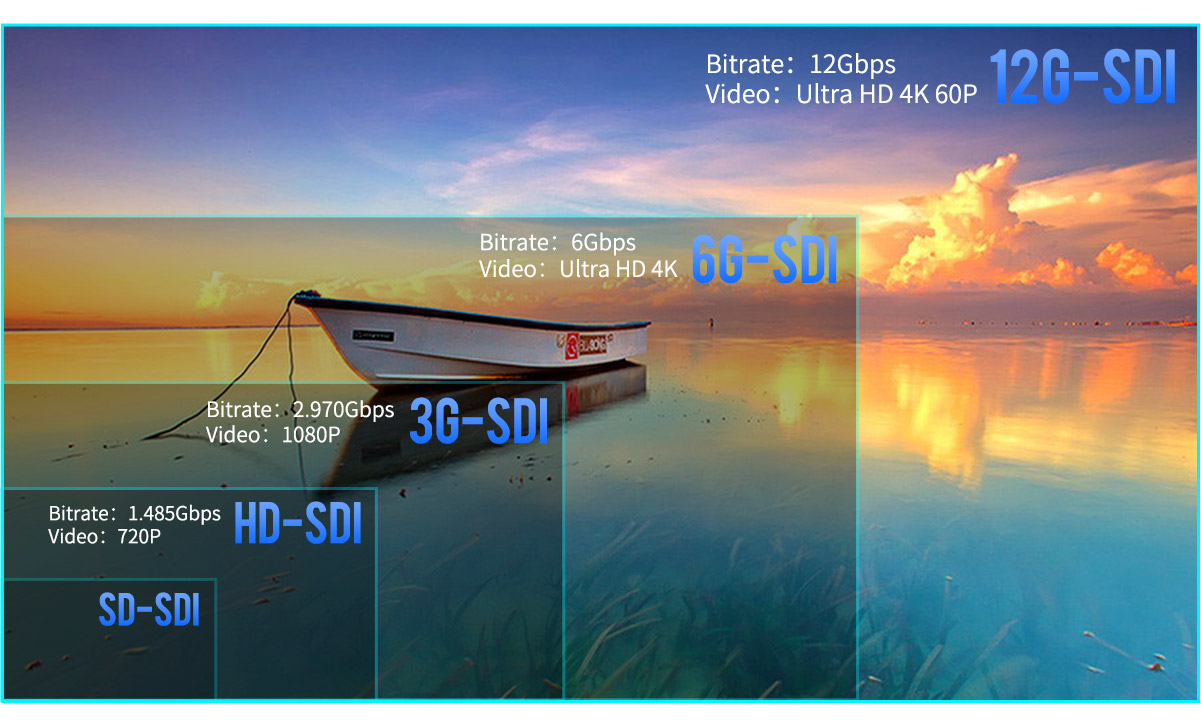

12G-SDI High Speed Transmission
Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.

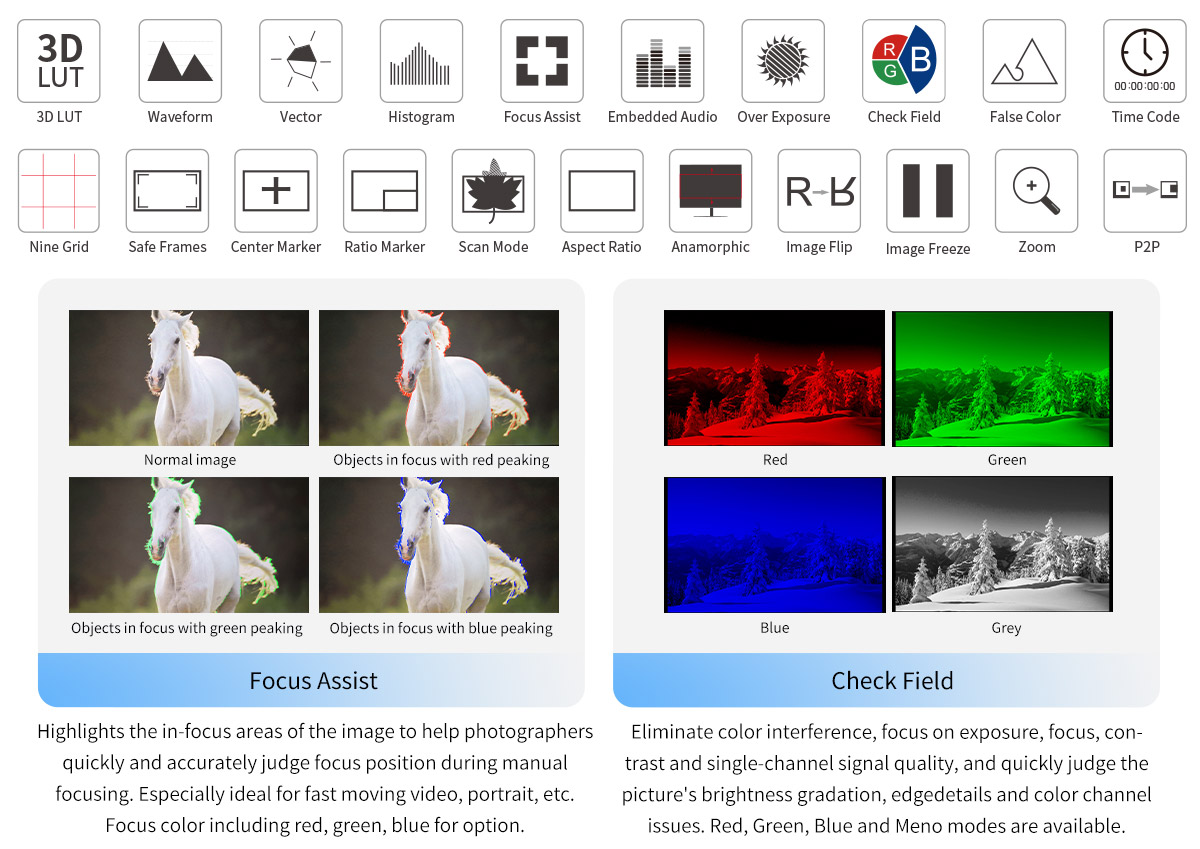

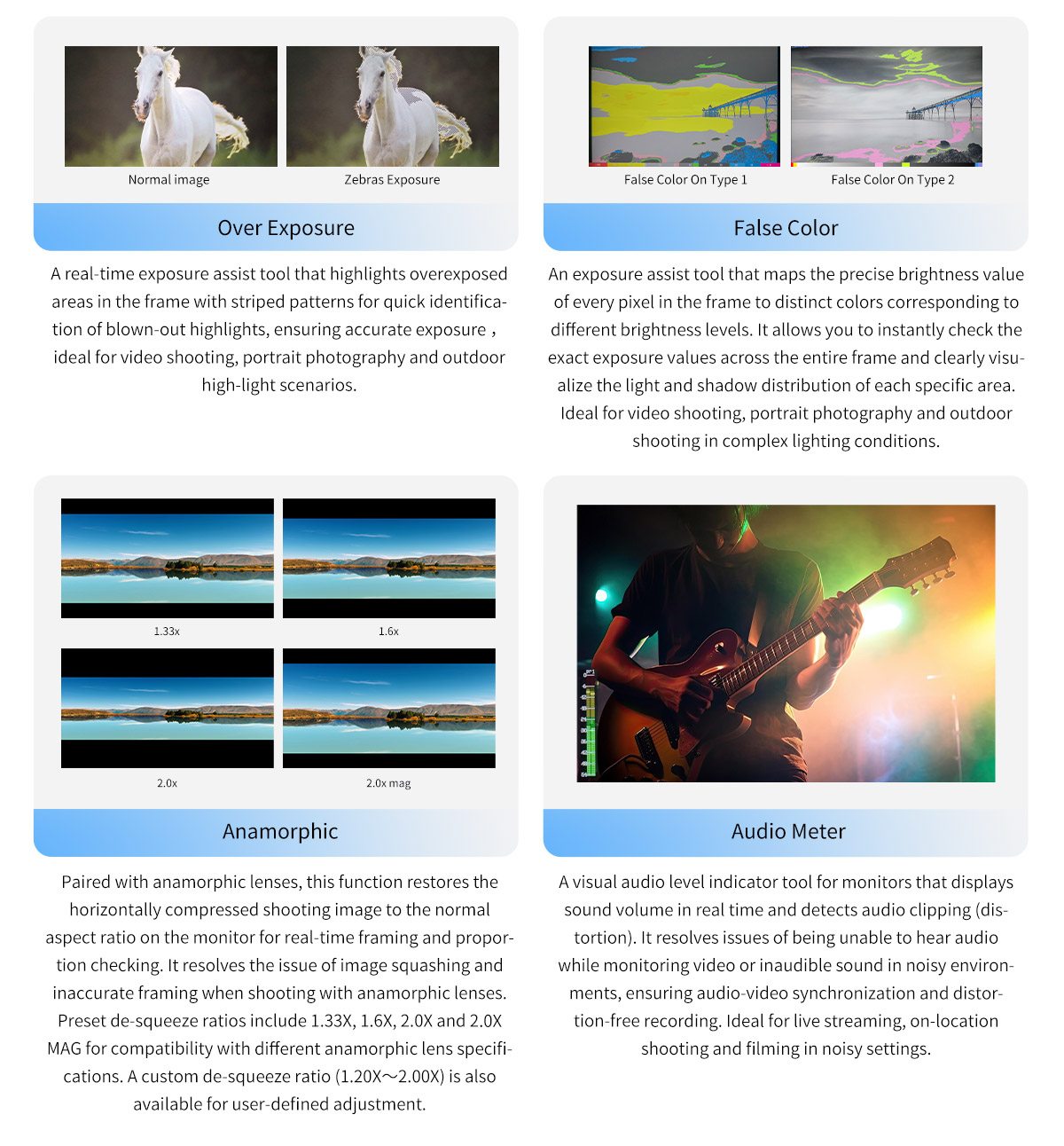

Full Range of Auxiliary Functions

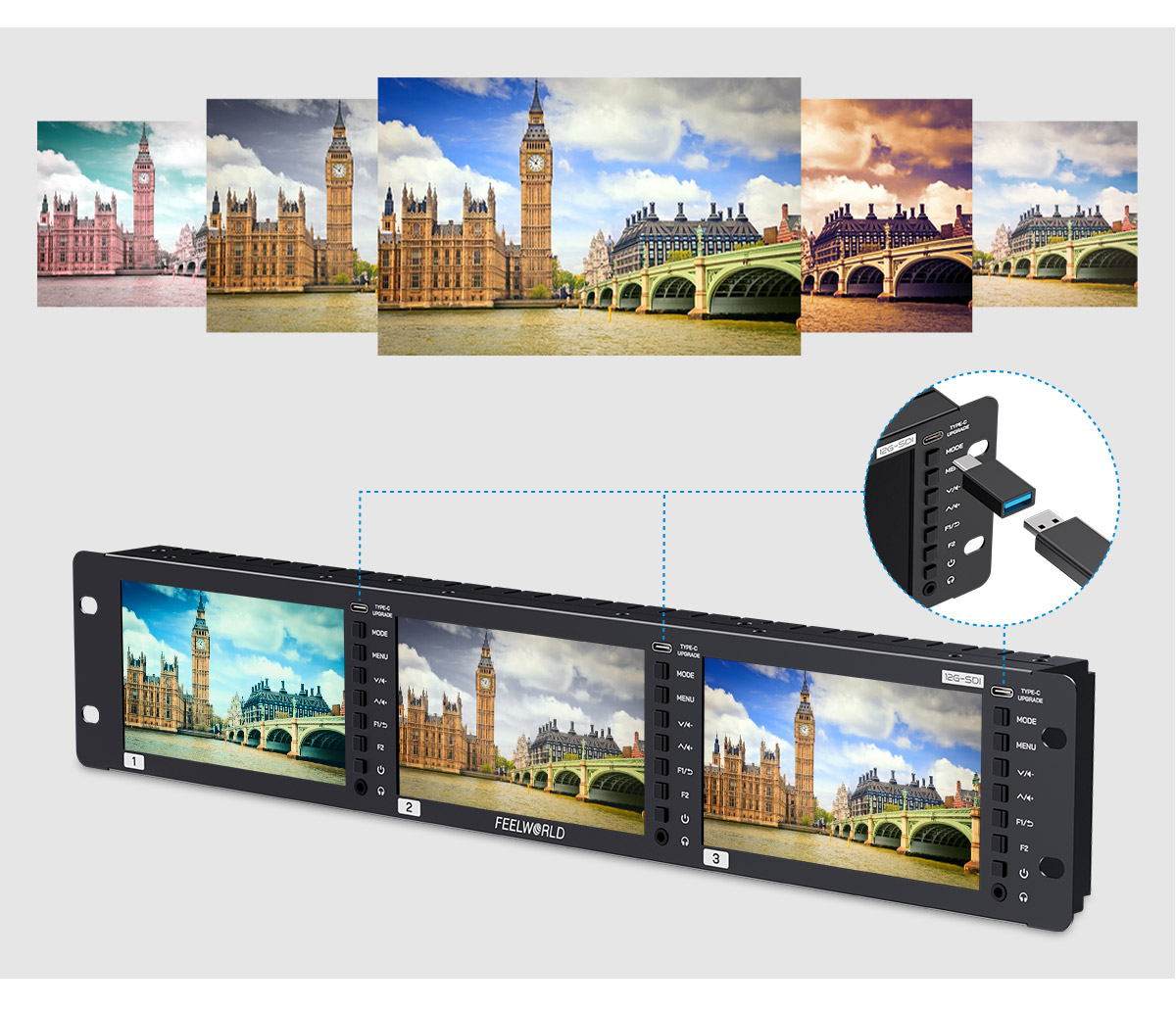

Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Supports uploading up to 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in 4 types(S-Log2,s-Log3, C-Log, V-Log) or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the USB flash drive, and connect to Type-C interface of the device via the standard accessory USB-C to USB-A adapter (up to 32 custom files can be imported).

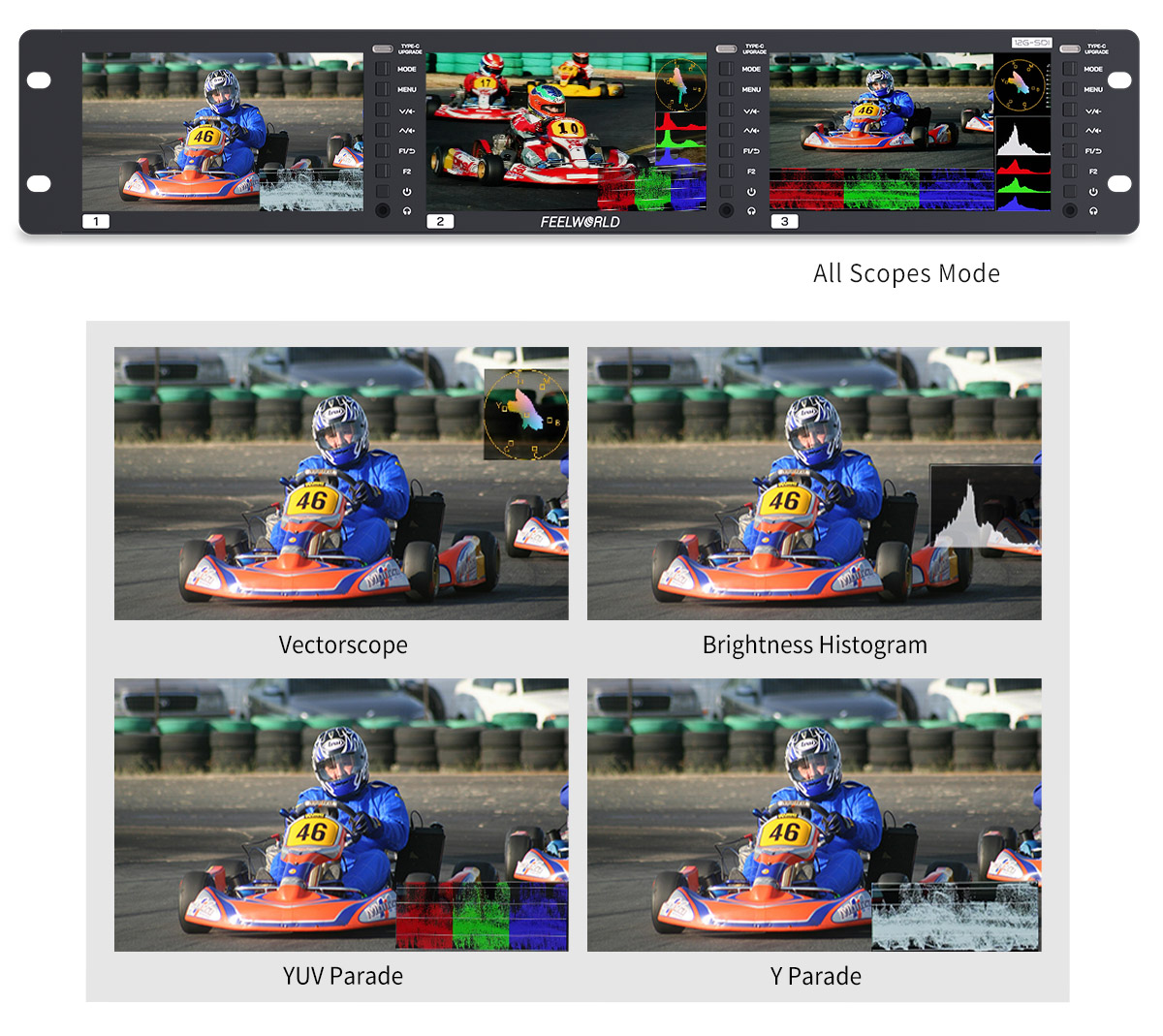

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can view two independent sources simultaneously and choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FRM501G becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

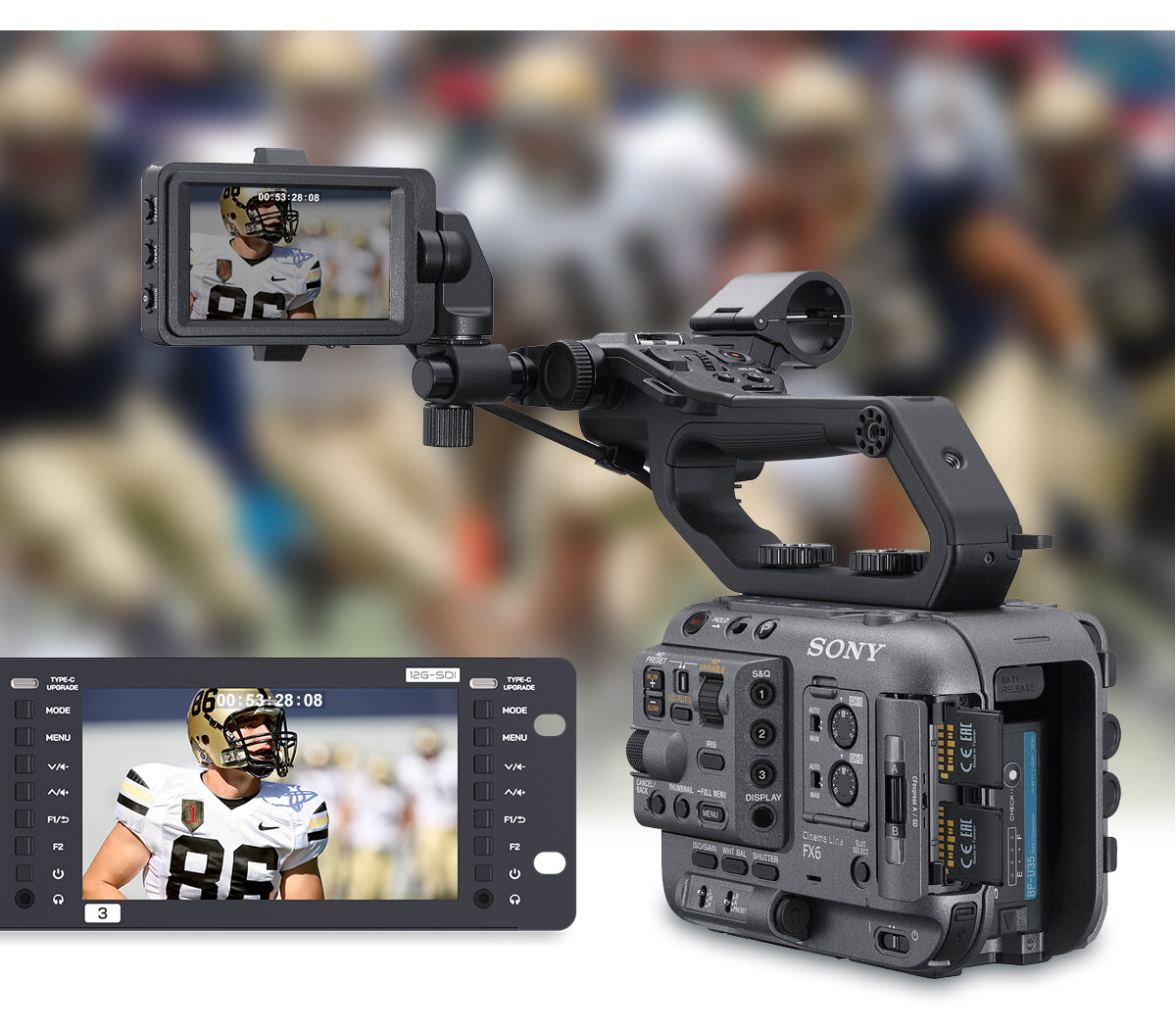

SDI Time Code
The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production

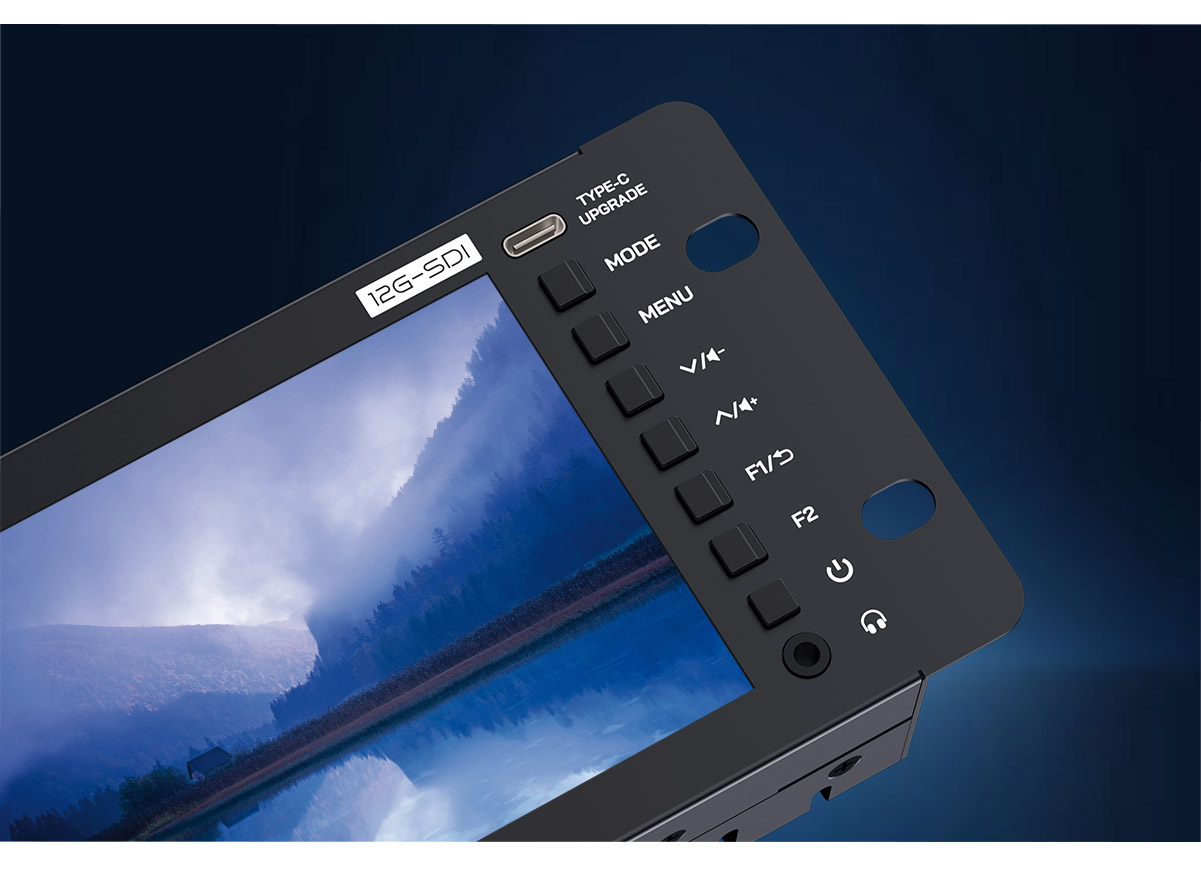

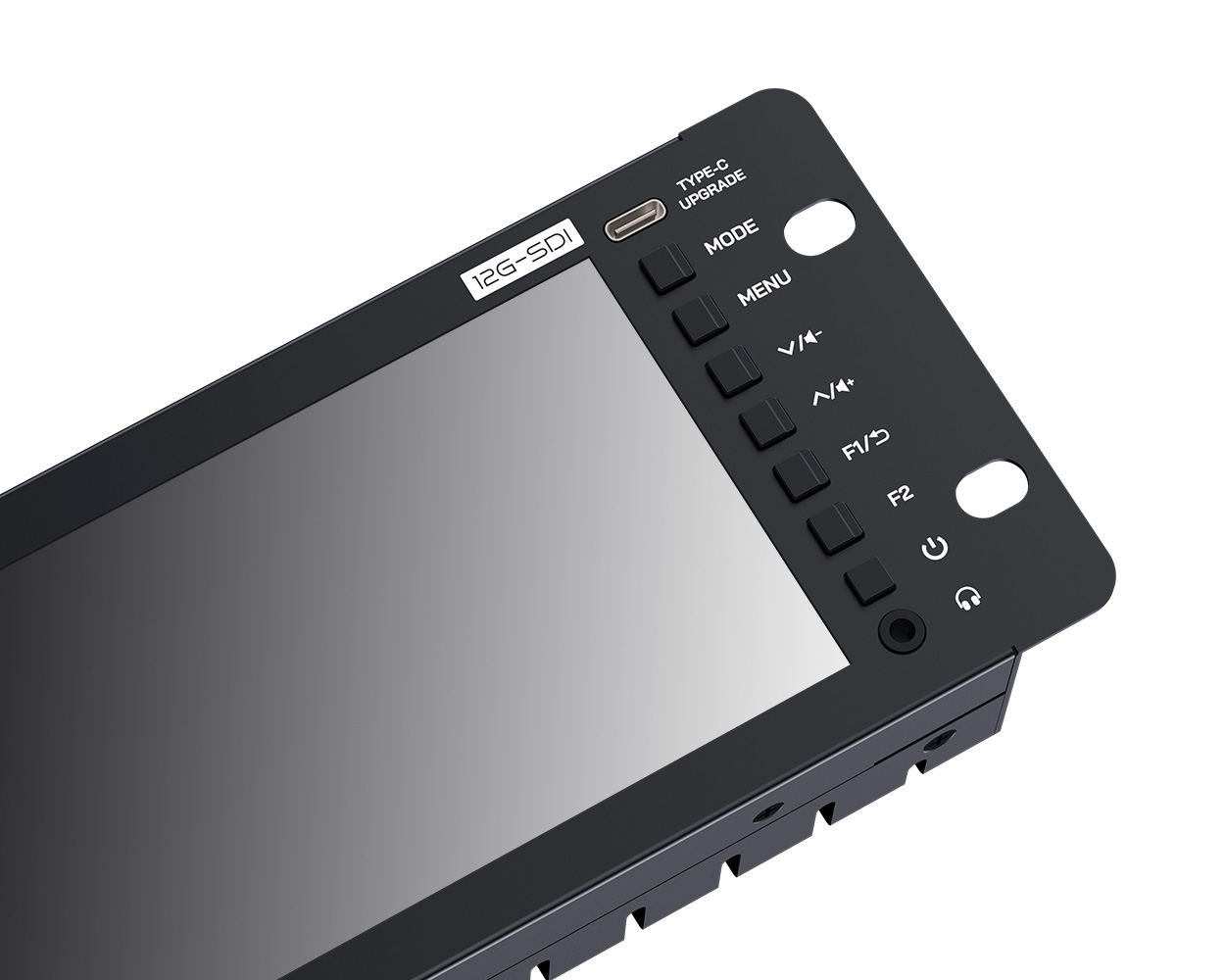

Flexible and Intuitive Button Operation
The FRM501G is equipped with 3 exquisite front panels, each fitted with intuitive buttons that come with independent control screens — enabling quick and simple operation. It also features two F shortcut keys, allowing photographers to pre-set shortcut functions according to the actual needs of the shooting scene and quickly call up the required functions during shooting.

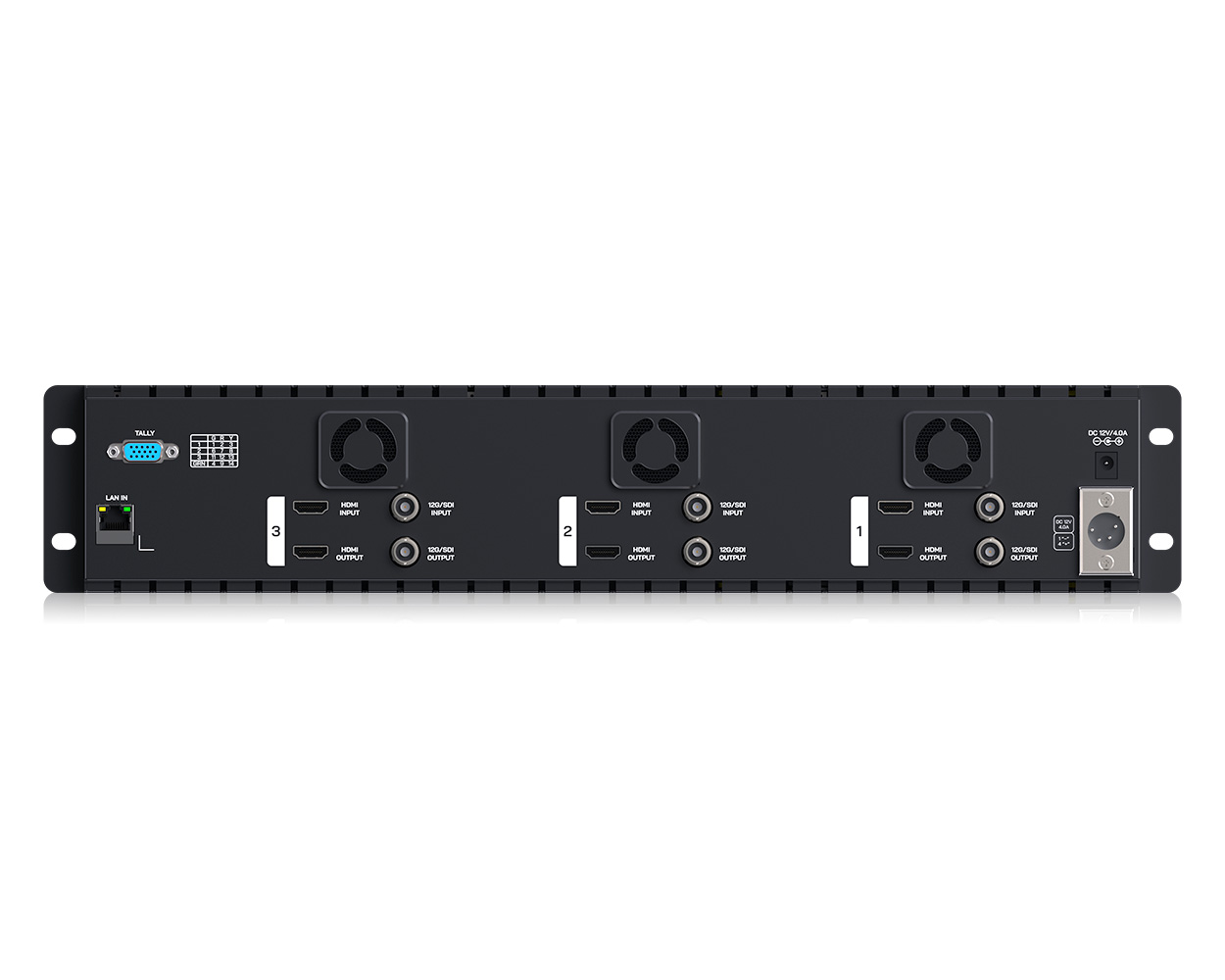

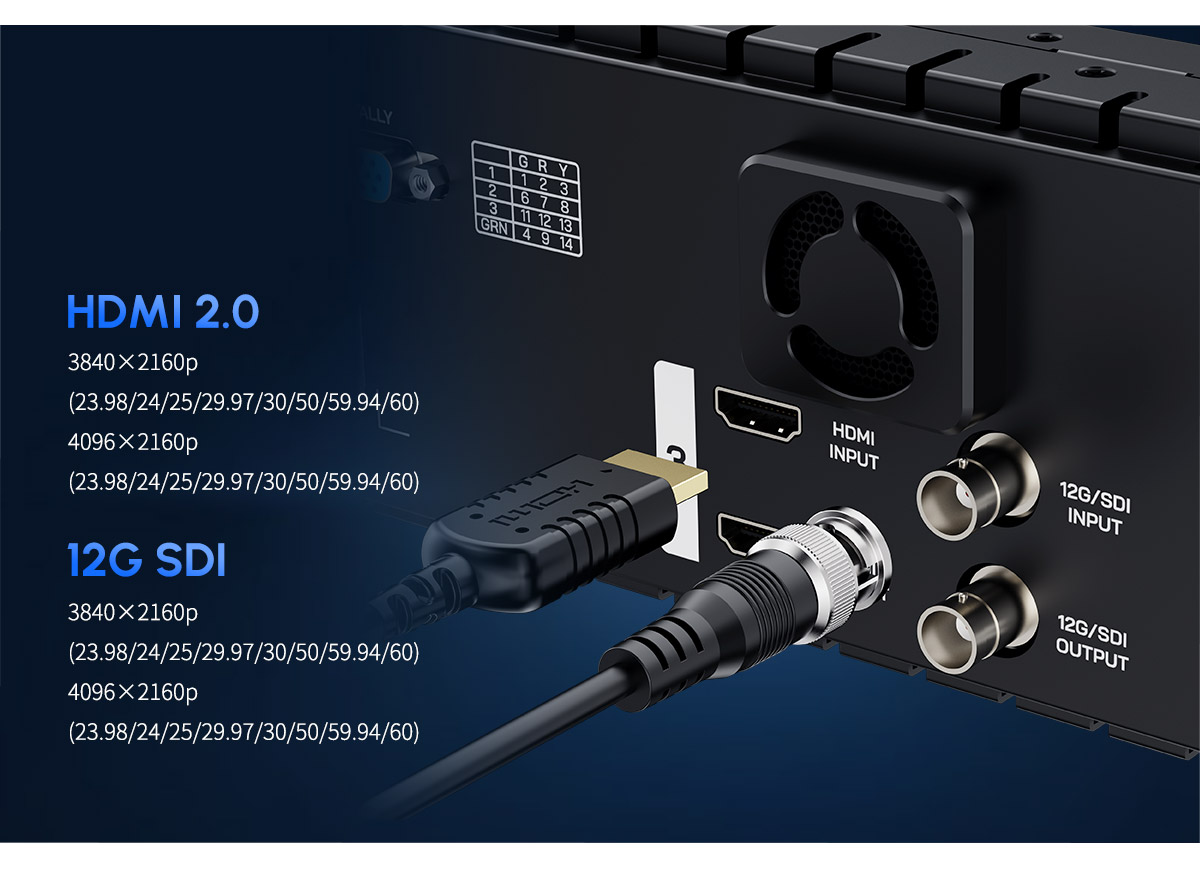

12G-SDI/HDMI2.0 Video Signal
Each panel is equipped with 12G-SDI/HDMI2.0 input and loop out, support up to 4K 60Hz video signals.

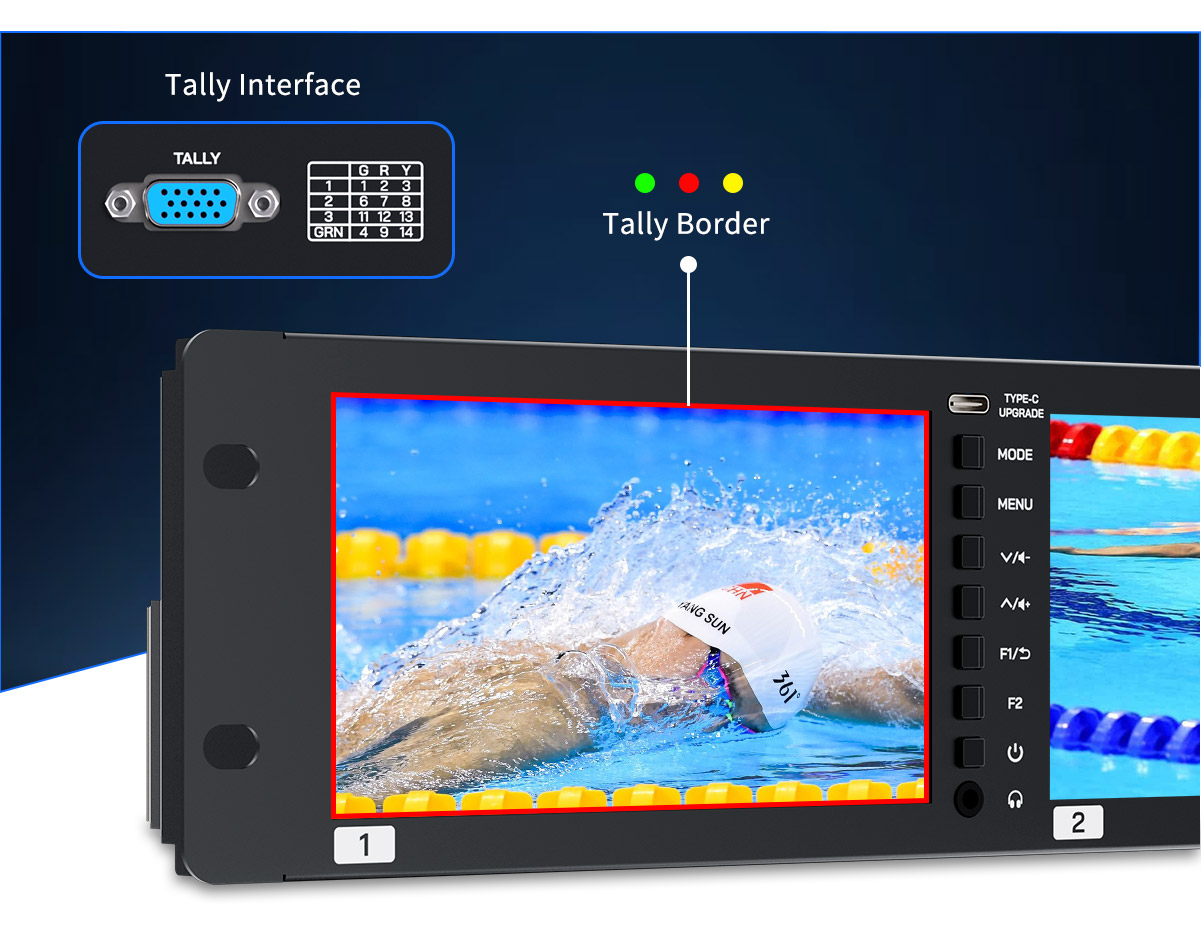

3-Color Tally Border, Enhance Team Cooperation
FRM501G built-in green, red and yellow Tally border on each screen — intuitively showing Preview, On Air and Record status at a glance. Designed for seamless live broadcast workflows, it’s your perfect partner for professional on-site broadcasting.

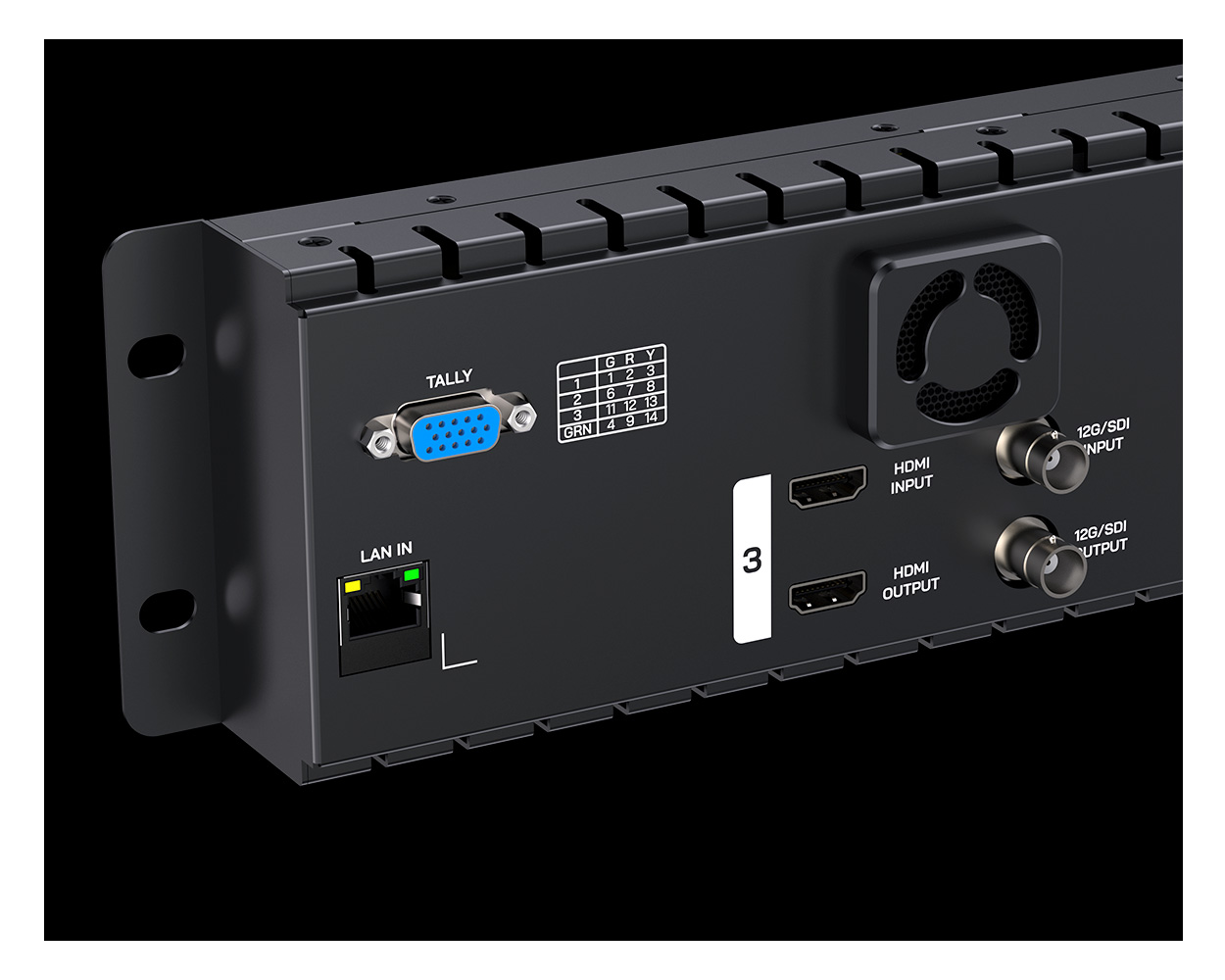

Tally signals are easily connectable via the DB15 Tally interface on the rear of the monitor, ensuring stable and reliable performance for every live production.

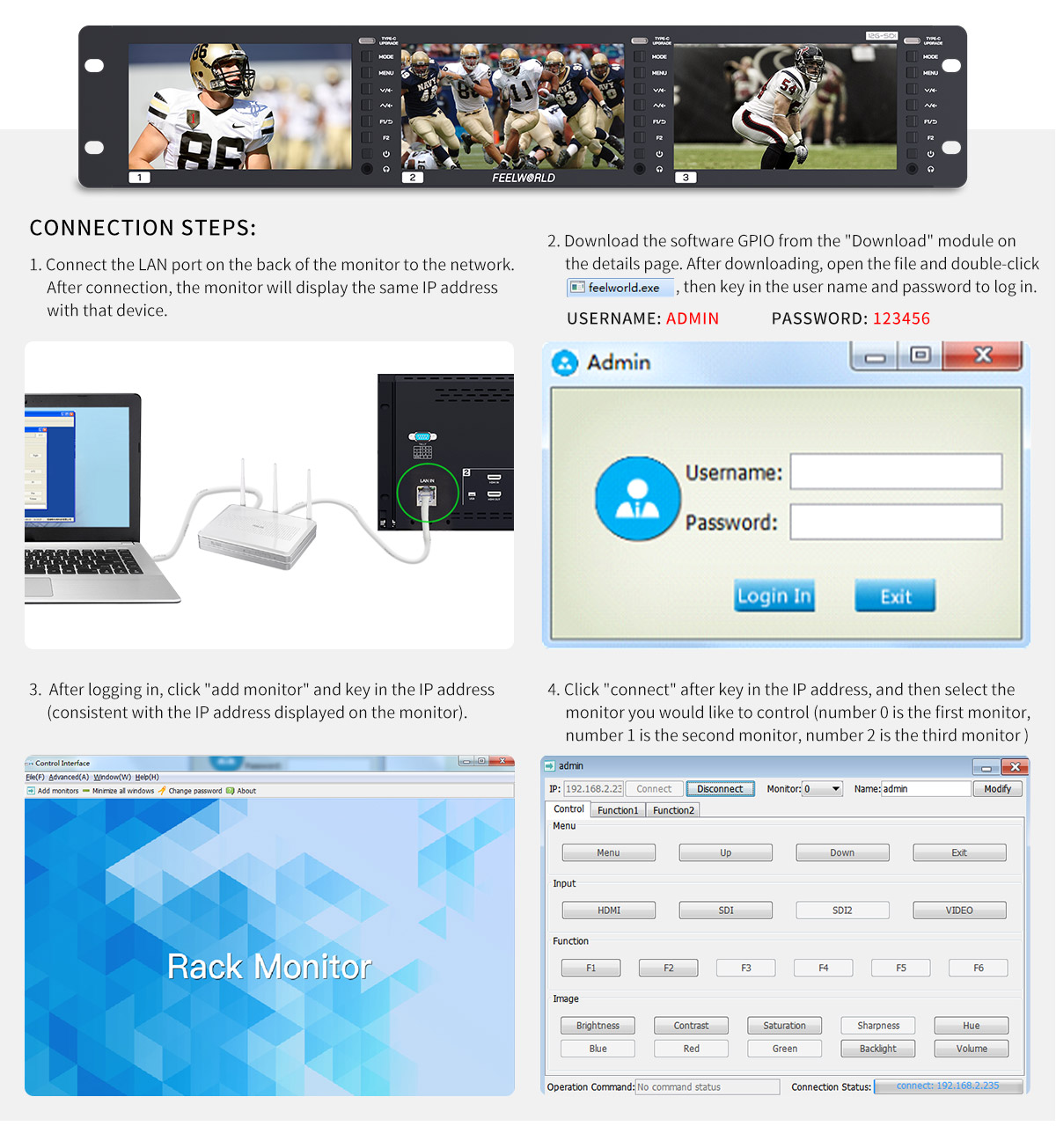

Easy Remote Control

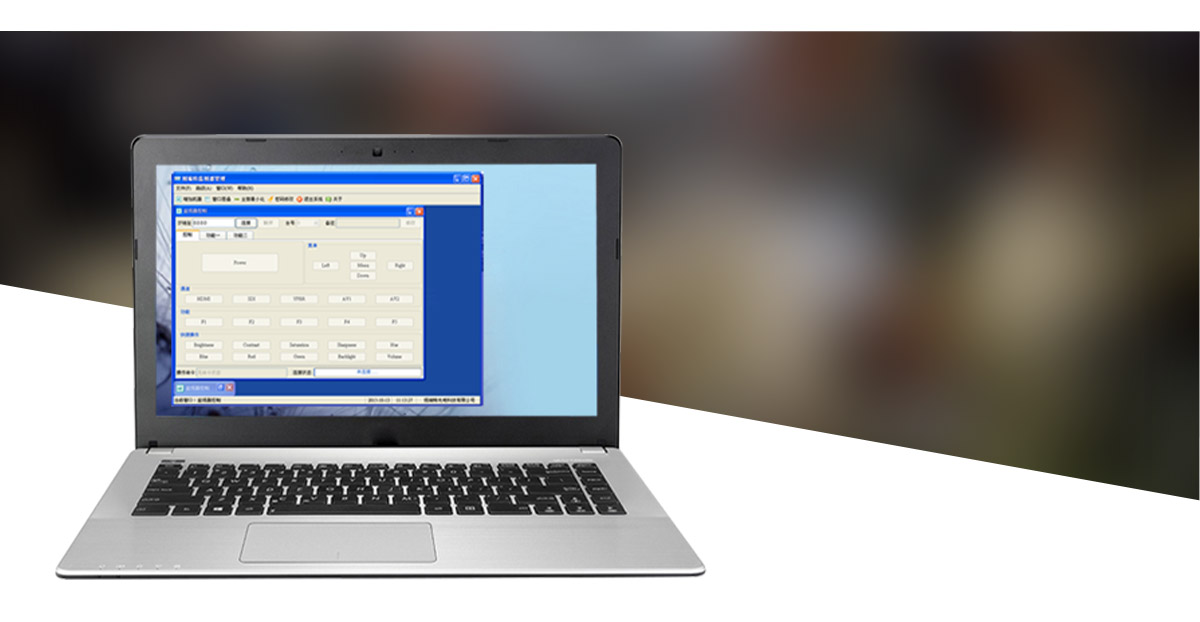

Connecting the LAN interface of FRM501G can remotely adjustment for the monitor via the control software GPIO, which makes it very easy to set up a matching monitor.
Note: the software is suitable for Windows system at present.

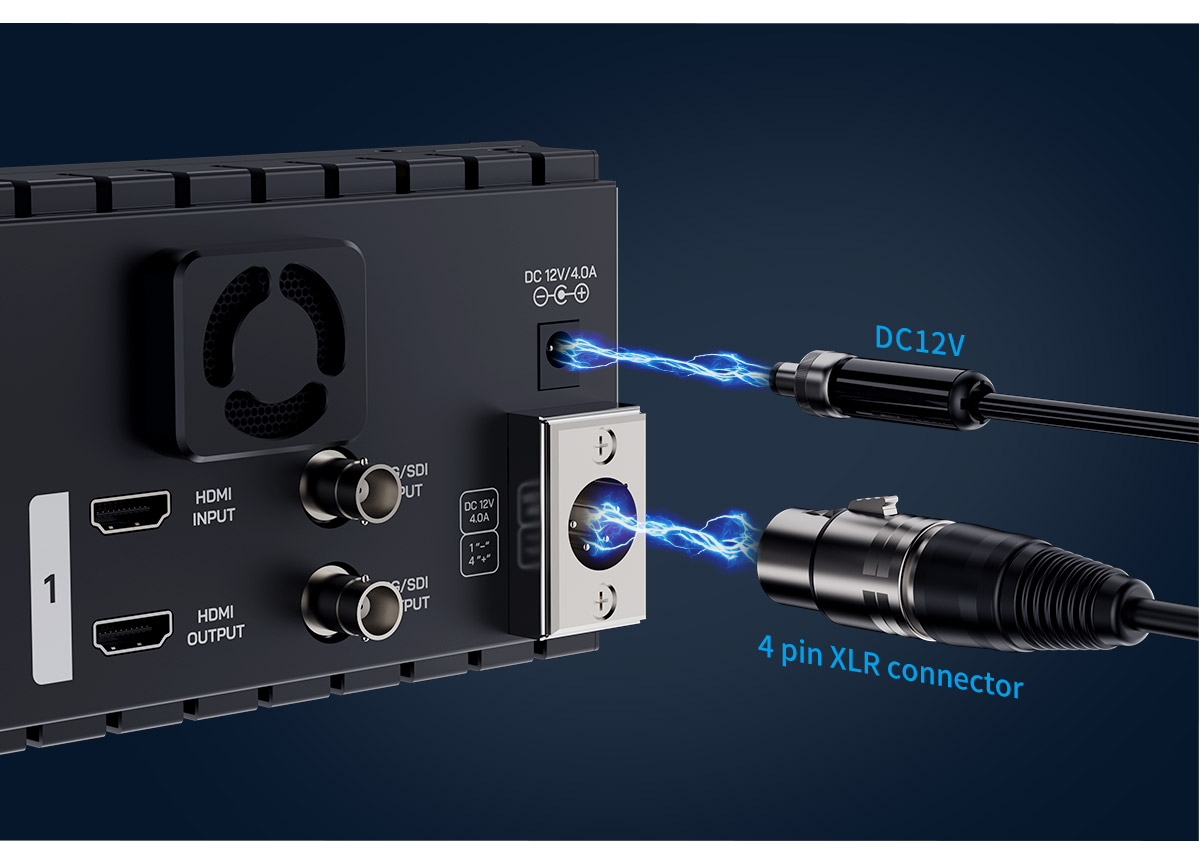

Flexible Power Supply
FRM501G comes with DC 12V and 4 pin XLR connector (suitable for 12V/4A power adapter), strong power for the screens.

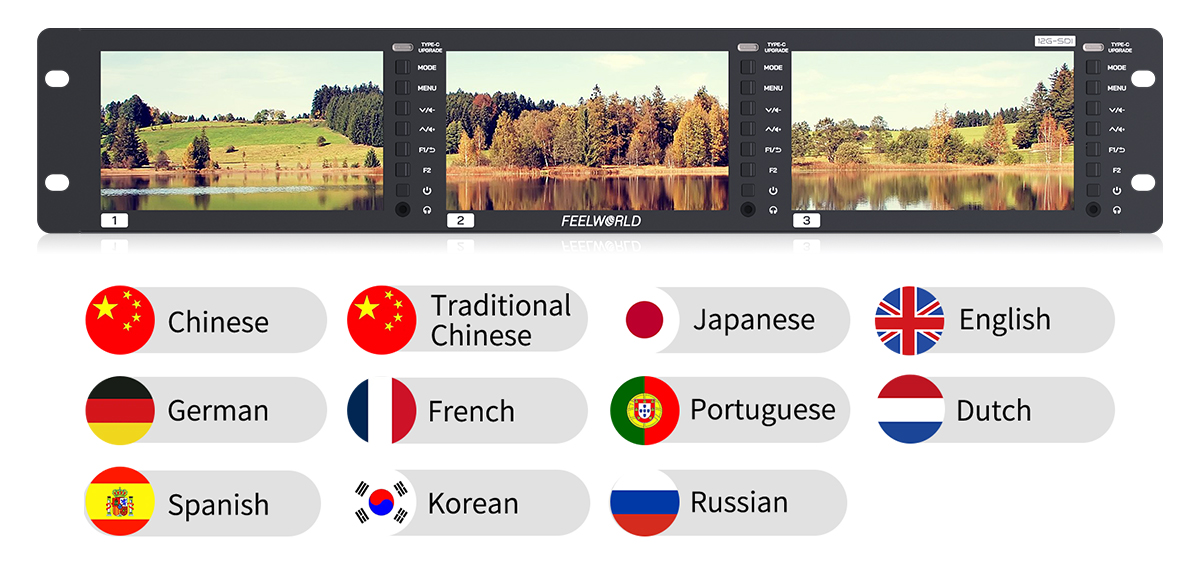

11 Languages Supporting
Built-in up to 11 languages, that means FRM501G is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

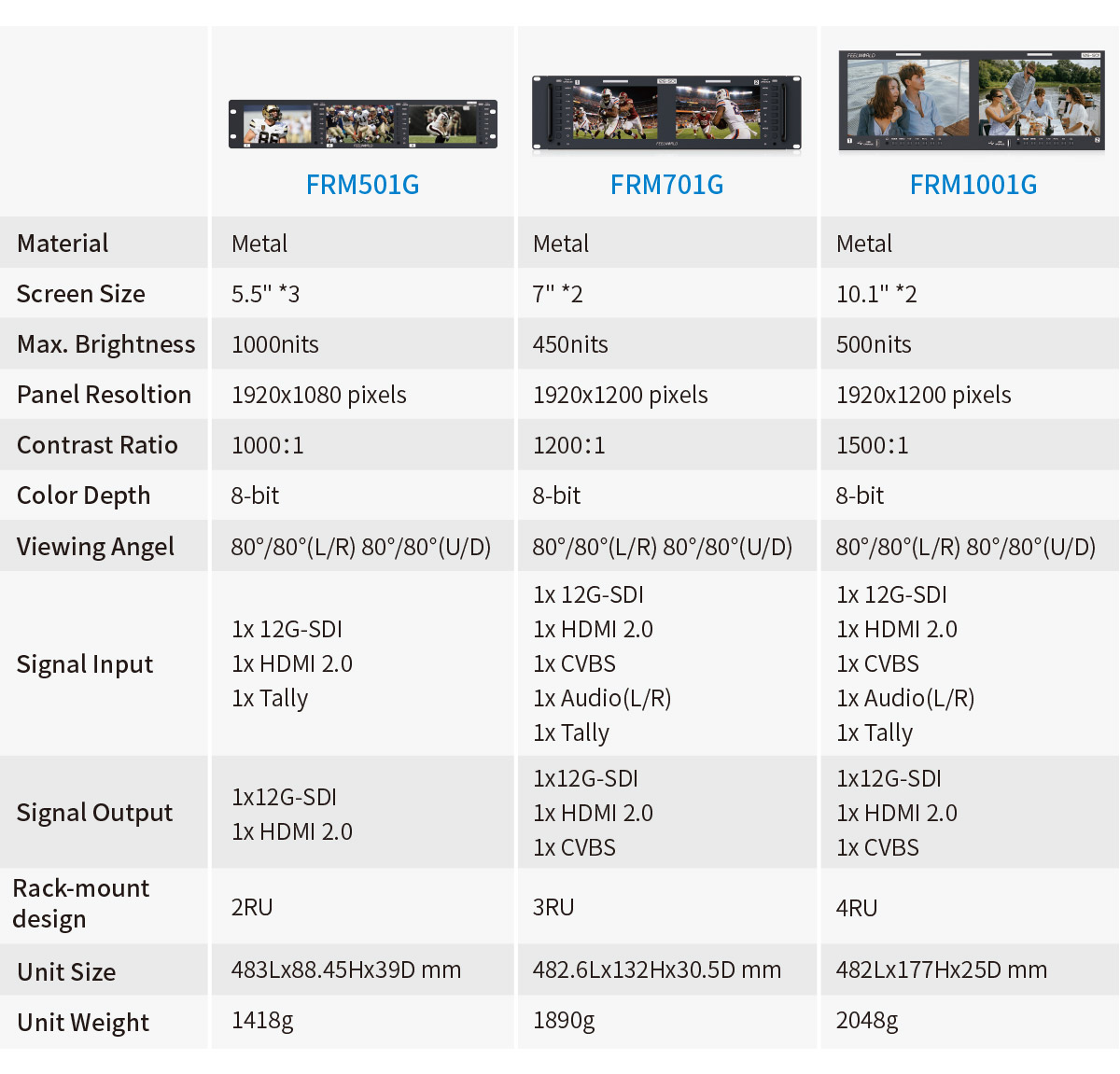

Parameters Comparison
