| Number: | 202307011509541355 |
|---|---|
| Model: | F6 PLUSX |
| Size: | 5.5" IPS |
| Introduction: |
Screen Size： 5.5" Touch Screen
Resolution： 1920x1080 pixels Aspect ratio： 16:9 Brightness： 1600cd/m² |
| Input: | 4K HDMI, SD Slot, Type-C |
| Output: | 4K HDMI, Stereo Headphone, DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) |
| DM: | |
| Download: | |
FEELWORLD F6 PLUSX is a high brightness 1600nit 5.5 inch HDMI monitor that’s perfect for vloggers, creatives and photographers.Go anywhere and see everything exactly how you want it with F6 PLUSX.
Viewing clearly and capture every detail with confidence
With extremely high resolution IPS panel, 16.7M(8bit) color gamut, provides excellent details,accurately reflect the original colors.
Backed by 1600nits of brightness, F6 PLUSX isn't afraid to get a little sun. The screen visible clearly even outdooor shooting, no need to use sun-hood..
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.
Supports upload 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via SD card(up to load 32).
What you see is what you get
Compare the normal image, HDR provides stunning dynamic range and image details. Built-in HLG mode.
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode .F6 PLUSX becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Support 4K@30Hz signal input and output, transmitted without loss,and the screen is clearer.
F6 PLUSX provides auxiliary power out, allowing shooters to power their cameras. With a battery adapter cable (Optional), the F6 PLUSX extends camera run-time, while providing a more usable display.
F6 PLUSX has multiple power supply ways, providing strong power endurance.
1.Power supply through 12V DC power input (can be using 12V/1.5A adapter)
2.For outdoor shooting ,you can power supply by dual-purpose battery plate (compatible with Sony NPF series battery and Canon LP-E6 battery).
3. Supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A).
F6 PLUSX built-in up to 11 languages, meet the different needed.
The monitor features 3 standard 1/4” mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.

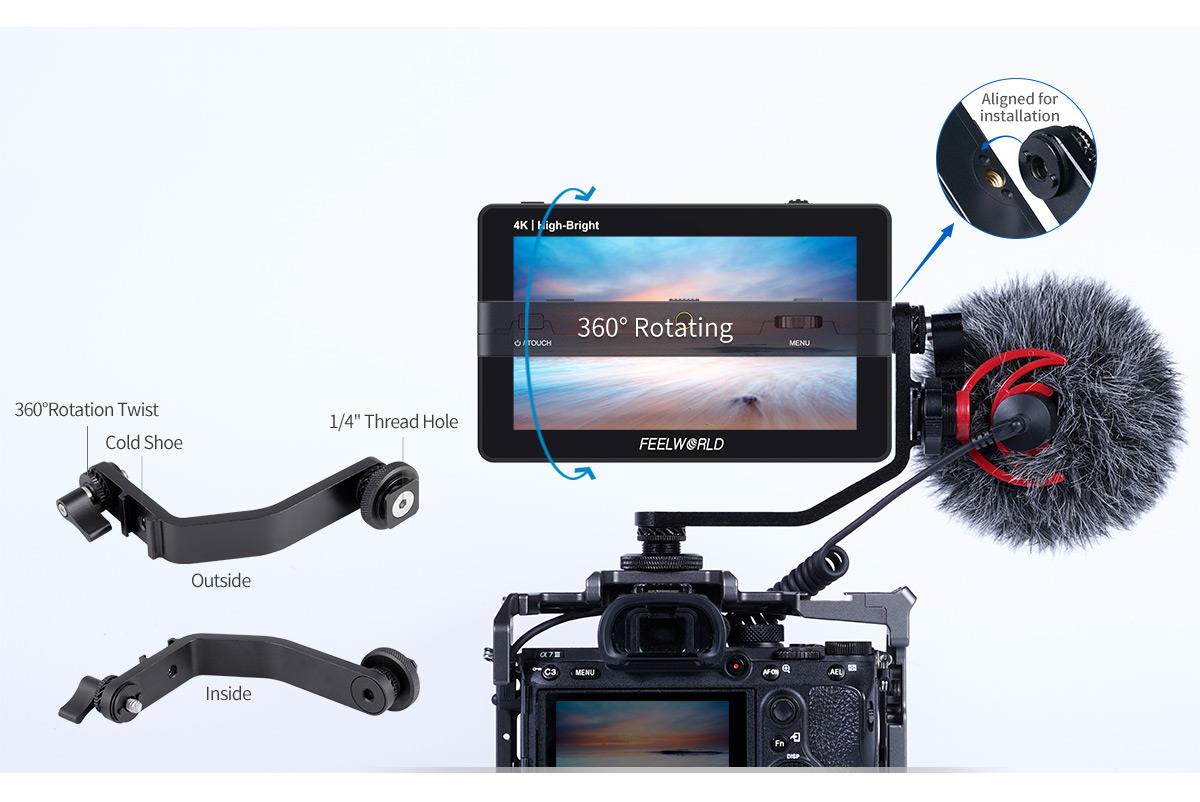

The monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows F6 PLUSX to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
• There are two small dots on the tilt arm, which are aligned with the monitor for installation, the connection is more stable, just grab the monitor to rotate without loosening the screws.
You also can use the sun-hood resist strong light when outdoor shooting. It is easy to install and portable.
* 5.5-inch 1920x1080 full HD IPS screen
* Touch screen menu operation, easy to use
* High Brightness 1600nits, visible in sunlight
* Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 32)
* HDR monitoring, what you see is what you get
* Provides auxiliary power out; allowing shooters to power their cameras
* All waves
* Waveform (RGB, YUV, Y)
* VectorScope
* Histogram (RGB1、RGB2、Y)
* Peaking Focus Assist (red, green,blue three peaking colors optional; 1~10 peaking level adjustable)
* False Colors (Normal, ARRI)
* Zebra Exposure (10%~100% adjustable)
* Scan Mode (Under Scan, Over Scan)
* Zoom Mode(2X,4X,9X,16X,User. Under the User, can be customized 100%~200%)
* Anamorphic Mode ( 1.33x, 1.6x, 2.0x, 2.0x mag,User.Under the User, can be customized 1.20X～2.00X)
* Pixel to Pixel
* Grid (2x2,3x3,4x4,5x5,6x6,7x7,8x8,9x9)
* Center Marker
* Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Ratio Marker (4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1)
* Marker Color (Red, Green, Blue, Black, White, Gray)
* Check Field (Red, Green, Blue, Mono)
* Image Flip (H, V, H/V)
* Image Freeze
* Display Adjustment (adjust screen backlight, image brightness, Contrast,Saturation,Tint 0~100)
* Color Temperature Adjustment (5600K, 6500K, 9300K, User.Under the User, the red, green and blue of the image can be adjusted 0~255)
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
Audio Meter Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. Below -18dB column shows green; -18dB~-08dB column shows yellow; above -08dB shows red.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Grid
Grid is the most common and basic composition method. The area of the picture can be divided into 4, 9, 16, 25, 36, 49, 64, 81 equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
| Model | F6 PLUSX |
| Screen Size | 5.5" Touch Screen |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 1600cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| 1 X HDMI | HDMI |
| 1 X Type C | 5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply) |
| 1 X SD Card Slot | Use for LUT file import/firmware update |
| 1 X HDMI | HDMI |
| 1 X DC Output | DC Output |
| Audio | 3.5mm Stereo Headphone |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
| Input Voltage | DC7～24V |
| Power Consumption | ≤10W |
| Power Connector | DC |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | ¼-20 thread points (top, bottom, right) |
| Unit Size | 148Lx93Hx20D (mm) |
| Unit Weight | 235g |
| Color Box Size | 186L*124W*80H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | 7.2kgs |
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload |
| * Support Touch Menu |
| * All Waves |
| * Waveform (RGB, YUV, Y) |
| * Vector |
| * Brightness Histogram |
| *Peaking Focus Assist(red, green,blue three peaking colors optional; 1~10 peaking level adjustable) |
| *False Colors (Normal, ARRI) |
| *Zebra Exposure(10%~100% adjustable) |
| *Check Field(Red, Green, Blue, Mono) |
| *Scan Mode (Under Scan, Over Scan) |
| *Anamorphic Mode(1.33x, 1.6x, 2.0x, 2.0x mag) |
| **Flip H/ Flip V (All open, H/V flip) |
| *Image Freeze |
| *Grid (2x2,3x3,4x4,5x5,6x6,7x7,8x8,9x9) |
| *Center Marker |
| *Safety Frames ( 80%, 85%, 90%, 93%, 96%, 2.35:1) |
| *Marker Color (Red, Green, Blue, Black, White, Gray) |
| *Ratio Marker ( 4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1) |
| *Color Temperature Adjustment |
| * Zoom(2X、4X、9X、16X) |
| * Aspect Ratio(Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Pixel to Pixel |
1× Monitor
1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Manual
