10.1" 1024x600 IPS LCD Touch Screen SKD Module SKD10.1VAT-9
-
Touch Screen Optional:
4/5Wire Resistive Touch
Touch Interface:
USB (RS232 Optional)

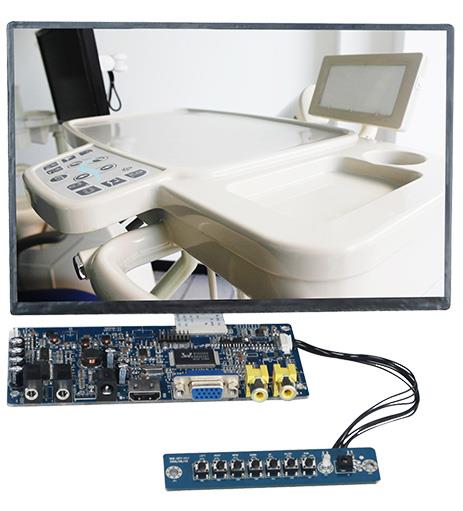

FEELWORLD supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer. It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc. application.
Wider Viewing Angle
Enjoy Consistent Images from Any Perspective. SKD101AHT uses an IPS panel 1024×600 high resolution, which provides a wide 170°/170° viewing angle and brightness output of up to 450nit. This means you'll be able to see accurate, consistent and bright images from any point of view.
Enjoy Consistent Images from Any Perspective. SKD101AHT uses an IPS panel 1024×600 high resolution, which provides a wide 170°/170° viewing angle and brightness output of up to 450nit. This means you'll be able to see accurate, consistent and bright images from any point of view.
Features
FEELWORLD SKD modules are manufactured with steady performance and low power consumption. They are mainly applied to various facilities, such as car navigation system, HTPC, thin client PC, panel PC, POS, industrial control system etc.
FEELWORLD SKD modules are manufactured with steady performance and low power consumption. They are mainly applied to various facilities, such as car navigation system, HTPC, thin client PC, panel PC, POS, industrial control system etc.
Application
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems.
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems.
Display Spec.
| Model | SKD10.1VAT-9 (without touchscreen: SKD101VA-9) |
| Screen Size | 10.1" IPS |
| Touch Screen | 4-Wire Resistive Touch (5-Wire for Optional) |
| Touch Interface | USB (RS232 for Optional) |
| Resolution | 1024×600 pixels |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
Display Spec. (Optional)
| Model | SKD10.1VAT-9 (without touchscreen: SKD101VA-9) |
| Screen Size | 10.1" |
| Touch Screen | 4-Wire Resistive Touch (5-Wire for Optional) |
| Touch Interface | USB (RS232 for Optional) |
| Resolution | 1366×768 pixels |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m² |
| Contrast Ratio | 500:1 |
| Backlight | LED |
| Viewing Angle | 45°/45°(L/R) 20°/45°(U/D) |
Interfaces (Optional)
| HDMI, DVI, VGA, YPbPr, Video, Audio in, Audio out, USB for touch |
| HDMI, VGA, AV1, AV2, Audio out, Audio in |
| VGA, S-video, Video, Audio R/L in, Audio in, Audio out, USB for touch |
General
| Input Voltage | DC9-15V |
| Power Consumption | ≤6W |
| Working Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ |
| Unit Size | 235L×143H×4.5D (mm) |
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems.
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems.
Standard Accessories:
1× Power Adapter
1× VGA Cable
1× Remote Control
1× Touch Pen
1× Optical Disc
1× Power Adapter
1× VGA Cable
1× Remote Control
1× Touch Pen
1× Optical Disc
