FEELWORLD FW759 PRO 7-Inch Touch Screen Camera Field Video Monitor 4K HDMI 1280x800 IPS
| Number: | 202508221652571587 |
|---|---|
| Model: | FW759 PRO |
| Size: | 7" |
| Introduction: |
Screen Size： 7" IPS Resolution： 1280x800 pixels Aspect ratio： 16:10 Brightness： 400cd/m² |
| Input: | HDMI, AV, DC 12V, Type-C |
| Output: | Stereo Headphone |
| DM: | |
| Download: | |

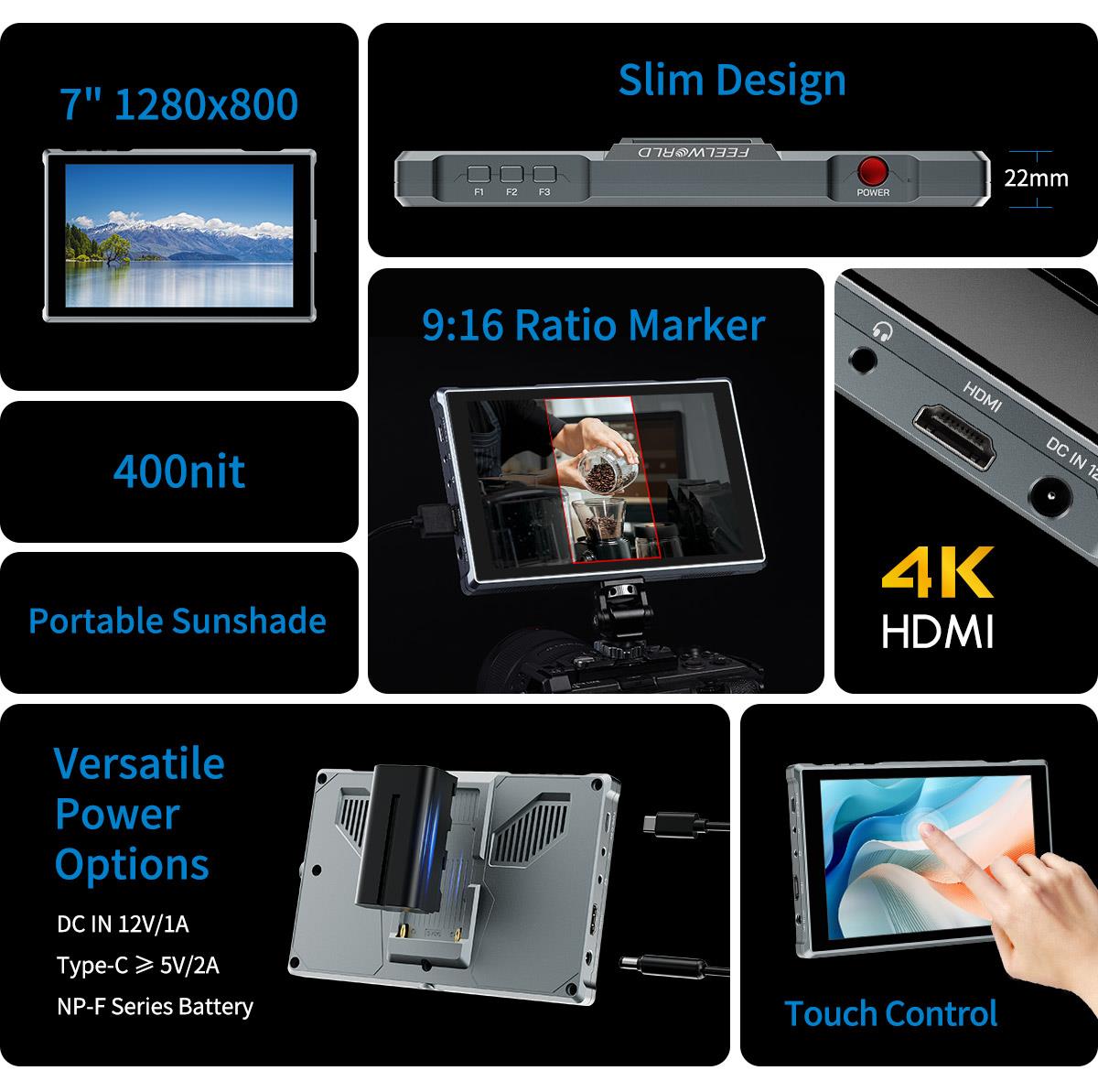

Effortless Setup, Precise Focus, Inspire Creation
FEELWORLD FW759 PRO is equipped with 7-inch HD IPS panel, full touch screen companied with iconified menu make the shooting more efficient. Slim design easy to carry, versatile professional camera assistance, perfect for video creation, photography, on-set monitoring.
FEELWORLD FW759 PRO is equipped with 7-inch HD IPS panel, full touch screen companied with iconified menu make the shooting more efficient. Slim design easy to carry, versatile professional camera assistance, perfect for video creation, photography, on-set monitoring.
Rich Colors and High Quality Display
Equipped with 7-inch 1280x800 HD IPS, ensure the monitor more precise color restoration exquisite picture quality and more rich color.
Equipped with 7-inch 1280x800 HD IPS, ensure the monitor more precise color restoration exquisite picture quality and more rich color.
178°Wide Viewing Angle
The IPS panel has a 178°wide viewing angle, allowing you to enjoy the delicate image details whatever monitoring from which angle.
The IPS panel has a 178°wide viewing angle, allowing you to enjoy the delicate image details whatever monitoring from which angle.

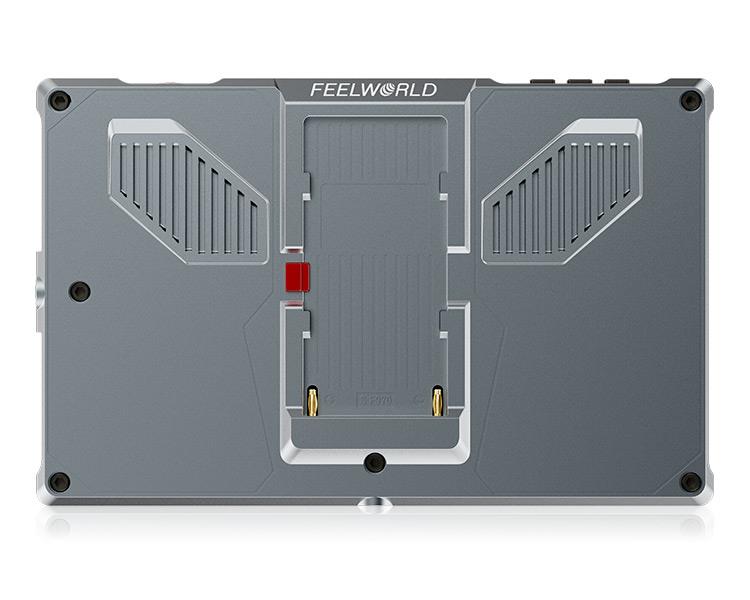

Slim and Lightweight Design
Slim and lightweight design, the FW759 PRO is your perfect travel companion for mobile shooting.
Slim and lightweight design, the FW759 PRO is your perfect travel companion for mobile shooting.

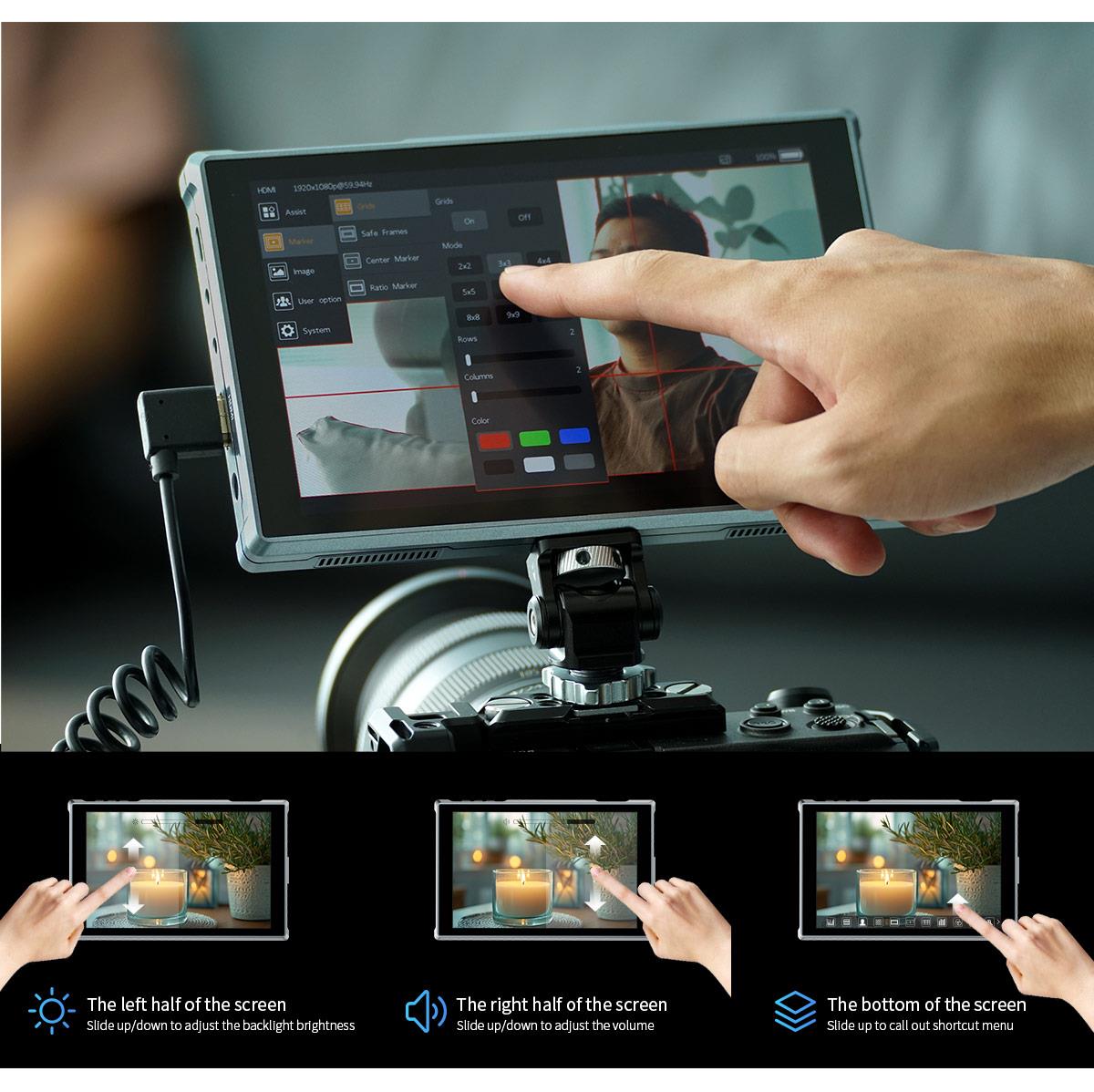

Intelligent Full Touch Control
The innovative touch screen user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.
The innovative touch screen user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

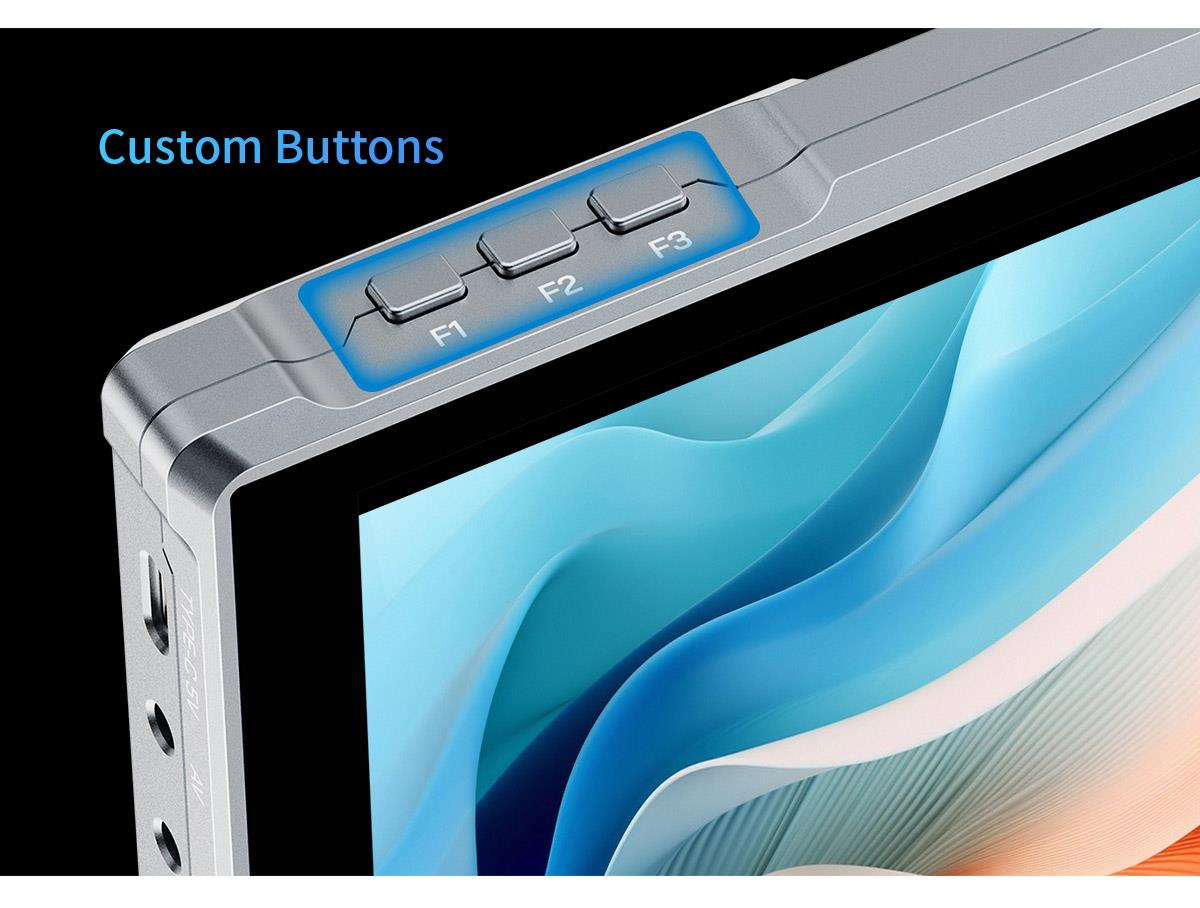

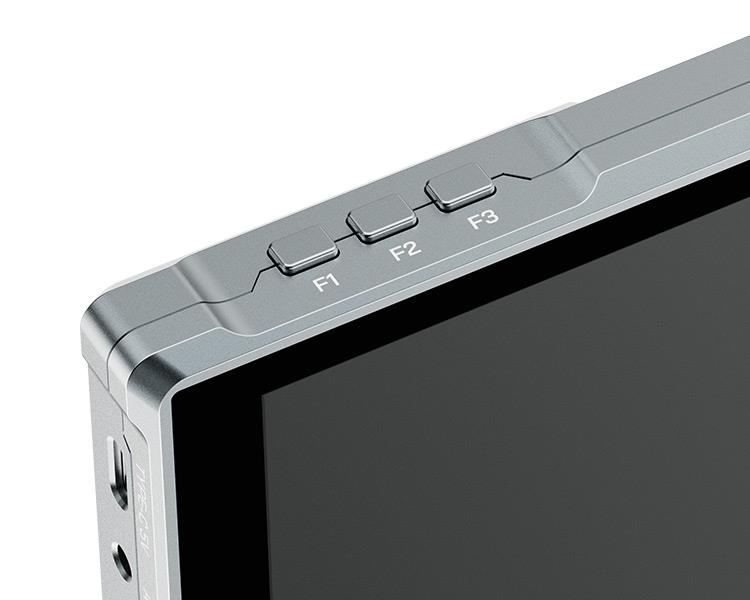

Quick Access with Custom Buttons
FW759 PRO provides three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.
FW759 PRO provides three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.

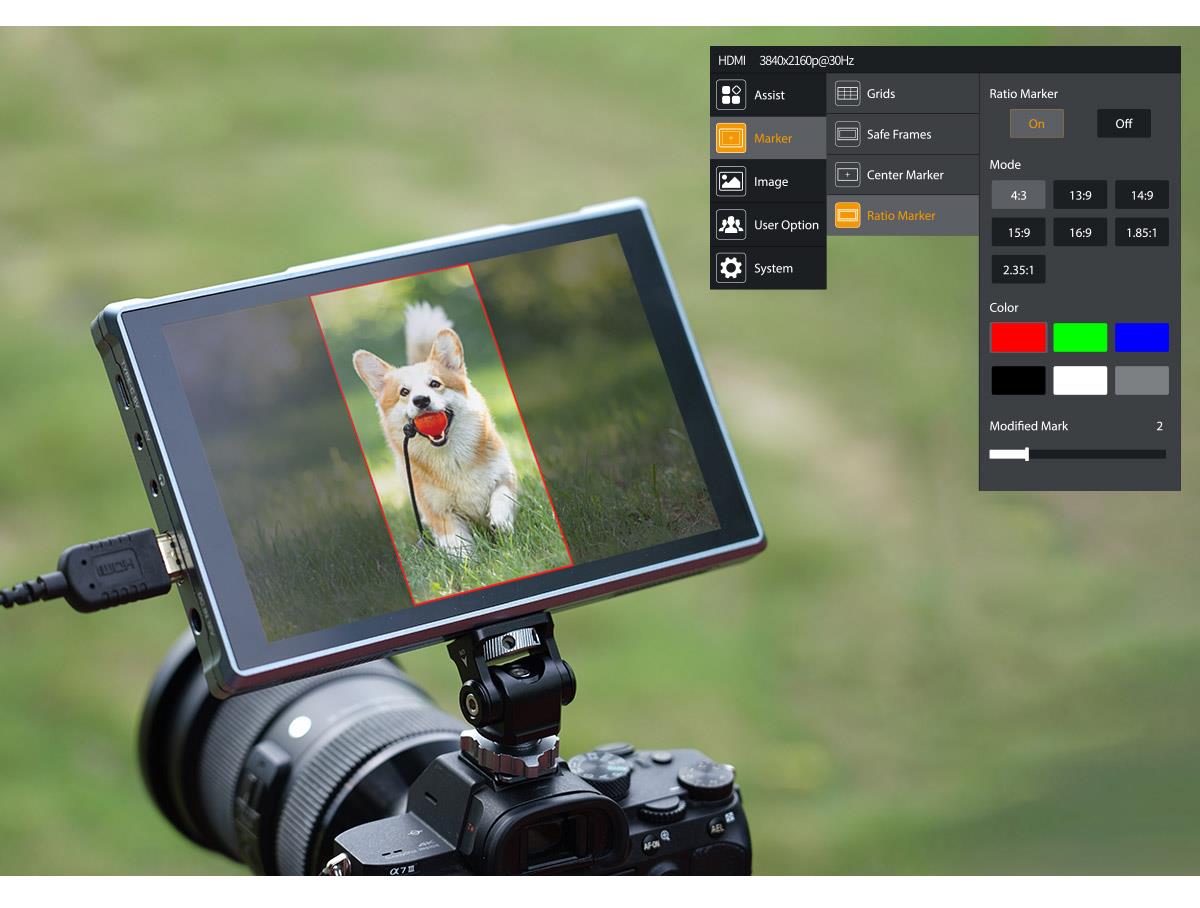

9：16 Vertical Screen Marker
FW759 PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.
FW759 PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.

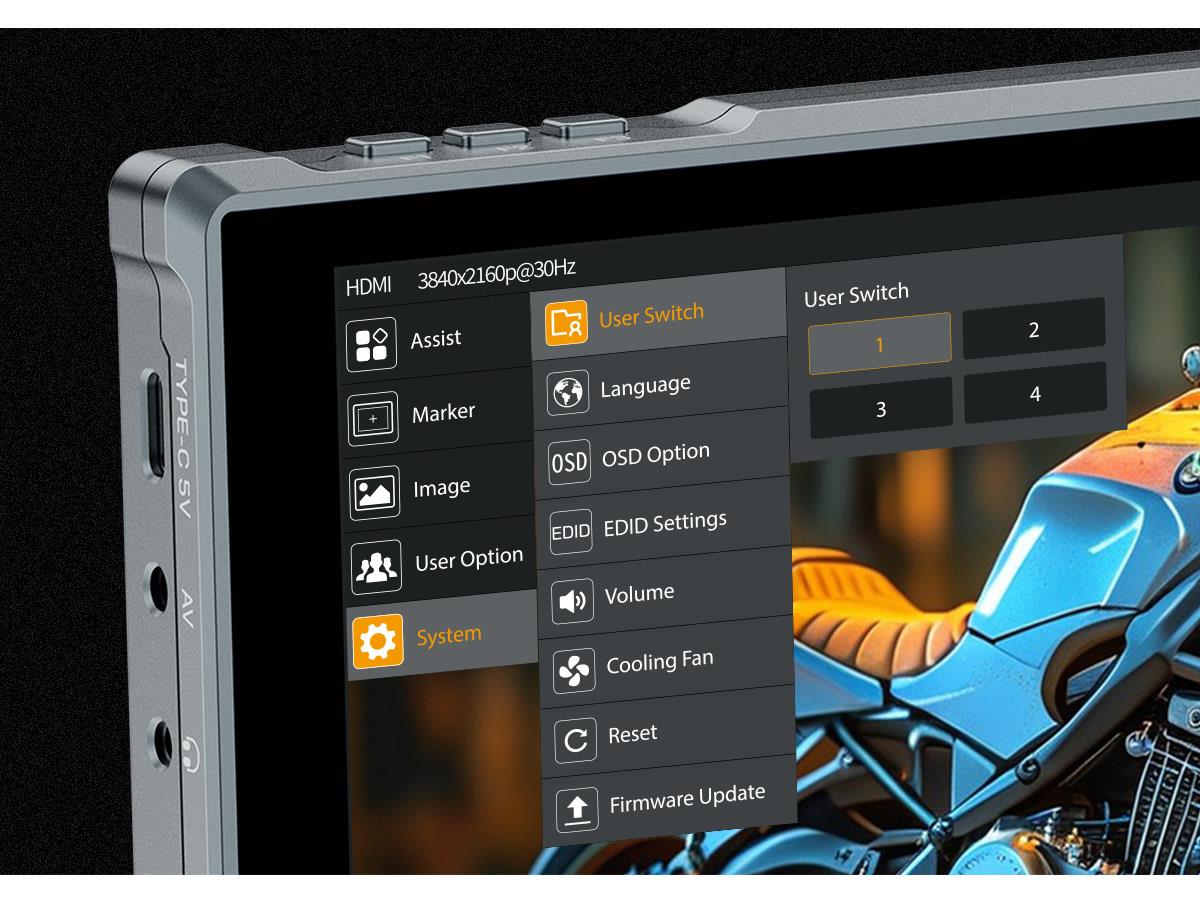

4 Menu User for Quick Switch
The monitor provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically,can be easily recalled or switched based on different shooting needs.
The monitor provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically,can be easily recalled or switched based on different shooting needs.

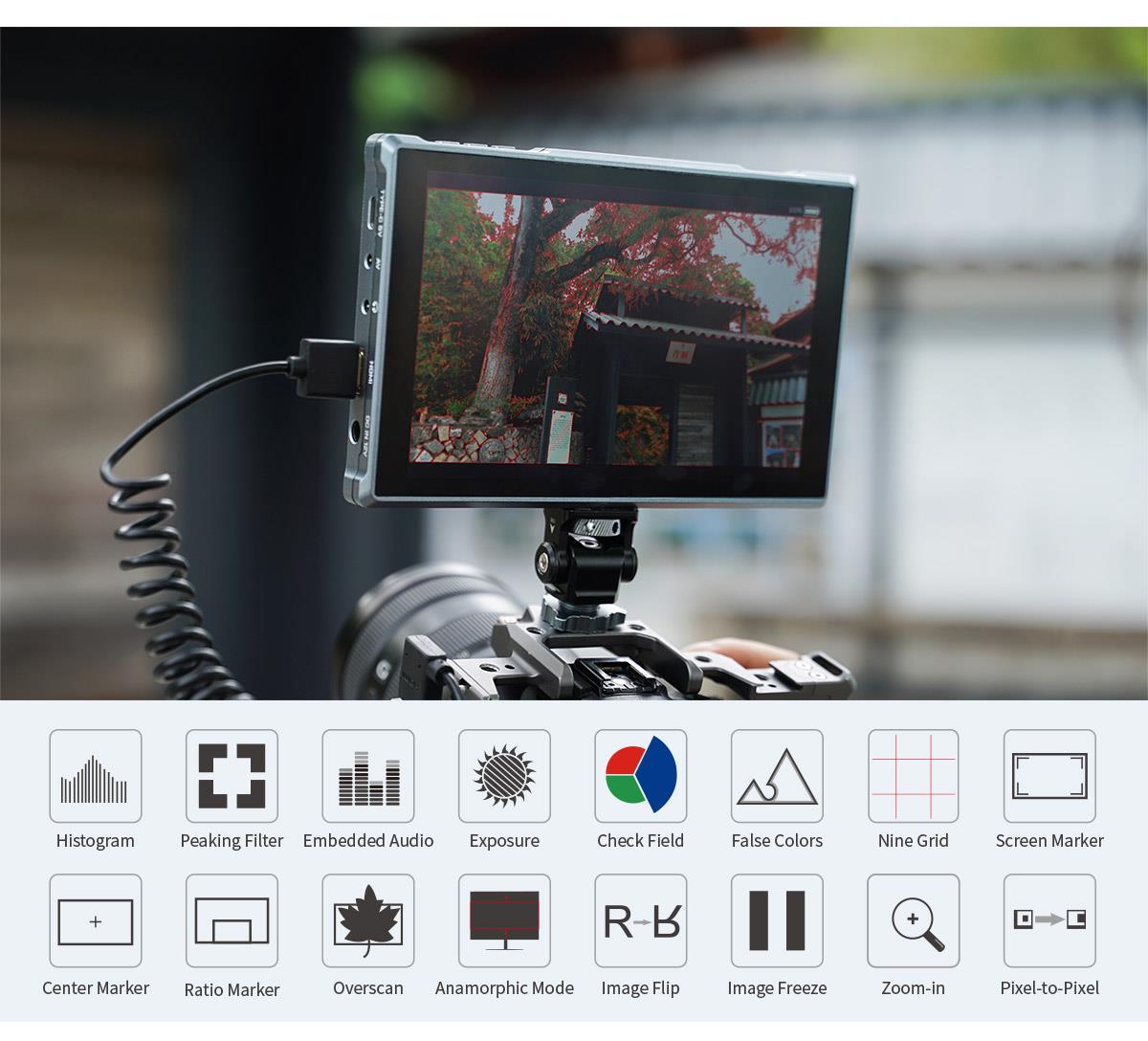

Rich Auxiliary Functions

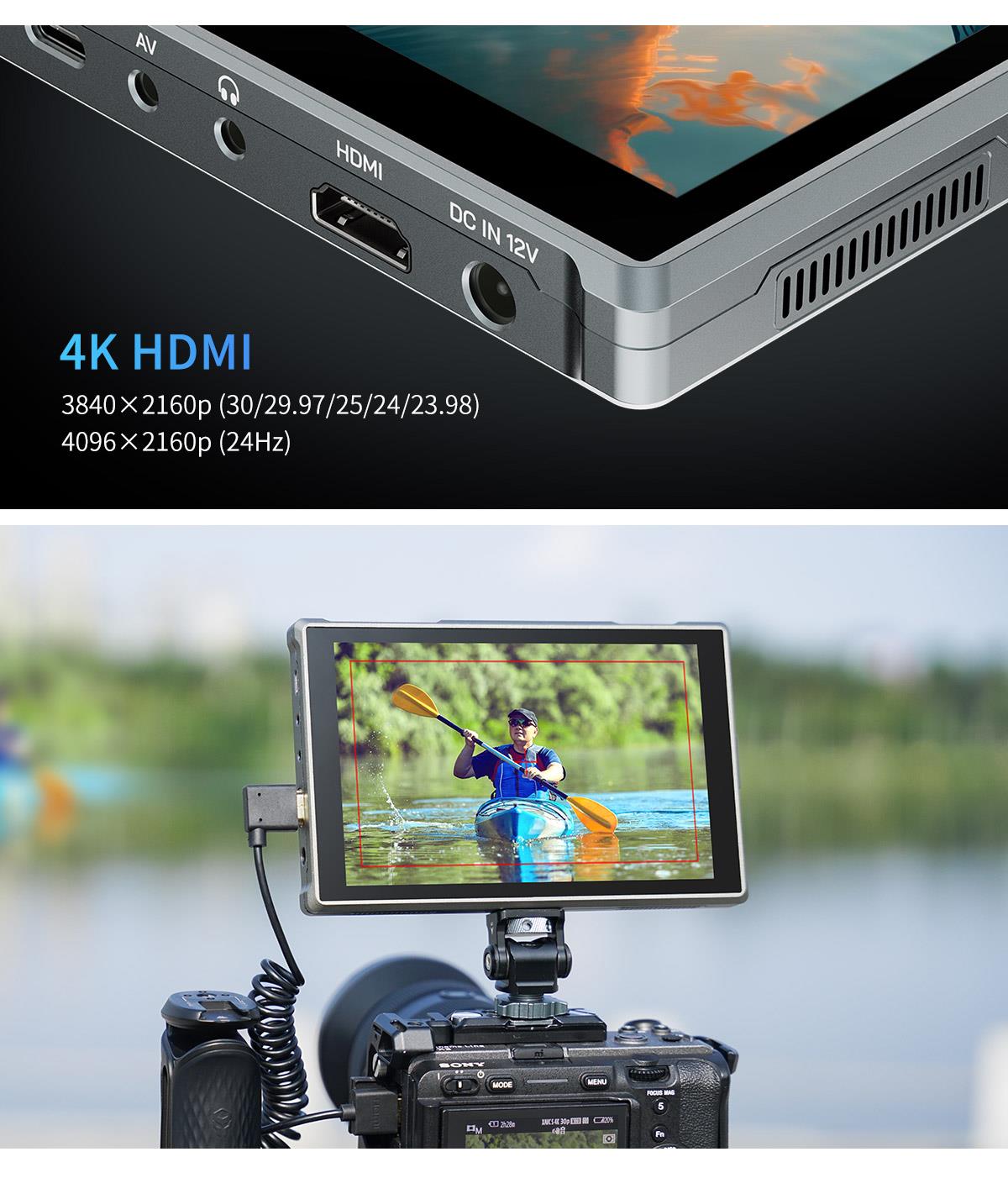

4K HDMI & AV Input
Support 4K 30Hz signal input for clear and smooth monitoring.Compatible with the latest DSLR cameras on the market. And also provides AV interface and a 3.5mm headphone jack to monitor audio.
Support 4K 30Hz signal input for clear and smooth monitoring.Compatible with the latest DSLR cameras on the market. And also provides AV interface and a 3.5mm headphone jack to monitor audio.

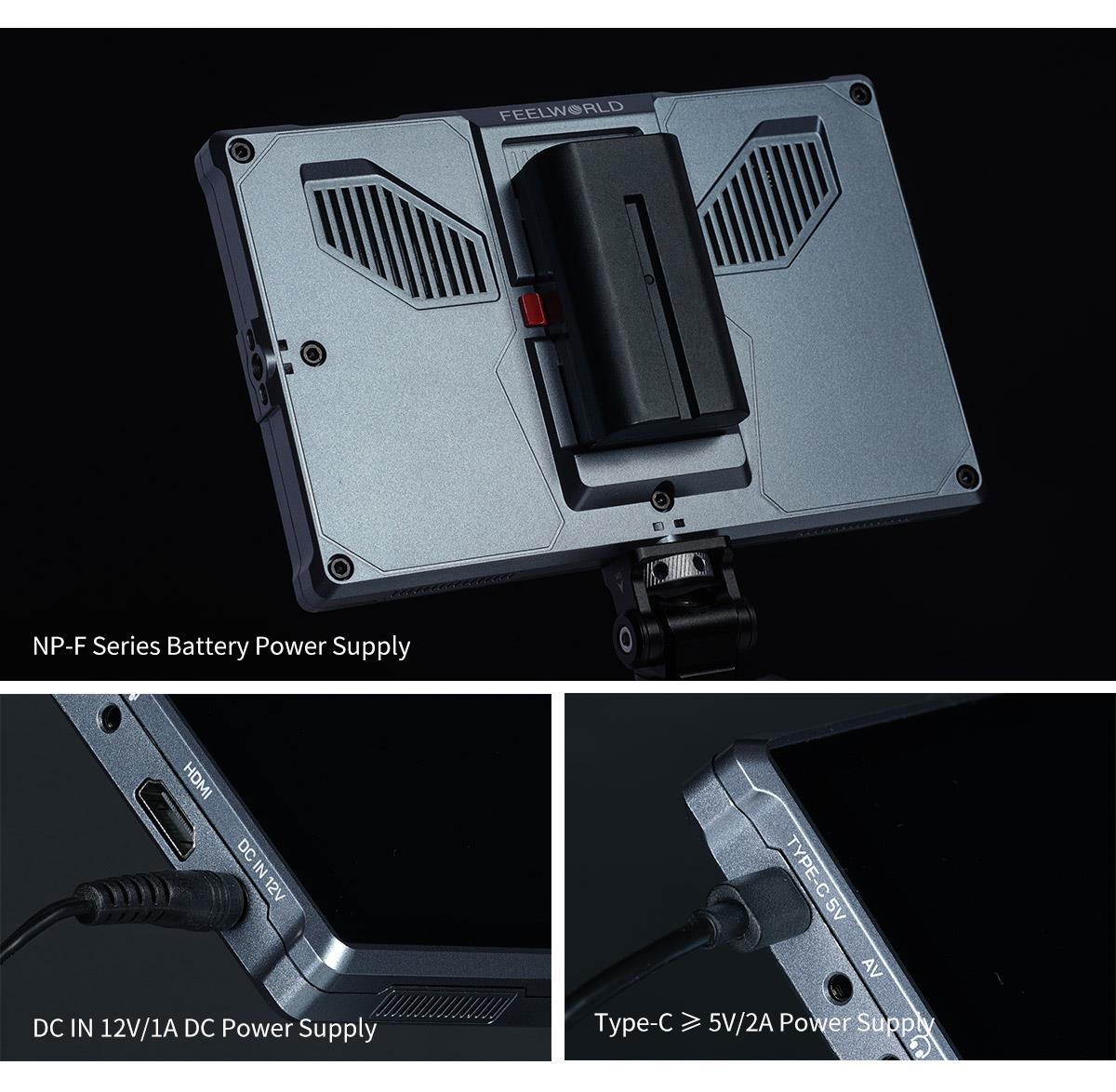

Versatile Power Options
You can connect to DC power input to get continuous power （suitable for use 1A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application. Install one F750 battery (4400mah) last for about 3.5 hours. The monitor also provides a 5V Type-C input, which can be powered by 5V/2A or more than 2A mobile phone charger or power bank.
You can connect to DC power input to get continuous power （suitable for use 1A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application. Install one F750 battery (4400mah) last for about 3.5 hours. The monitor also provides a 5V Type-C input, which can be powered by 5V/2A or more than 2A mobile phone charger or power bank.
Note: the battery excluding, please purchase separately.

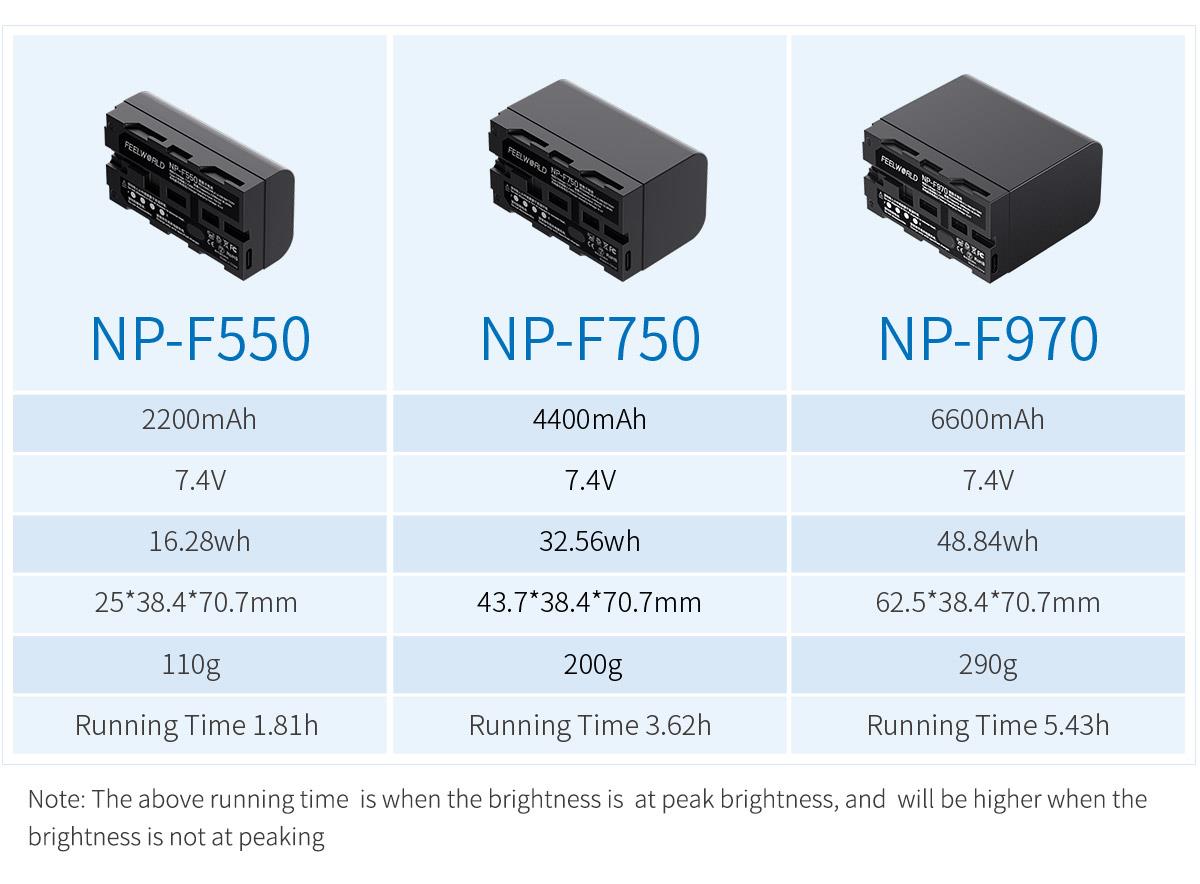

NP-F Battery Optional Recommendation
The power consumption of FW759 PRO is 9W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.
The power consumption of FW759 PRO is 9W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

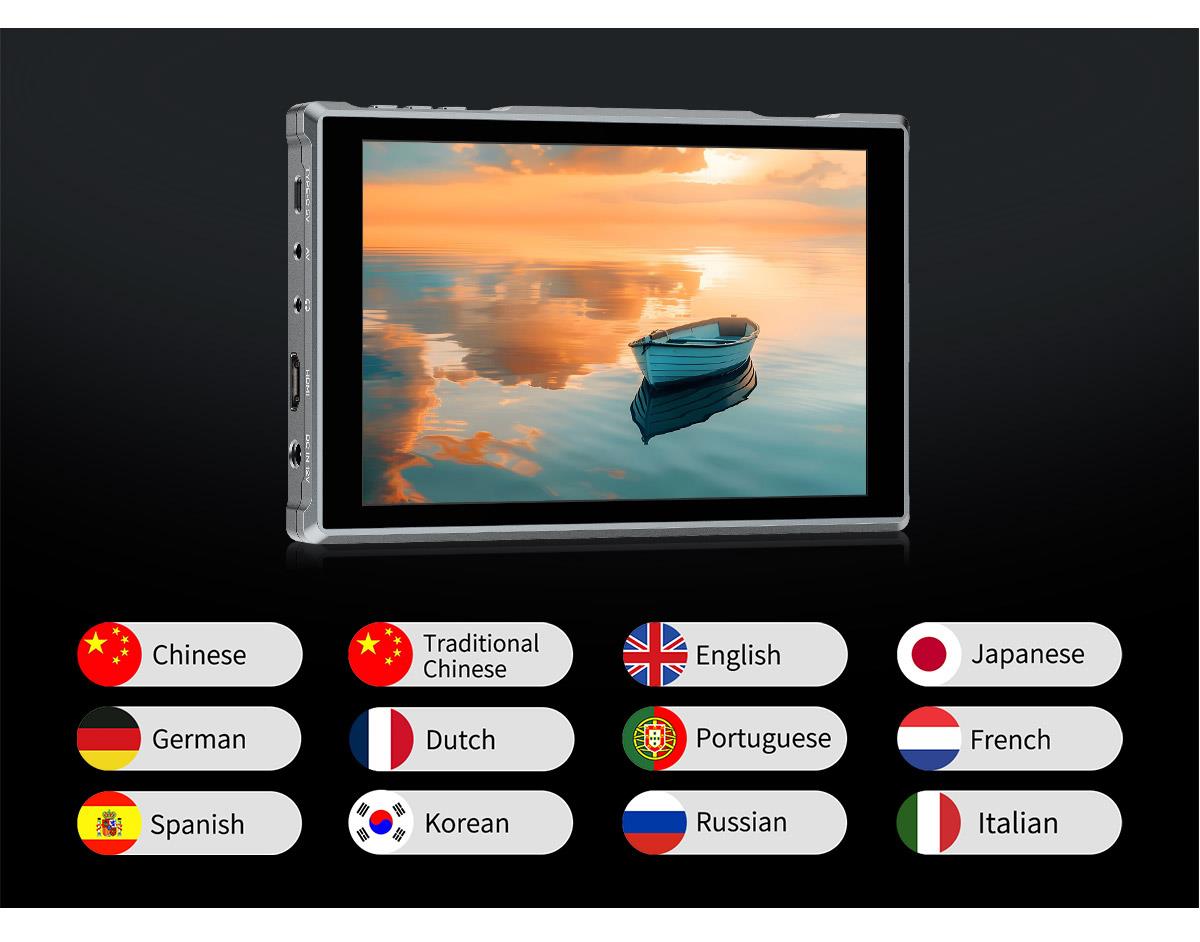

12 Languages Supporting
FW759 PRO built-in up to 12 languages, that means FW759 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
FW759 PRO built-in up to 12 languages, that means FW759 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

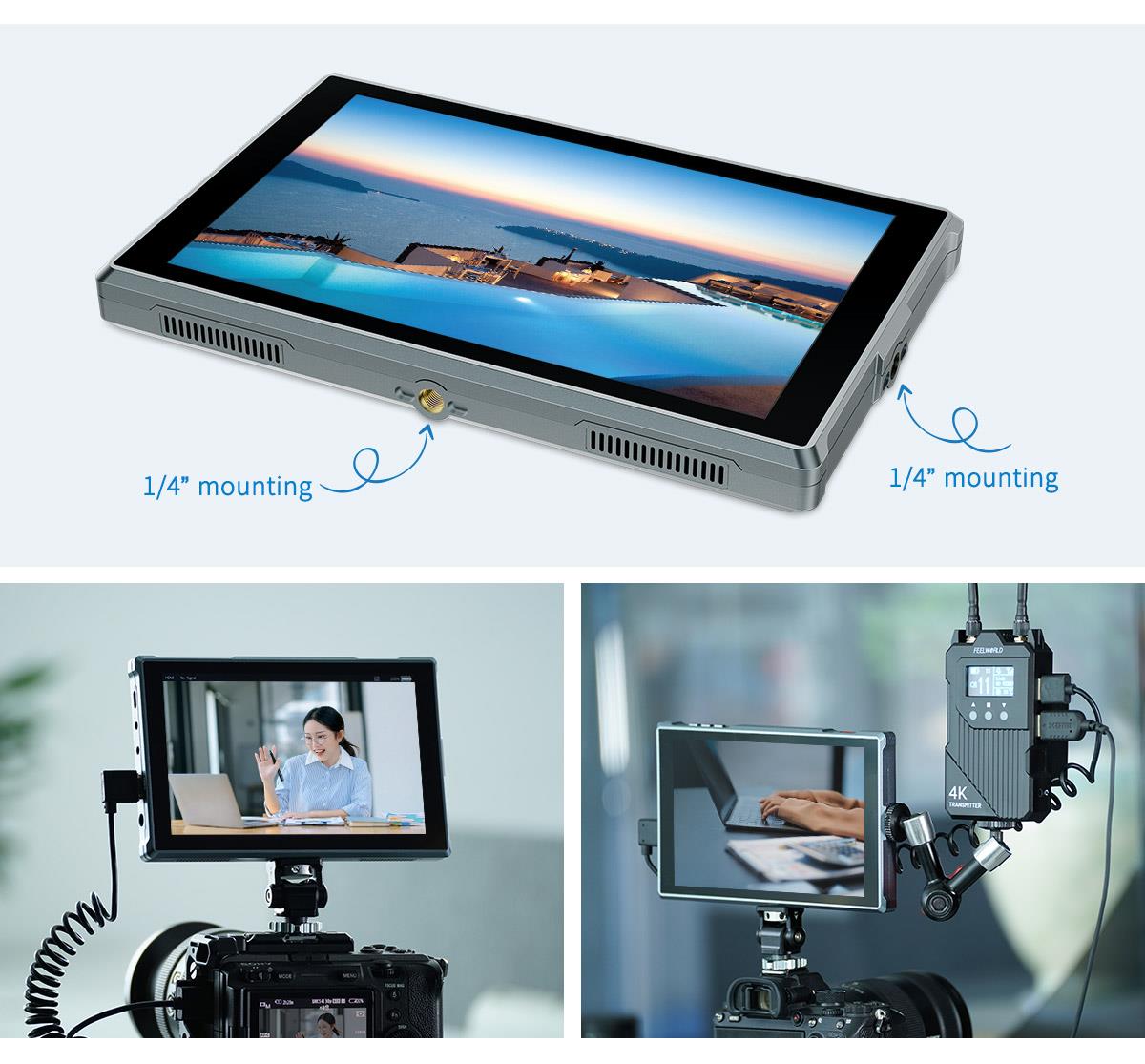

Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

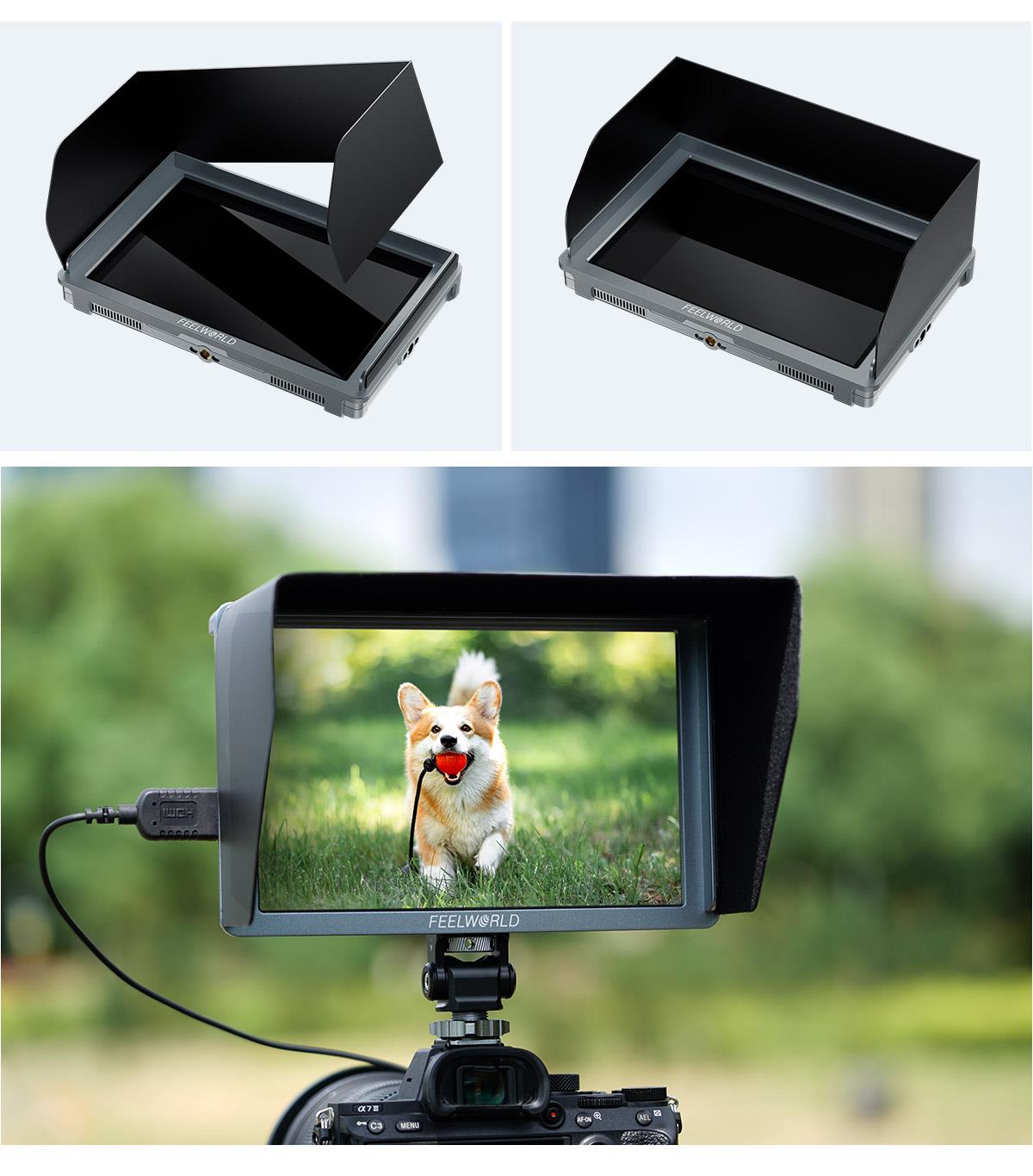

Portable Sun-hood
The standard portable sun-hood can easy to resist the strong light, and easy to install.
The standard portable sun-hood can easy to resist the strong light, and easy to install.
HDMI Cable type reference for matching different camera models
Advanced Features
| * Histogram |
| * Embedded Audio |
| * Focus Assist(Red, Green, Blue three focus colors optional) |
| * False Colors |
| * Zebra Pattern (10IRE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9) |
| * Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16) |
| * Center Marker |
| * Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16) |
| * Marker Color (Red, Green, Blue, Black, White, Gray) |
| * Scan Mode (Under Scan, Over Scan) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x) |
| * Image Flip (H Flip, V Flip, H_V Flip ) |
| * Image Freeze |
| * Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%) |
| * Pixel to Pixel |
| * Display Range( Auto, Limit, Full) |
| * Display Adjustment (backlight,Brightness, Contrast, Saturation, Tint) |
| * User Switch (1~4) |
| * OSD Time(Off, 15Sec, 30Sec, 45Sec) |
| * OSD Transparency (Off, 25%, 50%, 75%) |
| * Shortcut Key set |
| * Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255) |
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 4 ,9, 16, 25, 36, 49,64,81equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1,9:16). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1,9:16). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
Display Spec.
| Model | FW759 PRO |
| Screen Size | 7"IPS |
| Resolution | 1280x800 pixels |
| Pixel Pitch | 39.25(H) x RGB x 117.75(V) mm |
| Color Depth | 8bit |
| Aspect Ratio | 16:10 |
| Brightness | 400cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Signal Input
| 1 X HDMI | HDMI 1.4 |
| 1 X AV | AV |
Audio
| Audio | 3.5mm Stereo Headphone |
HDMI Input and Output Support Format
| 480i /480p /576i /576p |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
| 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4096×2160p (24Hz) |
General
| Power Input | DC IN 12V, Barrel (5.5mm outer, 2.1mm inner);Type-C 5V(please use 5V/2A or more than 2A Type-C power supply) |
| Power Consumption | ≤9W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread Point (right side, bottom) |
| Unit Size | 182Lx115Hx22D (mm) |
| Unit Weight | 300g |
| Color Box Size | 222L*158W*76H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 450*234*385 (mm) |
| Gross Weight | kg |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

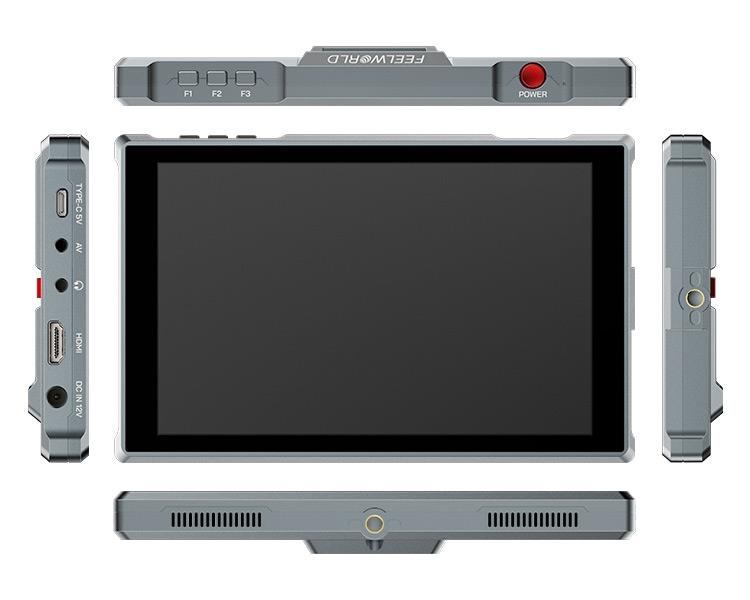

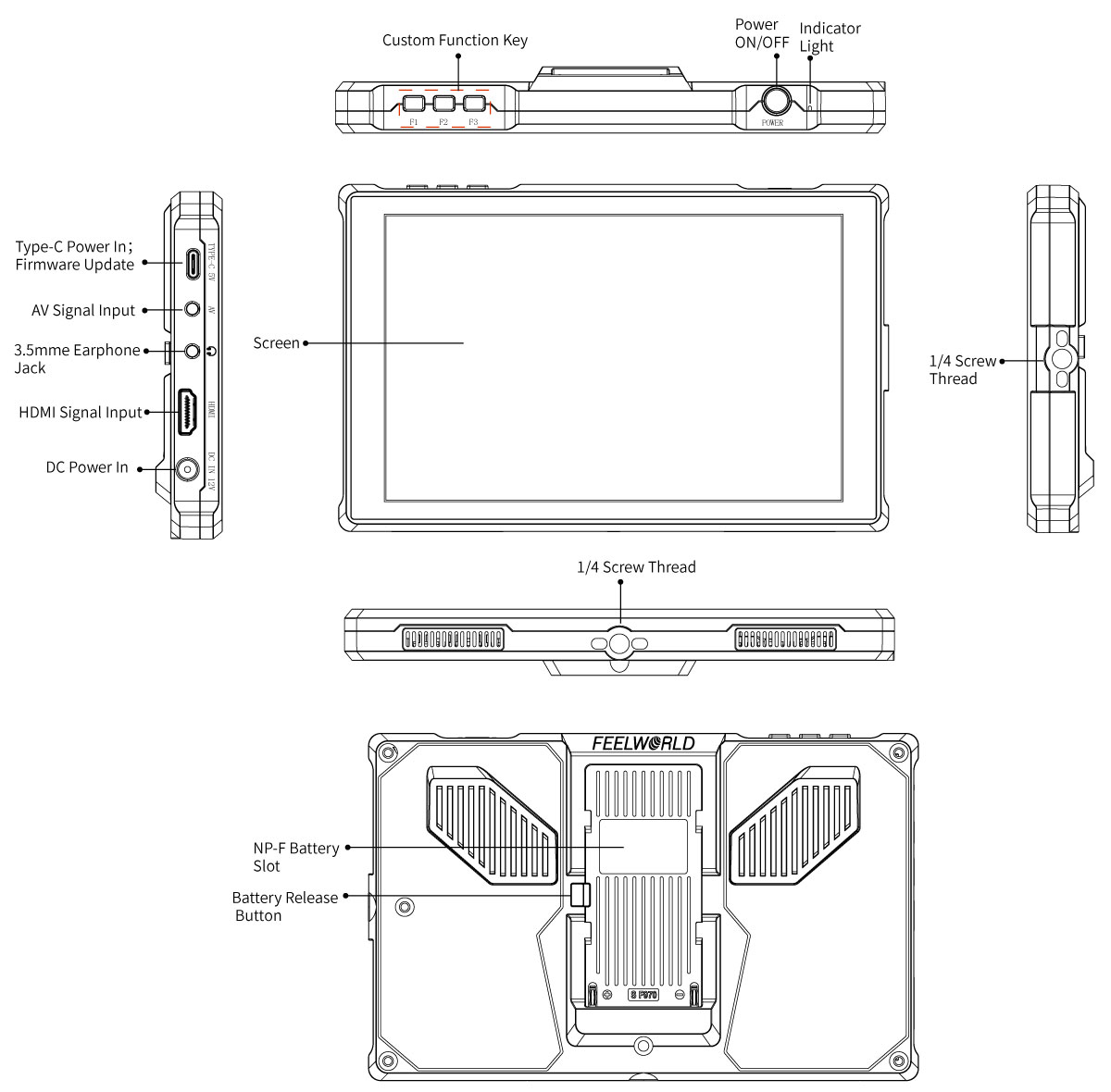

PRODUCT OVERVIEW

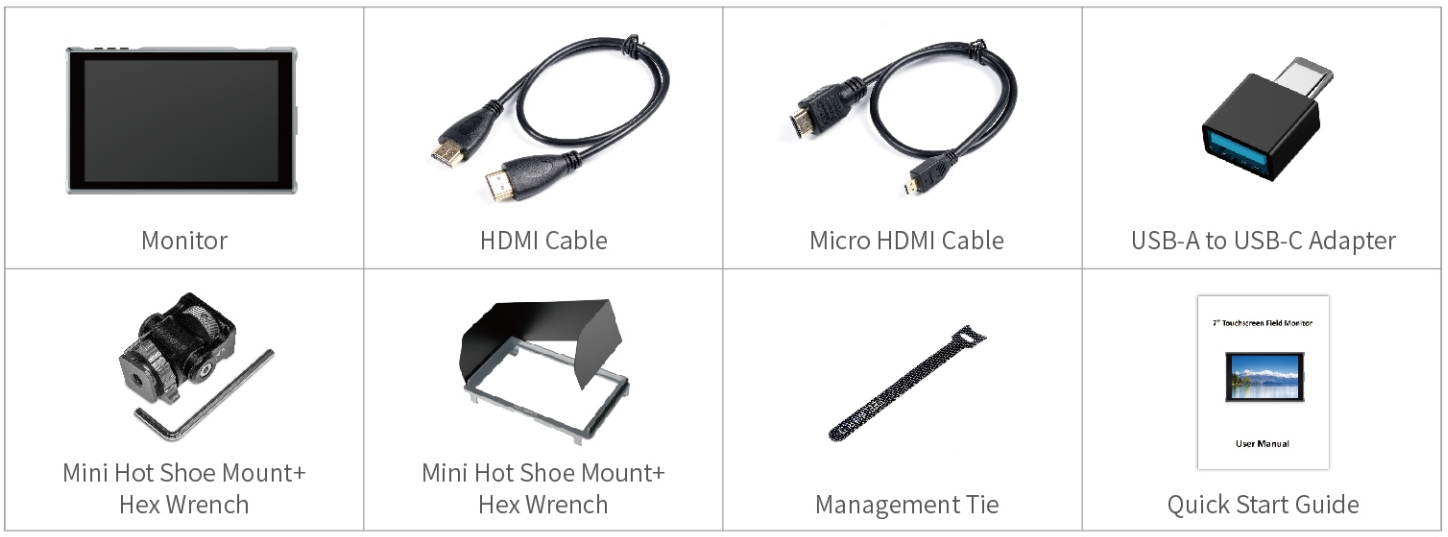

Packaging List:
1× Monitor
1× HDMI Cable
1× Micro HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB-A to USB-C Adapter
1× Sun Shade + Frame
1× Cable Management Tie
1× Quick Start Guide
1× Monitor
1× HDMI Cable
1× Micro HDMI Cable
1× Mini Hot shoe mount + Hex Wrench
1× USB-A to USB-C Adapter
1× Sun Shade + Frame
1× Cable Management Tie
1× Quick Start Guide
